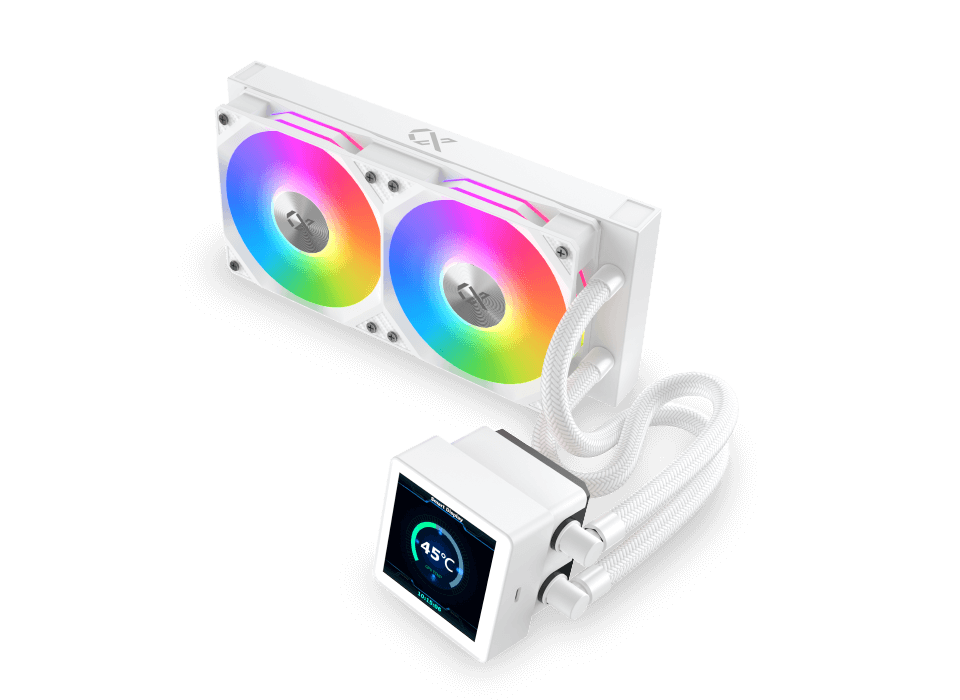

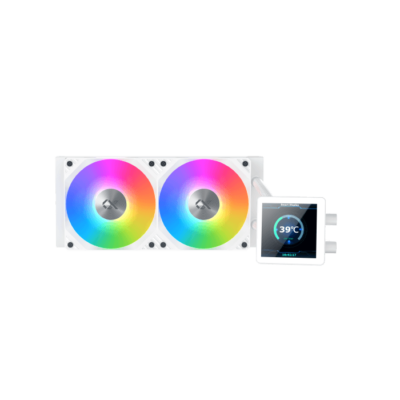

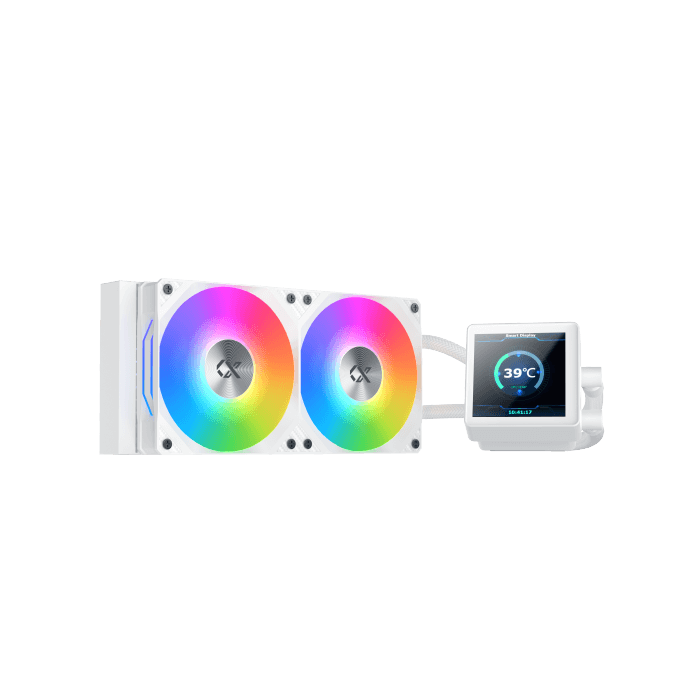

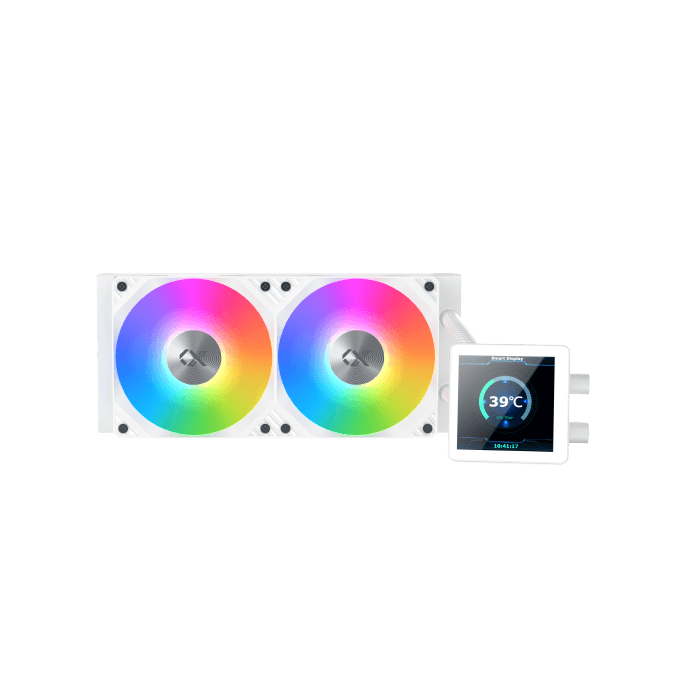

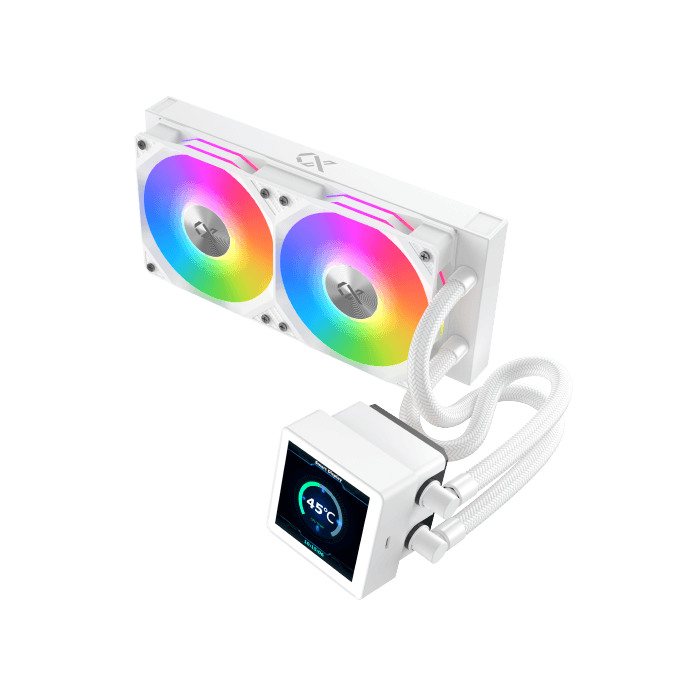

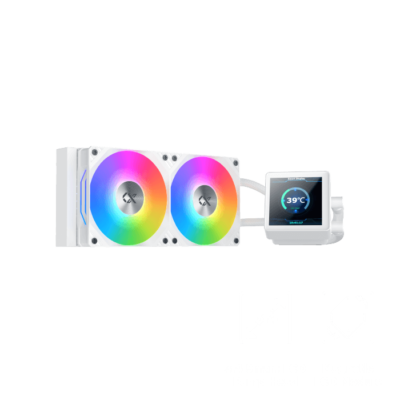

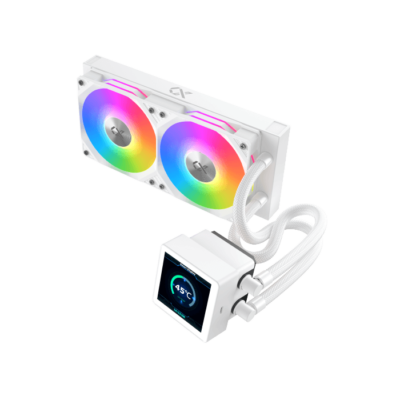

Connect 240 Arctic

Connect 240 Arctic
Overview

Connect Series

Support Latest Specifications

3.4 Smart LCD Pump Head

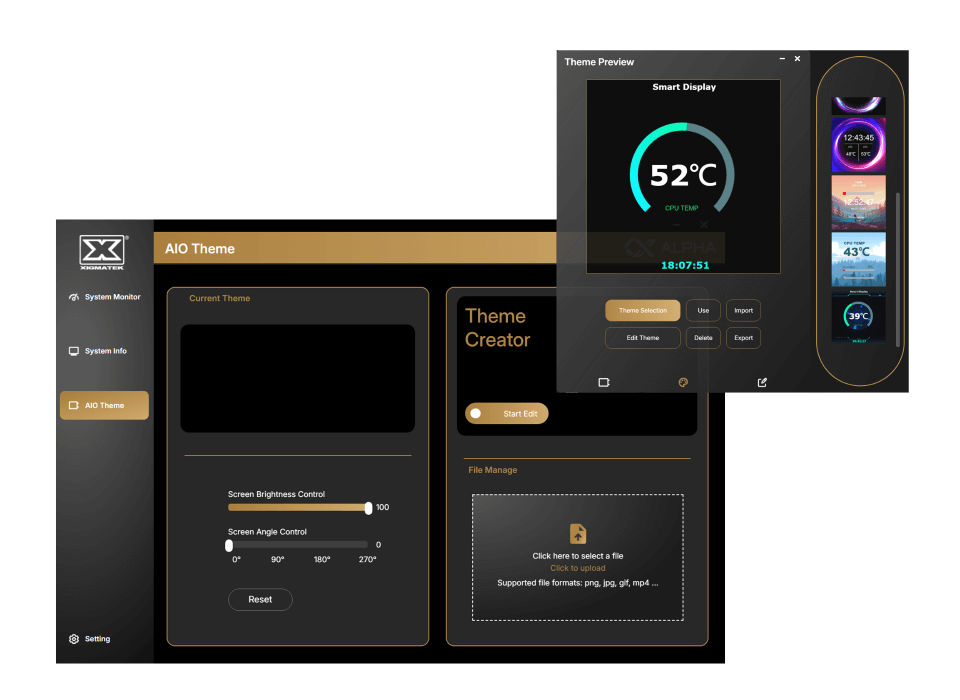

Smart Digital LCD Software

ARGB Controller

Magnetic LCD Module

Efficient Heat Dissipation

Clean Classic Design

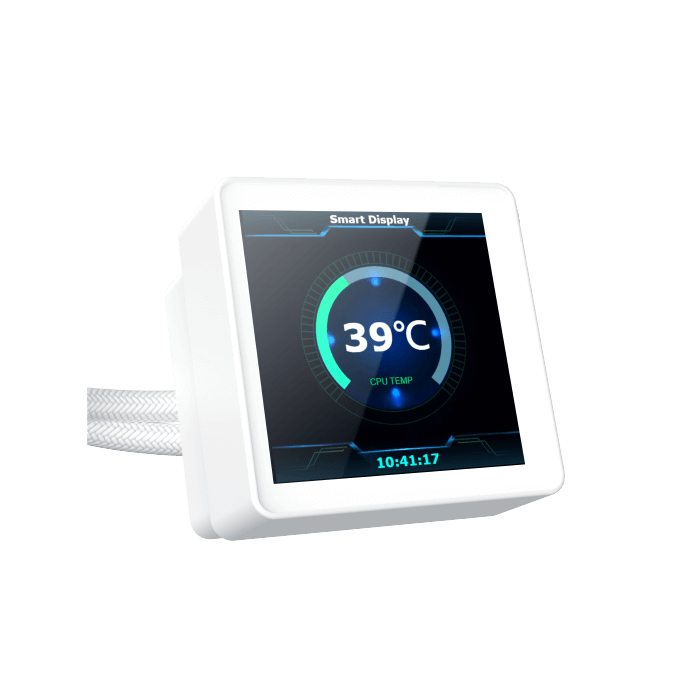

3.4 Smart LCD Pump Head
with Smart Software

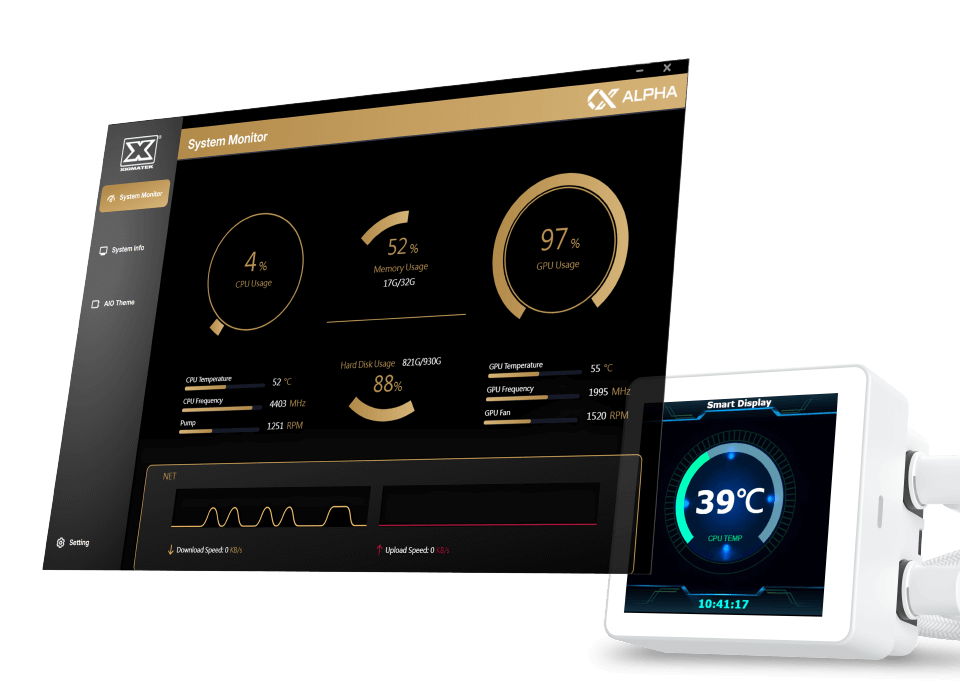

Real-Time Monitoring Shows Computer Usage and More

Multiple Themes Included

Adjustable Screen Angle and Brightness, with Themes Offering Distinct Visuals and Layouts for Hardware Monitoring

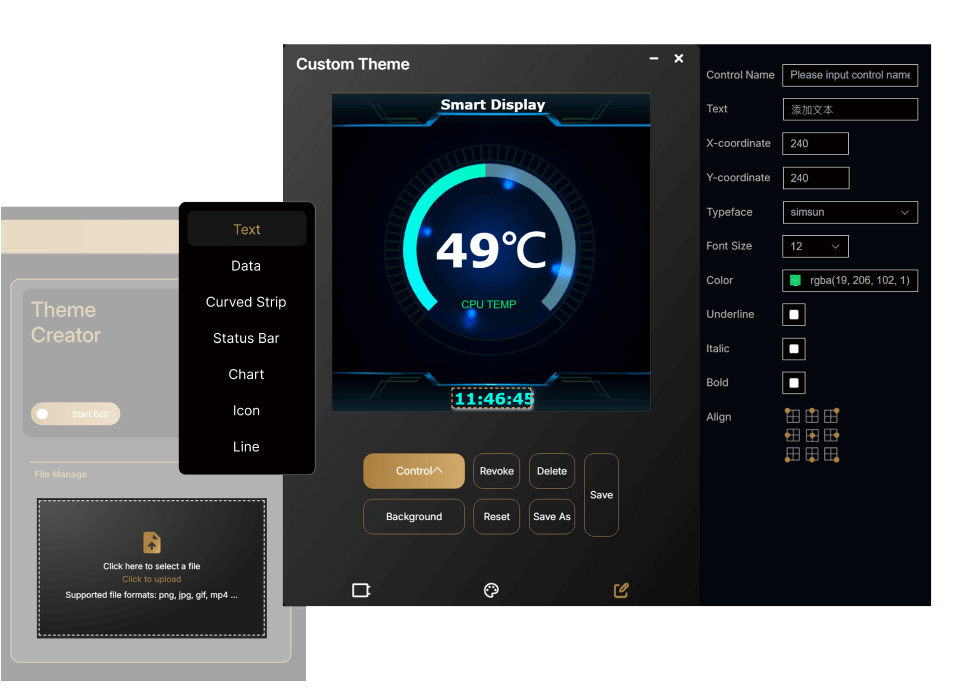

Custom Your Personal
Style

Customize Your Display to Show Your Favorite Backgrounds and Information

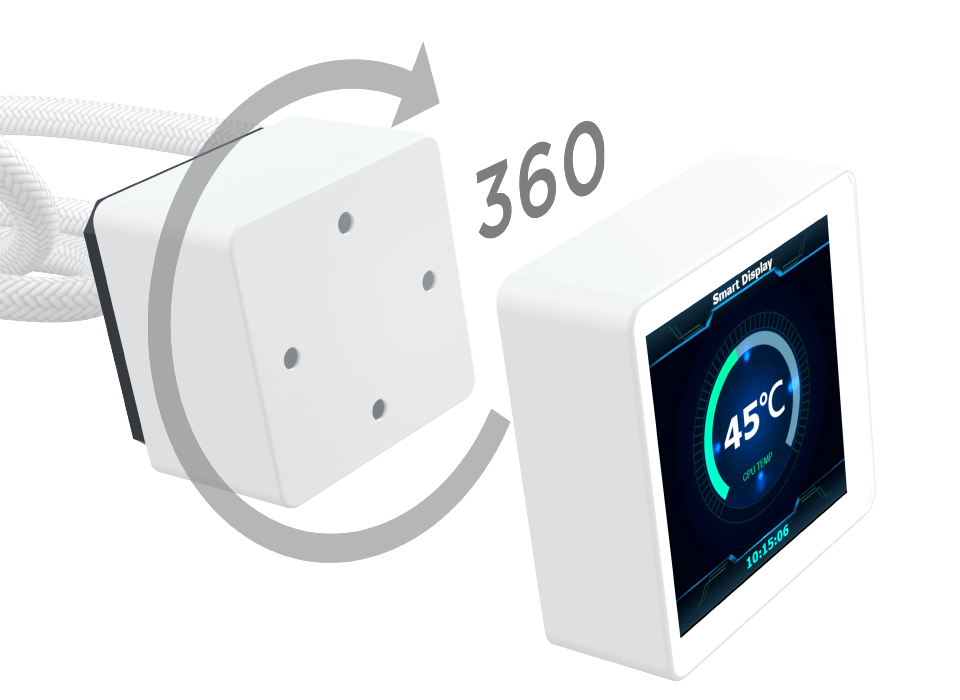

Magnetic LCD Module

The Magnetic LCD Module Can Be Rotate to Four Angles as You Desire

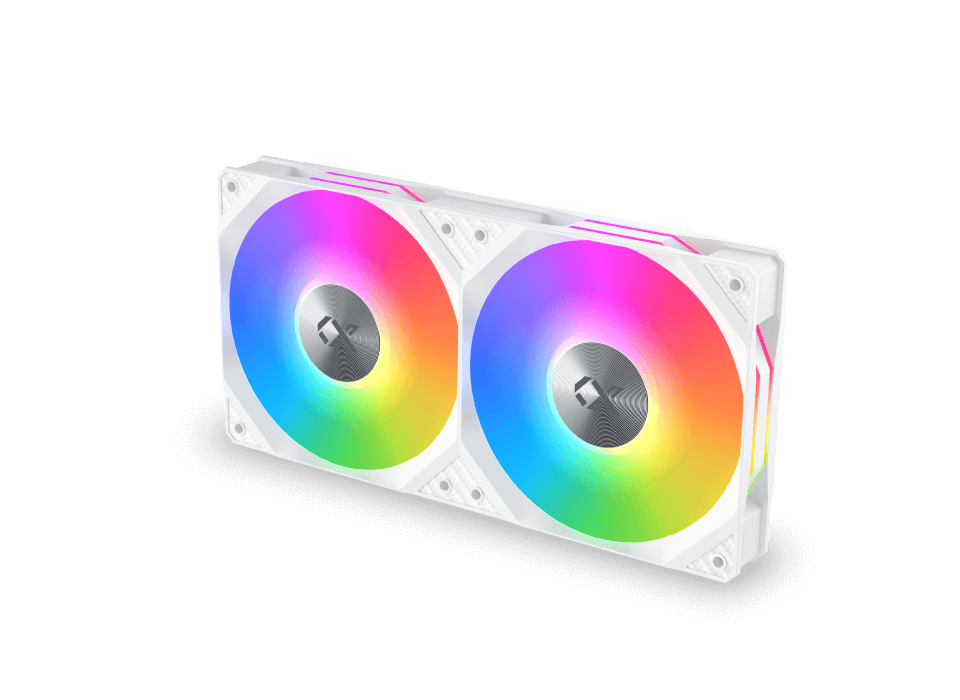

240 PWM ARGB Fan

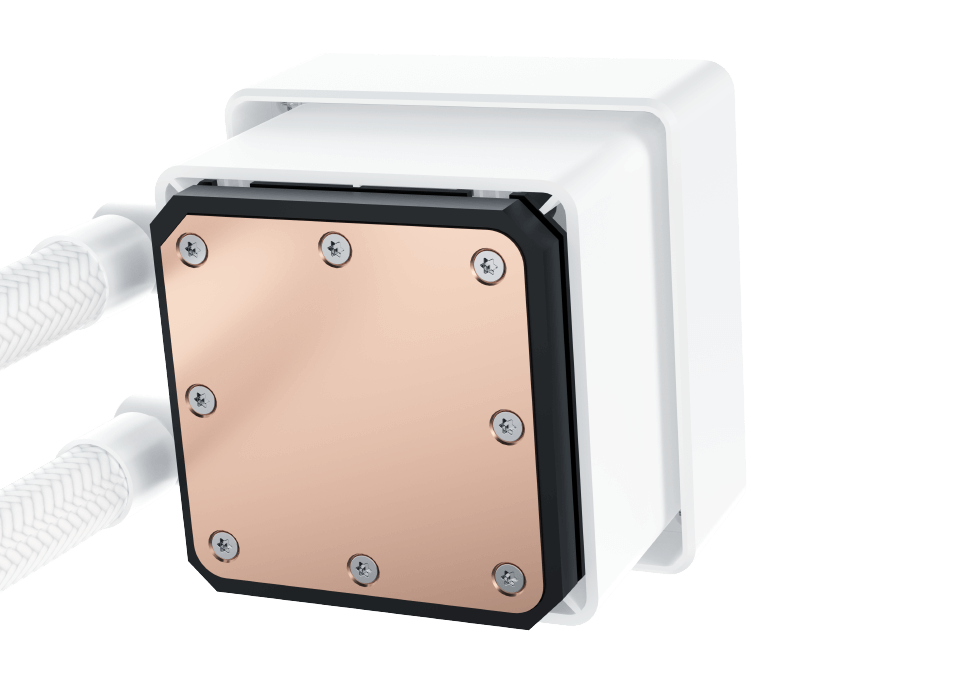

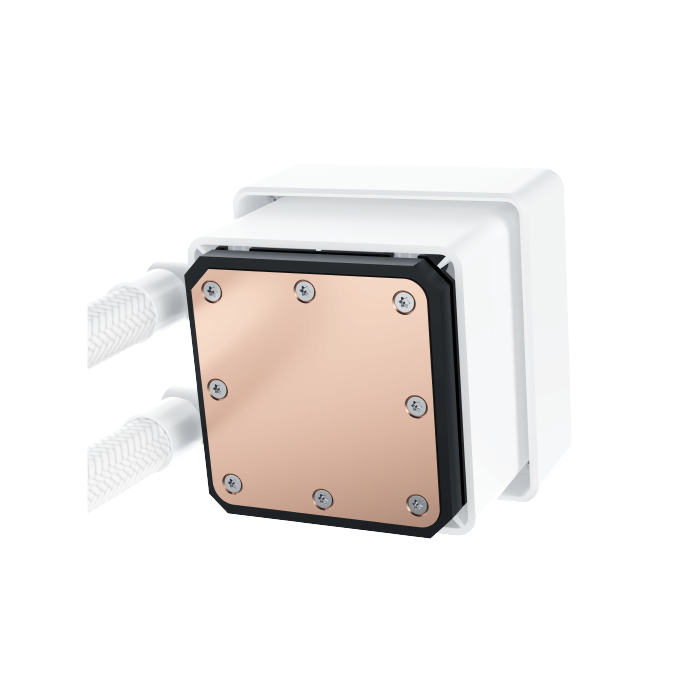

Top Grade Cold Plate

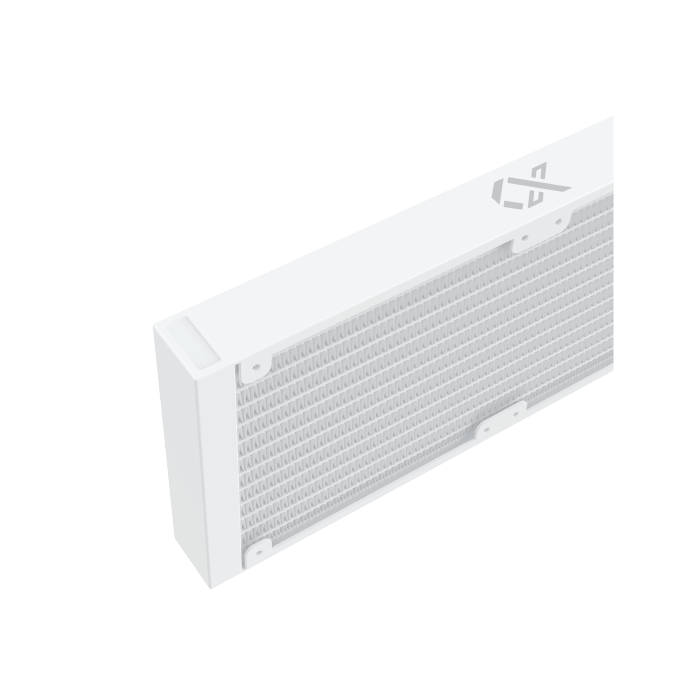

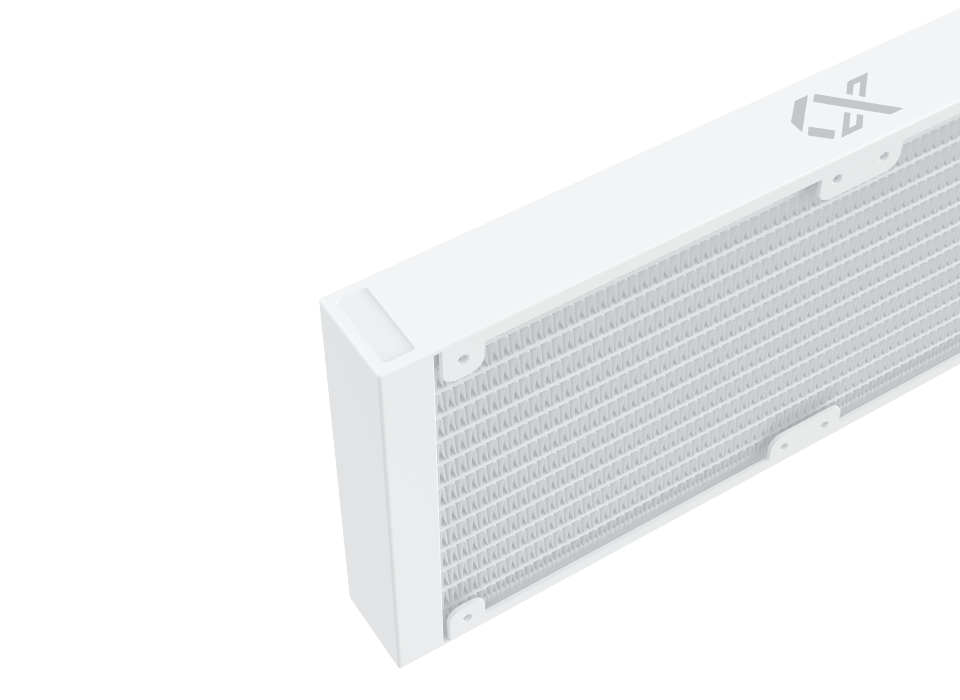

High Density Aluminum
Radiator

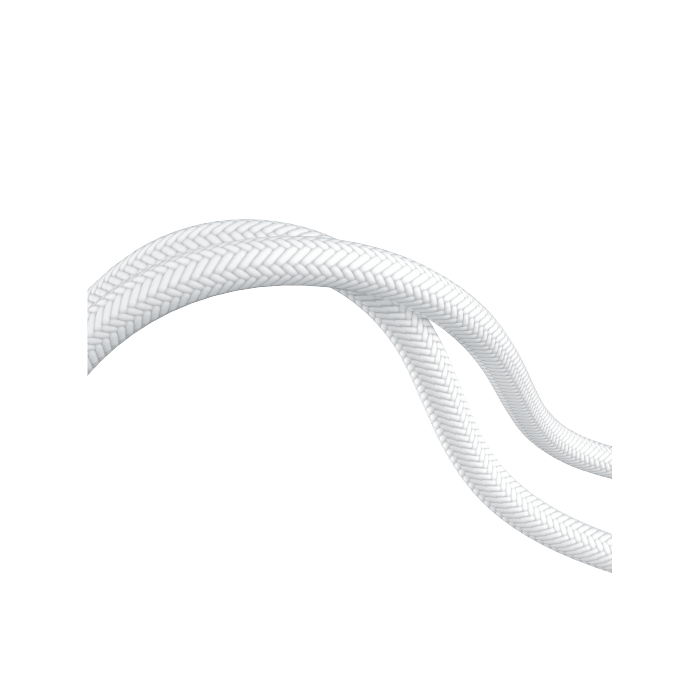

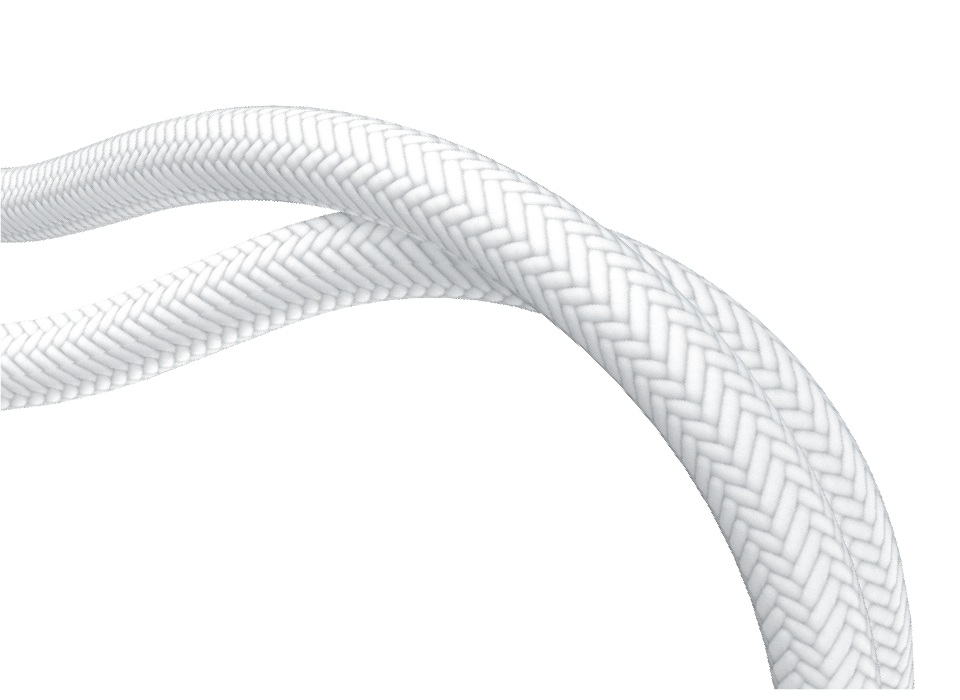

400mm White Sleeved Tube

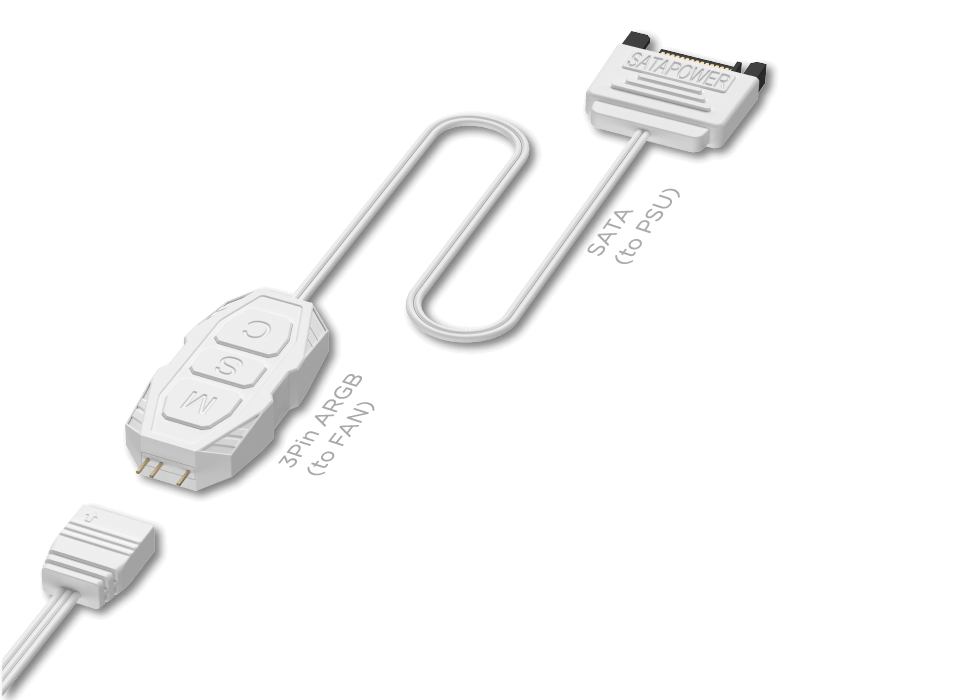

Mini ARGB LED Controller

Intel LGA 1851 &
AMD AM5 Ready

Support Latest Intel Desktop Processor
Family and Latest AMD Ryzen™ Desktop
Processor Family

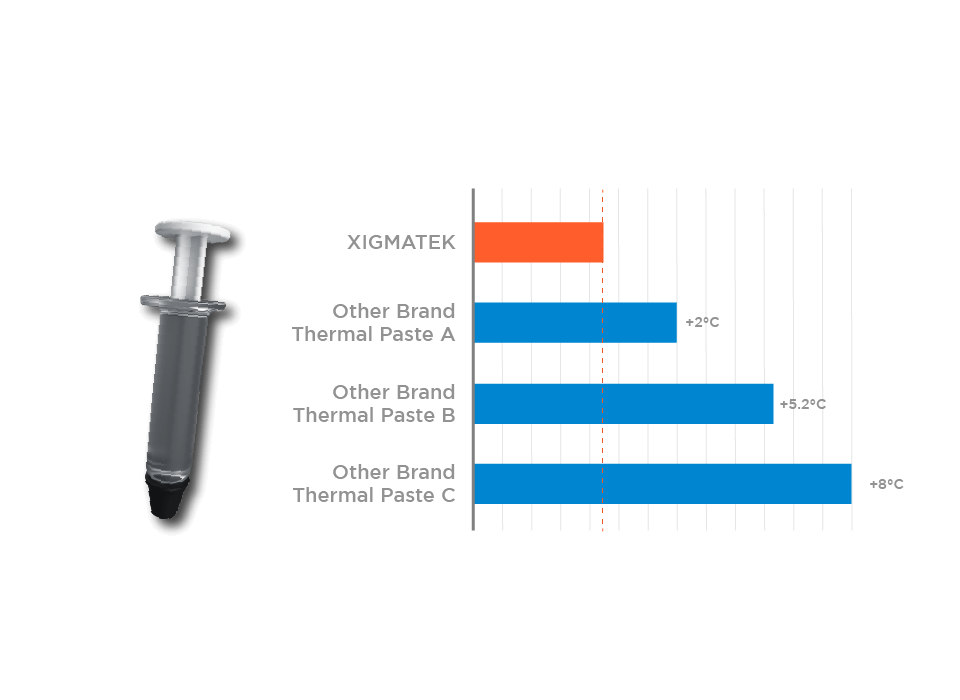

High Performance
Thermal Paste

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Prouduct Name

Connect 240 Arctic

CPU Support

Intel®: LGA 1851/1700/1200/115X/20XX
AMD®: AM5/AM4

Radiator Dimensions

274x120x27mm

Radiator Material

Aluminum

Tube Length

400mm White Sleeved Tube

Pump Dimensions

90x76x67mm

Pump Bearing

Ceramic Bearing

Pump RPM

2700±10% RPM

Pump Noise

≤27dBA

Pump Rated Voltage

12VDC

Pump Rated Current

0.48A

Pump Power Consumption

≤5.76W

Pump Physical Appearance

3.4” LCD Pump Head

Fan Dimensions

240x120x28mm

Fan Physical Appearance

Addressable RGB Rainbow
Lighting Display

Fan Bearing

Long Life Hydro Bearing

Fan RPM

800-2100±10% RPM

Fan Rated Voltage

12VDC

Fan Rated Current

0.43A

Fan Power Consumption

≤5.3W

Fan Airflow

80CFM x2

Fan Air Pressure

3.14mm-H2O

Fan Noise

≤29dBA
