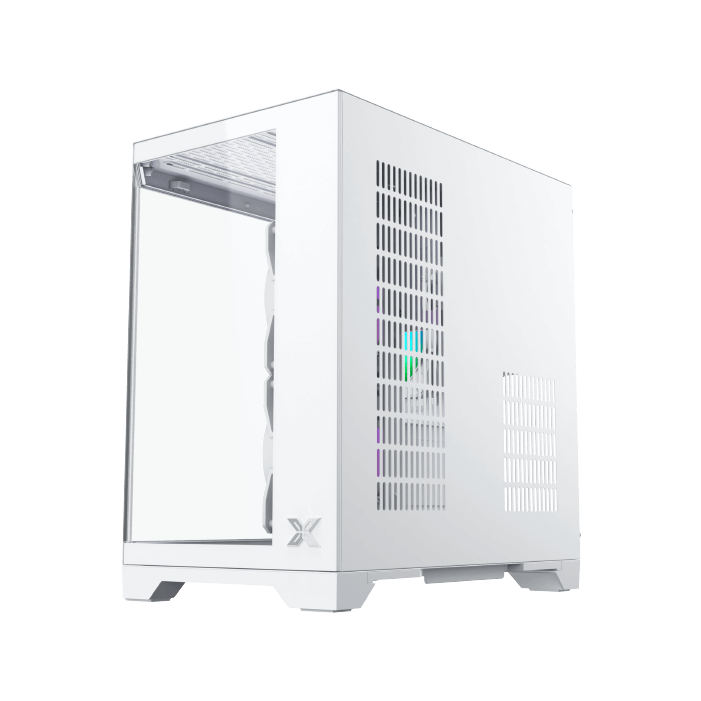

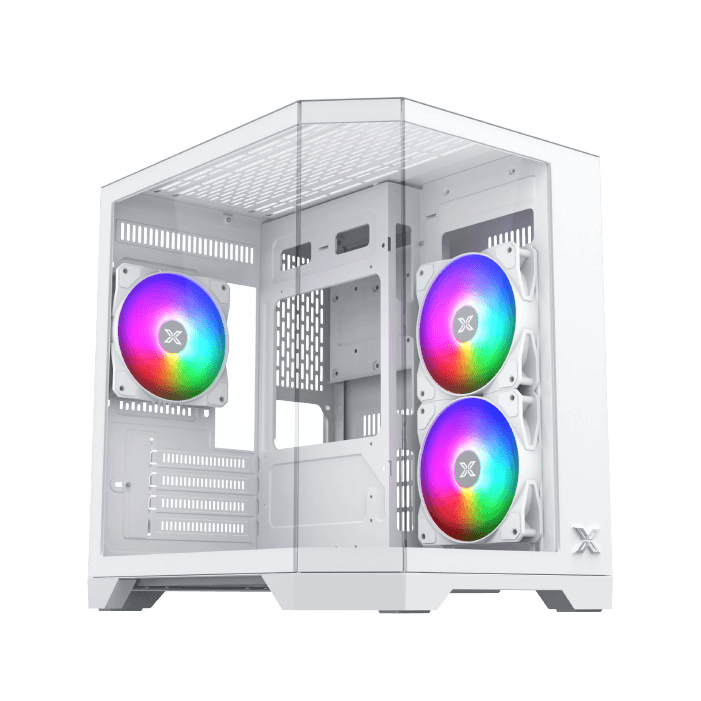

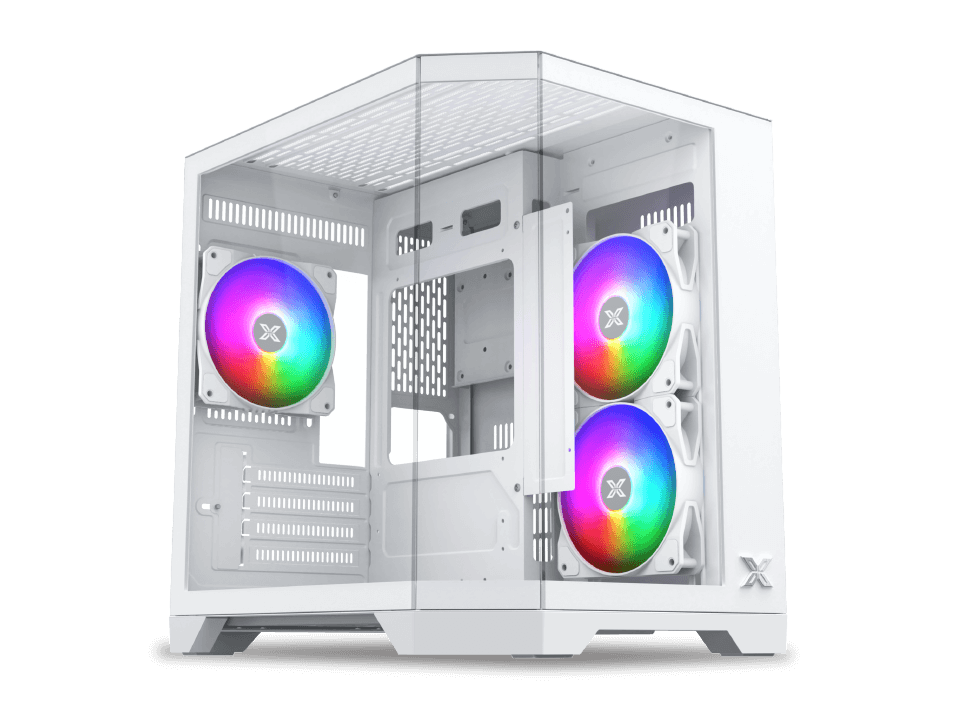

Cubi M Nano Arctic

Cubi M Nano Arctic
Overview

Cubi M Nano Arctic

Motherboard ATX max.

CPU Cooler 165mm

Fan Support 10 max.

Power Supply 160mm

Graphics Card 330mm

Radiator 240 max.

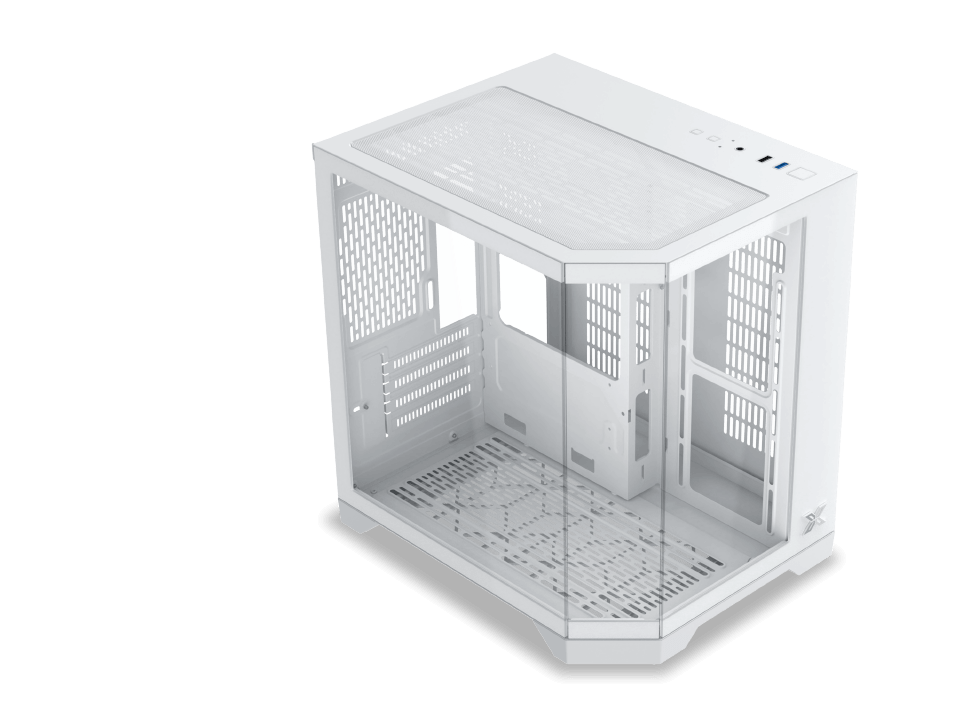

3 Tempered Glass Panel
Design

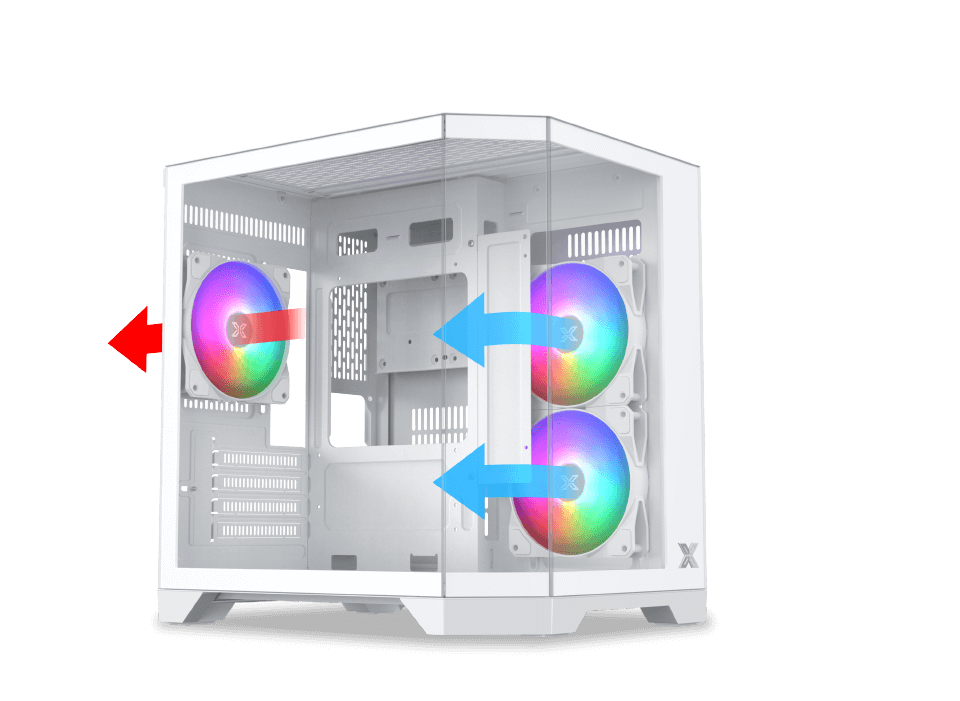

Superior Airflow and
Ventilation Design

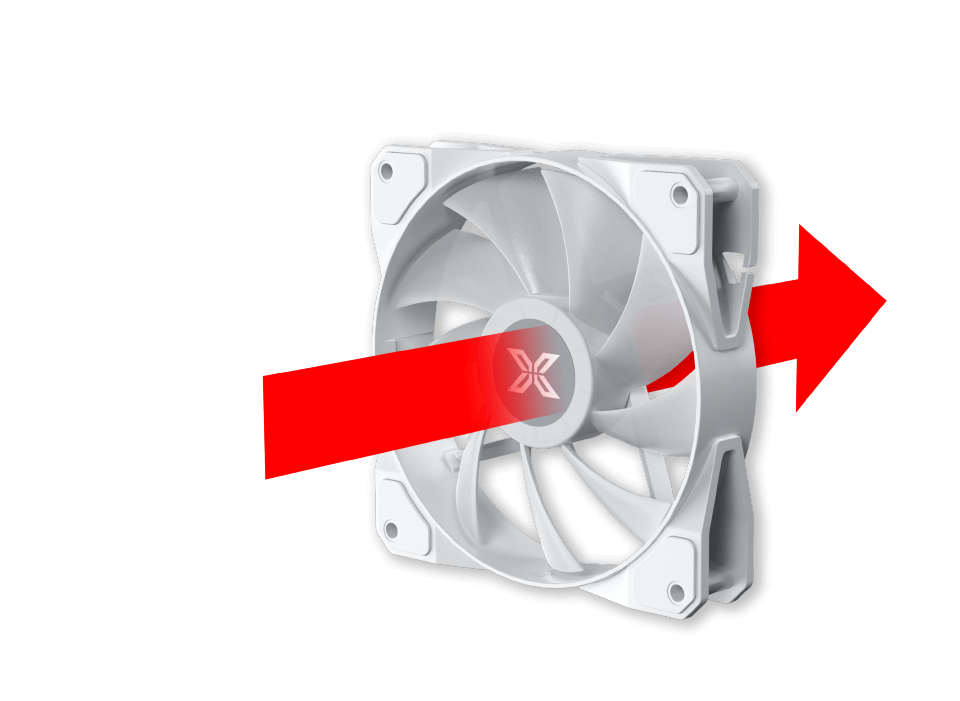

Traditional Fan Blade

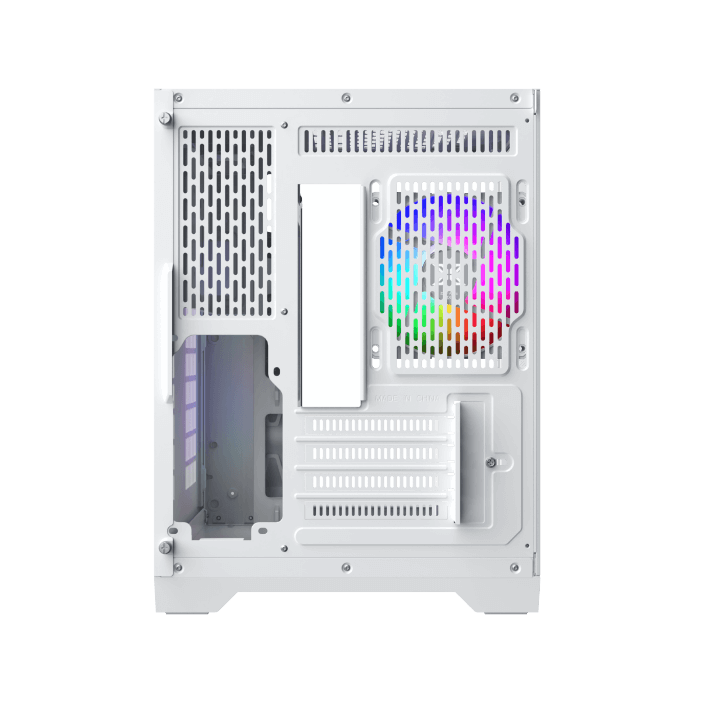

Pre-installed on Rear Side

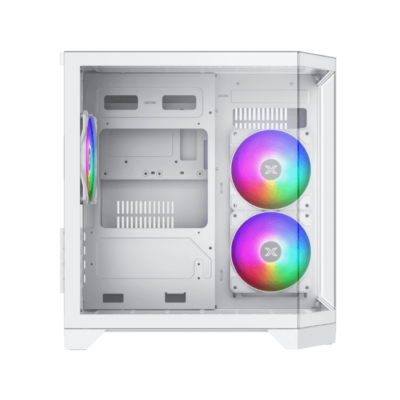

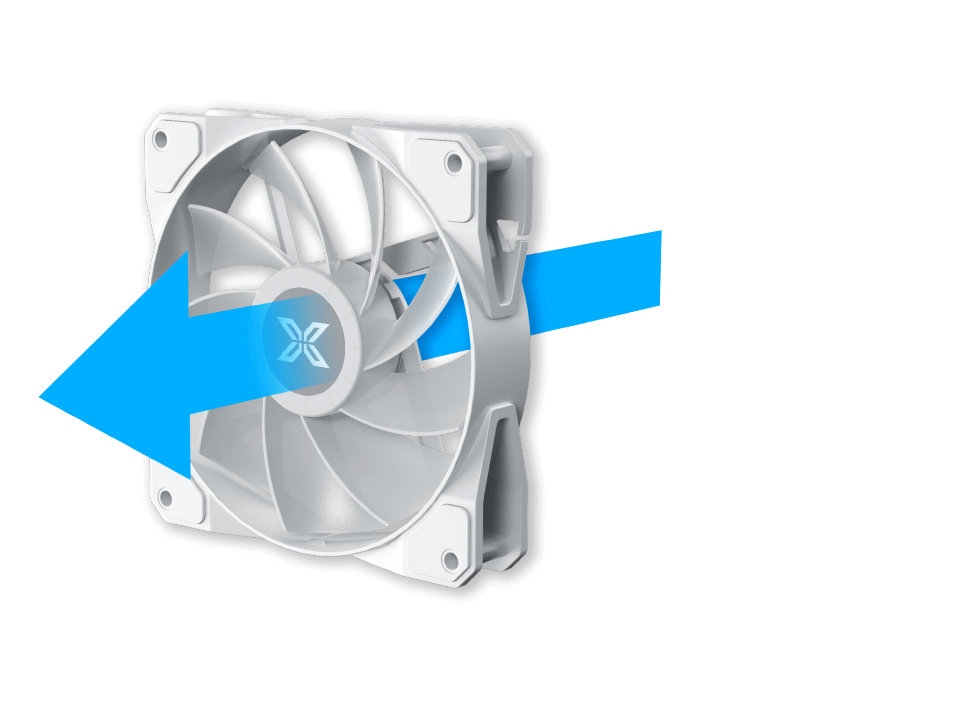

Reverse Fan Blade

Pre-installed on MB Panel & Bottom Side

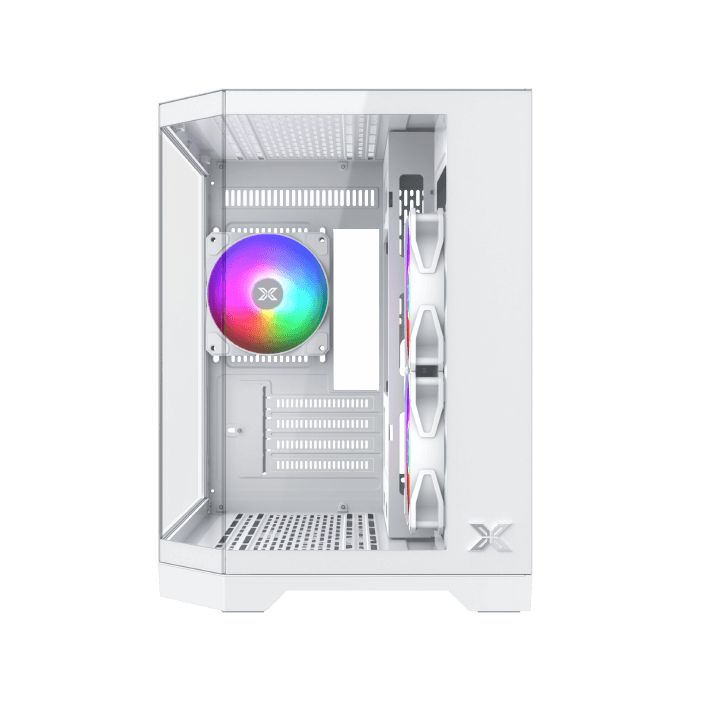

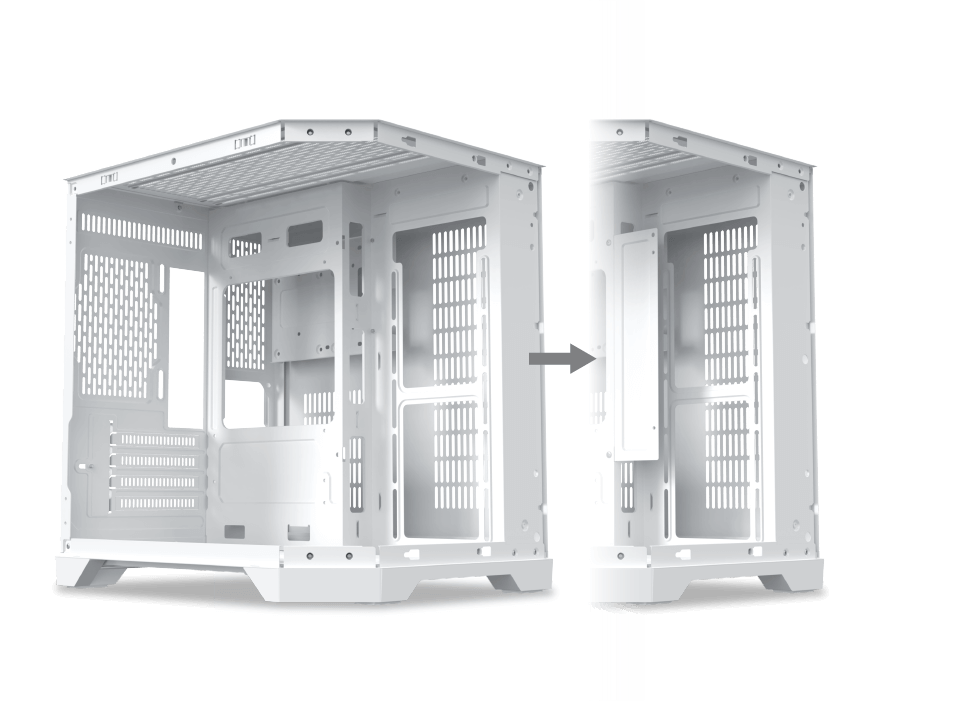

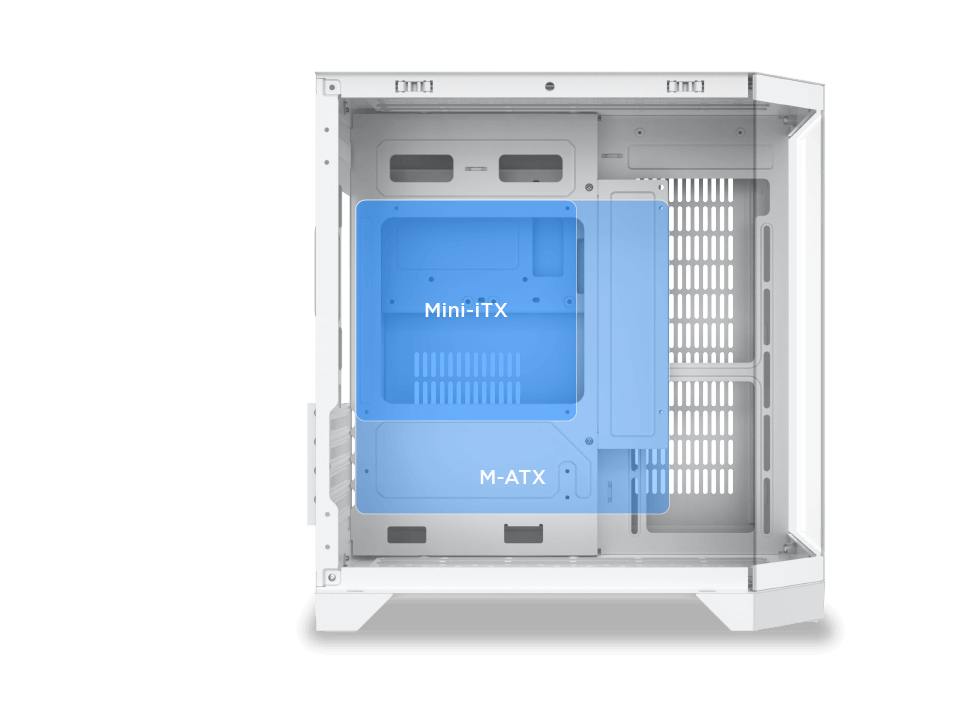

Support Motherboard
up to M-ATX

M-ATX Motherboard
Support

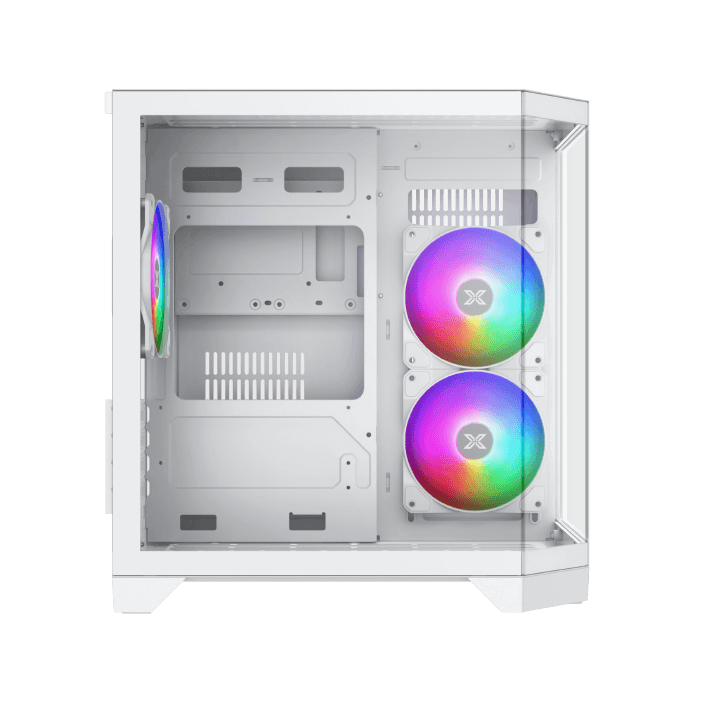

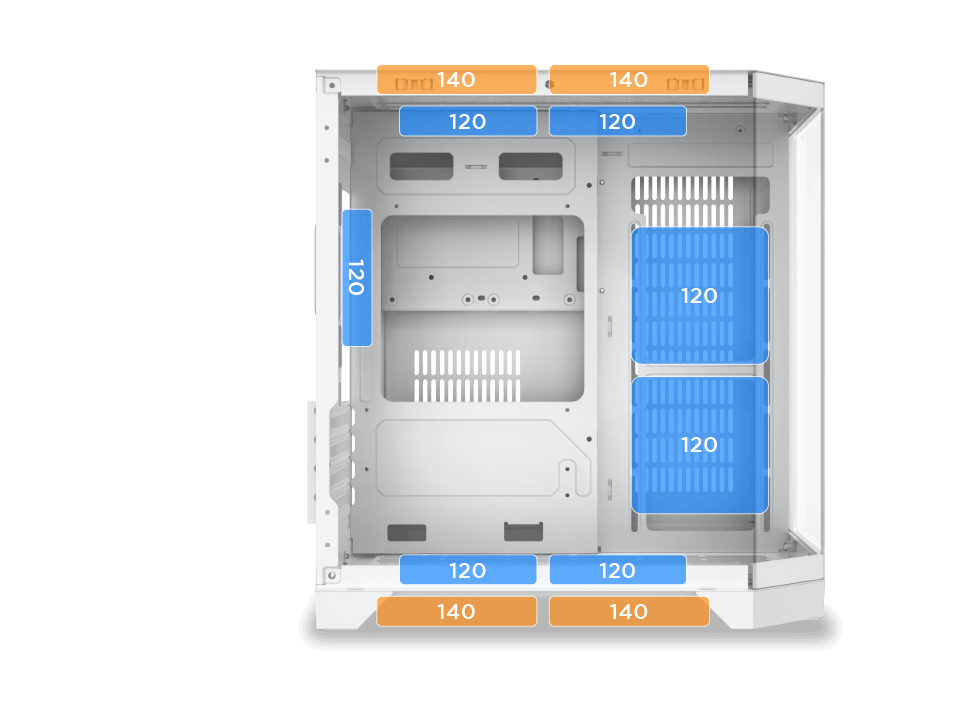

Fan Support

Top: 120mm x2 or 140mmx2
MB Panel: 120mm x2
Bottom: 120mm x2 or 140mmx2
Rear: 120mm x1

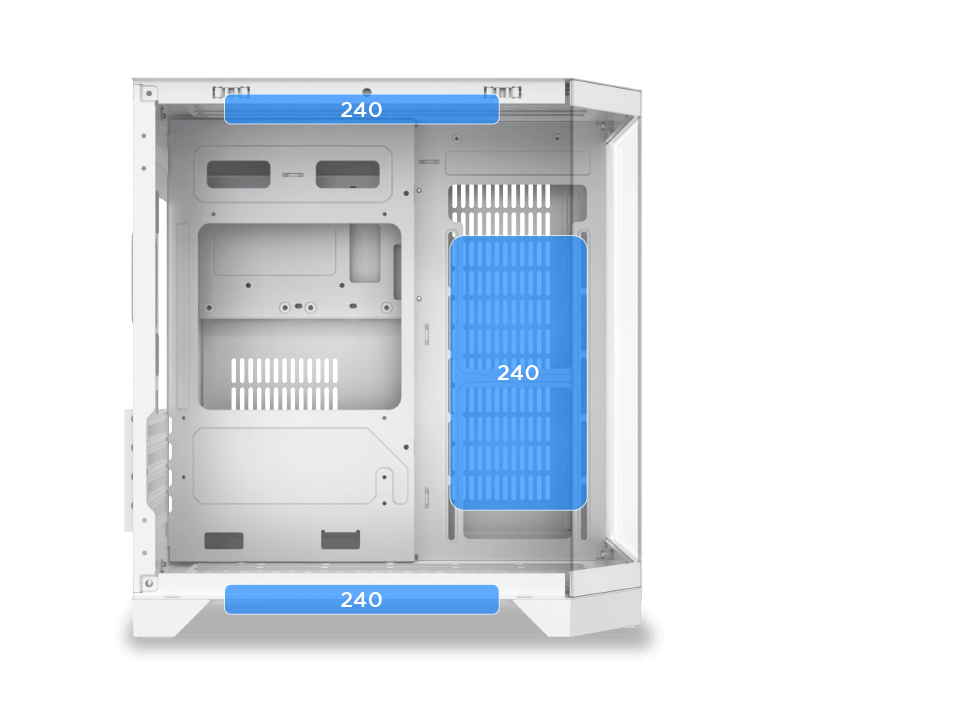

Radiator Support

Top: 240
MB: 240
Bottom: 240
(Without Graphics Card)

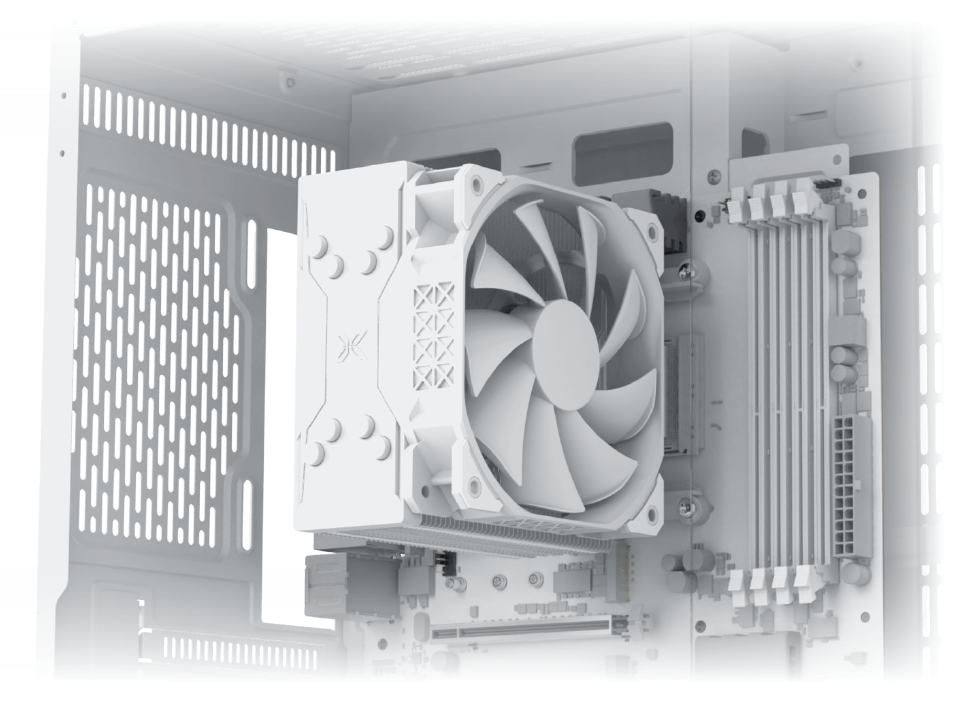

CPU Cooler Clearance
up to 158mm

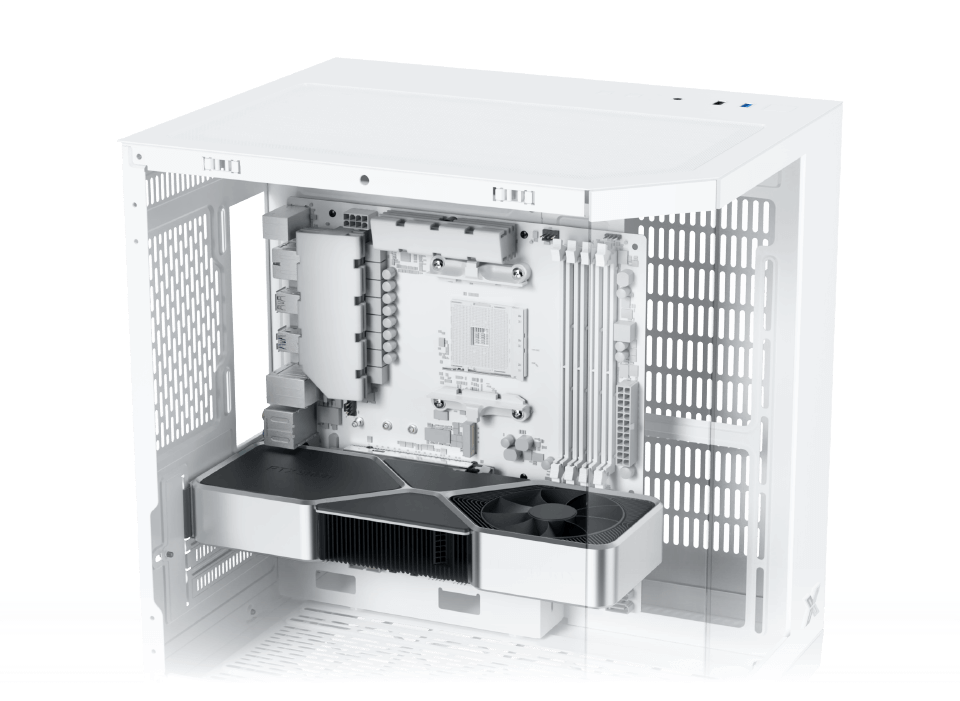

GPU Length Limitation
330mm

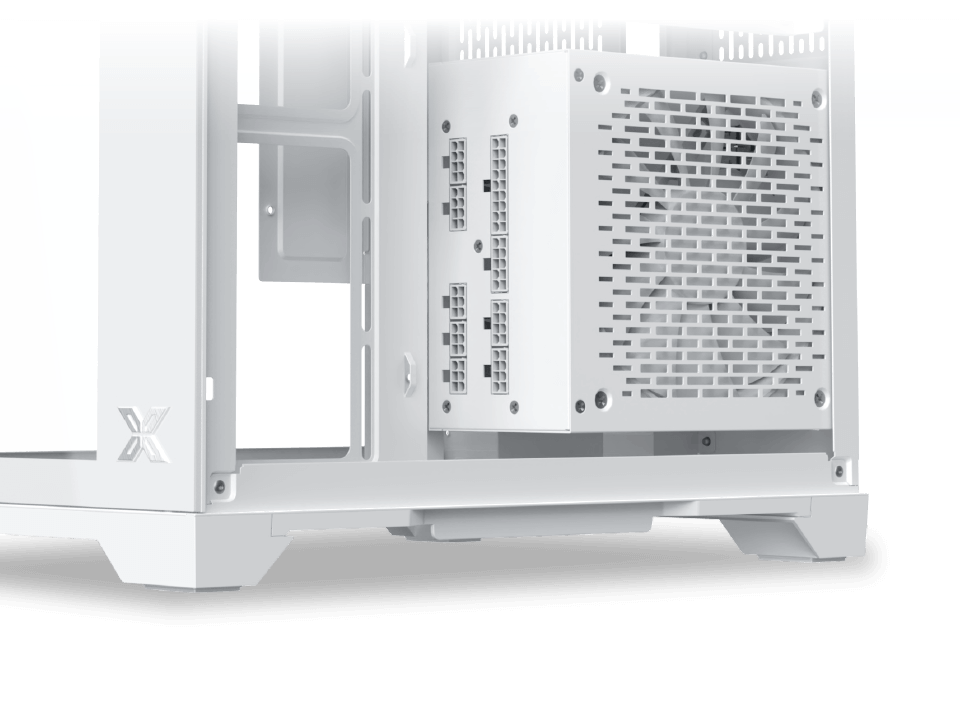

PSU Limitation
up to 160mm

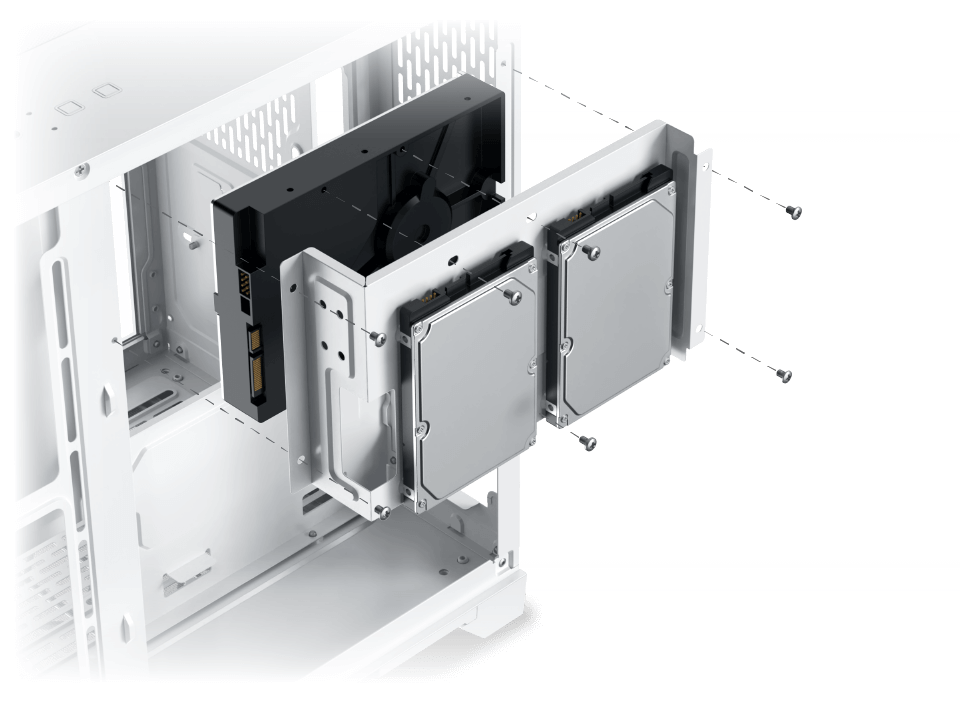

Drive Support

3.5″ HDD x1
2.5″ SSD x2

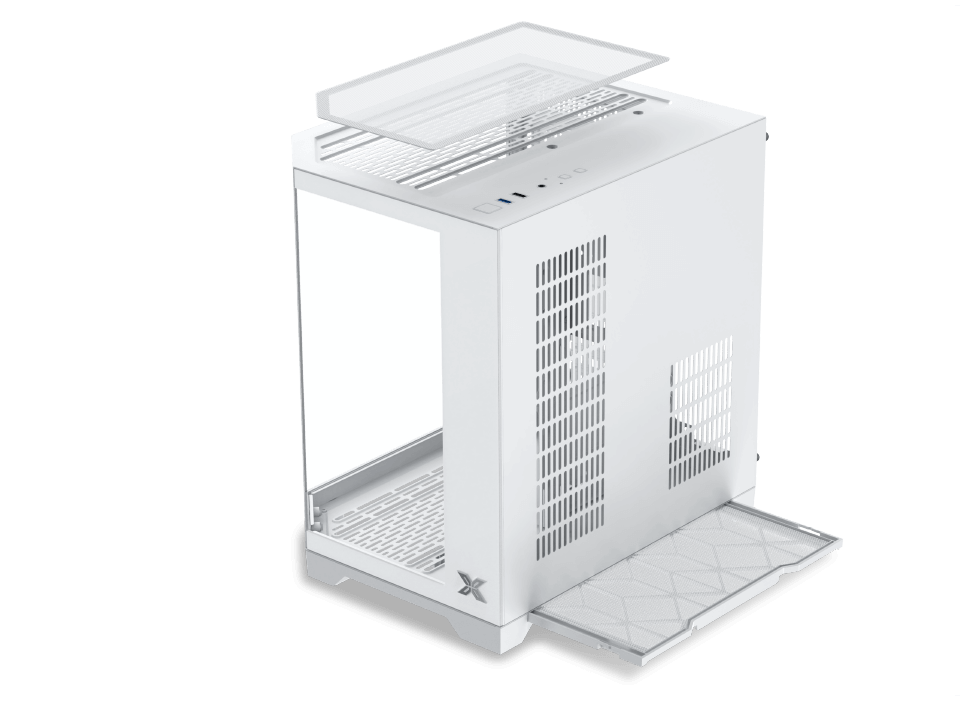

Top & Bottom
Dust Filter

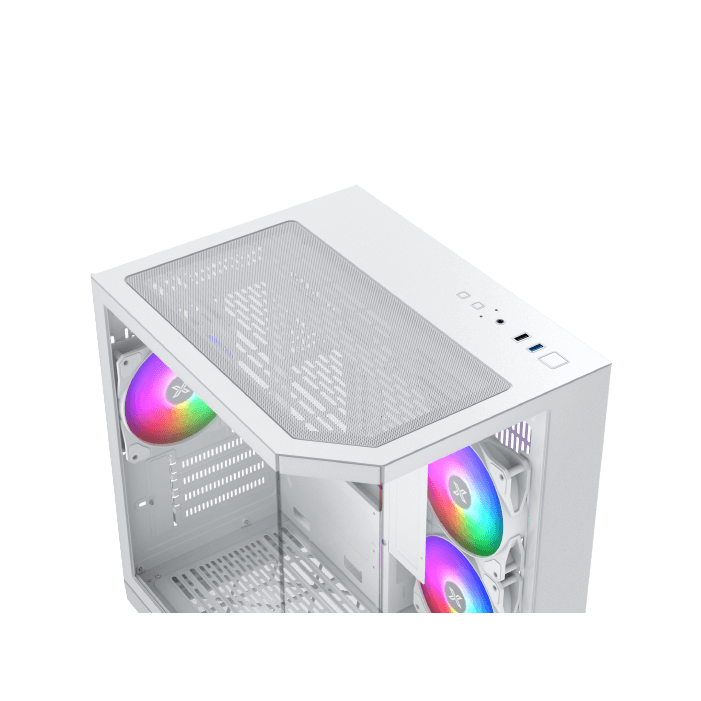

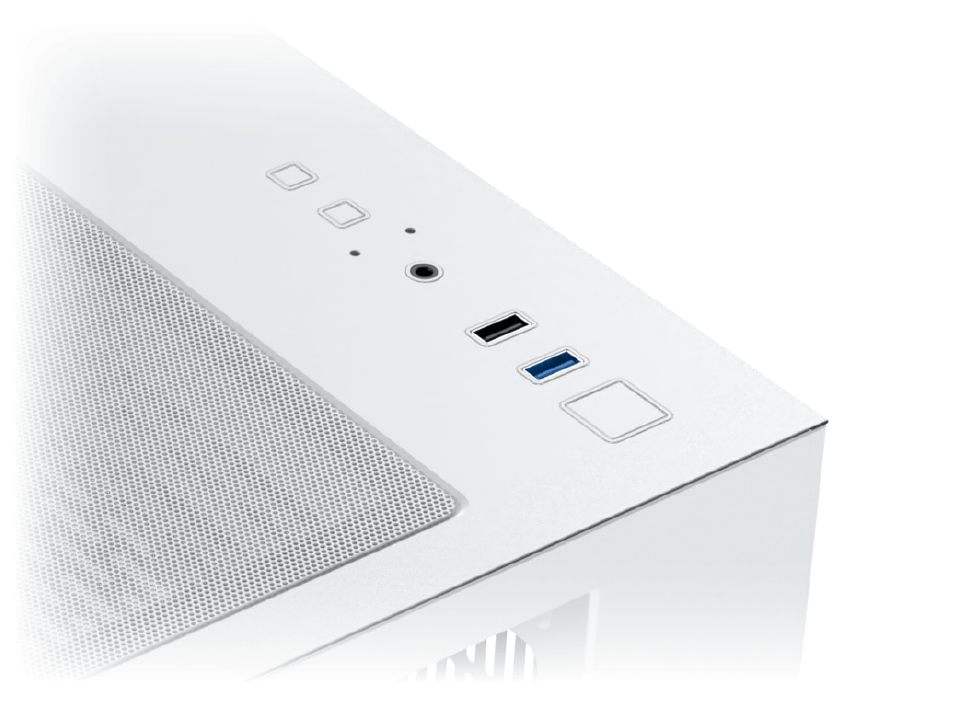

Top Mount I/O Ports

• Power Button
• USB 3.0 x1
• USB 2.0 x1
• HD Audio Jack
• Reset Button • LED Switch

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Cubi M Nano Arctic

Dimensions

350x280x375mm (LxWxH)

Motherboard Support

Micro ATX, Mini ITX

Drive Bays

HDD Cage: 3.5″ x1 & 2.5″ x2

Fan Support

Top: 120mm x2 or 140mmx2
MB Panel: 120mm x2
Bottom: 120mm x2 or 140mmx2
Rear: 120mm x1

PSU Length Limitation

160mm

CPU Cooler Clearance

158mm

Material

Steel

Expansion Slots

4 Standard Slots

Power Supply

Standard PS2
ATX PSU

I/O Panel

USB 3.0 x 1
USB 2.0 x 1
HD Audio

Radiator Support

Top: 240
MB: 240
Bottom: 240
(Without Graphics Card)

GPU Length Limitation

330mm
