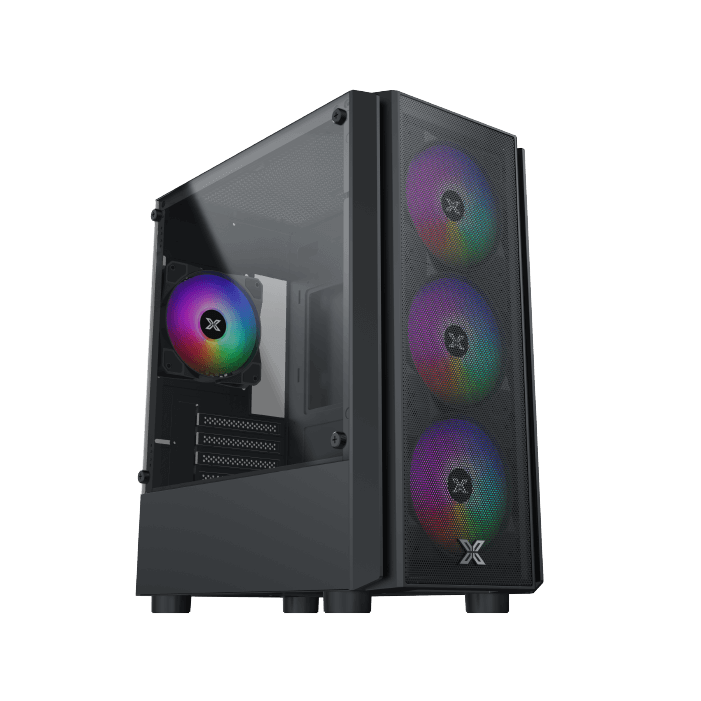

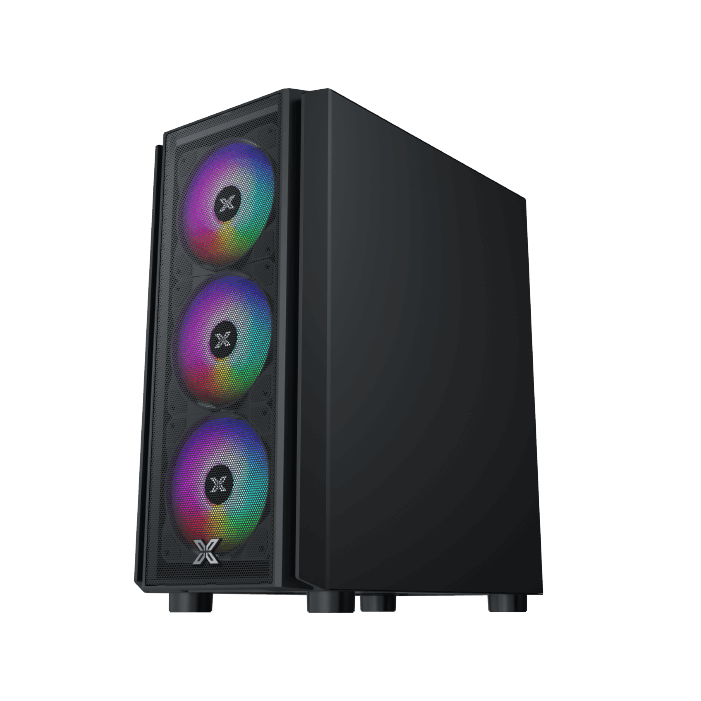

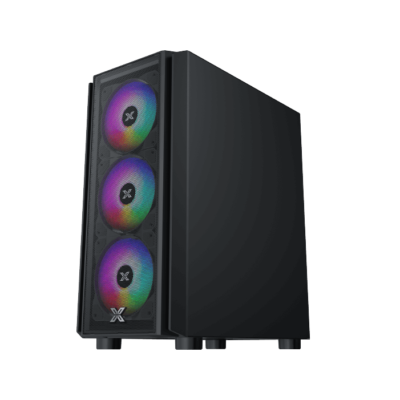

NYX Air

NYX Air

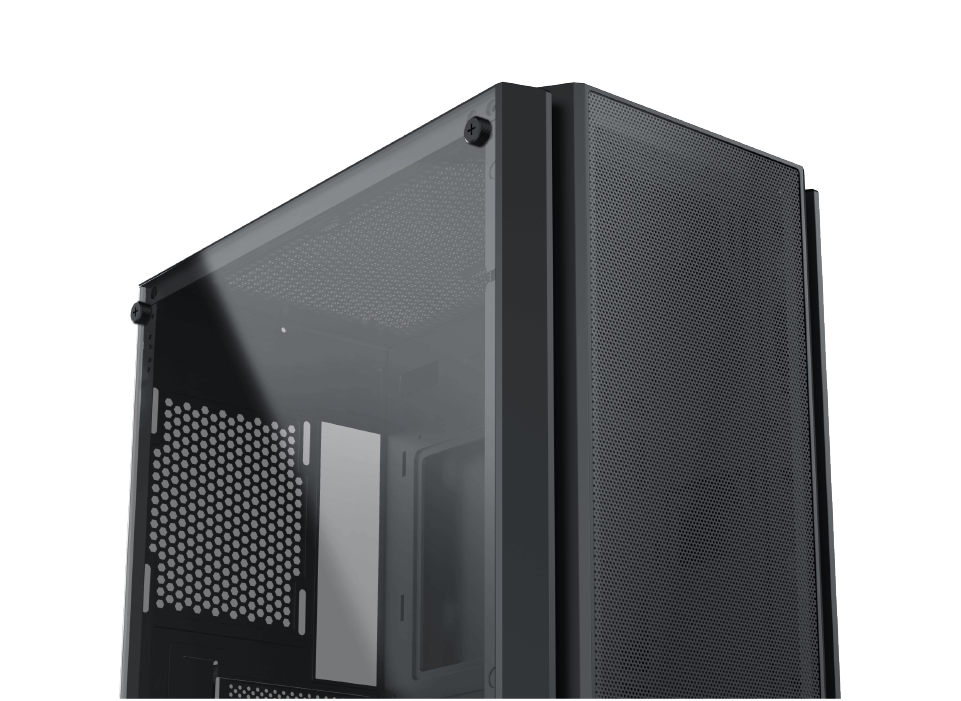

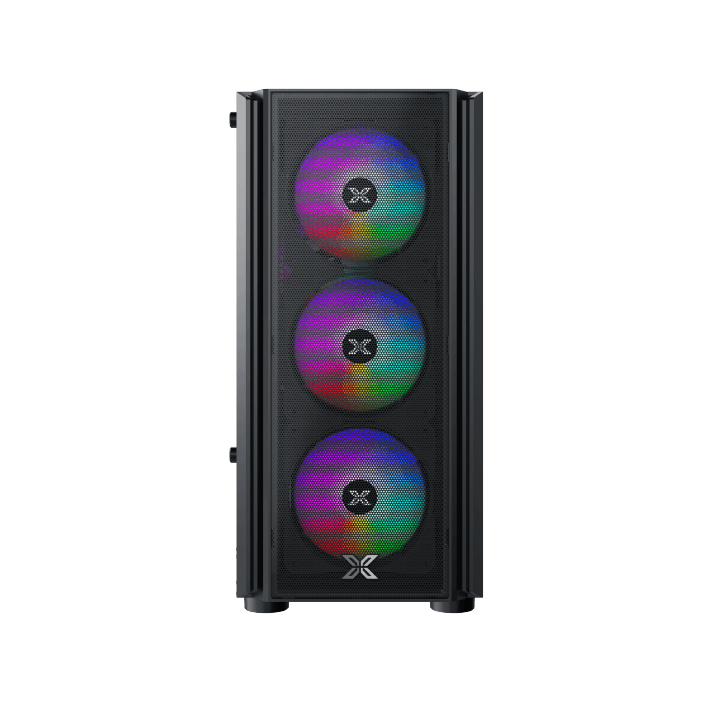

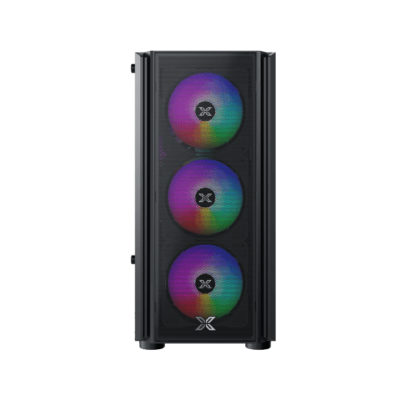

3D Design Frontpanel

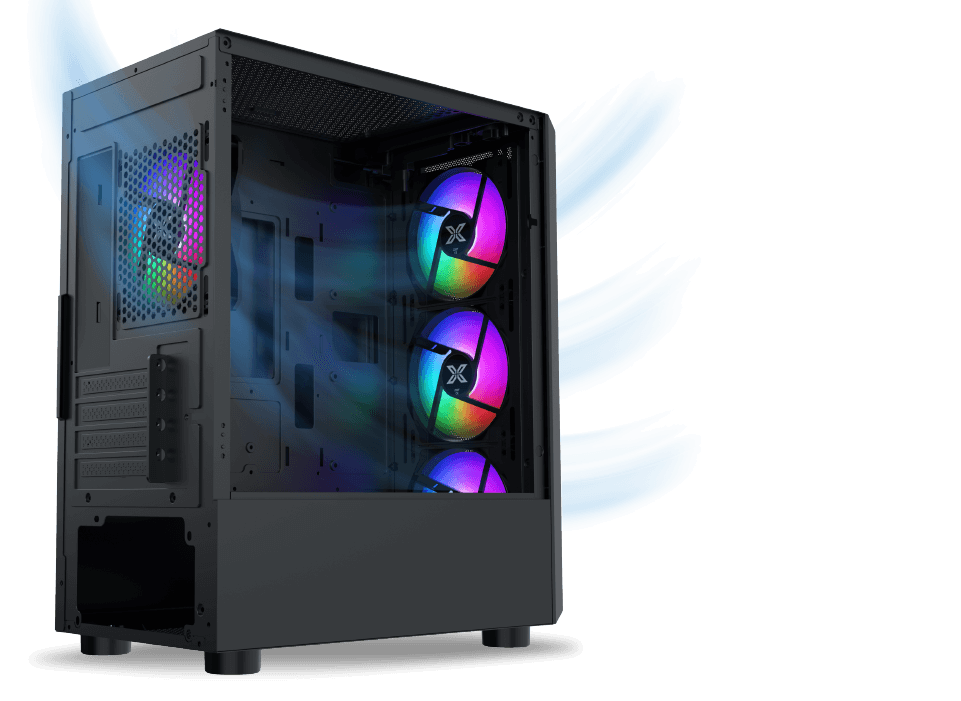

Superior Airflow and
Ventilation Design

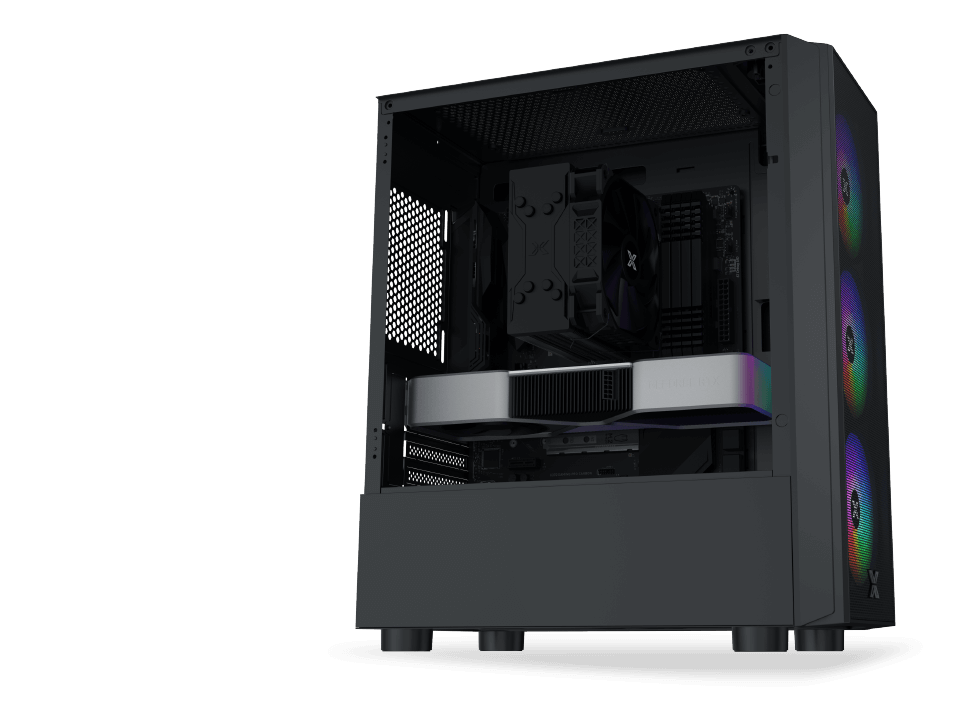

CPU Cooler up to 160 mm
Support Graphics Card up to 320 mm

PSU Limitation up to 165mm

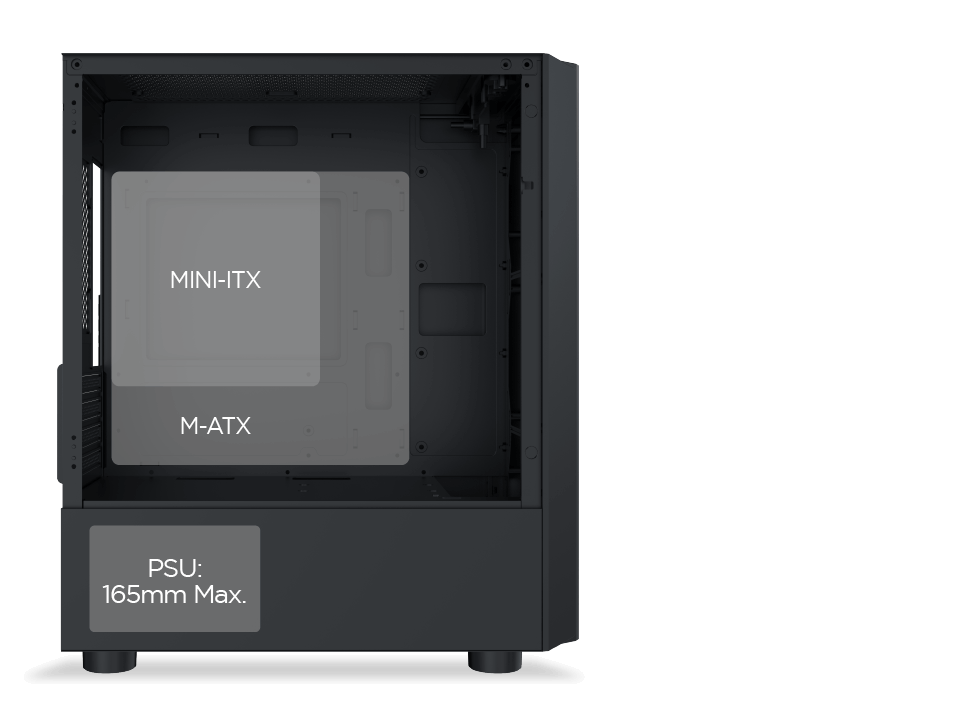

Support Motherboard up to M-ATX

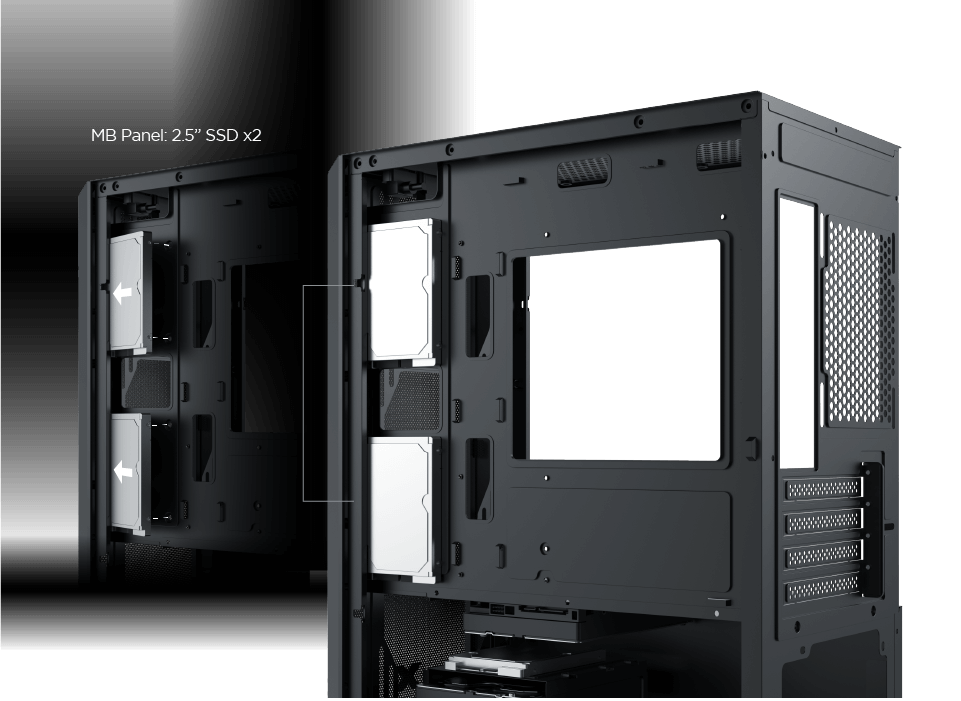

MB Panel: 2.5” SSD x2

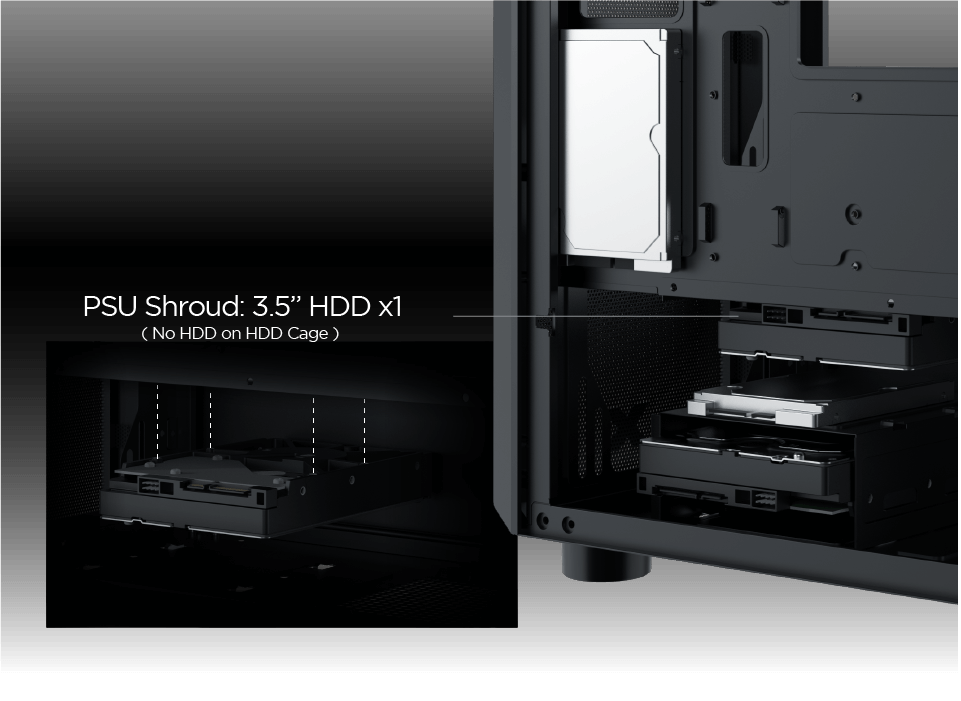

PSU Shroud: 3.5” HDD x1
( No HDD on HDD Cage )

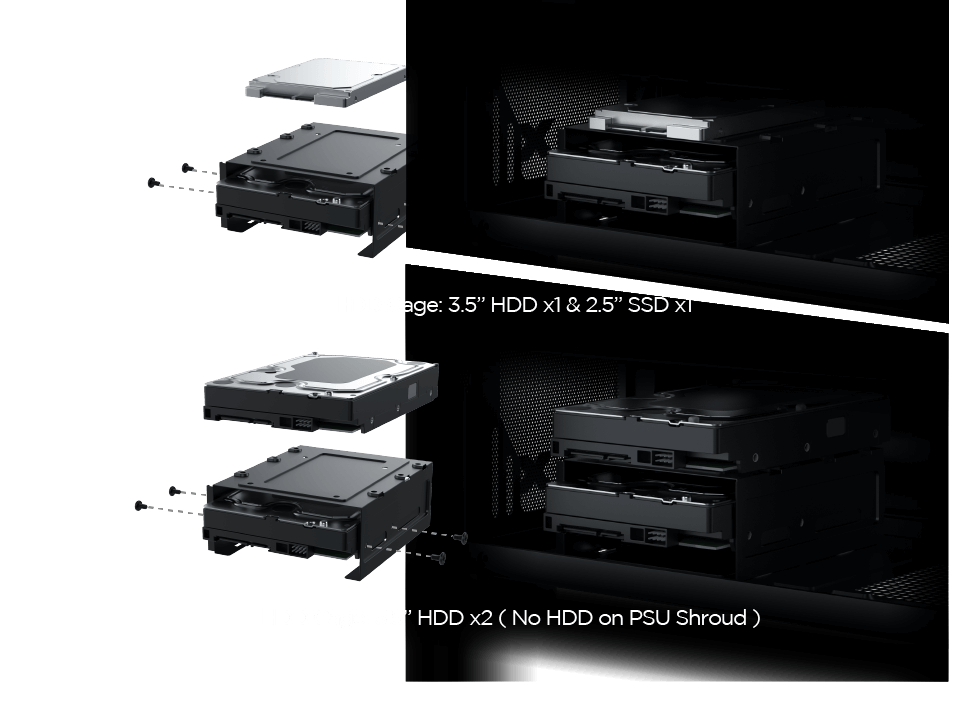

HDD Cage: 3.5” HDD x1 & 2.5” SSD x1

Fan Cooling System:
Front: 120mm x3 (Pre-Installed) or 140mm x2

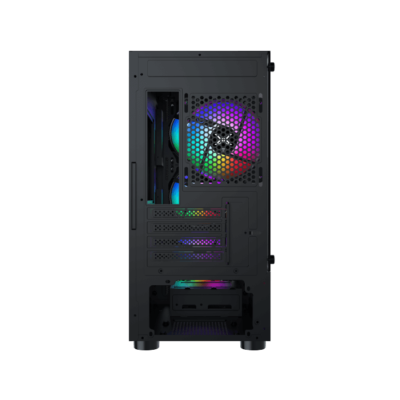

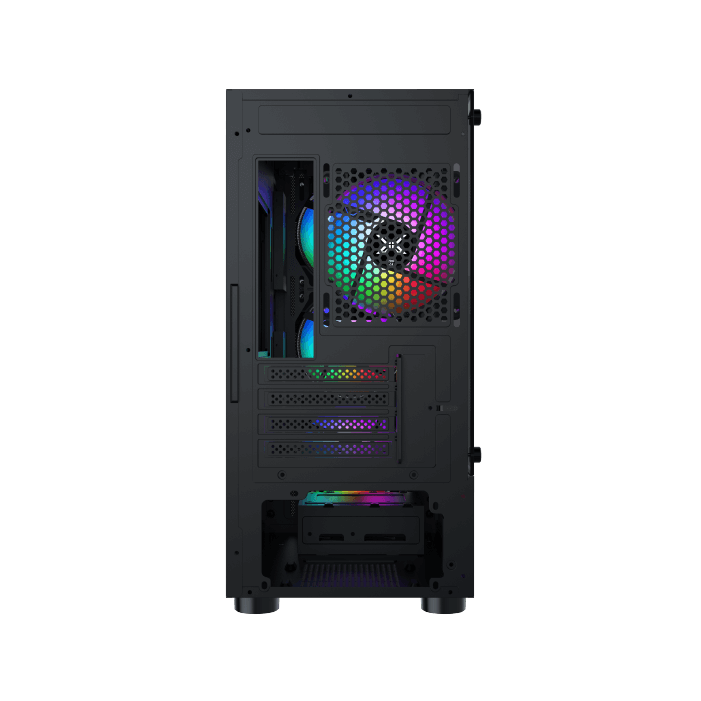

Rear: 120mm x1 (Pre-Installed)
Top: 120mm x2

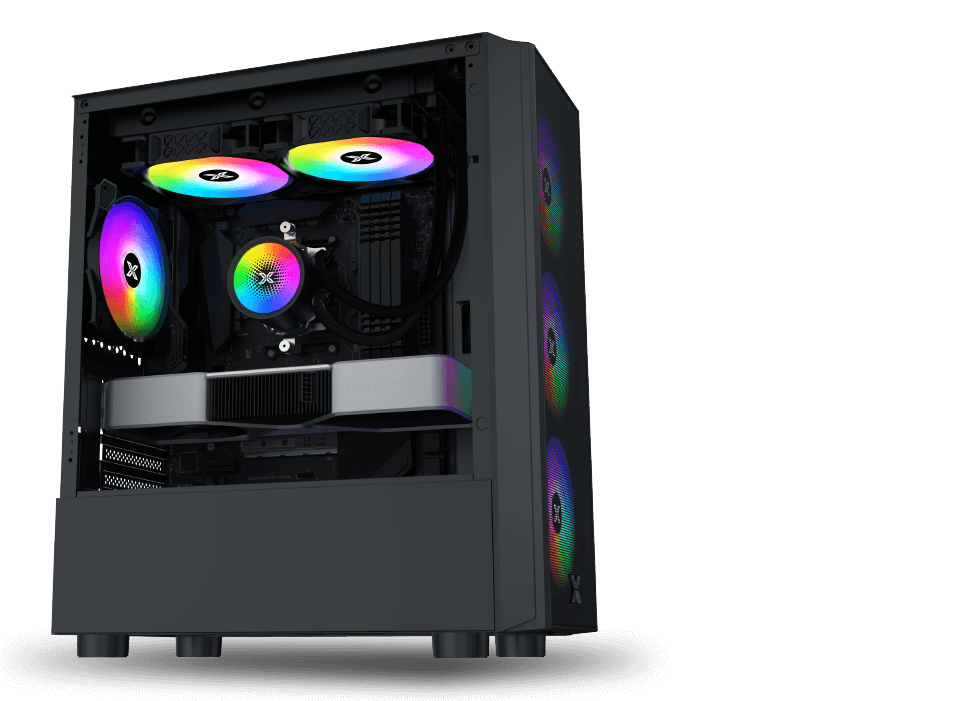

Liquid Cooling System:
Front:240mm
Top: 240mm

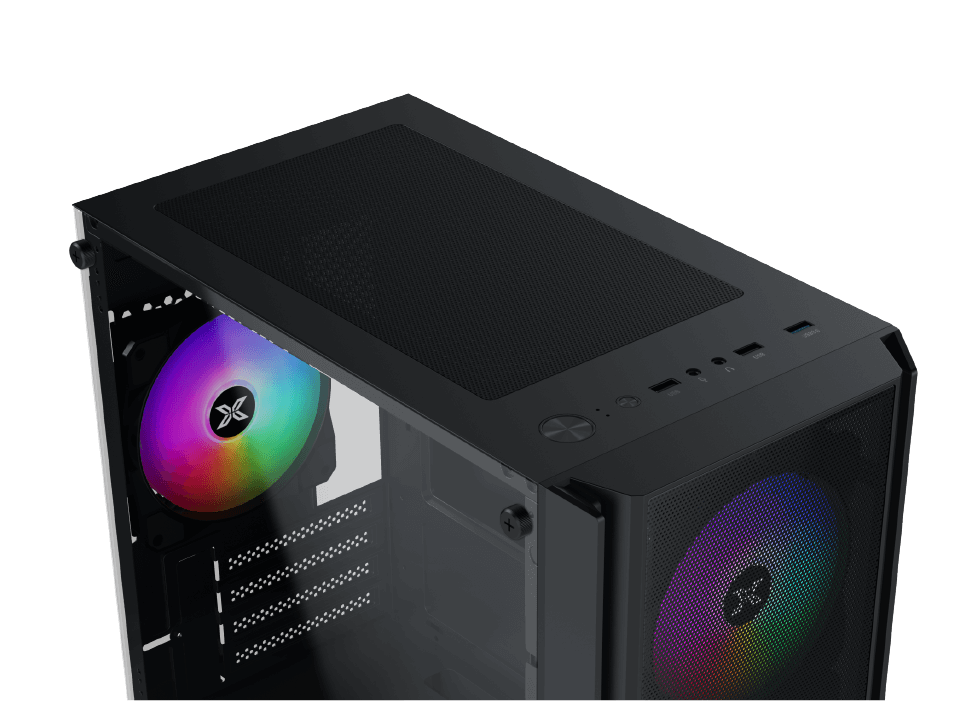

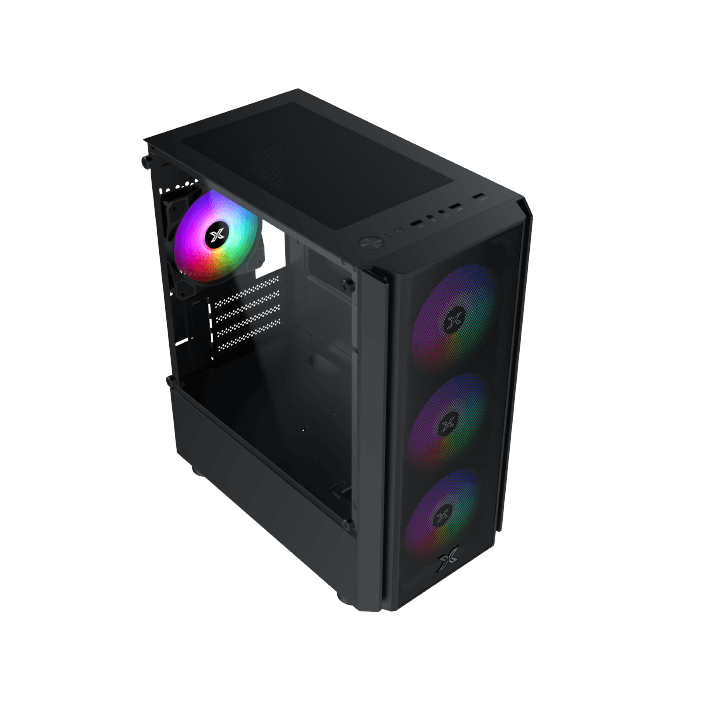

Top Mount I/O Ports

• Power Button• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

NYX Air

Material

STEEL

Dimension

365 x 200 x 426mm (LxWxH)

SSD / HDD

HDD Cage: 3.5” HDD x2 or
3.5” HDD x1 & 2.5” SSD x1
MB Panel: 2.5″ SSD x2
PSU Shroud: 3.5” HDD x1
(No HDD or 2.5” SSD x1 on the Top of HDD Cage)

PCI Slot

7 Standard Slots

Motherboard Support

M-ATX, MINI-ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Front: 120mm x3 (Pre-Installed) or 140mm x2
Rear: 120mm x1 (Pre-Installed)
Top: 120mm x2

Liquid Cooling Support

Front:240mm
Top: 240mm

I/O Panel

USB3.0 x1, USB2.0 x2, HD Audio

CPU Cooler

160mm

VGA Length

320mm

PSU Length

165mm
