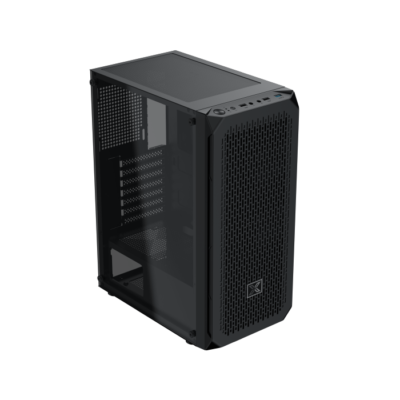

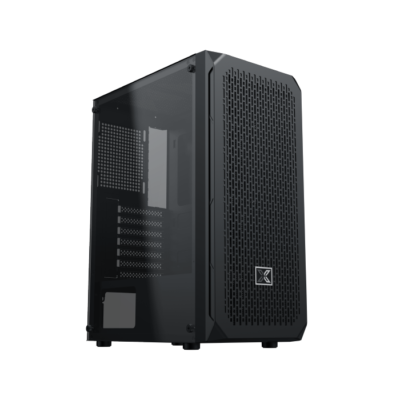

Sky (EN43970)

Sky (EN43970)

Motherboard ATX

CPU Cooler 160mm

Fan Support 8 max.

Power Supply 140mm

Graphics Card 290mm

Radiator 240 max.

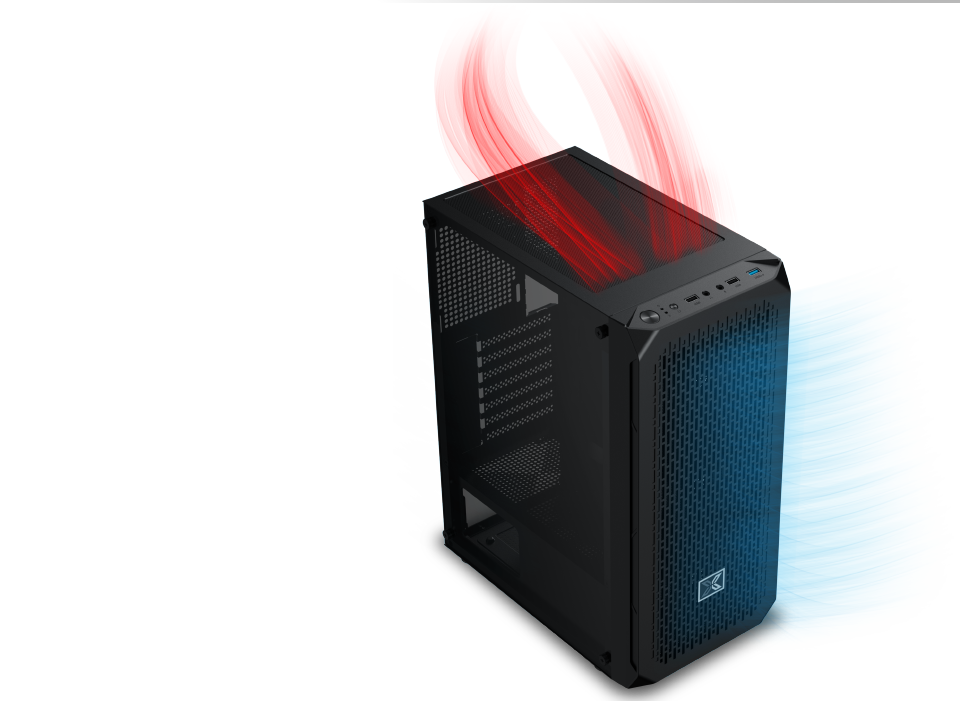

Superior Airflow and
Ventilation Design

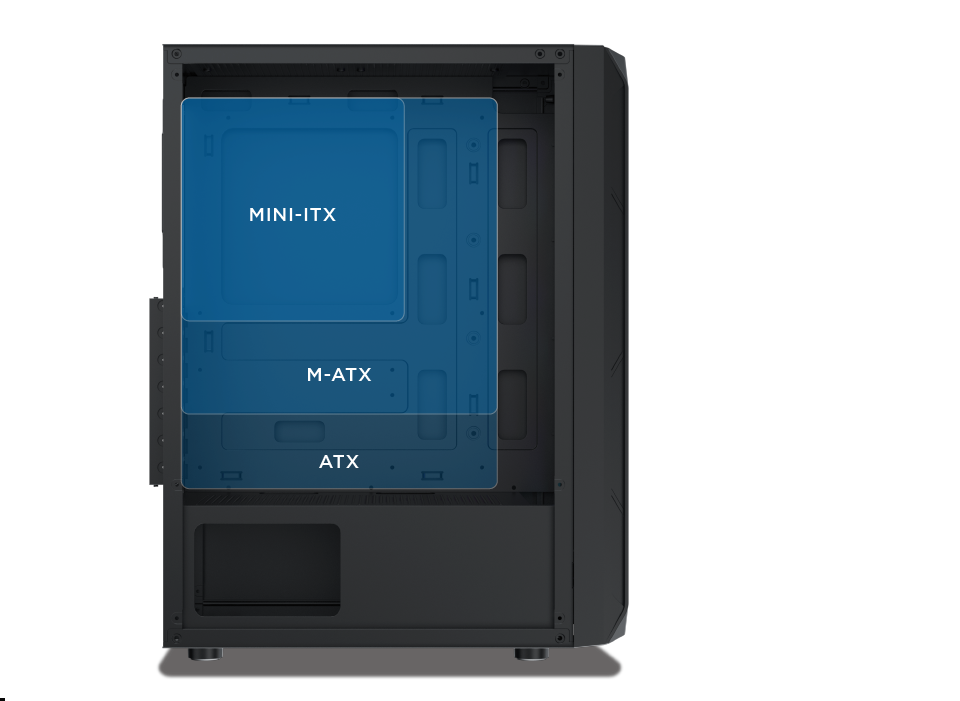

Support Motherboard
up to ATX

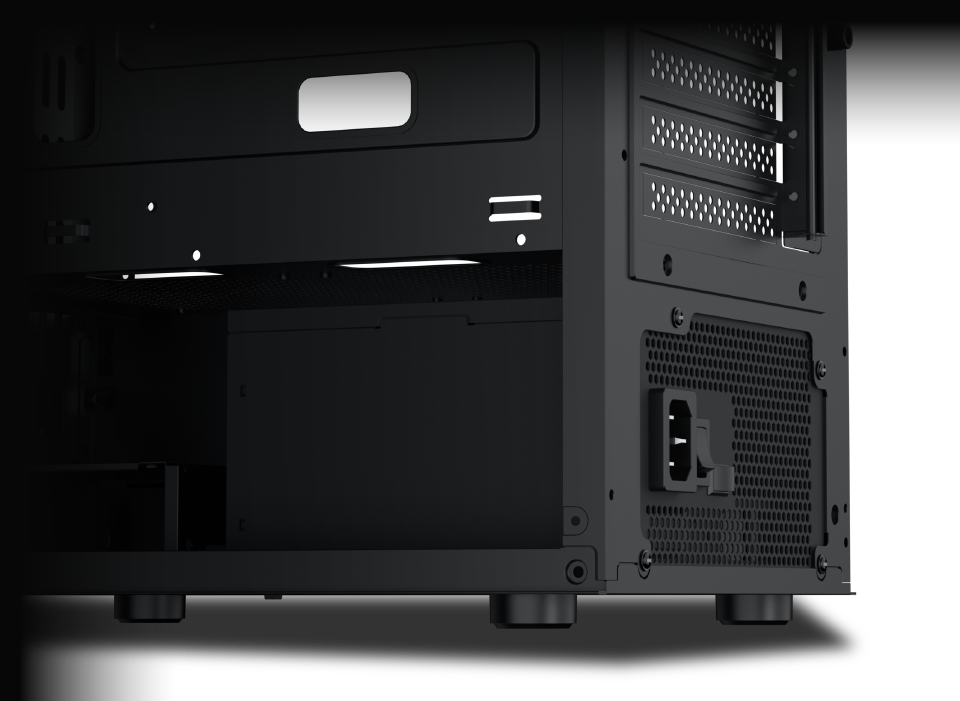

PSU Limitation
up to 140mm

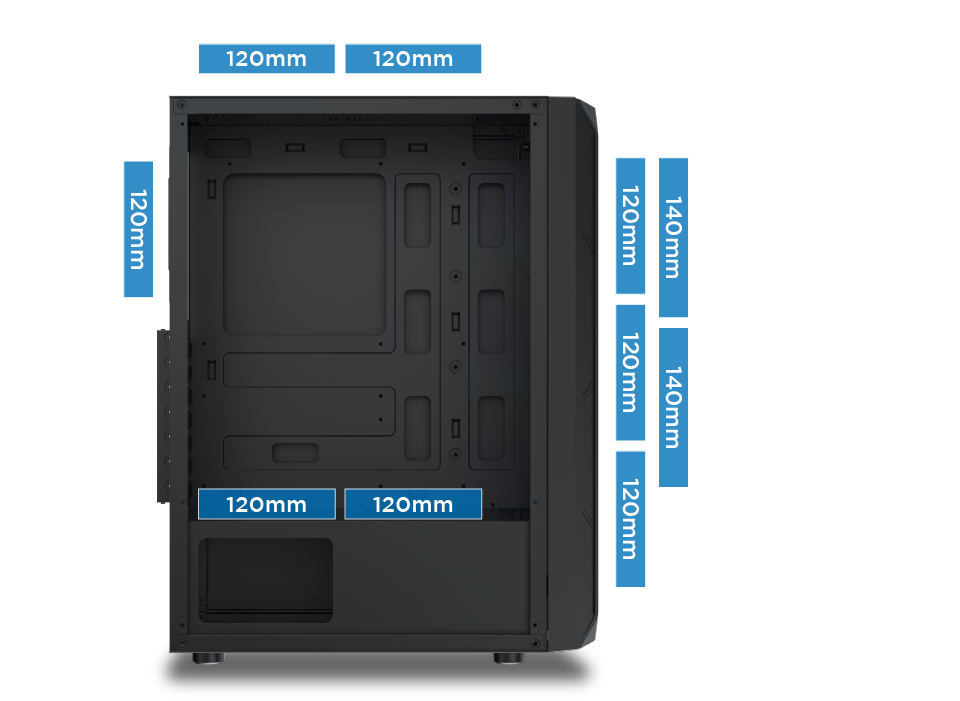

Fan Support

Top: 120mm x2
Front: 120mm x3 or 140mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1

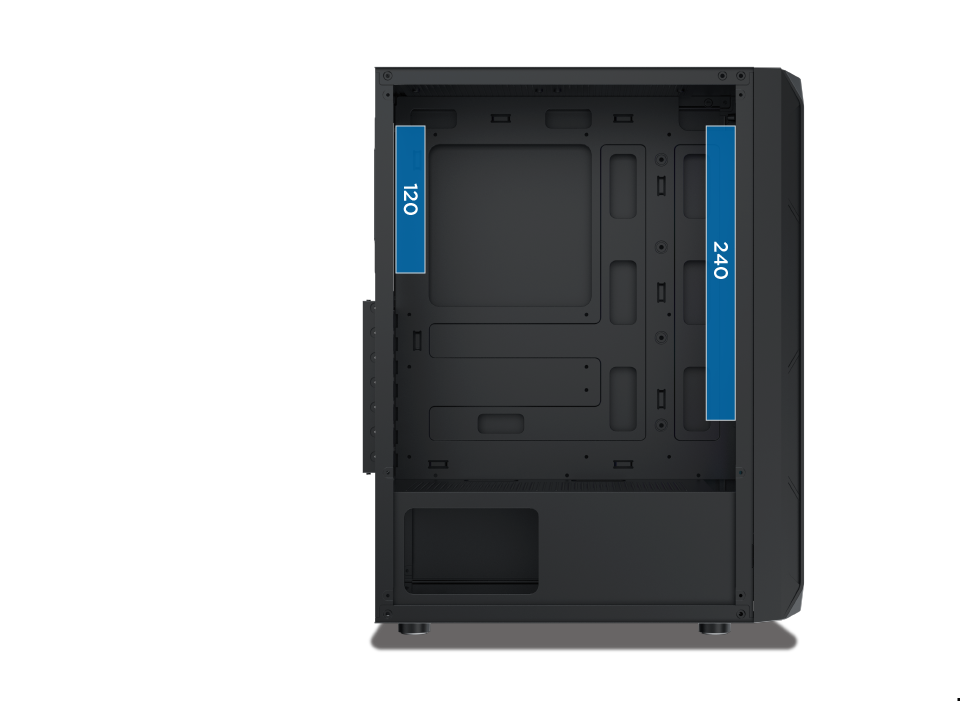

Radiator Support

Front: 240
(Separate Installation)
Rear: 120

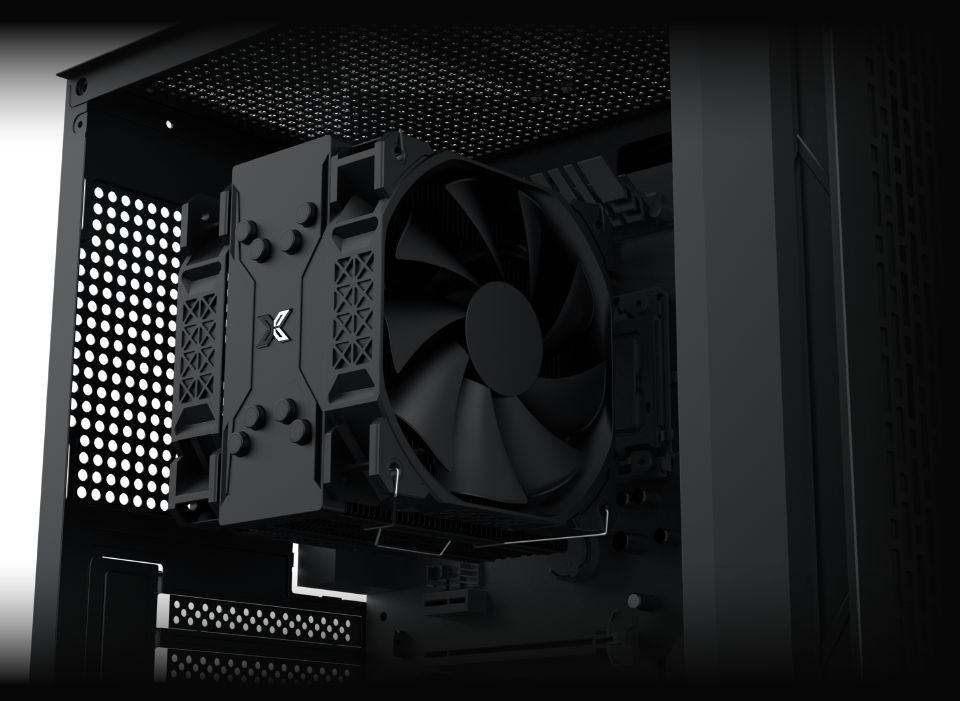

CPU Cooler Clearance
up to 160mm

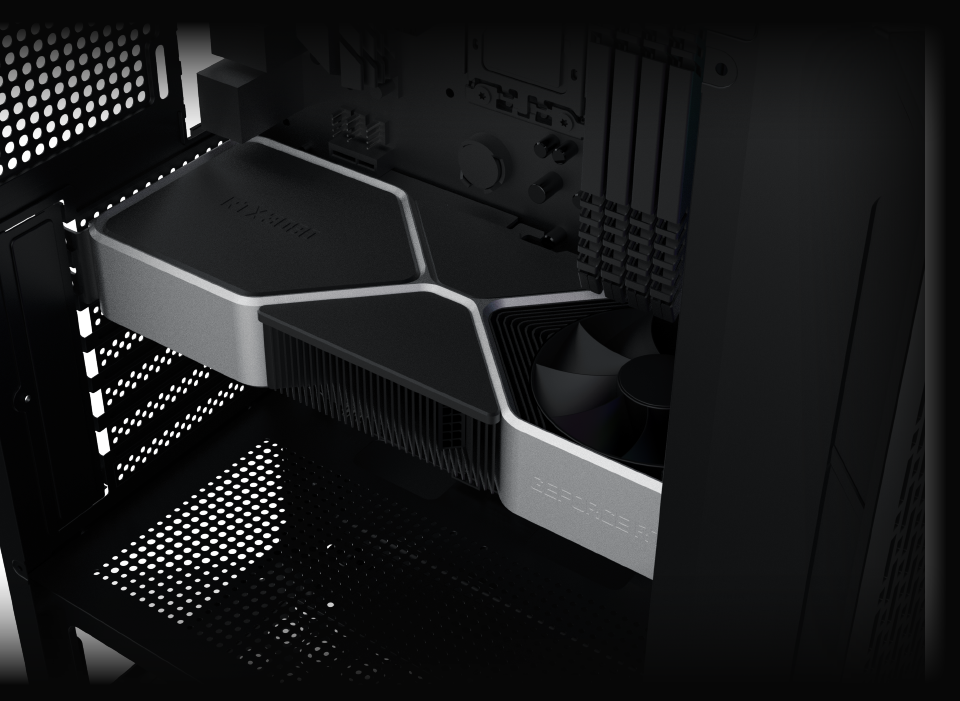

GPU Length Limitation
290mm

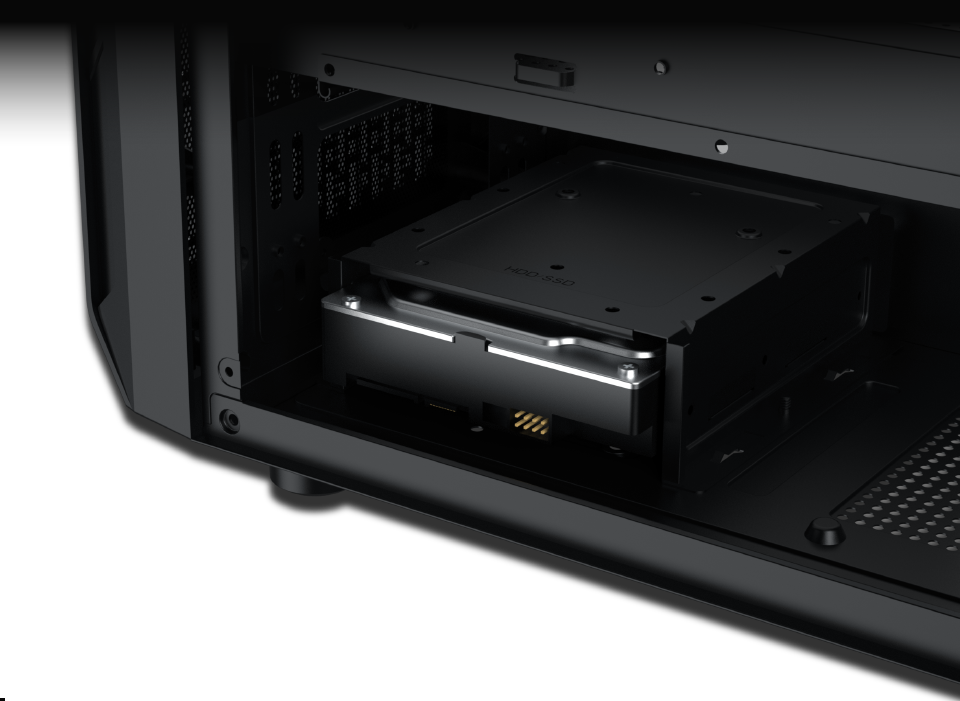

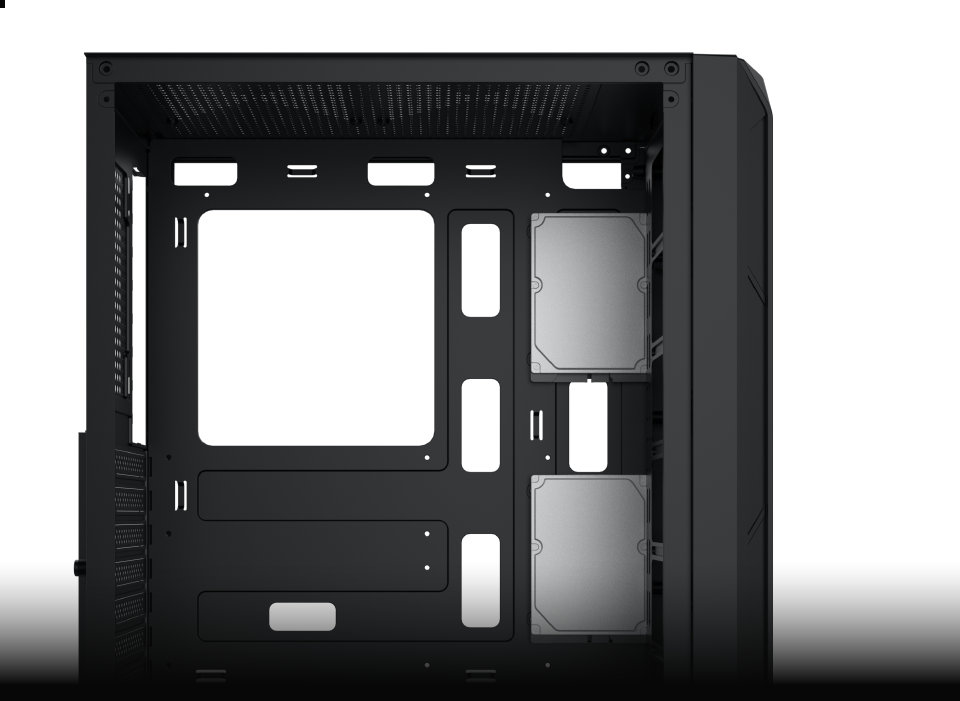

Drive Support

Drive Cage :
3.5″ x1 (Bottom)

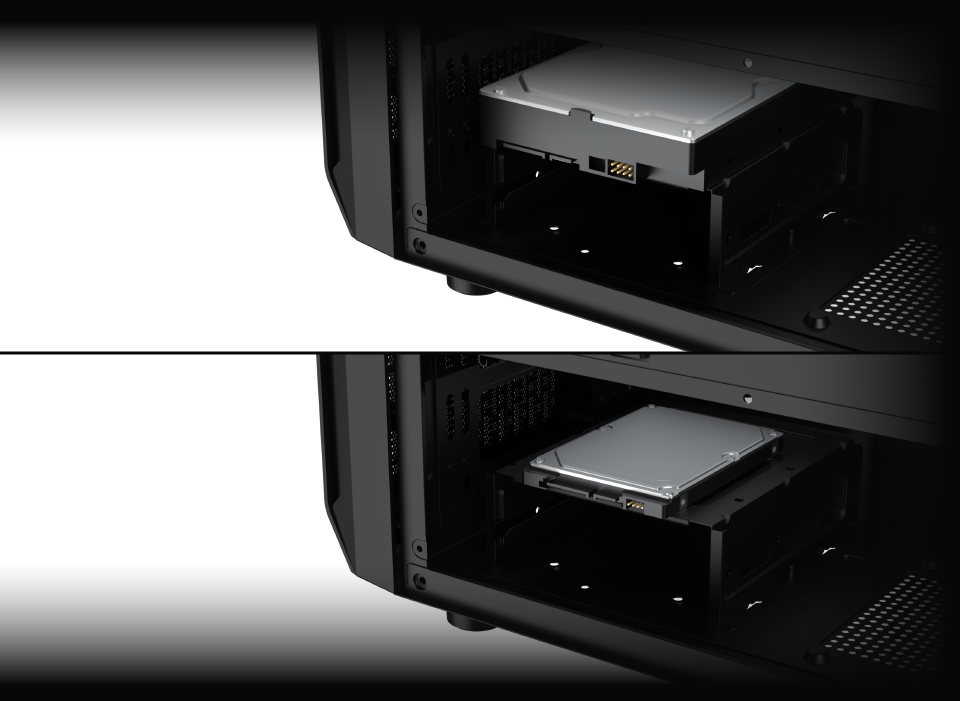

Drive Support

Drive Cage :
3.5″ & 2.5″ Combo x1 (Top)

Drive Support

SSD Bay :
2.5″ x2 (MB Width ≤220mm)

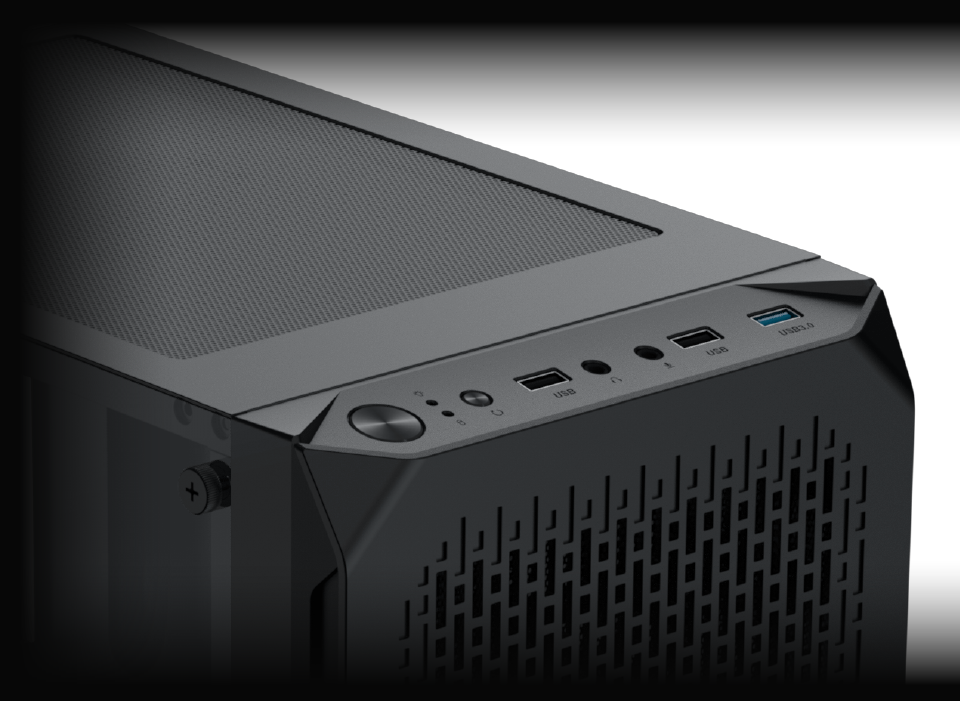

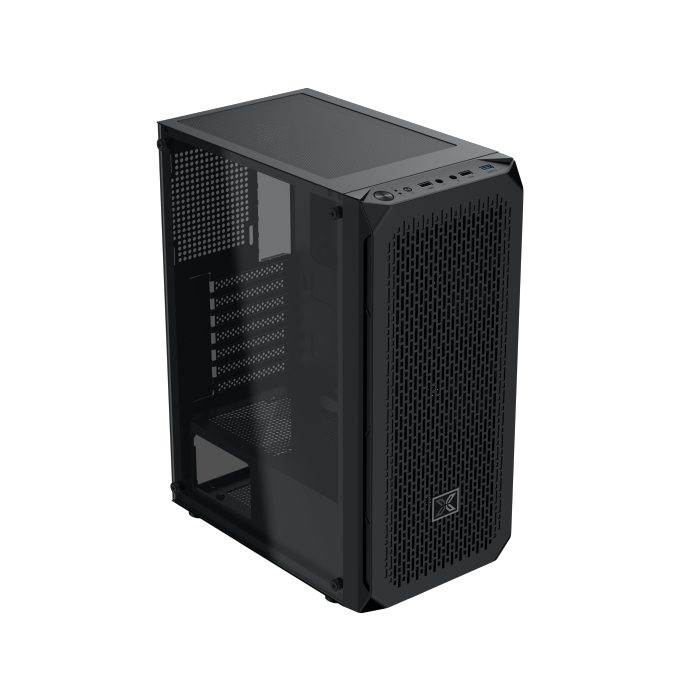

Top Mount I/O Ports

• Power Button
• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Sky (EN43970)

Material

Steel

Dimensions

340x200x450mm (LxWxH)

Drive Bays

HDD Cage (Bottom): 3.5″ x1
HDD Cage (Top): 3.5″ & 2.5″ Combo x1
SSD Bay: 2.5″ x2 (MB Width ≤220mm)

Expansion Slots

7 Standard Slots

Motherboard Support

ATX, Micro ATX, Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x2
Front: 120mm x3 or 140mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1

Radiator Support

Front: 240
(Separate Installation)
Rear: 120

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

CPU Cooler Clearance

160mm

GPU Length Limitation

290mm

PSU Length Limitation

140mm
