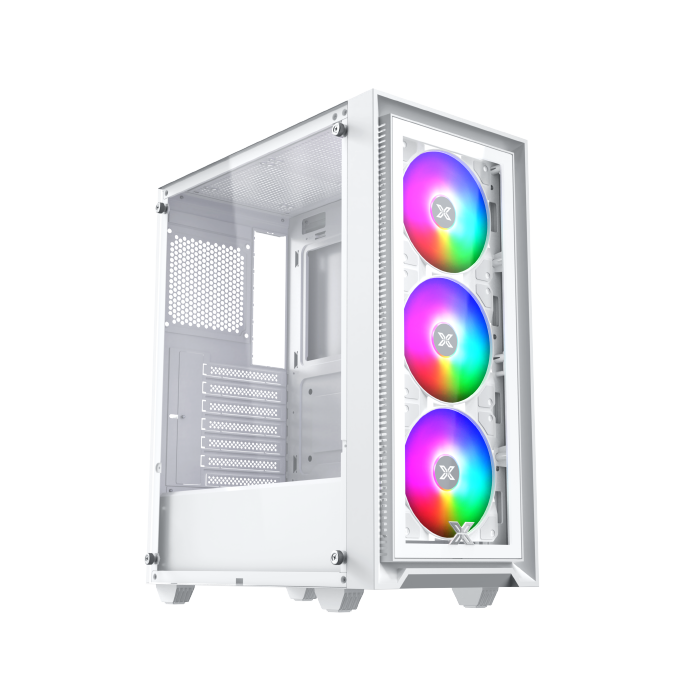

Sky II TG Arctic 3F (EN44373)

Sky II TG Arctic 3F (EN44373)

Motherboard ATX

CPU Cooler 160mm

Fan Support 6 max.

Power Supply 165mm

Graphics Card 325mm

Radiator 360 max.

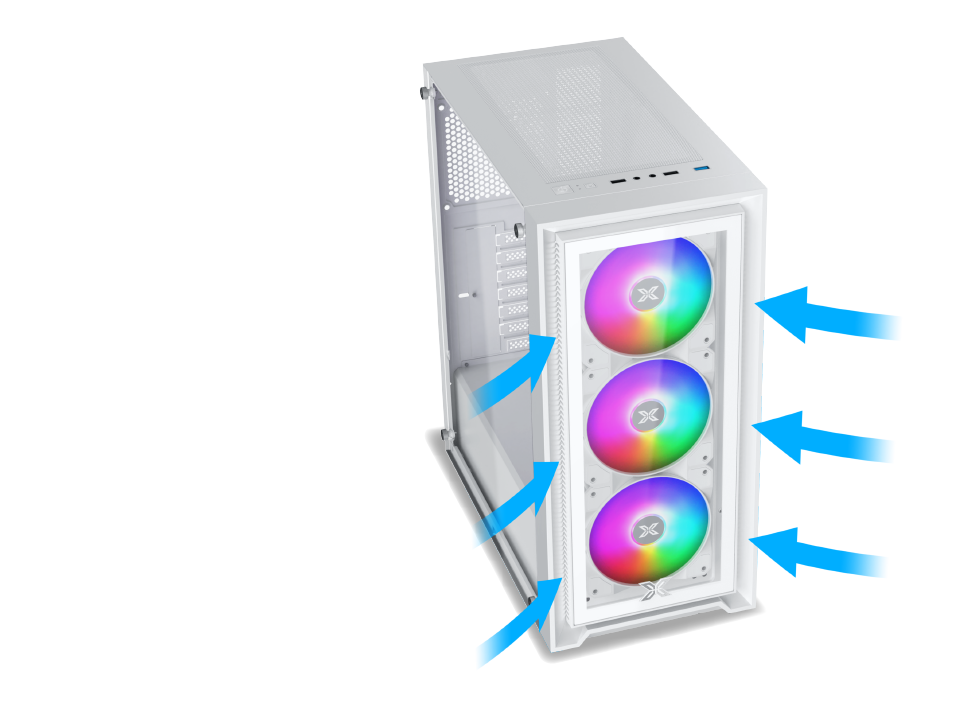

Superior Airflow and
Ventilation Design

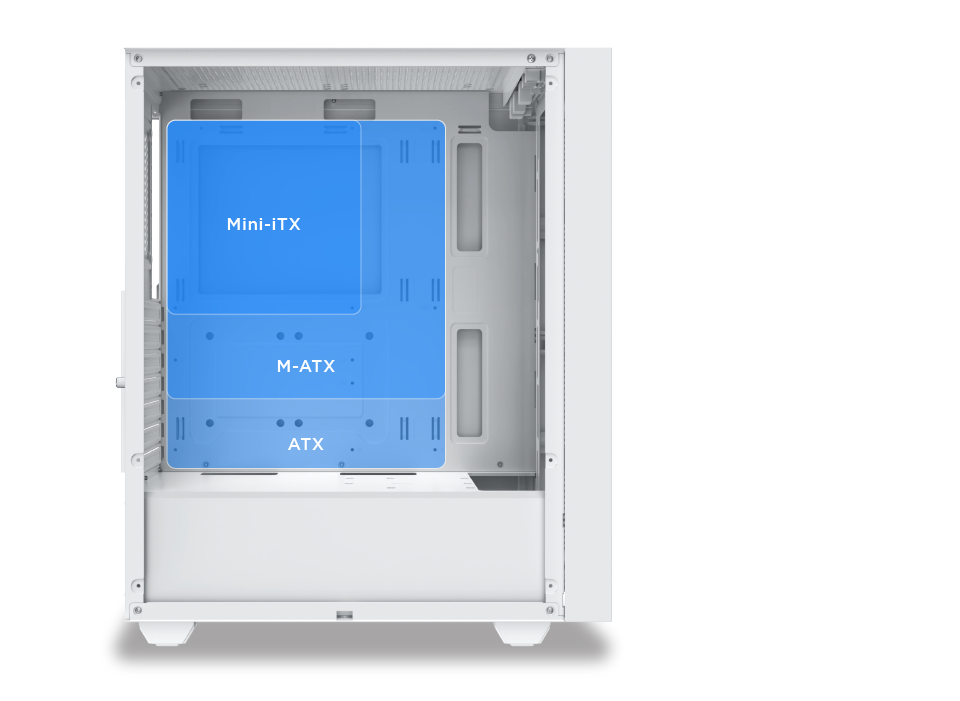

Support Motherboard
up to ATX

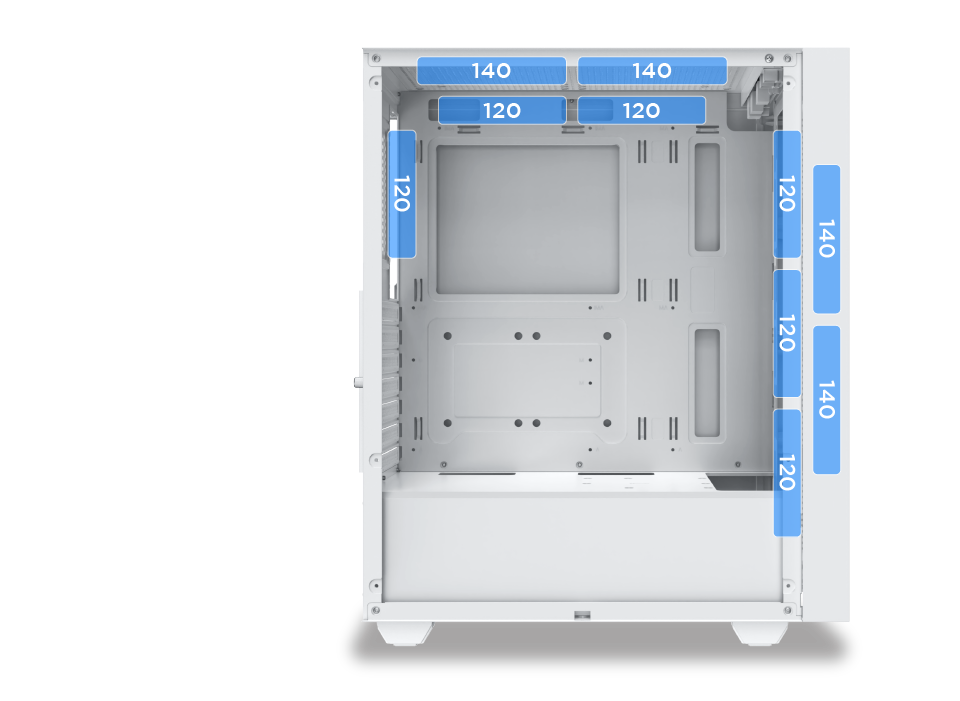

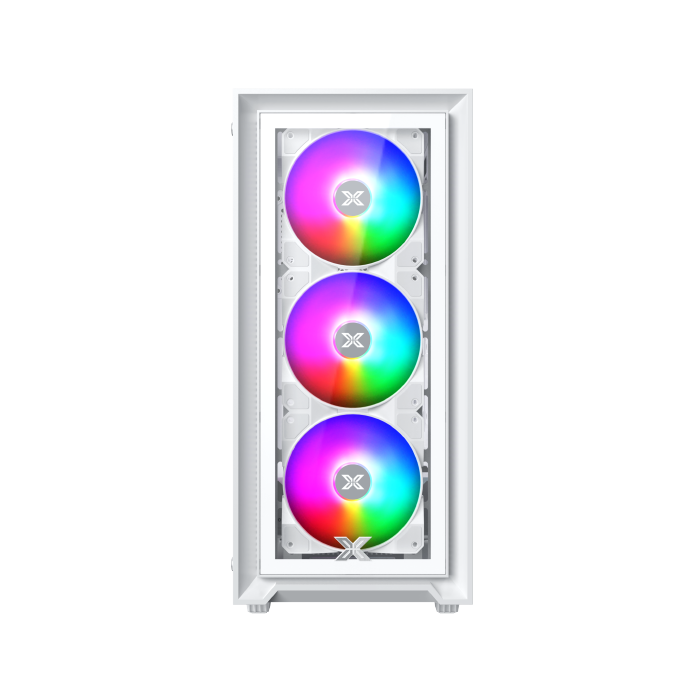

Fan Support

Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x2
Rear: 120mm x1

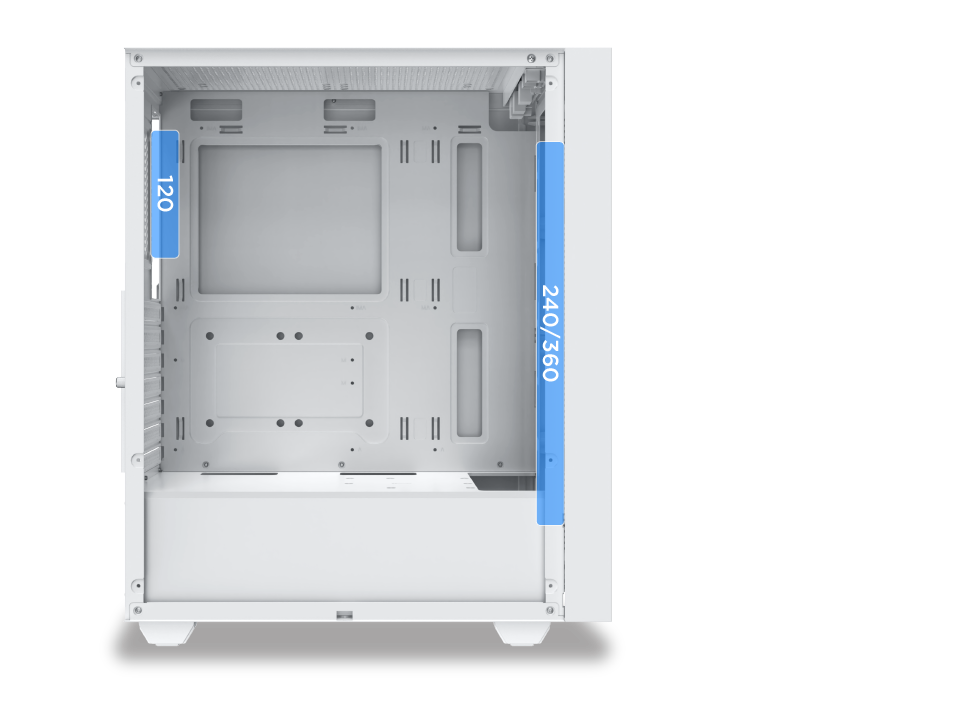

Radiator Support

Front: 240/360
(Separate Installation)
Rear. 120

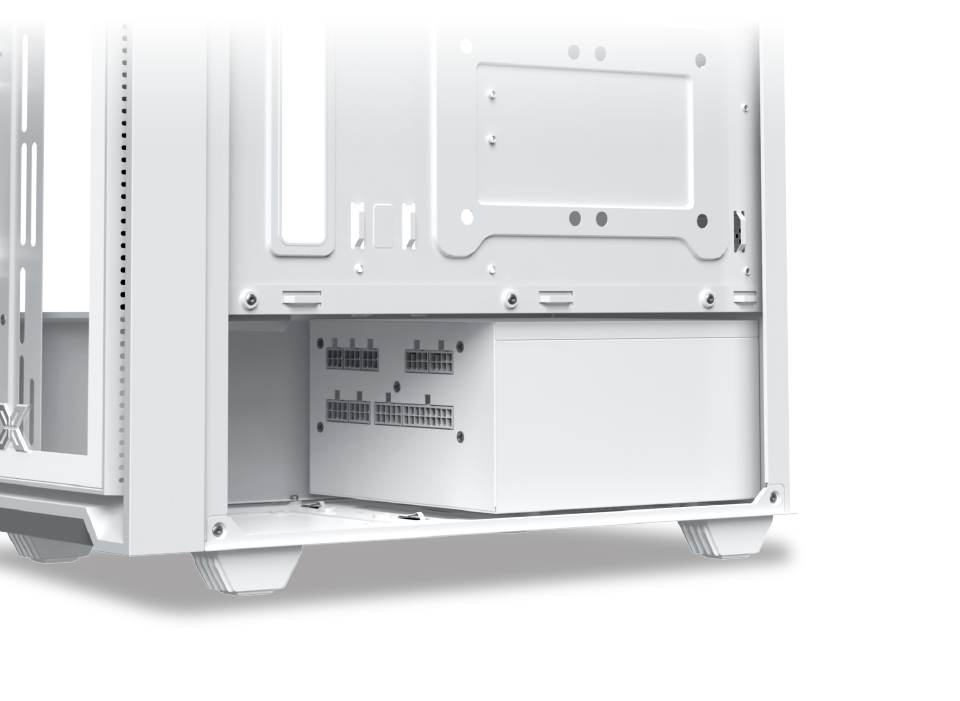

PSU Limitation
up to 165mm

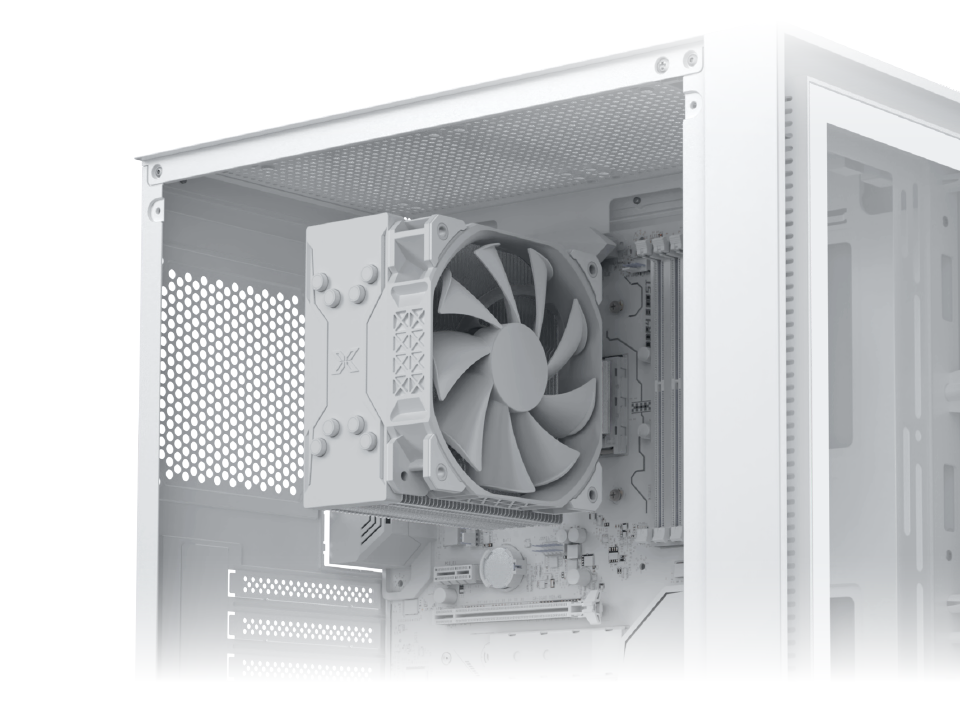

CPU Cooler Clearance
up to 160mm

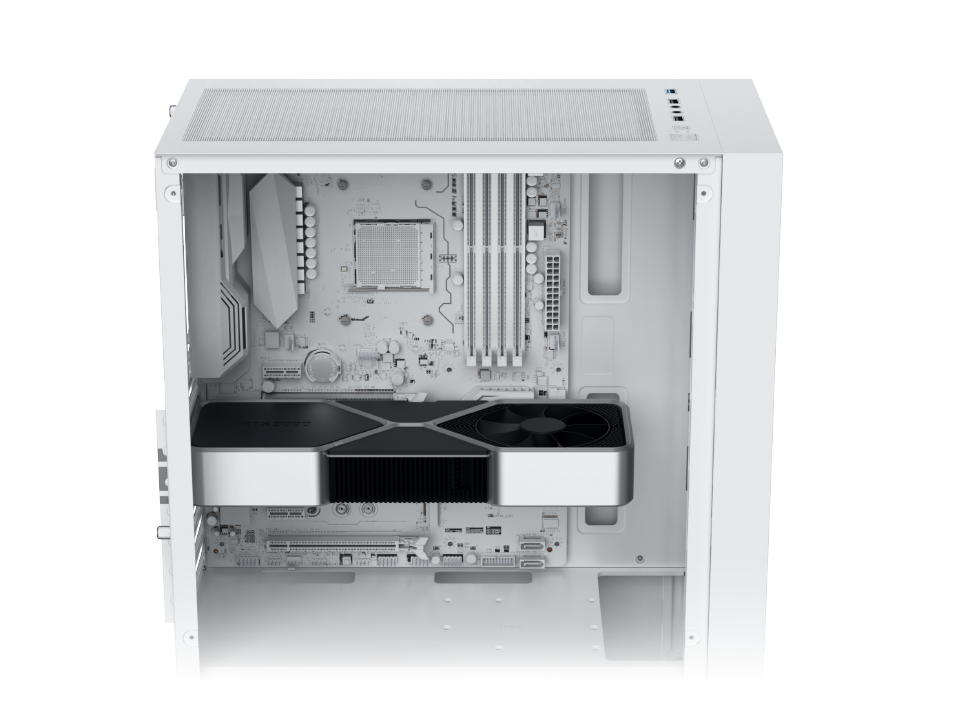

GPU Length Limitation
325mm

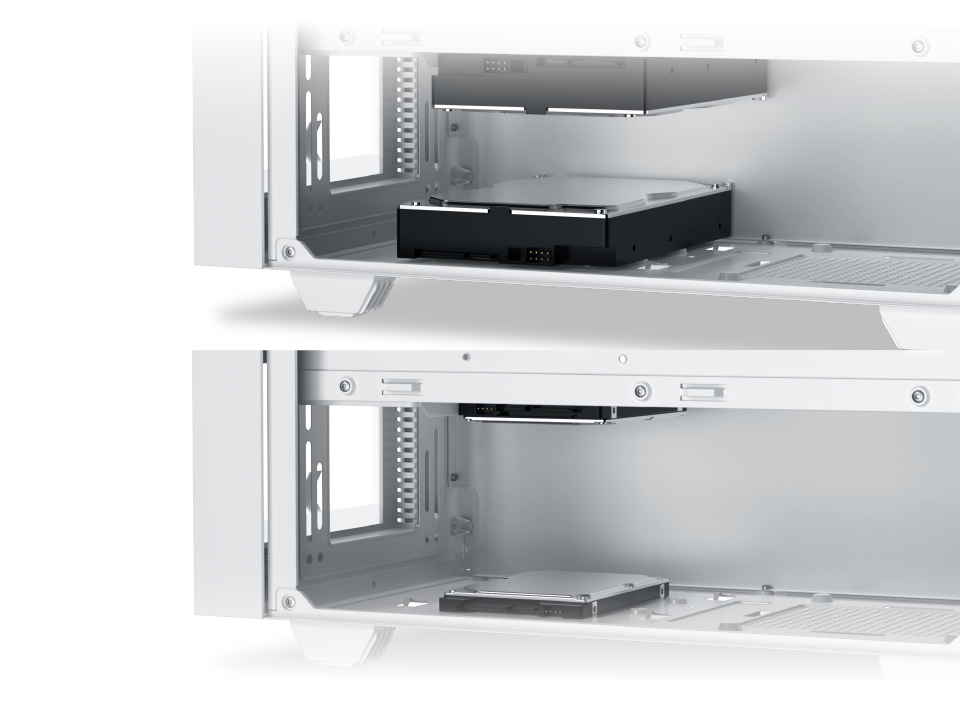

Drive Support

2.5 SSD & 3.5 HDD Combo x2

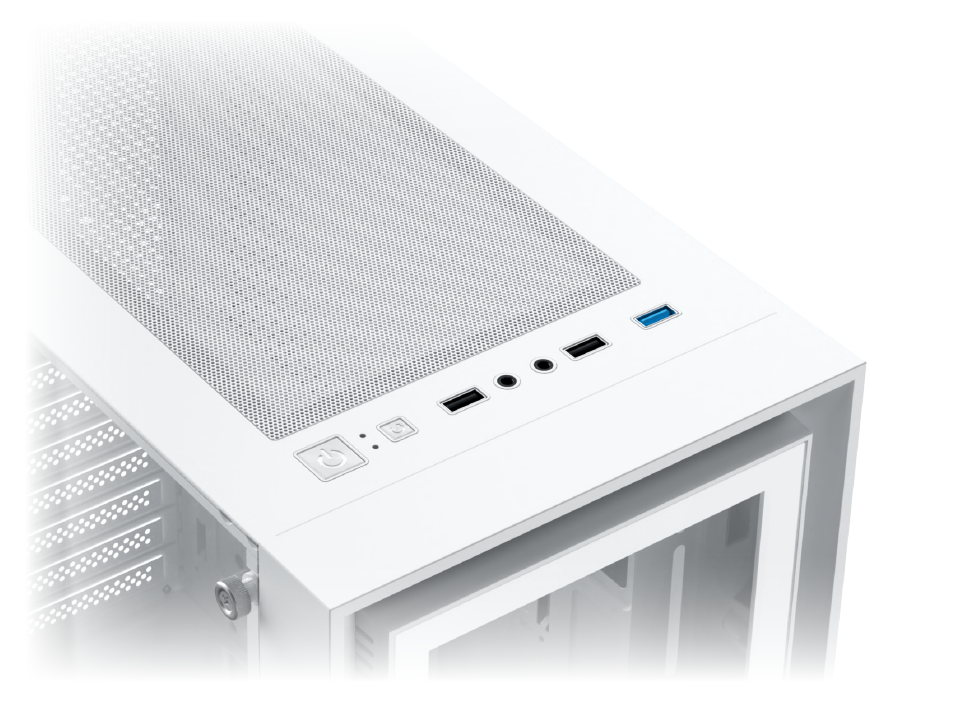

Top Mount I/O Ports

• Power Button• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Sky II TG Arctic 3F (EN44373)

Dimensions

Steel

Motherboard Support

ATX, Micro ATX, Mini ITX

Drive Bays

2.5 SSD & 3.5 HDD Combo x2

Expansion Slots

7 Standard Slots

Motherboard Support

ATX, Micro ATX, Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x2
Rear: 120mm x1

Radiator Support

Front: 240/360
(Separate Installation)
Rear: 120

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

CPU Cooler Clearance

160mm

GPU Length Limitation

325mm

PSU Length Limitation

165mm
