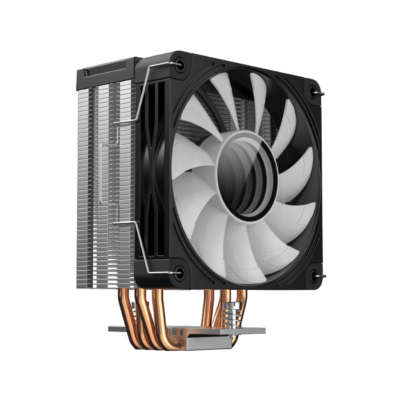

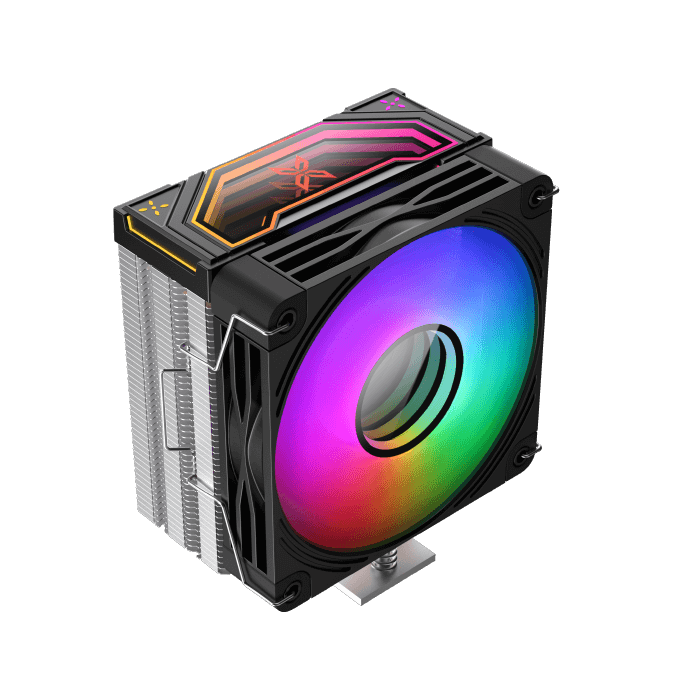

EPIX II

EPIX II

Support LatestSpecifications

CPEfficient Heat Dissipation

Noise Level ≤ 28.6 dBA

Air Pressure 2.9mm-H2O (MAX)

Fan Speed 600-1600 ±10% RPM

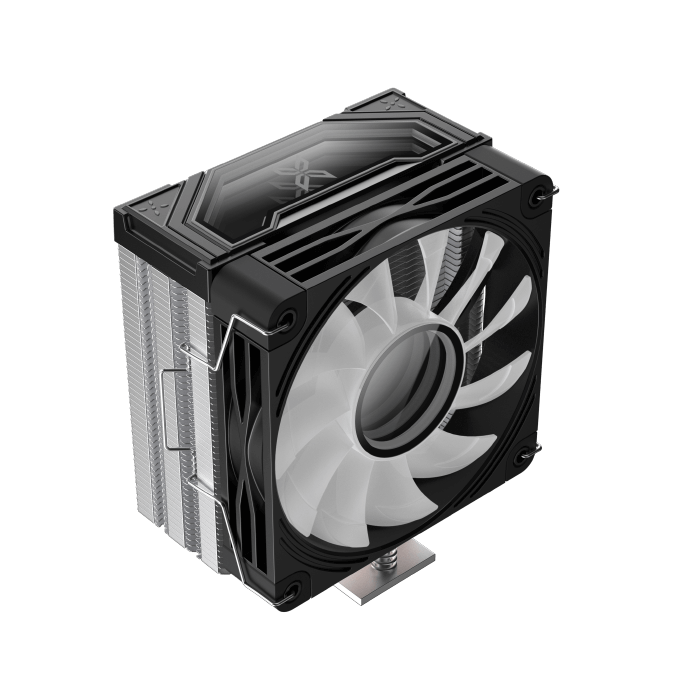

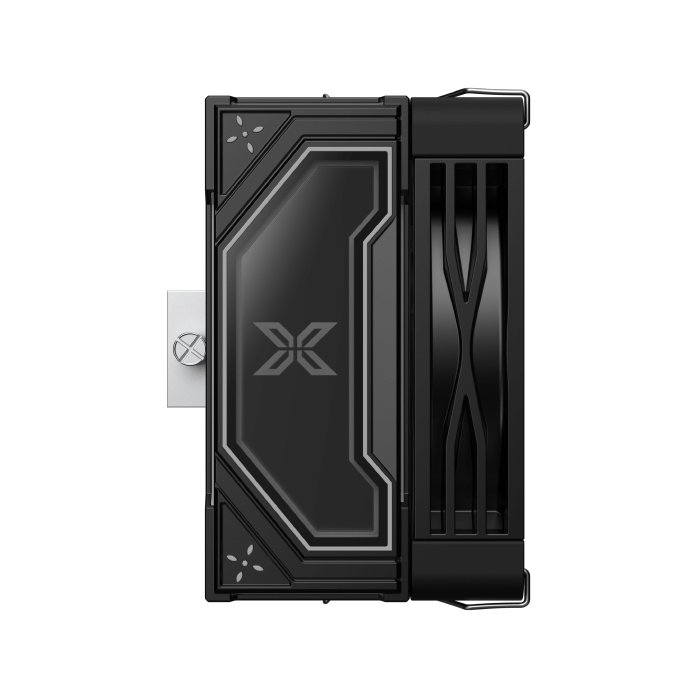

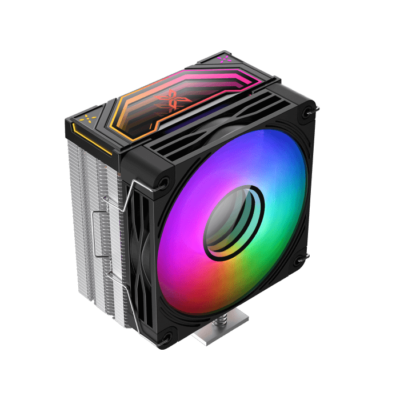

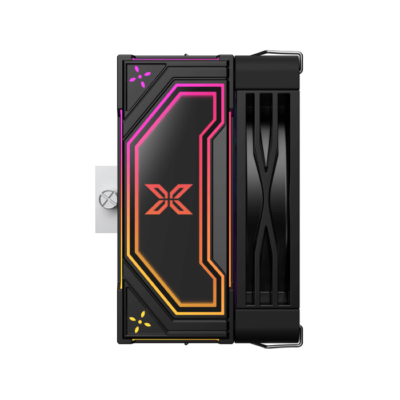

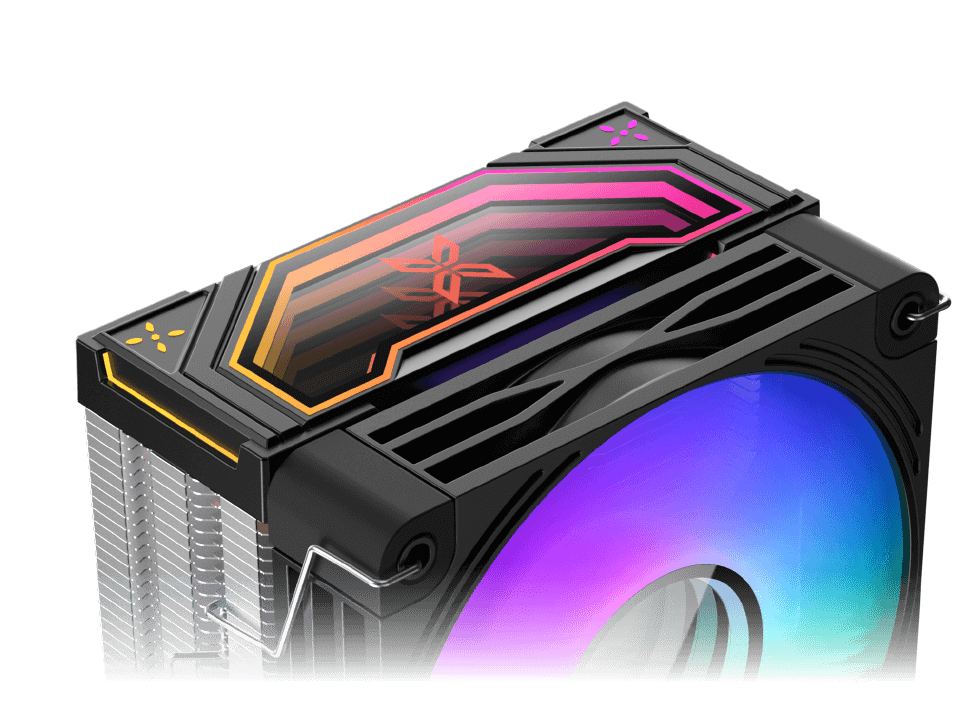

RGB Lighting Infinity Mirror Top Cover

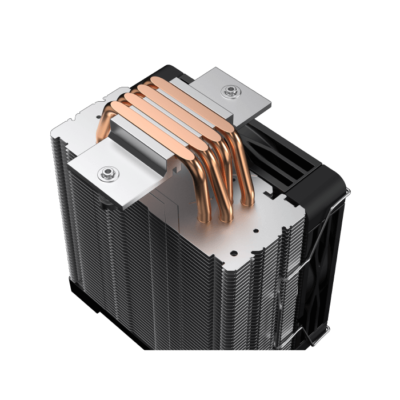

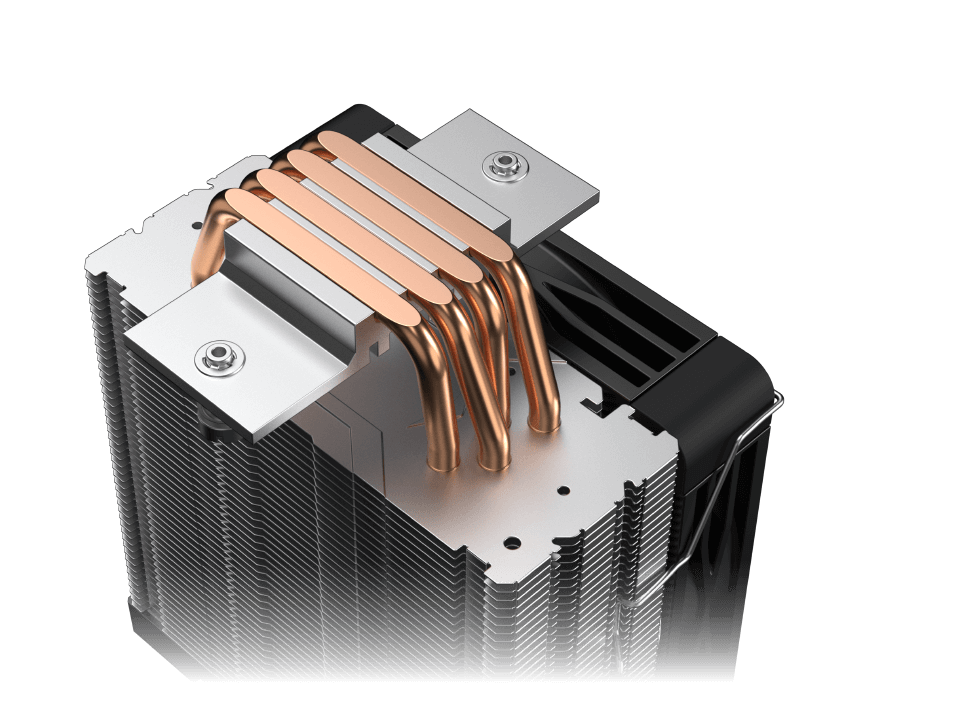

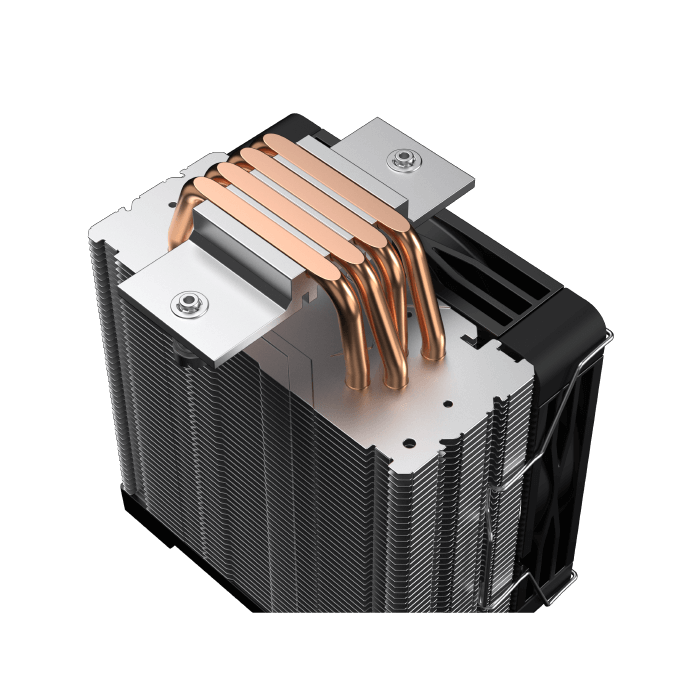

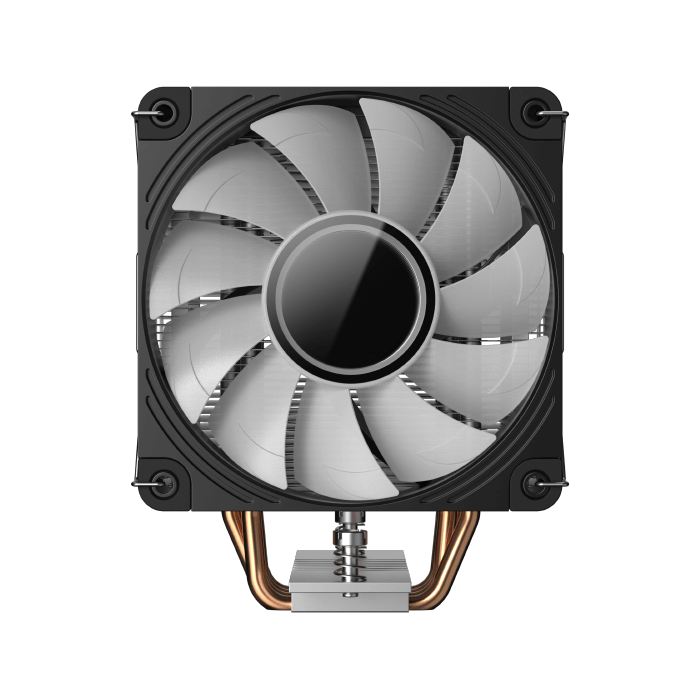

4pcs Heat Pipes

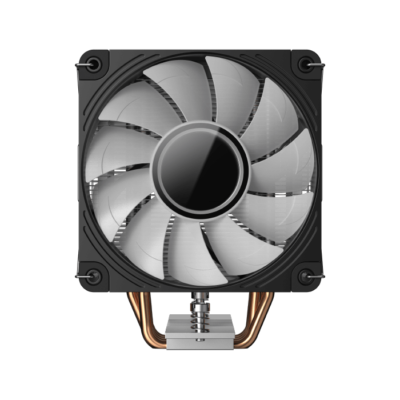

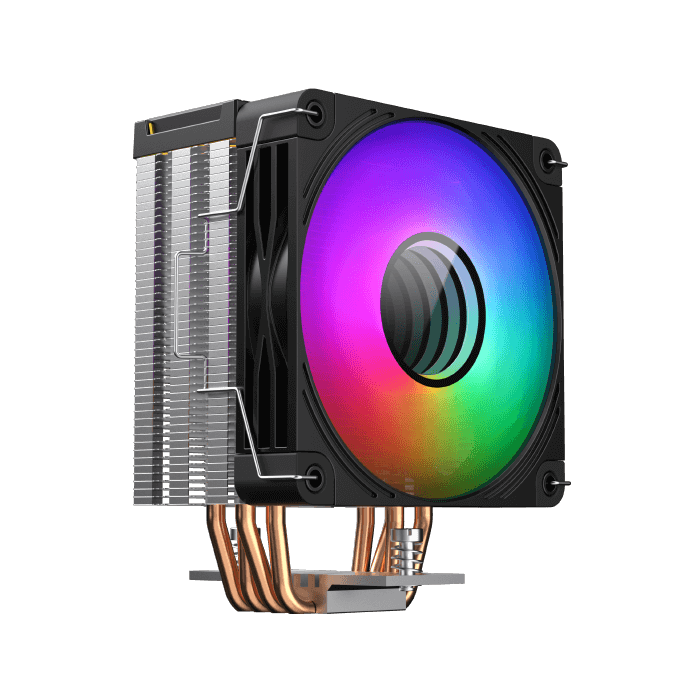

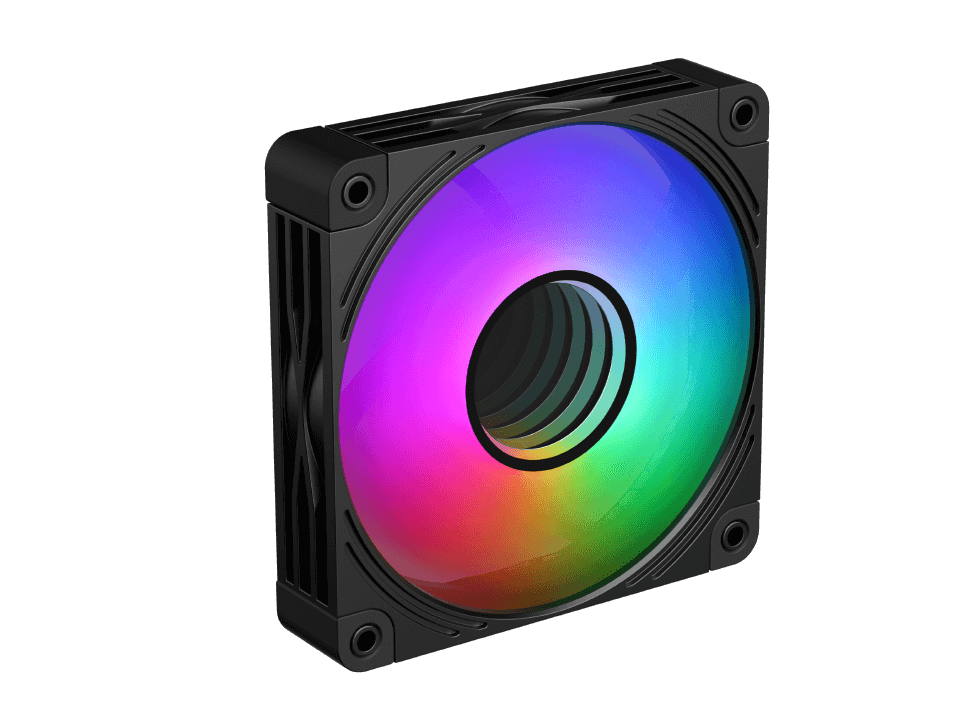

Slow Motion Random RGB PWM Fan

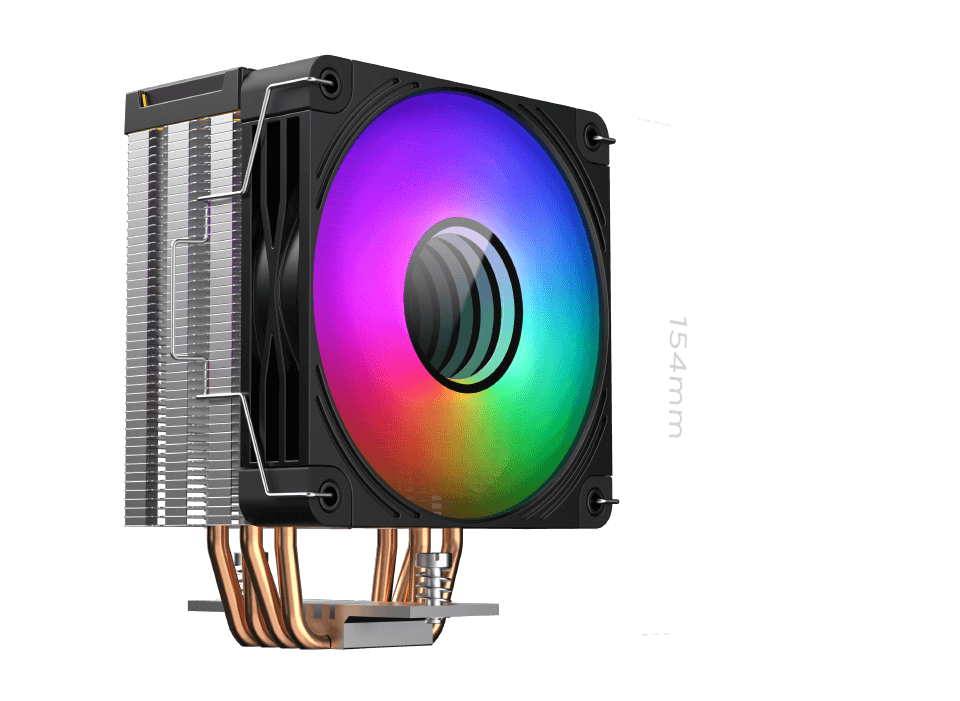

Procouct Dimensions

125x98x154mm (LxWxH)

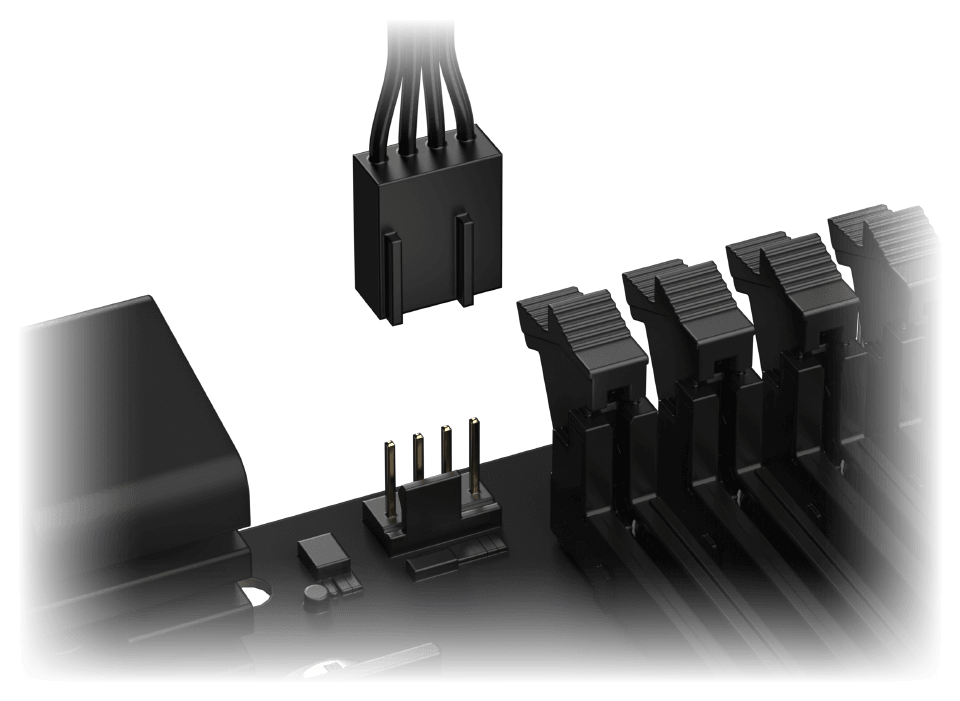

4PWM Fan Cable

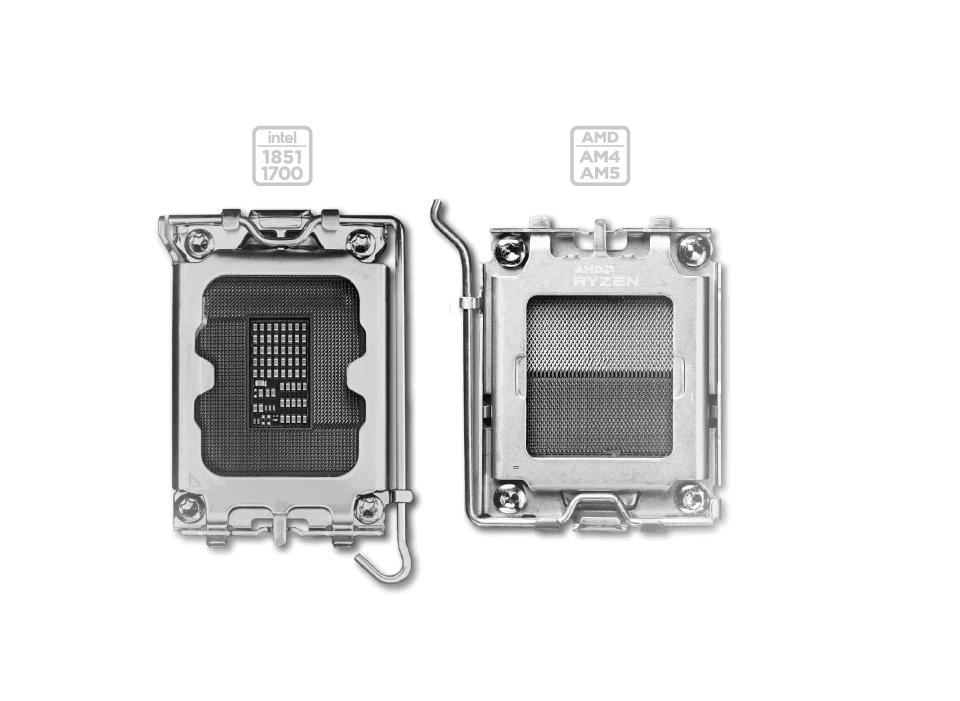

Intel LGA18XX Ready AMD AM5 Ready

Support Latest Intel Desktop Processor
Family and Latest AMD Ryzen™ Desktop
Processor Family

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

EPIX II

Product Dimensions

125x98x154mm (LxWxH)

Heat Sink Dimensions

120x90x148mm (LxWxH)

Heat Sink Material

4pcs Heat Pipes/Aluminum Fins

Heat Pipe Dimensions

Ø6mm

TDP

225W

Top Cover

Infinity Mirror Plastic Top Cover Slow Motion Random RGB

CPU Support

Intel® LGA 1851/1700/1200/115X/20XX/1366
AMD® AM5/AM4

Fan Dimensions

120x120x25mm

Fan Speed

600-1600 ±10% RPM

Fan Bearing

Long Life Hydraulic Bearing

Fan LED Color

Slow Motion Random RGB

Fan Air Flow

69.3 CFM

Fan Air Pressure

2.9 mm-H2O

Fan MTTF

40,000 hours

Fan Noise Level

≤ 28.6 dBA

Fan Connector

4P PWM

Fan Rated Voltage

12 VDC

Fan Rated Current

≤ 0.23 A

Fan Power Consumption

≤ 3 W
