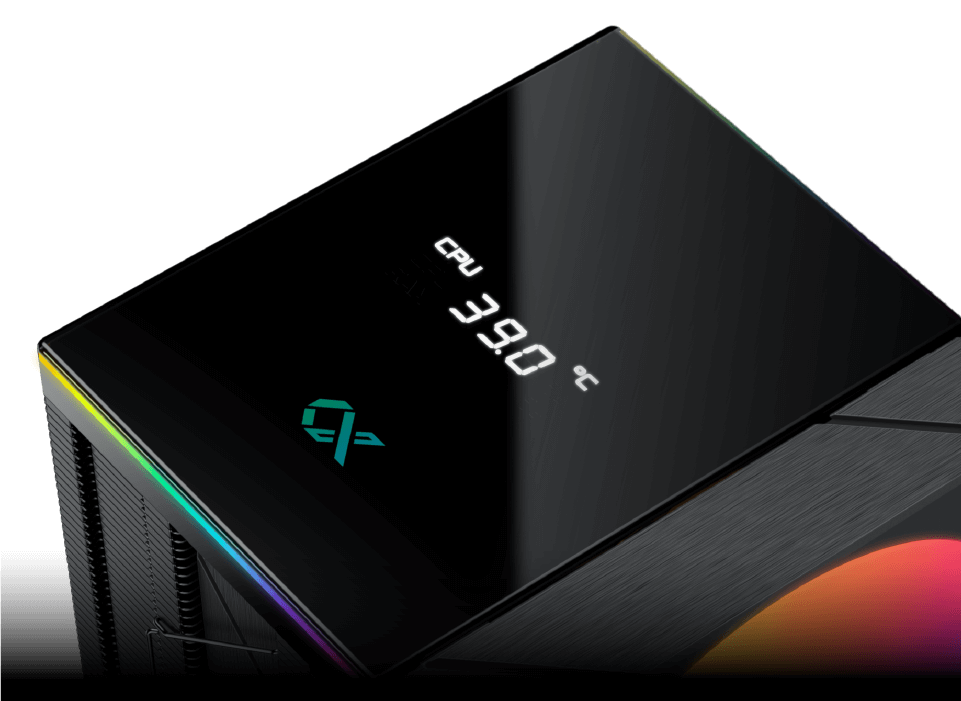

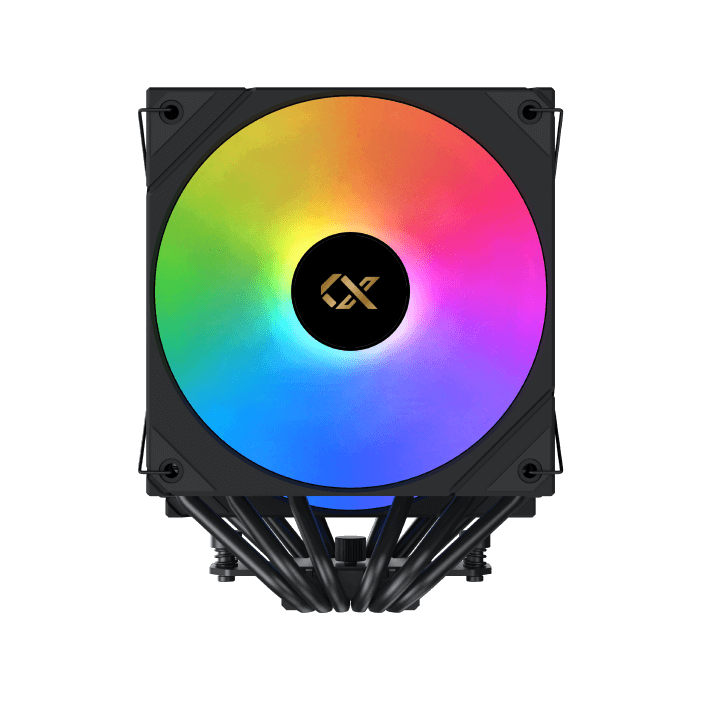

Digital Display Top Cover

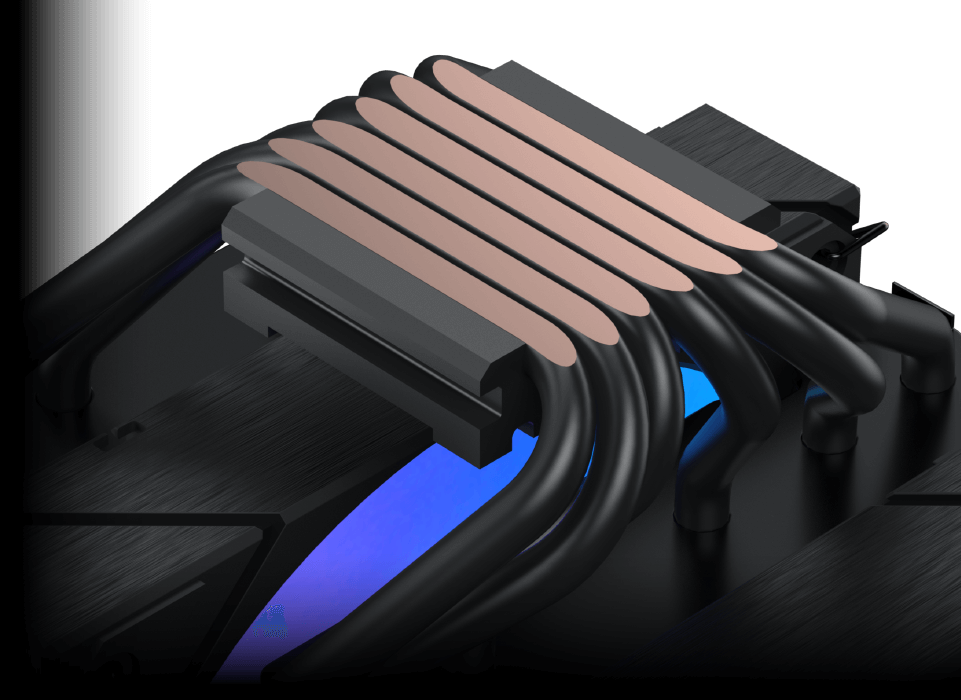

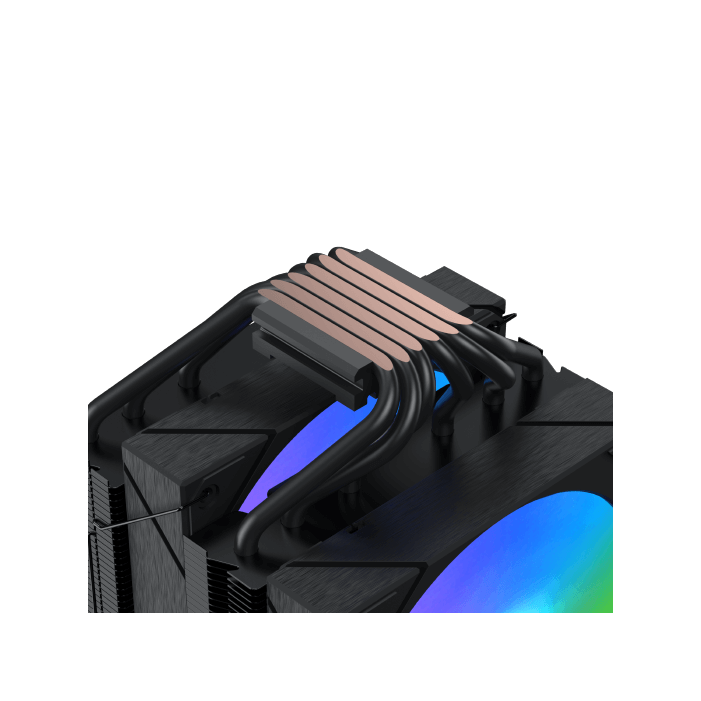

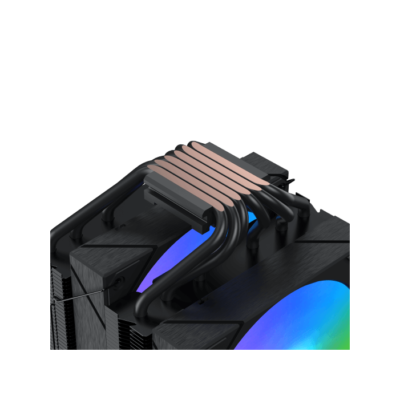

6pcs Heat Pipes

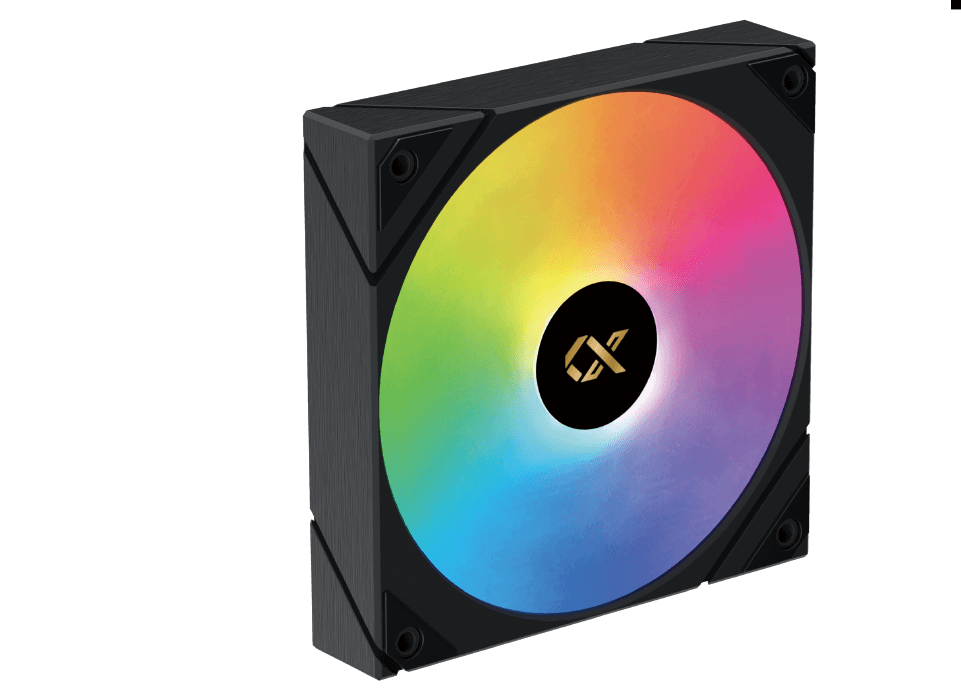

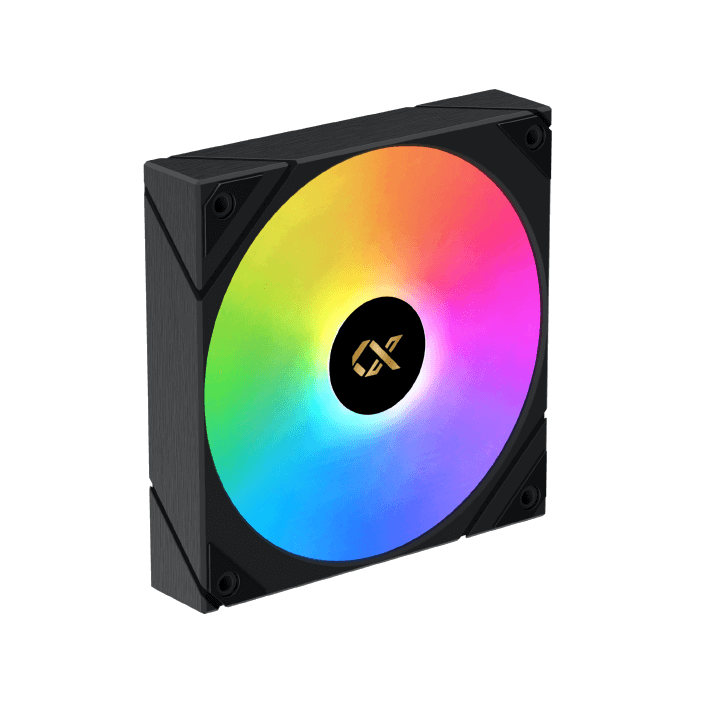

ARGB PWM Fan

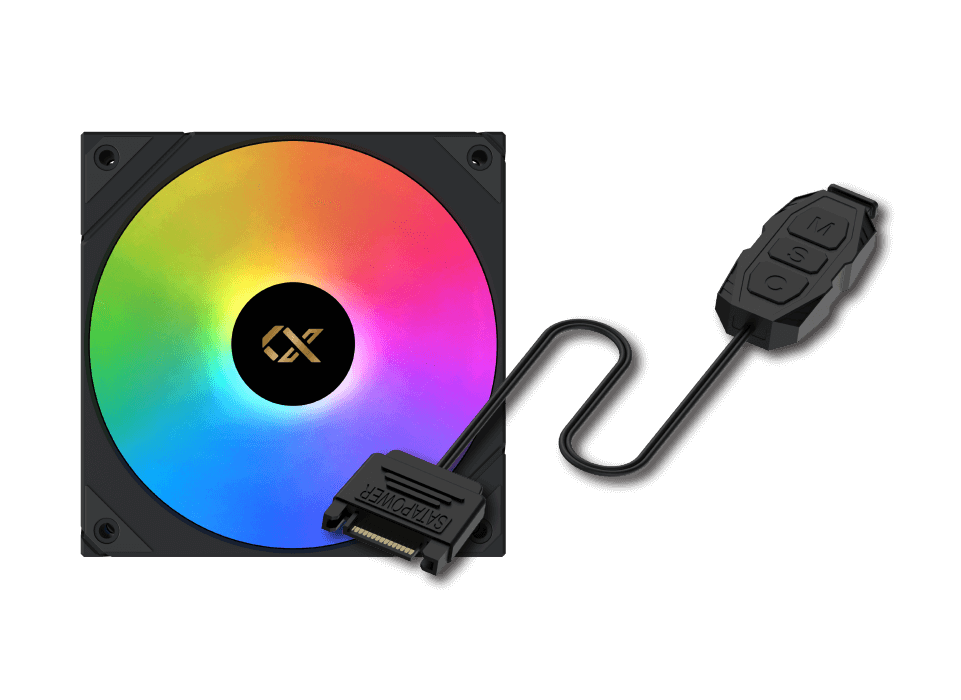

Mini ARGB Controller
Please Connect the 3P ARGB Connector to Mini ARGB LED Controller, Plug and Play.

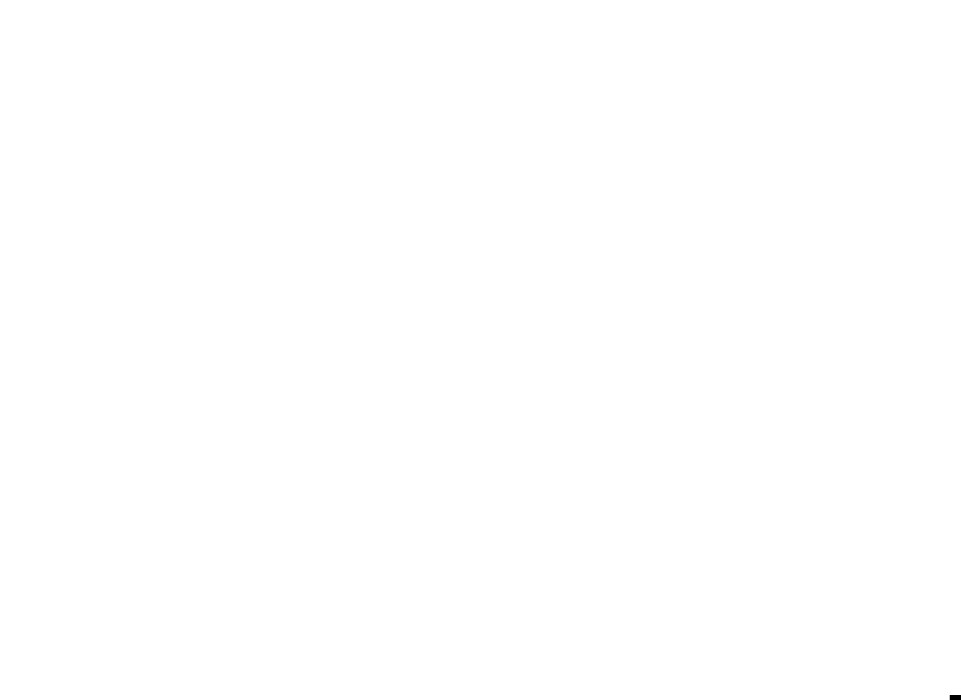

Product Dimensions
125x90x154mm (LxWxH)

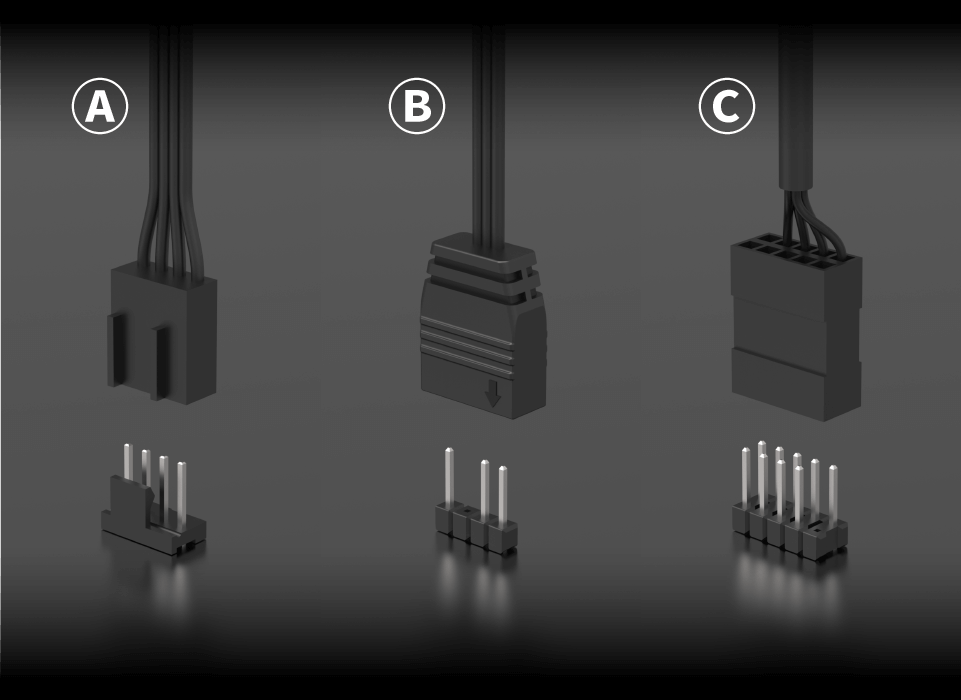

Cable Installation
Ⓐ – 4P PWM Connector
Ⓑ – MB 3P ARGB or Mini ARGB Controller
Ⓒ – 9P USB Connector

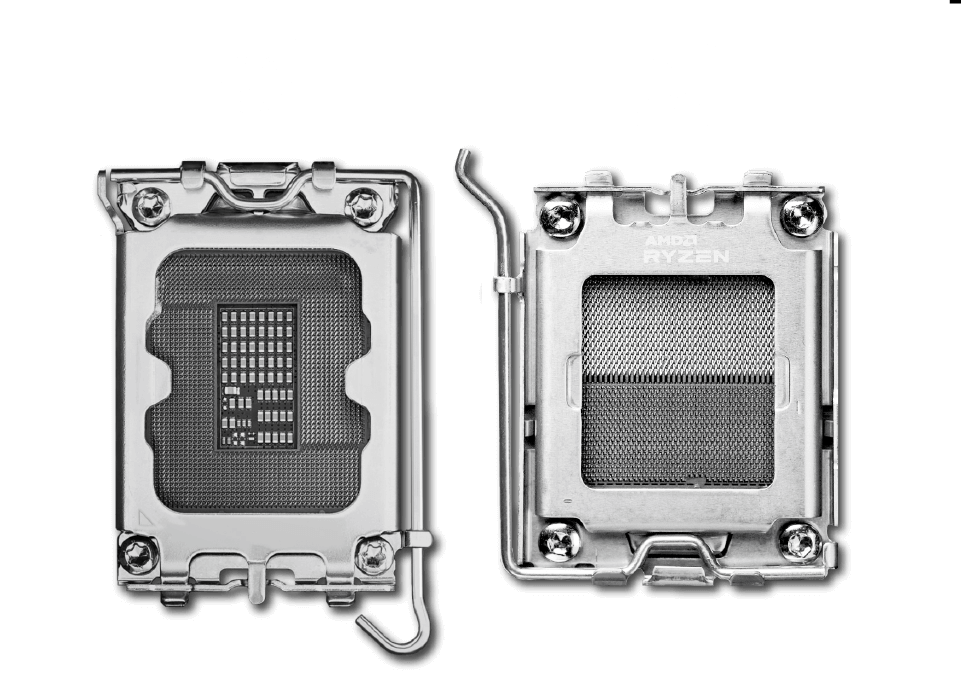

Intel LGA 1851 &
AMD AM5 Ready
Support Latest Intel Desktop Processor
Family and Latest AMD Ryzen™ Desktop
Processor Family

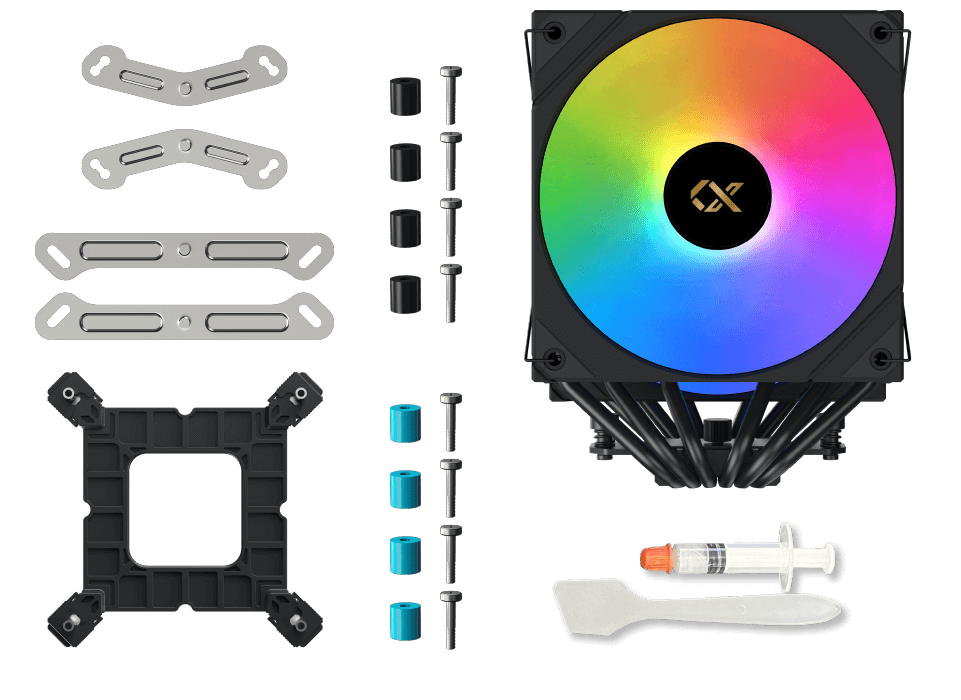

Accessories
*All Product Images Shown Are For Illustration Purpose Only.

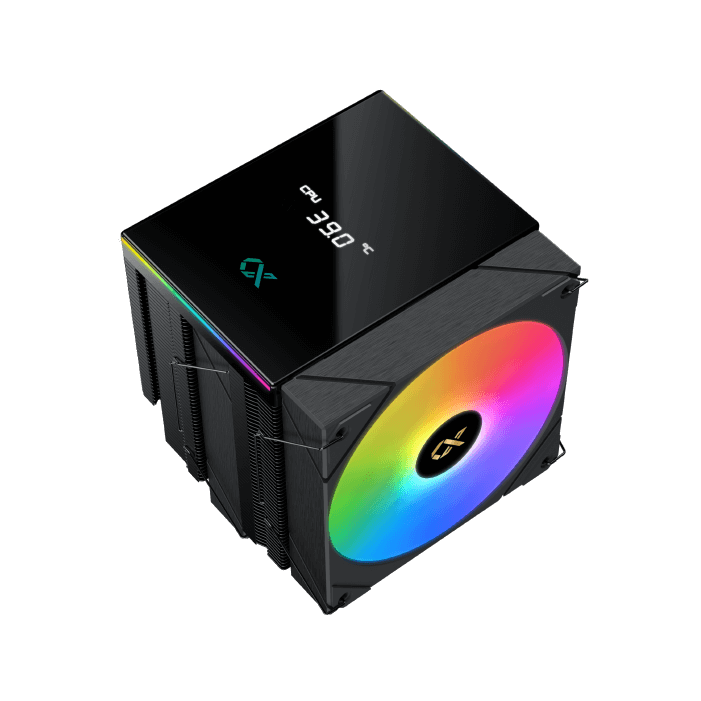

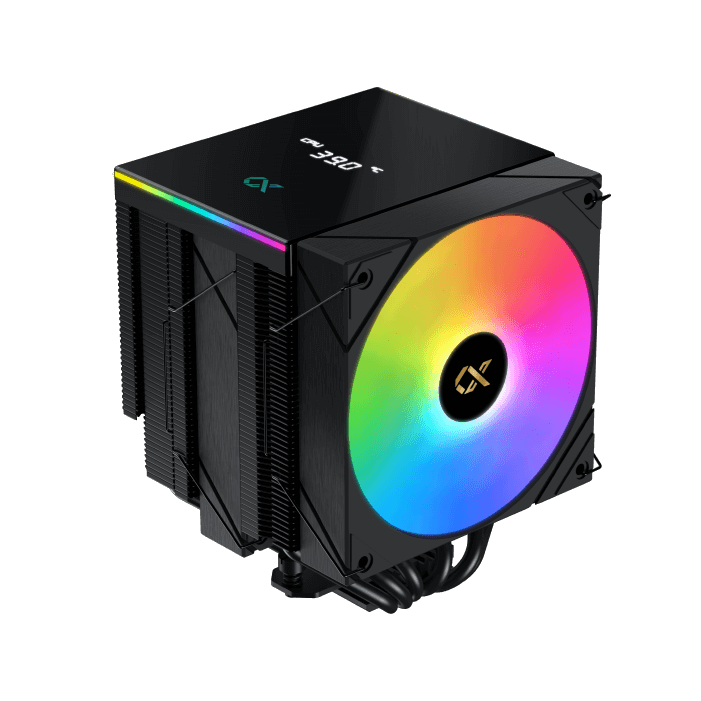

AK6 Dual Digital
125x90x154mm (LxWxH)
120x90x149mm (LxWxH)
6pcs Heat Pipes / Aluminum Fins
Ø6 mm
Digital LED Display Top Cover
Intel® LGA 1700/1200/115x
AMD® AM5/AM4
120x120x25mm
800-1800±10% RPM
Long Life Hydraulic Bearing
ARGB LED
78 CFM (MAX)
2.24mm-H2O (MAX)
40000 hours
≦ 28 dBA
4P PWM, 3P ARGB
12 VDC
≦ 0.25 A
≦ 3W
