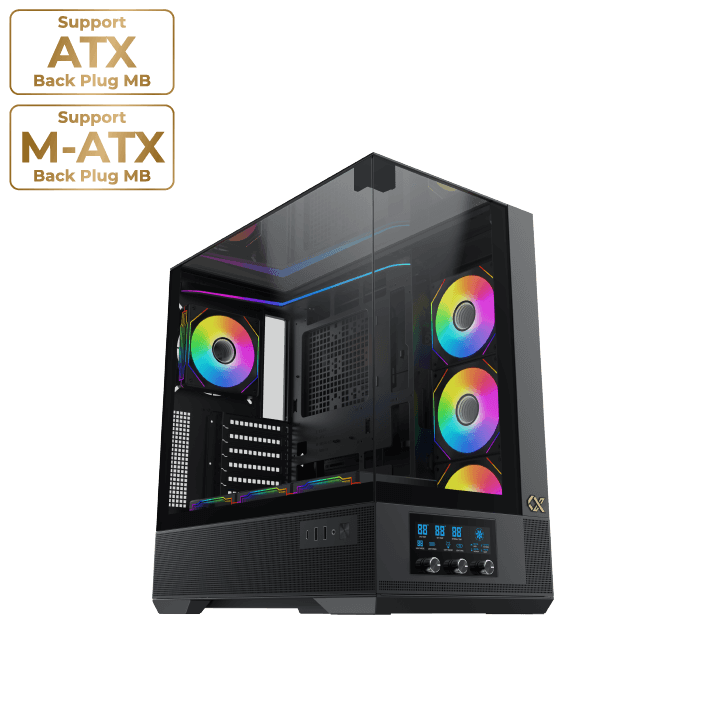

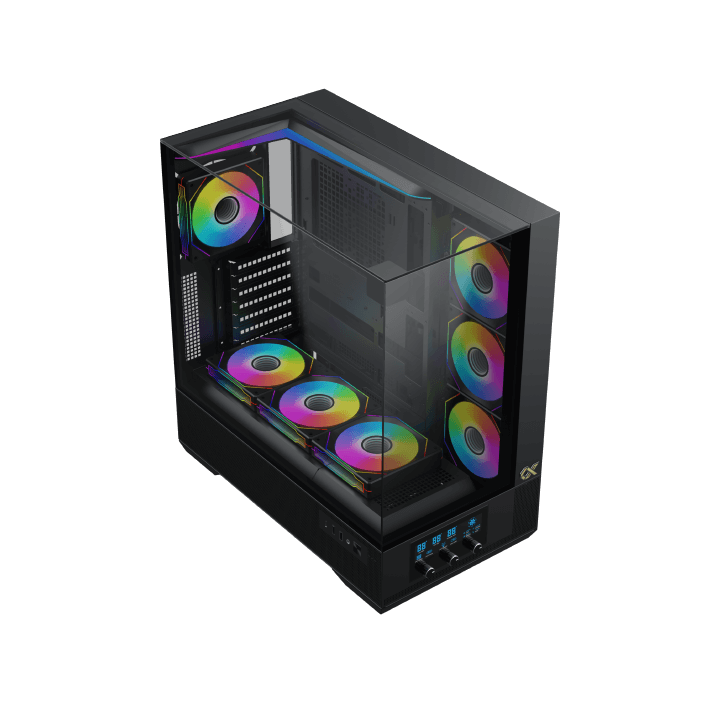

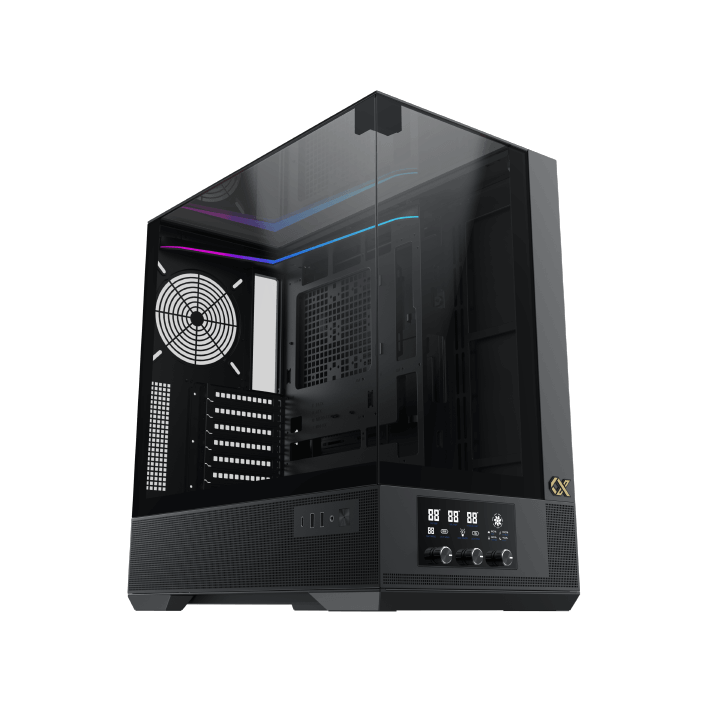

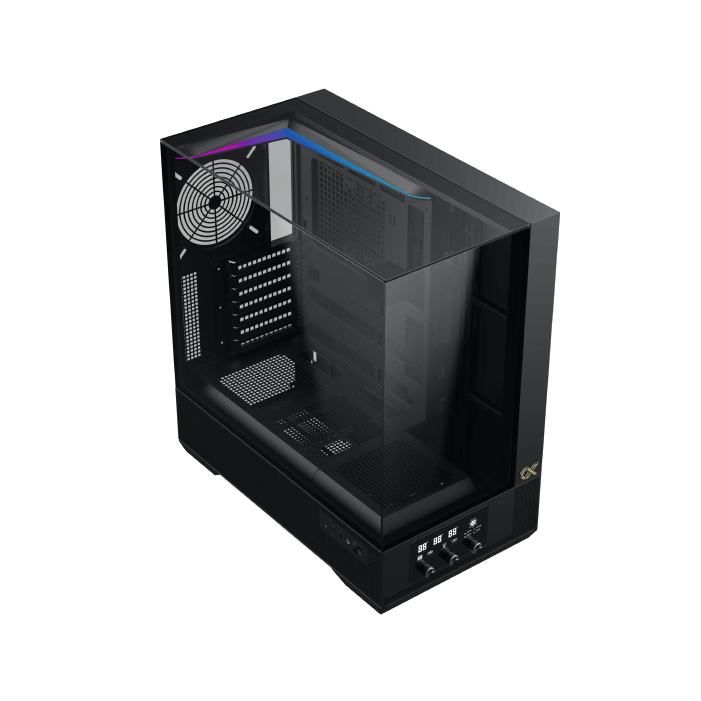

3 Tempered
Glass Panel Design

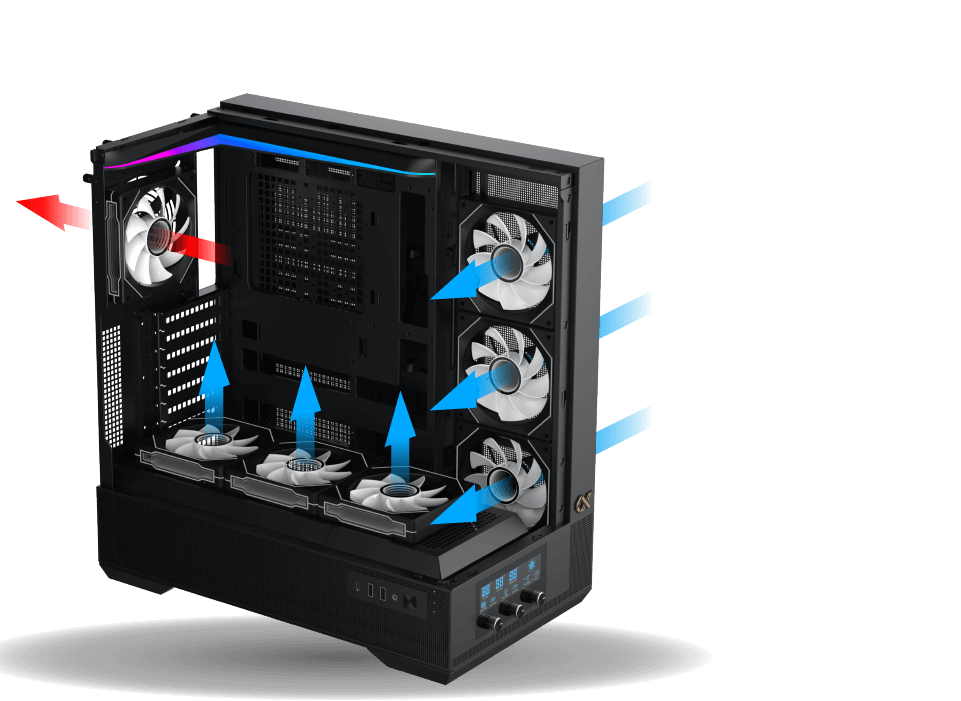

Superior Airflow and
Ventilation Design

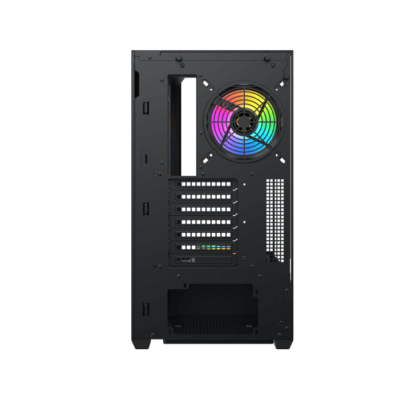

Traditional Fan Blade
800-2200 RPM PWM Fan

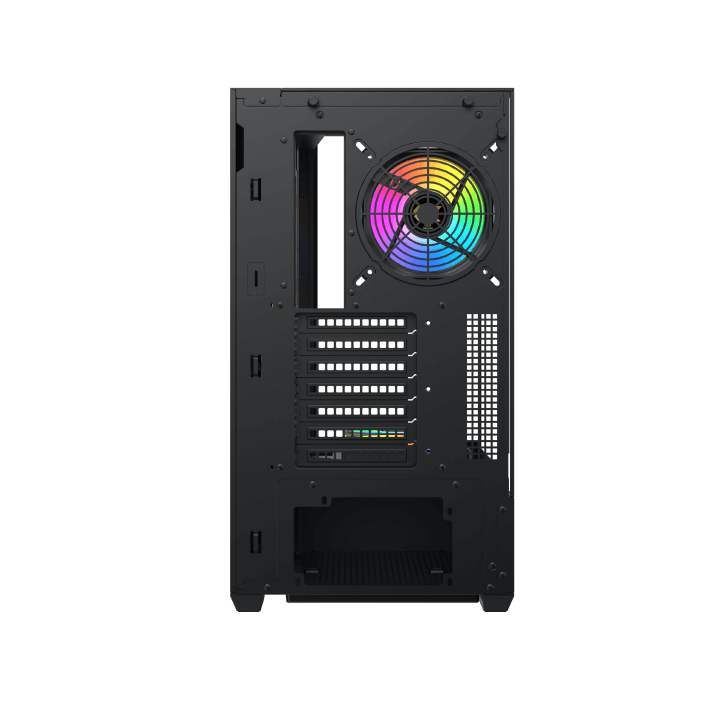

Pre-installed on Rear Side

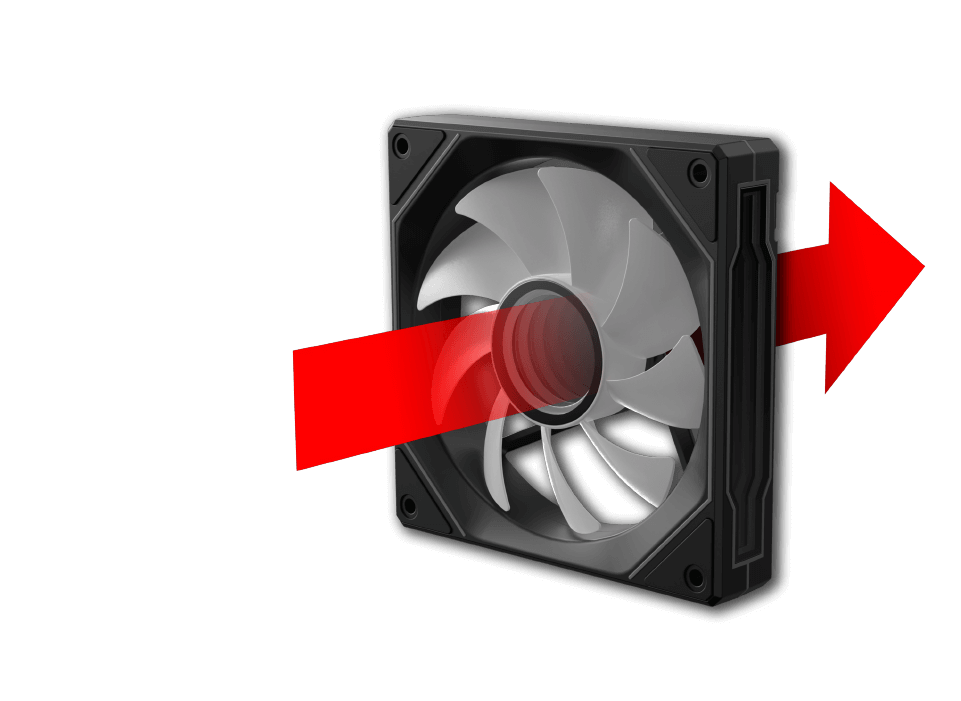

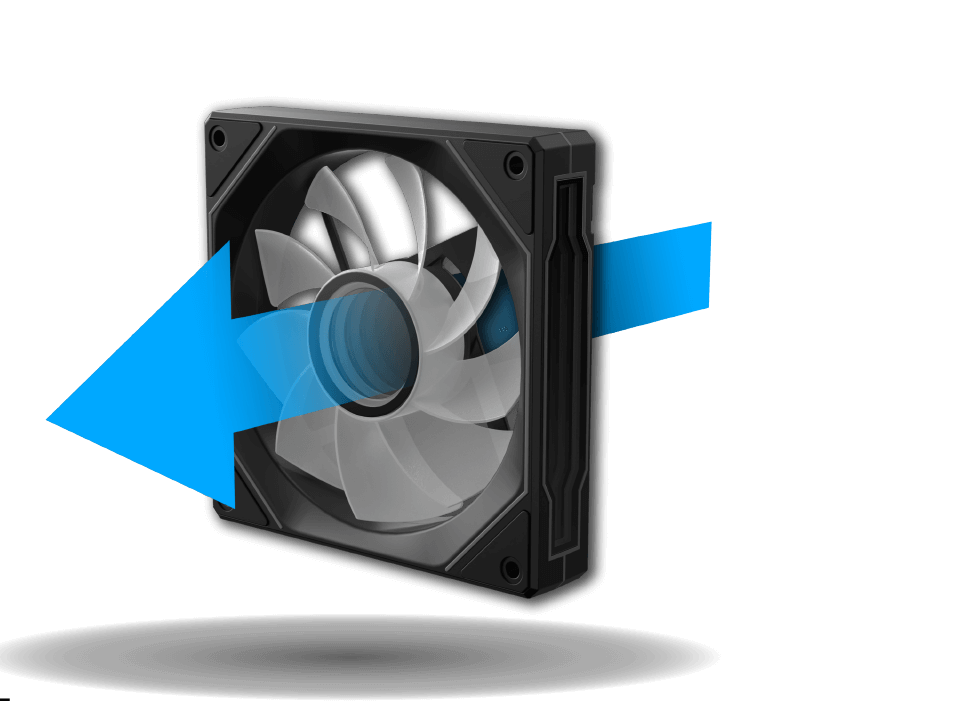

Reverse Fan Blade
800-2200 RPM PWM Fan
Pre-installed on MB & PSU Shroud Panel Side

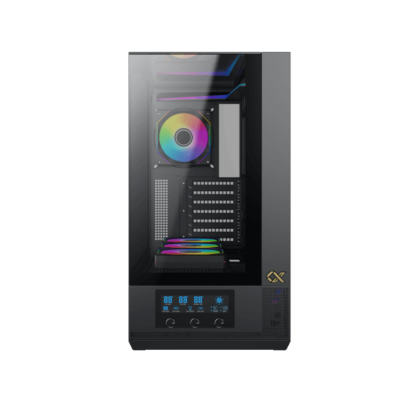

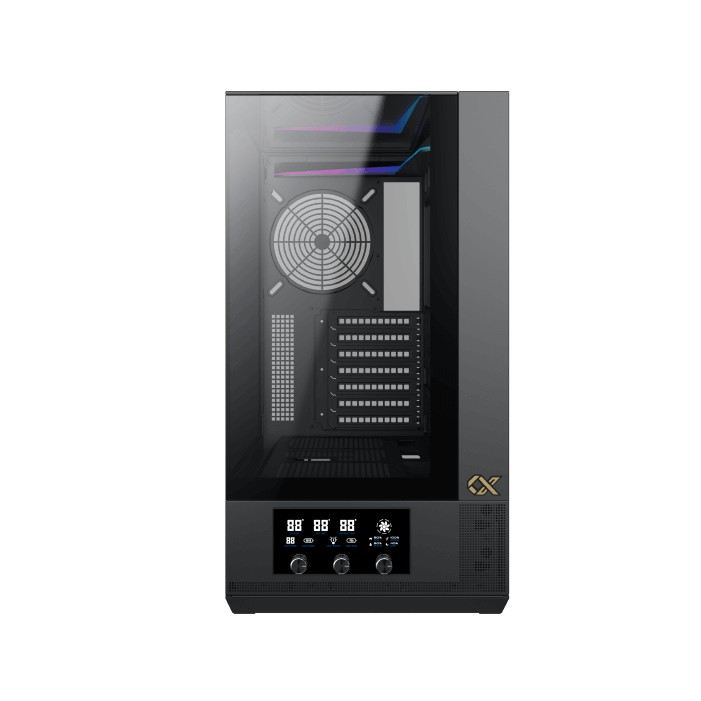

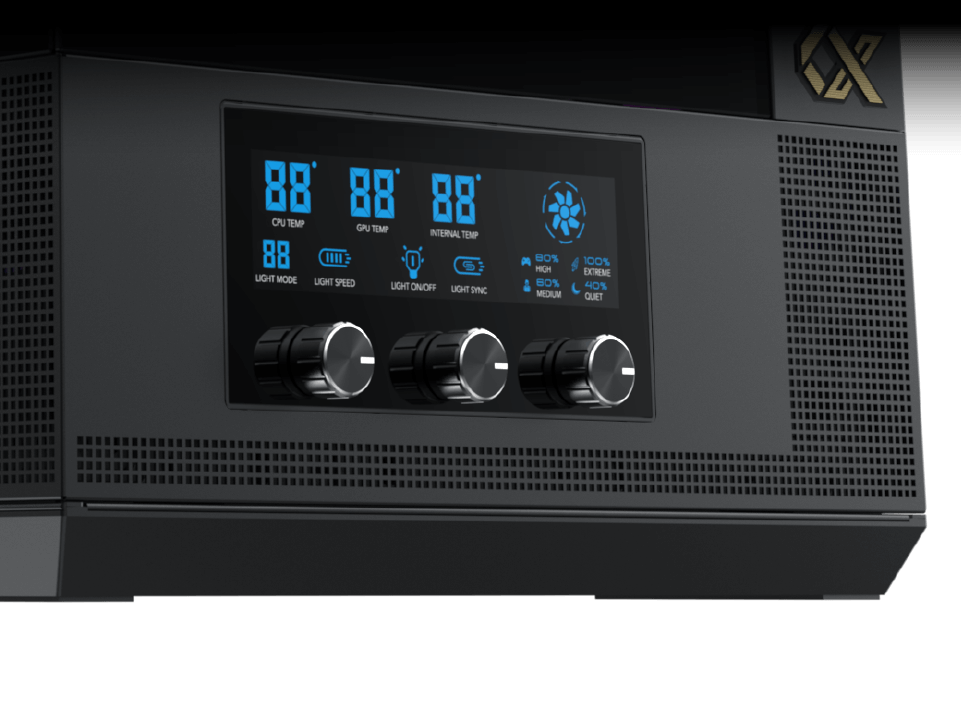

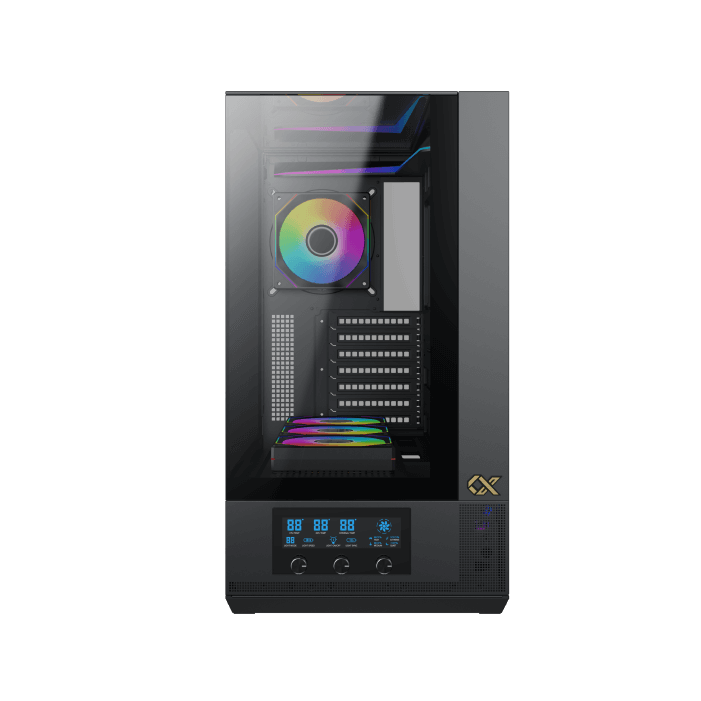

Smart Fan Control
LCD Display Panel

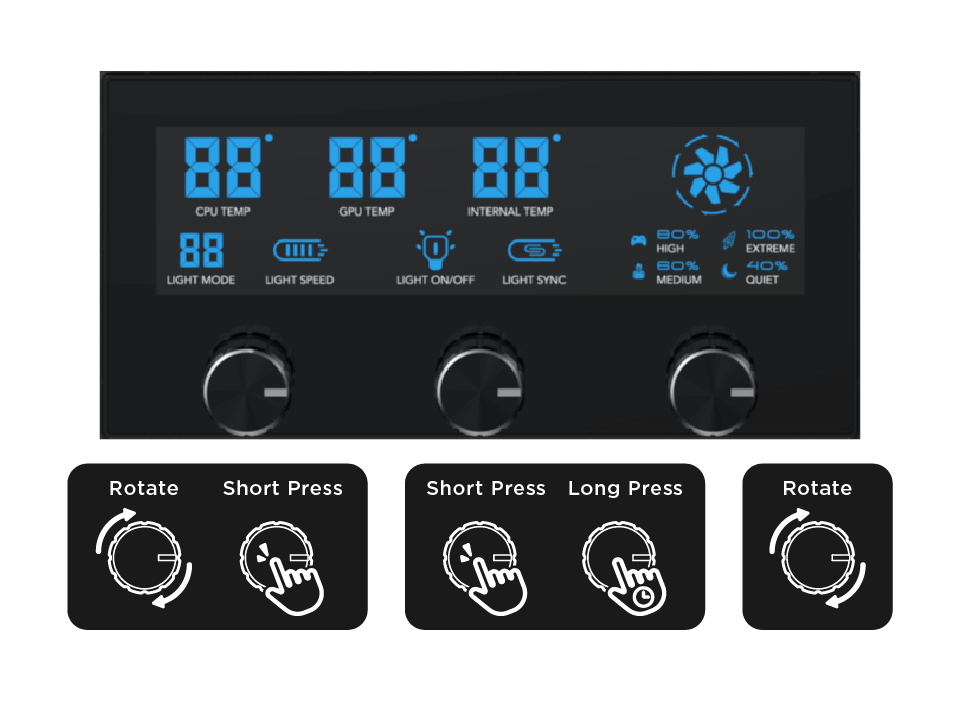

Smart Fan Control LCD
Display Panel User Guide
Left Control Konb
Rotate: RGB Light Display Control
Short Press: RGB LED Speed Control
Middle Control Knob
Short Press: RGB Light On/Off
Long Press: ARGB Motherboard SYNC Switch
Right Control Knob
Rotate: 4 Fan Speed Control (800/1200/1700/2200 RPM)

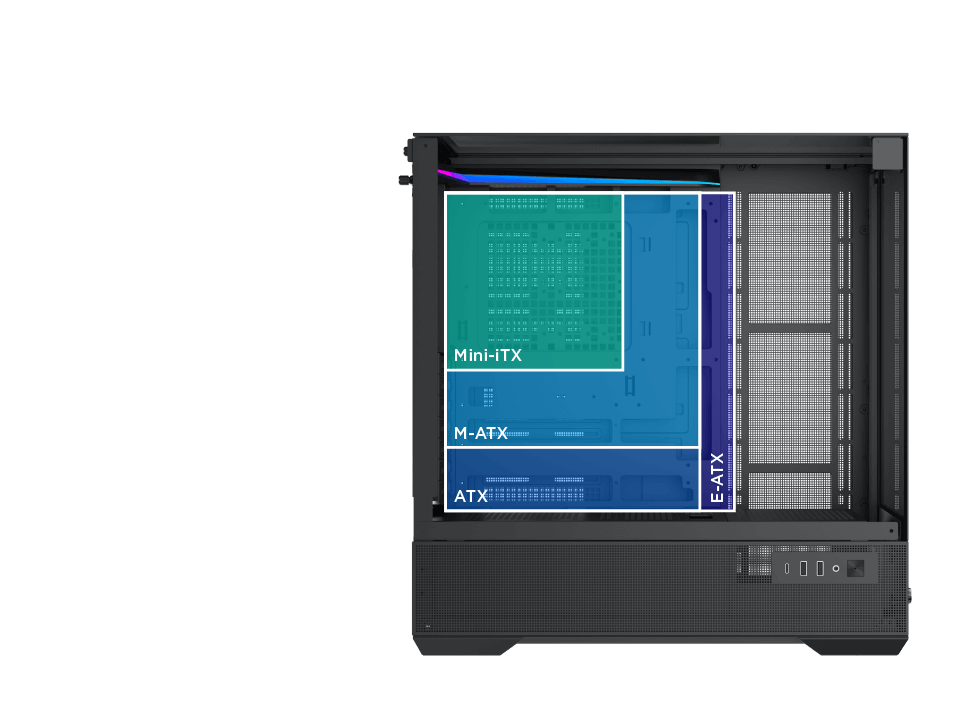

Support Motherboard
up to E-ATX

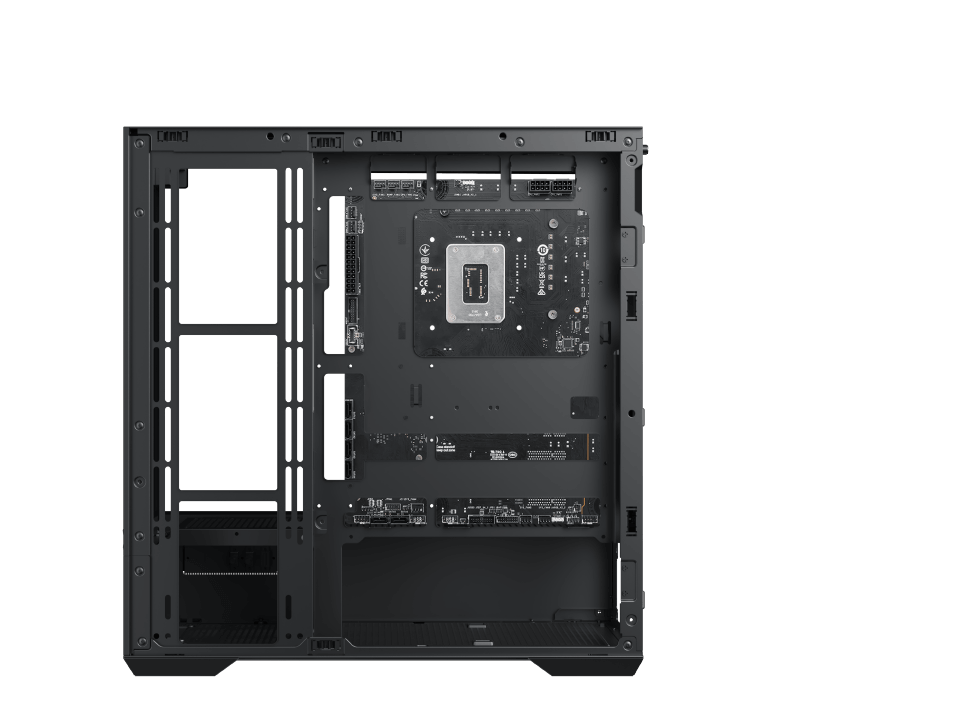

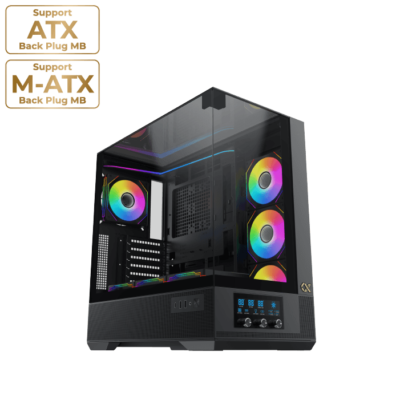

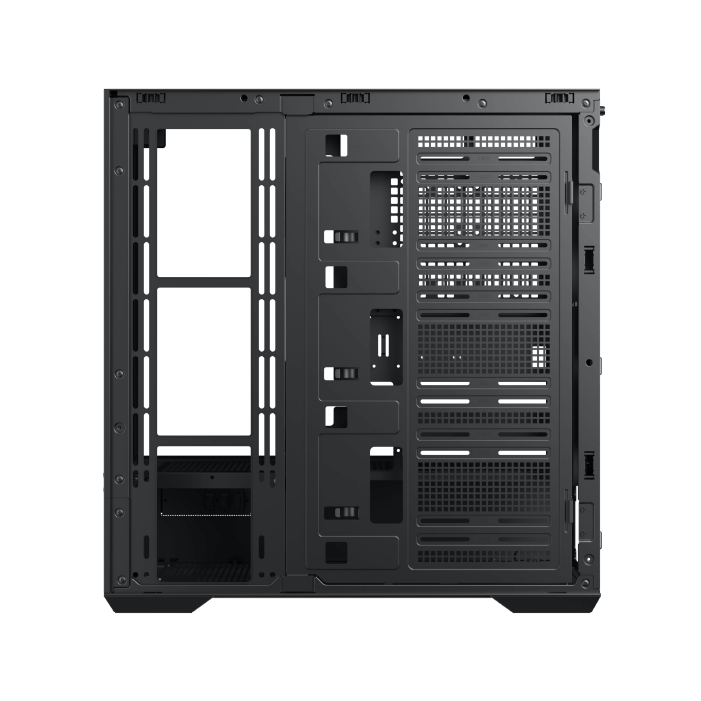

Support ATX Back Plug
Motherboard
Supported Model:
ASUS TX GAMING B760-BTF
ASUS TUF GAMING Z790-BTF WIFI
ROG MAXIMUS Z790 HERO BTF
and more to come.

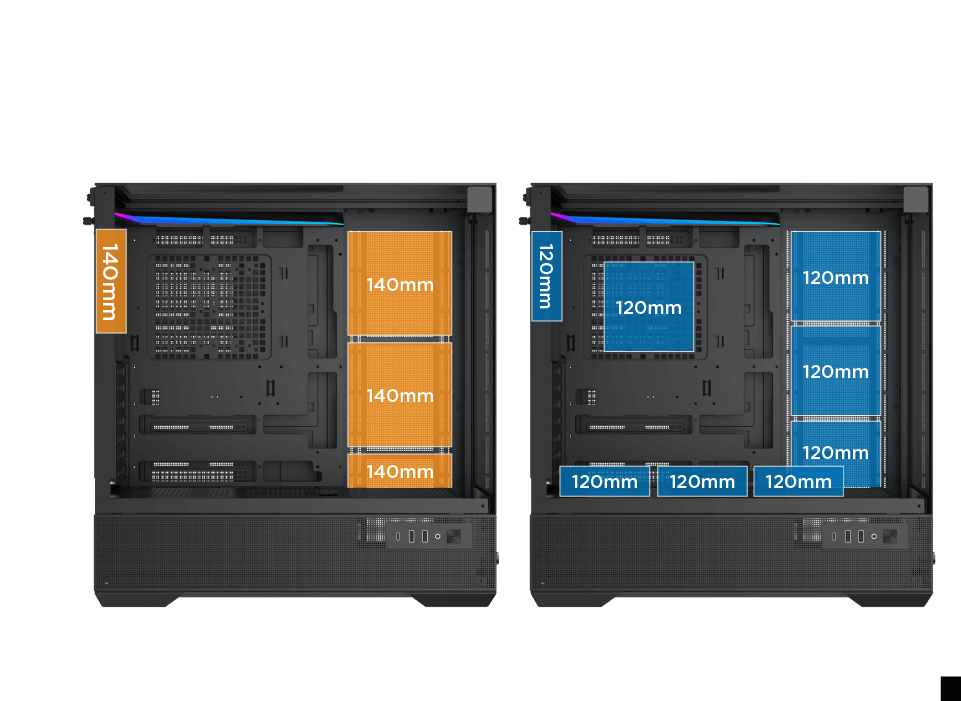

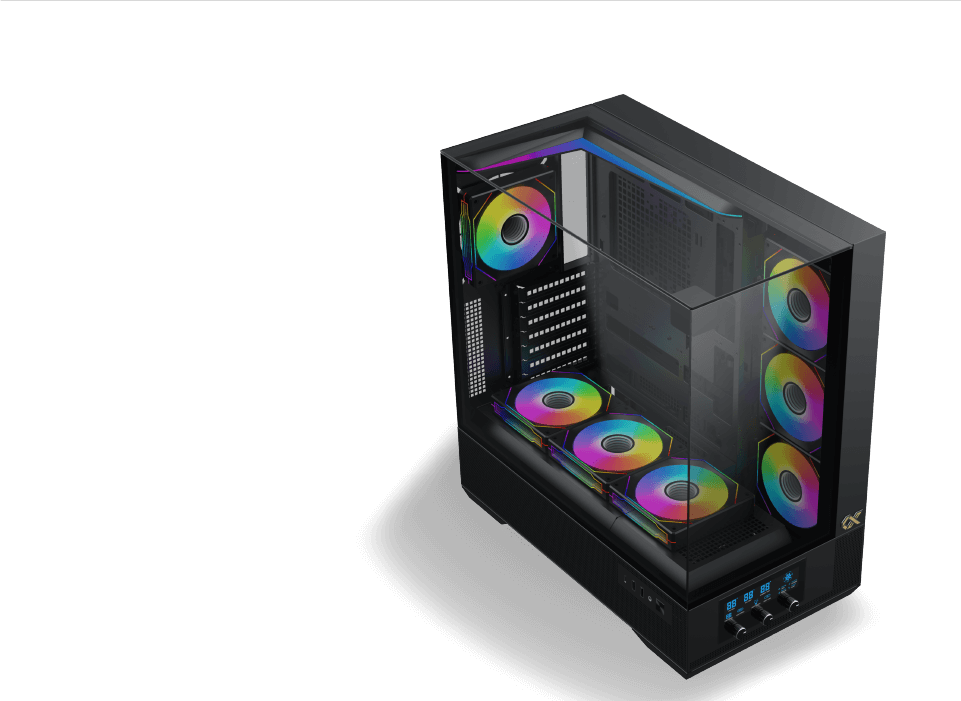

Fan Support
MB: 120mm x3 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1

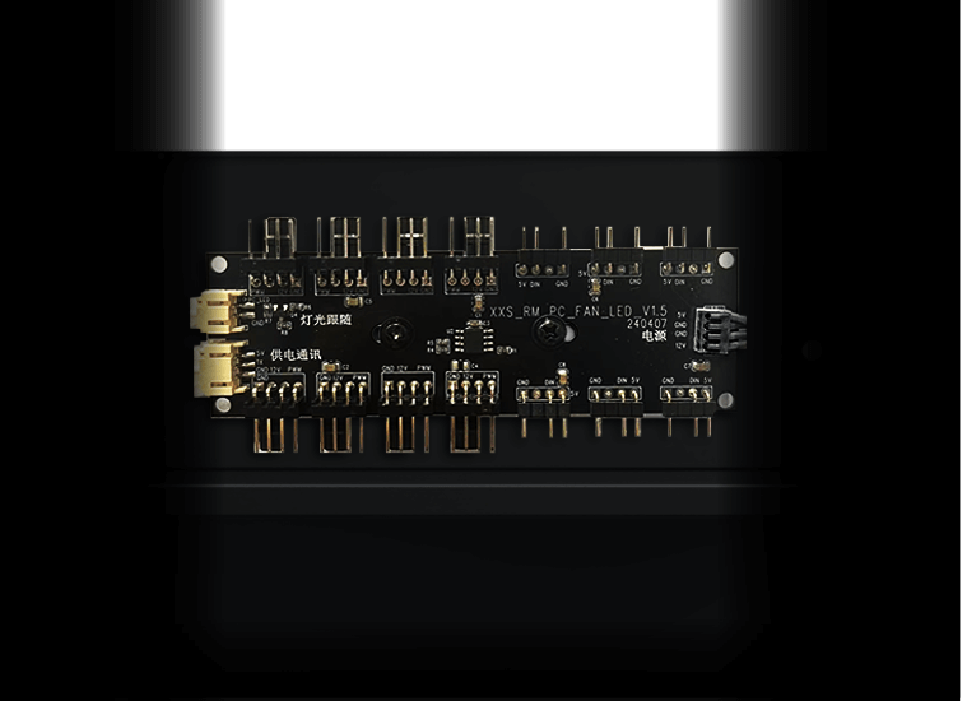

ARGB & PWM Hub

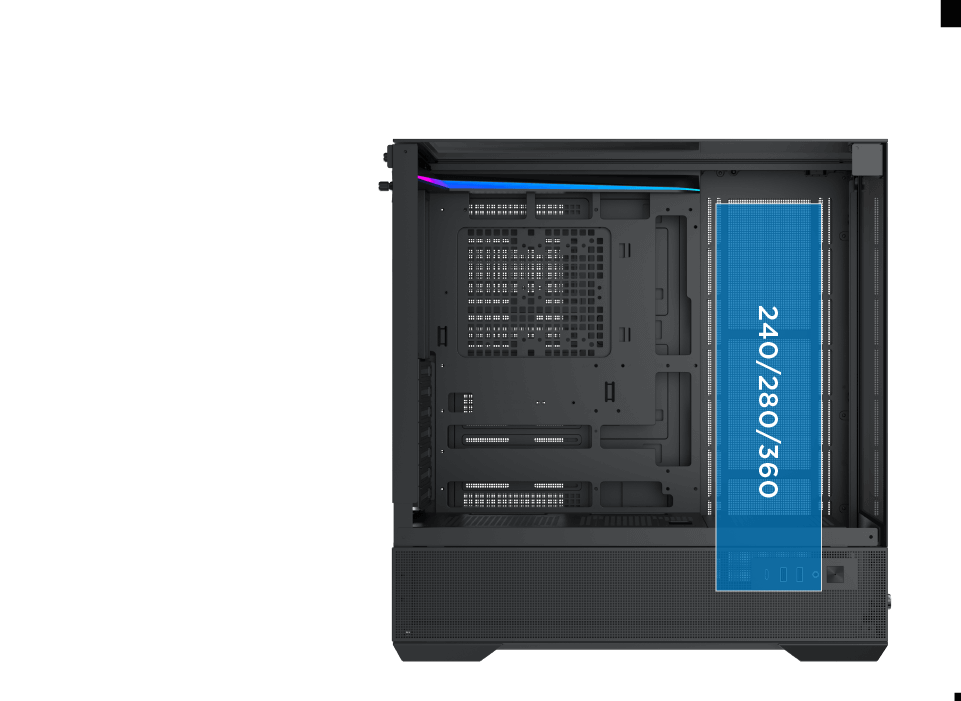

Radiator Support
MB: 240/280/360
(EATX MB Width ≤ 290mm)

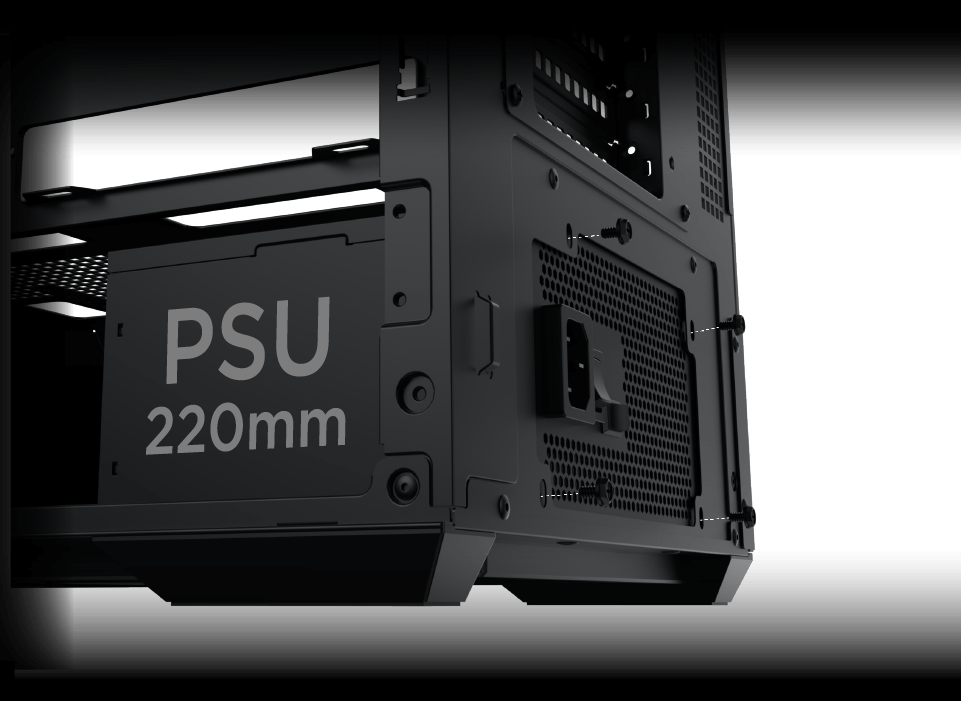

PSU Limitation
up to 220mm

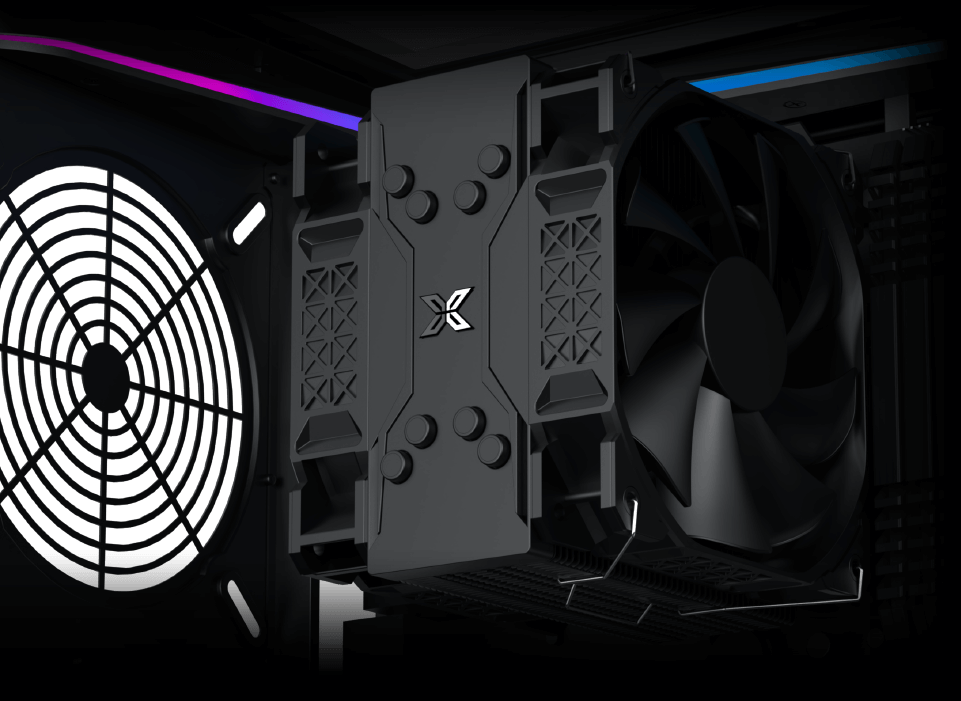

CPU Cooler Clearance
up to 180 mm
GPU Length Limitation
up to 420mm

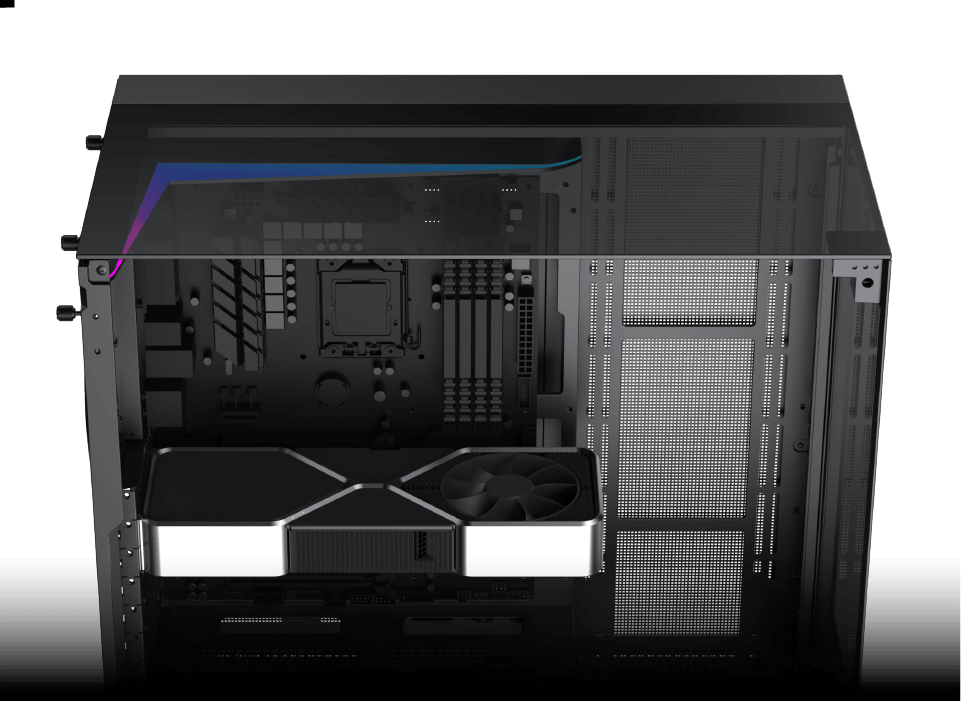

Support GPU Vertical Installation

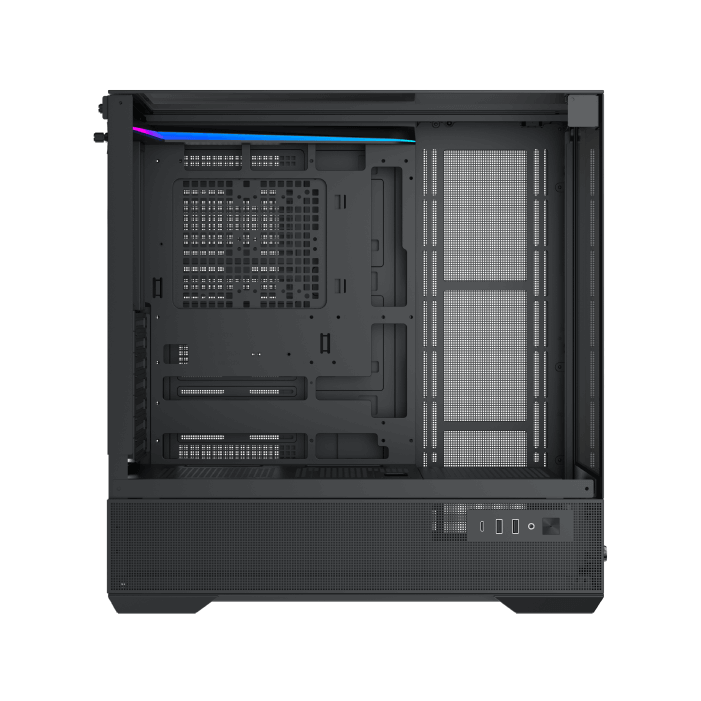

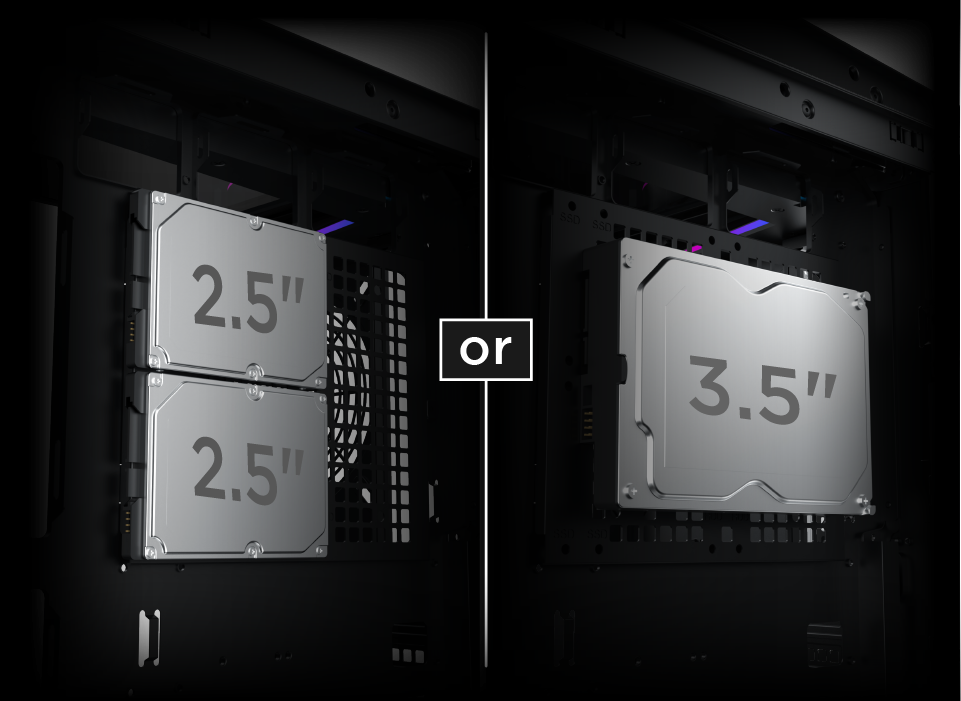

SSD/HDD Mounting Bracket
(Rear MB Panel)
3.5″ x1 or 2.5″ x2

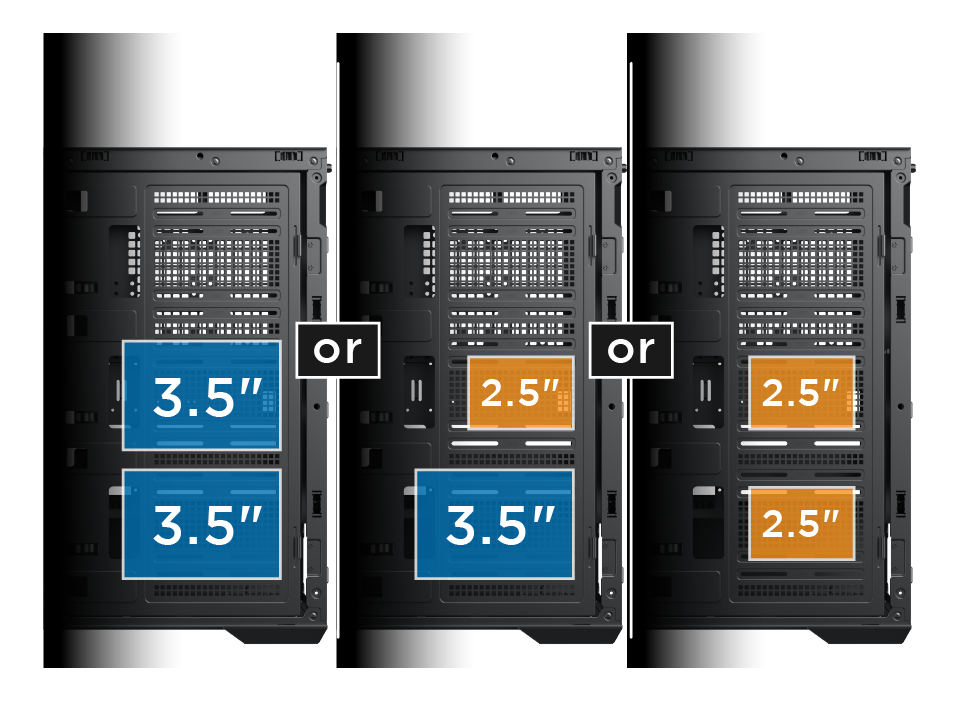

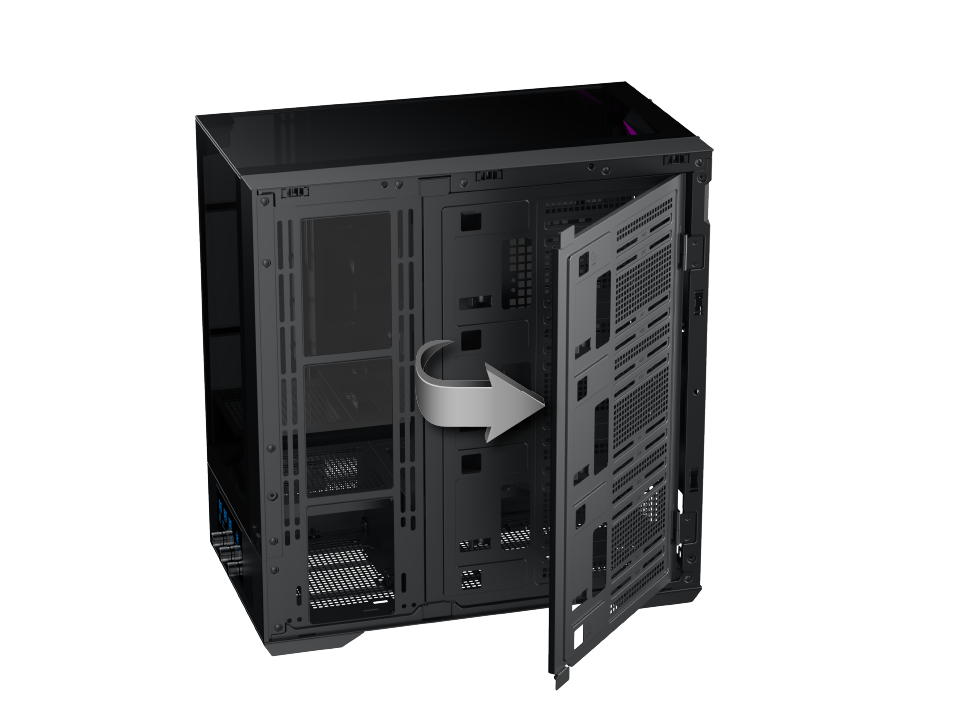

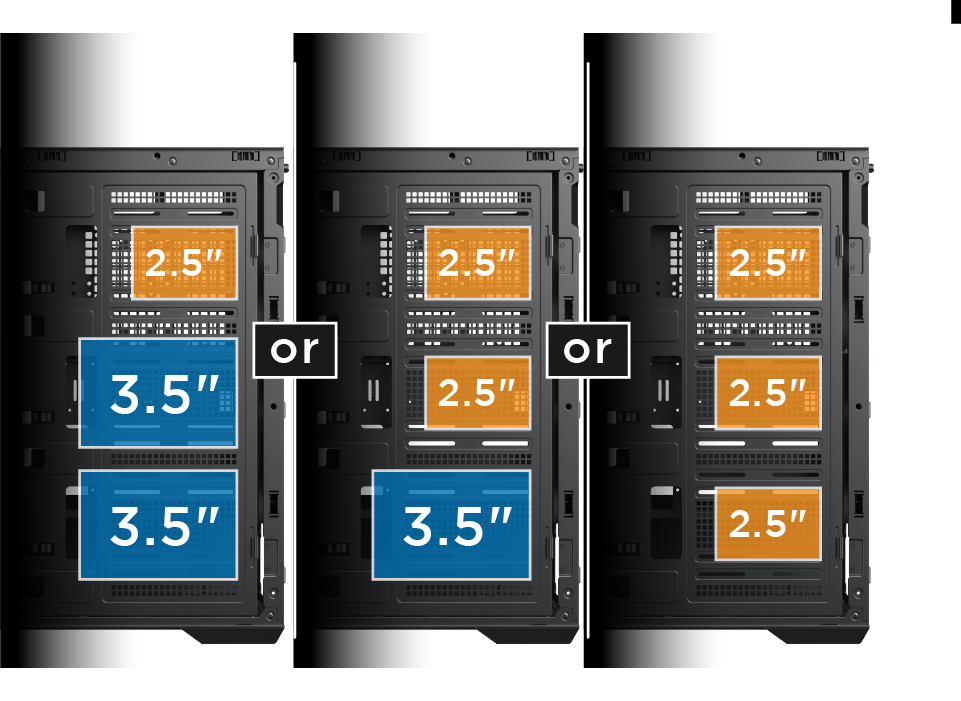

SSD/HDD Mounting Flip Cover
Option A:
3.5″ x3 or 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2 or 2.5″ x3
(SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)
SSD/HDD Mounting Flip Cover
Option B:
3.5″ x2 or 3.5″ x1 & 2.5″ x1 or 2.5″ x2
(SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)
SSD/HDD Mounting Flip Cover

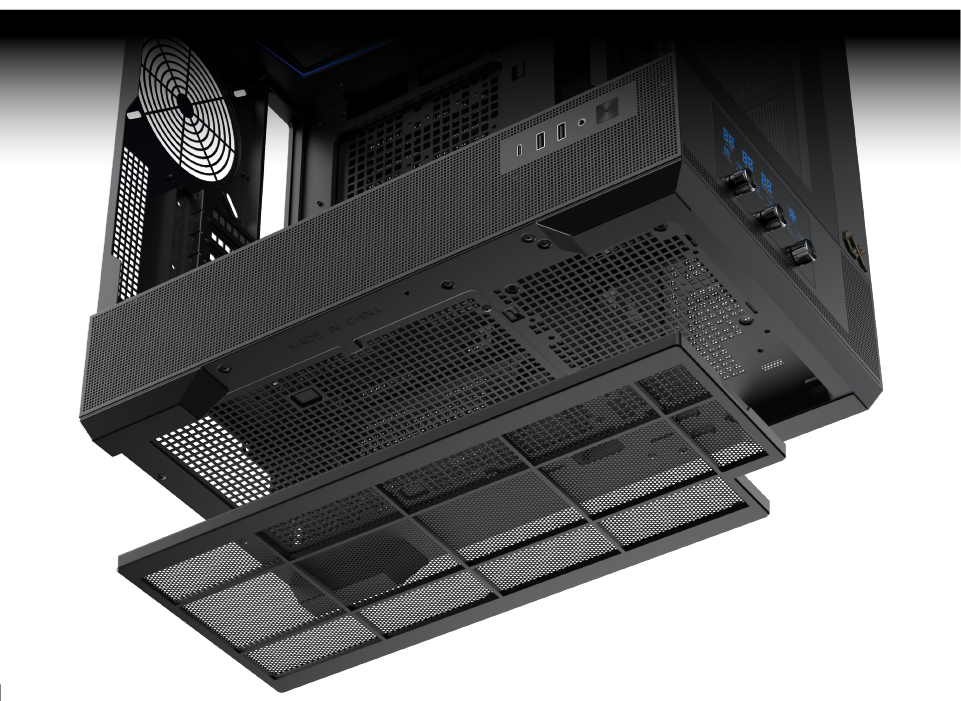

Bottom-Mounted
Magnetic Dust Filter

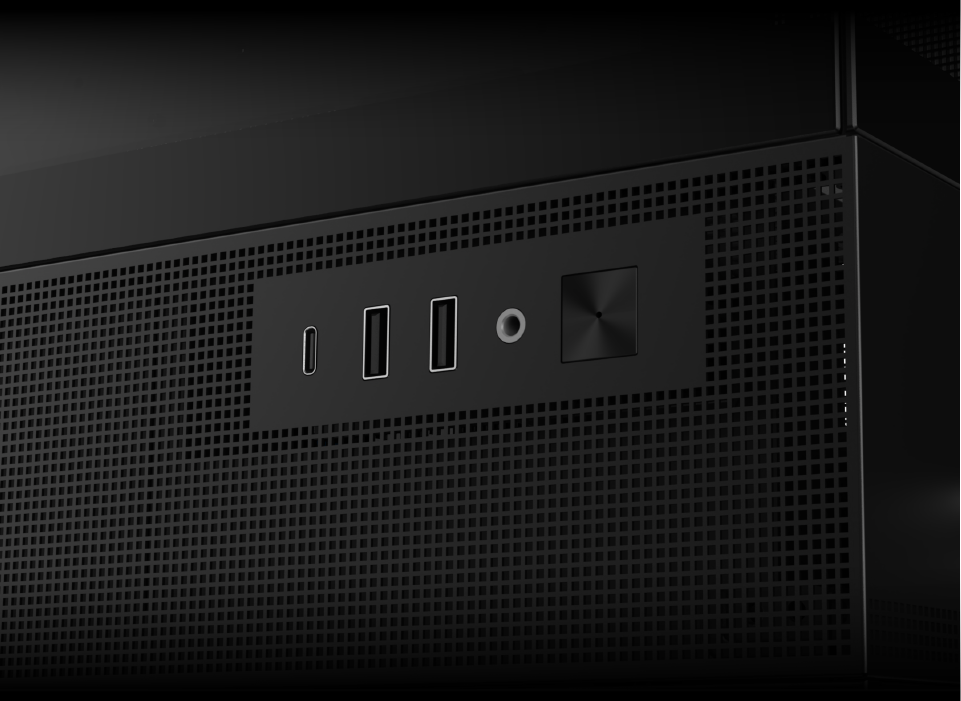

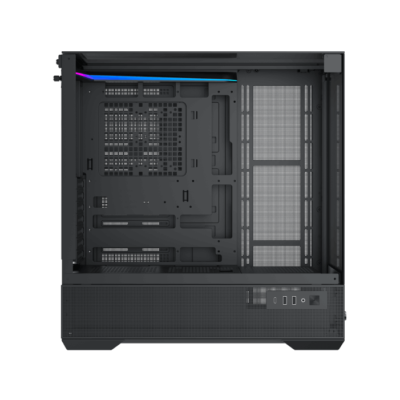

Side I/O Ports
• Power Button
• HD Audio Jack
• USB 3.0 x2
• Type C
*All Product Images Shown Are For Illustration Purpose Only.

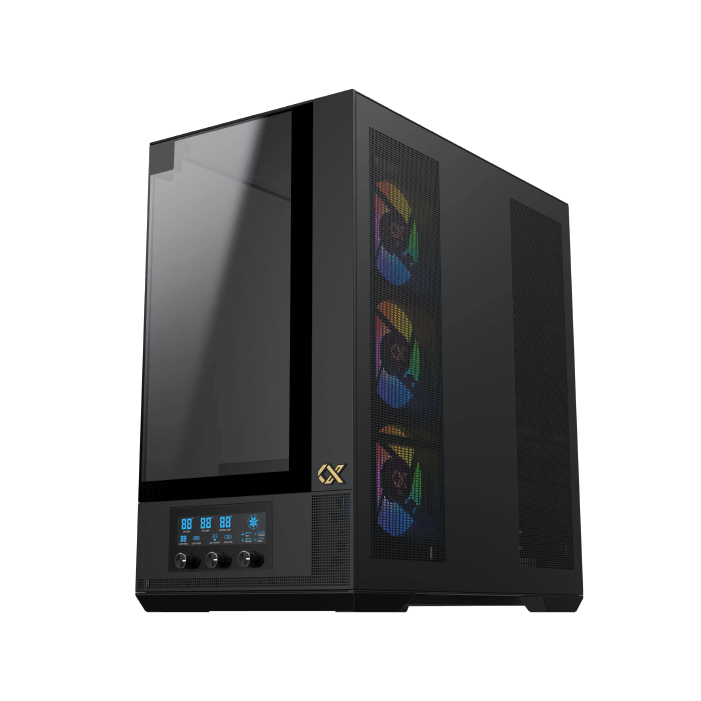

Vision
450x258x476mm (LxWxH)
MB: 120mm x3 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1
SSD/HDD Mounting Bracket (Rear MB Panel)
3.5″ x1 or 2.5″ x2
SSD/HDD Mounting Flip Cover
Option A:
3.5″ x3 or 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2 or 2.5″ x3
(SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)
Option B:
3.5″ x2 or 3.5″ x1 & 2.5″ x1 or 2.5″ x2
(SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)
180mm
Steel

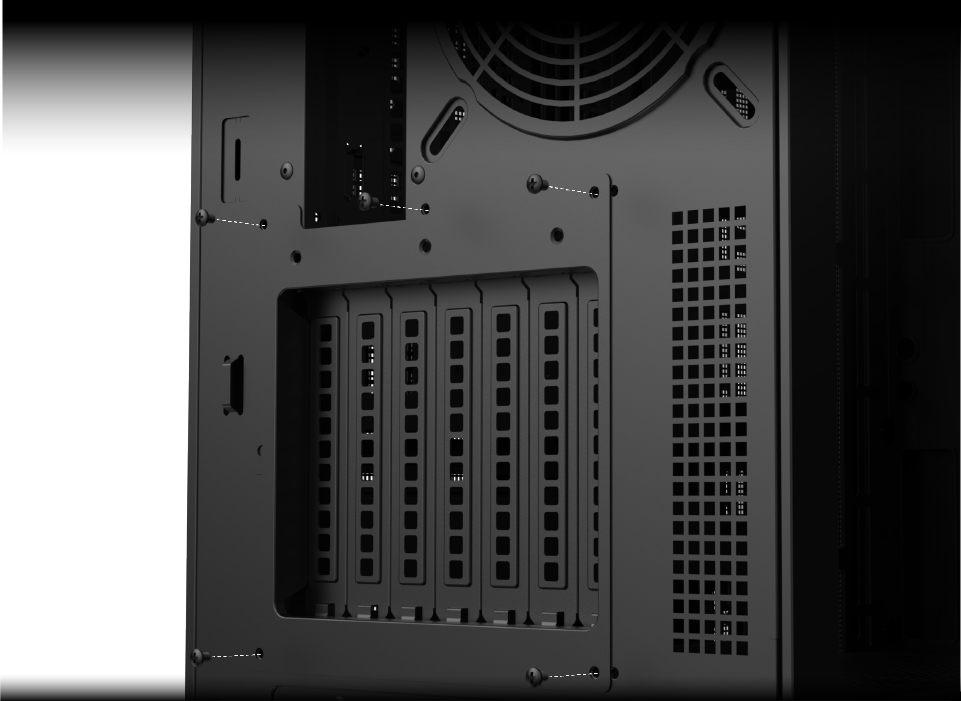

7 Standard Slots
(Support GPU Horizontal or Vertical Installation)
EATX
ATX (Support Back Plug)
Micro ATX
Mini ITX
Standard PS2 ATX PSU
MB: 240/280/360
(EATX MB Width ≤ 290mm)
USB3.0 x2
Type C
HD Audio
220mm
420mm
