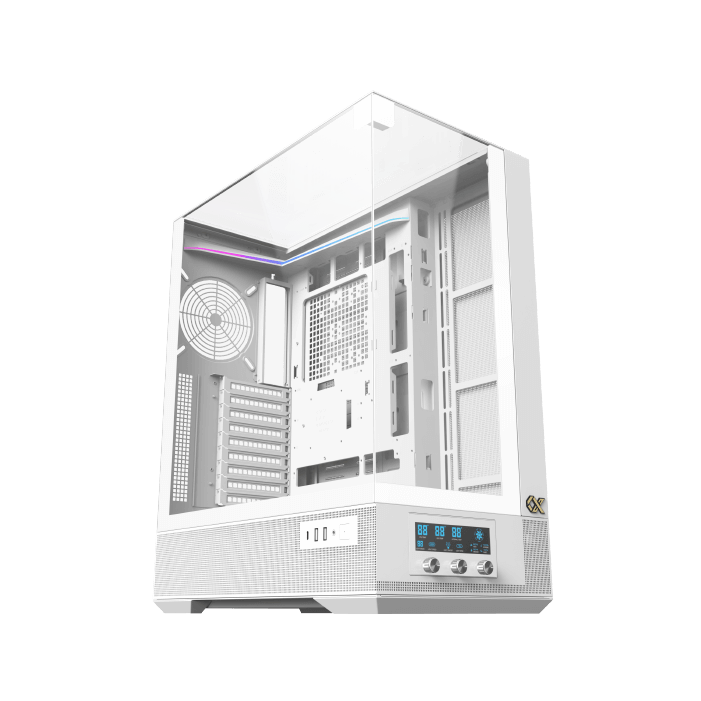

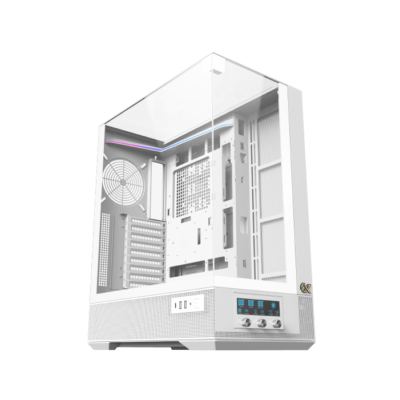

3 Tempered
Glass Panel Design

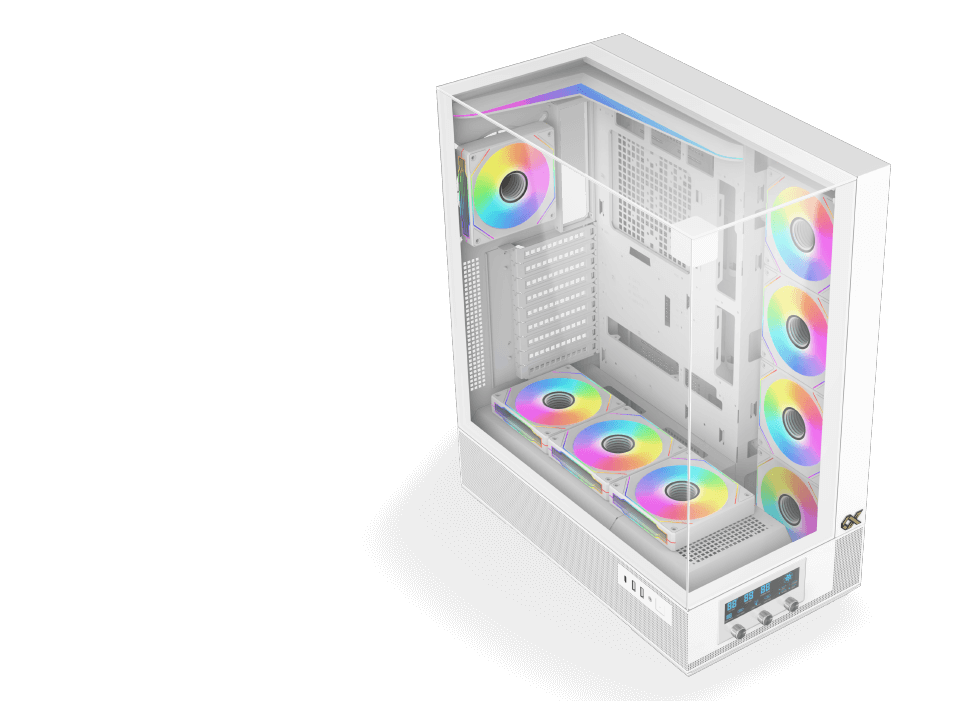

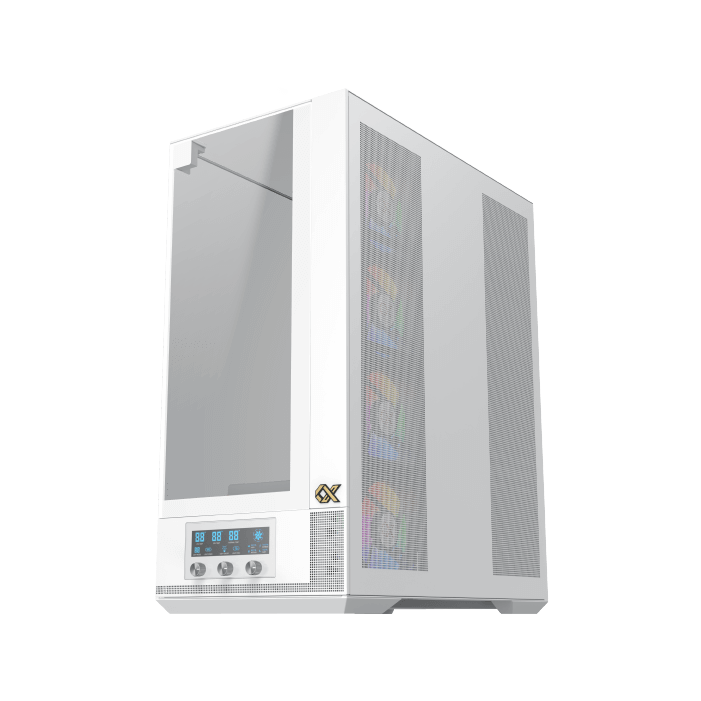

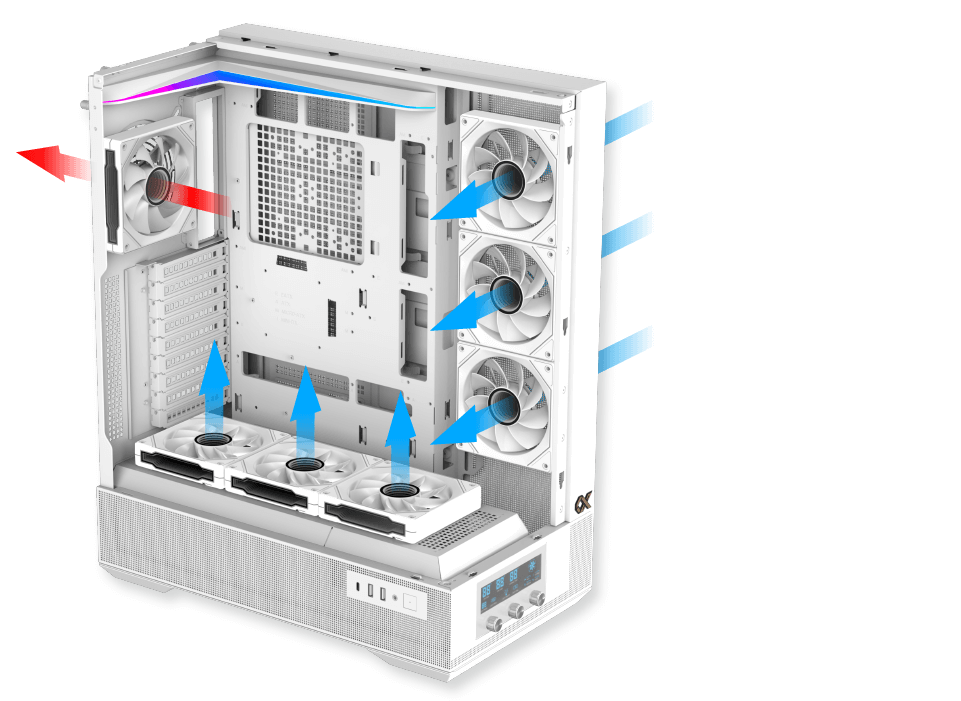

Superior Airflow and
Ventilation Design
Traditional Fan Blade
800-2200 RPM PWM Fan
Pre-installed on Rear Side

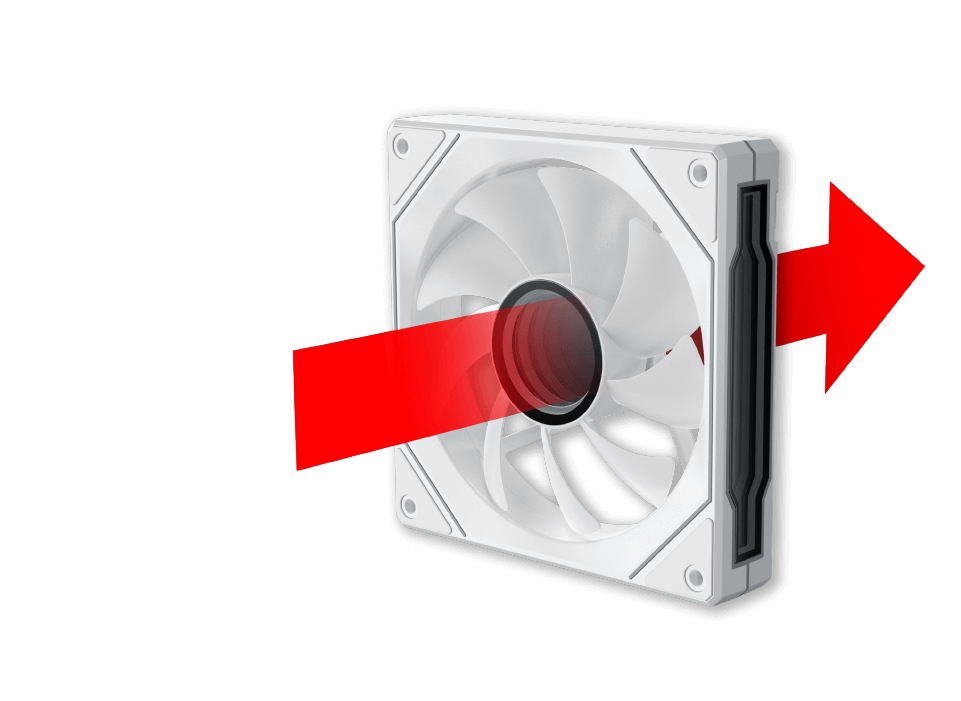

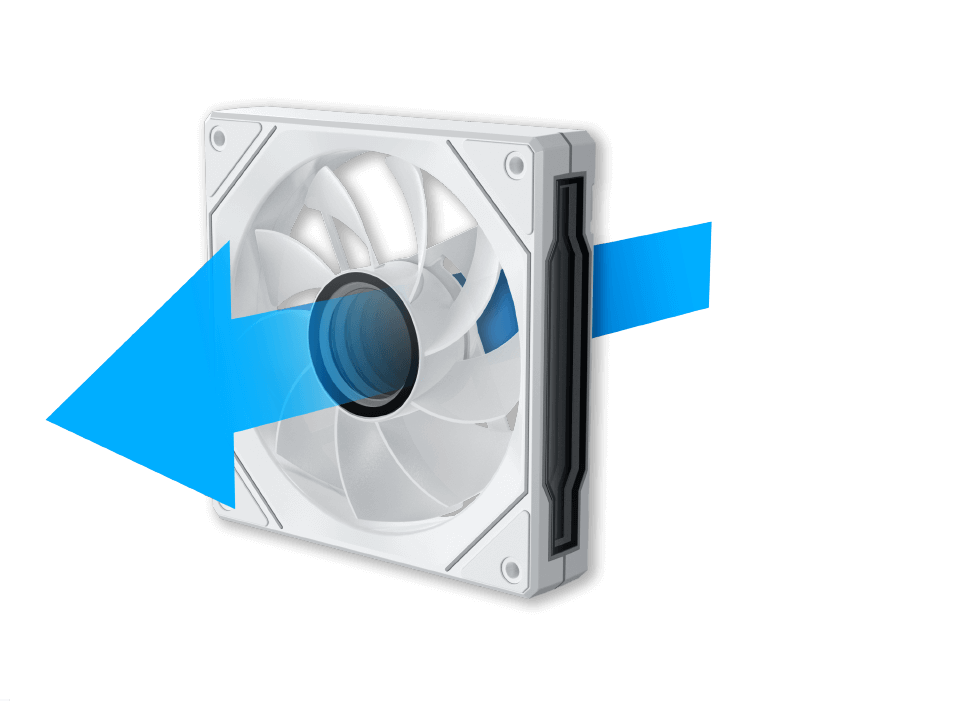

Reverse Fan Blade
800-2200 RPM PWM Fan
Pre-installed on MB & PSU Shroud Panel Side

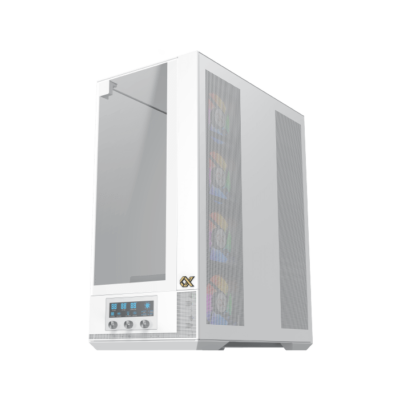

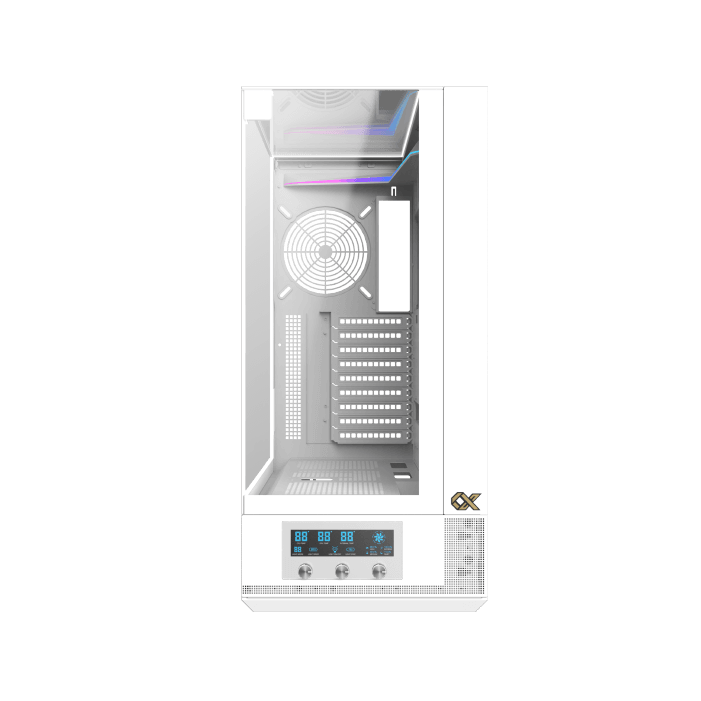

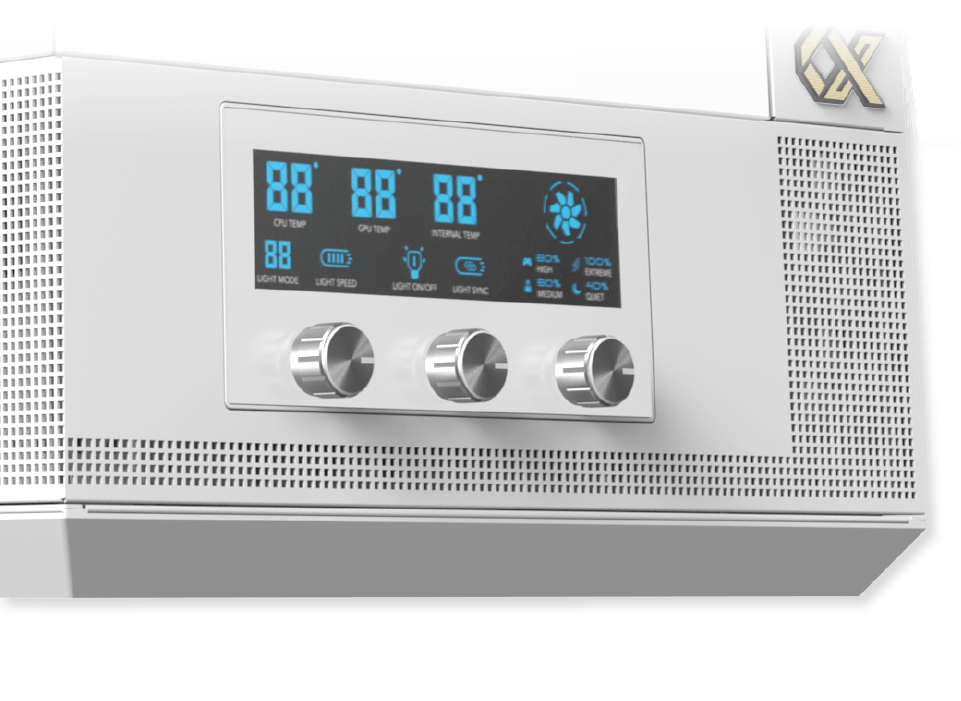

Smart Fan Control
LCD Display Panel

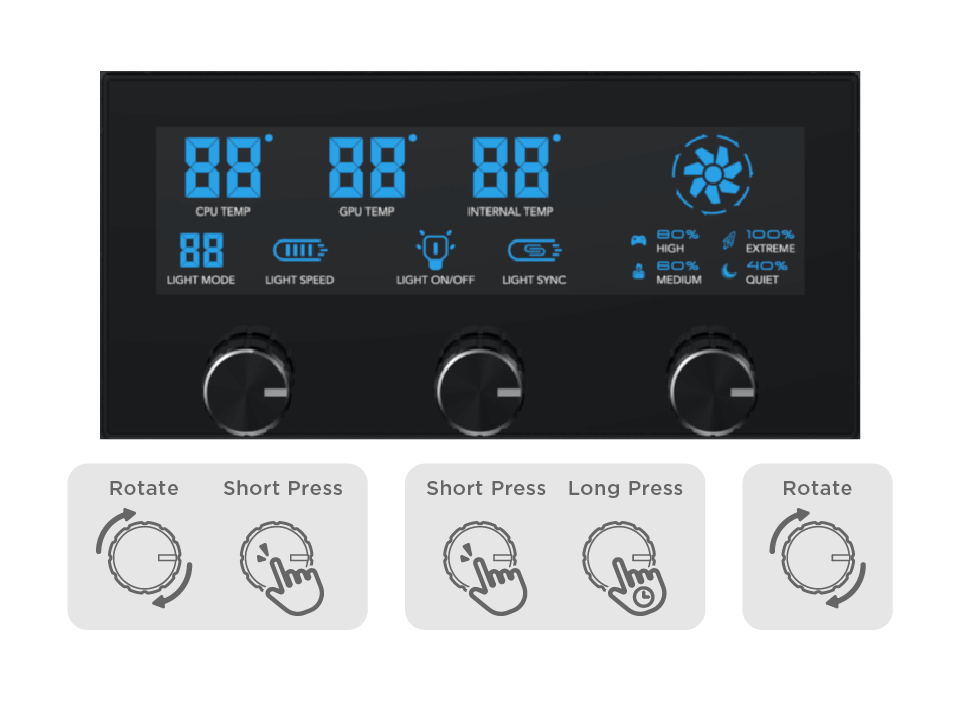

Smart Fan Control LCD
Display Panel User Guide
Left Control Konb
Rotate: RGB Light Display Control
Short Press: RGB LED Speed Control
Middle Control Knob
Short Press: RGB Light On/Off
Long Press: ARGB Motherboard SYNC Switch
Right Control Knob
Rotate: 4 Fan Speed Control (800/1200/1700/2200 RPM)

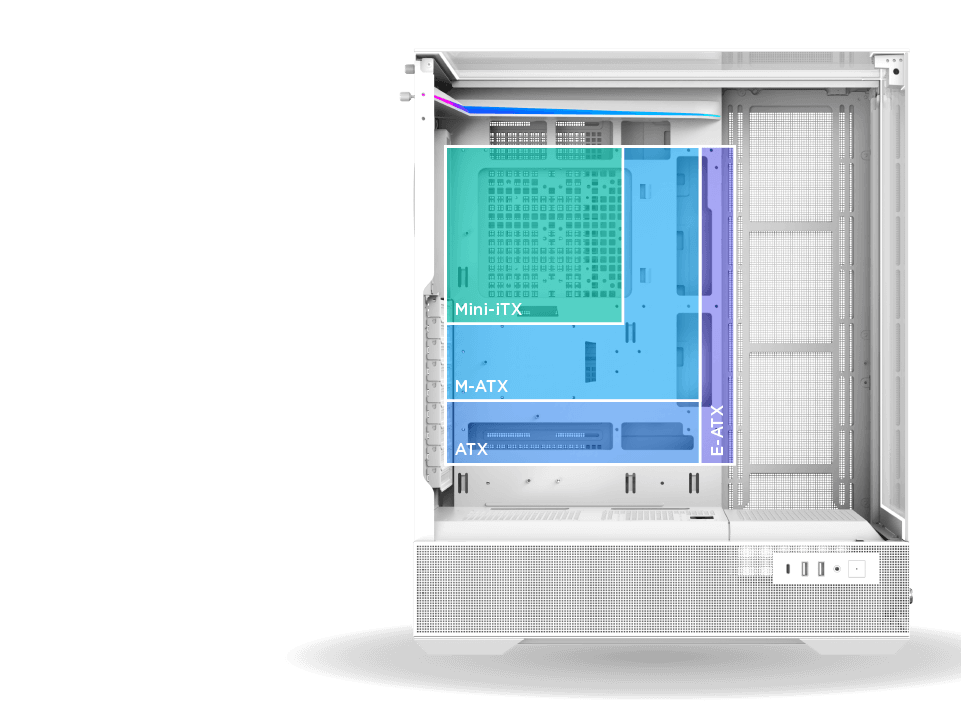

Support Motherboard
up to E-ATX

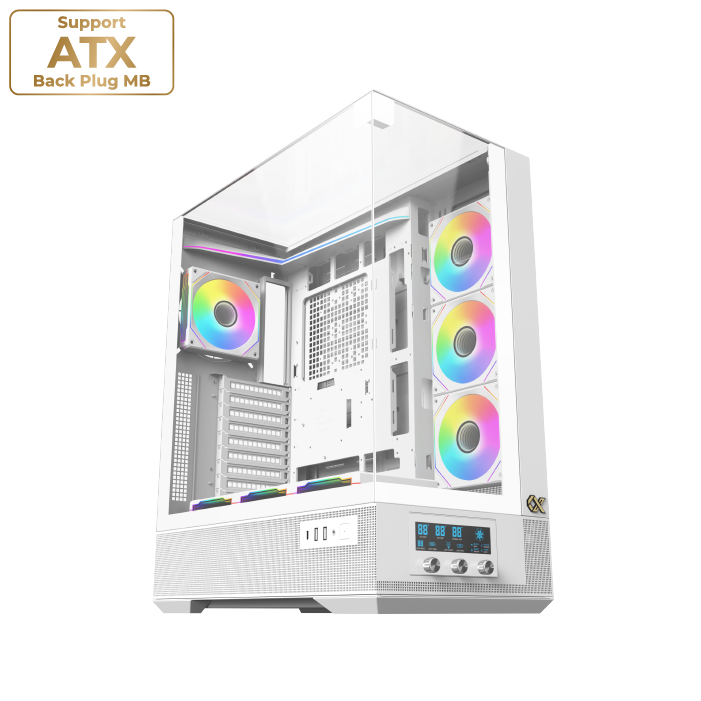

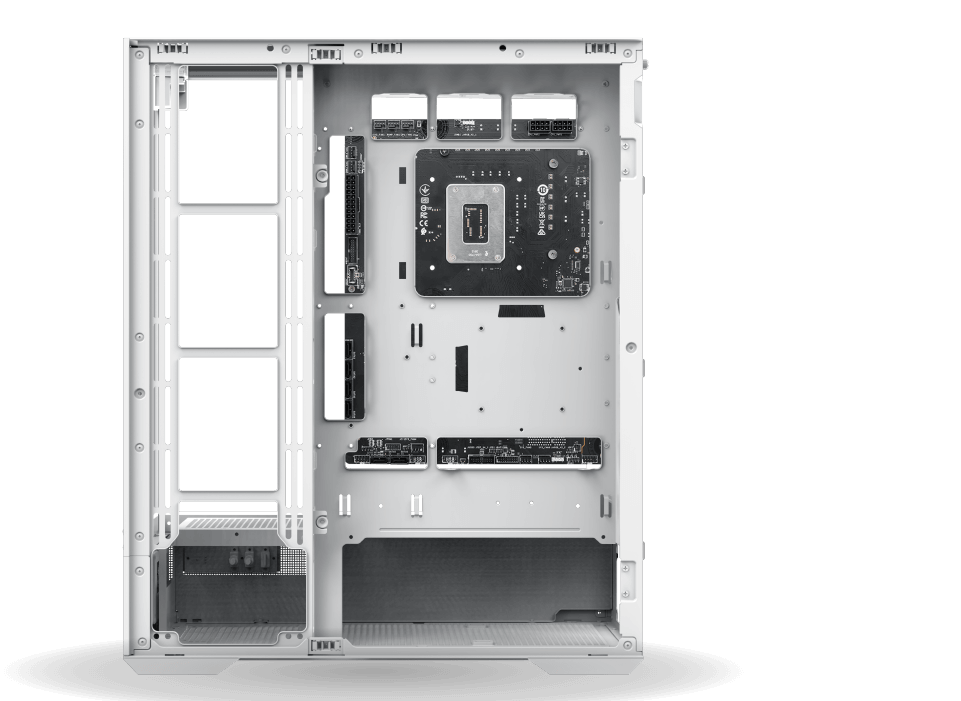

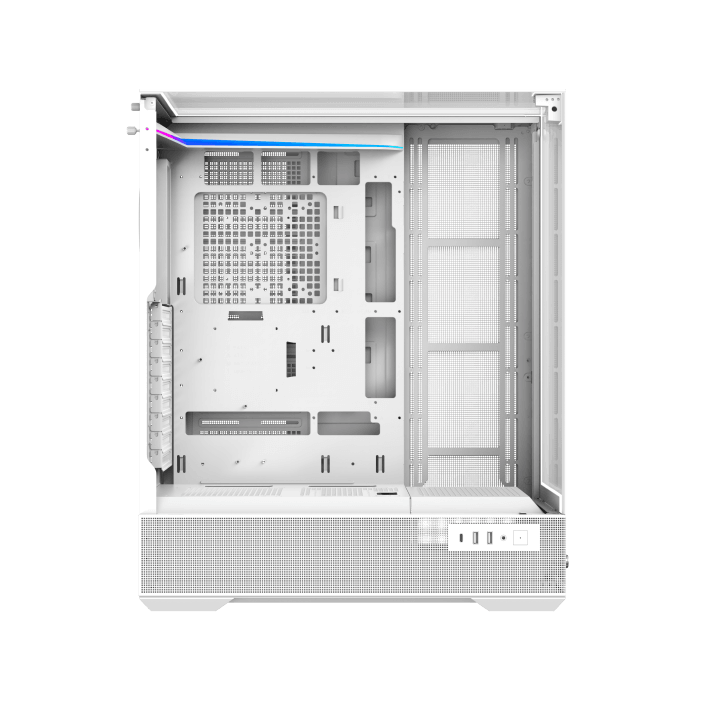

Support ATX Back Plug
Motherboard
Supported Model:
ASUS TX GAMING B760-BTF
ASUS TUF GAMING Z790-BTF WIFI
ROG MAXIMUS Z790 HERO BTF
and more to come.

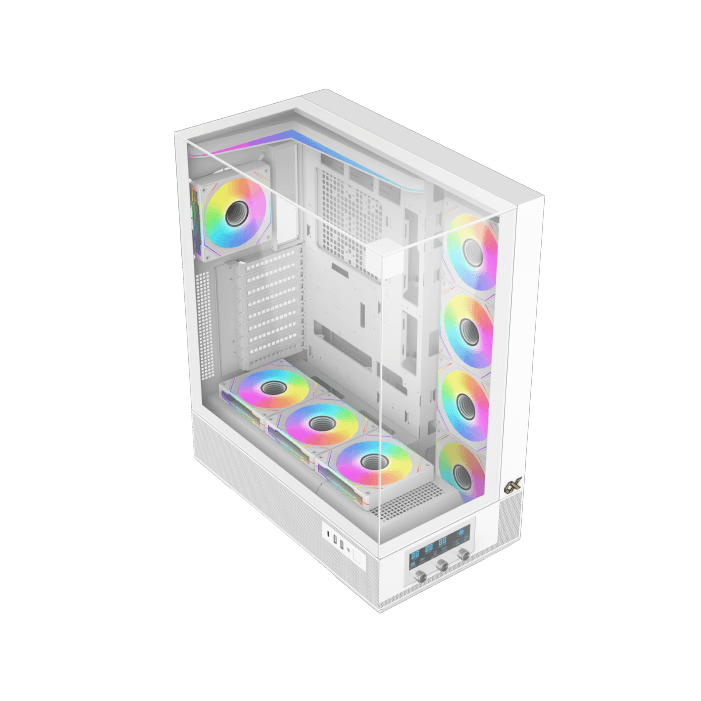

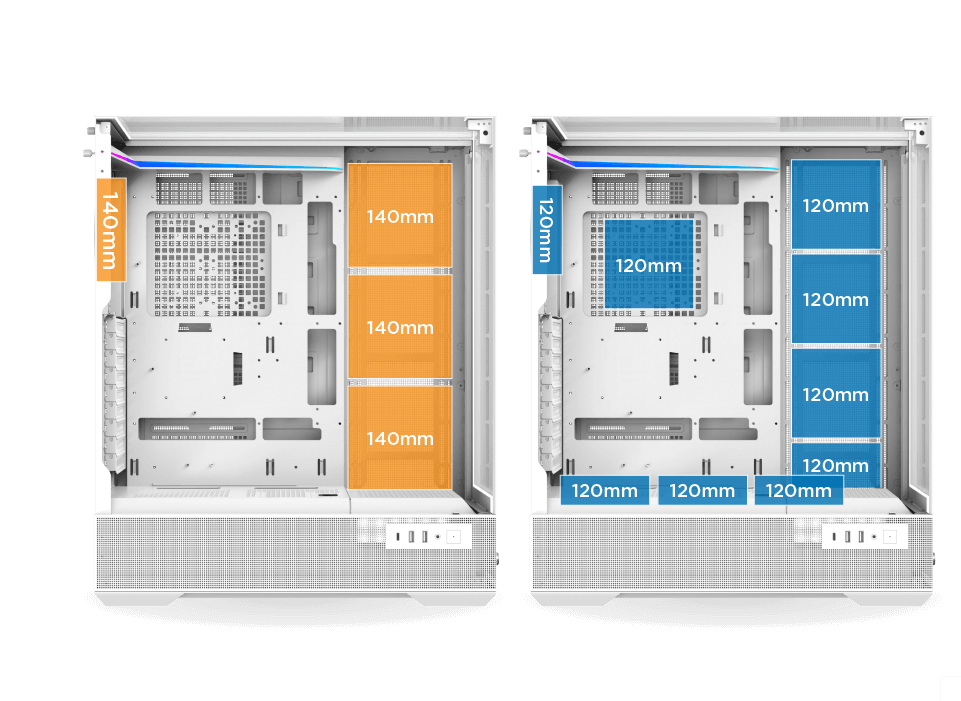

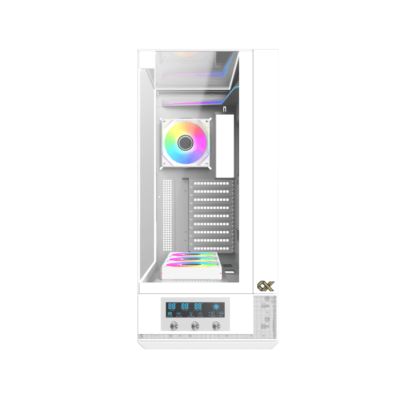

Fan Support
MB: 120mm x4 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1

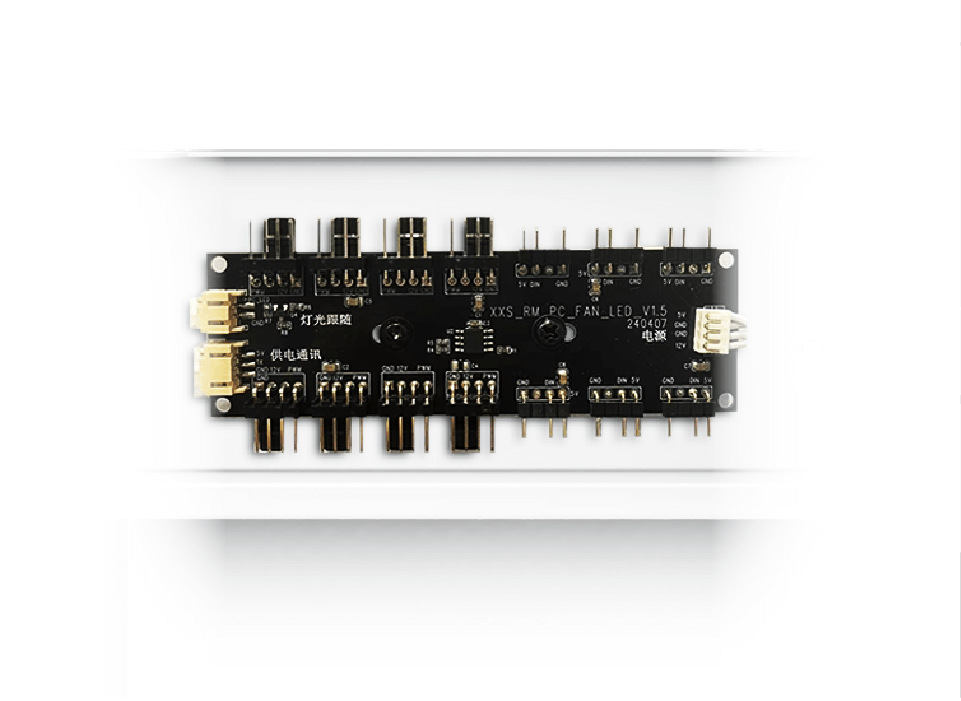

ARGB & PWM Hub

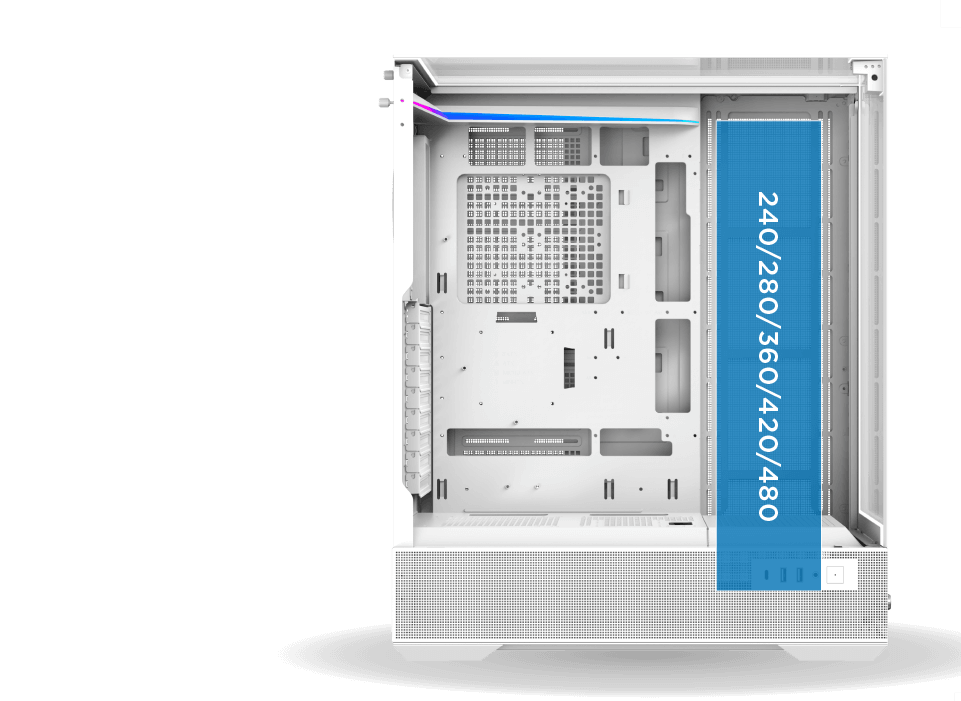

Radiator Support
MB: 240/280/360/420/480
(EATX MB Width ≤ 290mm)

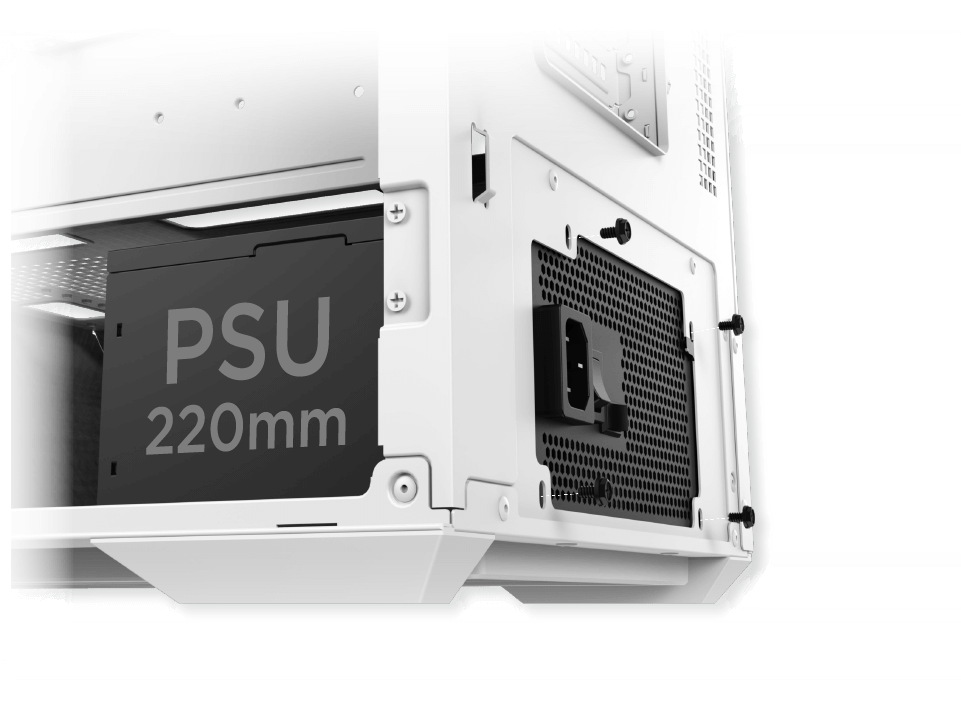

PSU Limitation
up to 220mm

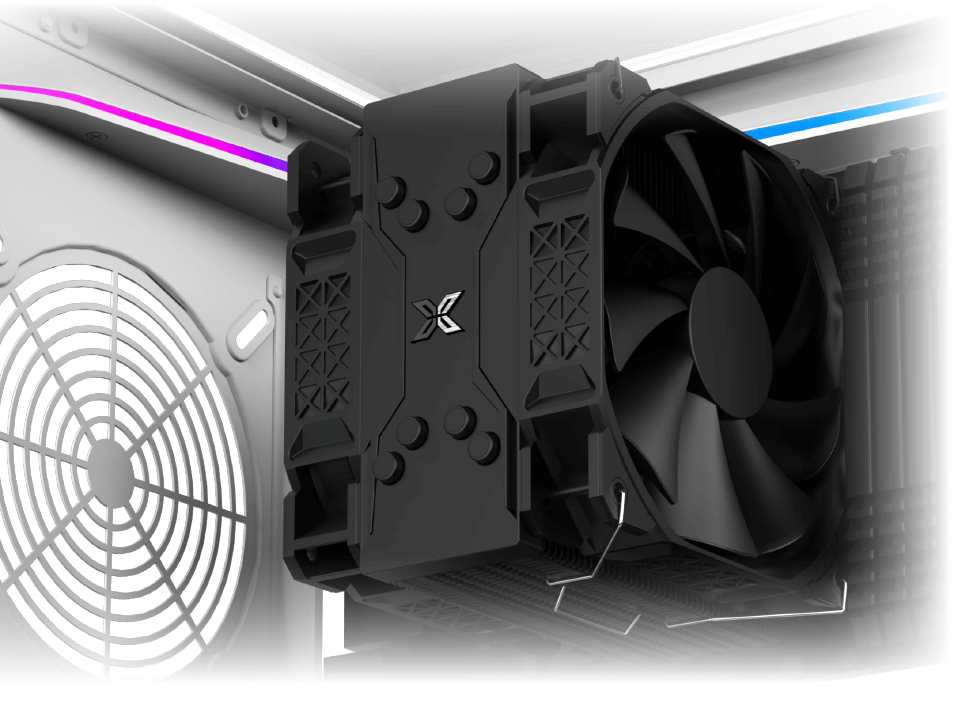

CPU Cooler Clearance
up to 180 mm

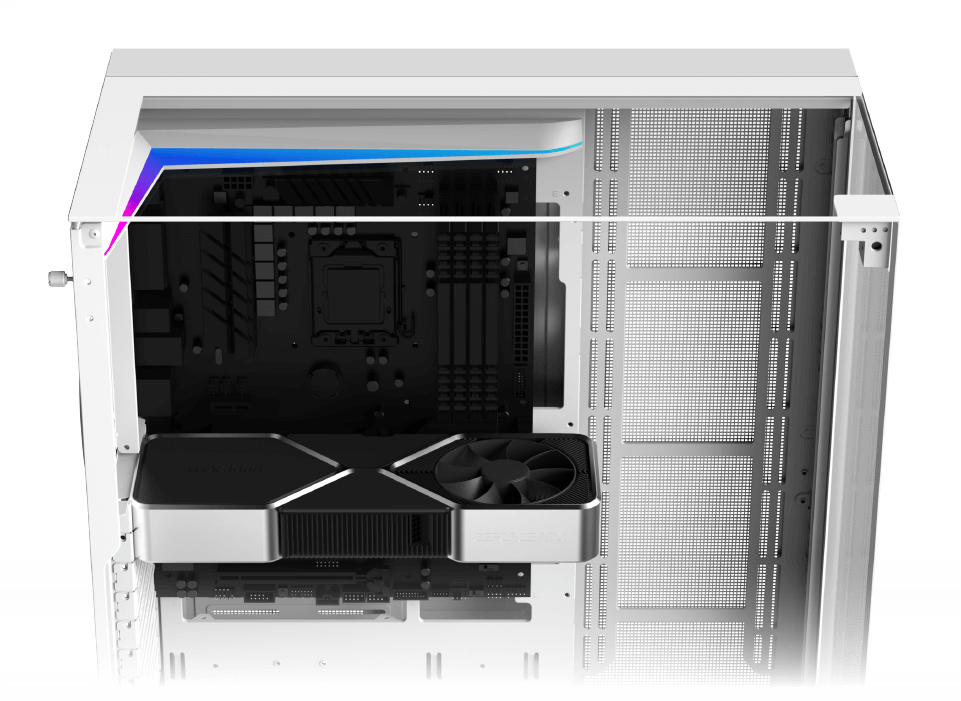

GPU Length Limitation
up to 420mm

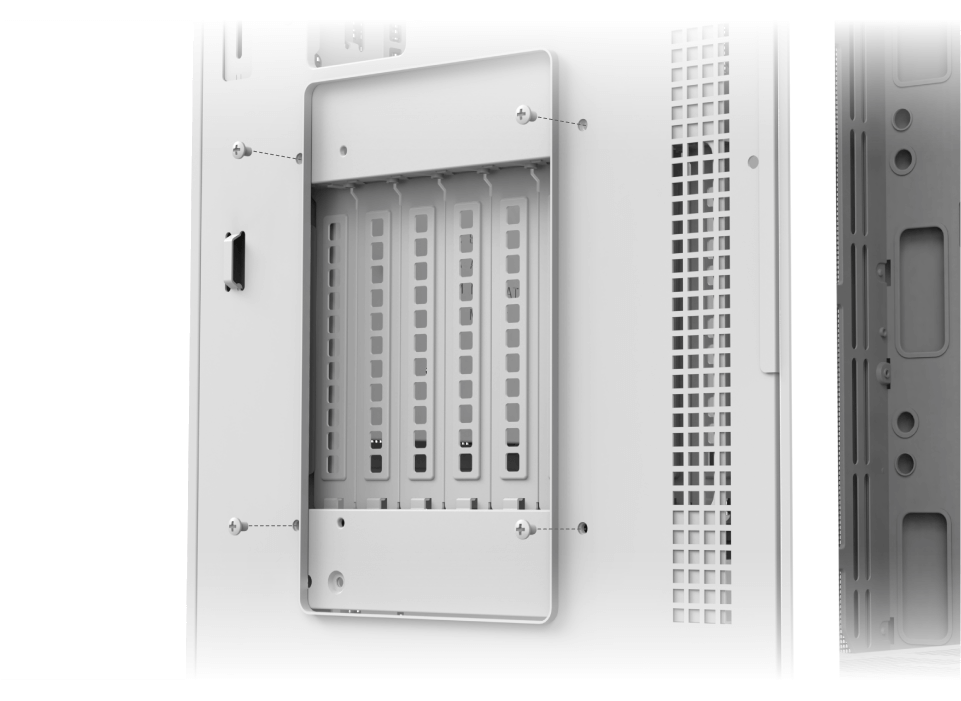

Support GPU Vertical Installation

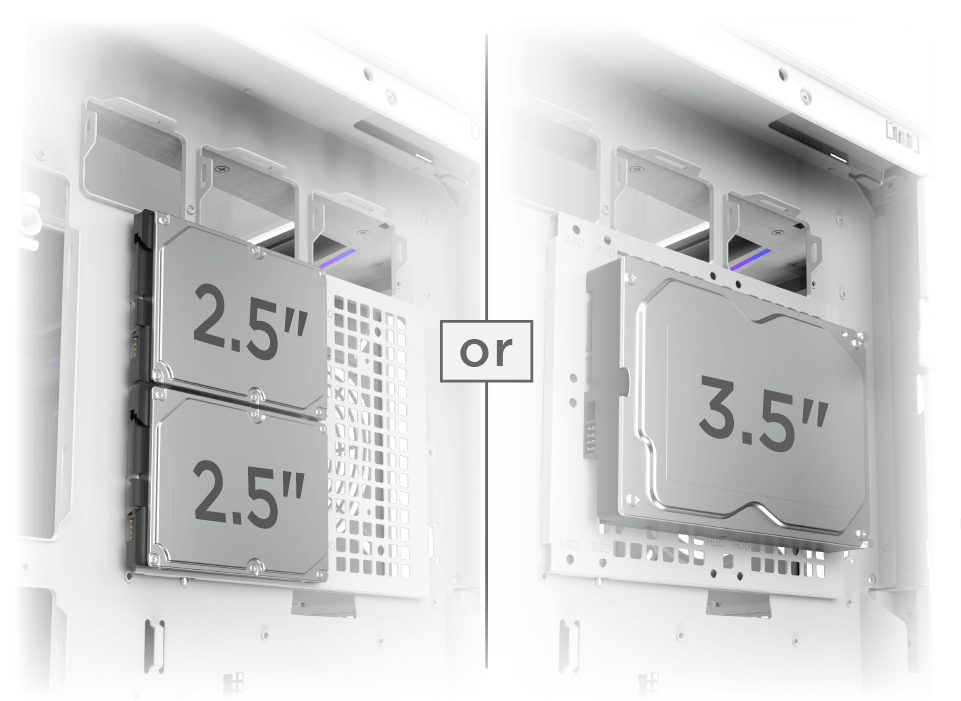

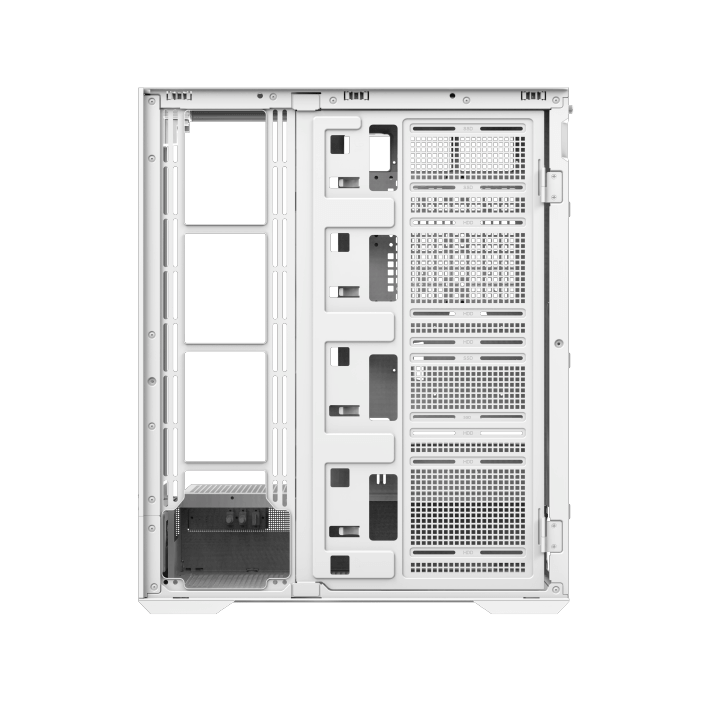

SSD/HDD Mounting Bracket
(Rear MB Panel)
3.5″ x1 or 2.5″ x2

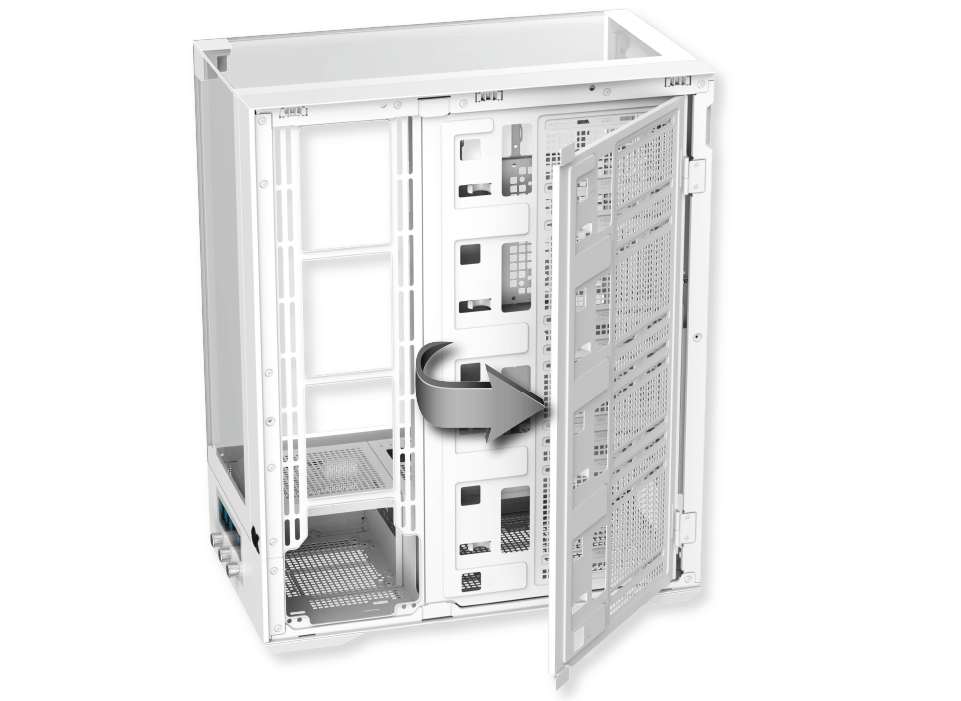

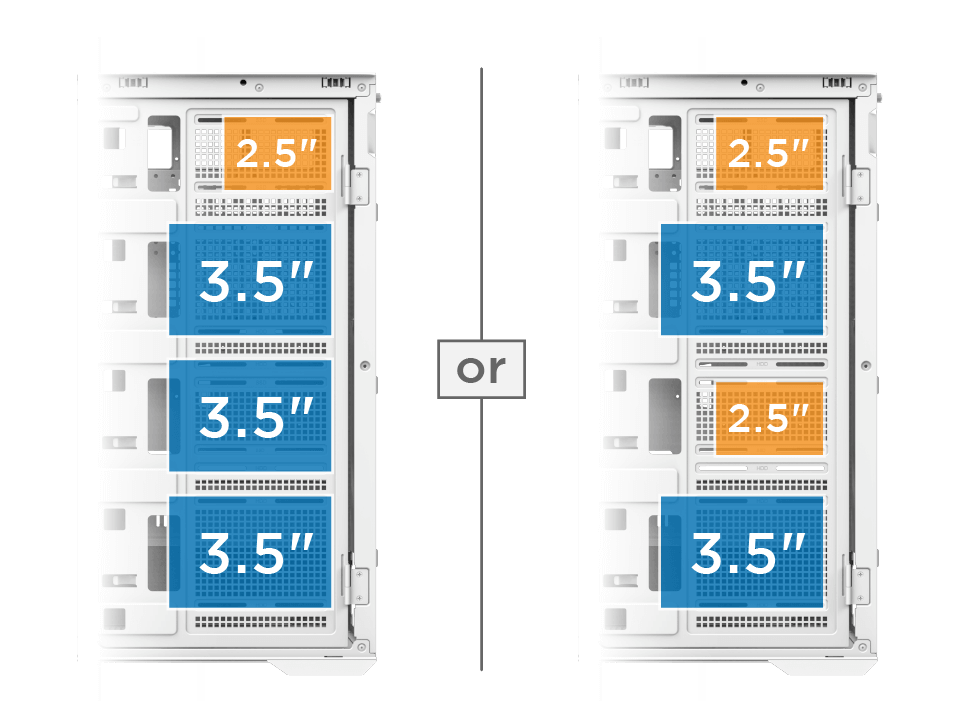

SSD/HDD Mounting Flip Cover
Option A:
3.5″ x3 or 3.5″ x3 & 2.5″ x1 or 3.5″ x2 & 2.5″ x2
(SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)

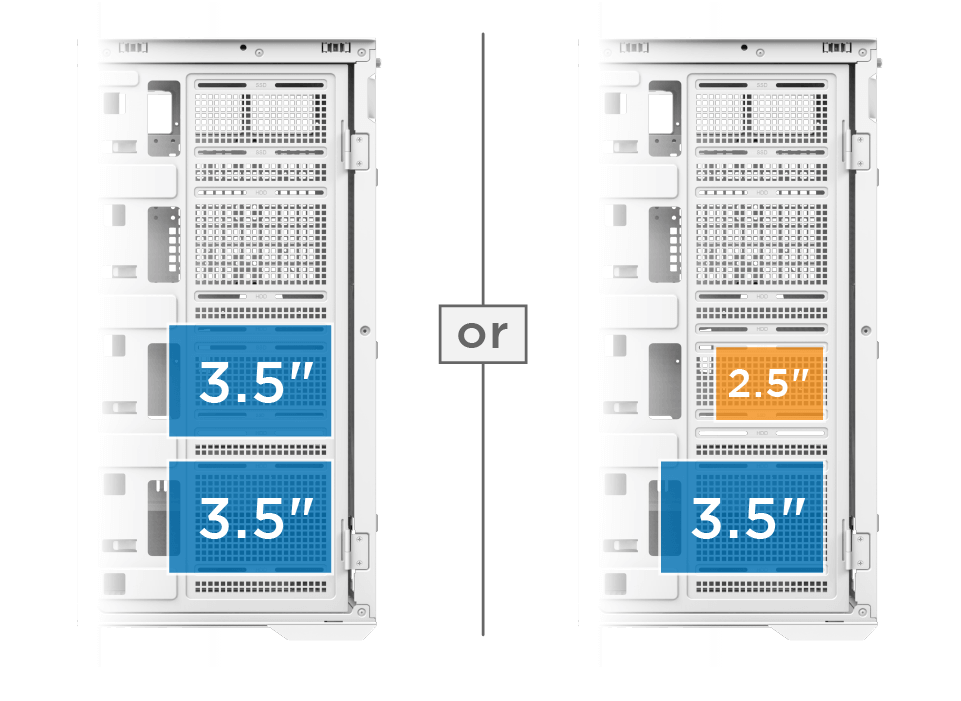

SSD/HDD Mounting Flip Cover
Option B:
3.5″ x2 or 3.5″ x1 & 2.5″ x1
(SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)
SSD/HDD Mounting Flip Cover

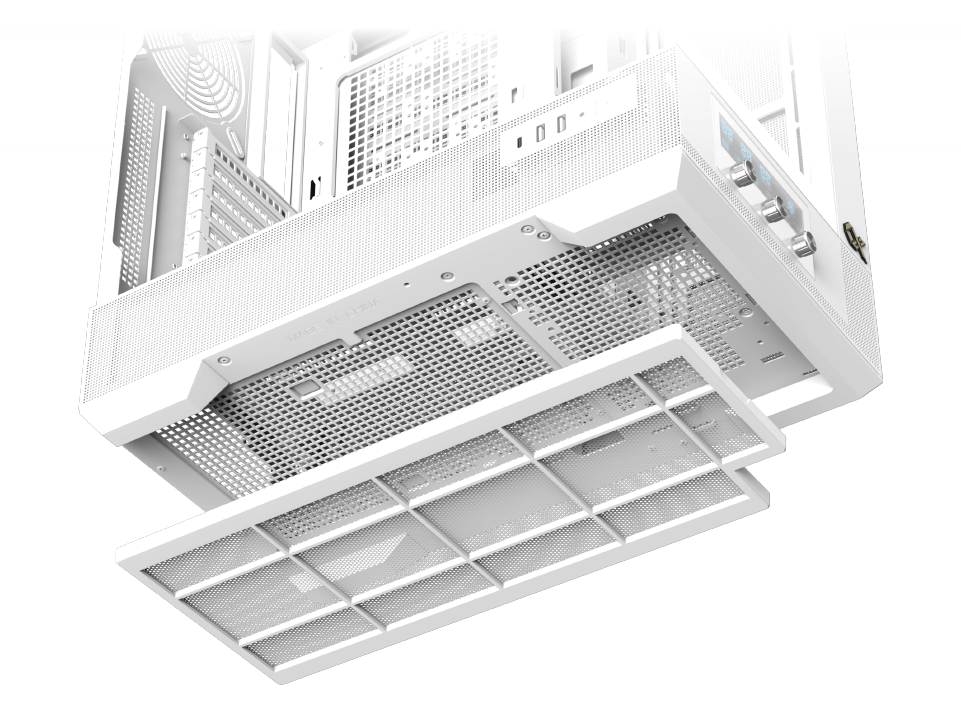

Bottom-Mounted
Magnetic Dust Filter

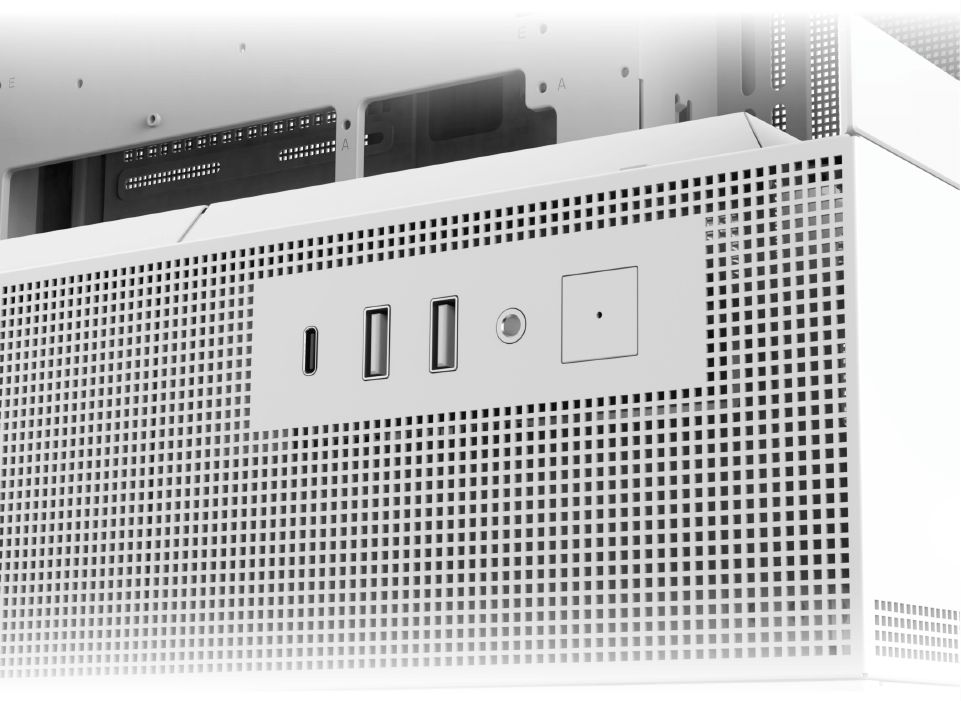

Side I/O Ports
• Power Button
• HD Audio Jack
• USB 3.0 x2
• Type C
*All Product Images Shown Are For Illustration Purpose Only.

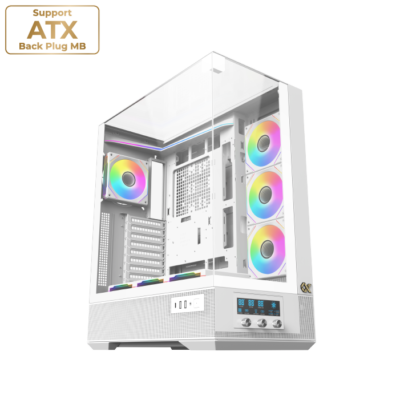

Vision Pro Arctic
450x258x533mm (LxWxH)
MB: 120mm x4 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1
SSD/HDD Mounting Bracket (Rear MB Panel)
3.5″ x1 or 2.5″ x2
180mm
Steel
(Support GPU Horizontal or Vertical Installation)
EATX
ATX (Support Back Plug)
Micro ATX
Mini ITX
Standard PS2 ATX PSU
MB: 240/280/360/420/480
(EATX MB Width ≤ 290mm)
USB3.0 x2
Type C
HD Audio
220mm
420mm
