Blast 4GF

Blast 4GF

Motherboard E-ATX

CPU Cooler 165mm

Fan Support 10 max.

Power Supply 200mm

Graphics Card 400mm

Radiator 360 max.

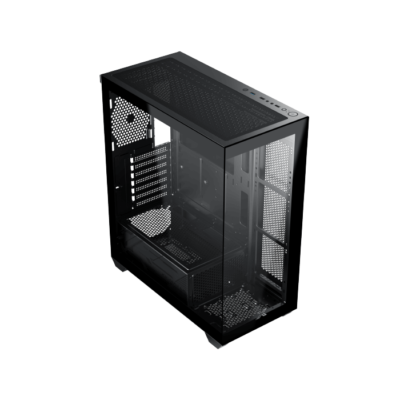

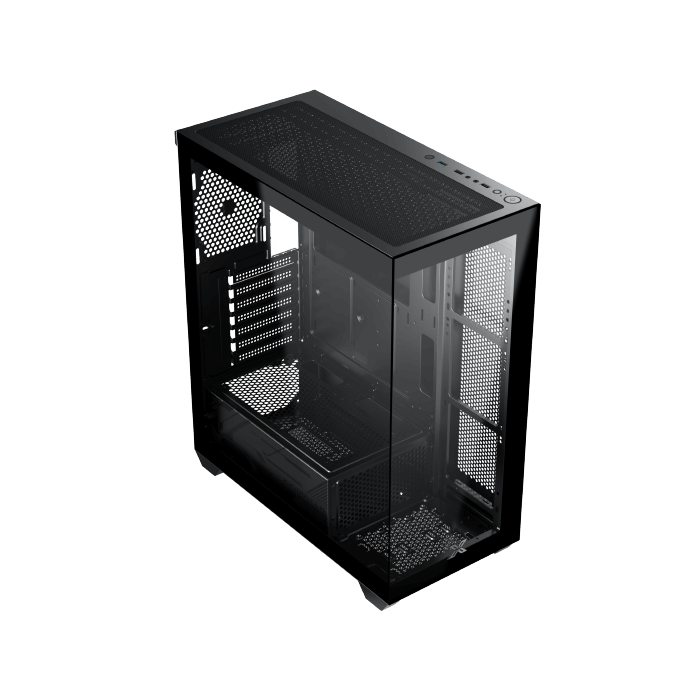

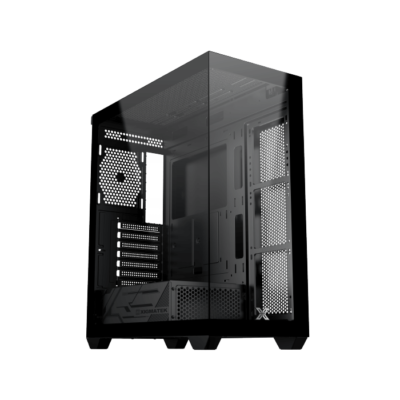

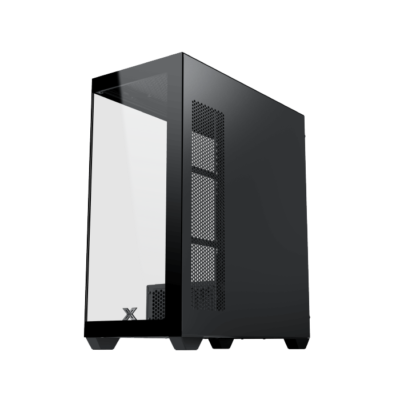

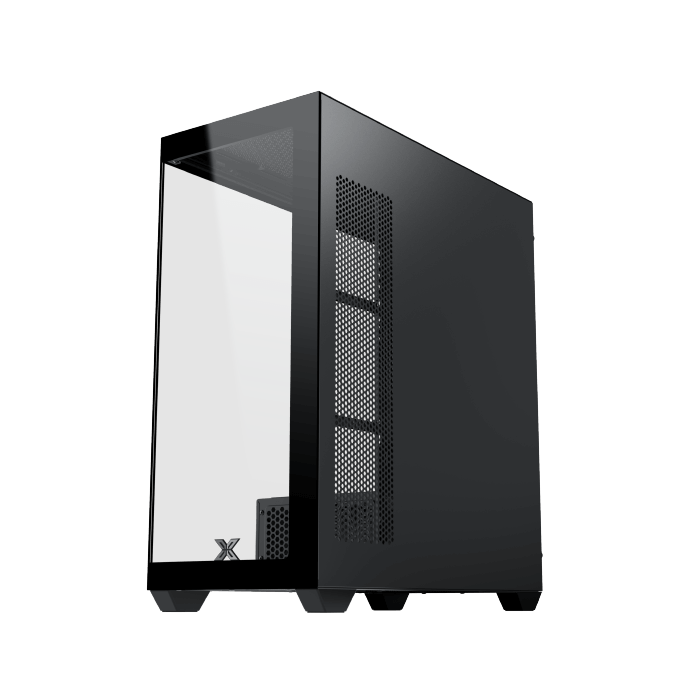

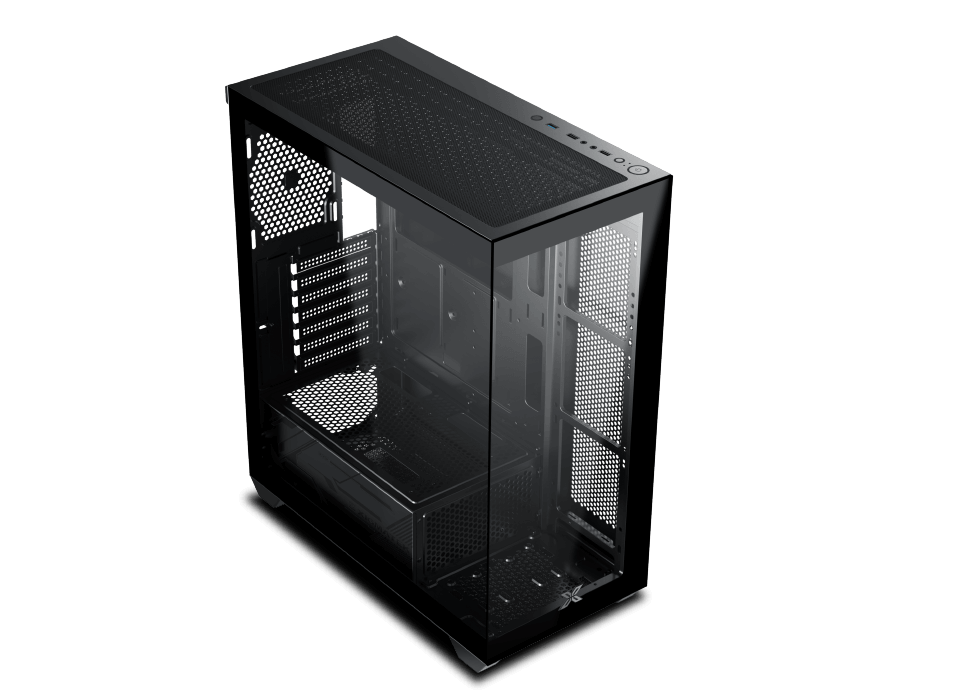

Chassis With 2 Tempered
Glass Panel

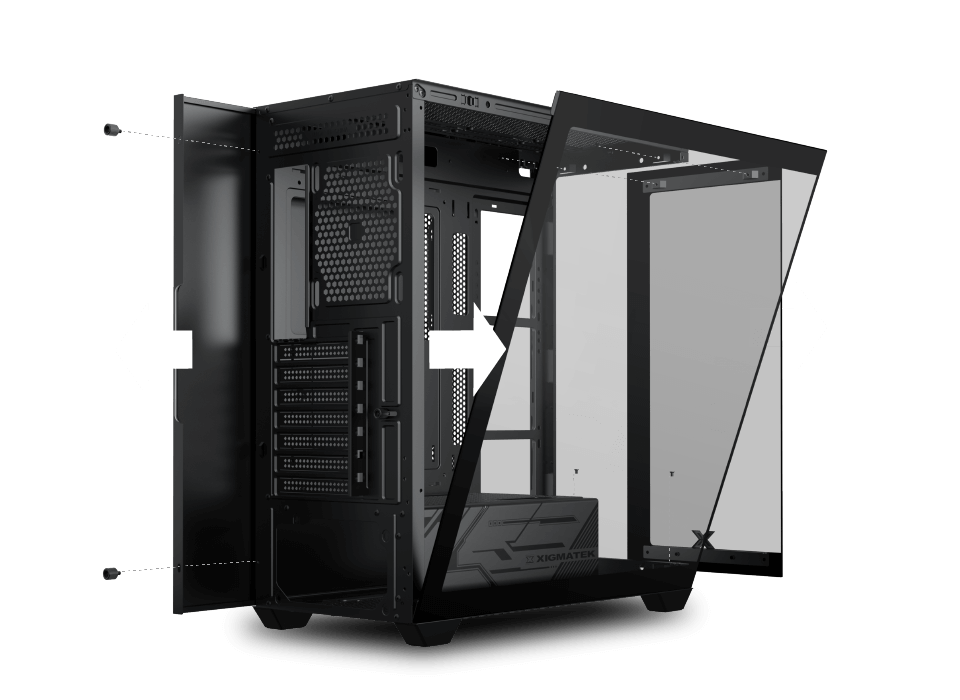

Easily Mounting Panels

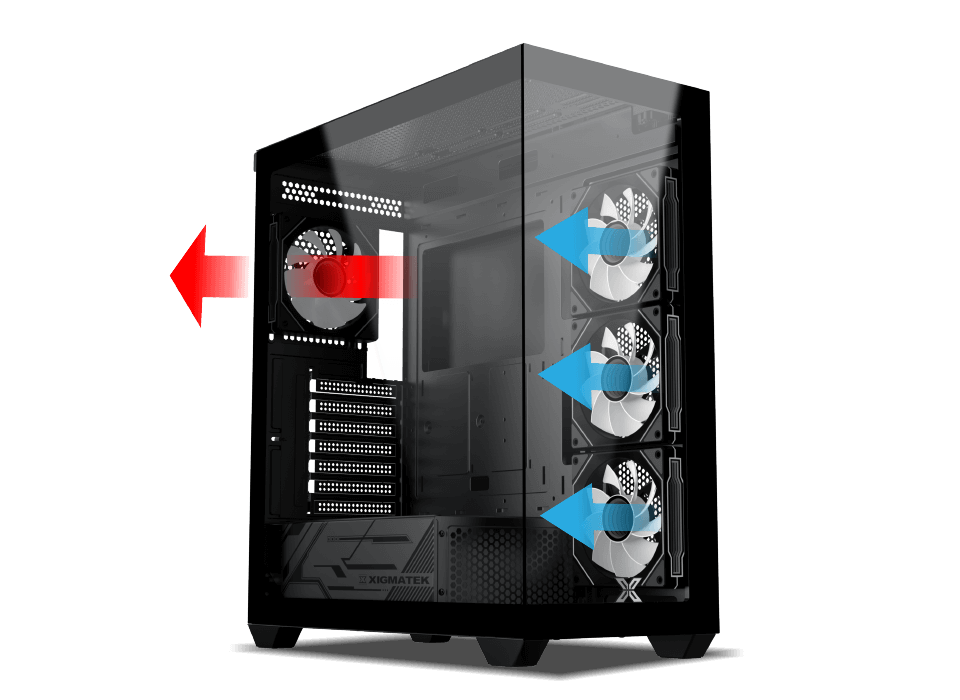

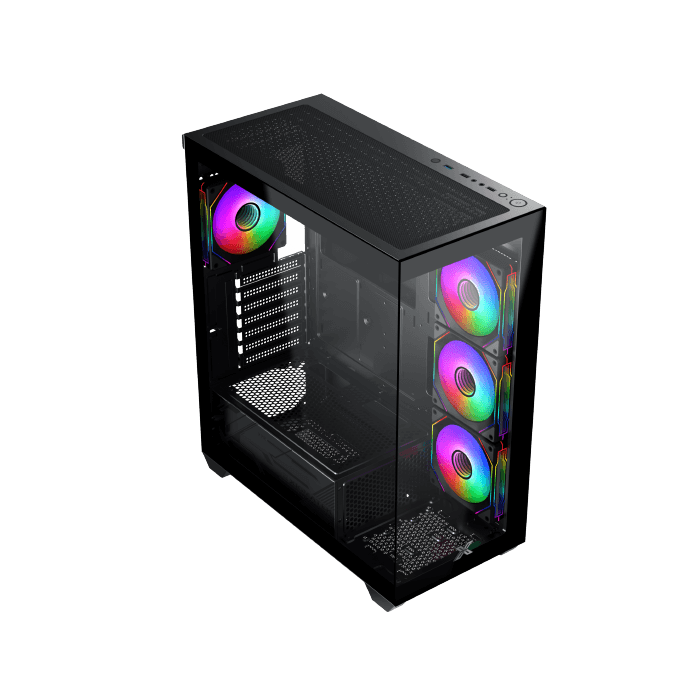

Superior Airflow and
Ventilation Design

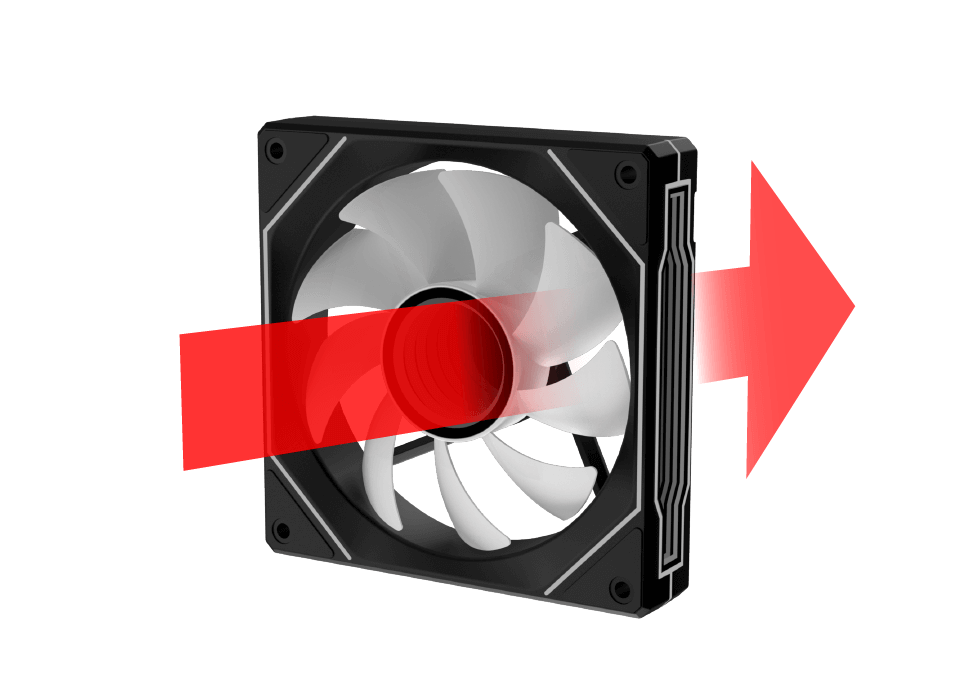

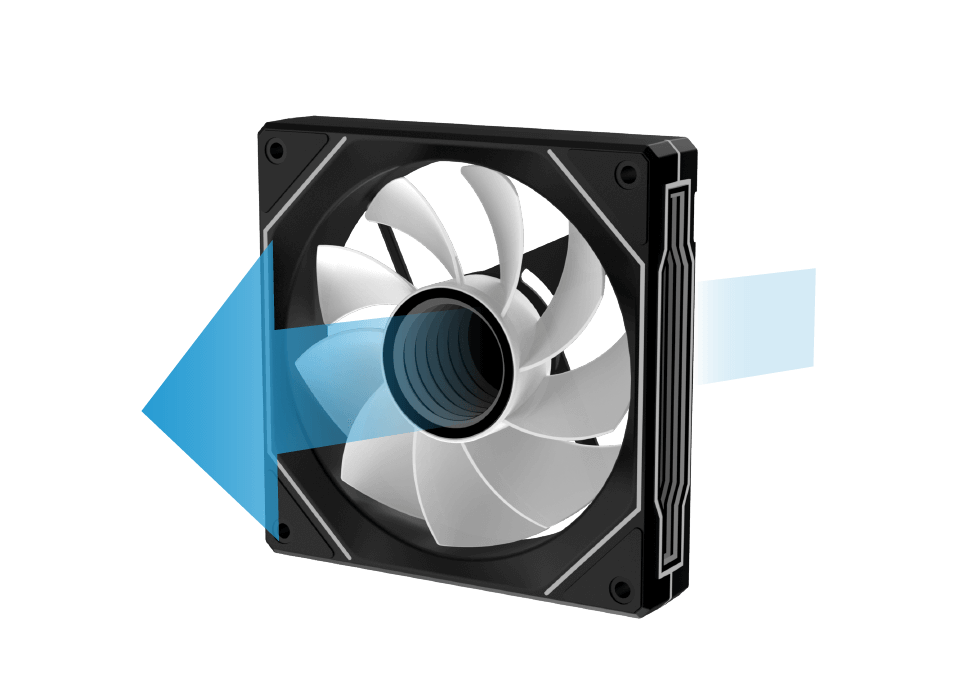

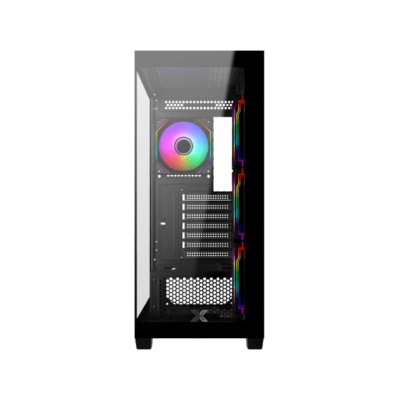

Traditional Fan Blade

Pre-installed on Rear Side

Reverse Fan Blade

Pre-installed on MB Panel Side

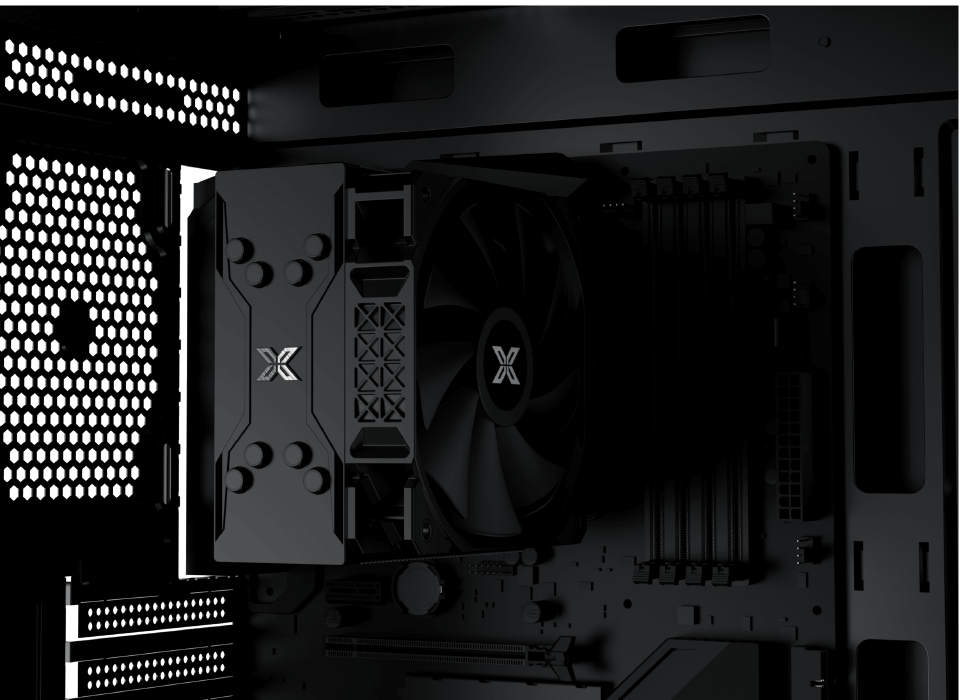

CPU Cooler Clearance
up to 165

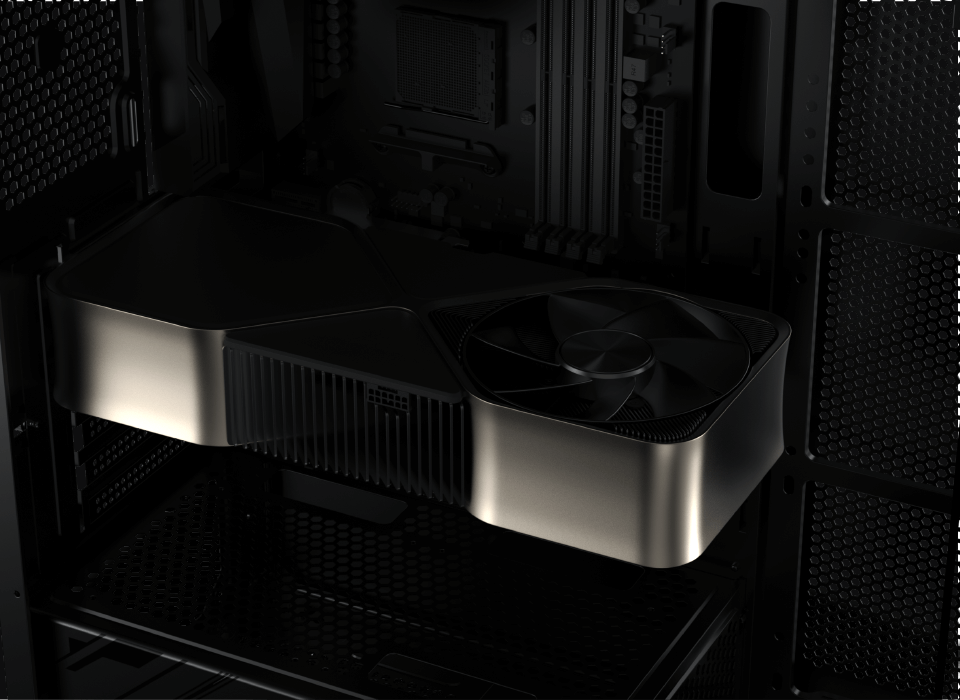

GPU Length Limitation
410mm (No Fan on MB Panel)
285mm (Fan on MB Panel)

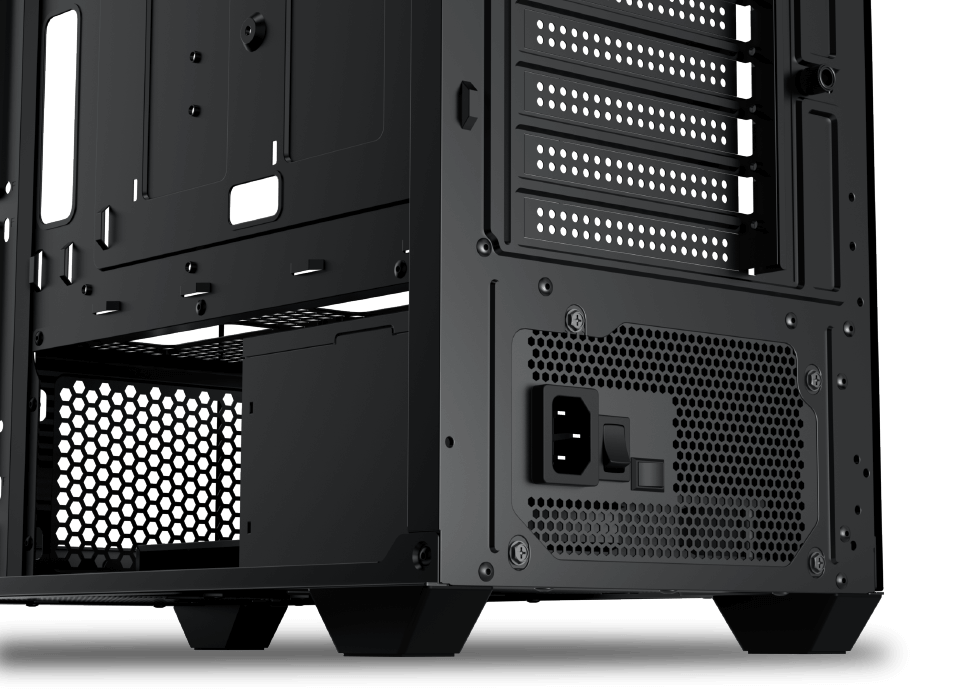

PSU Length Limitation
up to 200mm

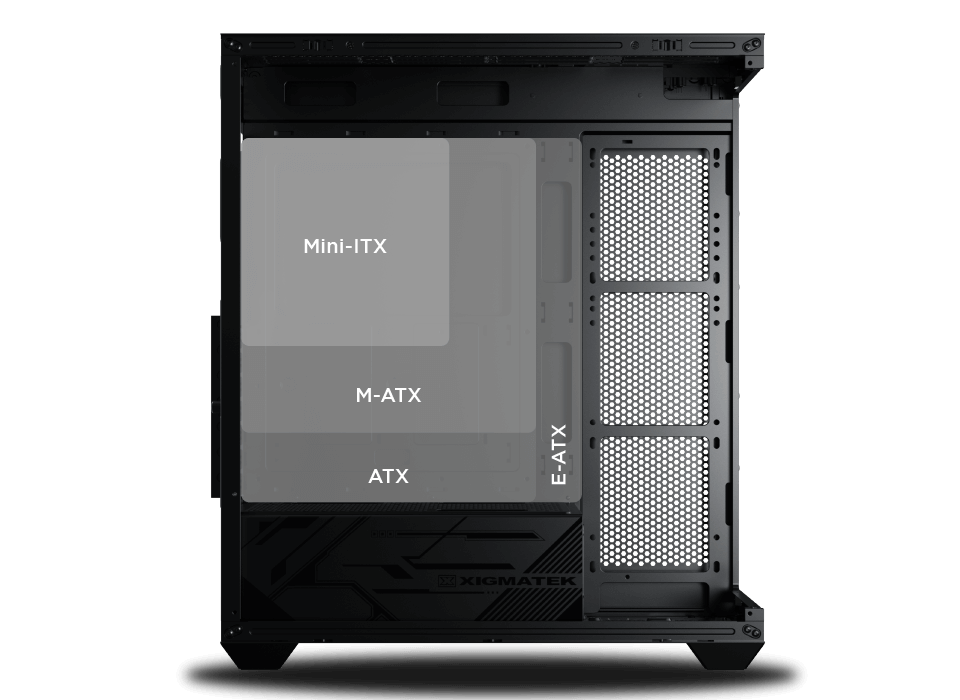

Motherboard Support
up to E-ATX

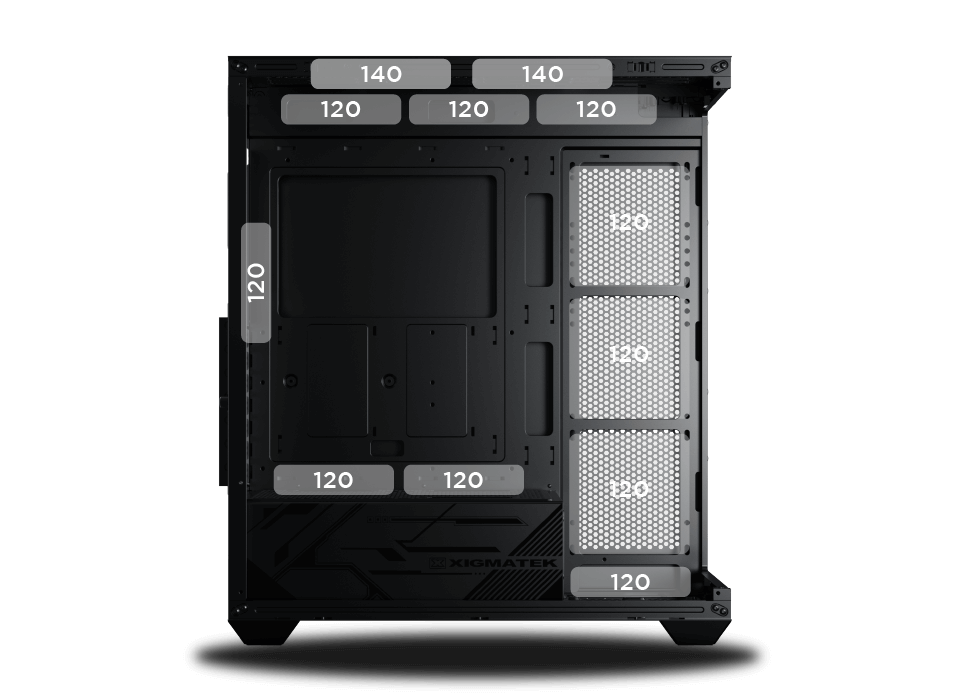

Fan Support

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
(E-ATX MB Width ≤28.5cm)
PSU Shroud: 120mm x2
Bottom: 120mm x1
(No 2.5” or 3.5” SSD/HDD)
Rear: 120mm x1Fan Support

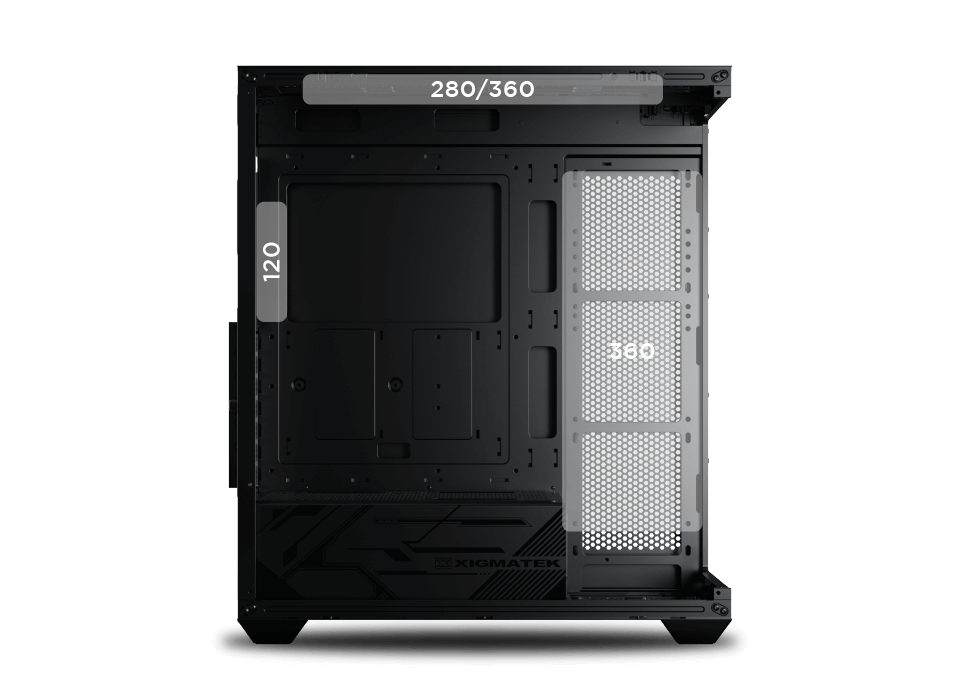

Radiator Support

Top: 280/360
MB Panel: 360
(E-ATX MB Width ≤28.5cm)
Rear: 120

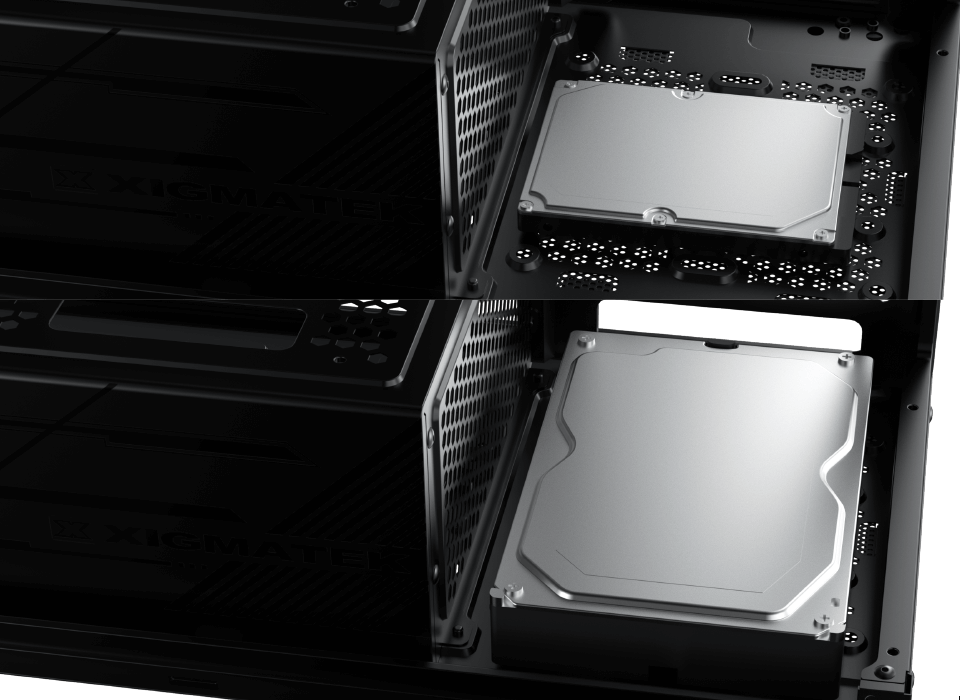

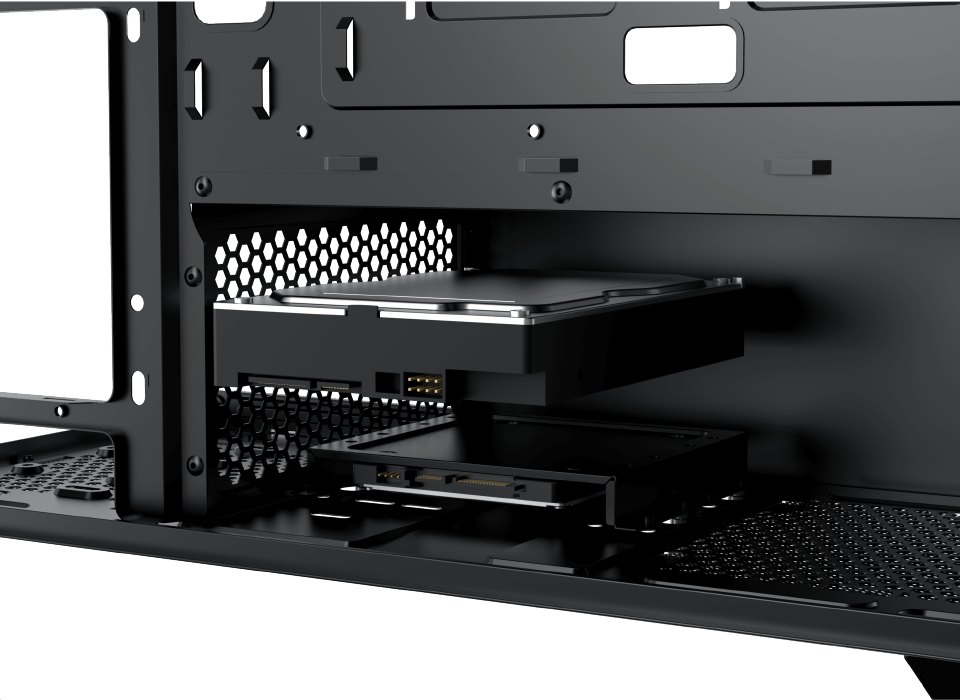

HDD Cage

Top: 3.5” x1
Bottom: 2.5” x1

Bottom Panel

2.5” & 3.5” Combo x1

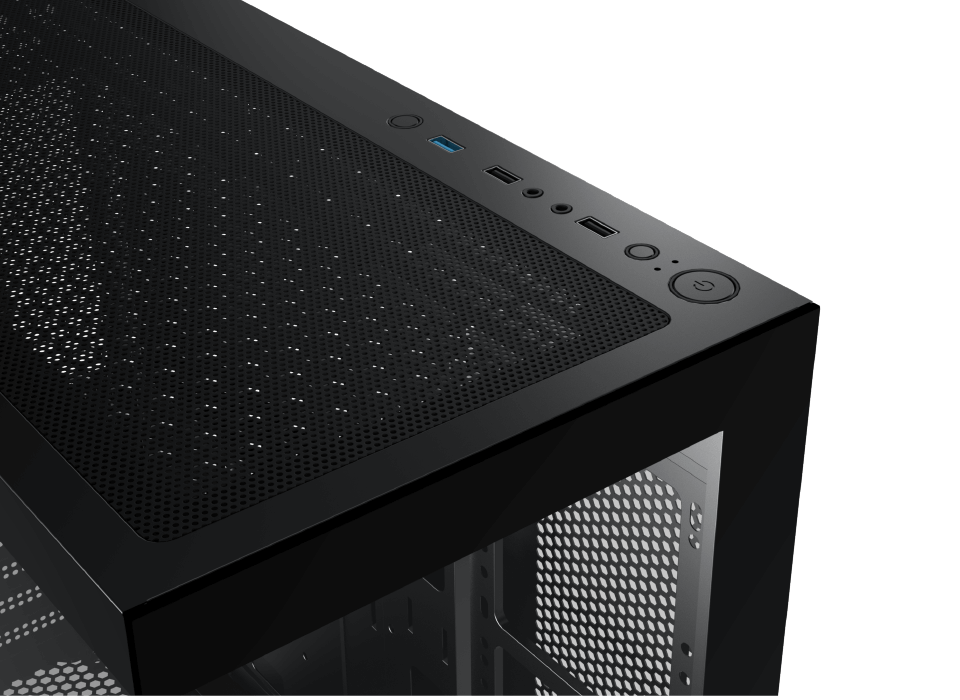

Top Mount I/O Ports

• Power Button• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack
• LED Switch

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Blast 4GF

Dimensions

425x212x490mm (LxWxH)

Motherboard Support

E-ATX, ATX, Micro ATX, Mini ITX

Drive Bays

HDD Cage(Top): 3.5” x1
HDD Cage(Bottom): 2.5” x1
Bottom Panel: 3.5” & 2.5” Combo x1

Fan Support

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
(E-ATX MB Width ≤28.5cm)
PSU Shroud: 120mm x2
Bottom: 120mm x1
(No 2.5” or 3.5” SSD/HDD)
Rear: 120mm x1

PSU Length Limitation

200mm

Material

Steel

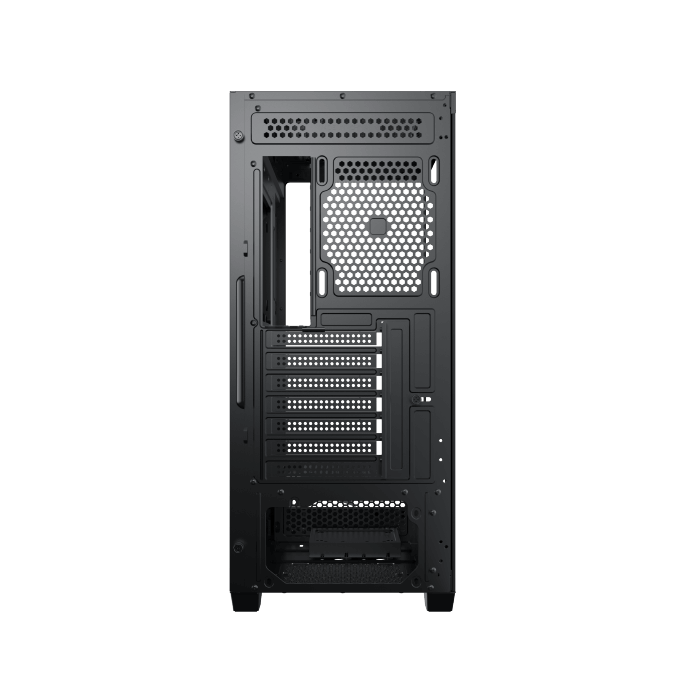

Expansion Slots

9 Standard Slots

Power Supply

Standard PS2
ATX PSU

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

Radiator Support

Top: 280/360
MN Panel: 360
(E-ATX MB Width ≤28.5cm)
Rear: 120

CPU Cooler Clearance

165mm

GPU Length Limitation

285mm
(Fan on MB Panel)
410mm
(No Fan on MB Panel)
