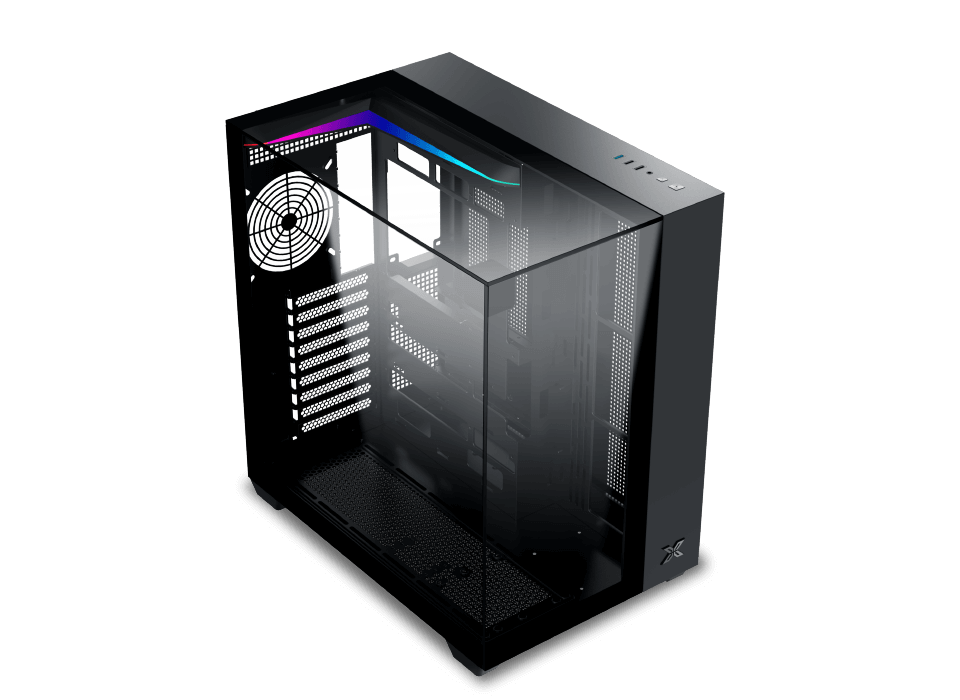

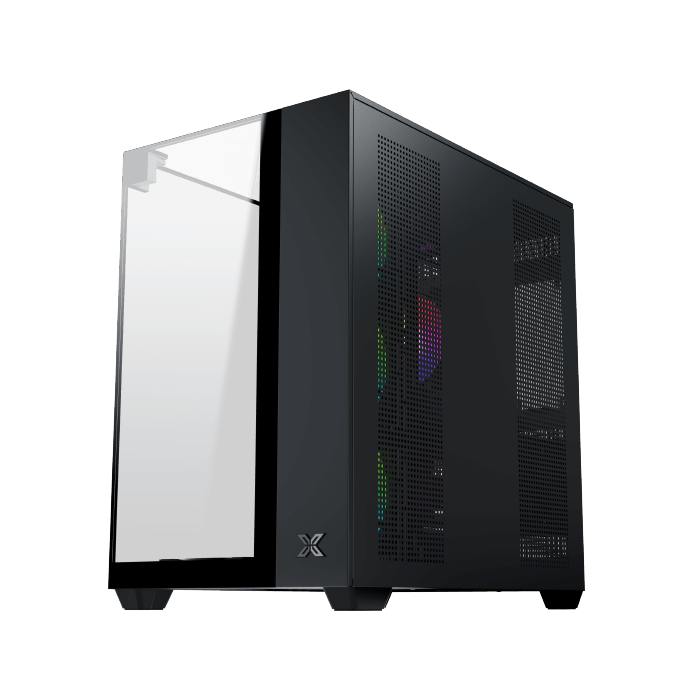

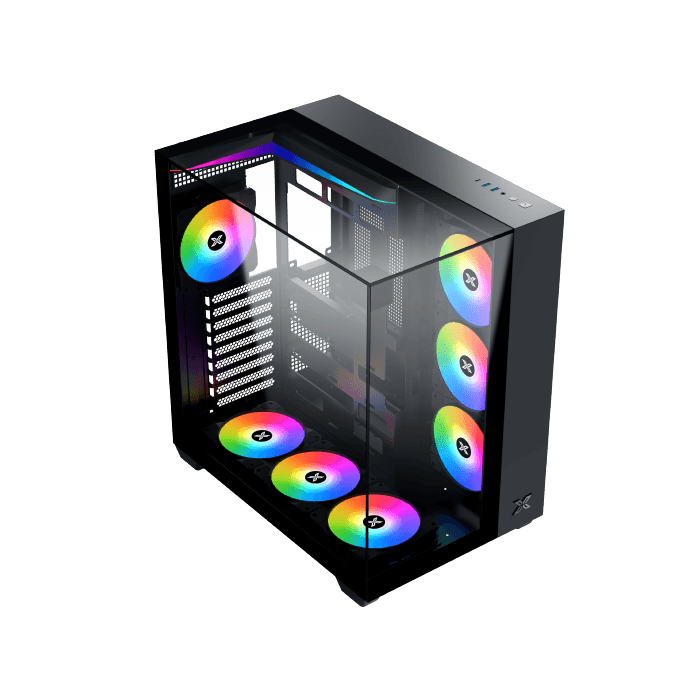

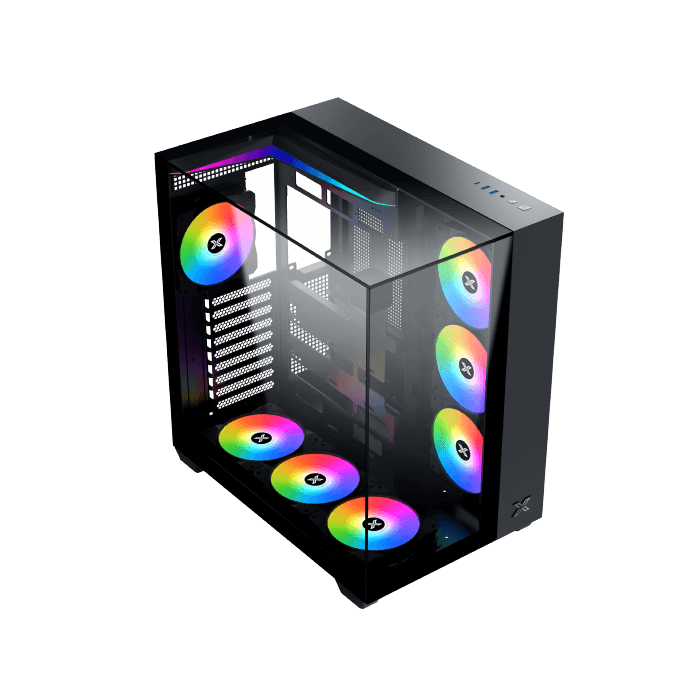

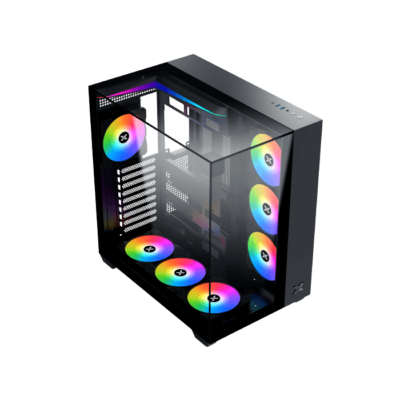

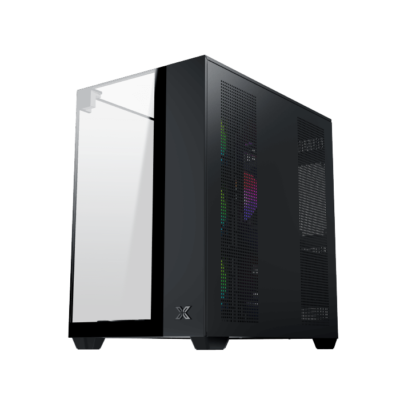

Chassis With 3 Temperd
Glass Panel

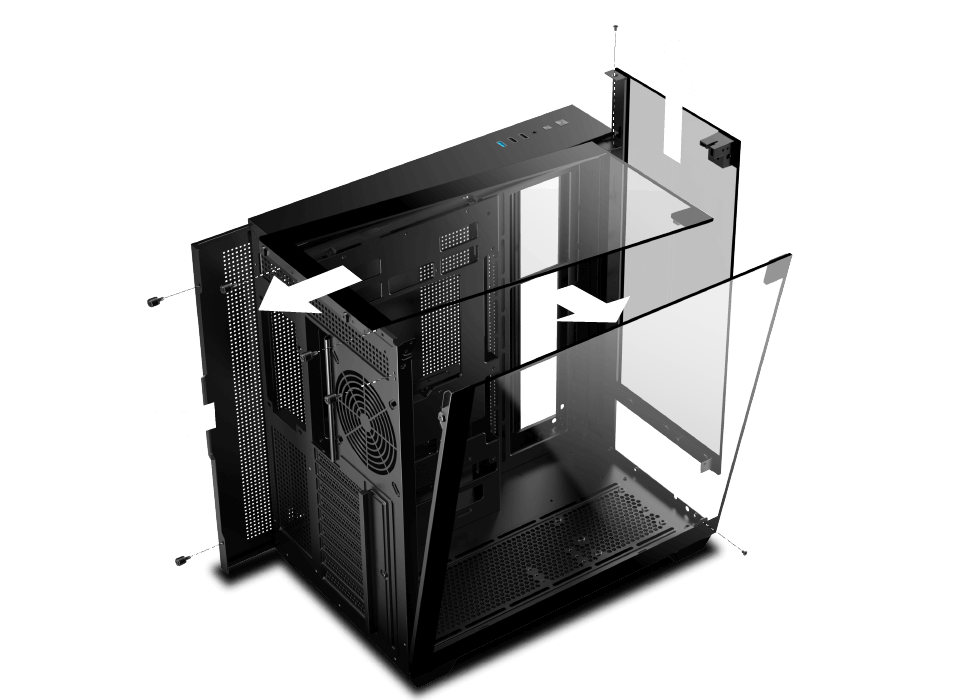

Easily Mounting Panels

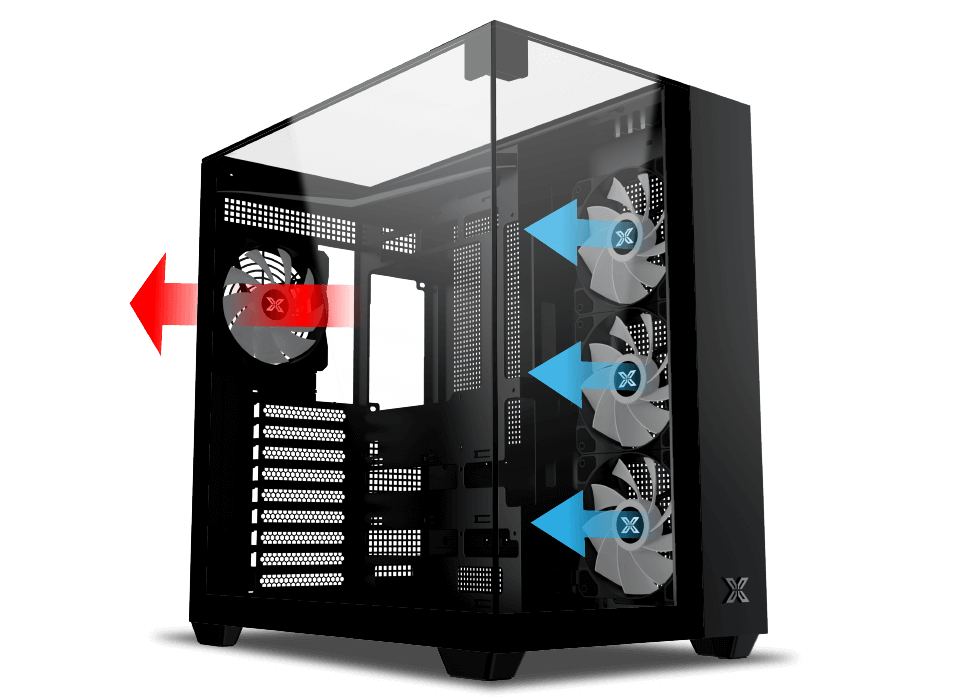

Superior Airflow and
Ventilation Design

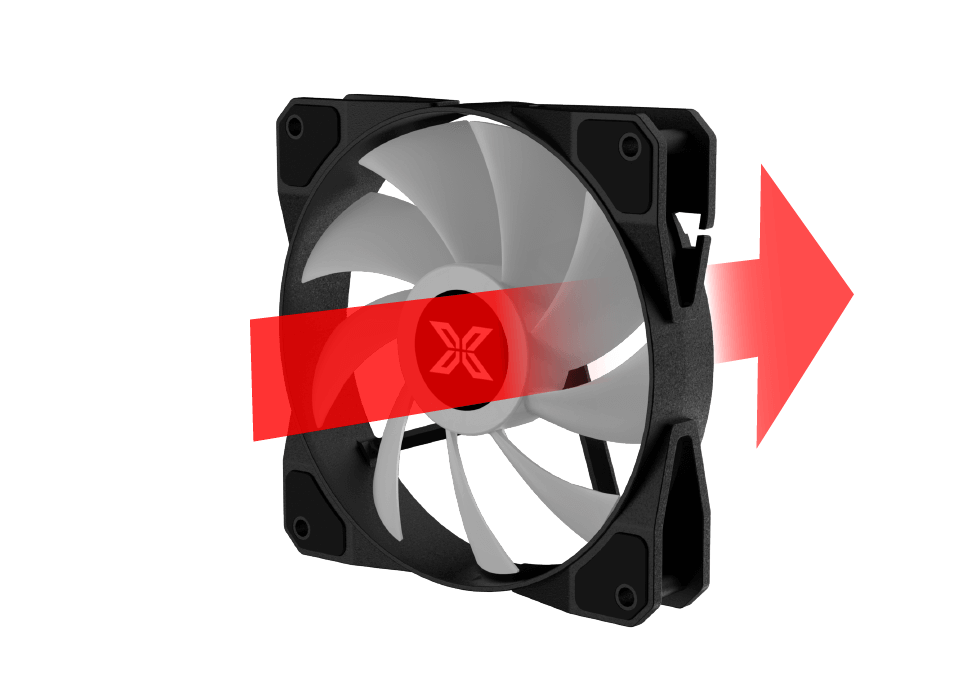

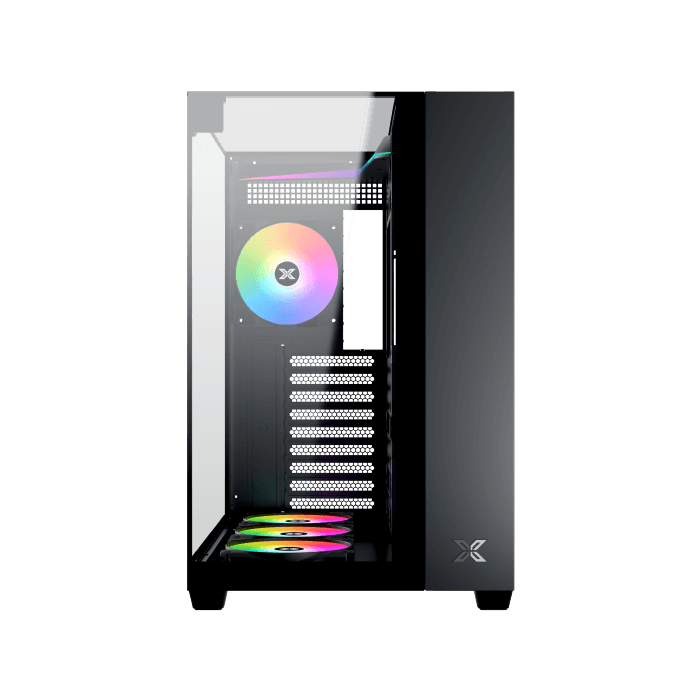

Traditional Fan Blade
Pre-installed on Rear Side

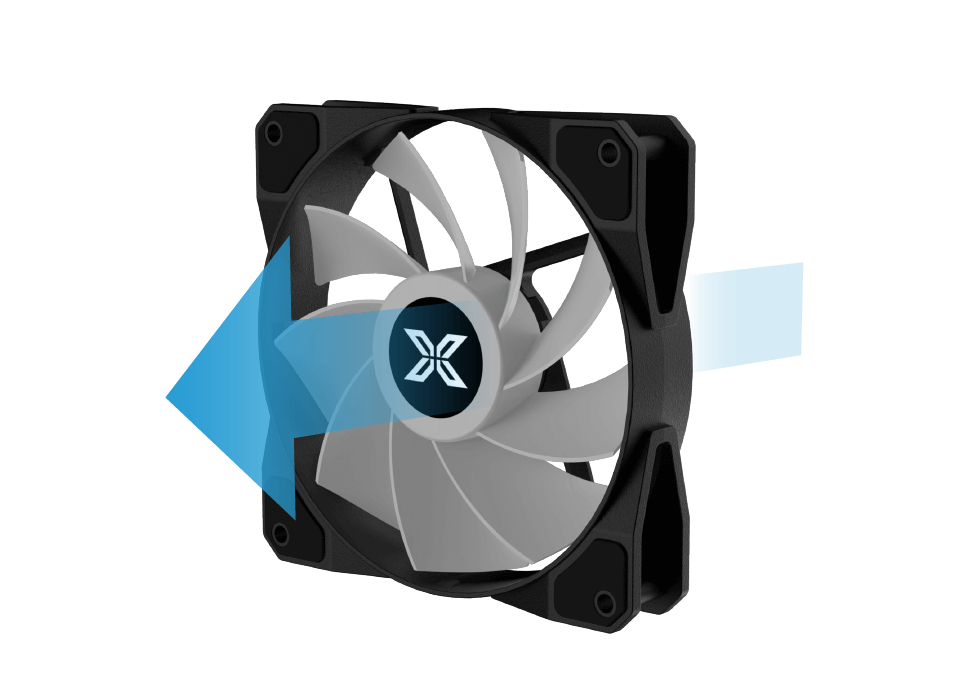

Reverse Fan Blade
Pre-installed on MB Panel Side

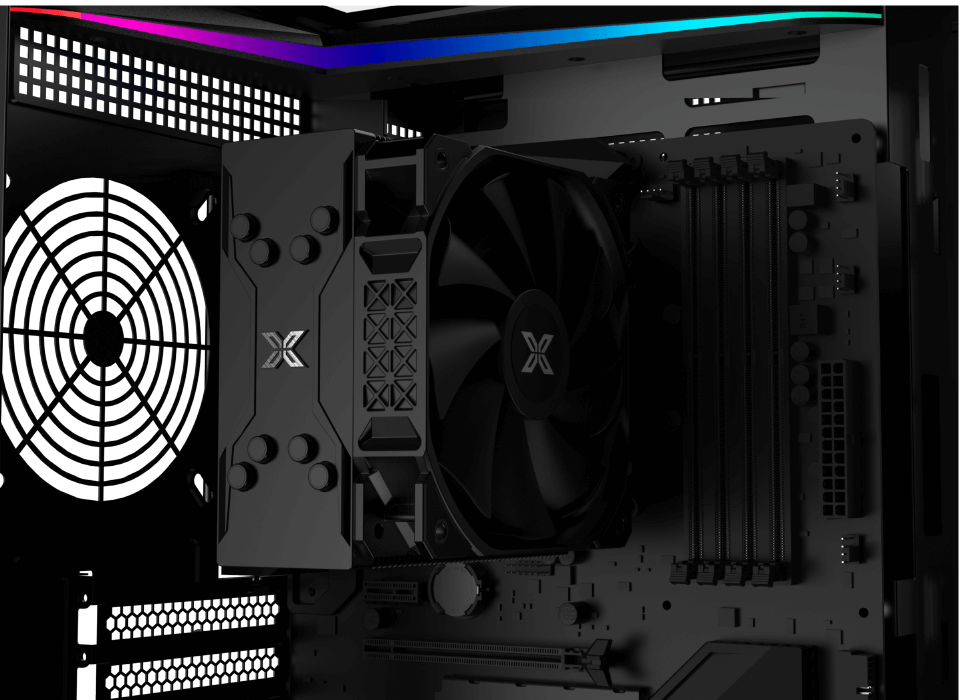

CPU Cooler Clearance
up to 165mm

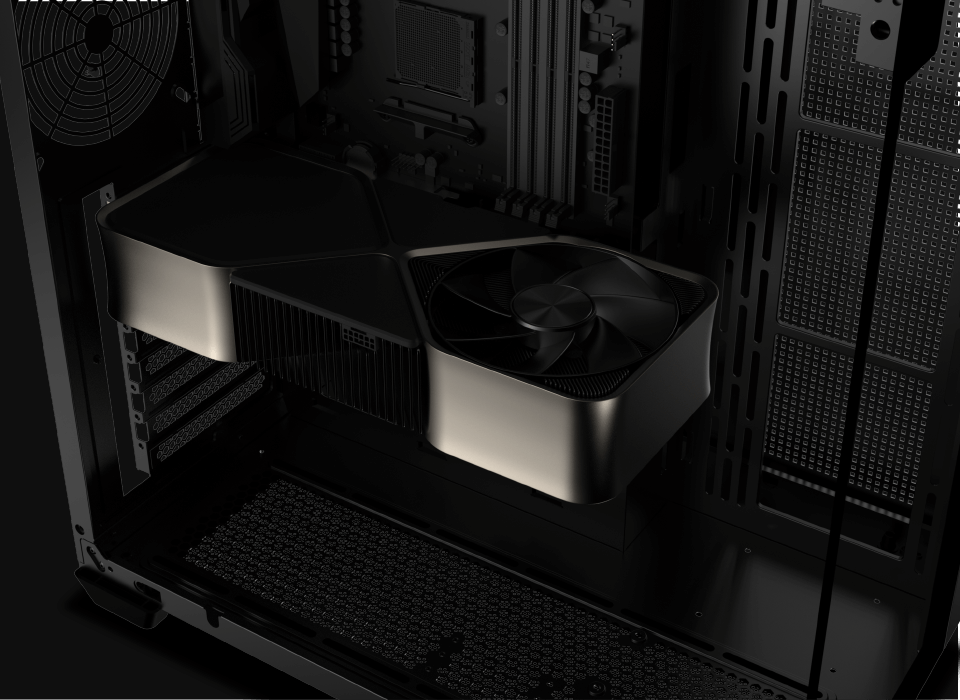

GPU Length Limitation
410mm

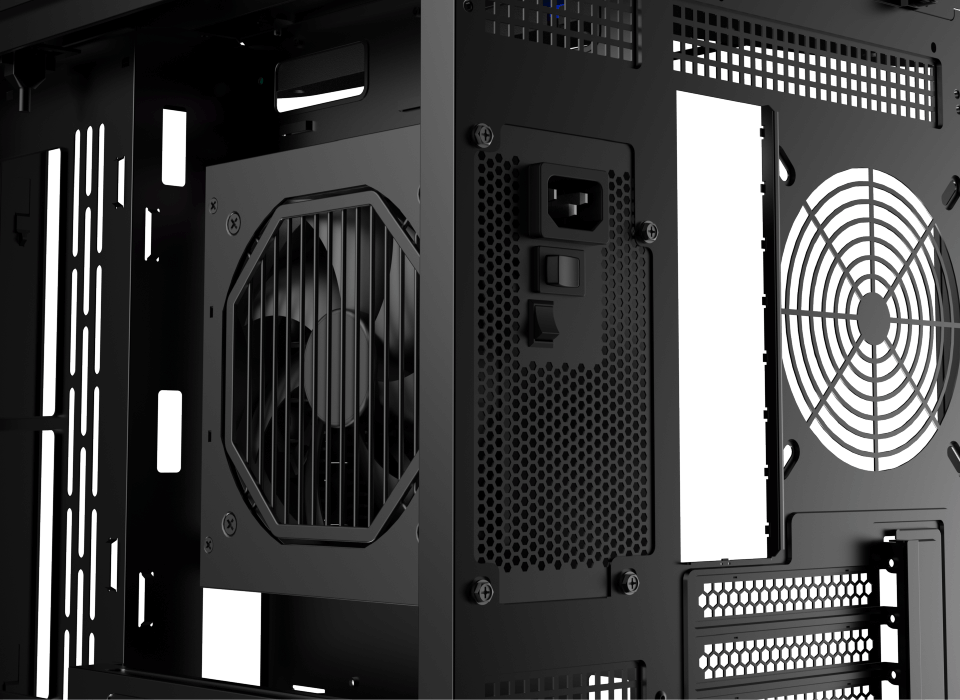

PSU Length Limitation up to 220mm

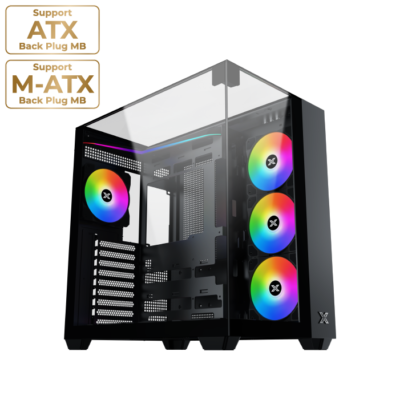

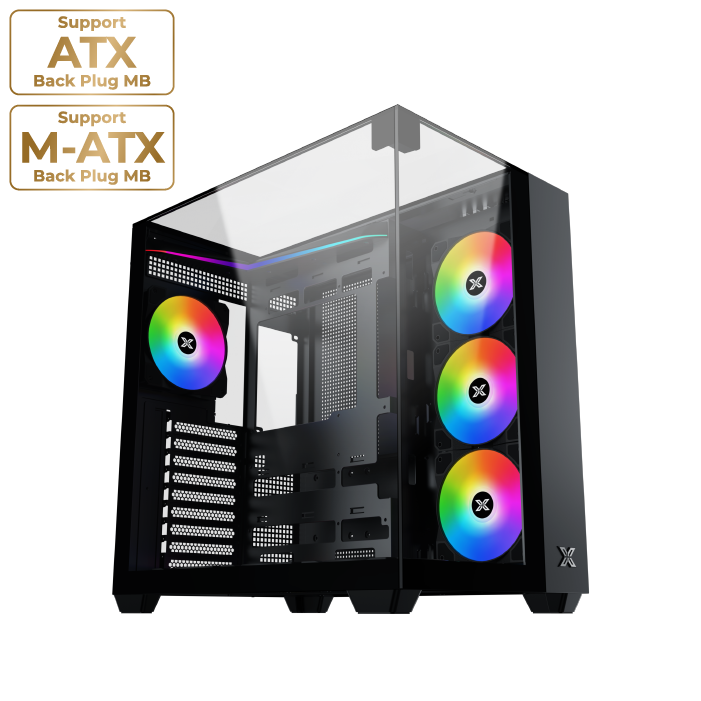

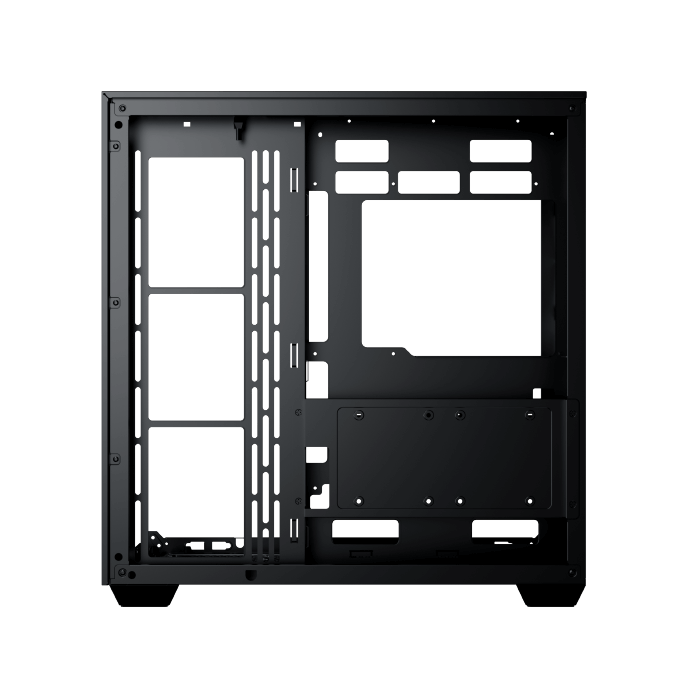

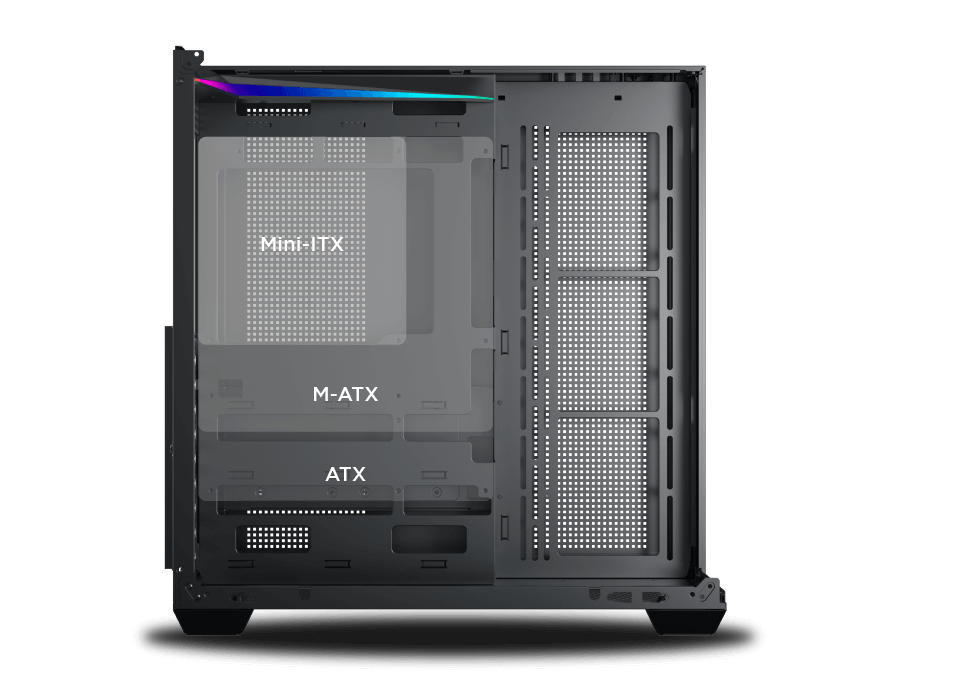

Motherboard Support
up to ATX

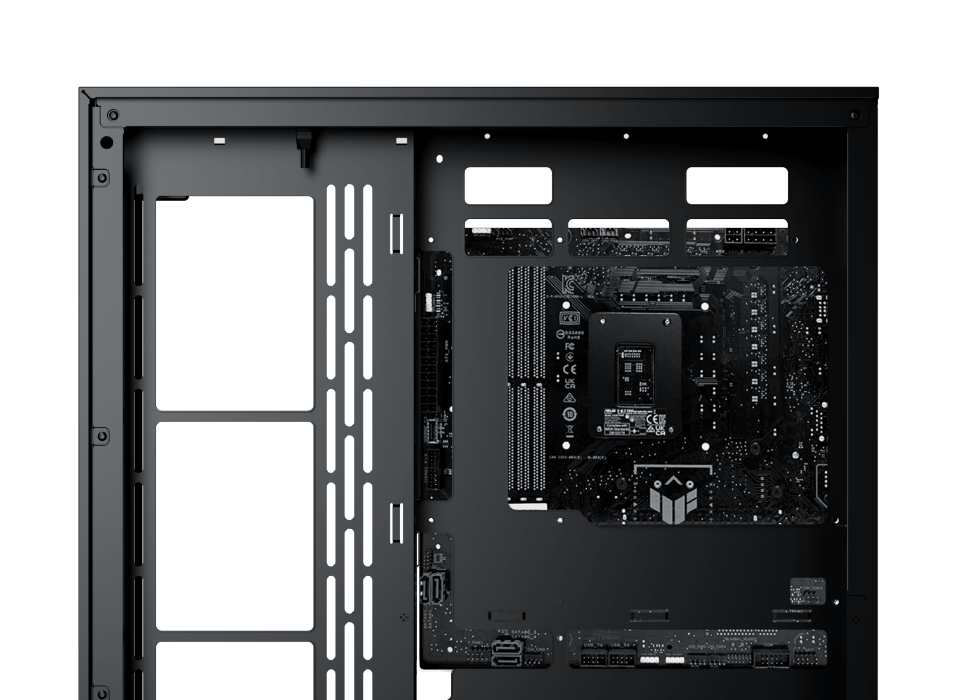

Support ATX Back Plug
Motherboard

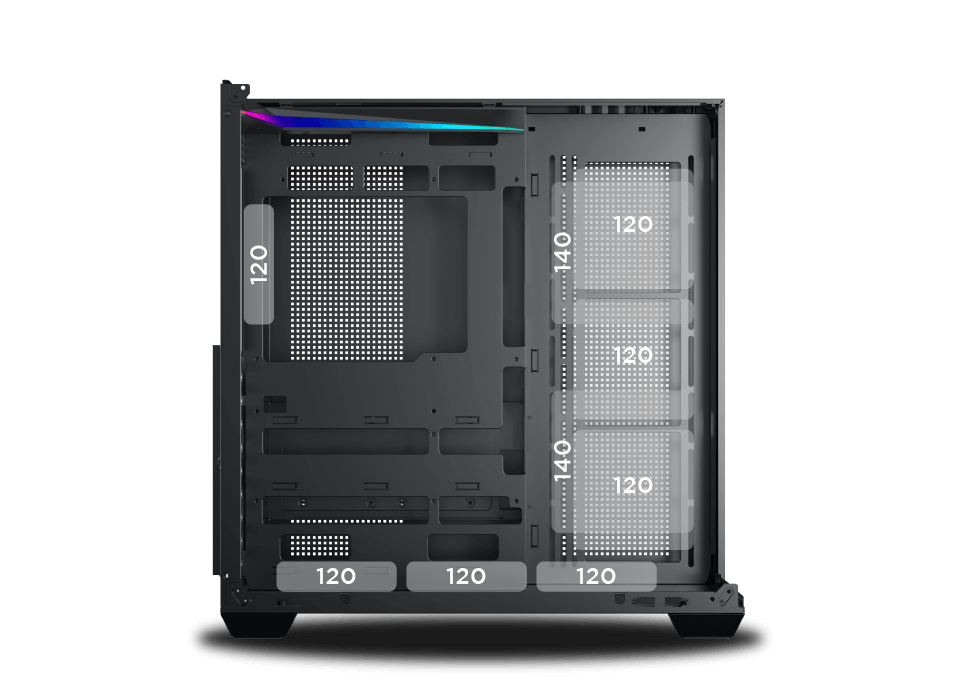

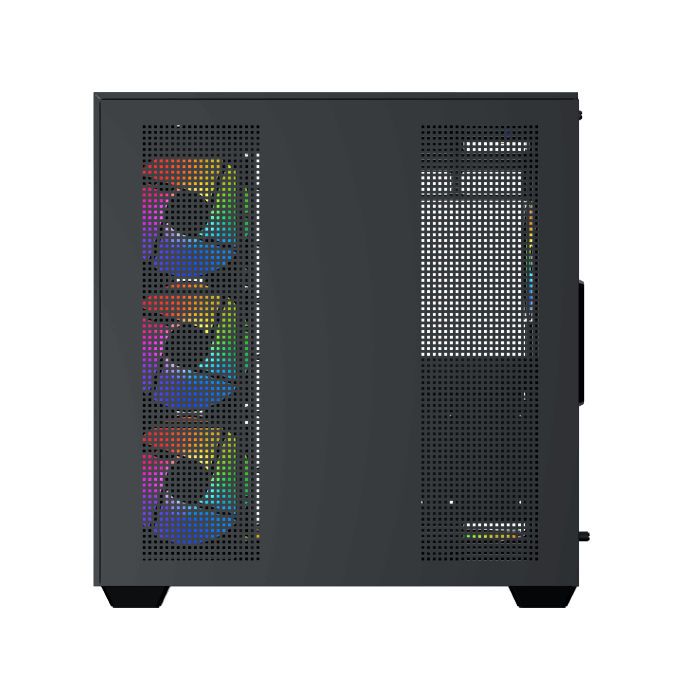

Fan Support
MB: 120mm x3 or 140mm x2
Bottom: 120mm x3
(Whithout 3.5” HDD)
Rear: 120mm x1

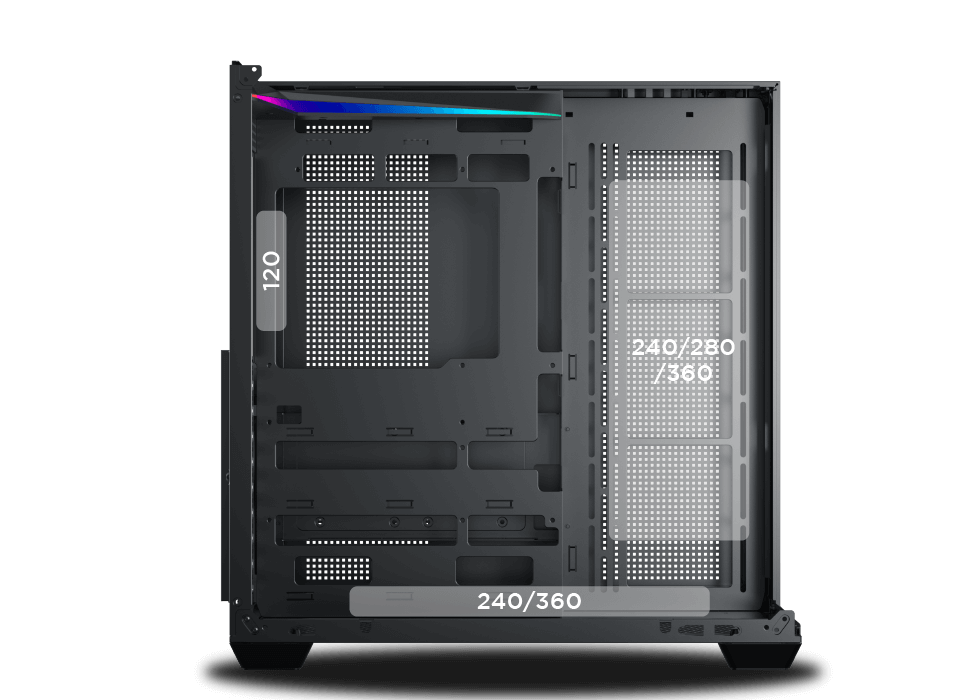

Radiator Support
MB: 240/280/360
Bottom: 240/360
Rear: 120

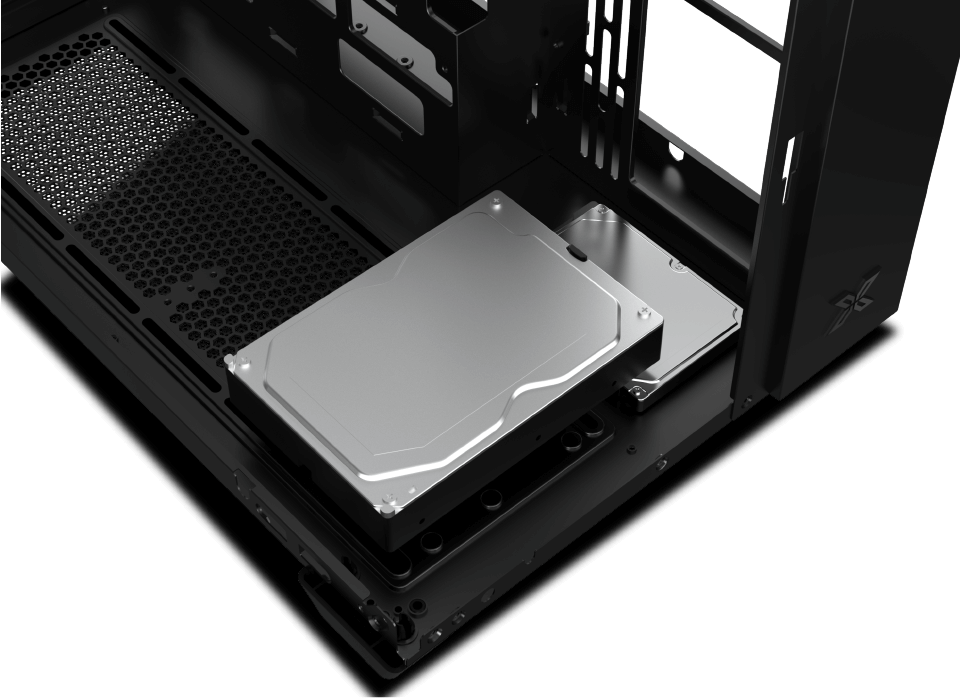

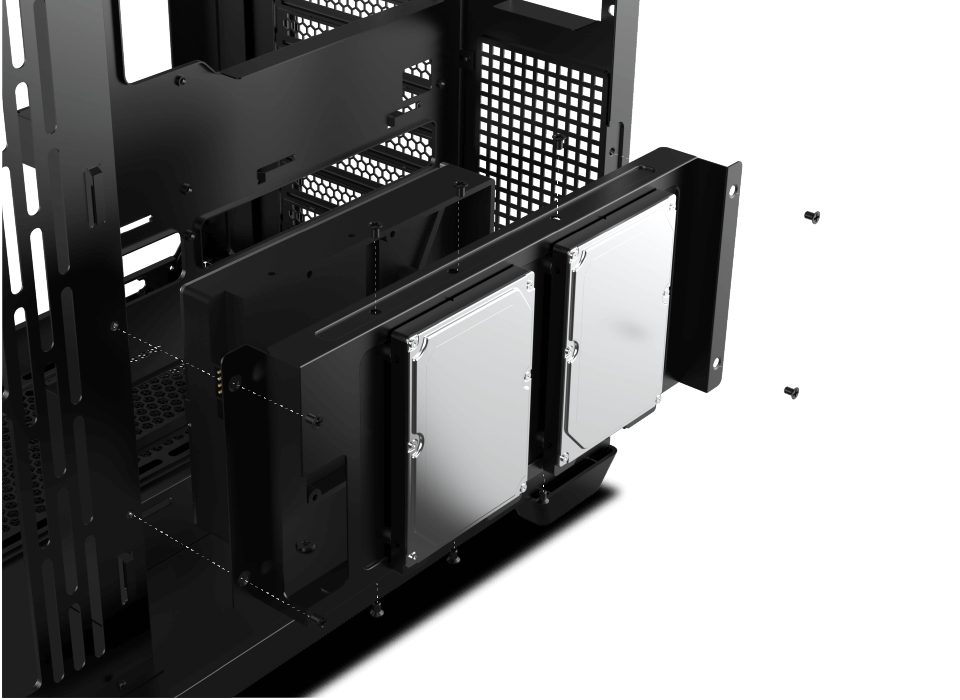

HDD Cage
2.5” x2 & 3.5” x1
Bottom Panel
2.5” x2 & 3.5” x1

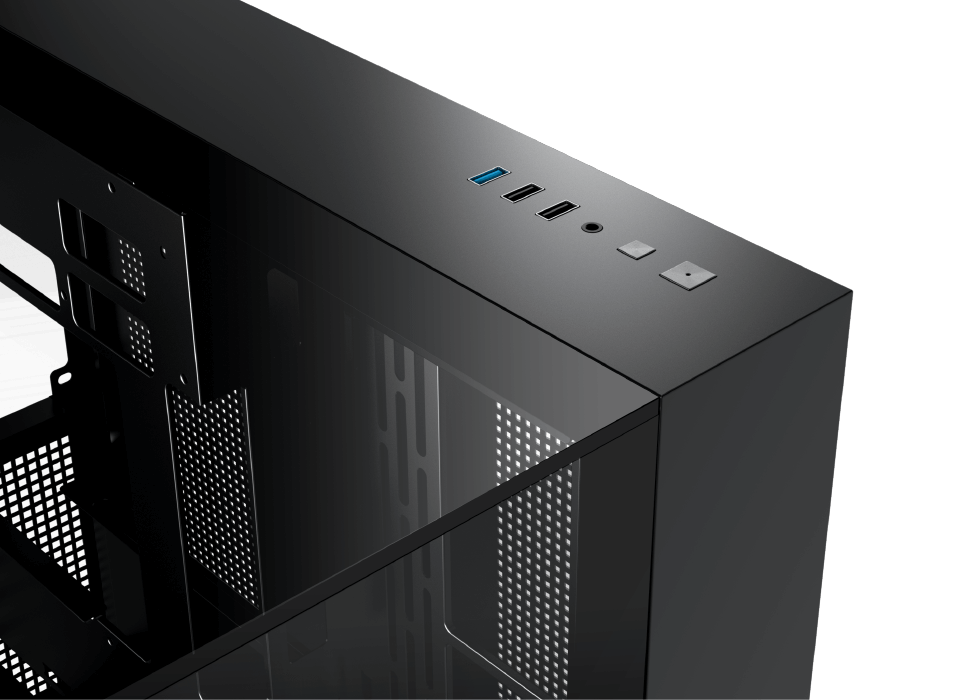

Top Mount I/O Ports
• Power Button• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack
*All Product Images Shown Are For Illustration Purpose Only.
AQUA V
427x285x455mm (LxWxH)
MB: 120mm x3 or 140mm x2
Bottom: 120mm x3 (Whithout 3.5” HDD)
Rear: 120mm x1
Bottom Panel: 3.5” x1 or 2.5”x2
HDD Cage: 3.5” x1 & 2.5” x2
165mm
410mm
220mm
Steel
9 Standard Slots
ATX (Support Back Plug)
Micro ATX (Support Back Plug)
Mini ITX (Support Back Plug)
Standard PS2
ATX PSU
MB: 240/280/360
Bottom: 240/360
Rear: 120
USB 3.0 x 1
USB 2.0 x 2
HD Audio
