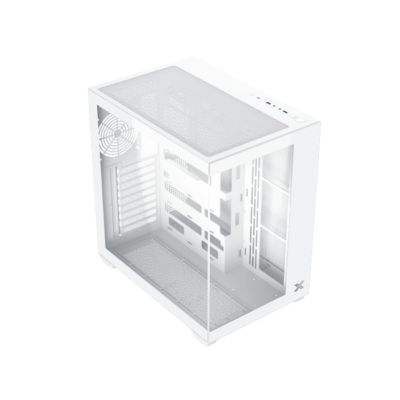

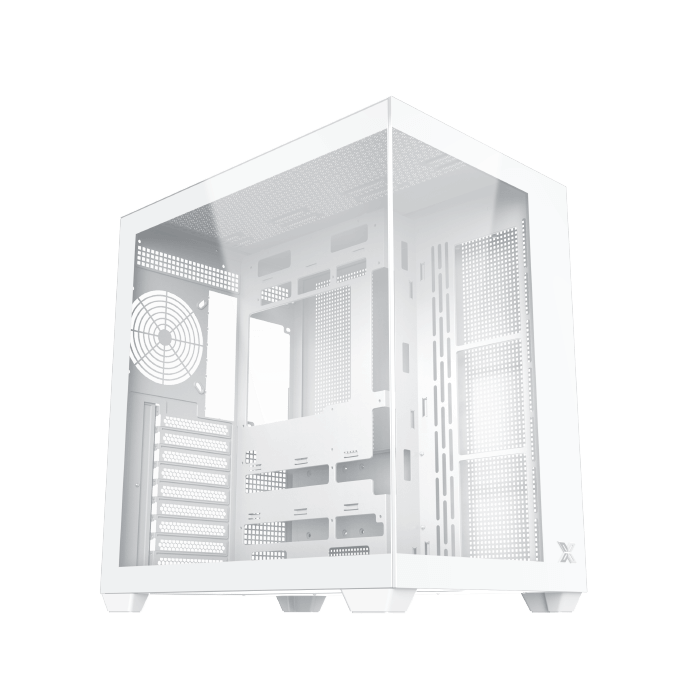

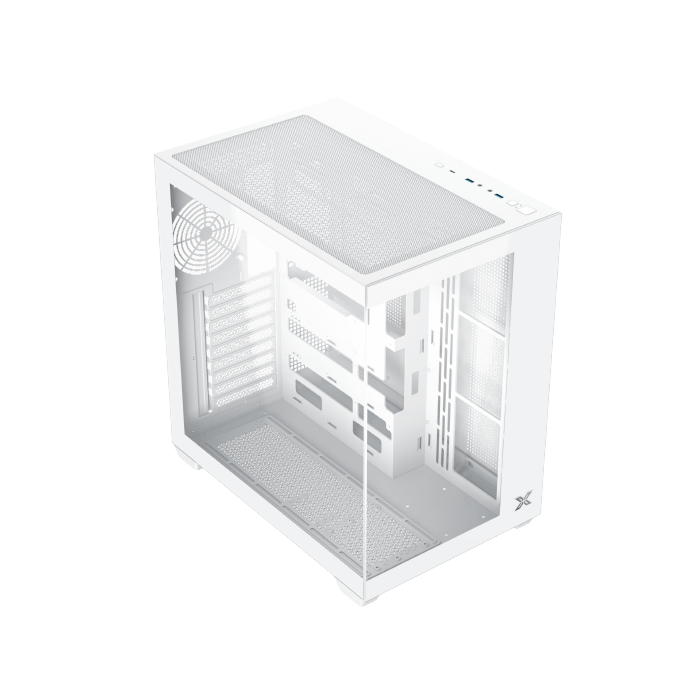

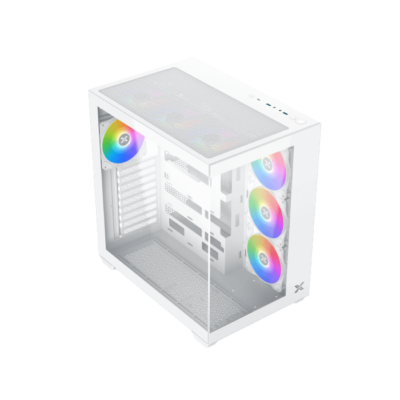

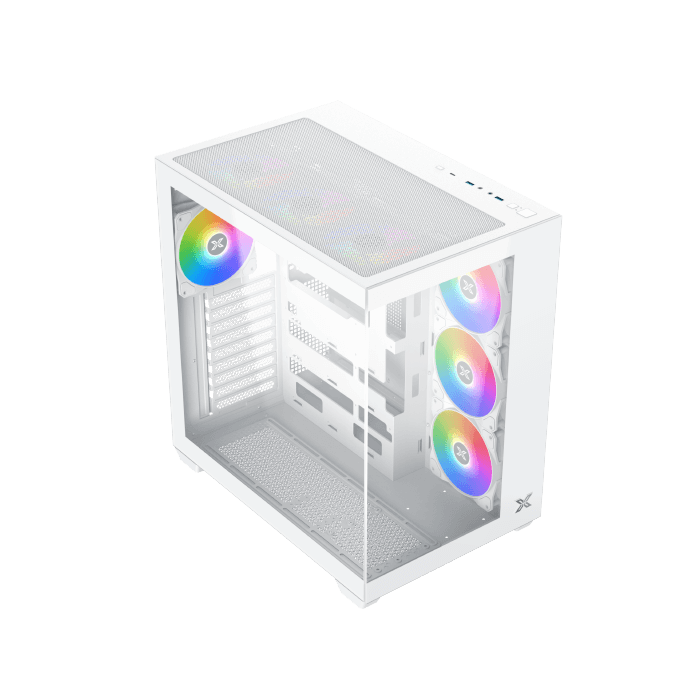

Aqua V Air Arctic

Aqua V Air Arctic

Motherboard ATX max.

CPU Cooler 165mm

Fan Support 10 max.

Power Supply 220mm

Graphics Card 410mm

Radiator 360mm max.

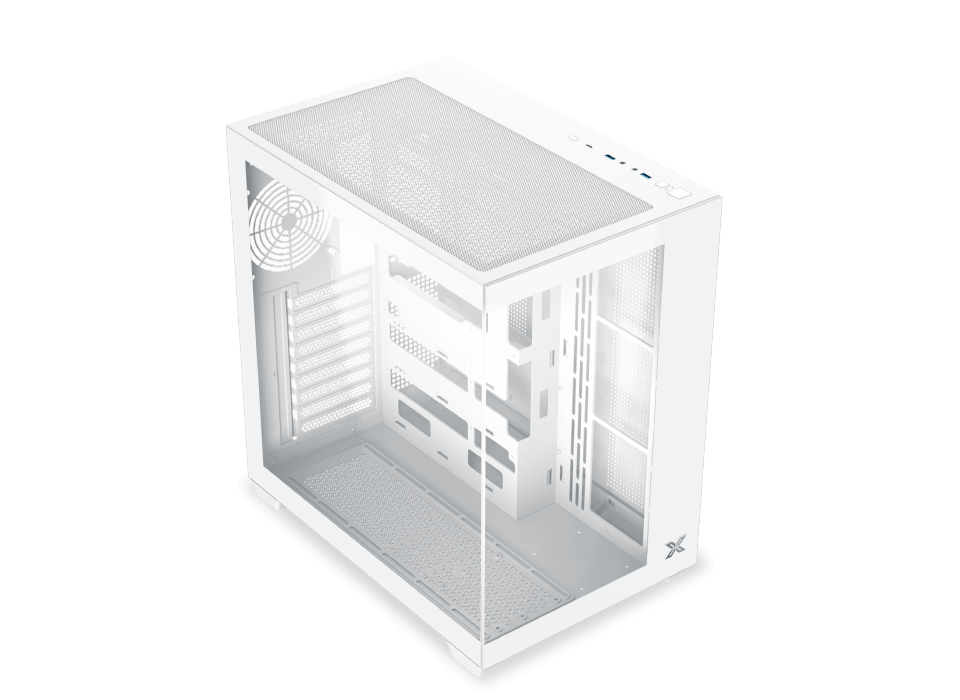

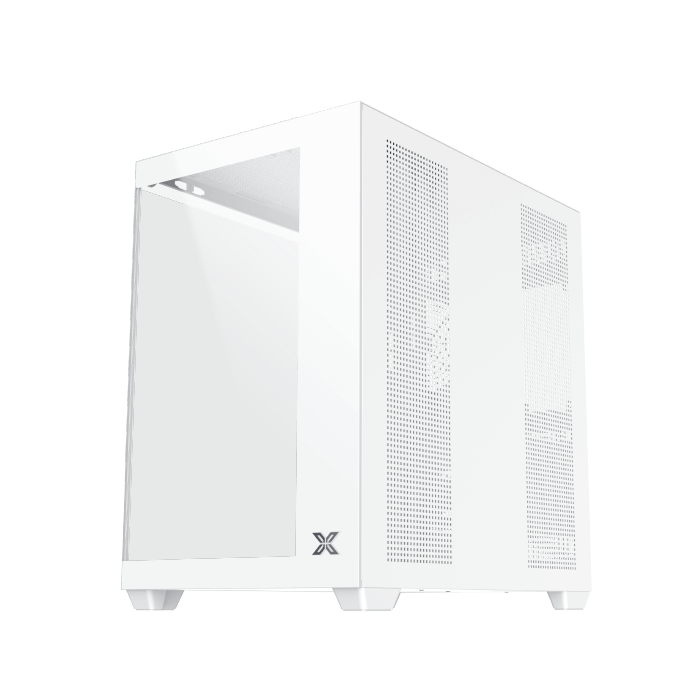

Chassis With 2 Temperd
Glass Panel

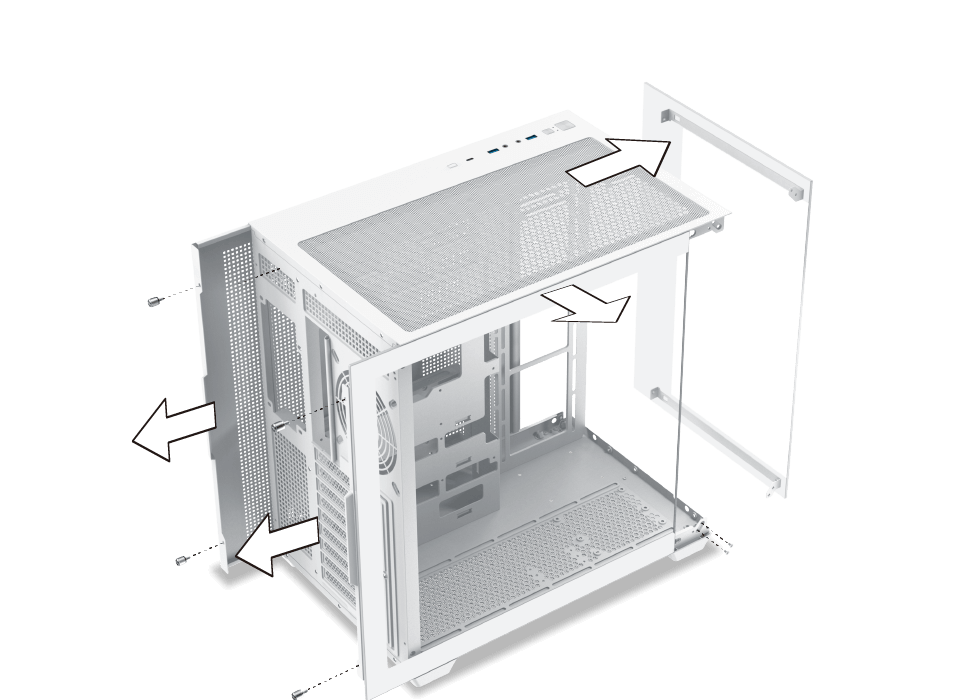

Easily Mounting Panels

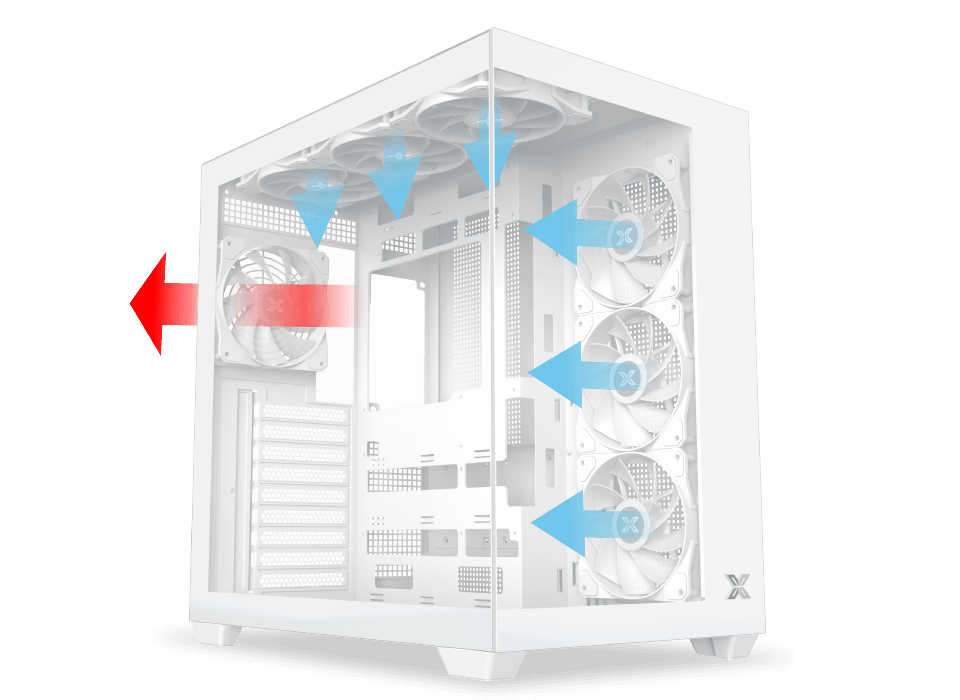

Superior Airflow and
Ventilation Design

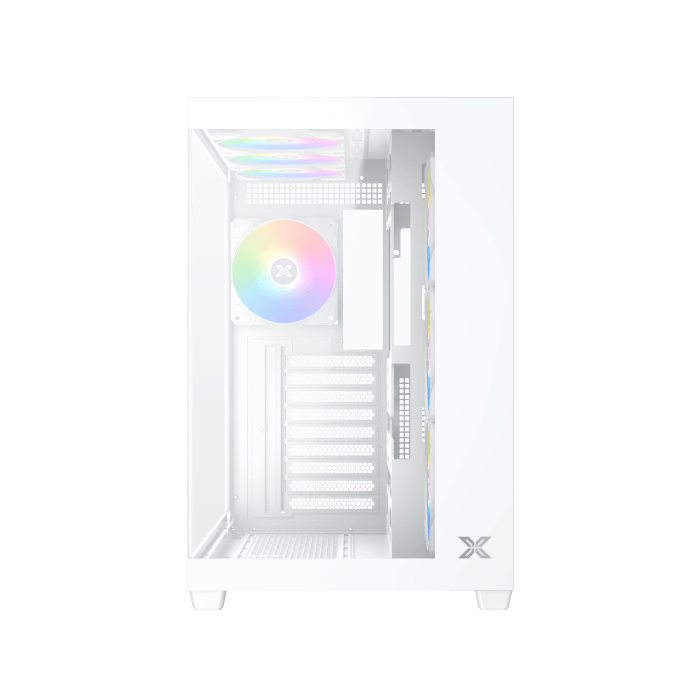

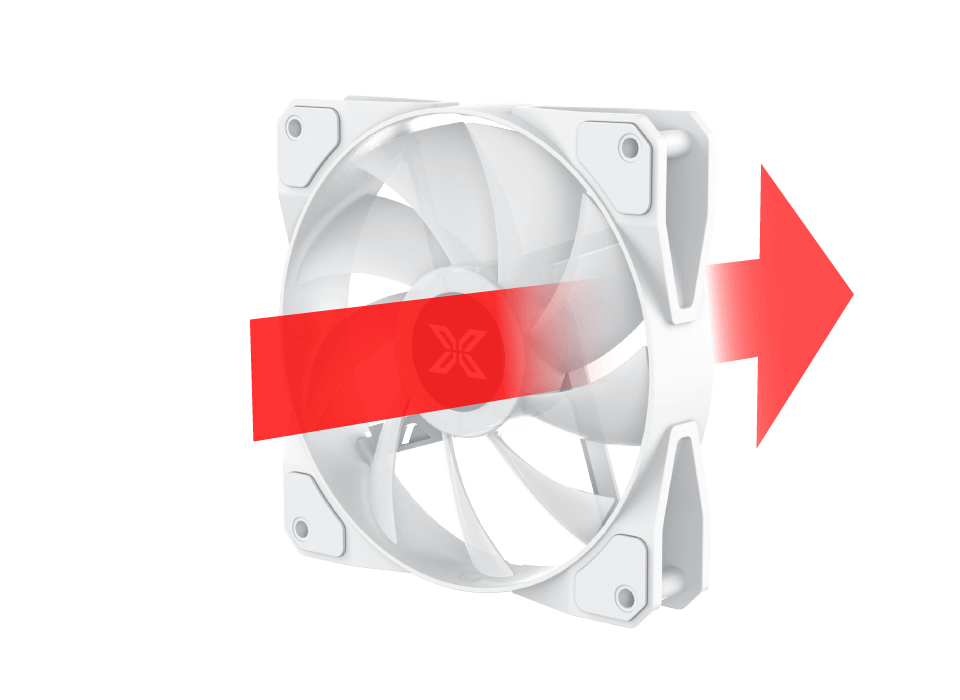

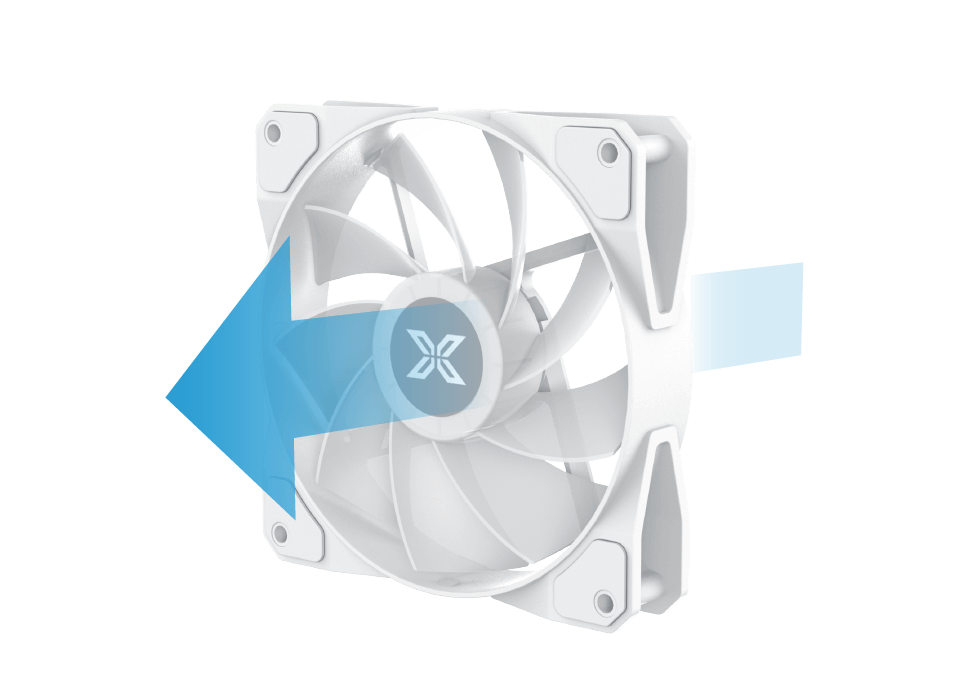

Traditional Fan Blade

Pre-installed on Rear Side

Reverse Fan Blade

Pre-installed on MB Panel Side

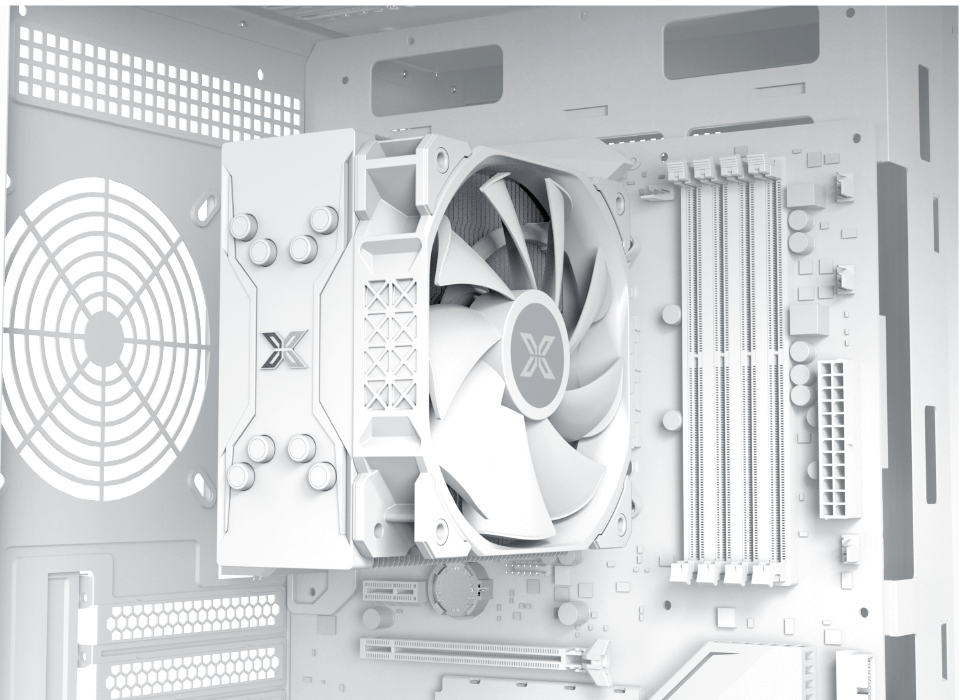

CPU Cooler Clearance
up to 165mm

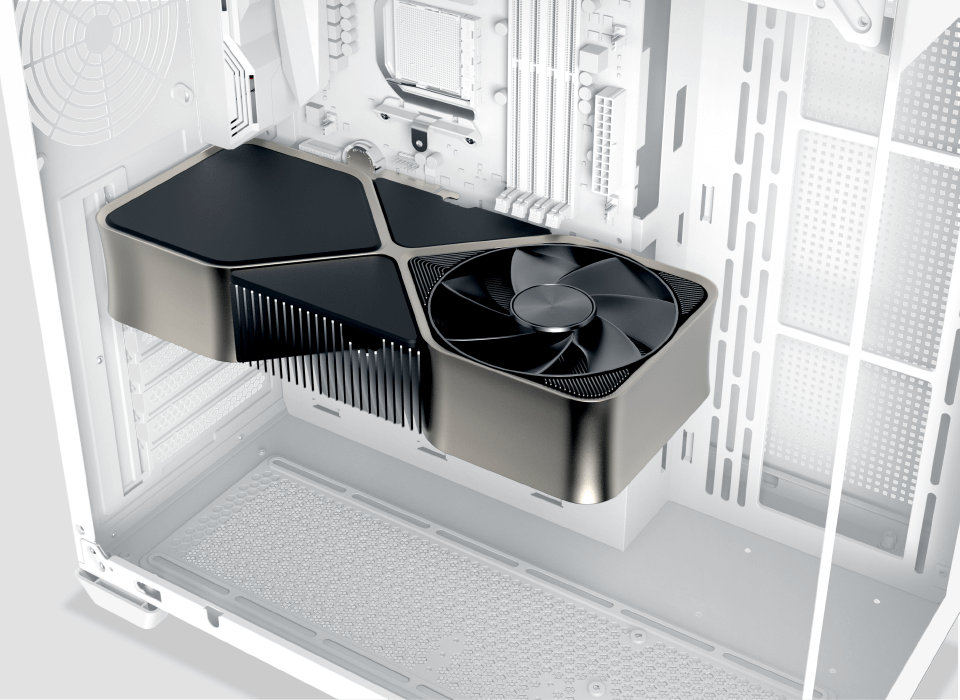

GPU Length Limitation
410mm

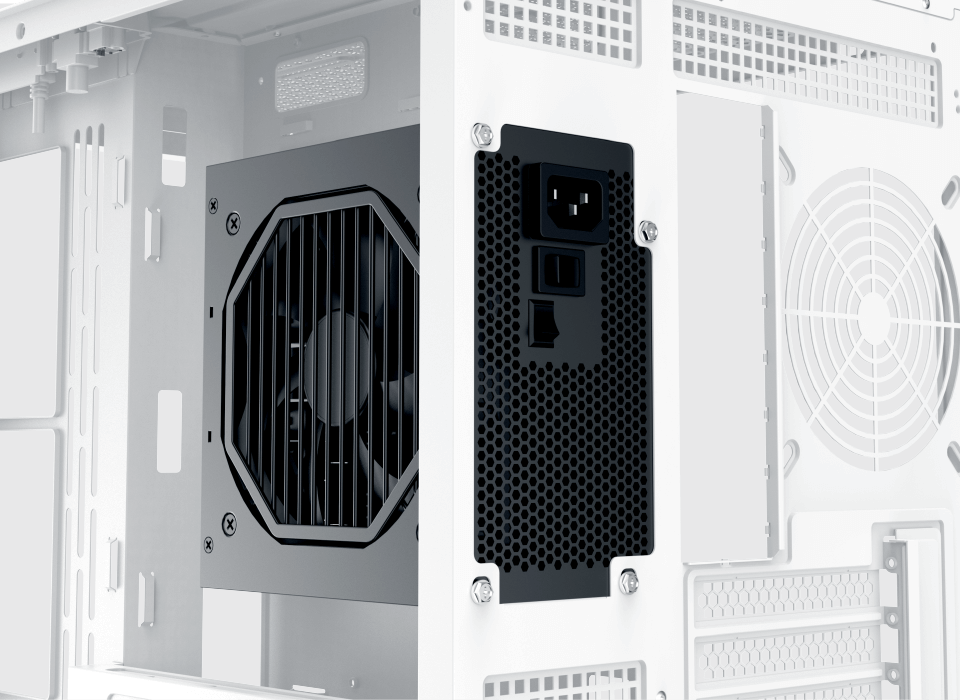

PSU Length Limitation
up to 220mm

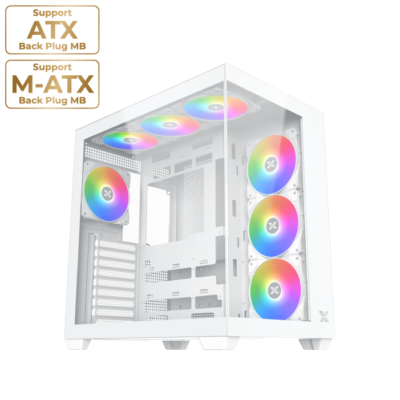

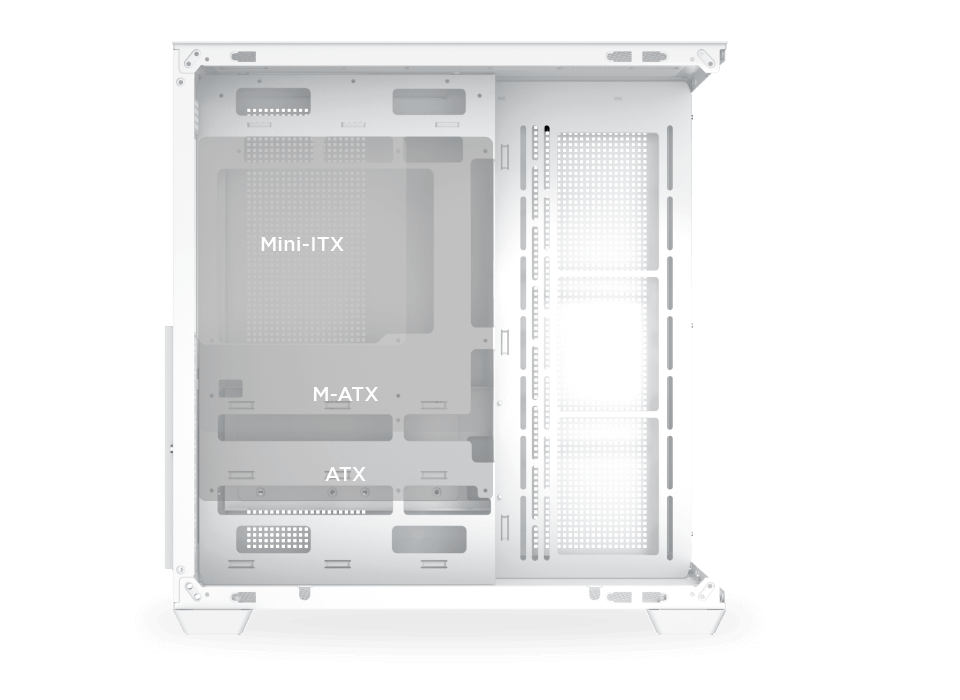

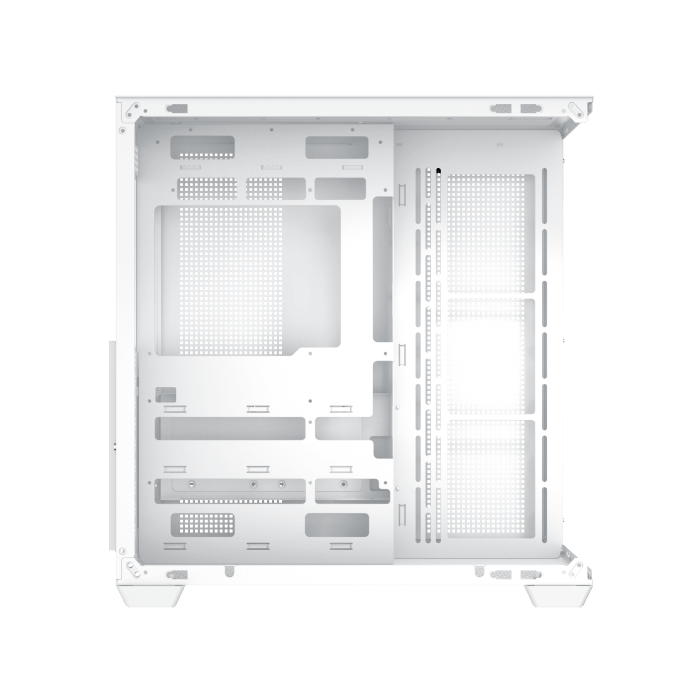

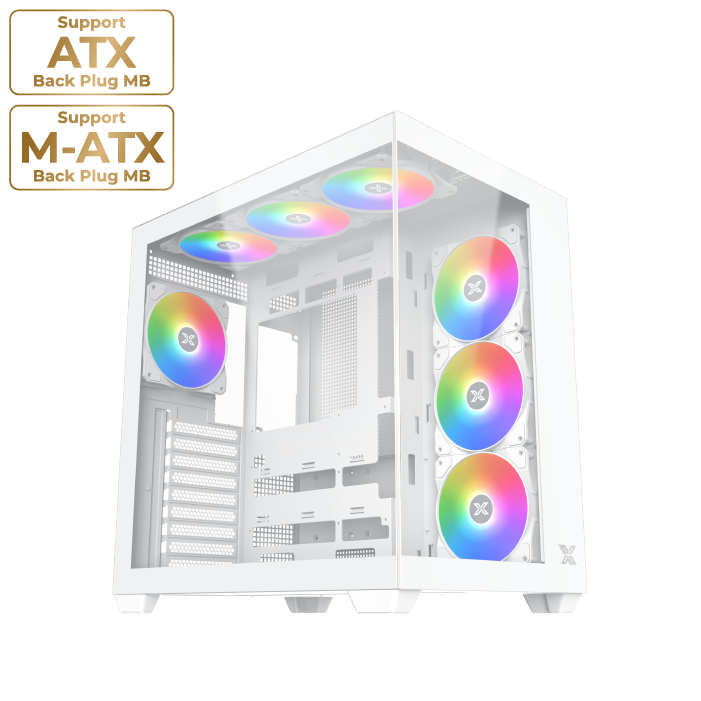

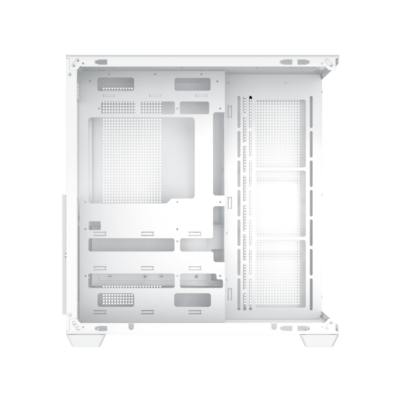

Motherboard Support
up to ATX

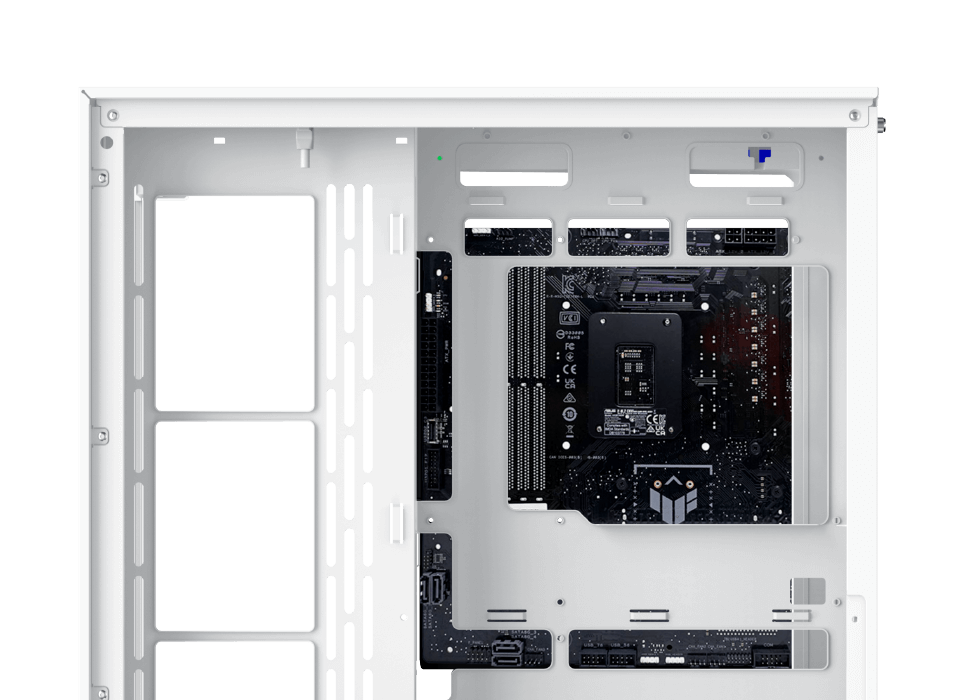

Support ATX Back Plug
Motherboard

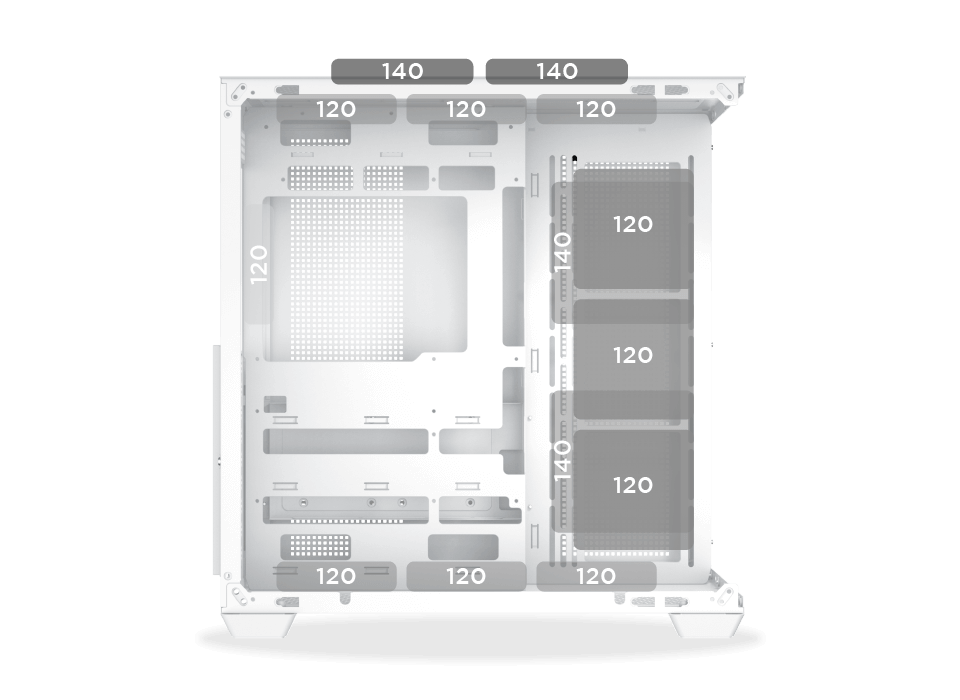

Fan Support

Top: 120mm x3 or 140mm x2
MB: 120mm x3 or 140mm x2
Bottom: 120mm x3
(Whithout 3.5” HDD)
Rear: 120mm x1

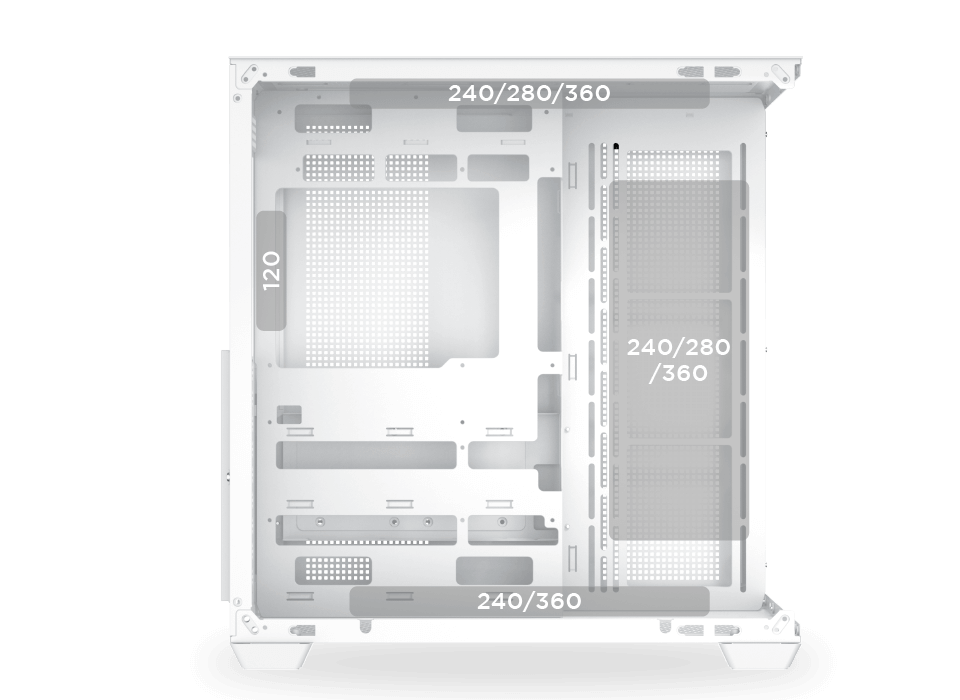

Radiator Support

Top: 240/280/360
MB: 240/280/360
Bottom: 240/360
Rear: 120

HDD Cage

2.5” x2 & 3.5” x1

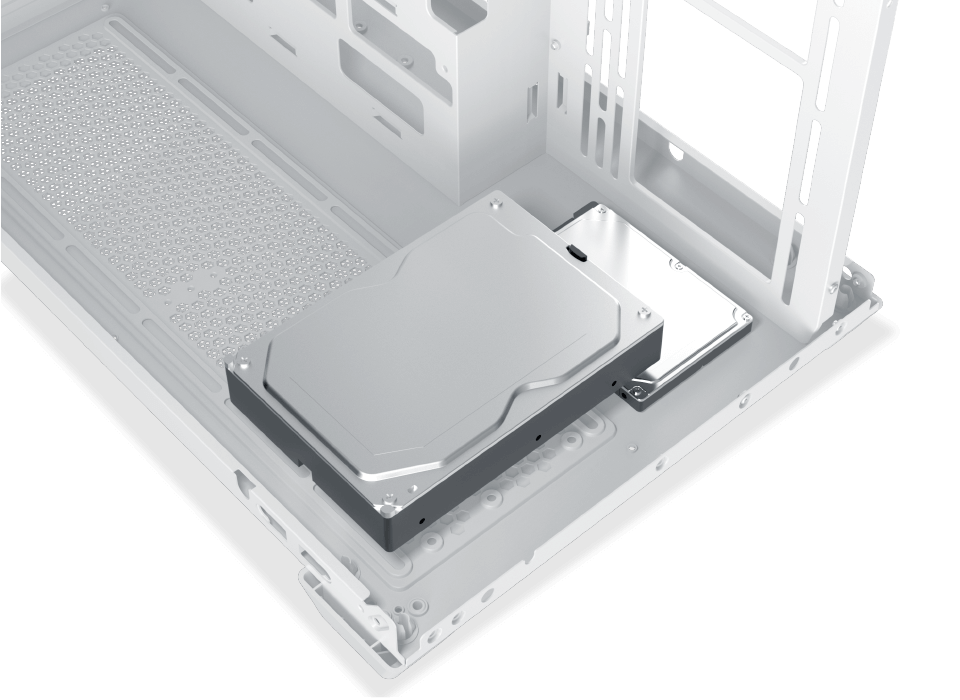

Bottom Panel

2.5” x2 & 3.5” x1

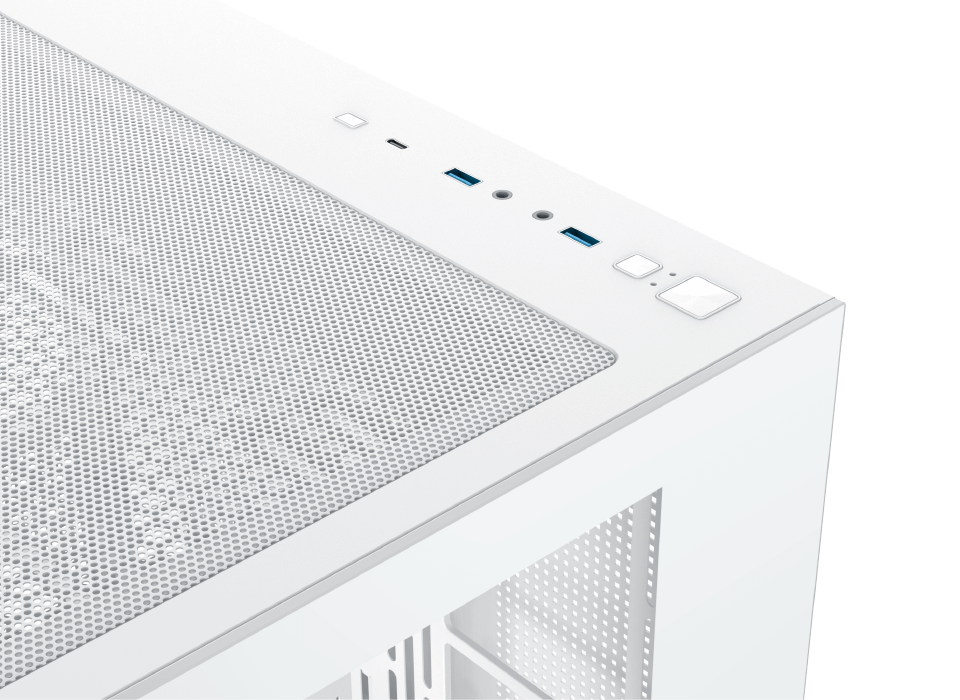

Top Mount I/O Ports

• Power Button
• Reset Button
• USB 3.0 x2
• USB-C x1
• HD Audio Jack
• Light Switch Button

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

AQUA V Air Arctic

Dimensions

427x285x455mm (LxWxH)

Fan Support

Top: 120mm x3 or 140mm x2
MB: 120mm x3 or 140mm x2
Bottom: 120mm x3 (Whithout 3.5” HDD)
Rear: 120mm x1

Drive Bays

Bottom Panel: 3.5” x1 or 2.5”x2
HDD Cage: 3.5” x1 & 2.5” x2

CPU Cooler Clearance

165mm

GPU Length Limitation

410mm

PSU Length Limitation

220mm

Material

Steel

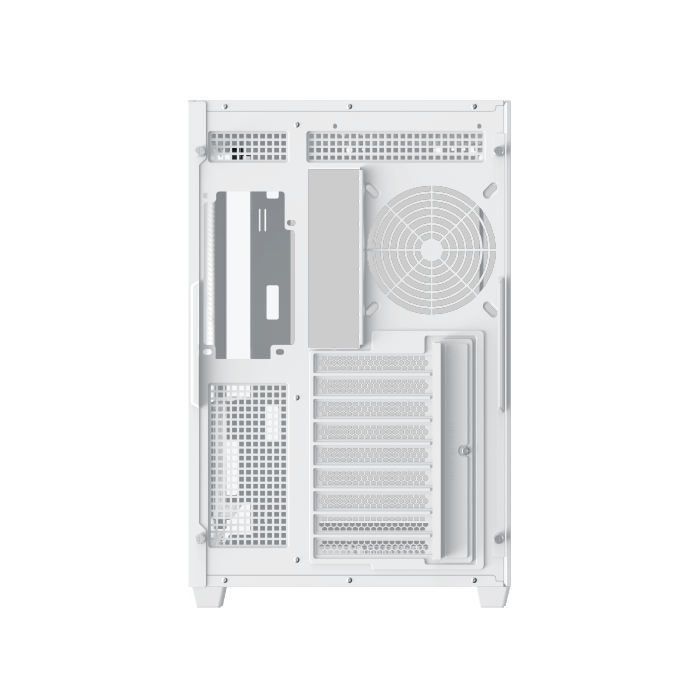

Expansion Slots

9 Standard Slots

Motherboard Support

ATX (Support Back Plug)
Micro ATX (Support Back Plug)
Mini ITX (Support Back Plug)

Power Supply

Standard PS2
ATX PSU

Radiator Support

Top: 240/280/360
MB: 240/280/360
Bottom: 240/360
Rear: 120

I/O Panel

USB 3.0 x 2
USB-C x 1
HD Audio
