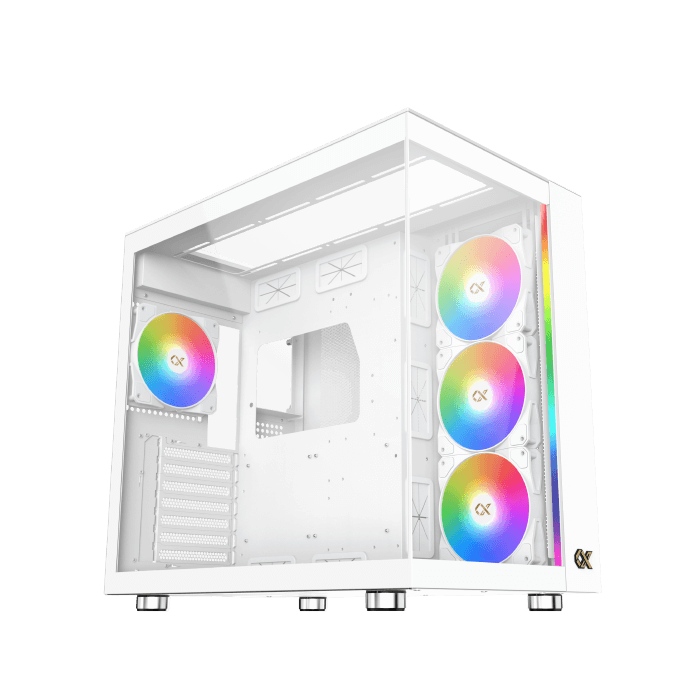

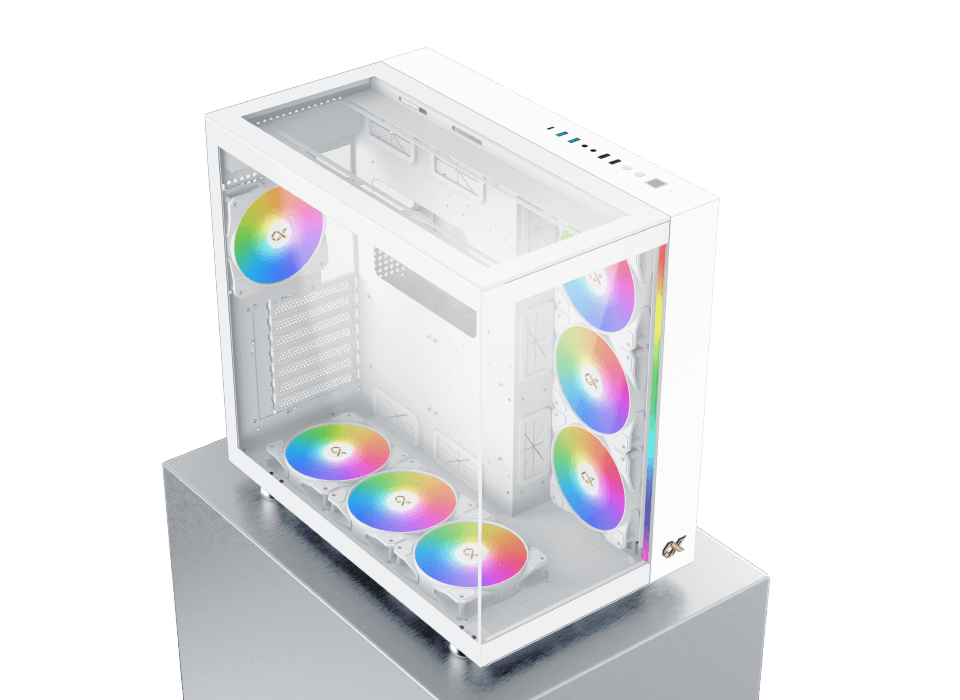

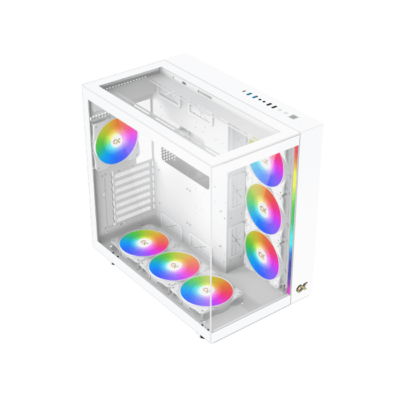

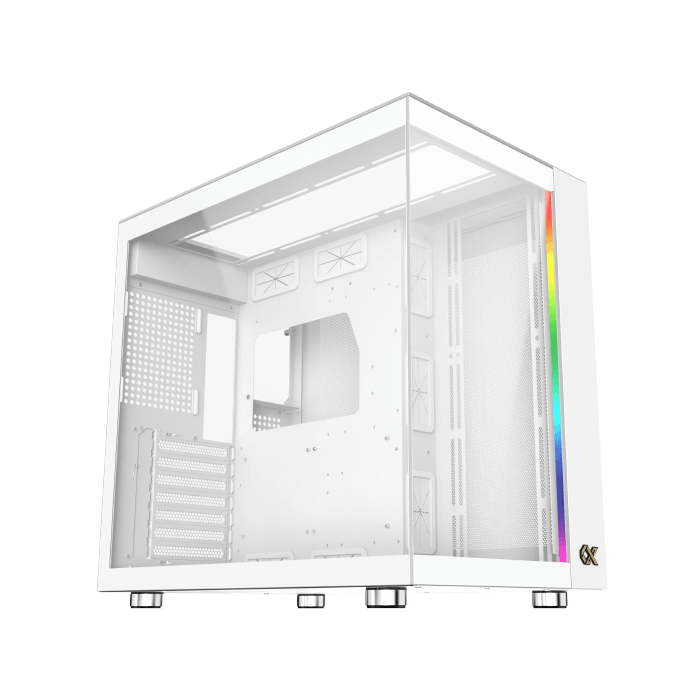

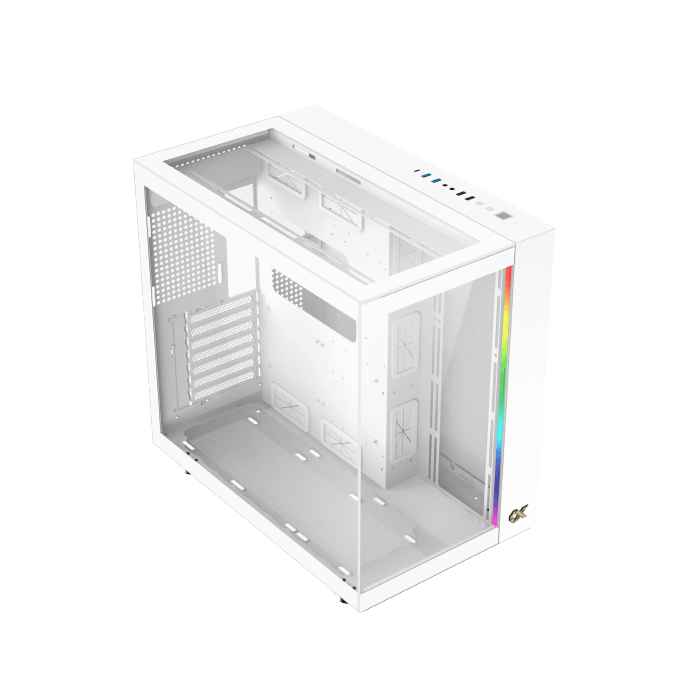

Top Visual Experience 3PCS

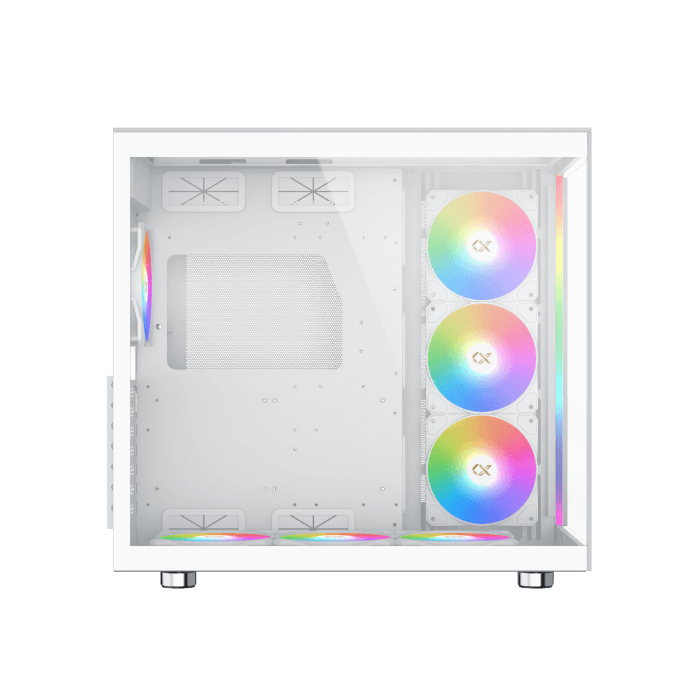

Tempered Glass Panel Design
Seamless Front & Left Panel with Dynamic ARGB LED Bar
Top Tempered Glass with Removable Fan or AIO Liquid Cooler Bracket
Easily Mounting Panels
Removable Top Fan Rack
Bottom to Top Vertical
Airflow Design
High Airflow Anti-Dust Mesh Grill Bottom Panel Design,
Support 3PCS 120mm Cooling Fan for High Efficiency GPU & CPU Cooling.

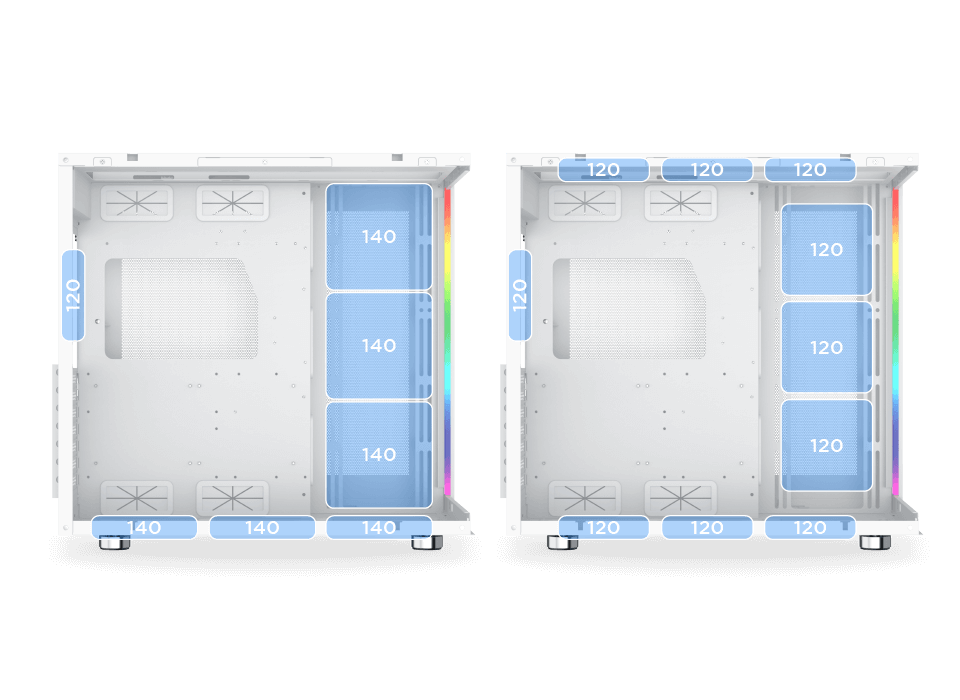

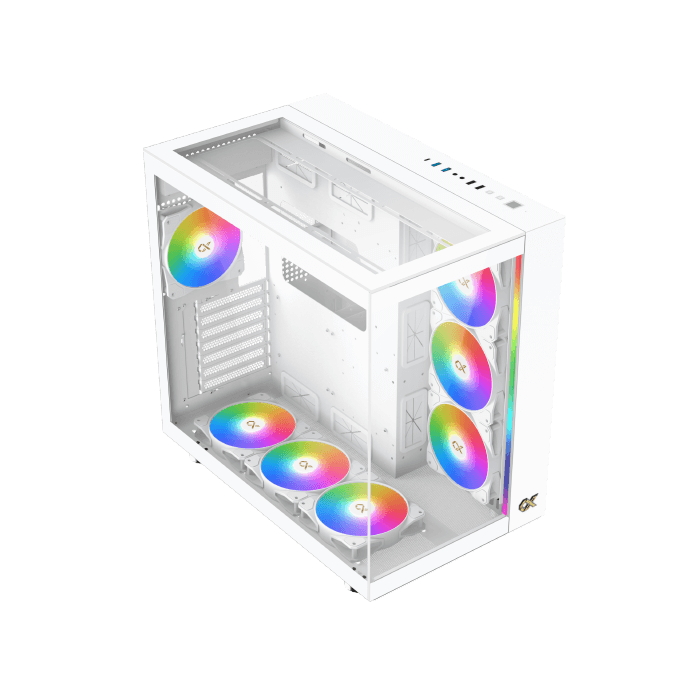

Fan Support
Top: 120mm x3
MB: 120mm x3 or 140mm x3
Bottom: 120mm x3 or 140mm x3
Rear: 120mm x1
Reverse Fan Blade &
Traditional Fan Blade
Reverse Fan: Pre-installed on MB Panel & Bottom Side
Traditional Fan: Pre-installed on Rear Side

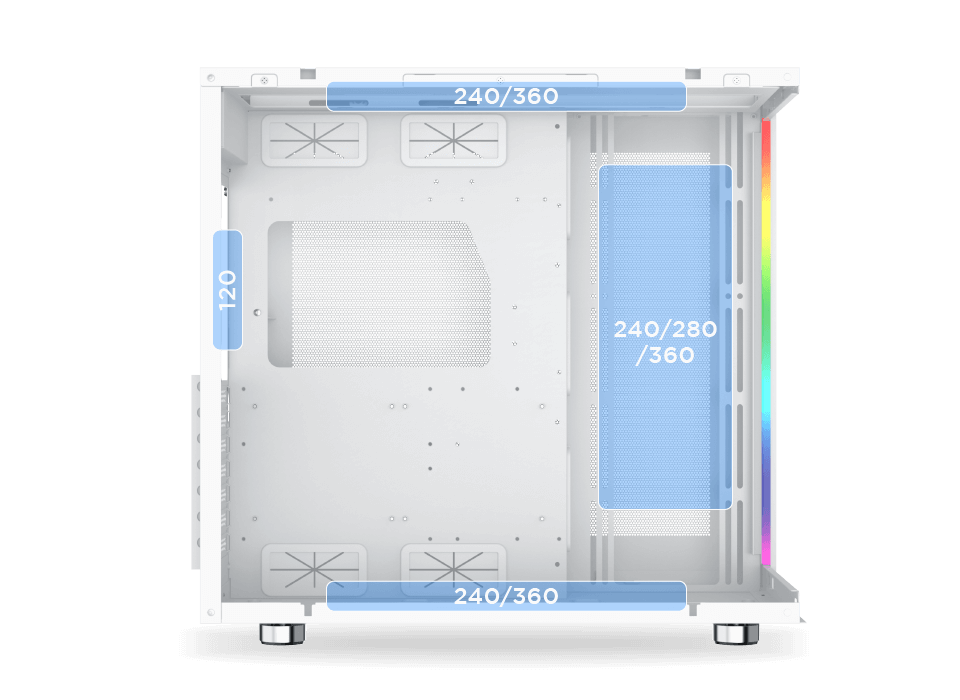

Radiator Support
Top:240/360
MB: 240/280/360
Bottom: 240/360
Rear: 120

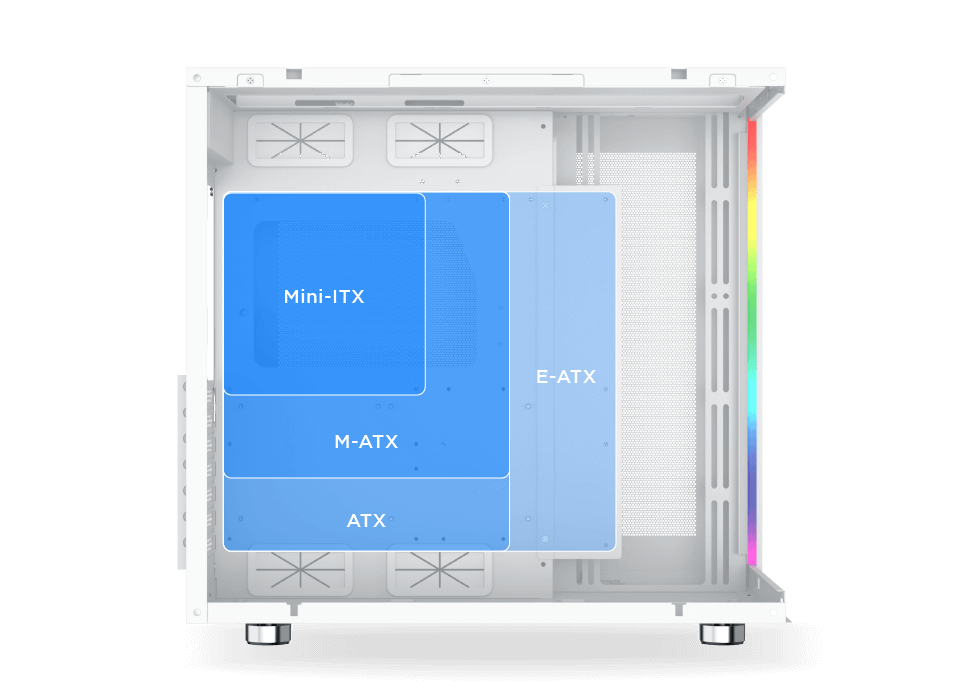

Motherboard Support
up to E-ATX

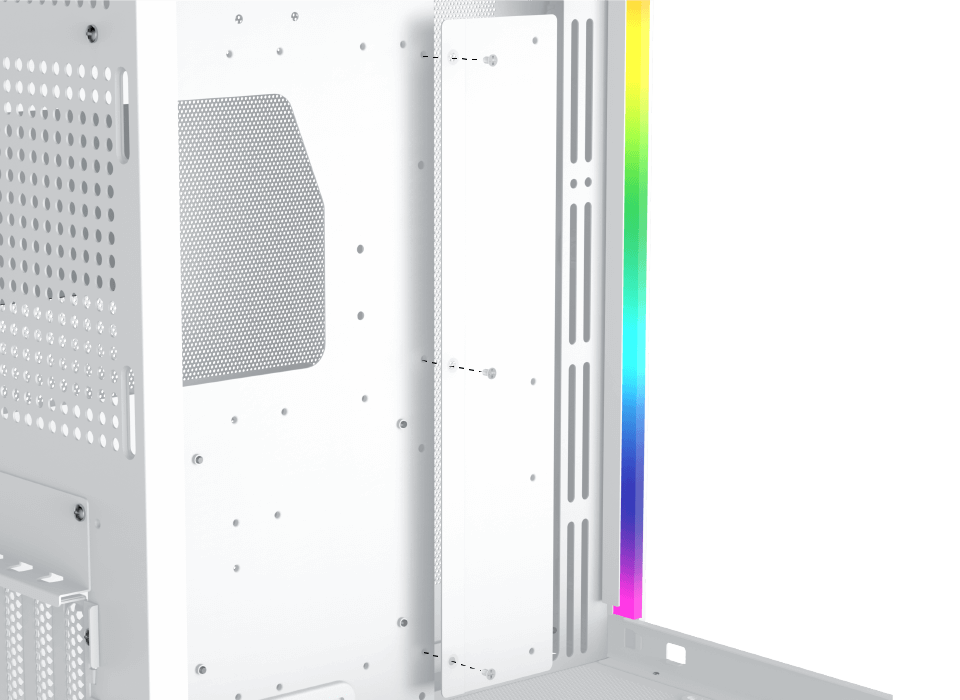

Removable Motherboard
Extension Panel

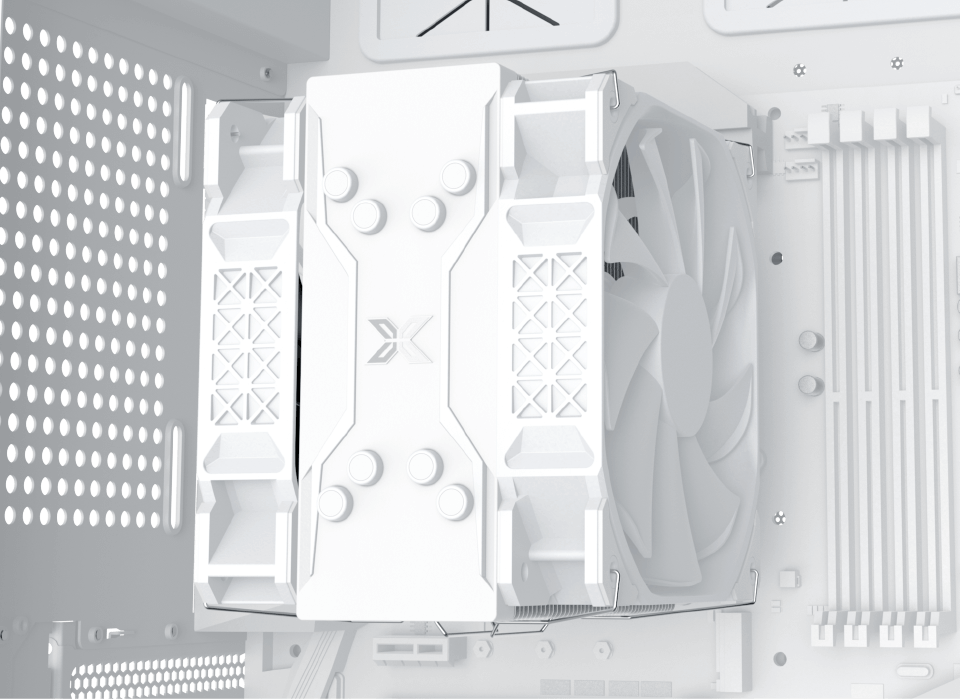

CPU Cooler Clearance
up to 185mm

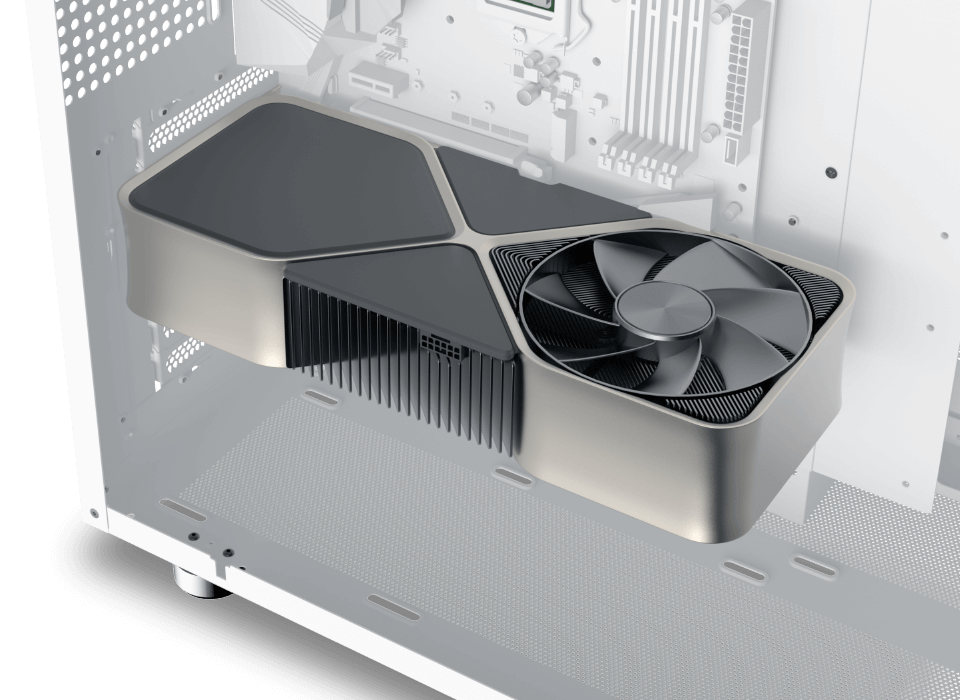

GPU Length Limitation
430mm
Support VGA Verticl
Installation

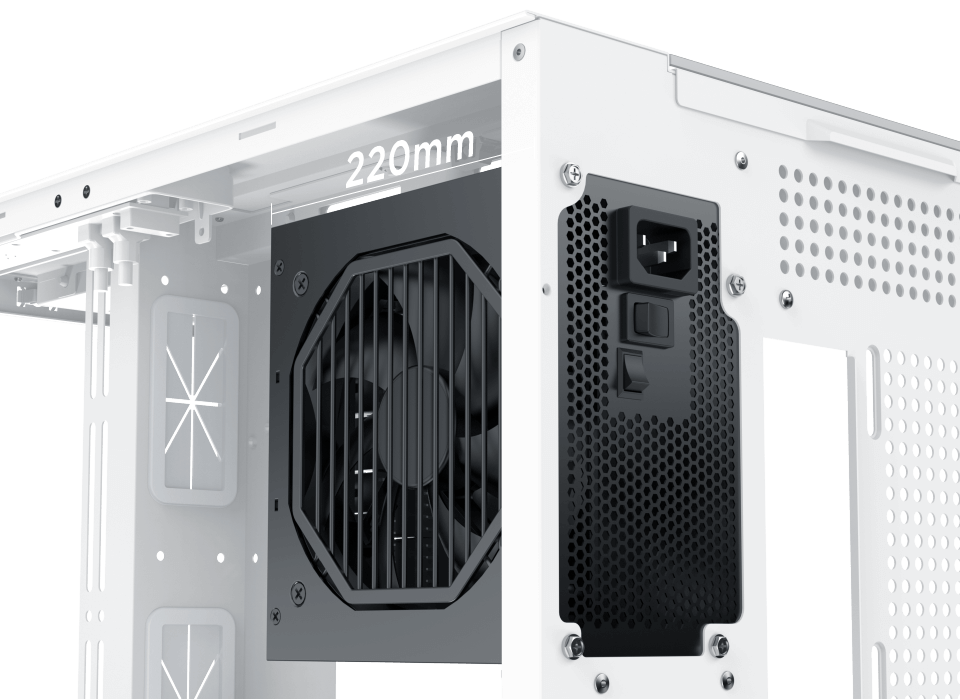

PSU Length Limitation
up to 220mm
Dual Chamber
A Well-Designed Chassis Enhances
PSU Cooling

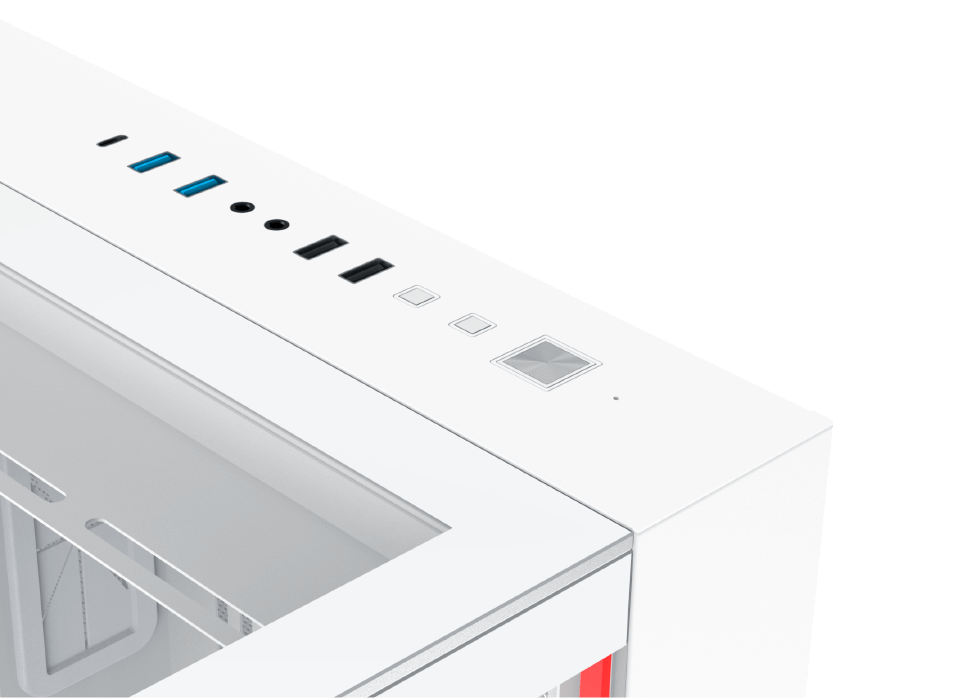

Top Mount I/O Ports
• Power Button
• Reset Button
• LED Switch
• USB 2.0 x2
• USB 3.0 x2
• USB-C x1
• HD Audio Jack

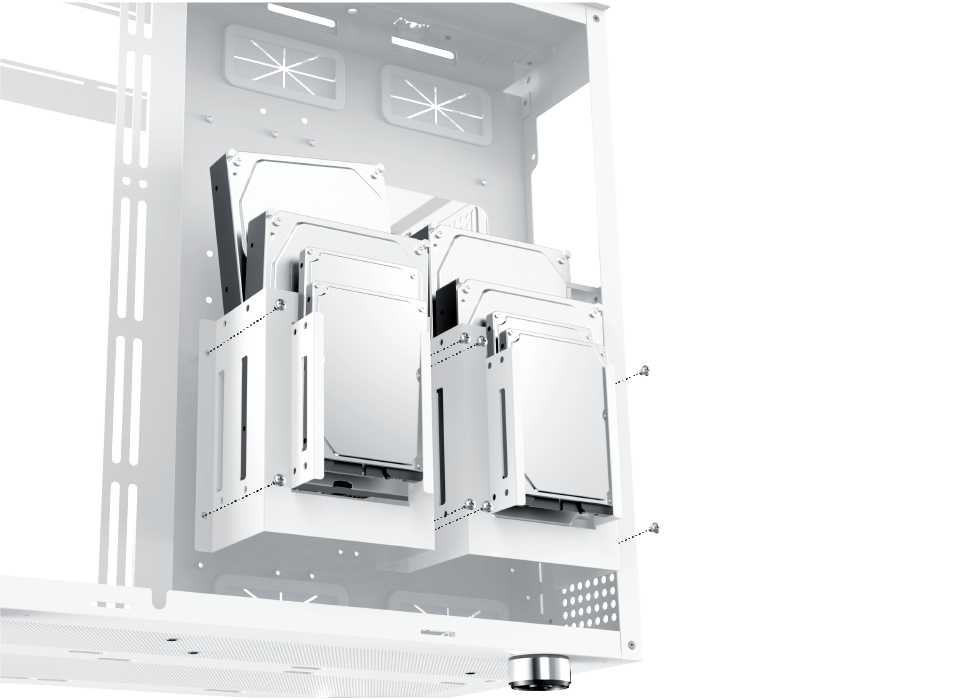

Removable 2PCS
HDD/SDD Cages Included
Total Support 4PCS 3.5” HDD & 4PCS 2.5” SSD
*All Product Images Shown Are For Illustration Purpose Only.

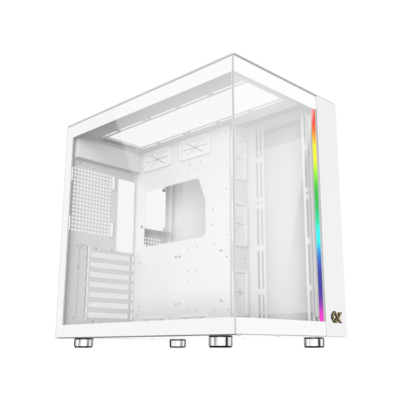

Aqua Ultra
460x285x445mm (LxWxH)
Top: 120mm x3
MB: 120mm x3 or 140mm x3
Bottom: 120mm x3 or 140mm x3
Rear: 120mm x1
2PCS Removable HDD Cages
3.5”HDD x4
2.5” HDD x4
185mm
430mm
220mm
0.8mm SPCC Thinkness

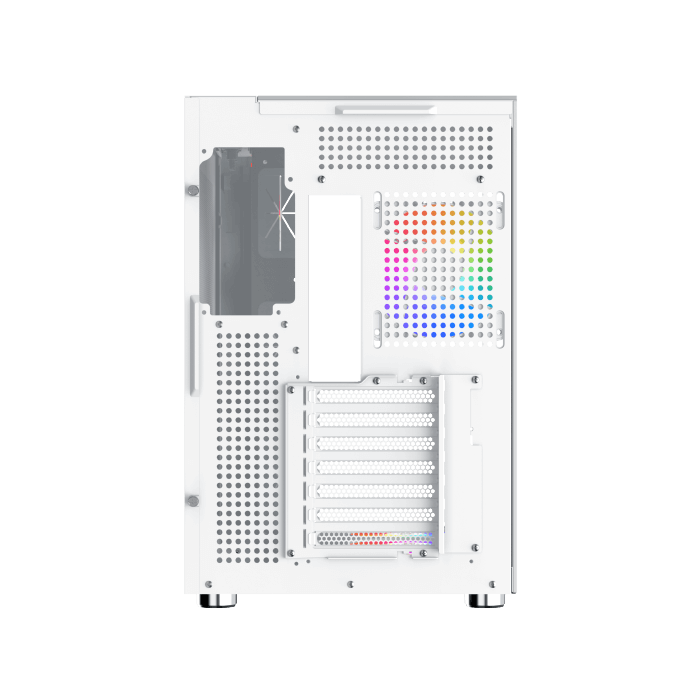

7 Standard Slots, Support VGA Card Vertical Installation
E-ATX, ATX, M-ATX, Mini ITX
Standard PS2 ATX PSU
Top: 240/360
MB: 240/280/360
Bottom: 240/280/360
USB 3.0 x 2
USB 2.0 x 2
USB-C x1
HD Audio
