NYX Air II

NYX Air II

Motherboard MATX

CPU Cooler 160mm

Fan Support 8 max.

Power Supply 165mm

Graphics Card 350mm

Radiator 240mm max.

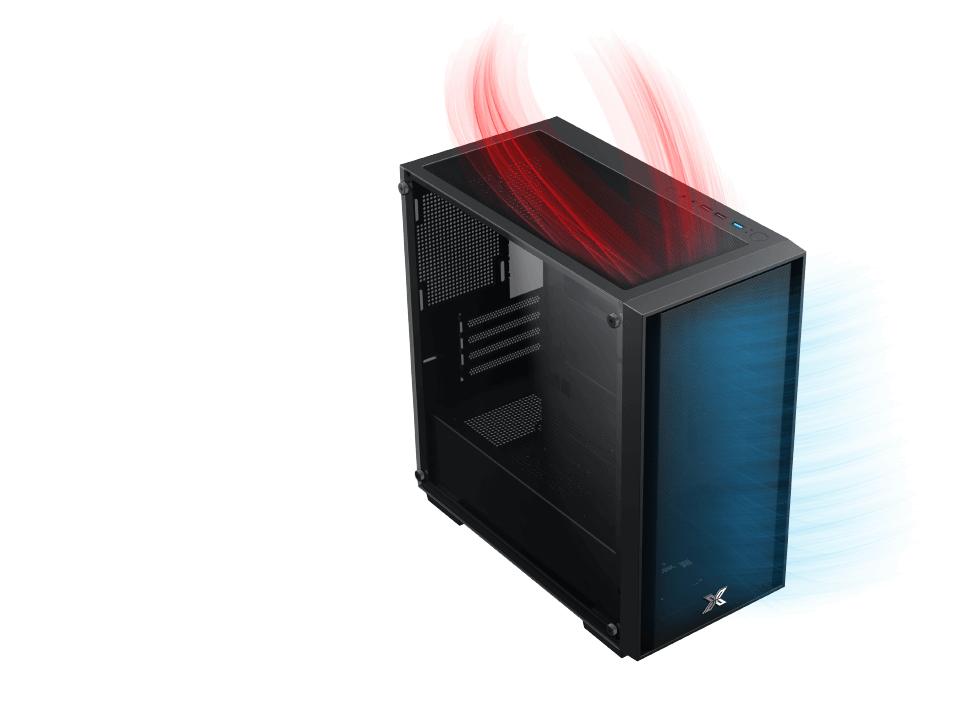

Superior Airflow and
Ventilation Design

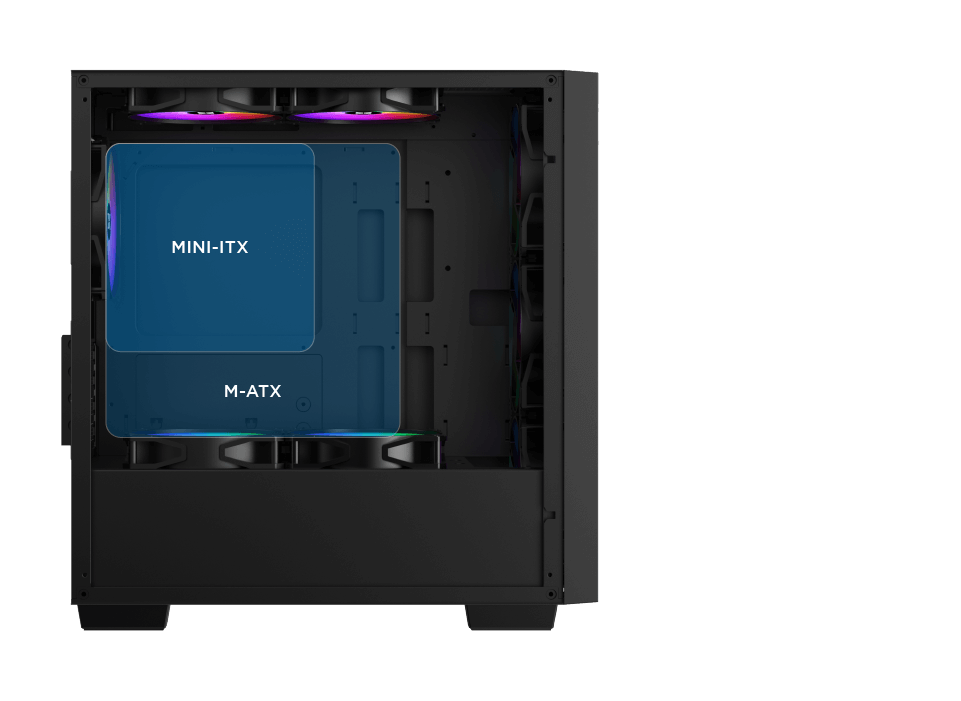

Support Motherboard
up to M-ATX

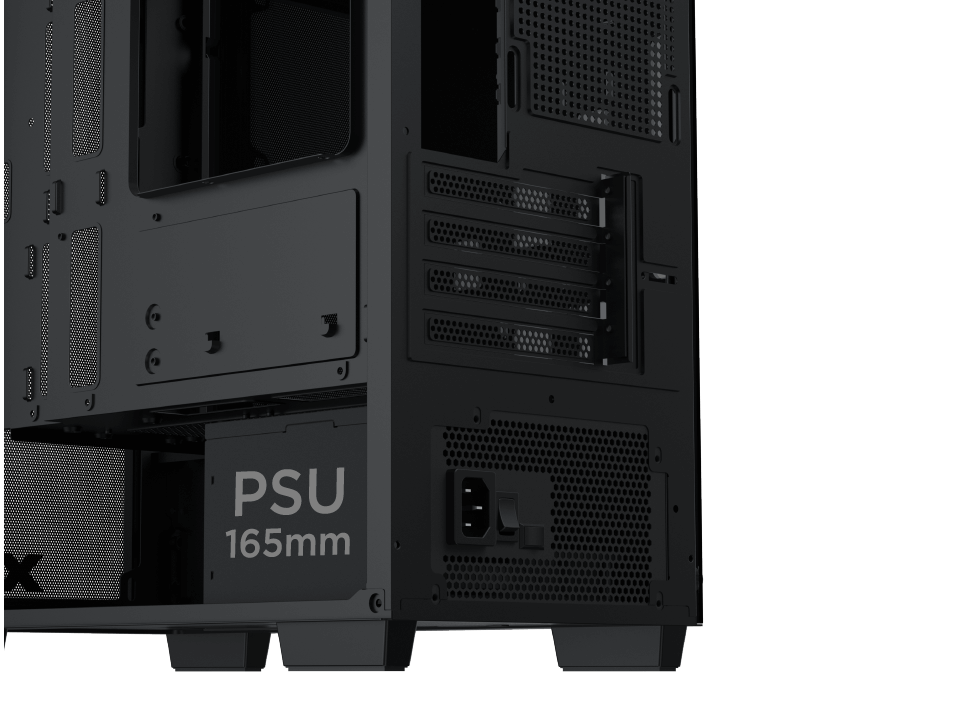

PSU Limitation up to 165mm

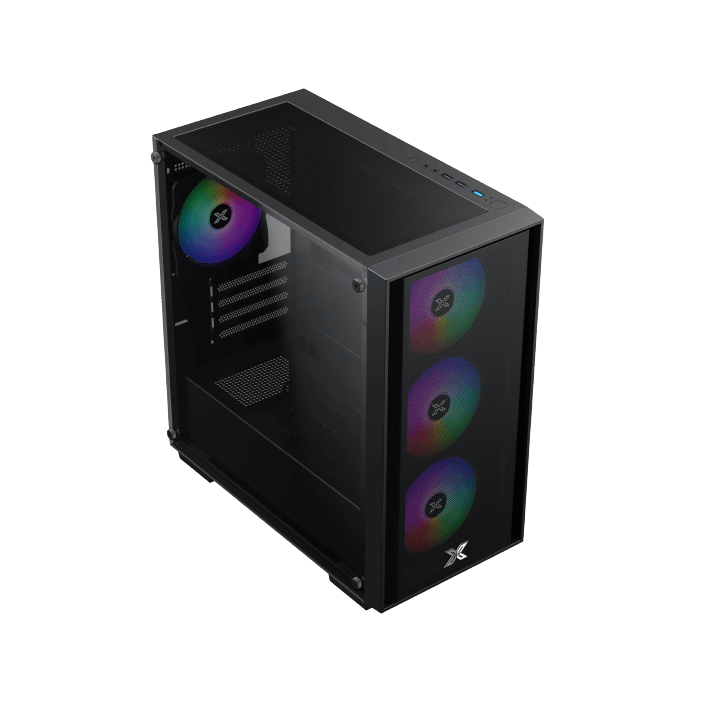

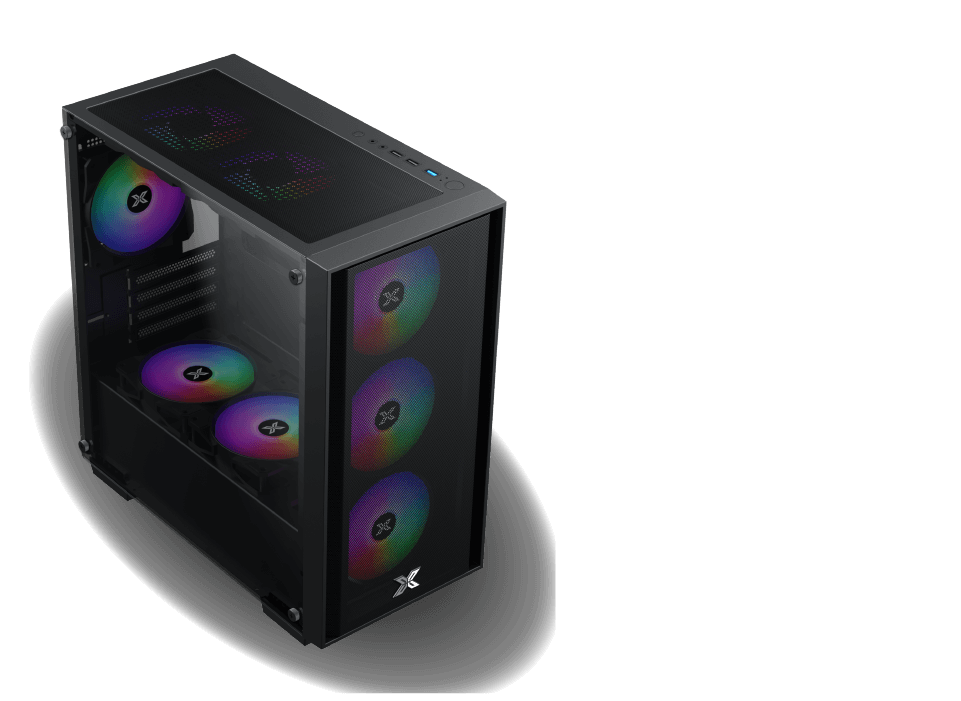

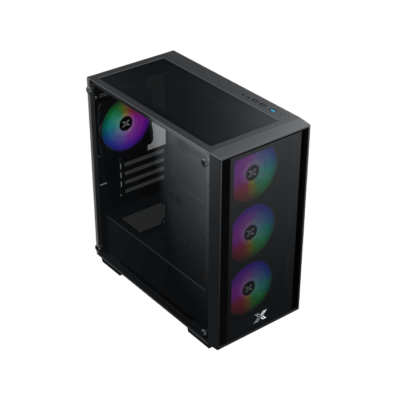

Fan Cooling System:
Top: 120mm x2

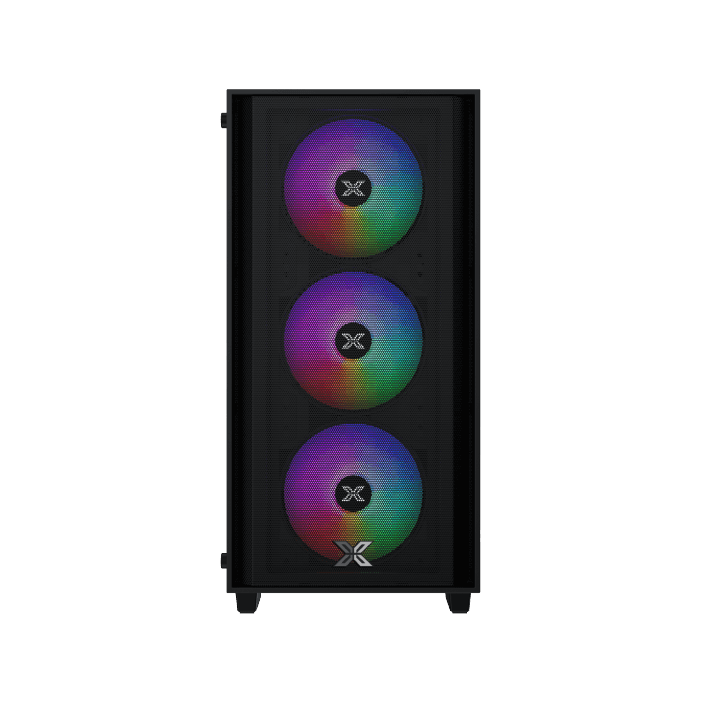

Front: 120mm x3 (Internal)
PSU Shroud: 120mm x2

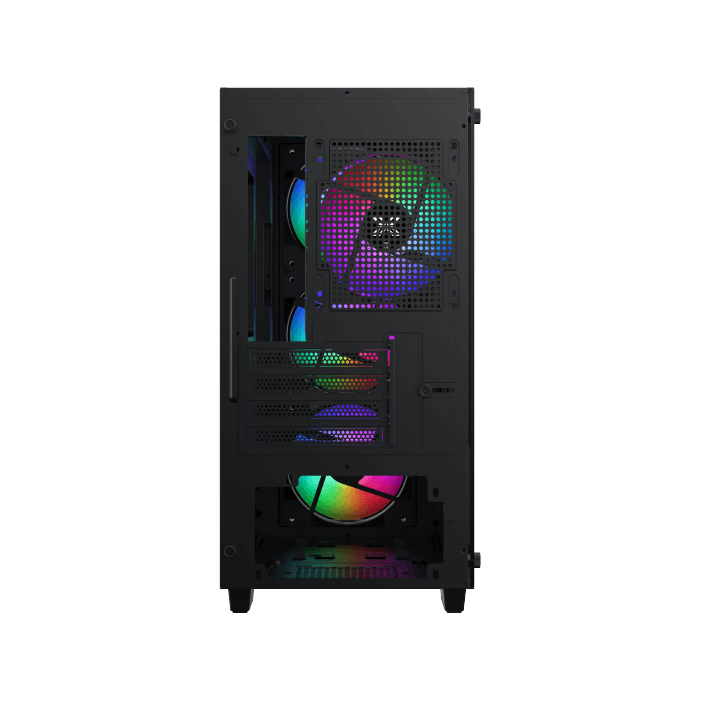

Rear: 120mm x1

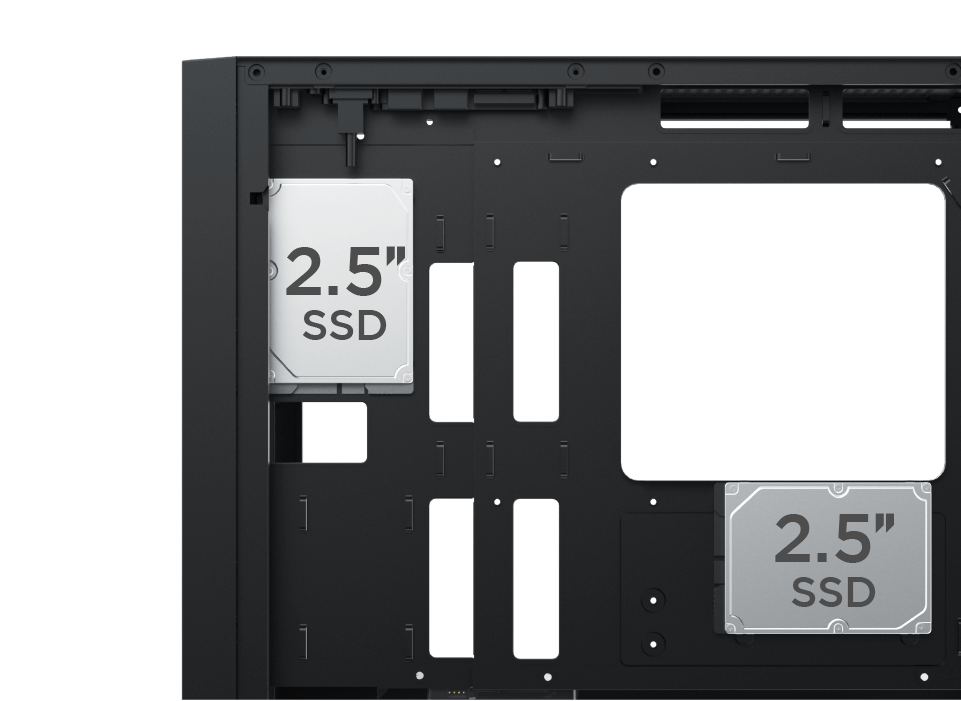

MB Panel: 2.5” SSD x2

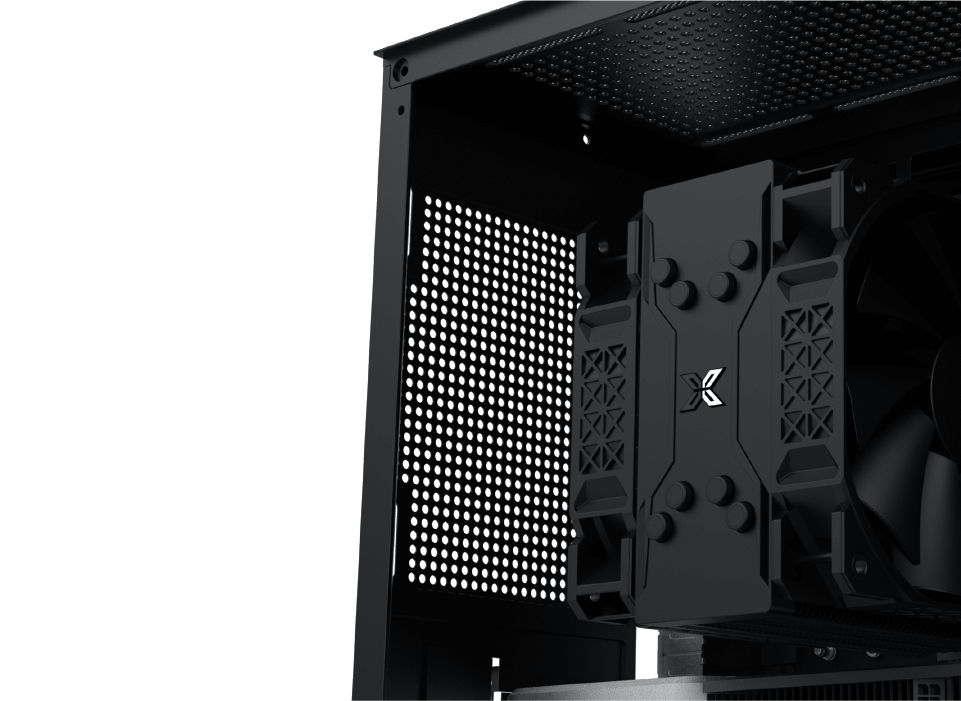

CPU Cooler up to 160 mm

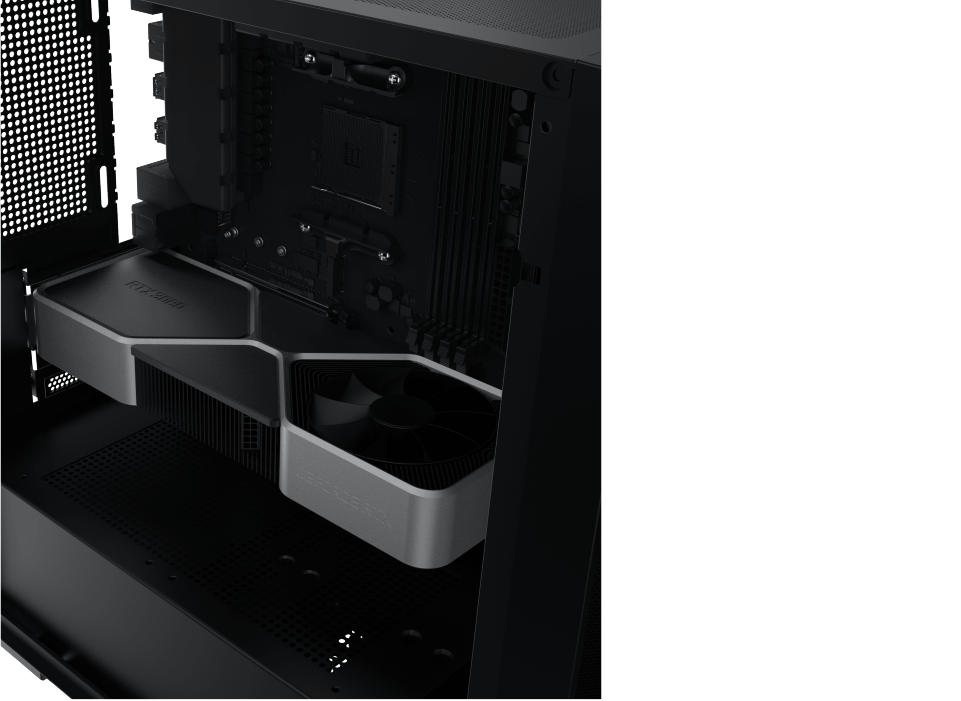

Support Graphics Card up to
325 mm (with Front Fans)
350 mm (without Front Fans)

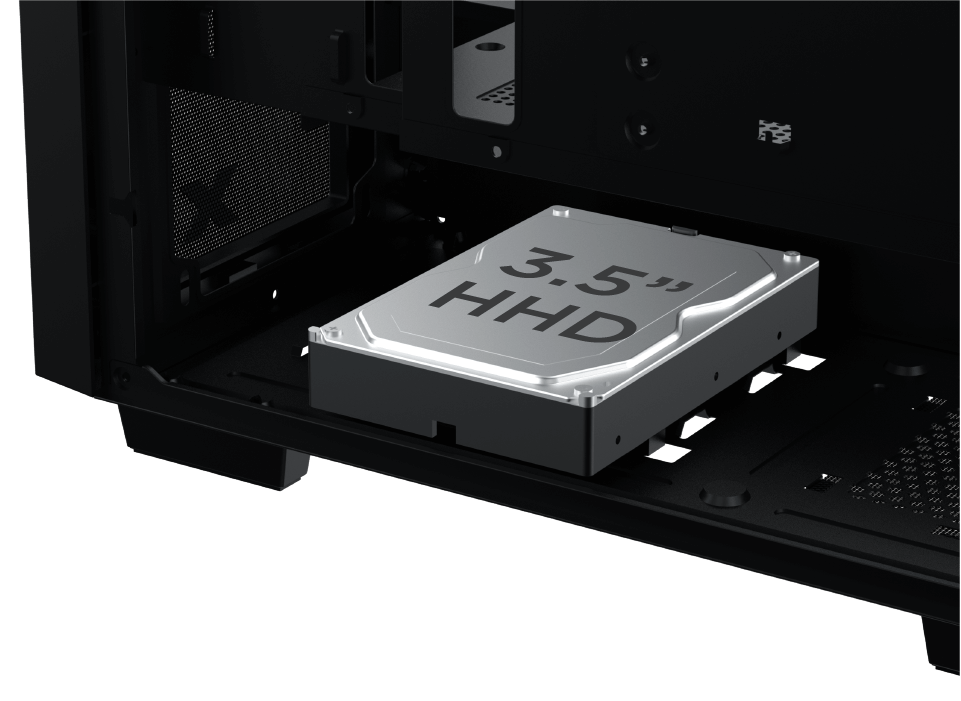

Bottom Panel: 3.5″ x1

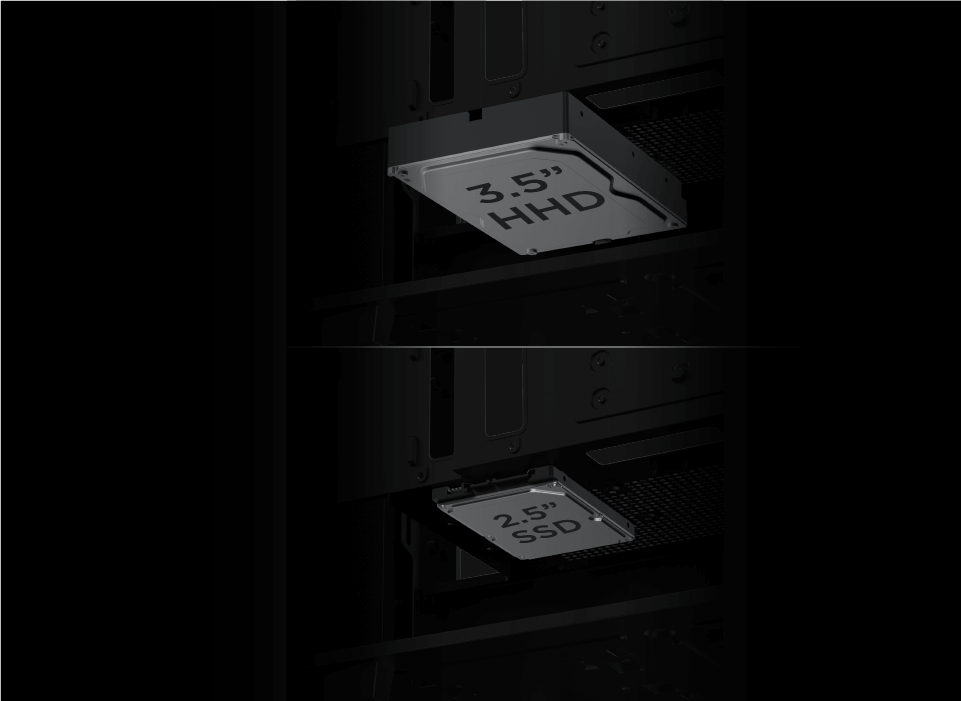

PSU Shroud: 3.5″ or 2.5″ x1

MB SSD Bay: 2.5″ x2

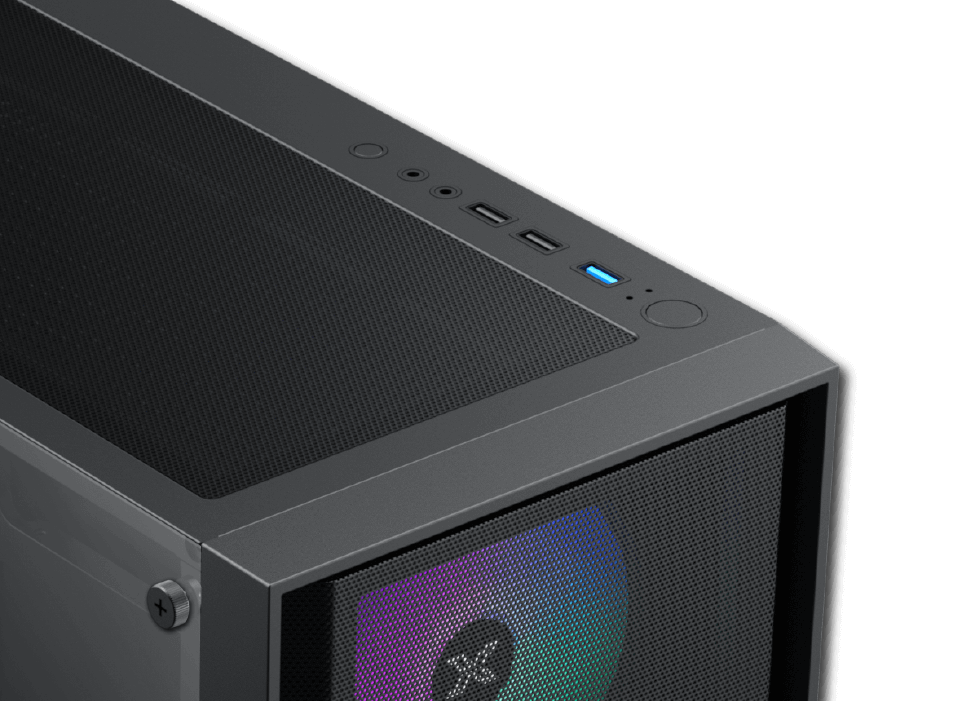

Top Mount I/O Ports

• Power Button• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

NYX AIR II

Material

Steel

Dimensions

386x200x411mm (LxWxH)

Drive Bays

Bottom Panel: 3.5″ x1
PSU Shroud: 3.5″ or 2.5″ x1
MB SSD Bay: 2.5″ x2

Expansion Slots

4 Standard Slots

Motherboard Support

Micro ATX & Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x2
Front: 120mm x3 (Internal)
PSU Shroud: 120mm x2
Rear: 120mm x1

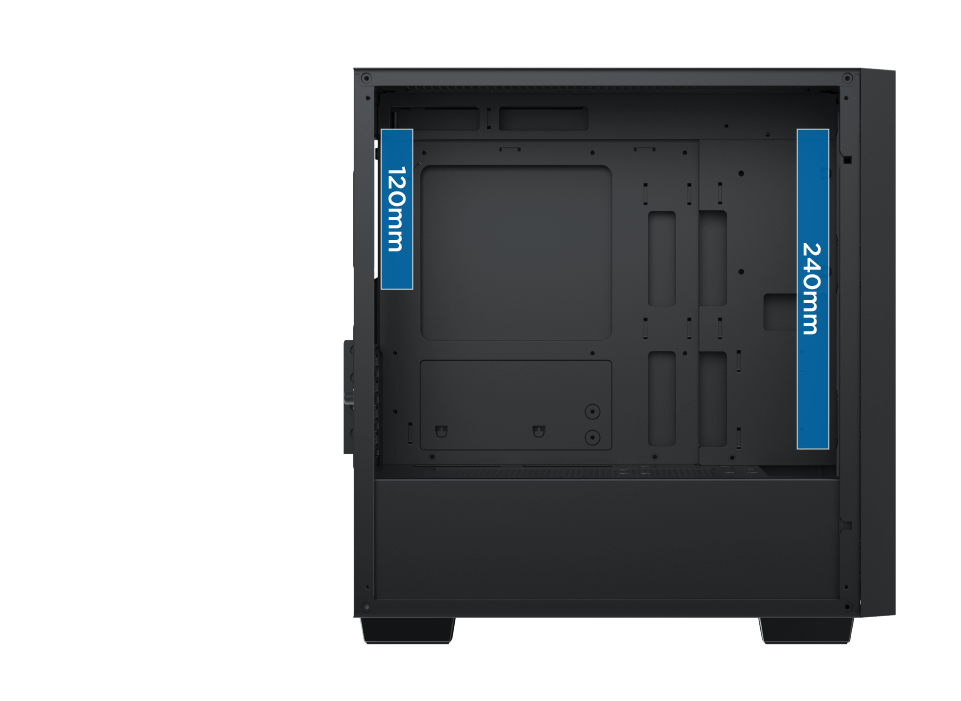

Radiator Support

Front: 240mm
Rear: 120mm

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

CPU Cooler Clearance

160mm

VGA Length Limitation

325mm (with Front Fans)
350mm (without Front Fans)

PSU Length Limitation

165mm
