Sky II (EN44328)

Sky II (EN44328)
Overview

Sky II (EN44328)

Motherboard ATX

CPU Cooler 160mm

Fan Support 6 max.

Power Supply 165mm

Graphics Card 325mm

Radiator 360mm max.

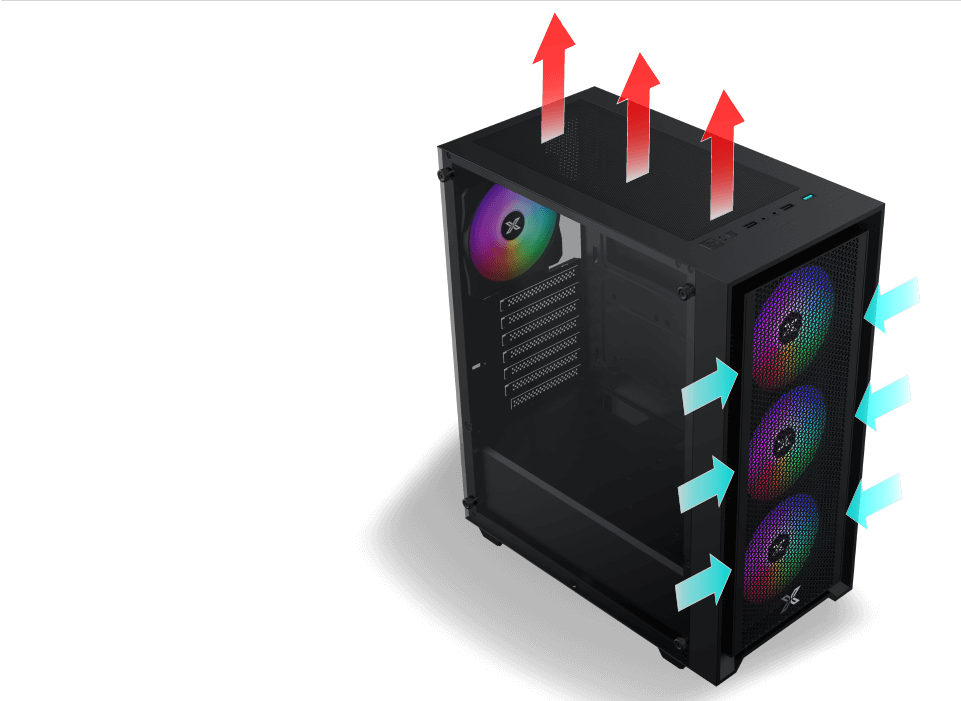

Superior Airflow and
Ventilation Design

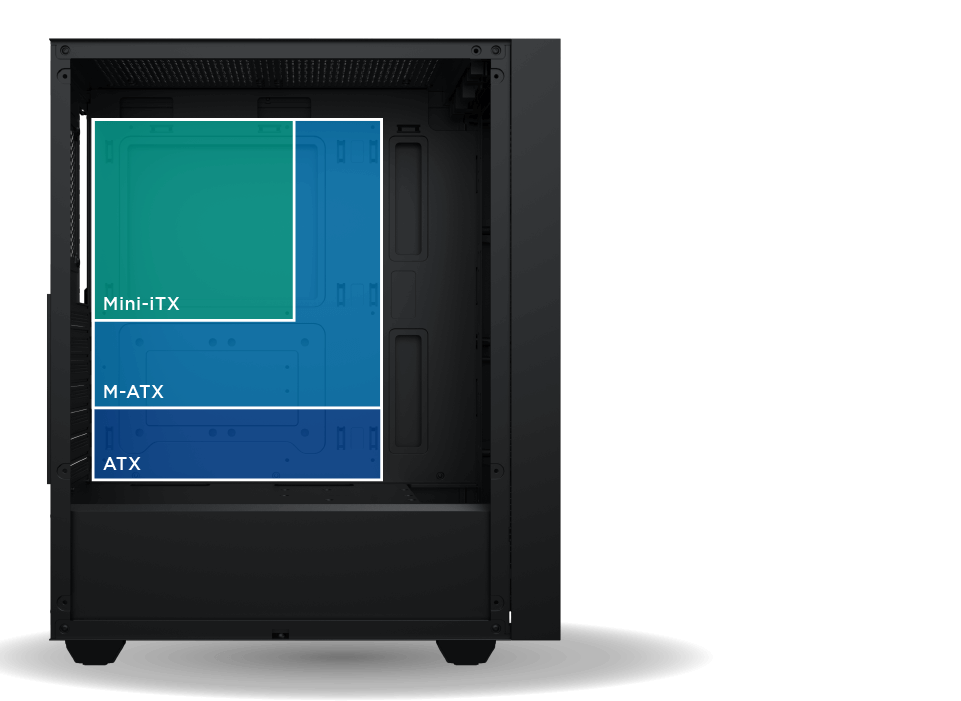

Support Motherboard
up to ATX

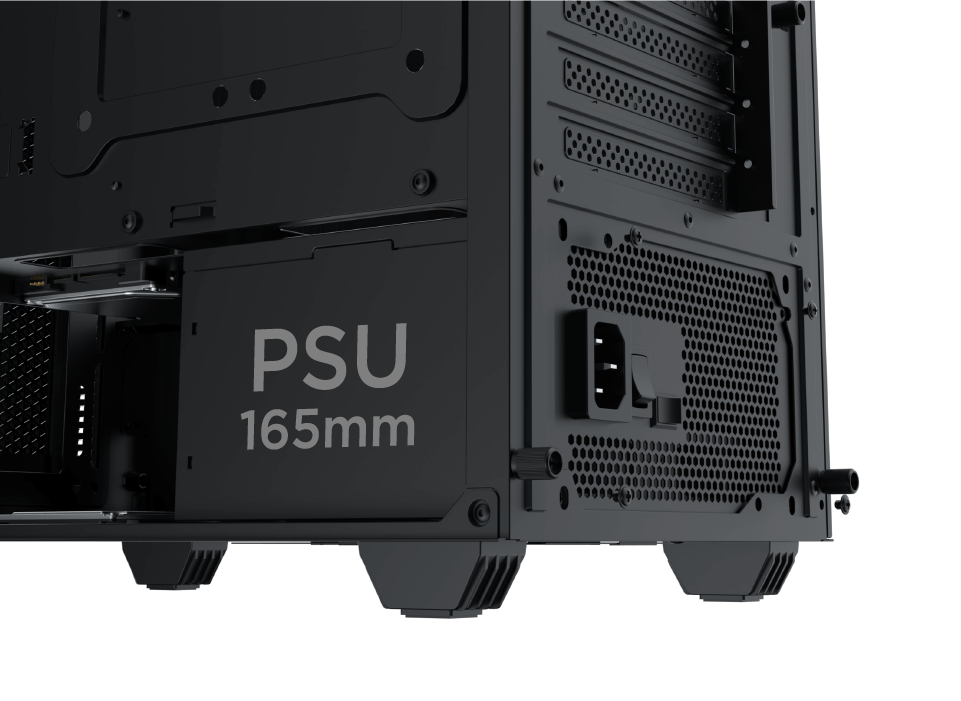

PSU Limitation
up to 165mm

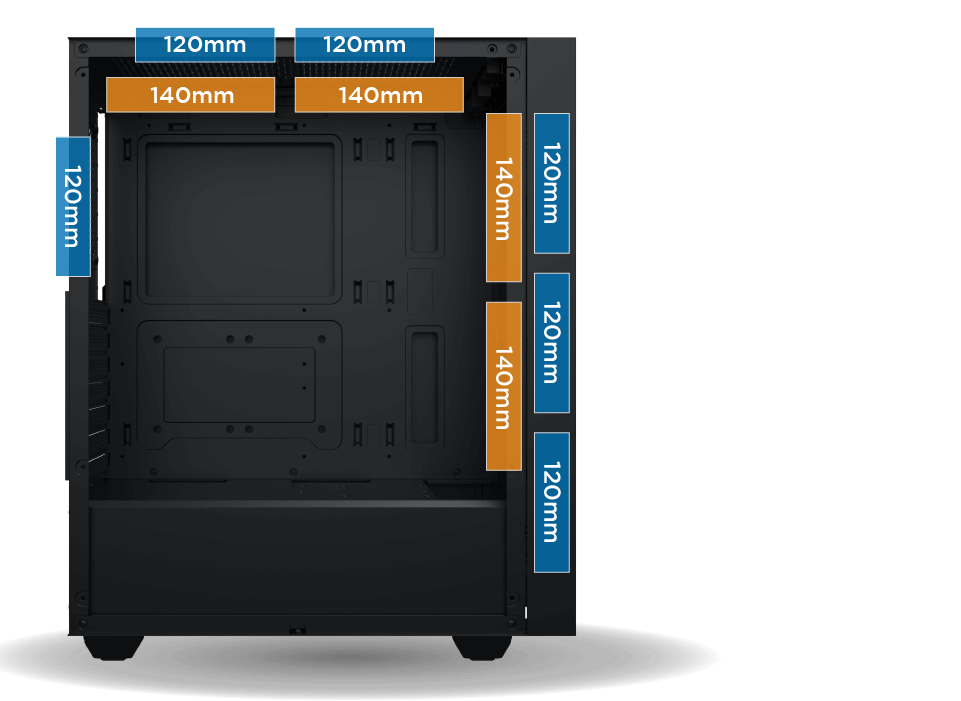

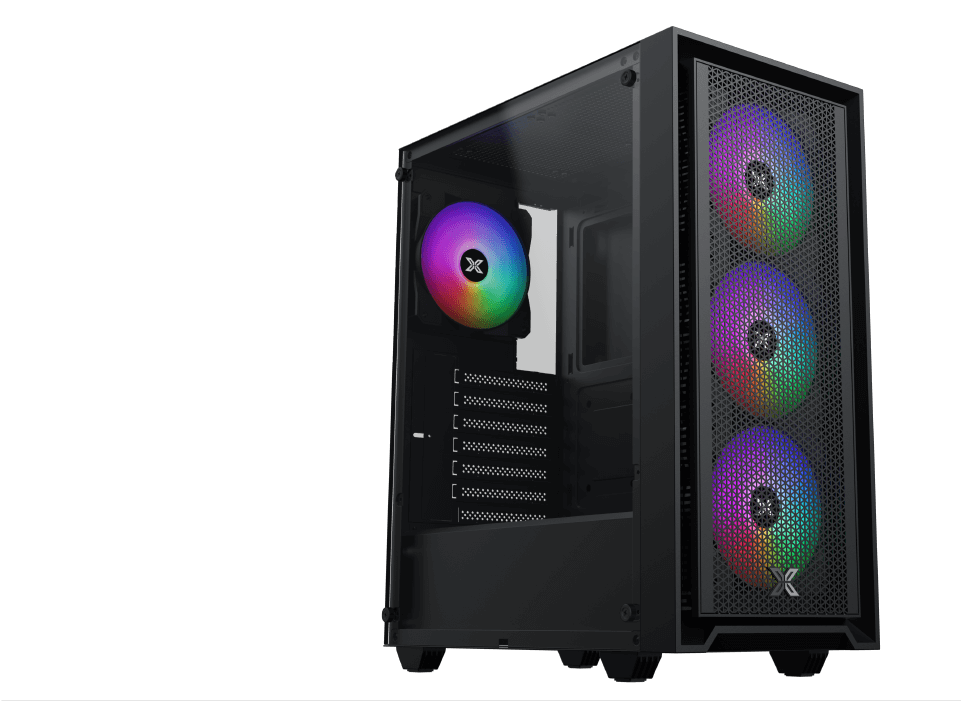

Fan Support

Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x2
Rear: 120mm x1

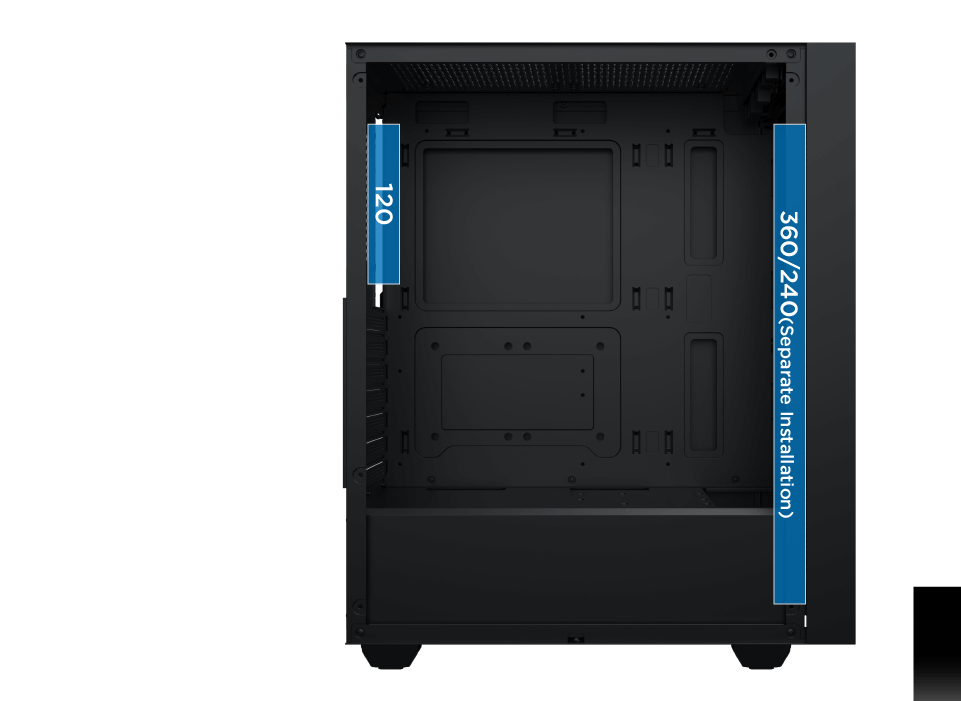

Radiator Support

Front: 360/240
Rear: 120

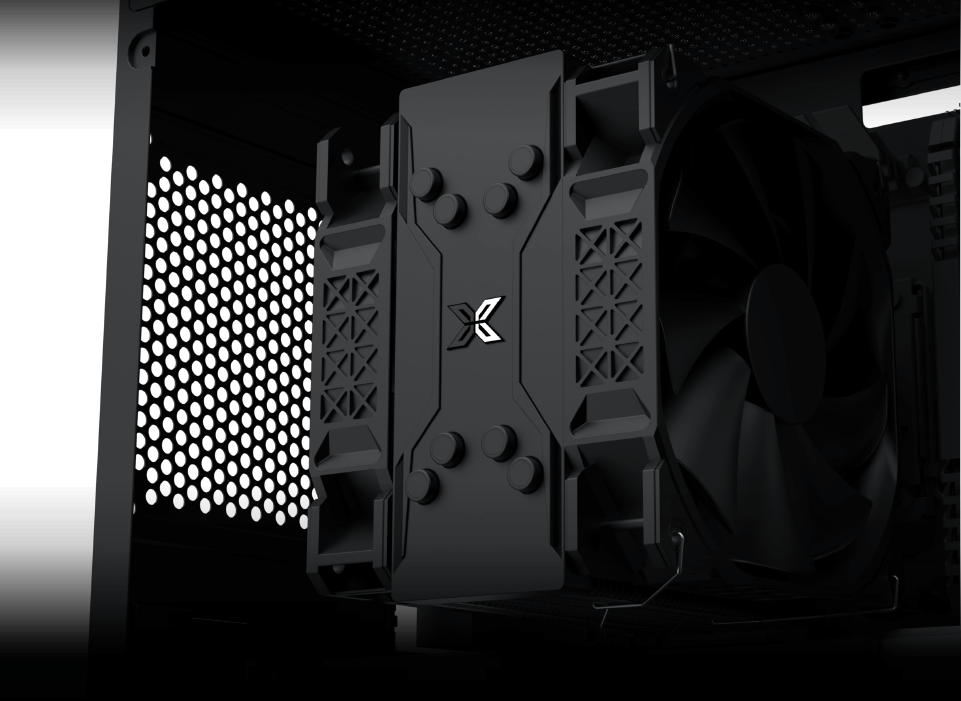

CPU Cooler Clearance
up to 160 mm

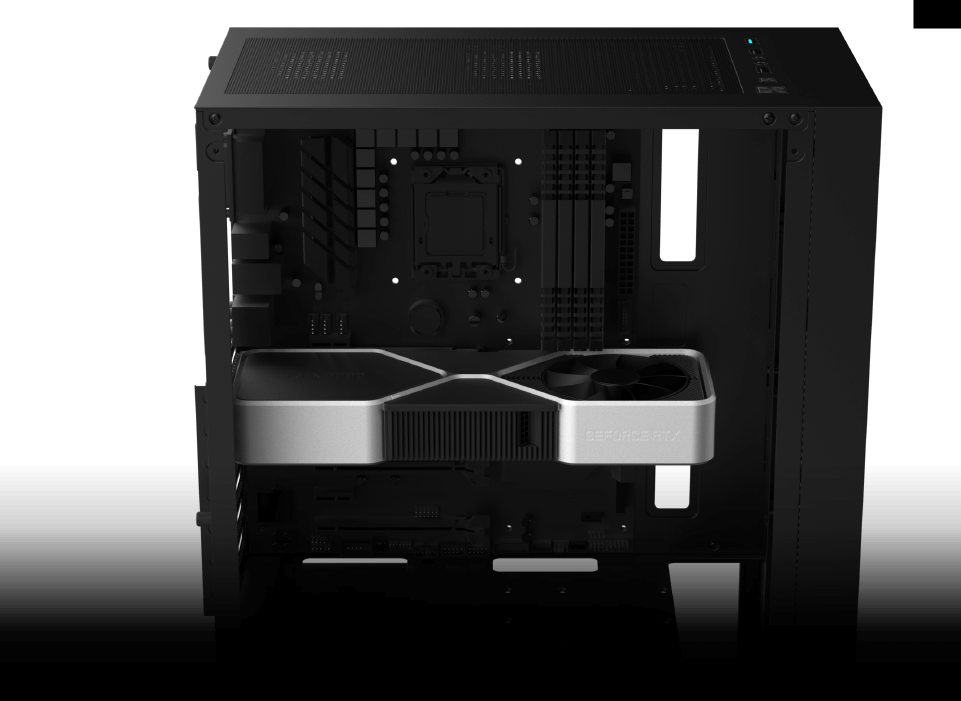

GPU Length Limitation
up to 325mm

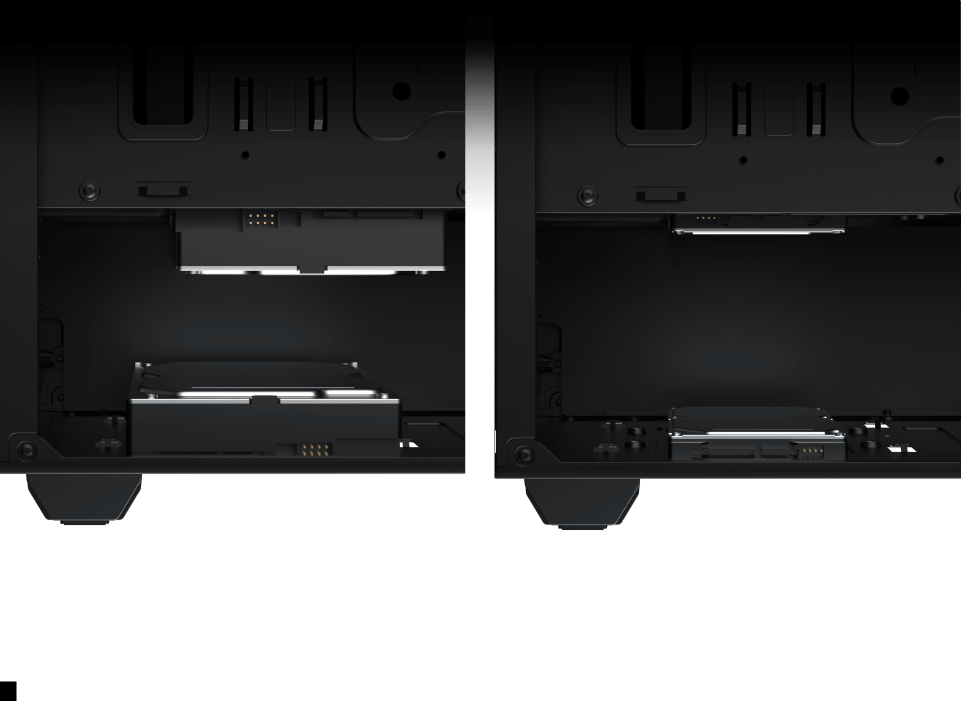

2.5 SSD & 3.5 HDD Combo x2

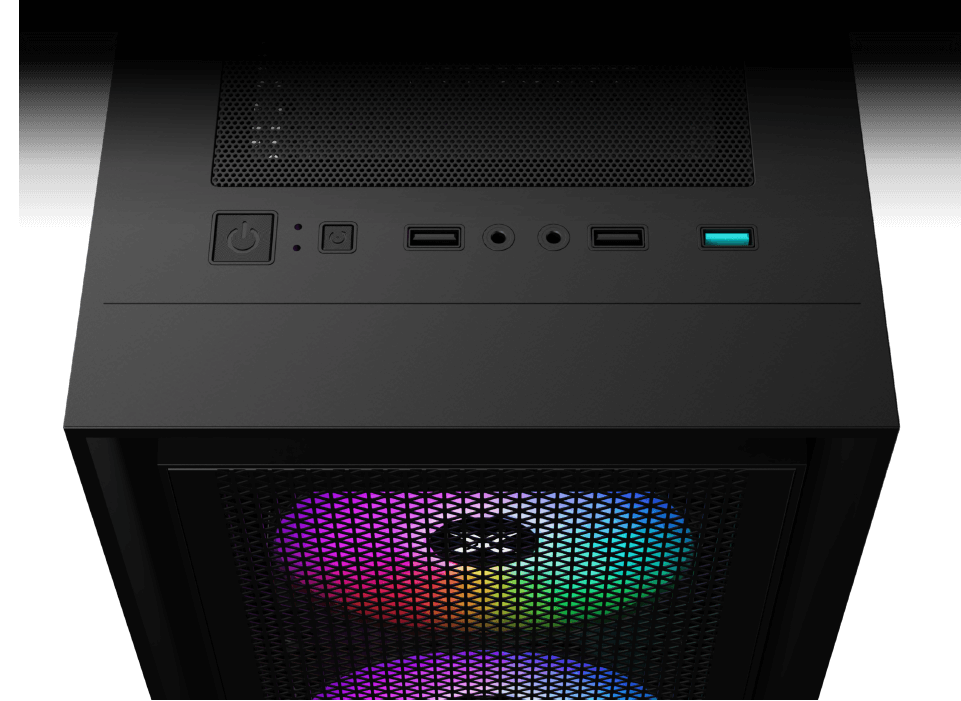

TOP MOUNT I/O Ports

• Power Button
• Reset Button
• USB 2.0 x2
• HD Audio Jack
• USB 3.0 x1

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

SKY II

Dimensions

365x200x450mm (LxWxH)

Motherboard Support

ATX, Micro ATX, Mini ITX

Drive Bays

2.5 SSD & 3.5 HDD Combo x2

Fan Support

Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x2
Rear: 120mm x1

PSU Length Limitation

165mm

CPU Cooler Clearance

160mm

Material

Steel

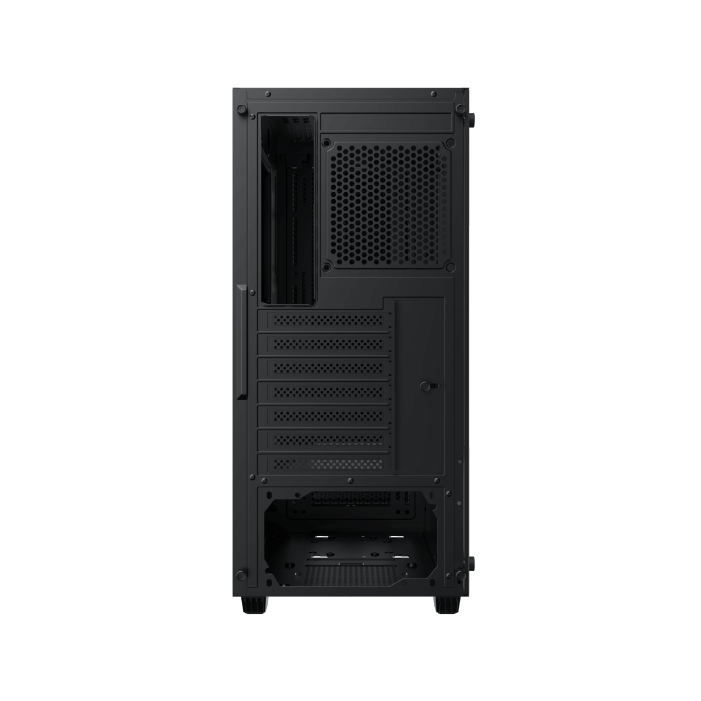

Expansion Slots

7 Standard Slots

Power Supply

Standard PS2 ATX PSU

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

Radiator Support

Front: 240/360
(Separate Installation)
Rear: 120

GPU Length Limitation

325mm
