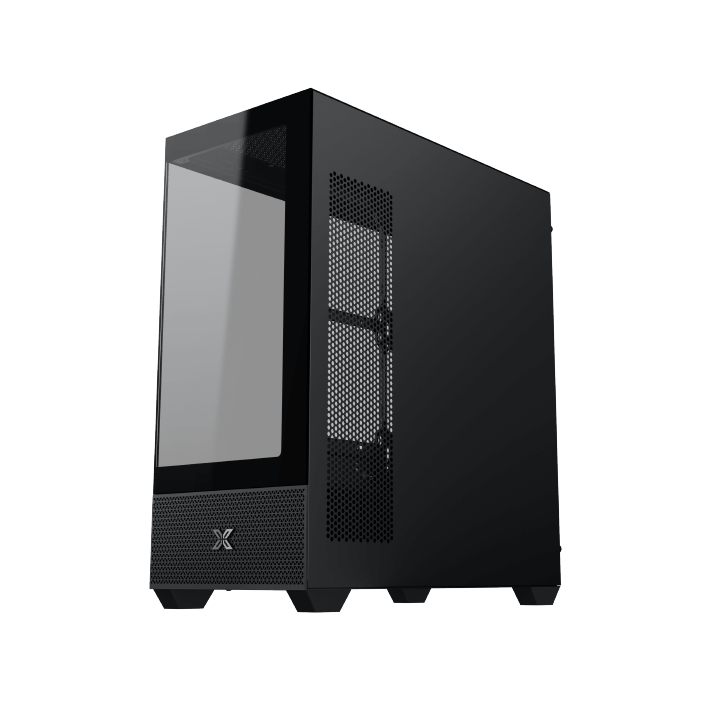

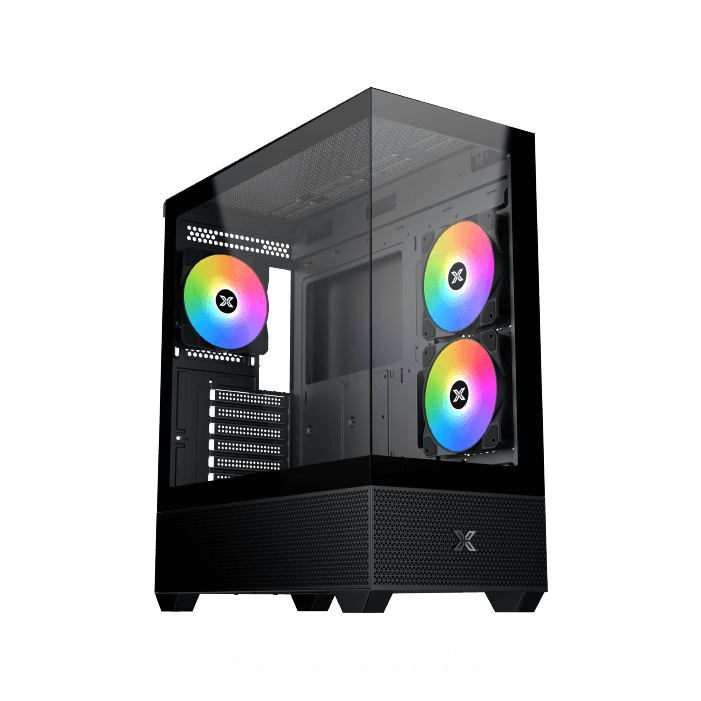

Alphard

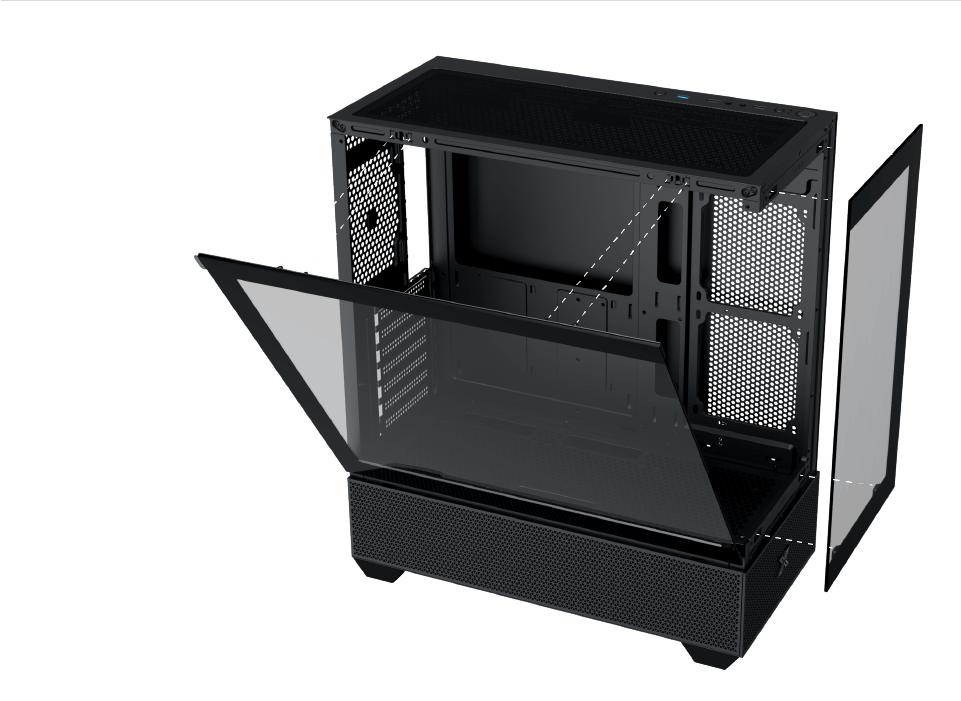

Easily Mounted

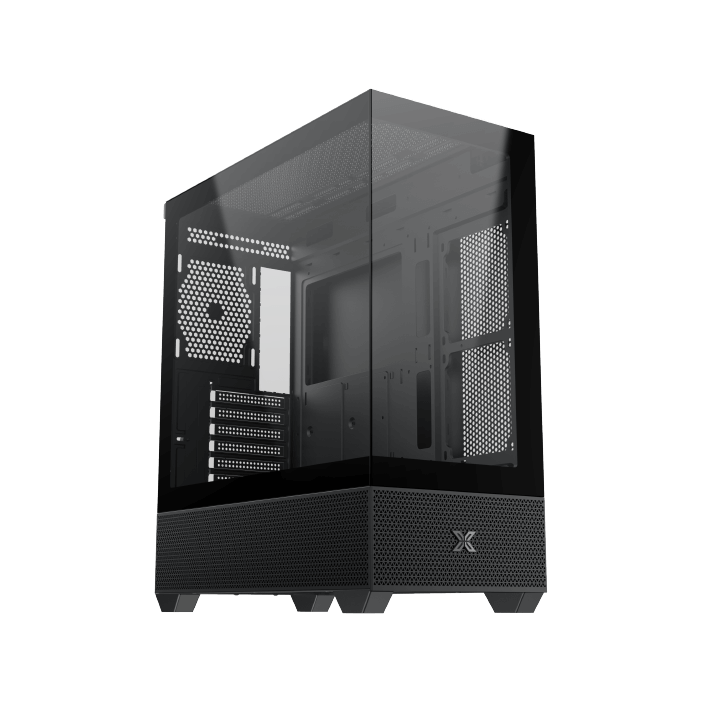

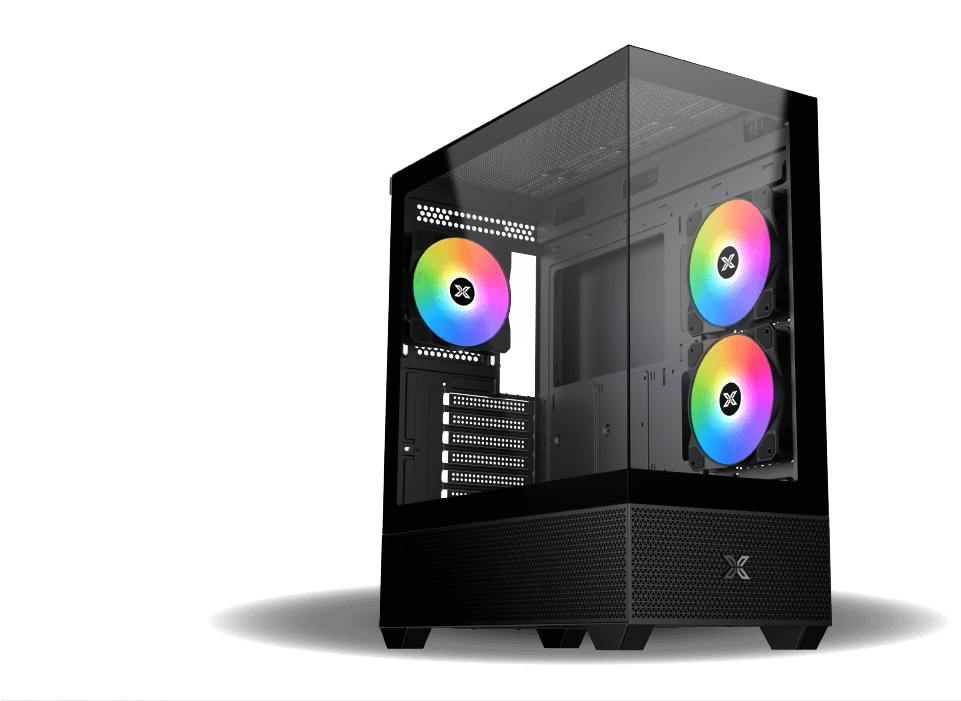

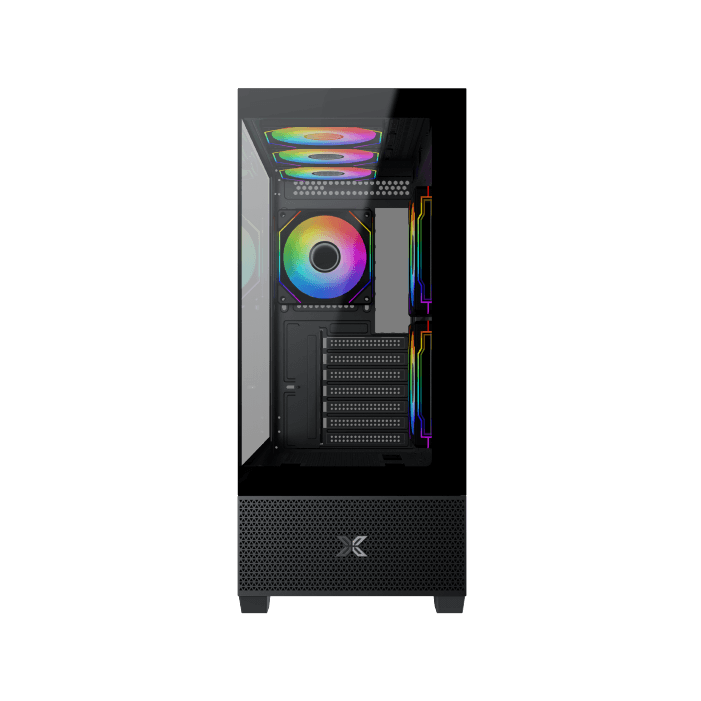

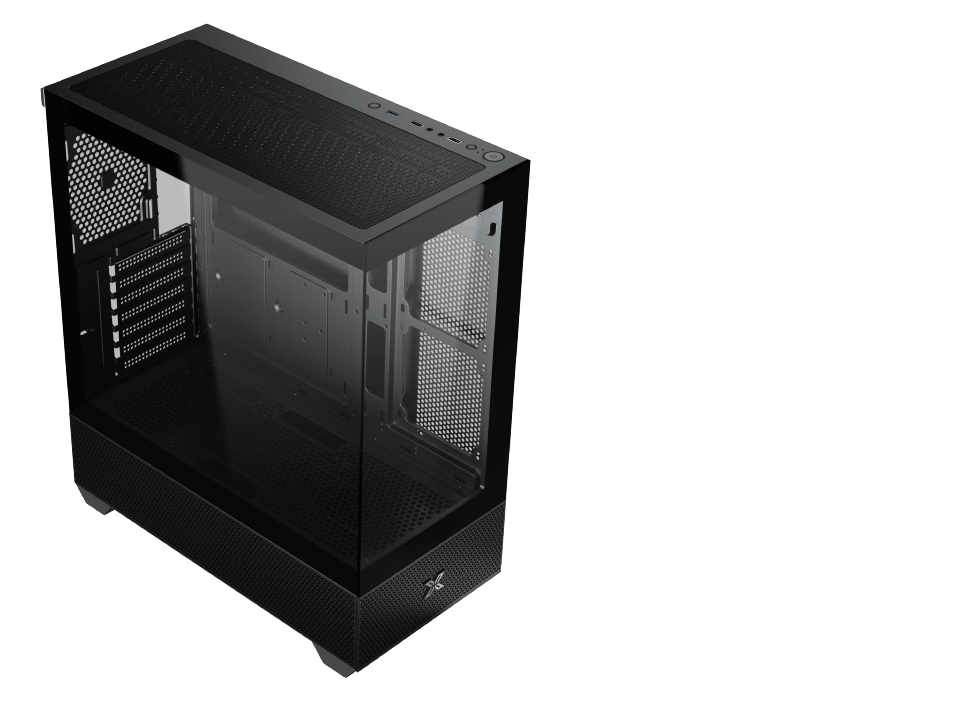

Tempered Glass Panel
Mesh Top Panel and
2 Tempered
Glass Panel Design

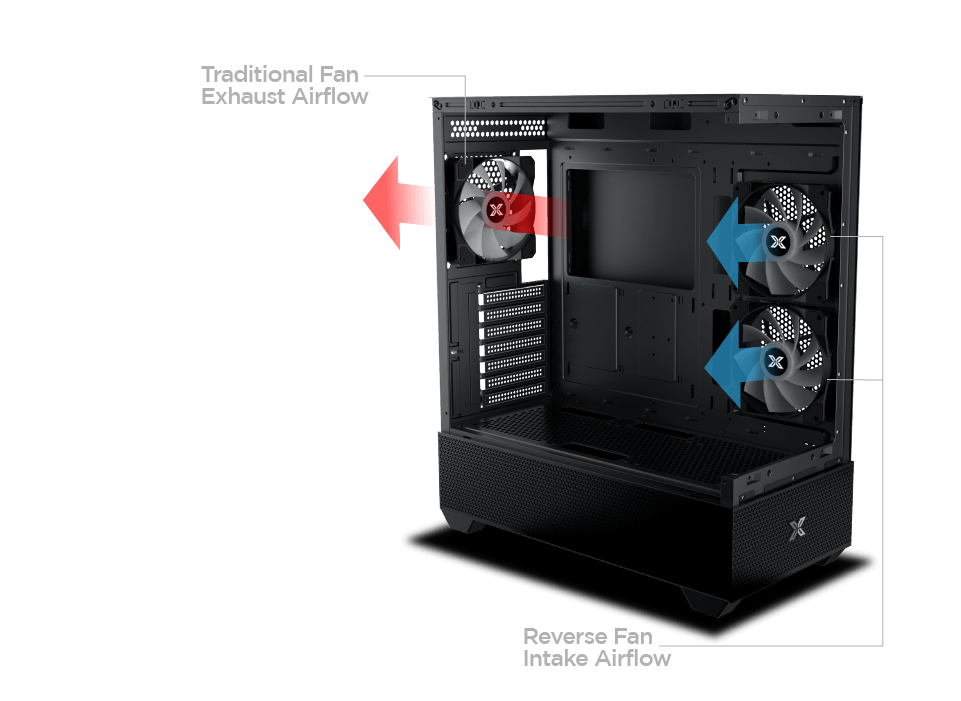

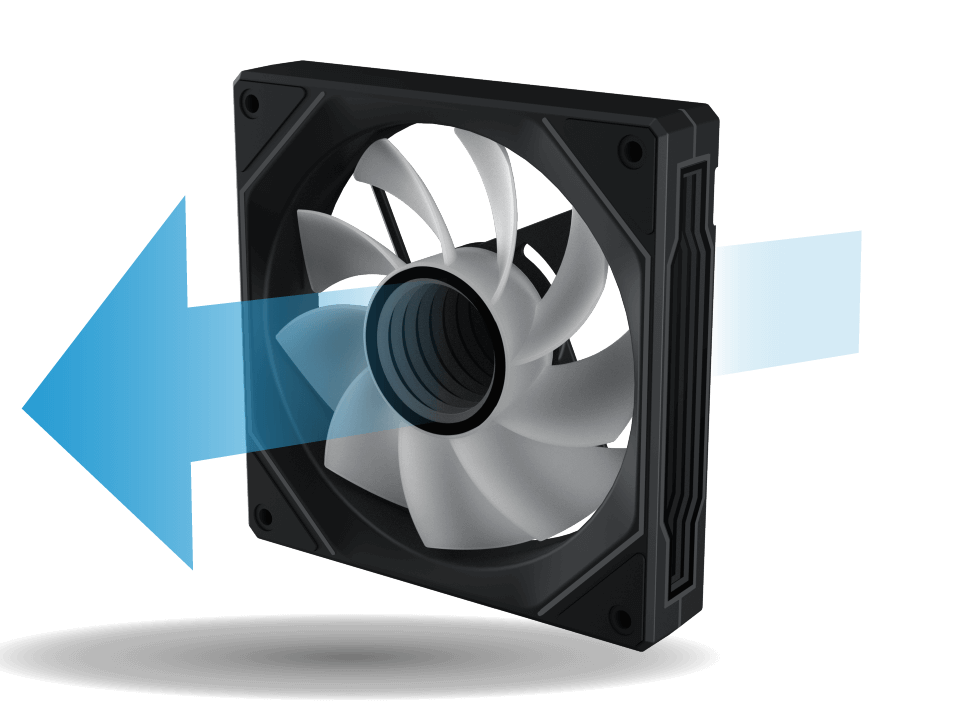

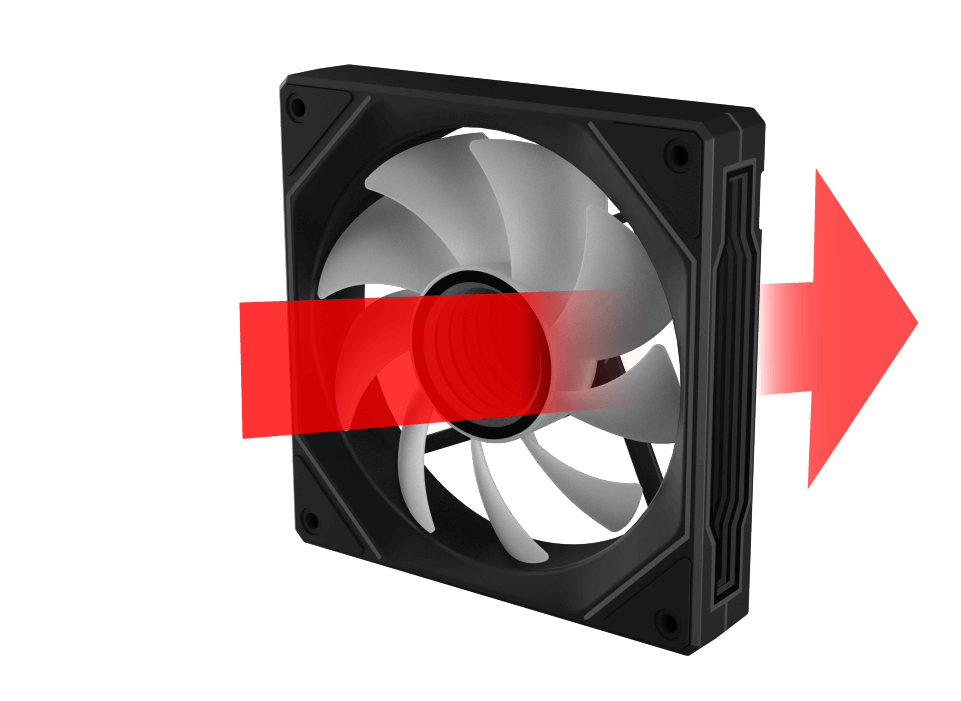

Traditional Fan Blade
Pre-installed on Rear Side

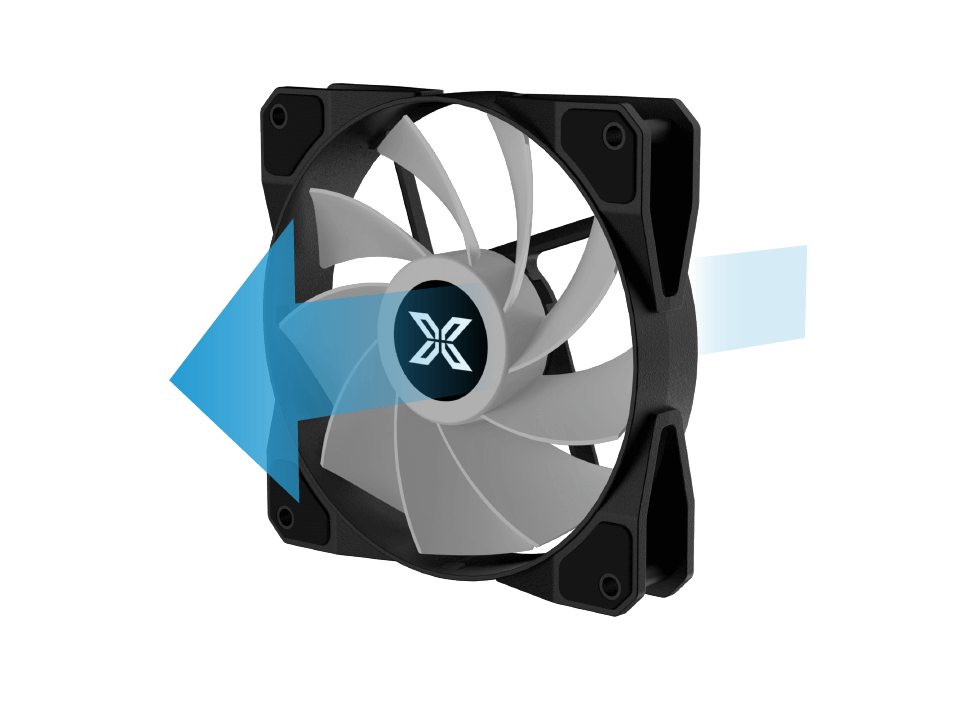

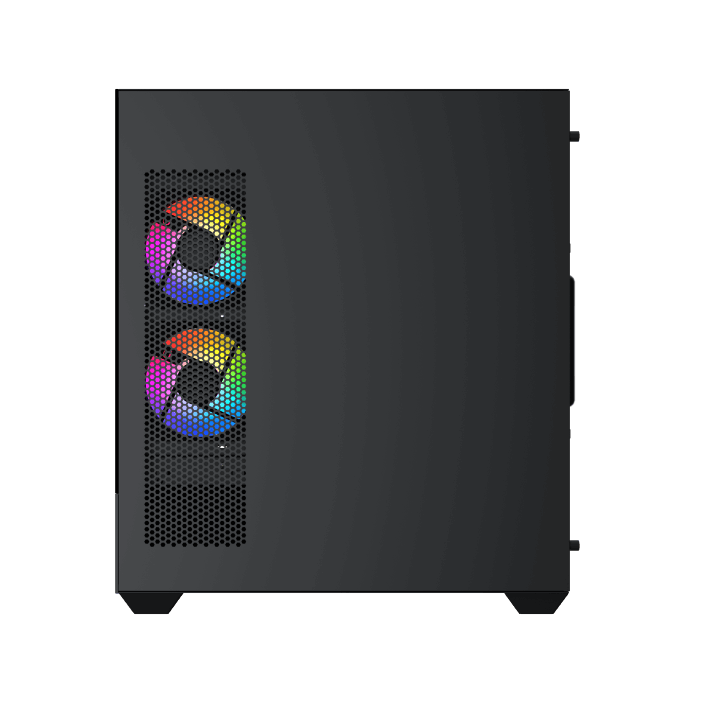

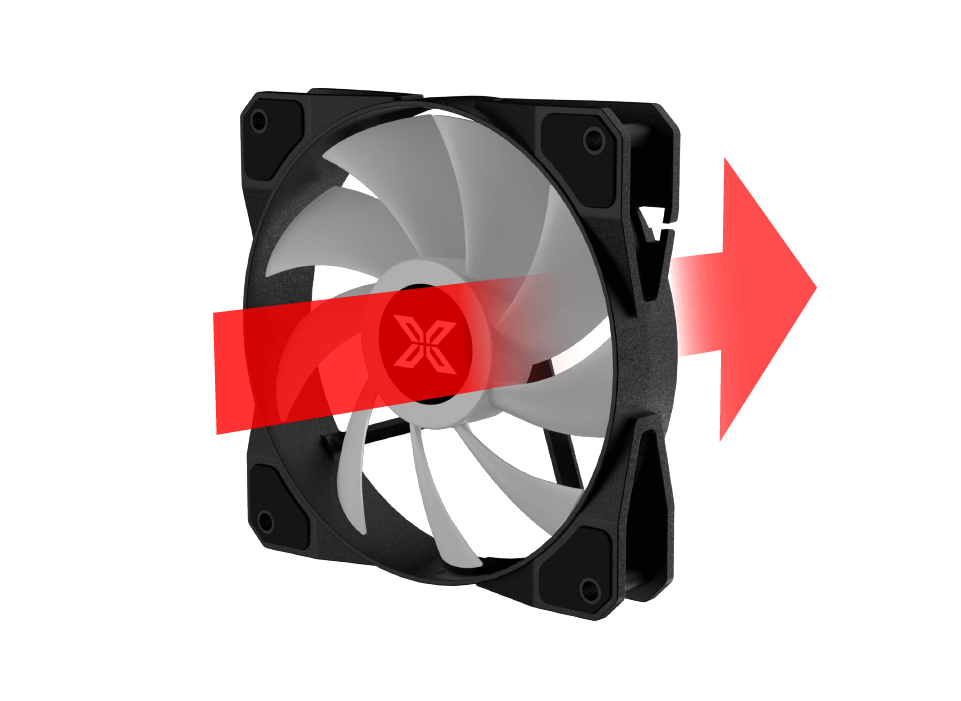

Reverse Fan Blade
Pre-installed on MB Panel Side

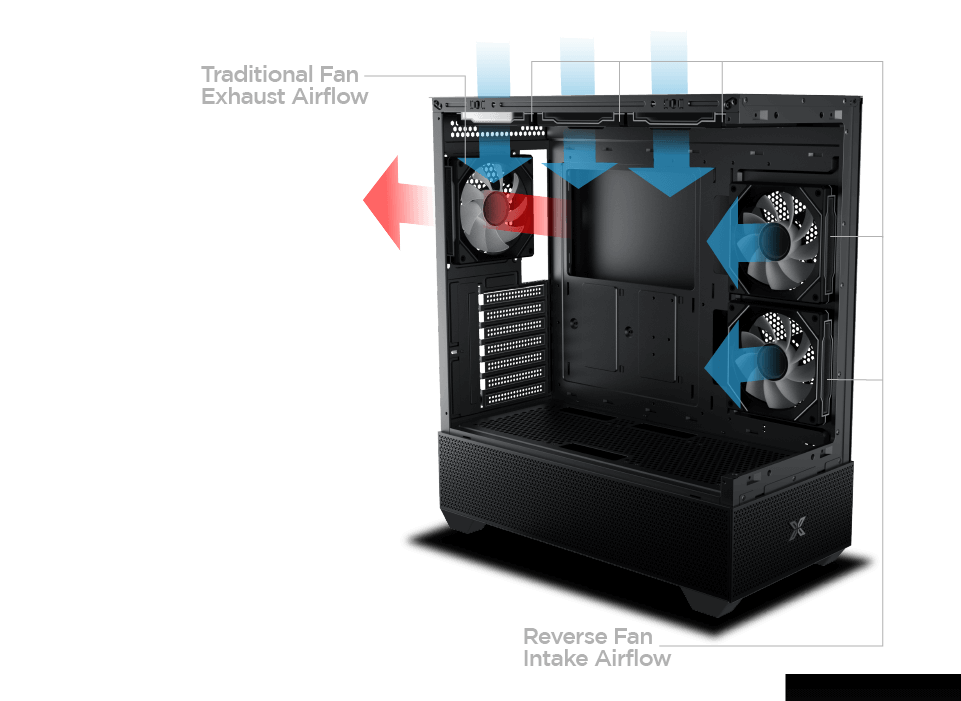

Superior Airflow and
Ventilation Design

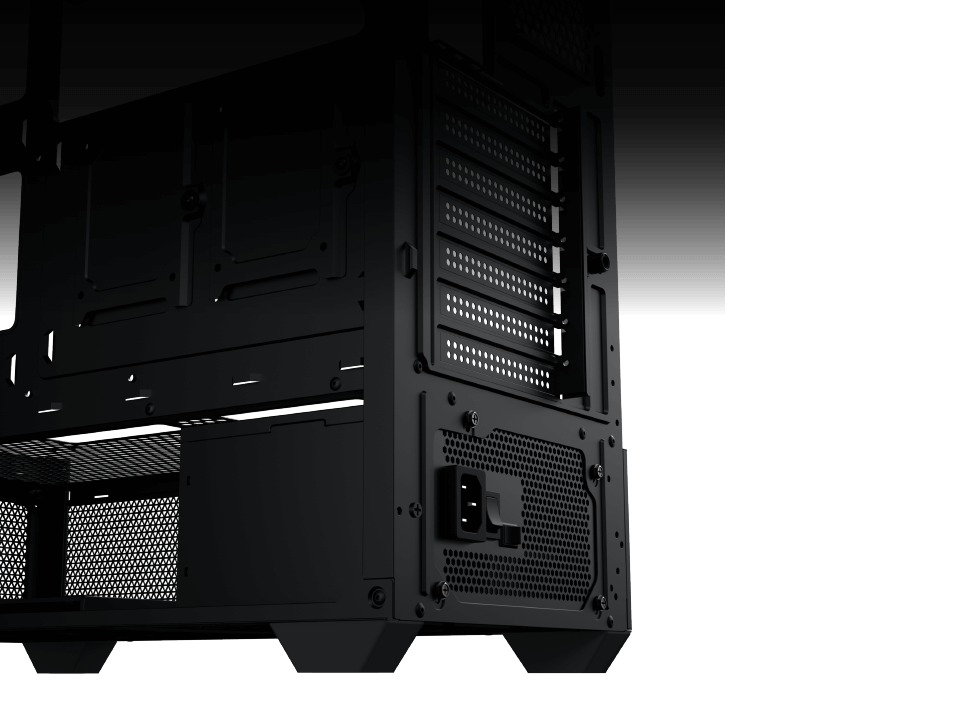

PSU Limitation
up to 200mm

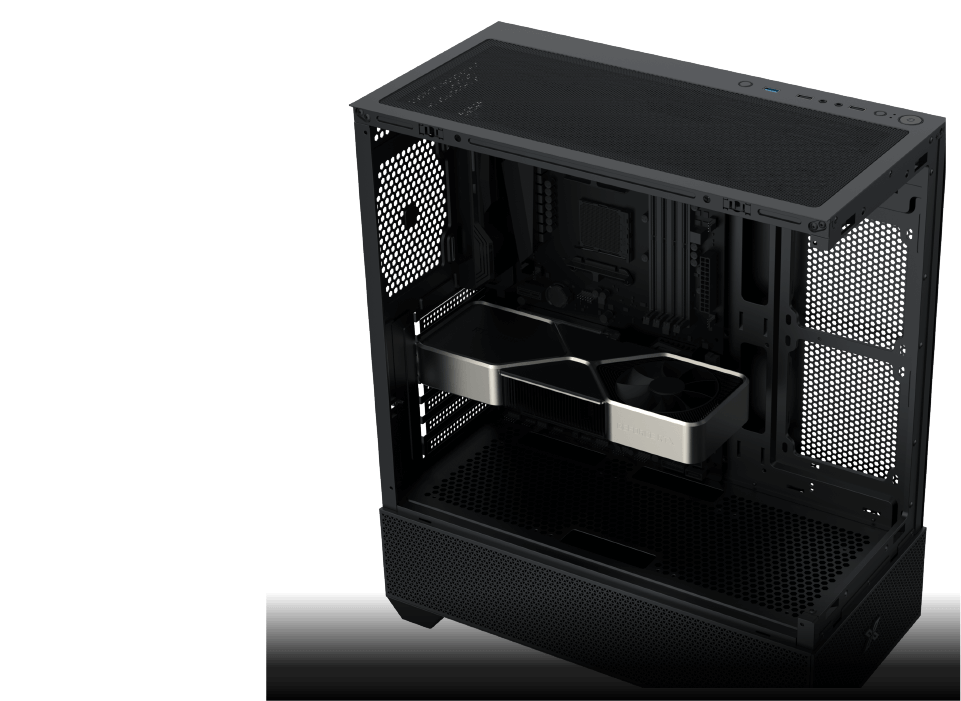

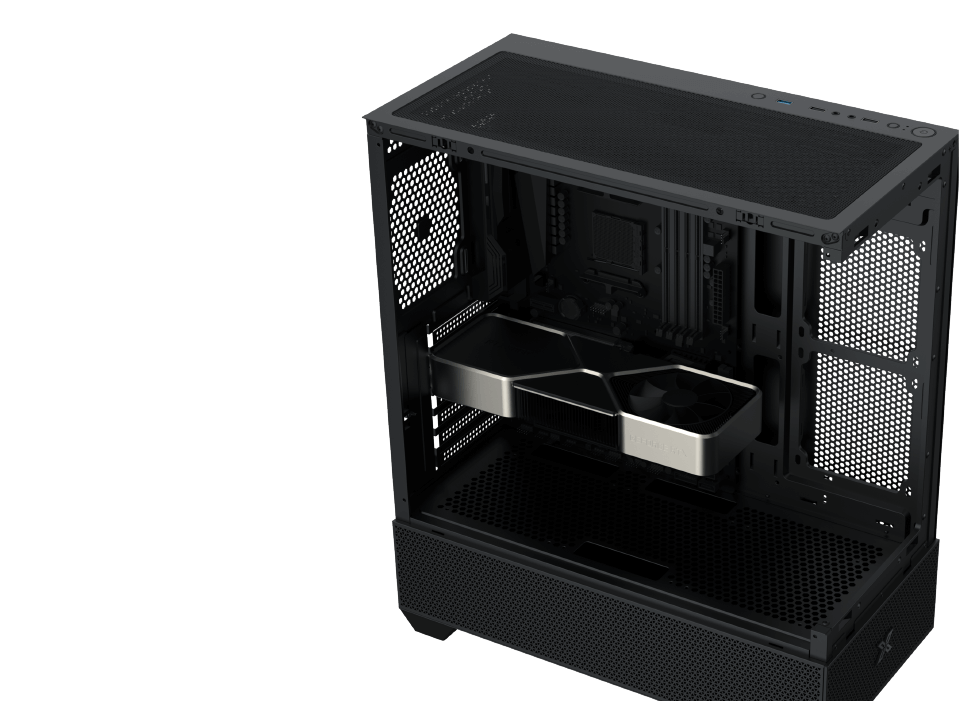

GPU Length Limitation
up to 410mm

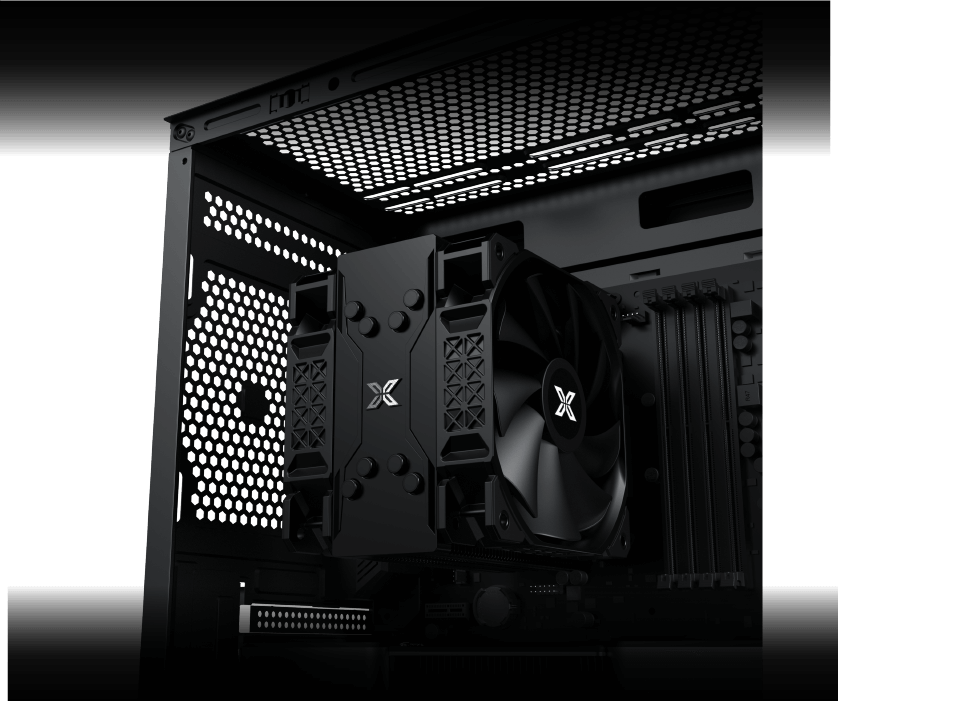

CPU Cooler Clearance
up to 165 mm

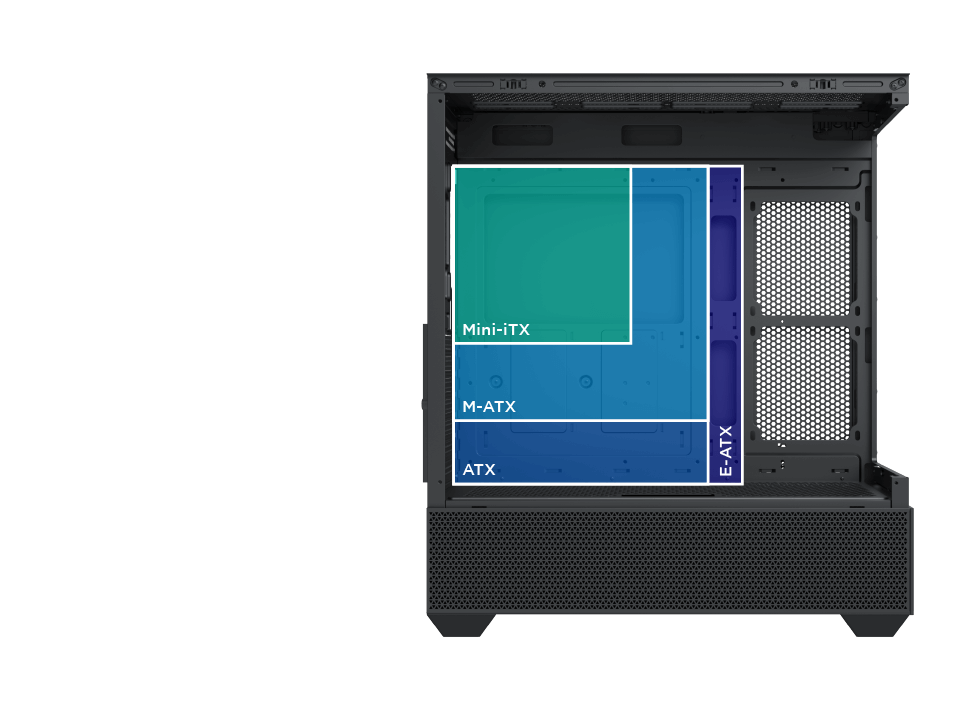

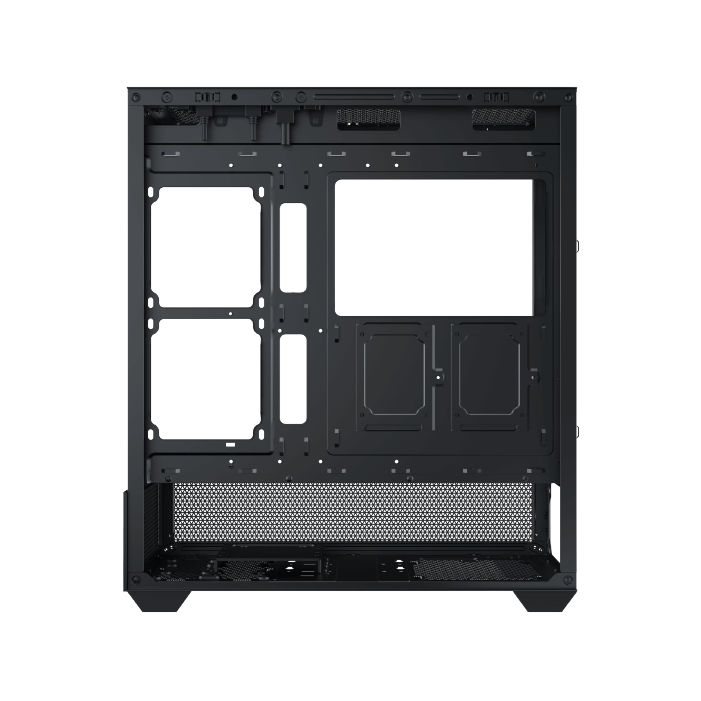

Support Motherboard
up to E-ATX

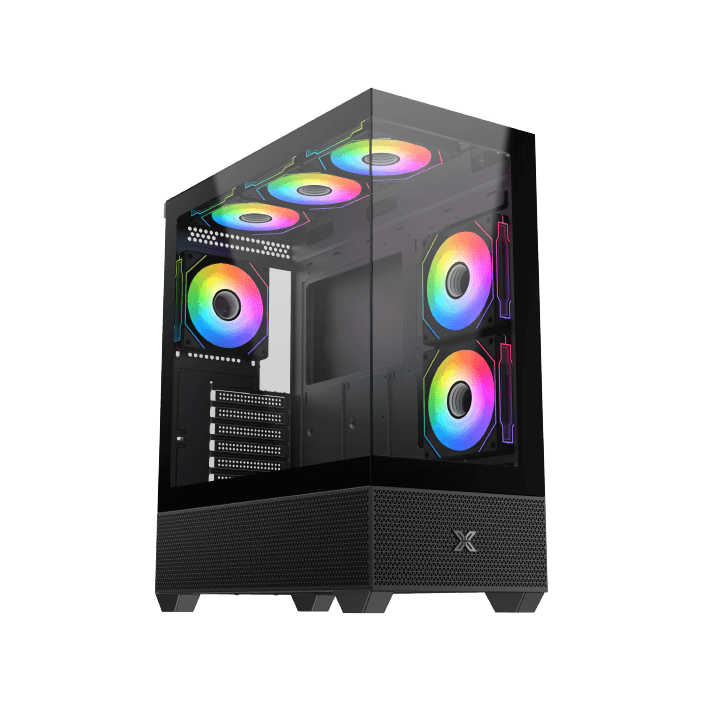

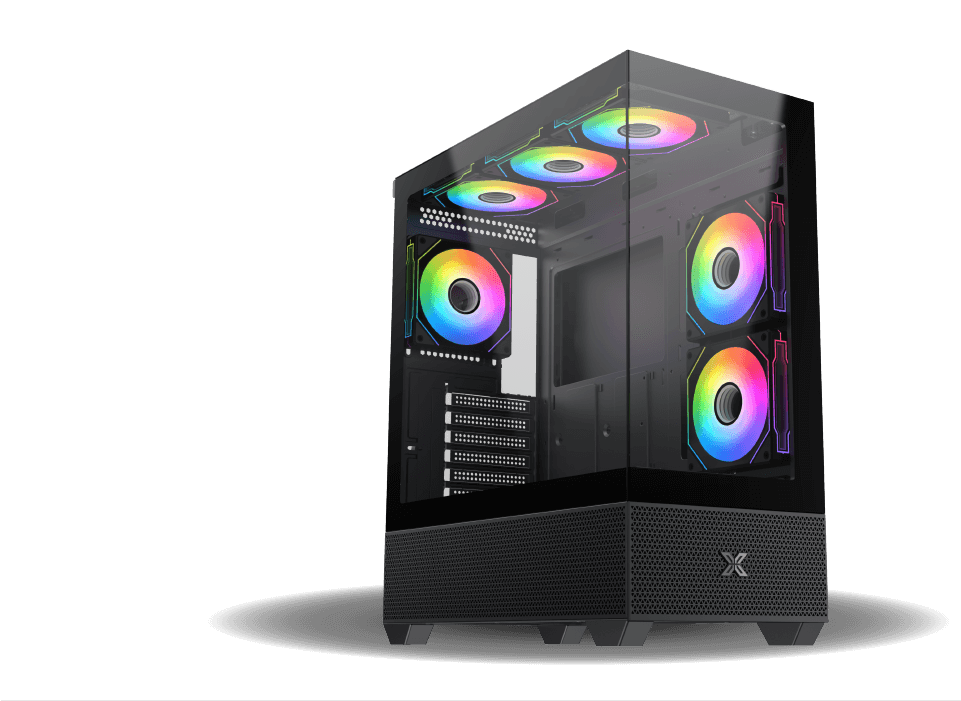

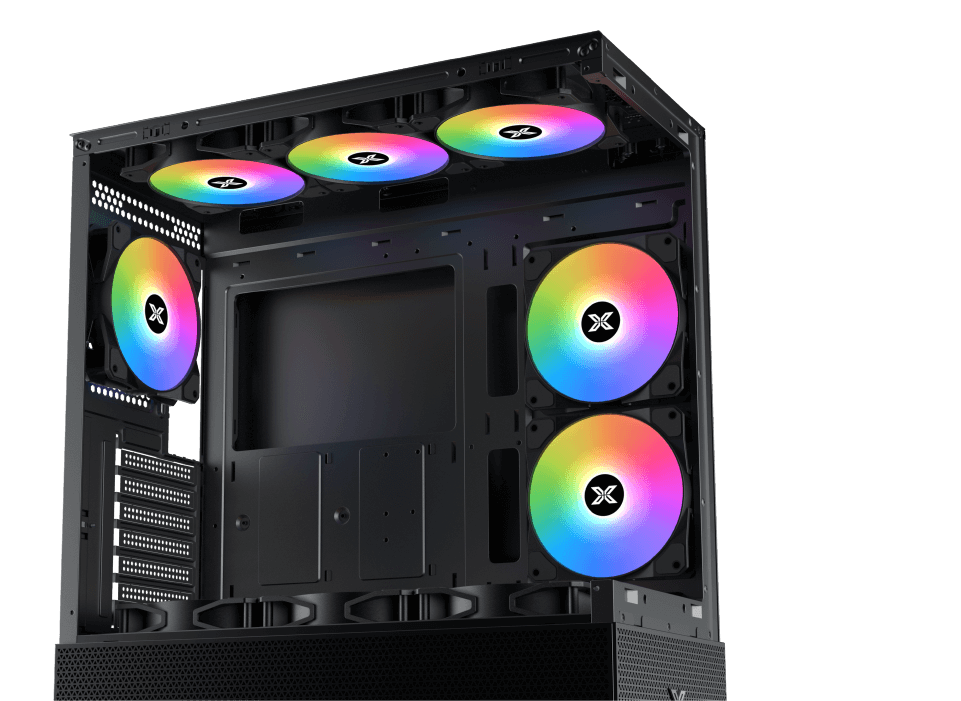

Fan Support 9 pcs Max.

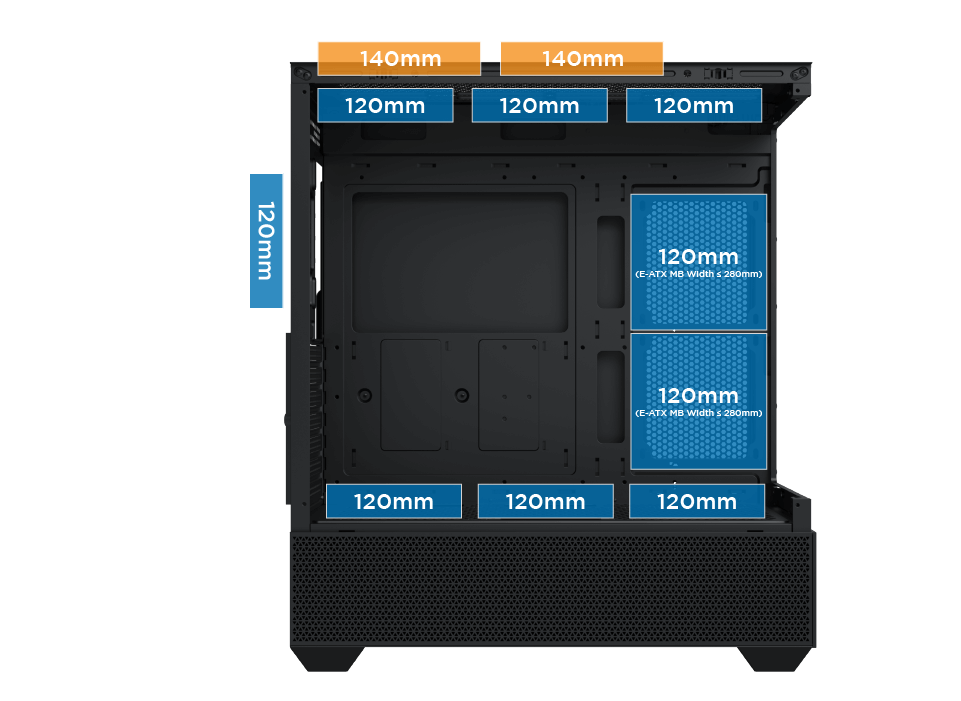

Fan Support
Top: 120mm x3 or 140mm x2
MB: 120mm x2
(E-ATX MB Width ≤ 280mm)
PSU Shroud: 120mm x3

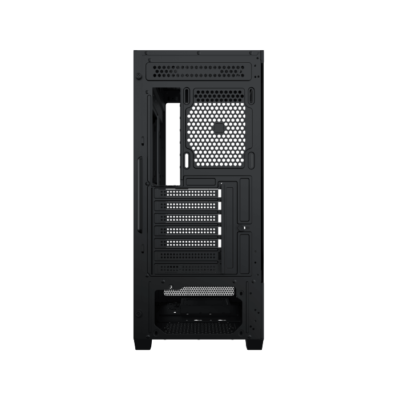

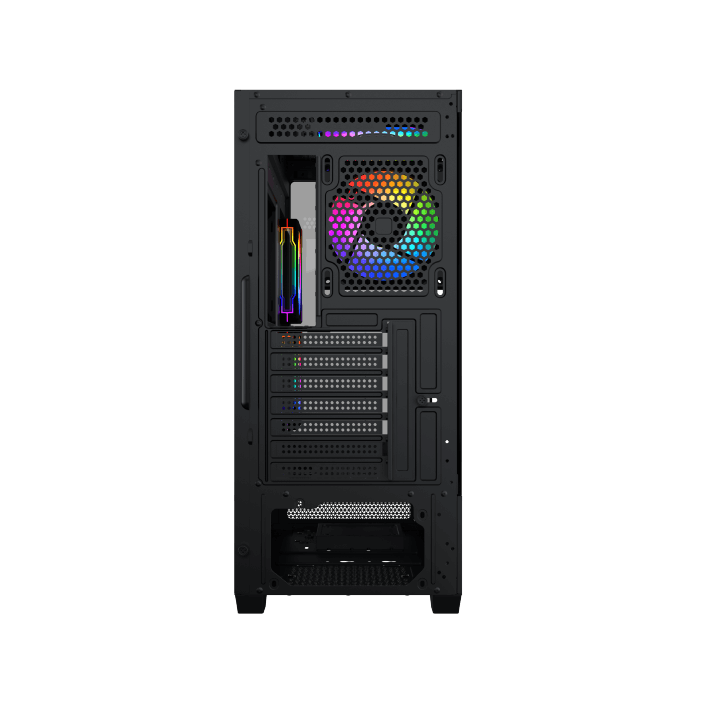

Rear: 120mm x1

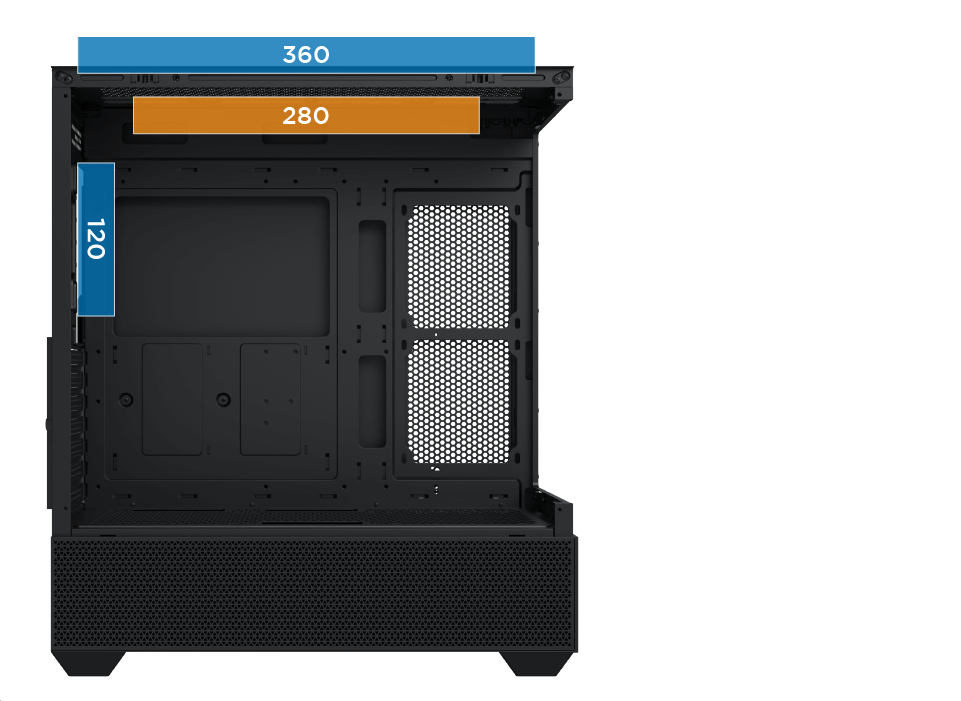

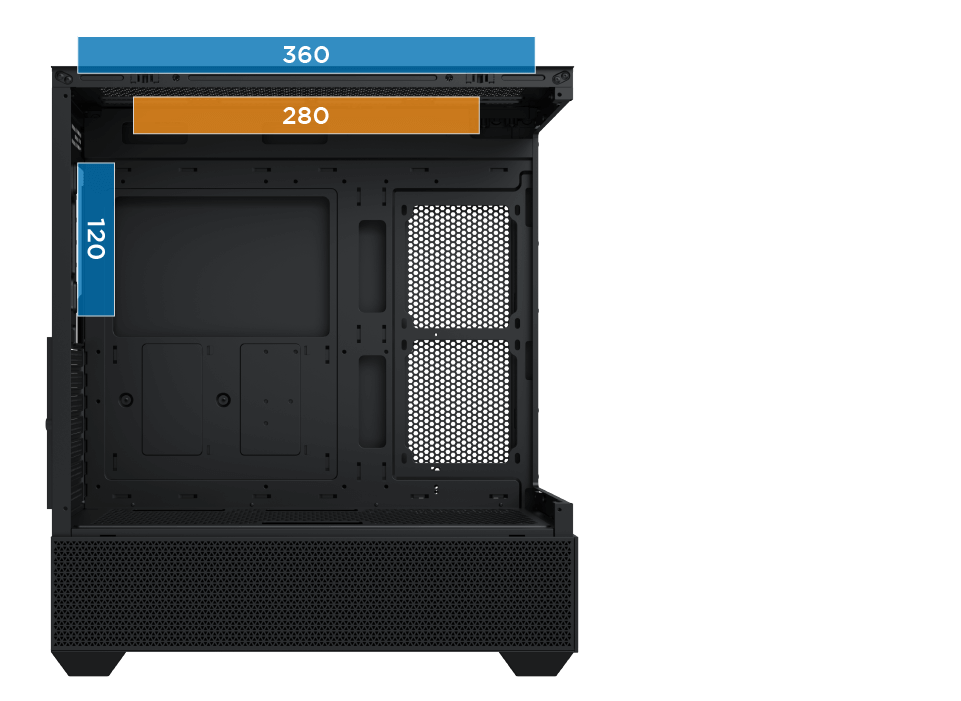

Radiator Support
Top: 280 or 360
(No Memory Limit)
Rear: 120

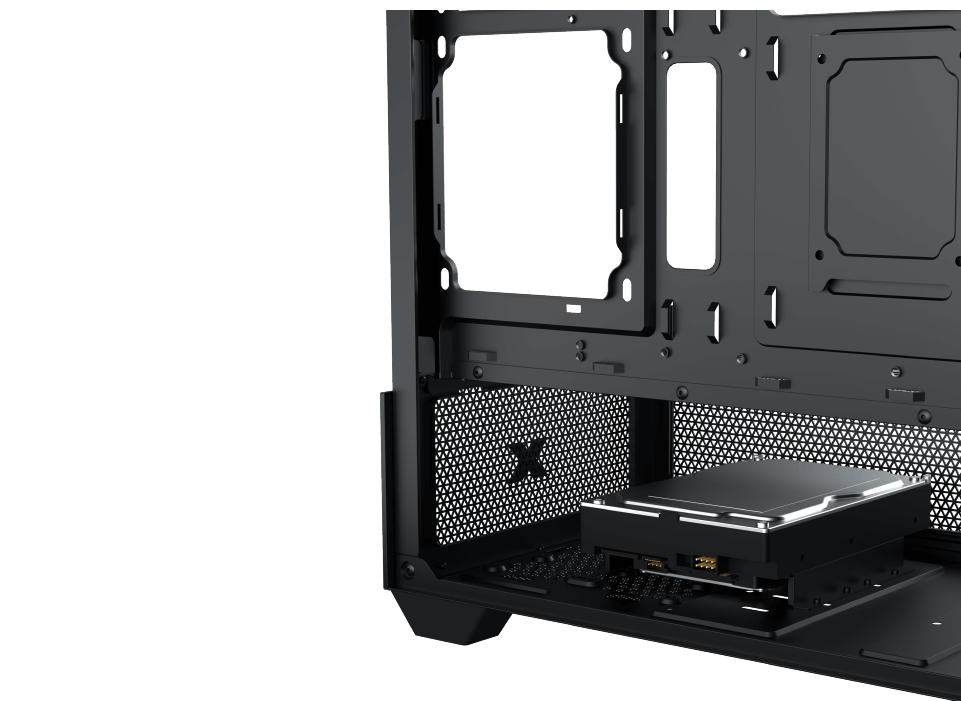

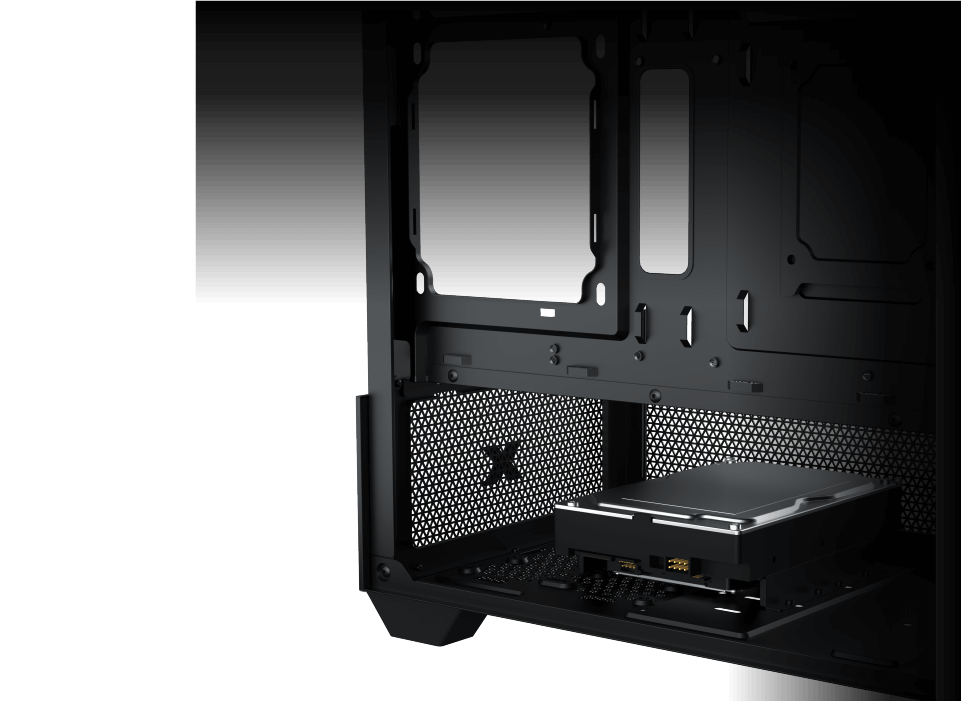

Drive Bays
HDD Cage(Top): 3.5″ x1
HDD Cage(Bottom): 2.5″ x1

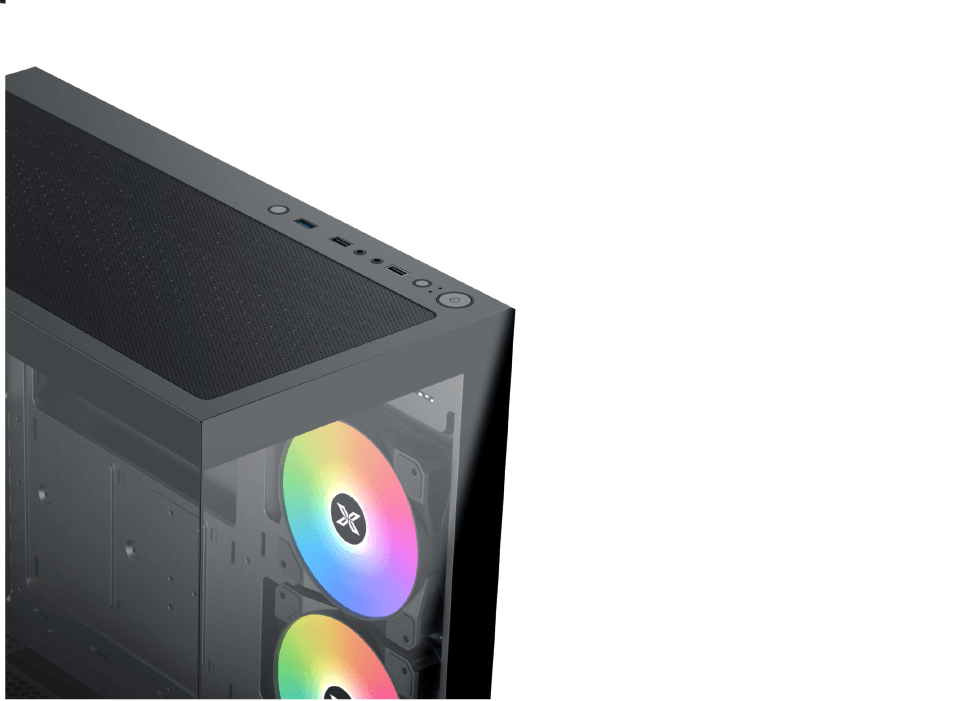

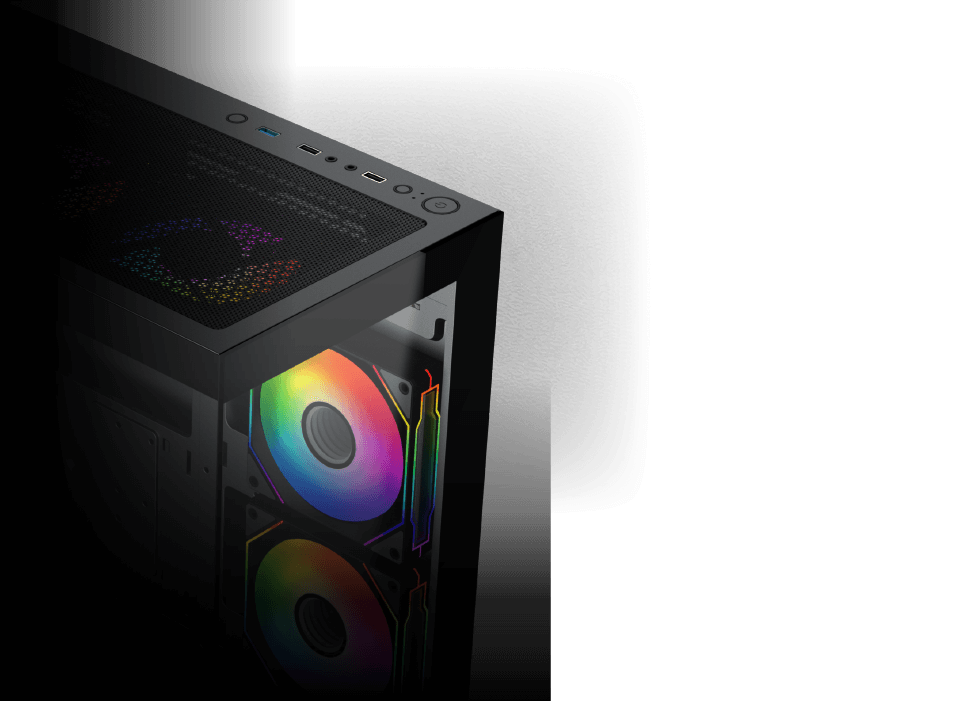

TOP MOUNT I/O PORTS
*All Product Images Shown Are For Illustration Purpose Only.
Alphard
Steel
425x212x490mm (LxWxH)
HDD Cage(Bottom): 2.5″ x1
HDD Cage(Top): 3.5″ x1

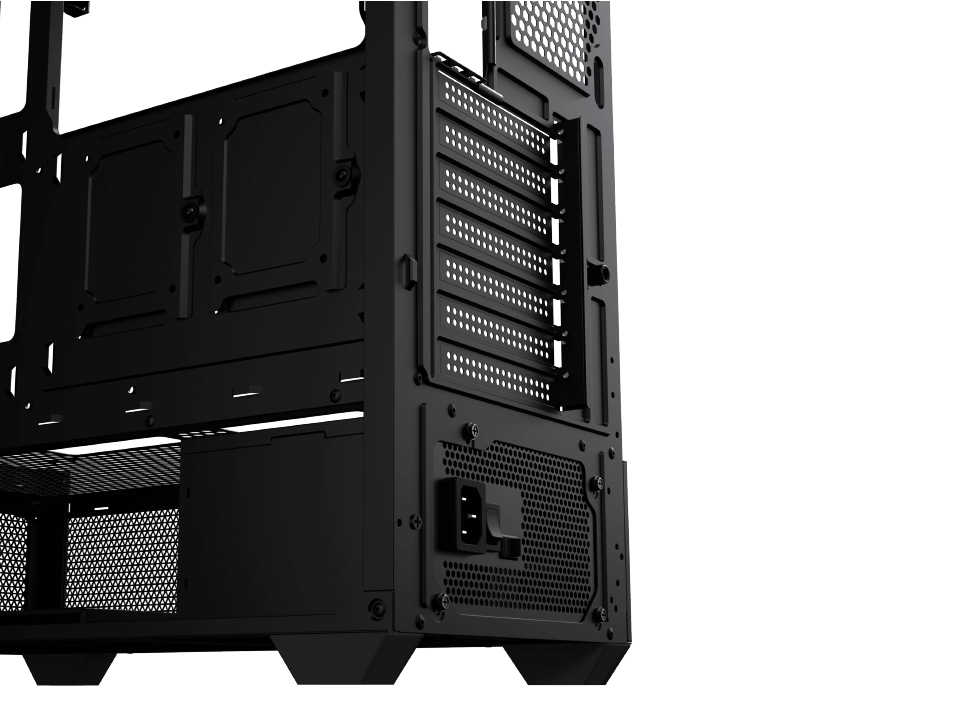

7 Standard Slots
E-ATX, ATX, M-ATX, Mini ITX
Standard PS2 ATX PSU
Top: 120mm x3 or 140mm x2
MB: 120mm x2 (E-ATX MB Width ≤ 280mm)
PSU Shroud: 120mm x3
Rear: 120mm x1
Top: 280 / 360
(No Memory Limit)
Rear: 120
USB 3.0 x 1
USB 2.0 x 2
HD Audio
165mm
410mm
200mm
