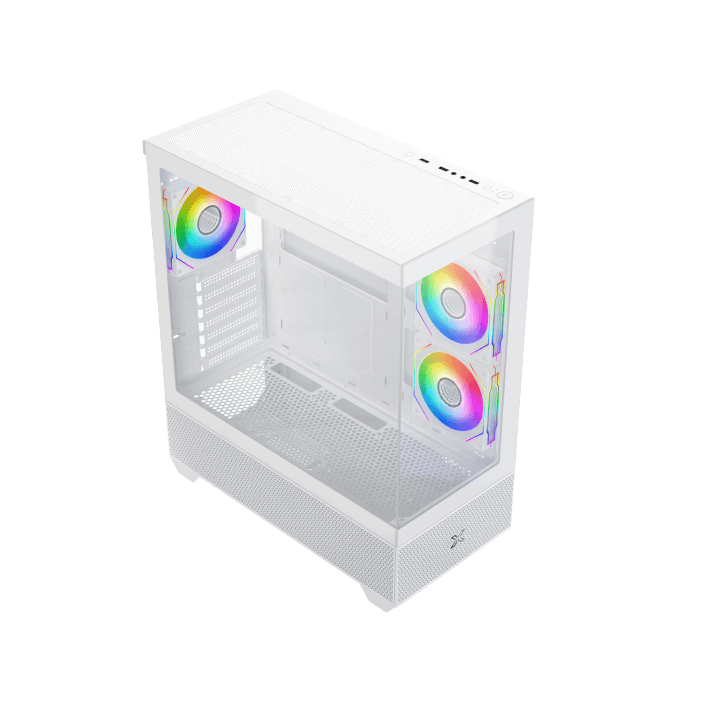

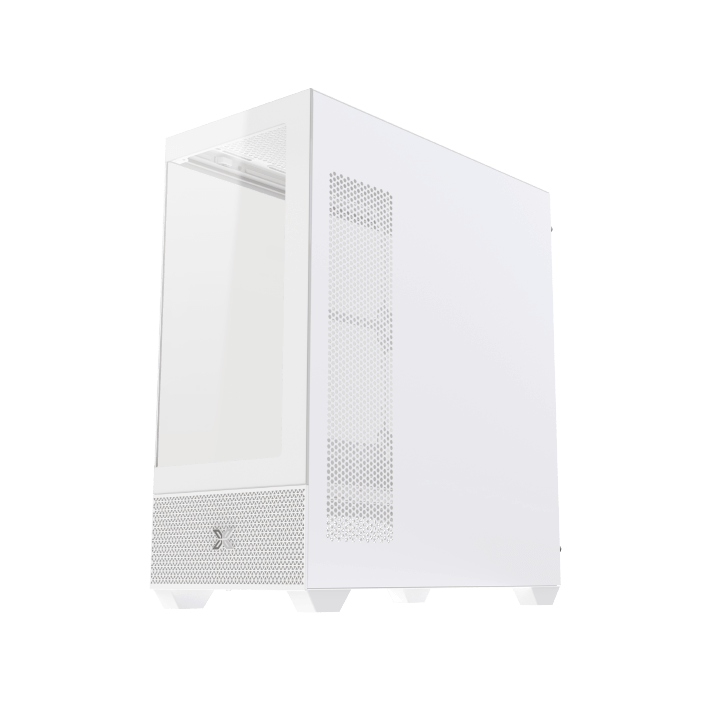

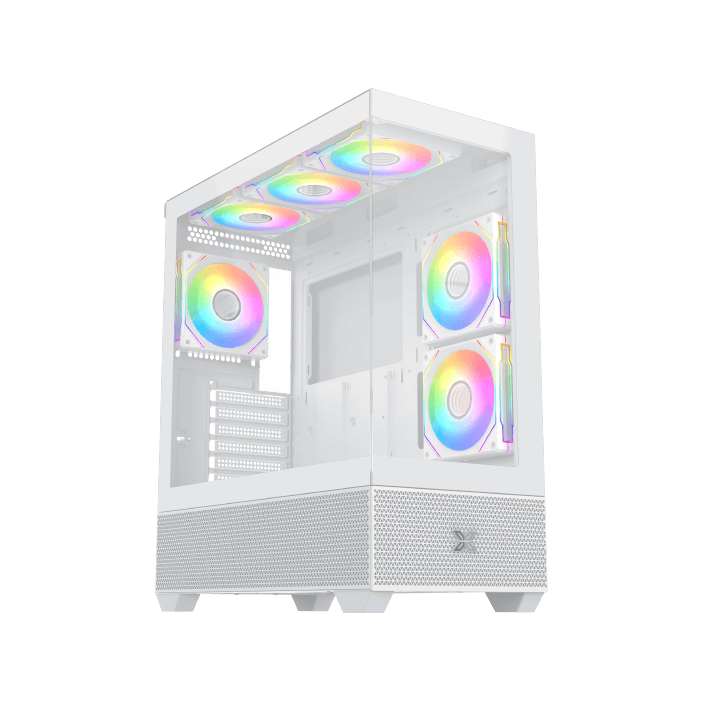

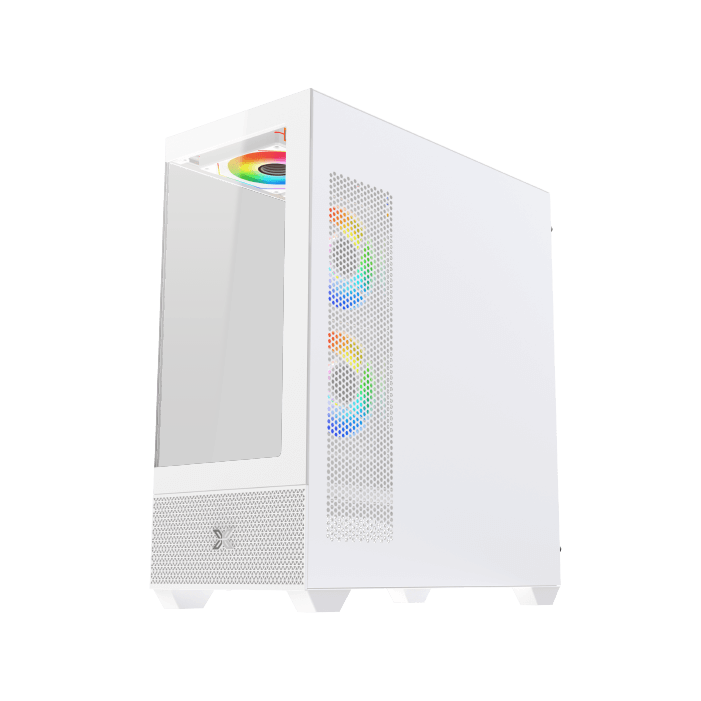

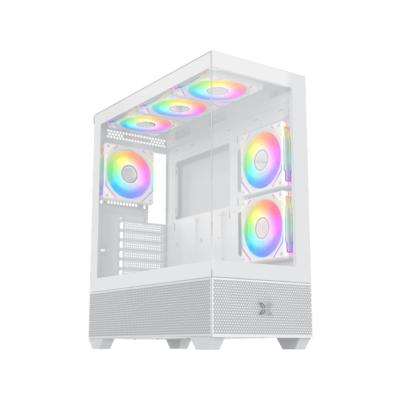

Alphard Arctic

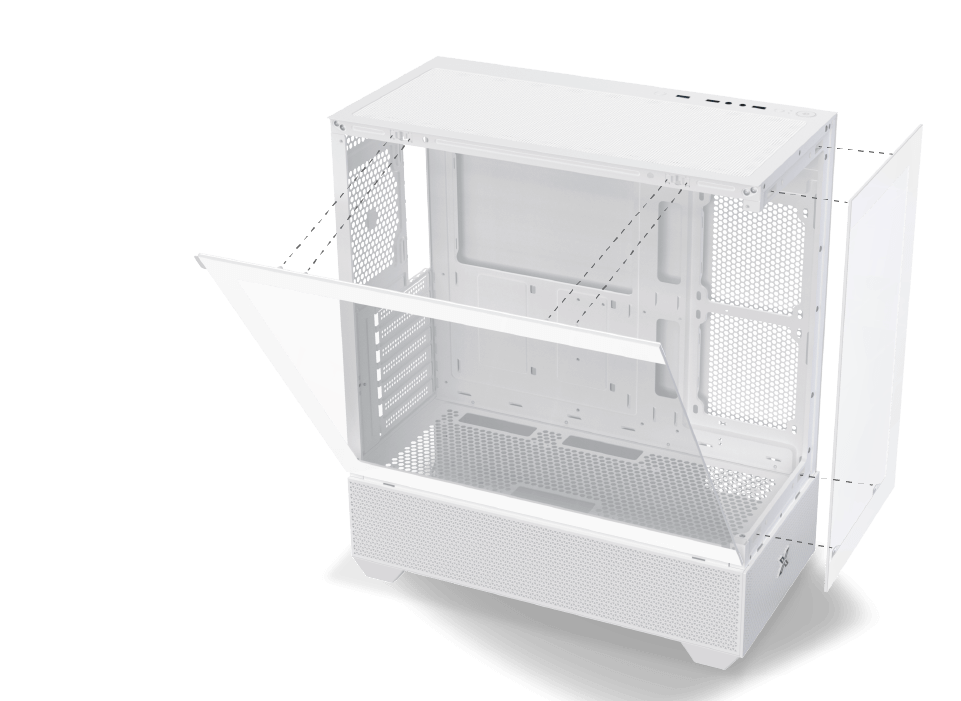

Easily Mounted
Tempered Glass Panel

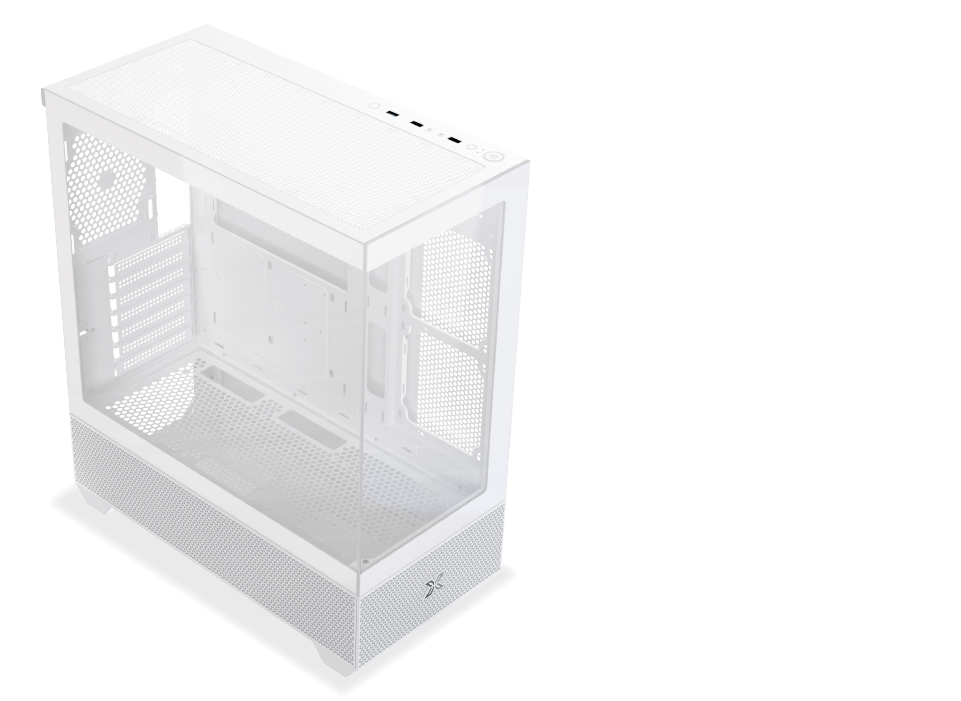

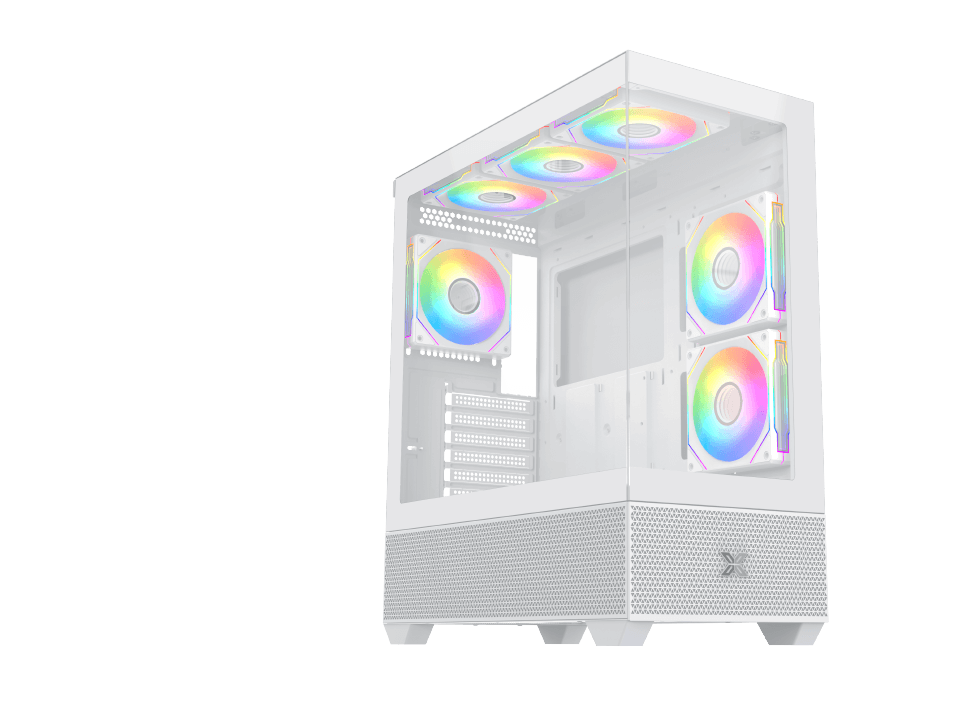

Mesh Top Panel and
2 Tempered
Glass Panel Design

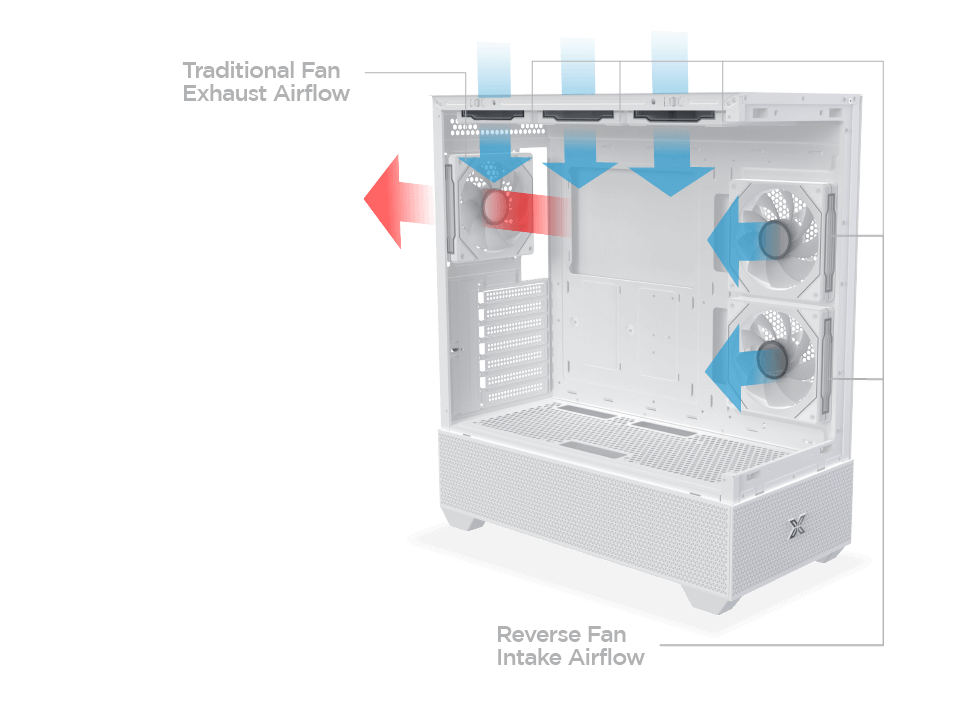

Traditional Fan Blade
Pre-installed on Rear Side

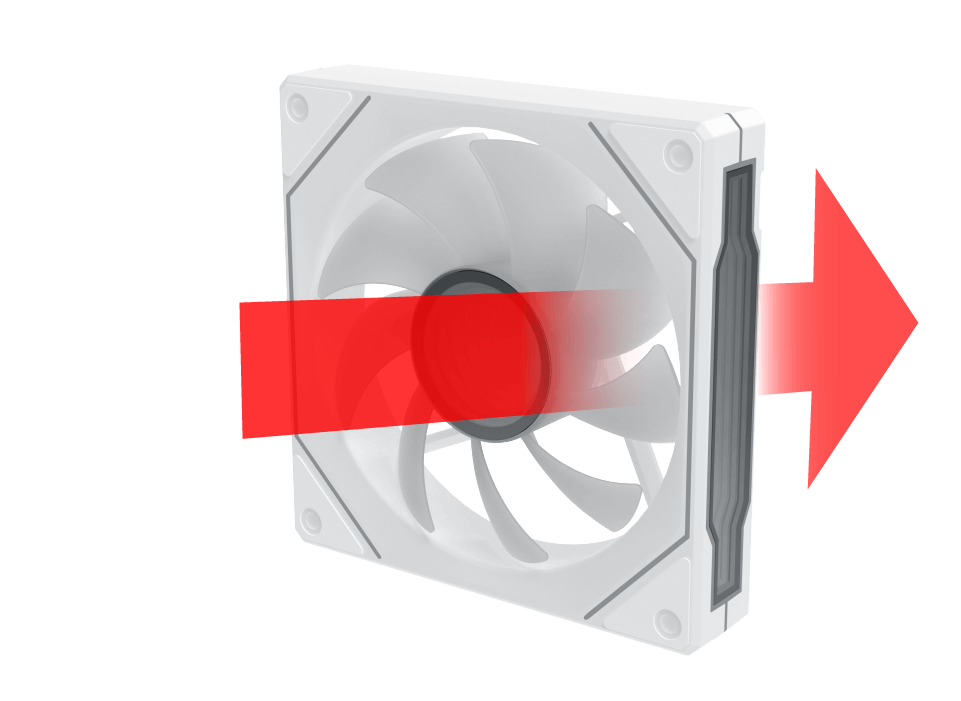

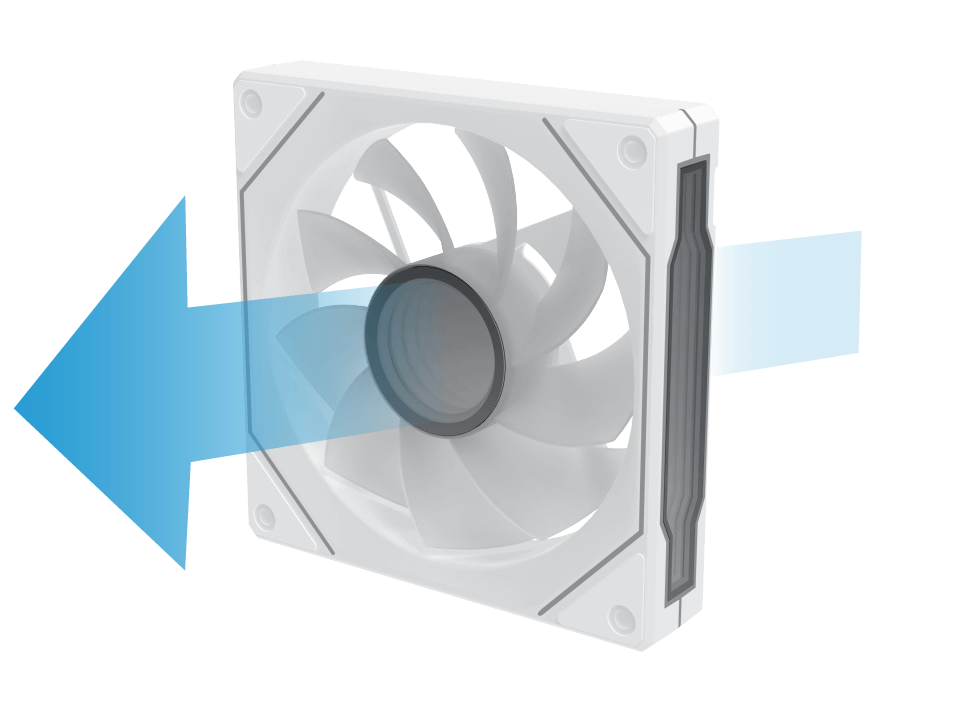

Reverse Fan Blade
Pre-installed on MB Panel Side
Superior Airflow and
Ventilation Design

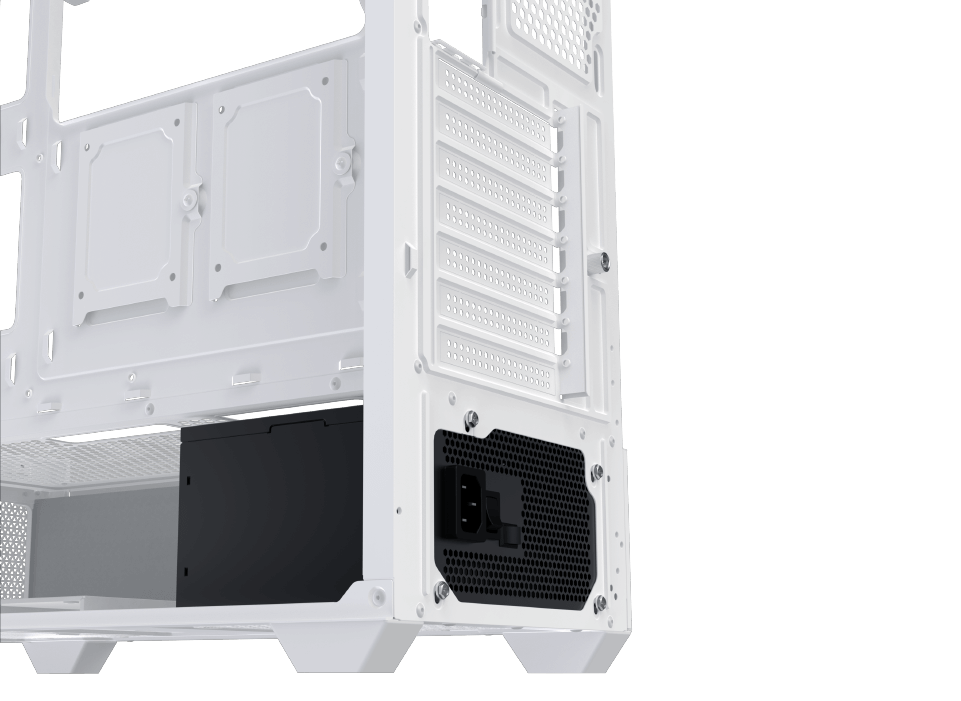

PSU Limitation
up to 200mm

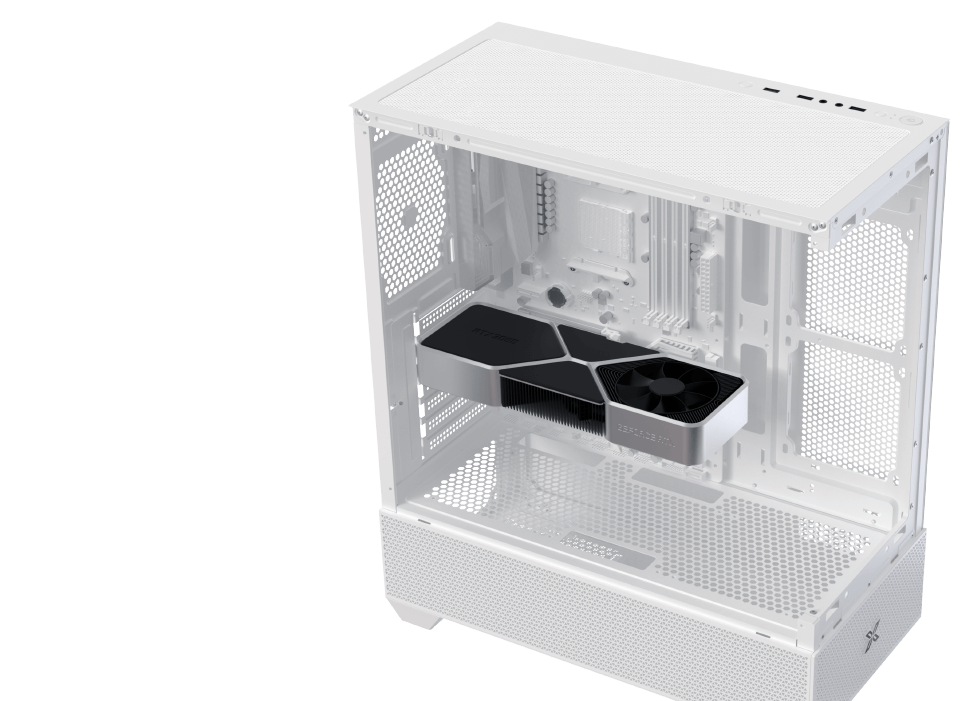

GPU Length Limitation
up to 410mm

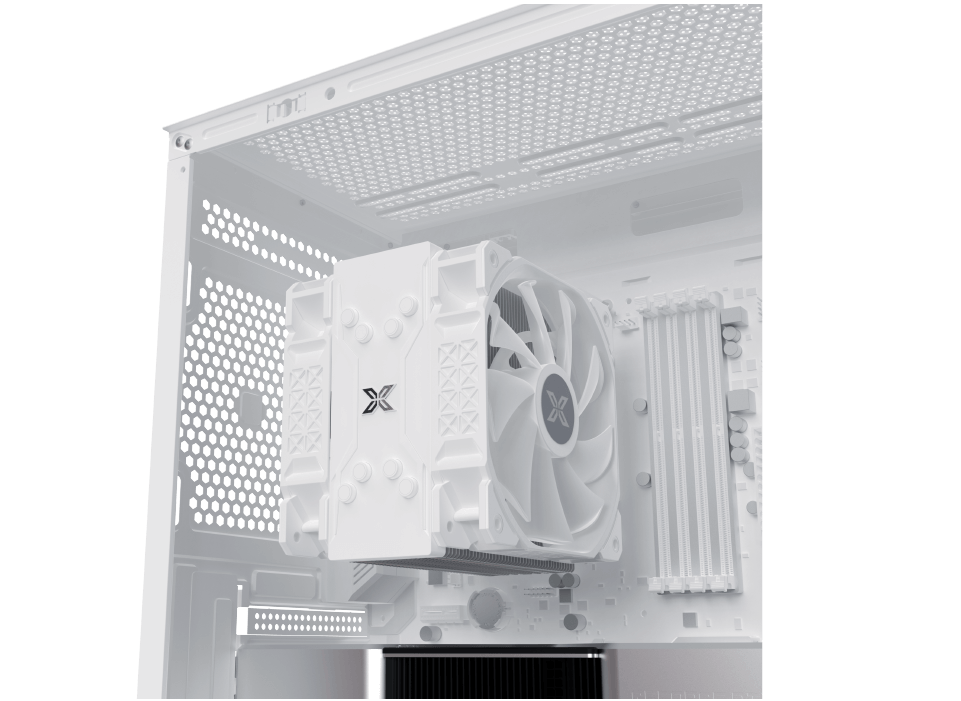

CPU Cooler Clearance
up to 165 mm

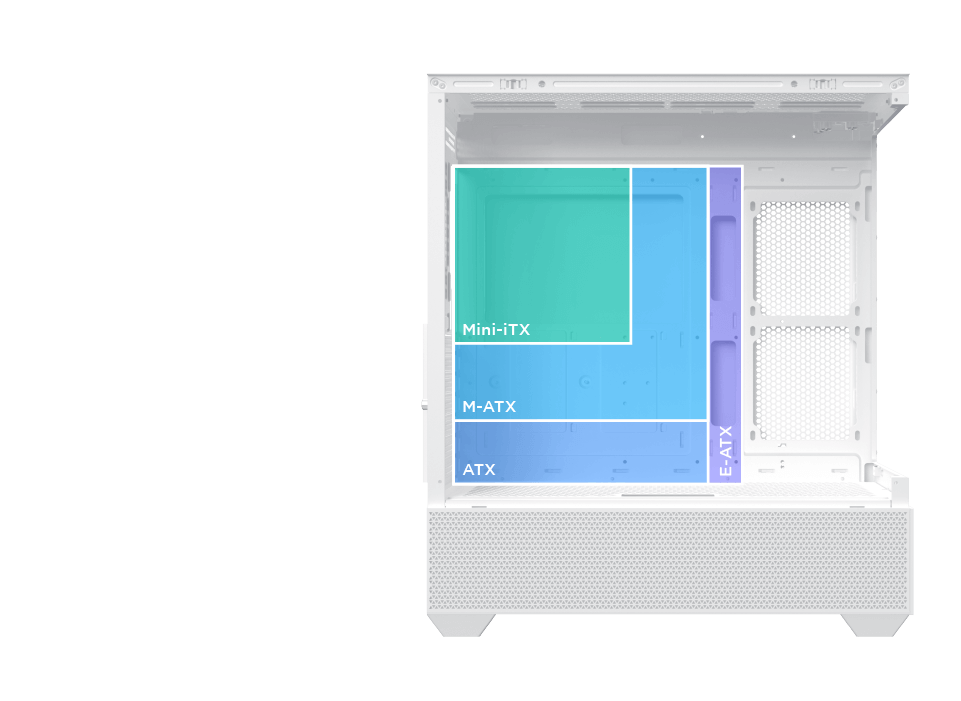

Support Motherboard
up to E-ATX

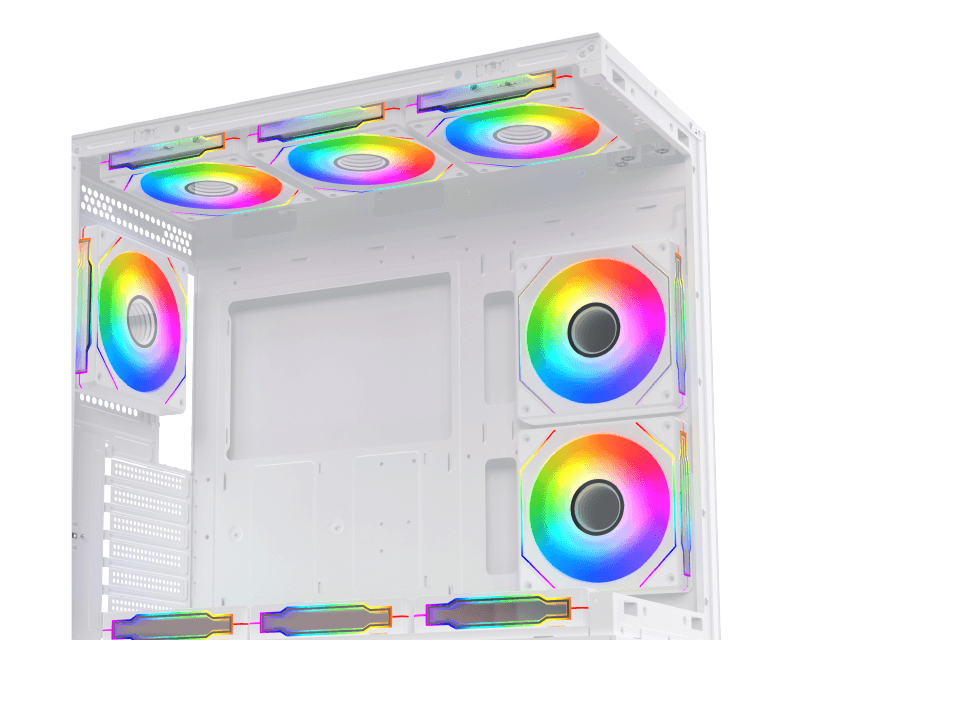

Fan Support 9 pcs Max.

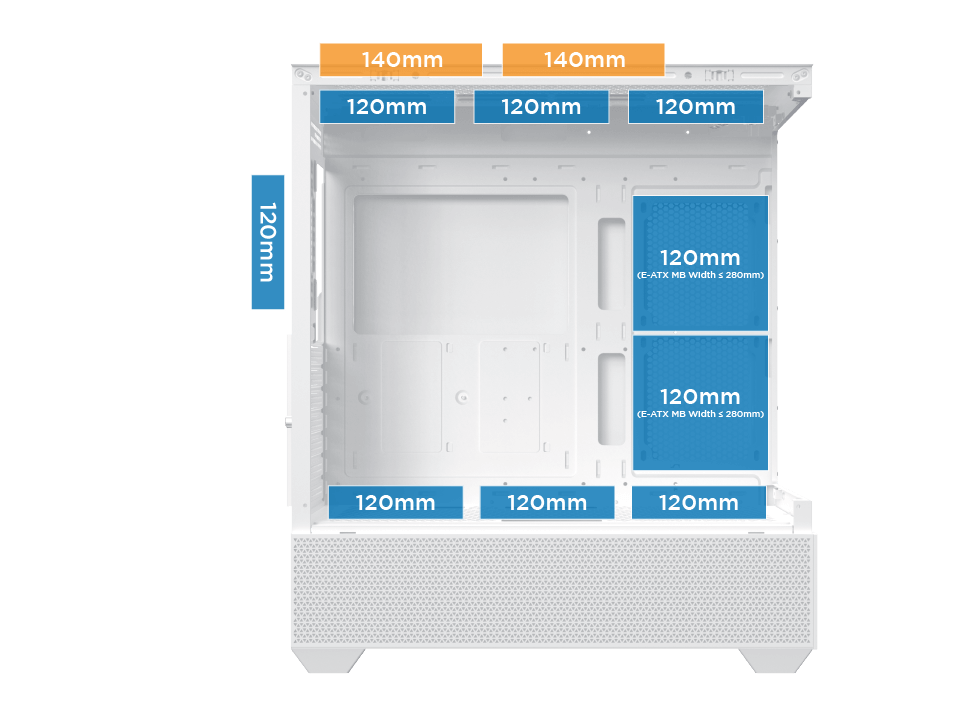

Fan Support
Top: 120mm x3 or 140mm x2
MB: 120mm x2
(E-ATX MB Width ≤ 280mm)
PSU Shroud: 120mm x3
Rear: 120mm x1

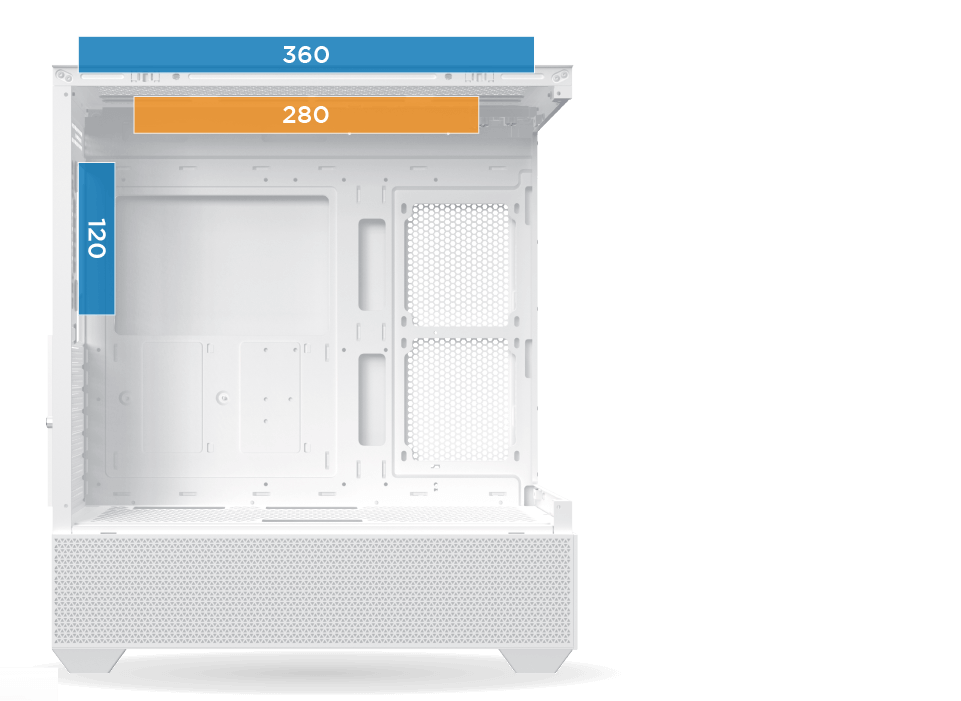

Radiator Support
Top: 280 or 360
(No Memory Limit)
Rear: 120

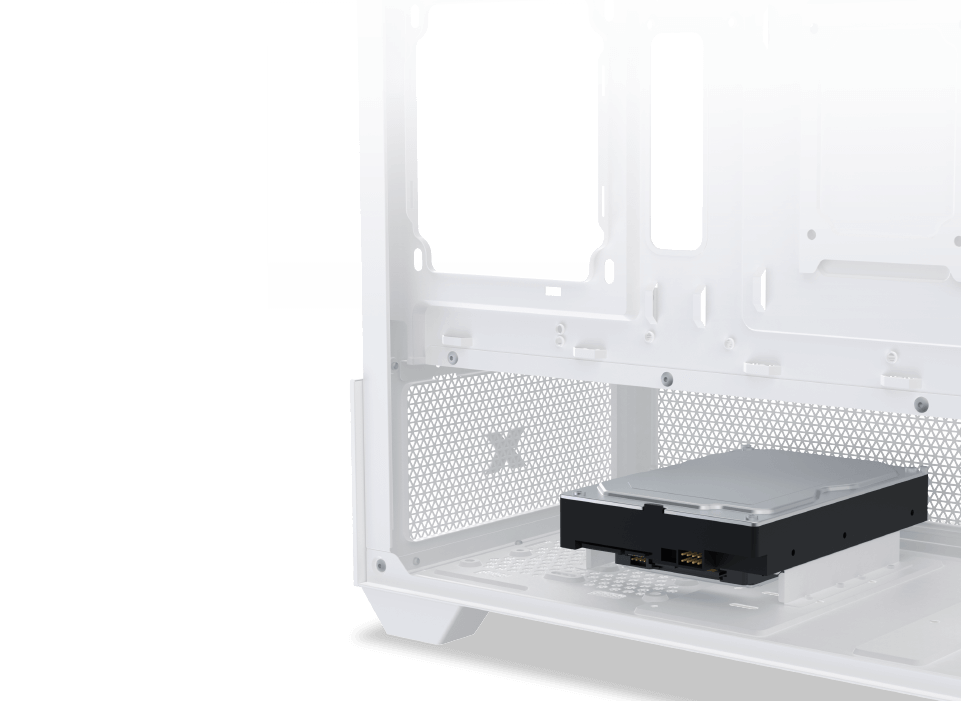

Drive Bays
HDD Cage(Top): 3.5″ x1
HDD Cage(Bottom): 2.5″ x1

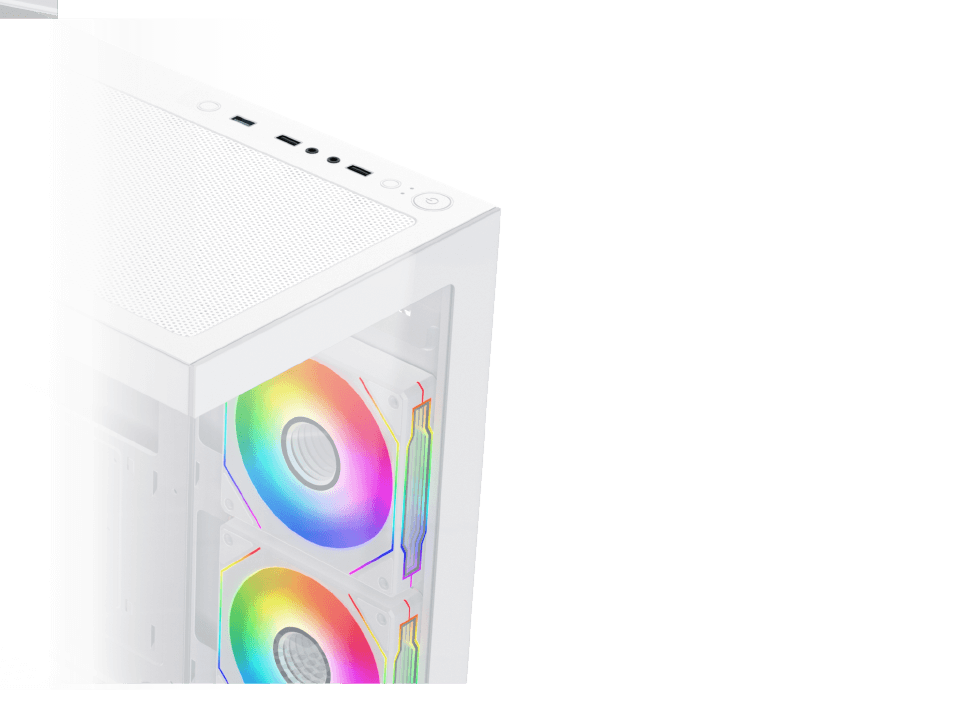

TOP MOUNT I/O PORTS
*All Product Images Shown Are For Illustration Purpose Only.

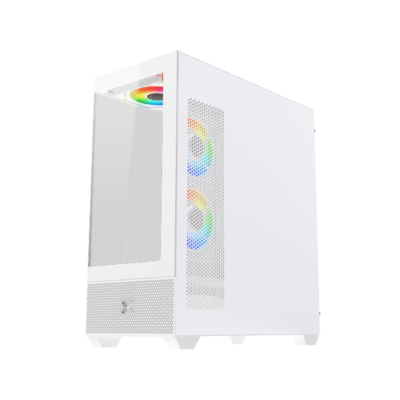

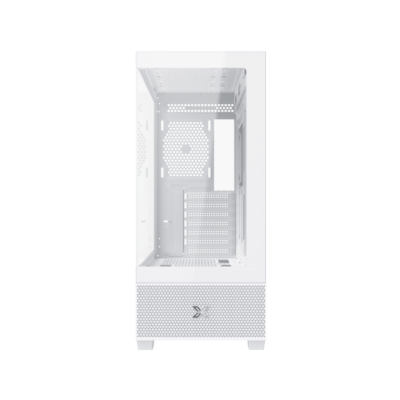

Alphard Arctic
Steel
425x212x490mm (LxWxH)
HDD Cage(Bottom): 2.5″ x1
HDD Cage(Top): 3.5″ x1
7 Standard Slots
E-ATX, ATX, M-ATX, Mini ITX
Standard PS2 ATX PSU
Top: 120mm x3 or 140mm x2
MB: 120mm x2 (E-ATX MB Width ≤ 280mm)
PSU Shroud: 120mm x3
Rear: 120mm x1
Top: 280 / 360
(No Memory Limit)
Rear: 120
USB 3.0 x 1
USB 2.0 x 2
HD Audio
165mm
410mm
200mm
