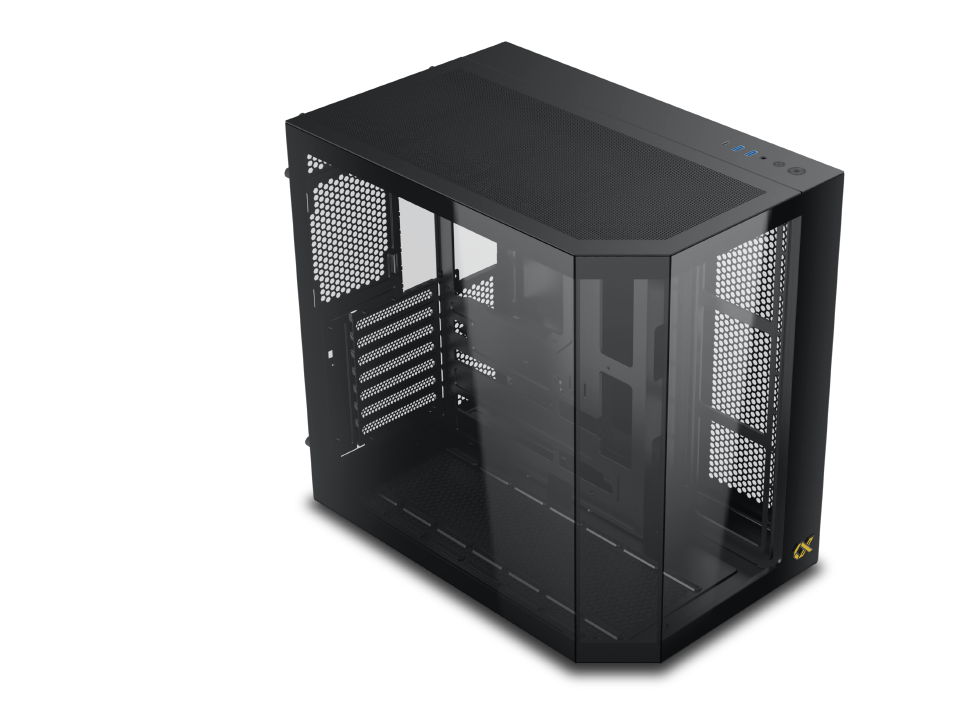

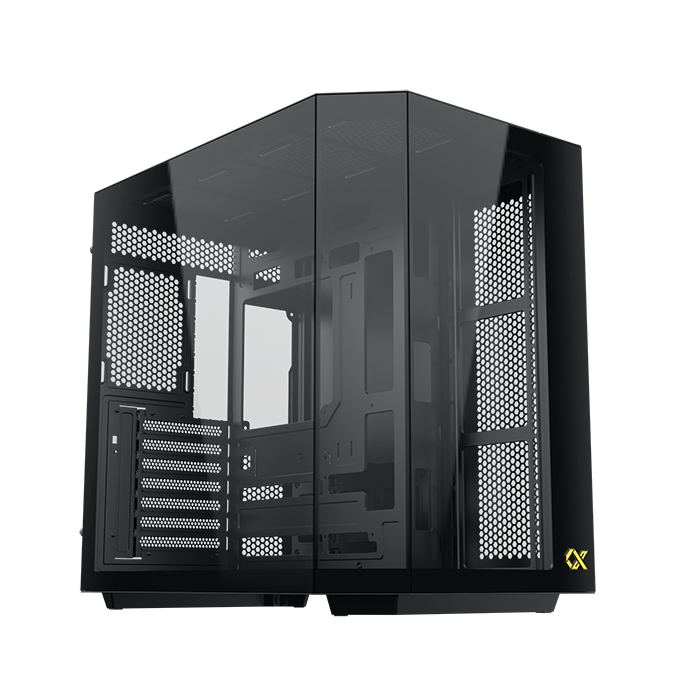

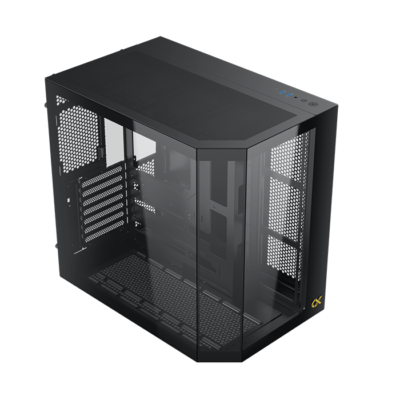

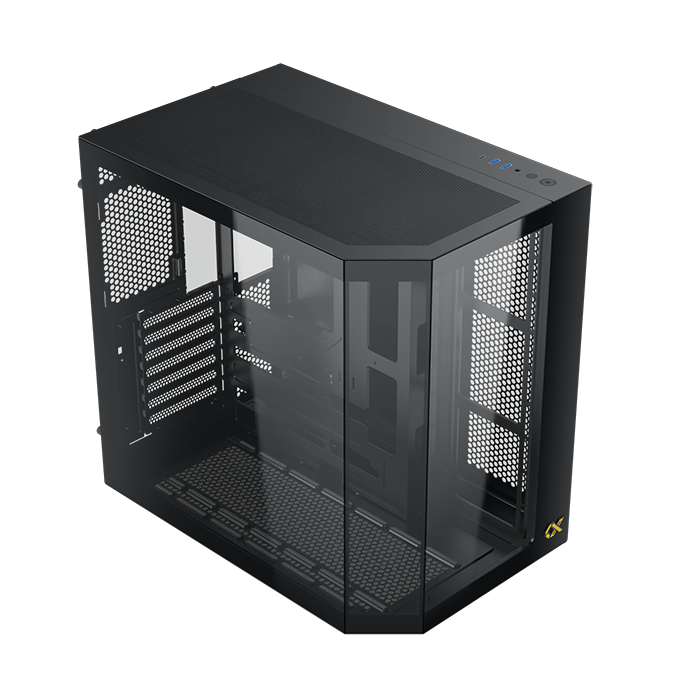

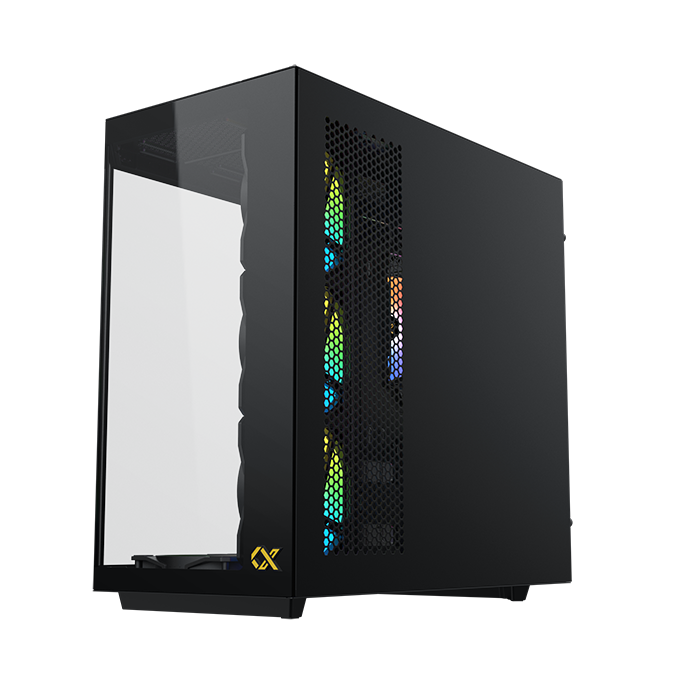

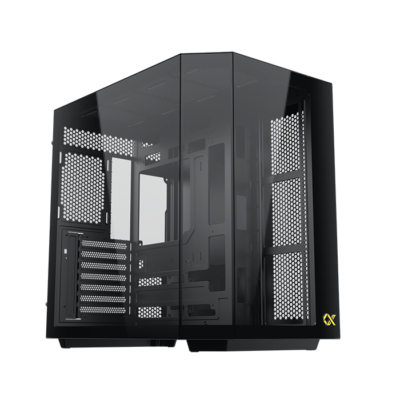

3 Tempered Glass Panel Design

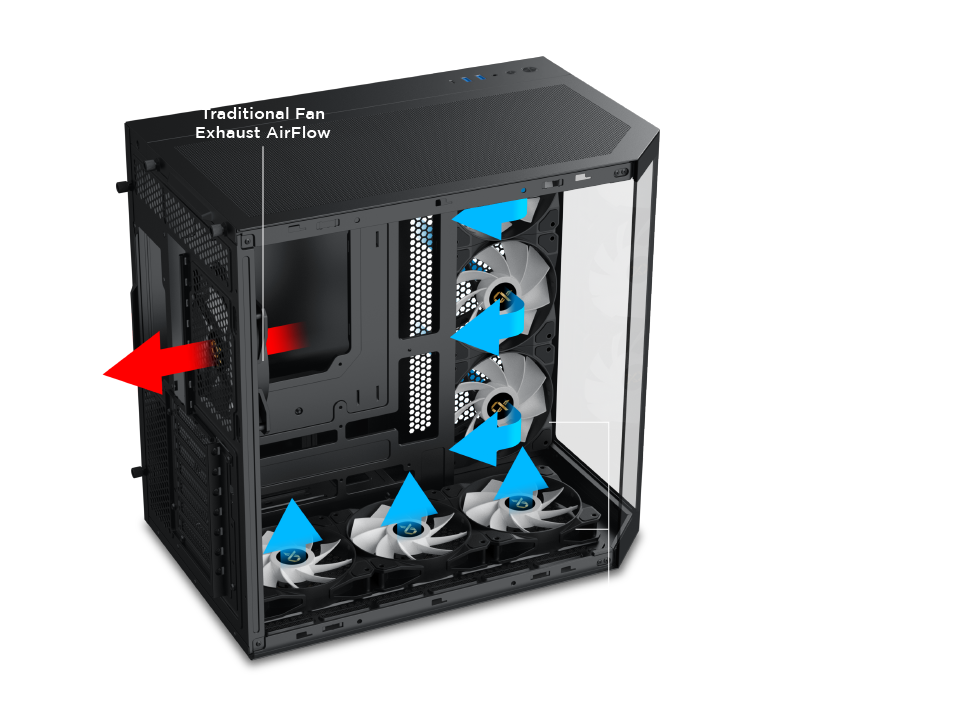

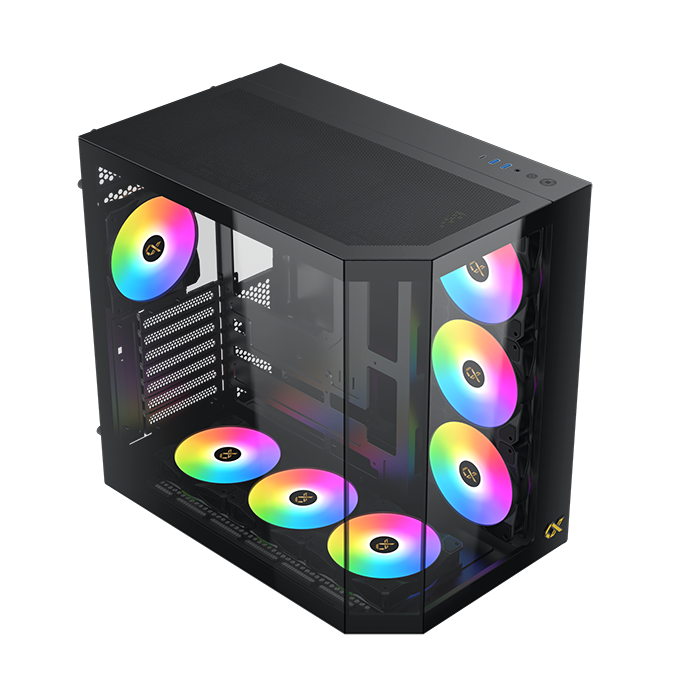

Superior Airflow and Ventilation Design

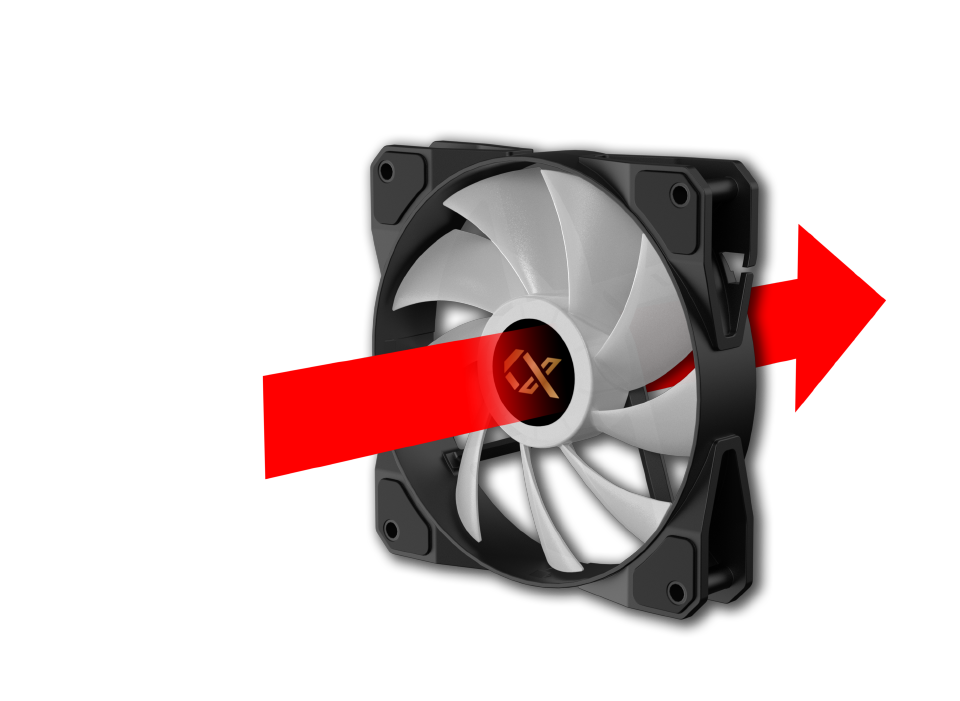

Traditional Fan Blade
Pre-installed on Rear Side

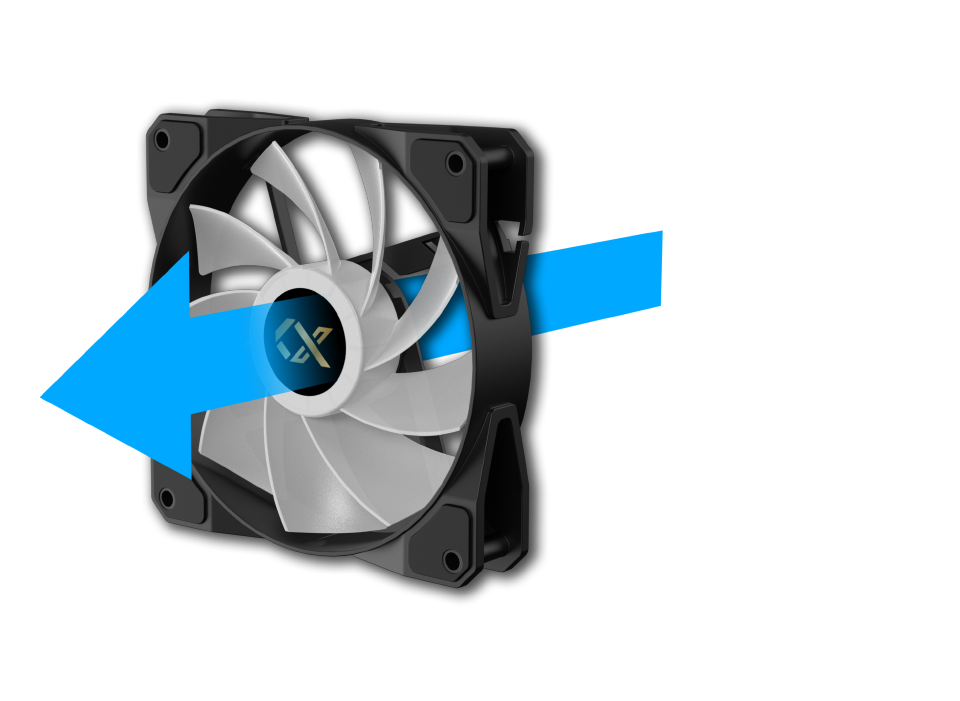

Reverse Fan Blade
Pre-installed on MB Panel & Bottom Side

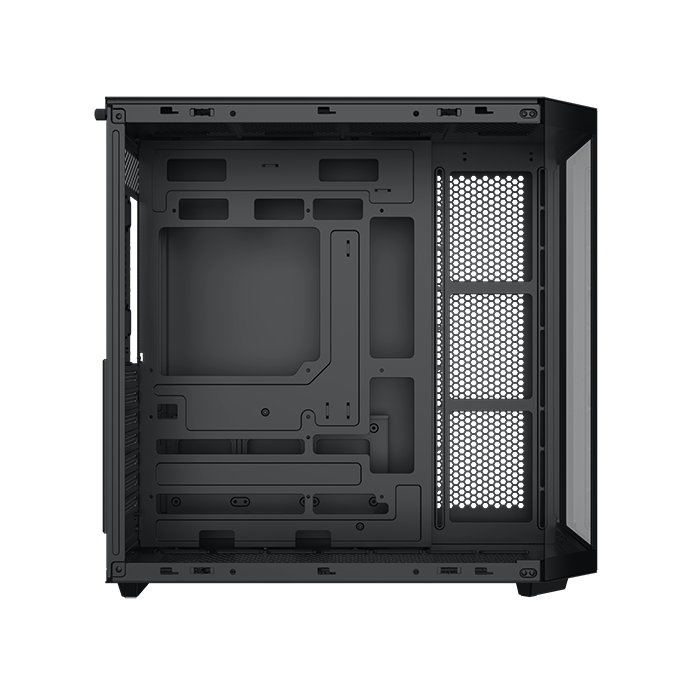

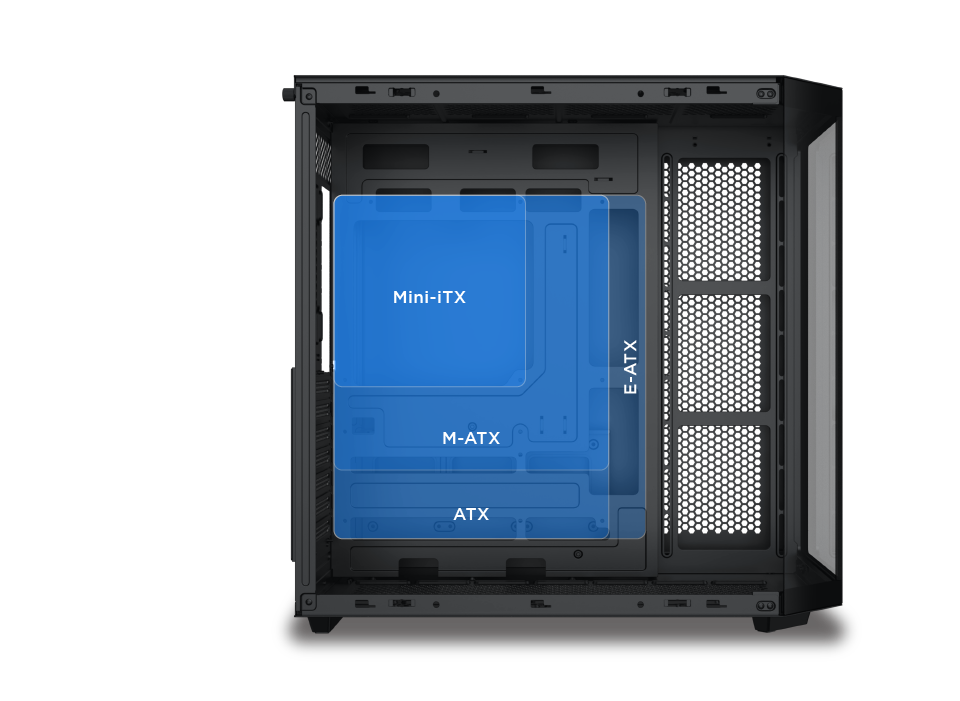

Support Motherboard up to E-ATX

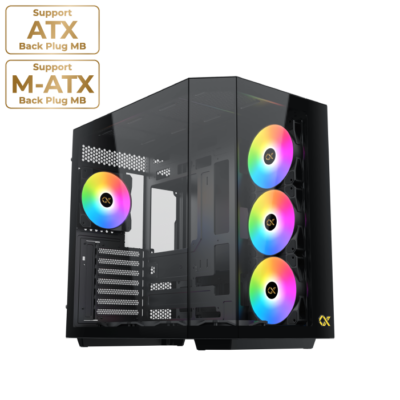

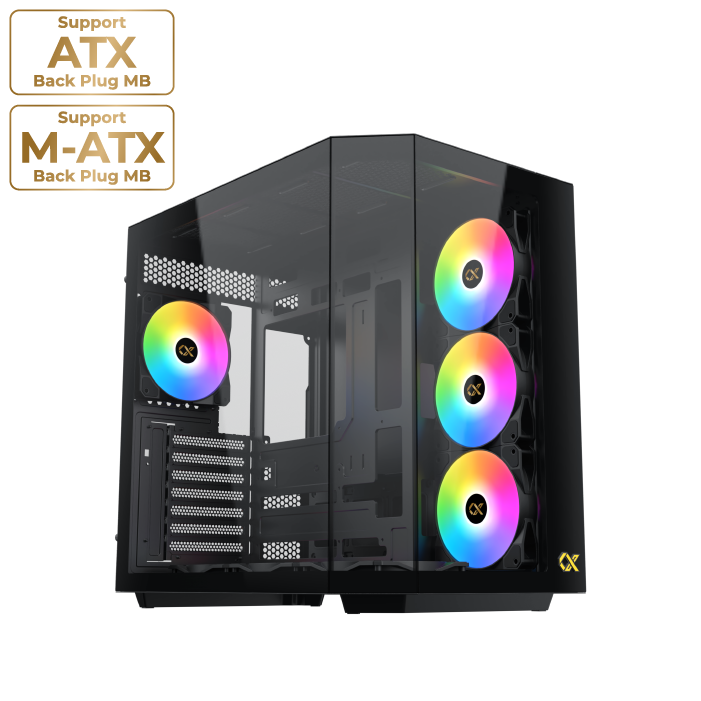

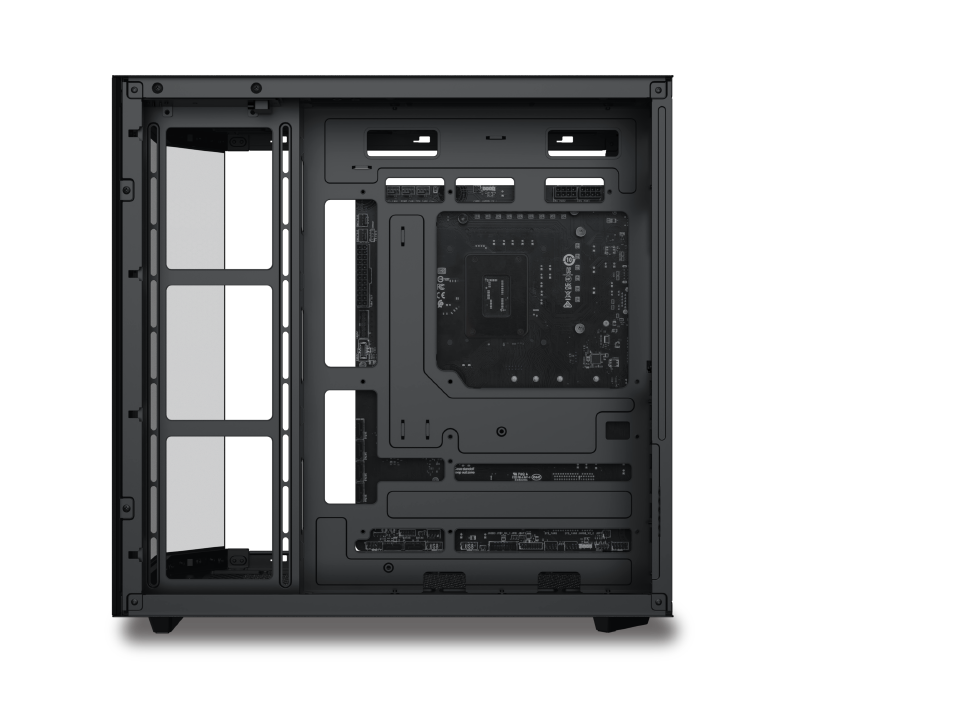

Support ATX Back Plug Motherboard

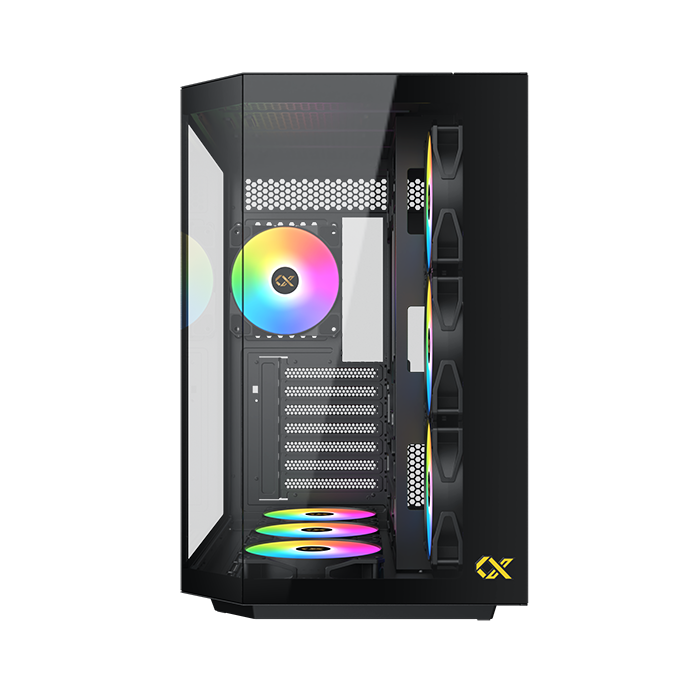

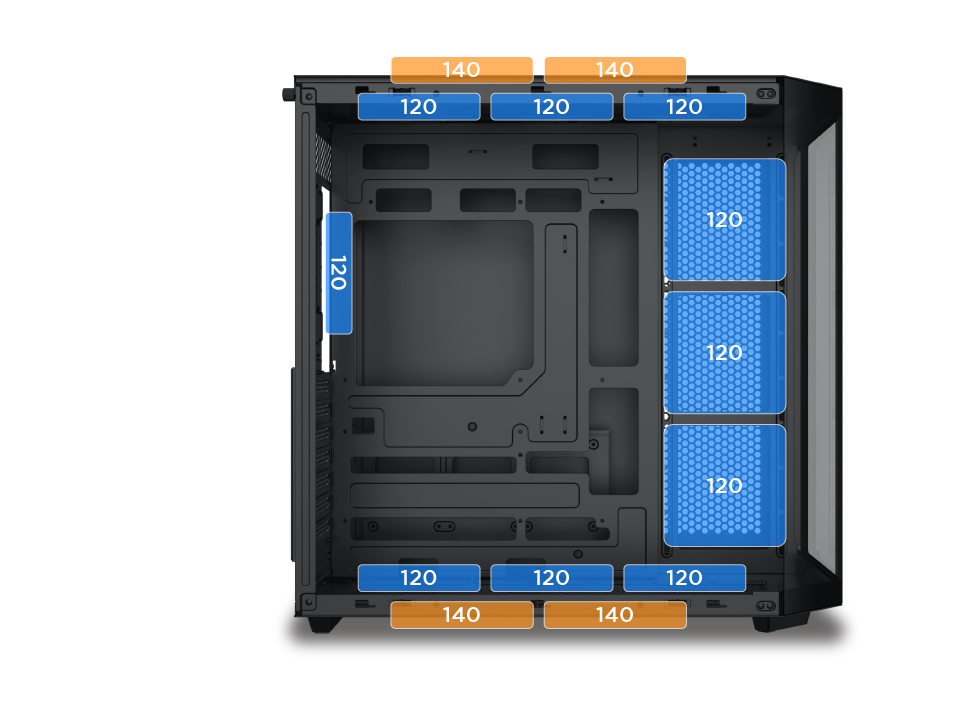

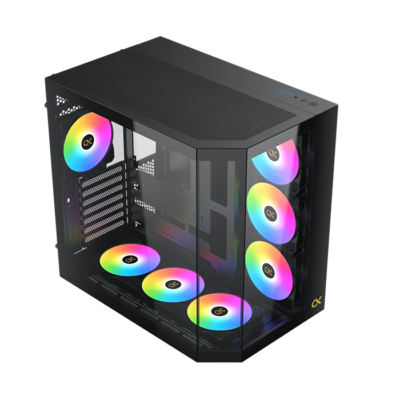

Fan Support
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
Bottom: 120mm x3 or 140mm x2
Rear: 120mm x1

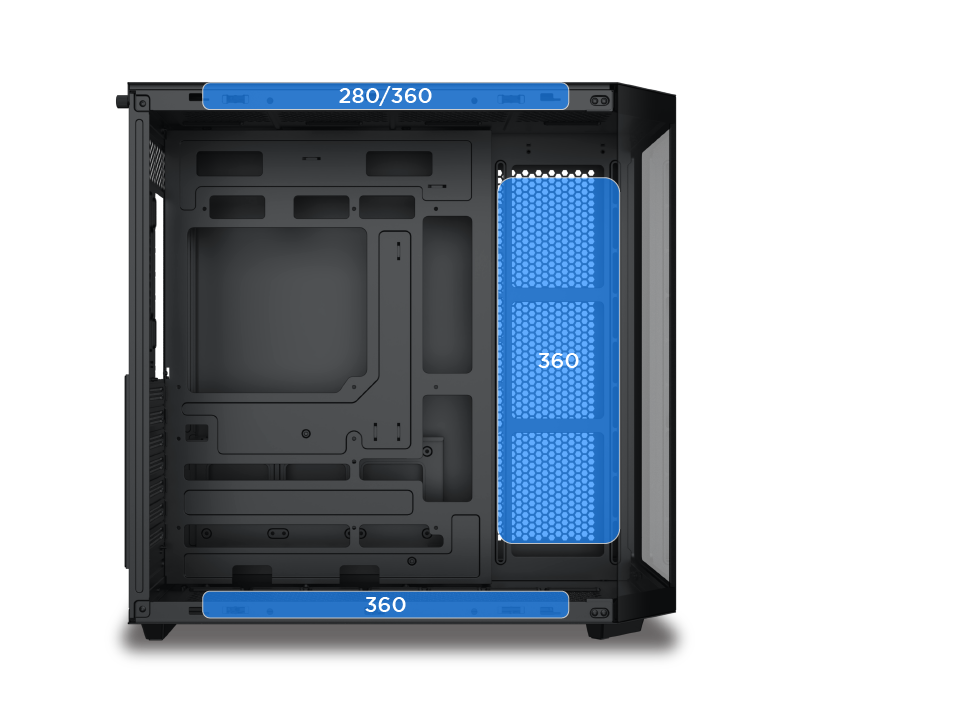

Radiator Support
Top: 280/360
MB Panel: 360
Bottom: 360 (M-ATX MB Only)

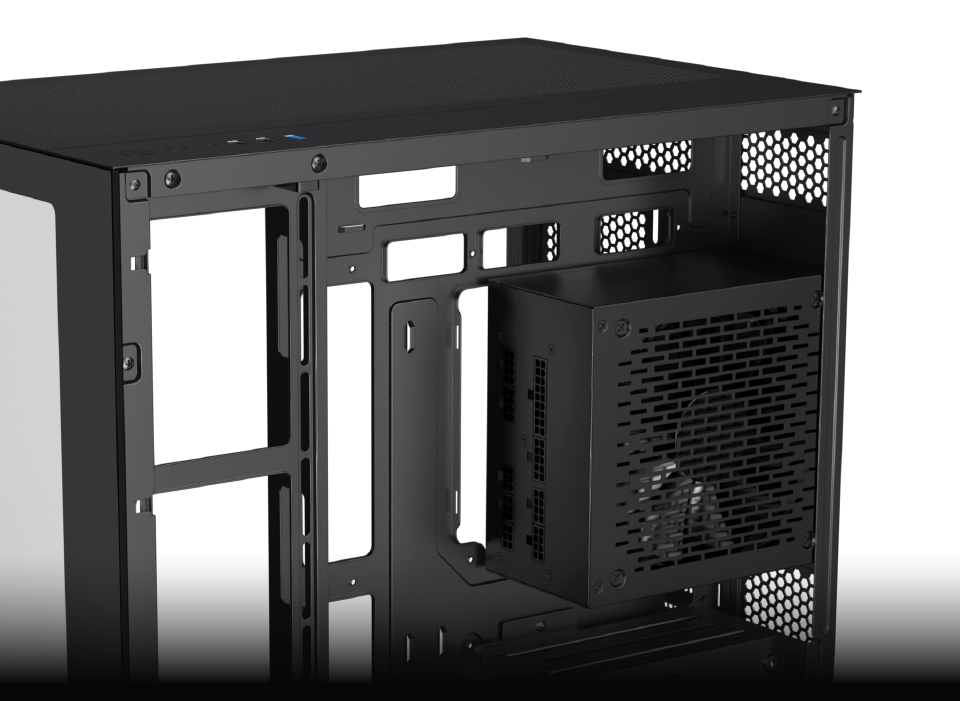

PSU Limitation up to 200mm

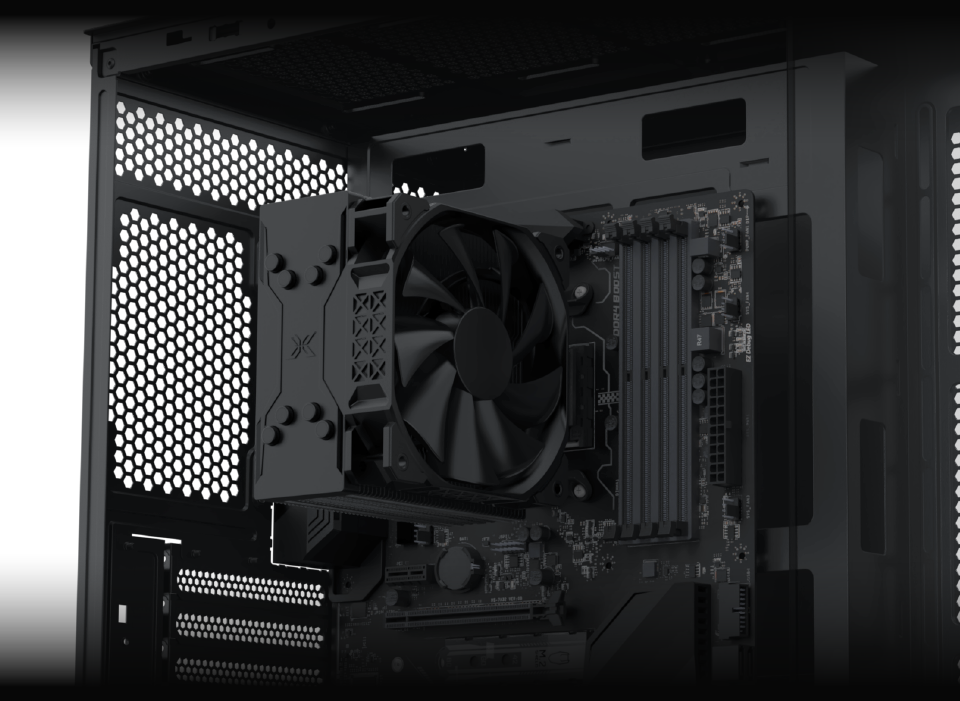

CPU Cooler Clearance up to 165mm
GPU Length Limitation 370mm

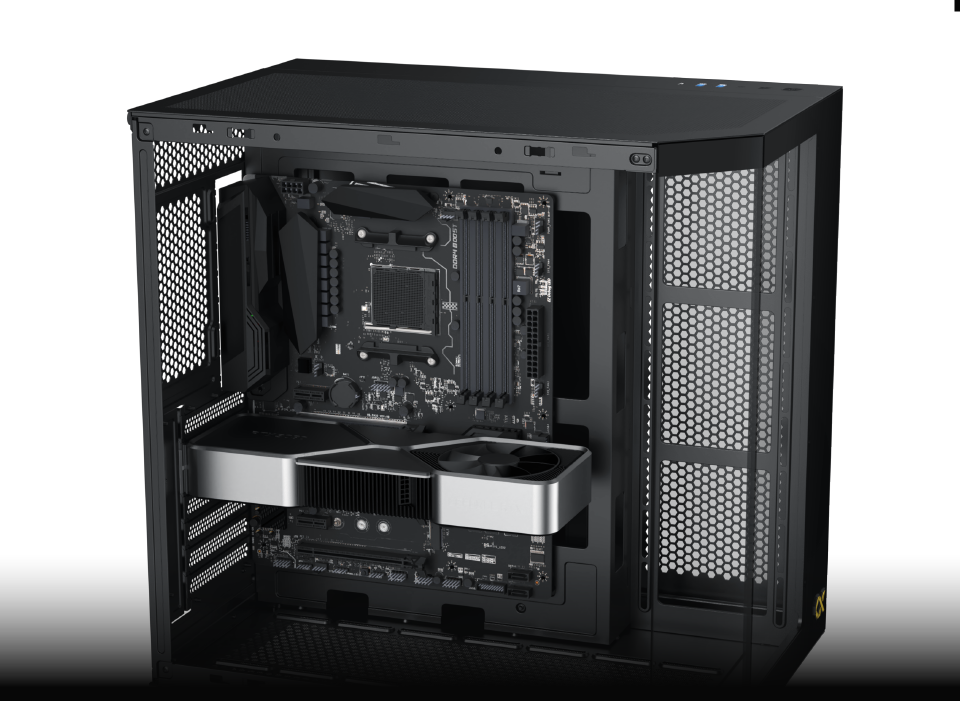

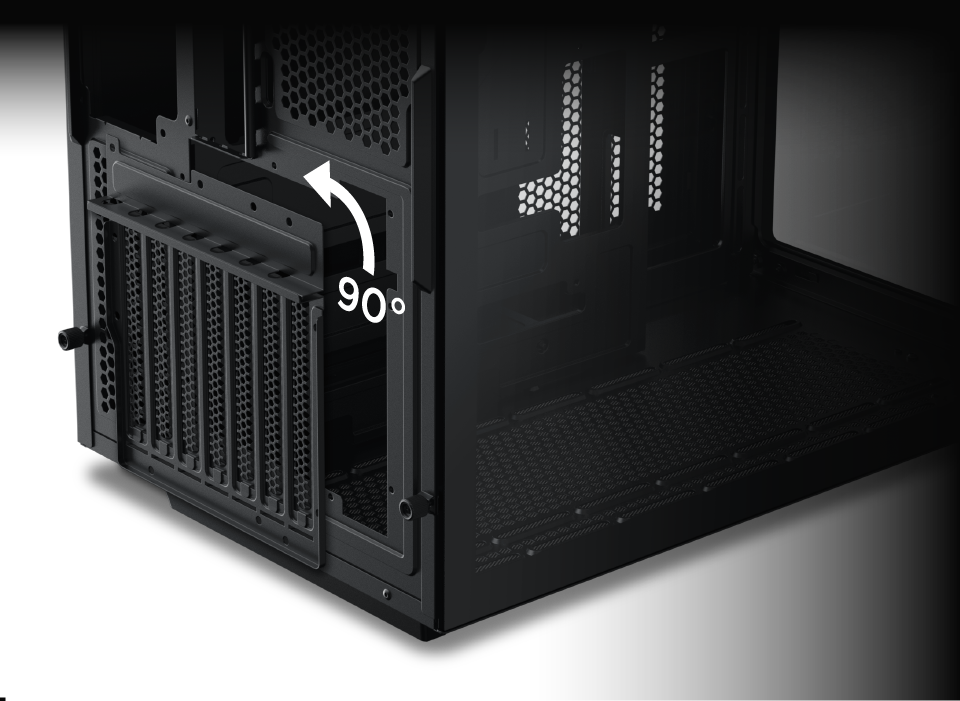

Support GPU Vertical Installation

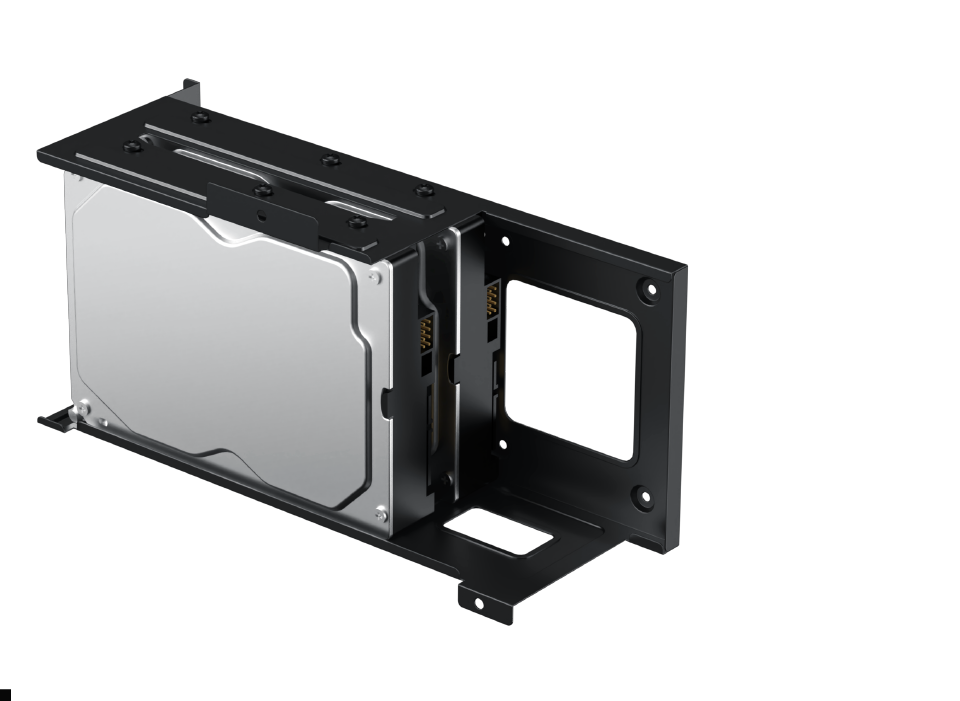

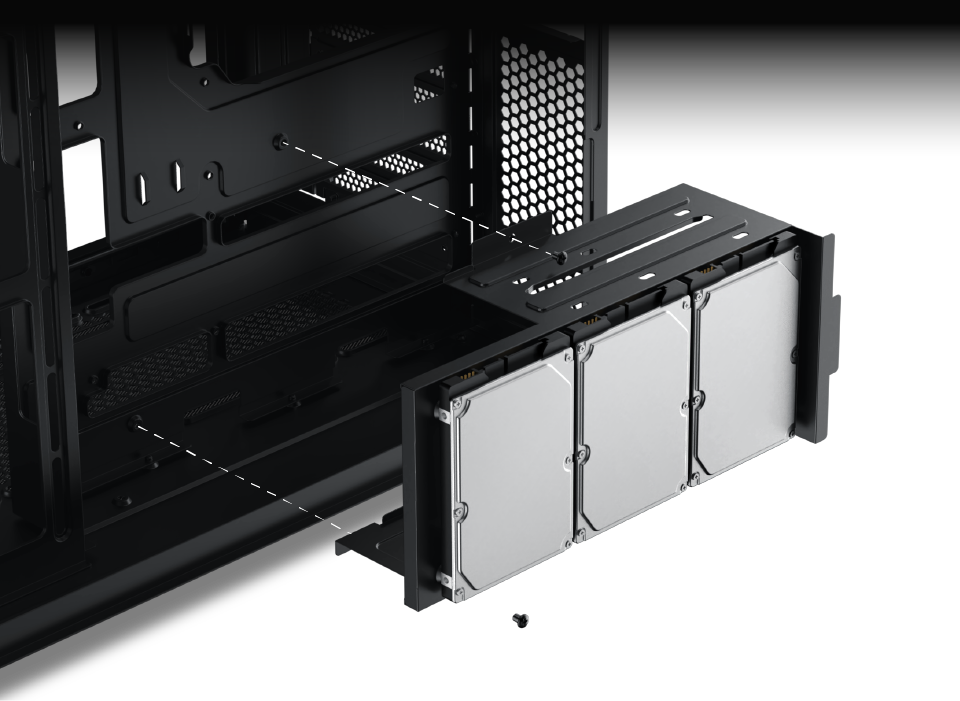

Drive Support
2.5″ SSD x3
Drive Support
3.5″ HDD x2

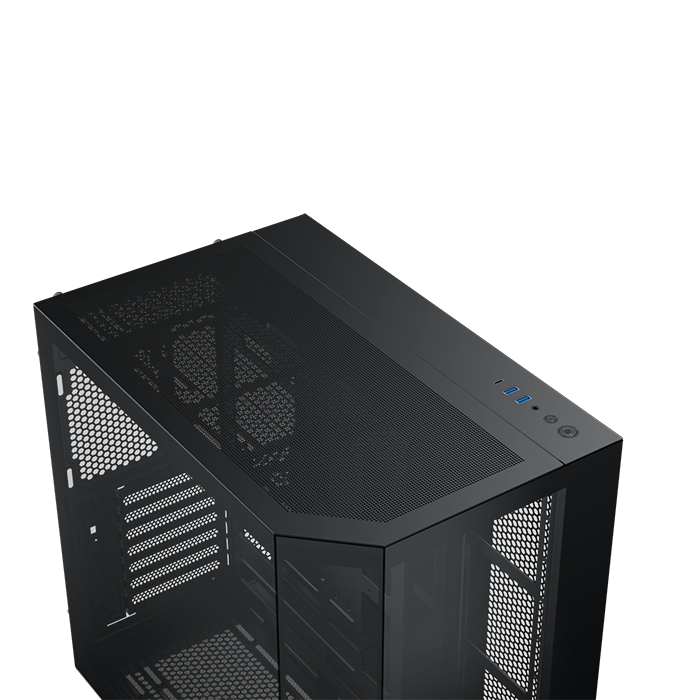

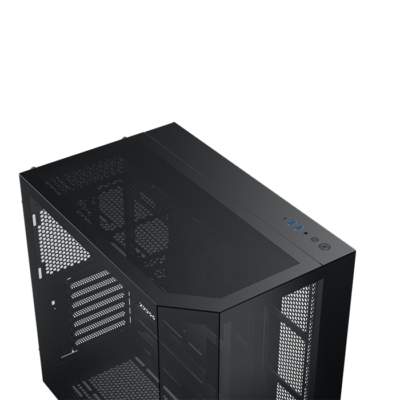

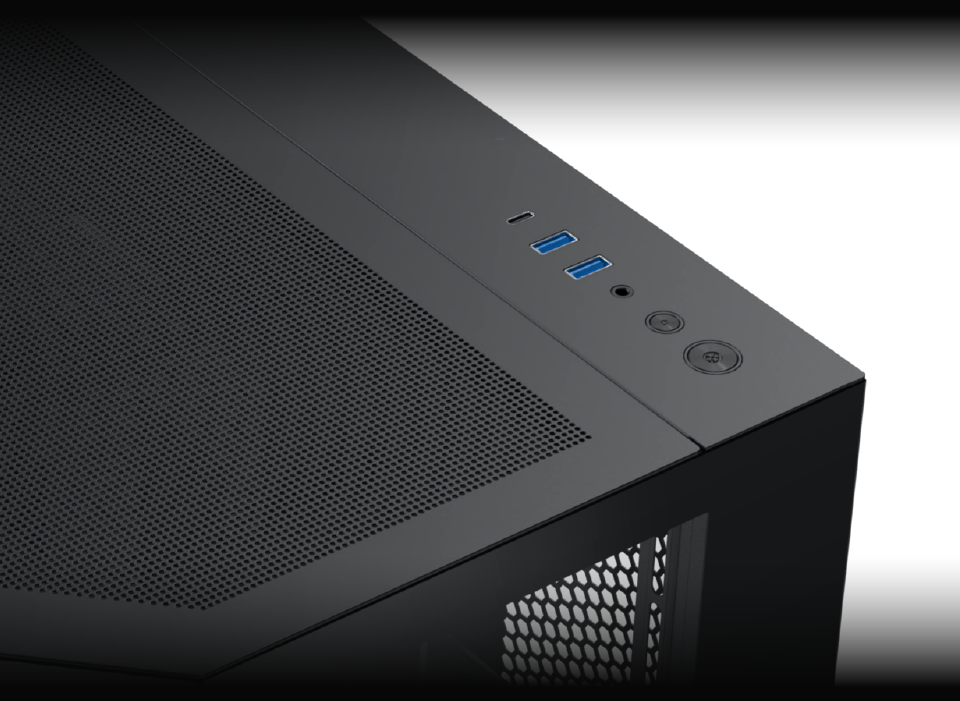

Top Mount I/O Ports
• Power Button
• Reset Button
• HD Audio Jack
• USB 3.0 x2
• USB-C x1
All Product Images Shown Are For Illustration Purpose Only.
CUBI II
Steel
431x277x431mm (LxWxH)
HDD Cage: 3.5″ x2 & 2.5″ x3

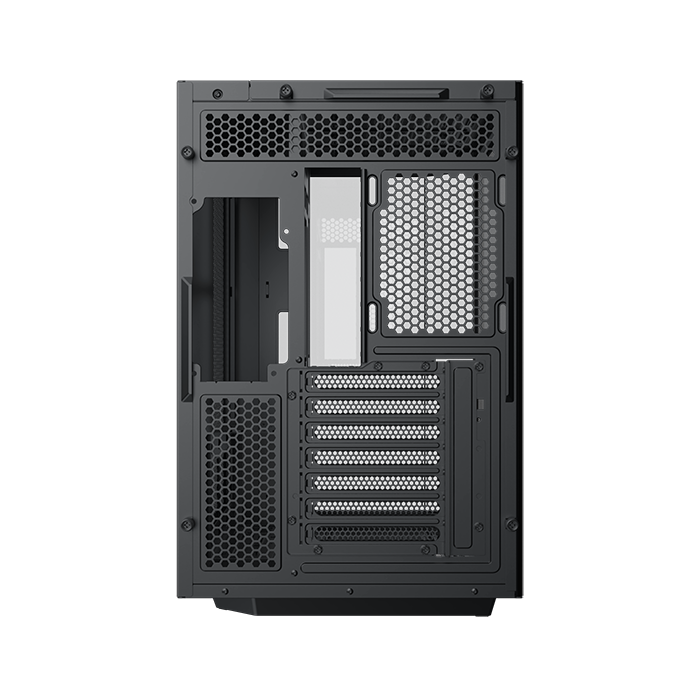

7 Standard Slots, Support VGA Card Vertical Installation
E-ATX
ATX (Support Back Plug)
Micro ATX (Support Back Plug)
Mini ITX
Standard PS2 ATX PSU
Top: 120mm x3 or 140mmx2
MB Panel: 120mm x3
Bottom: 120mm x3 or 140mmx2
Rear: 120mm x1
Top: 280/360
MB Panel: 360
Bottom: 360 (M-ATX MB Only)
USB 3.0 x2
USB-C x1
HD Audio
165mm
370mm
200mm
