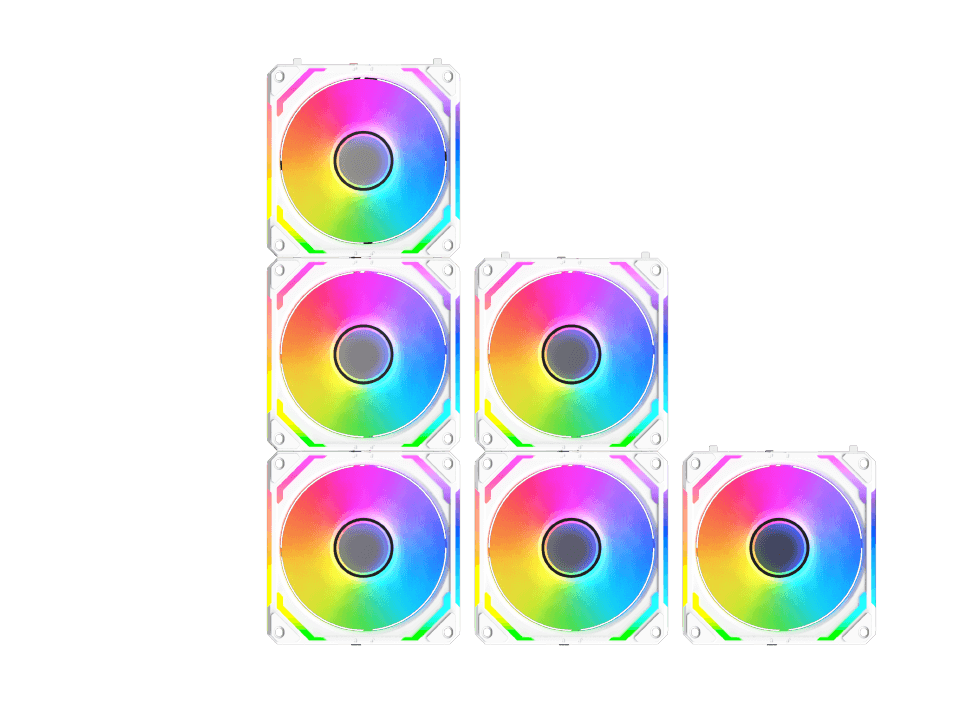

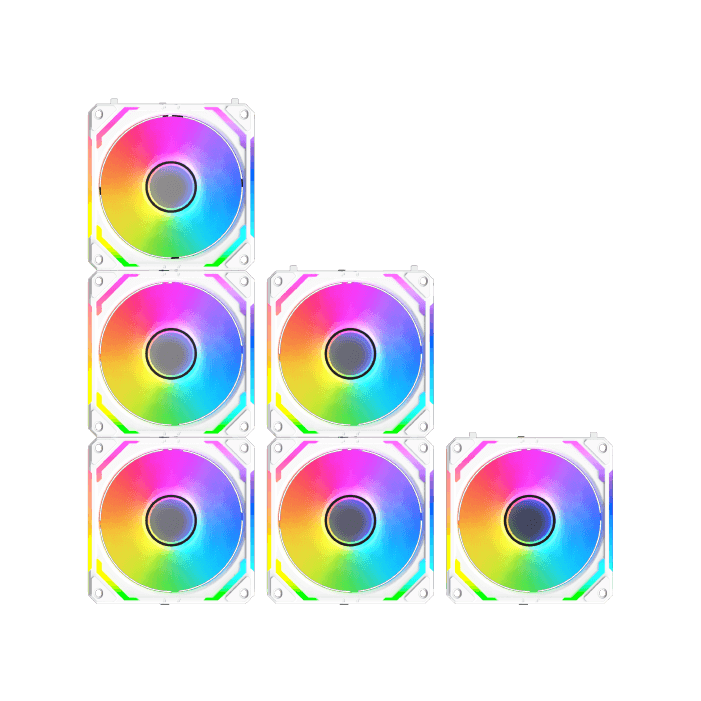

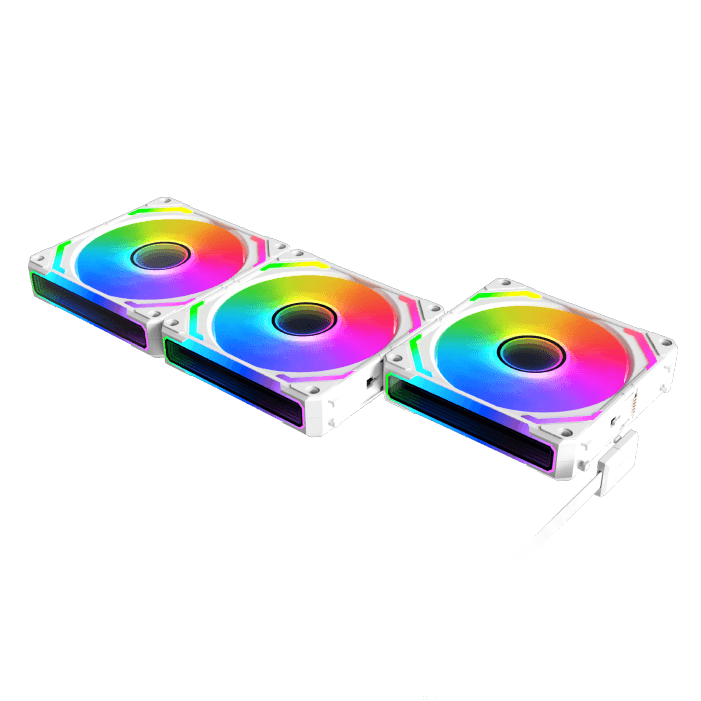

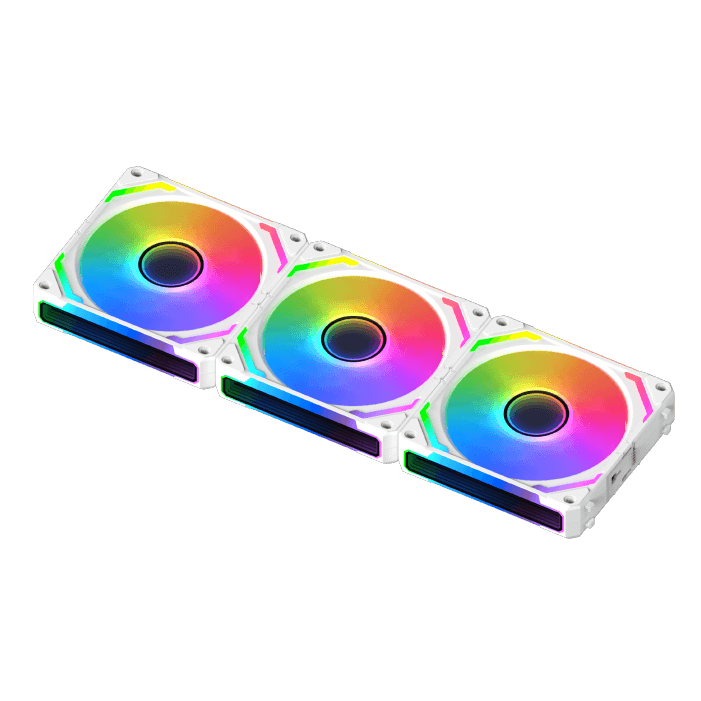

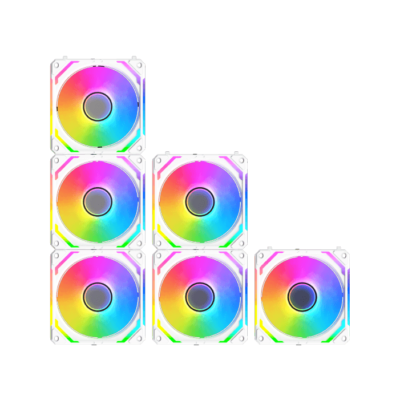

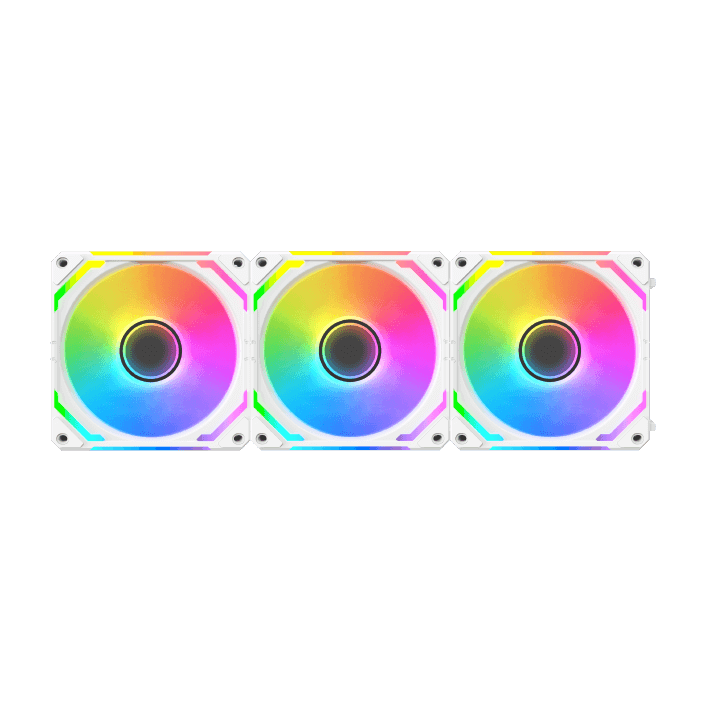

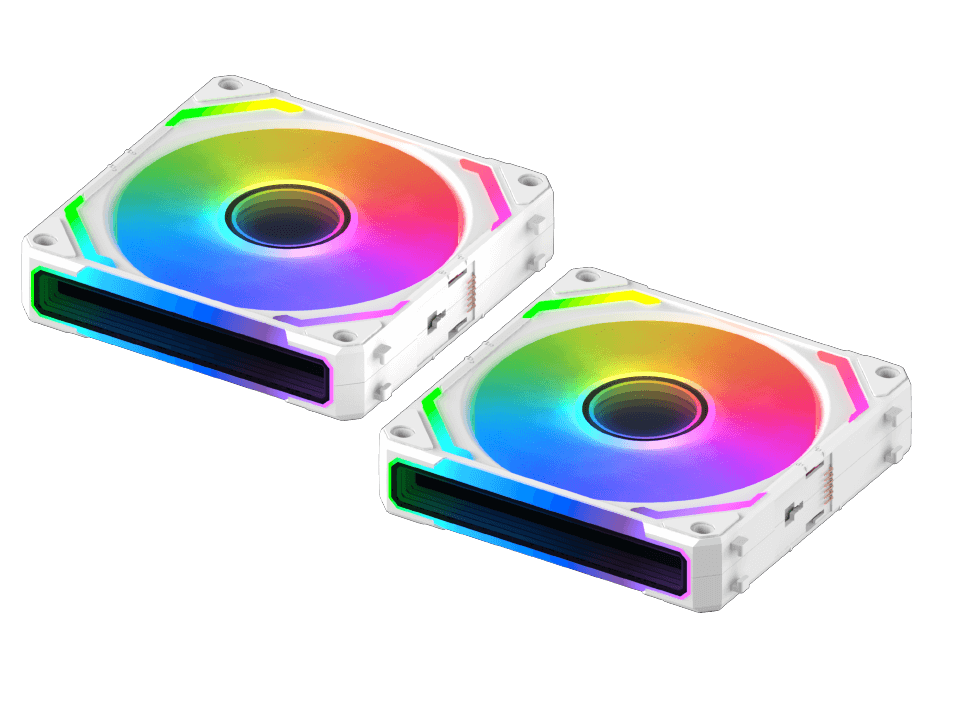

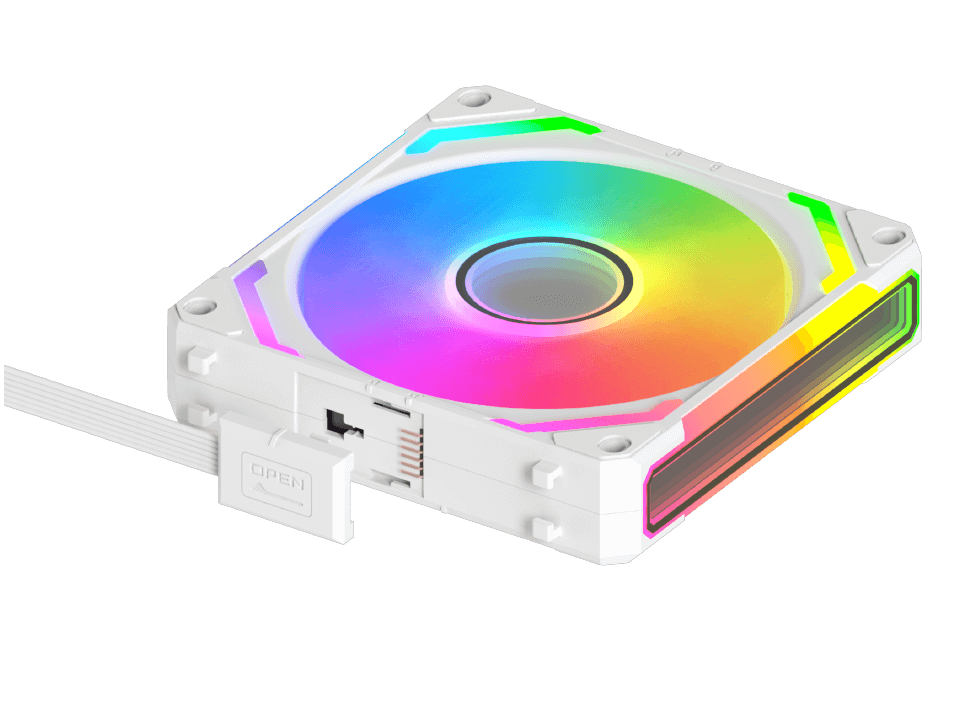

Flexible Modular Design
Cable Installation & Removal
Cable Installation & Removal

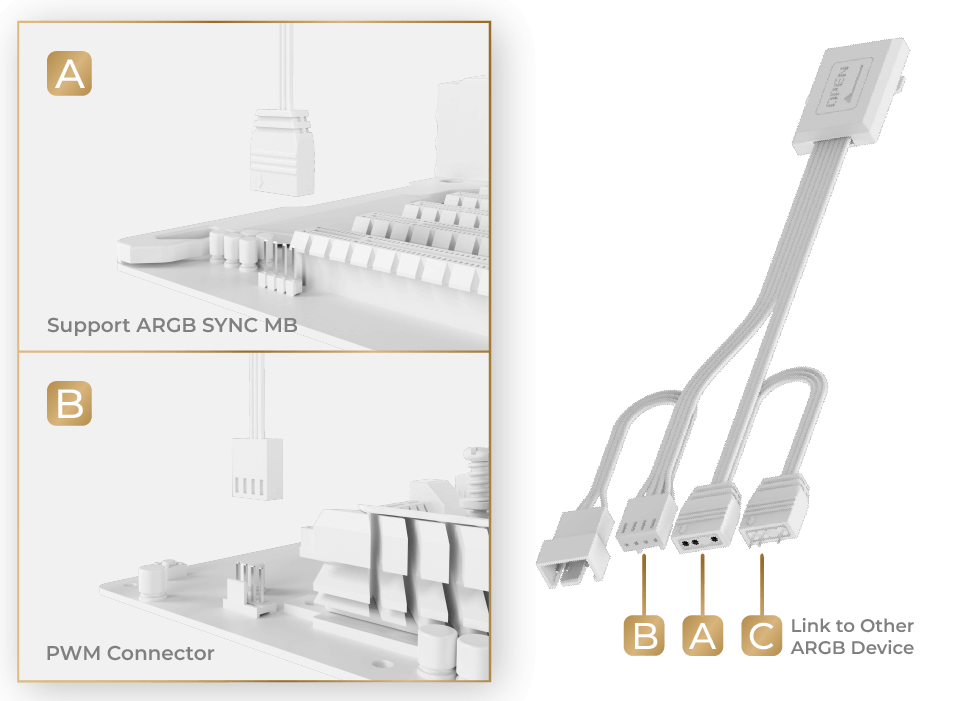

Support ARGB SYNC MB & PWM Connector

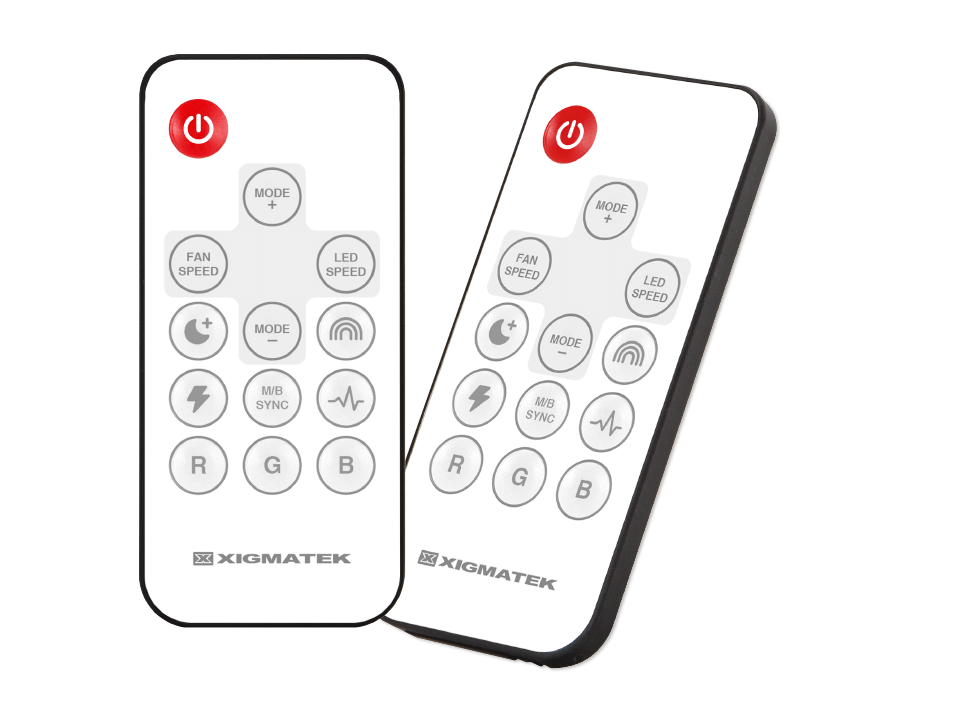

GALAXY II REMOTE CONTROLLER
Controller Box Power Consumption
5V: Total 40W maximum
12V: Total 36W maximumCaution:
Please do not over power the controller box,
it is dangerous and might cause damage!

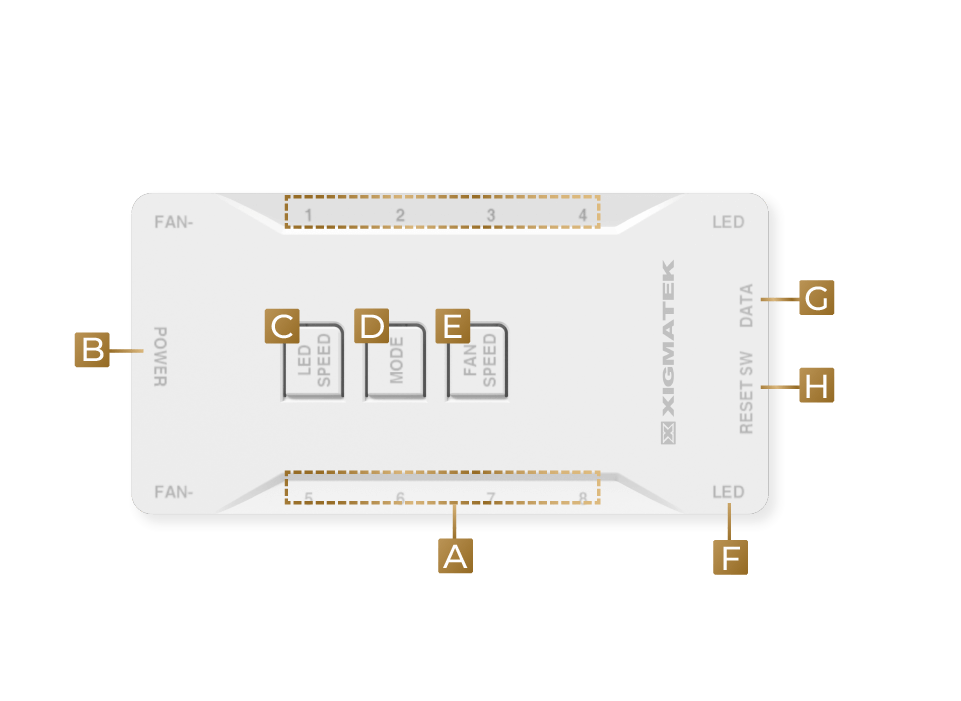

Control Box
A: Fan 1~8: 6Pin Port / 6Pin
B: Power: 4Pin Molex Power Connector (To PSU)
C: PLED SPEED
D: MODE
E:FAN SPEED
F:LED: ARGB Port
(Connect Other ARGB Accessories)
G:DATA: ARGB Port
(Connect to ARGB Motherboard)
H:Reset SW: Connect to PC Case
Reset Button To Change Color Mode
All Product Images Shown Are For Illustration Purpose Only.

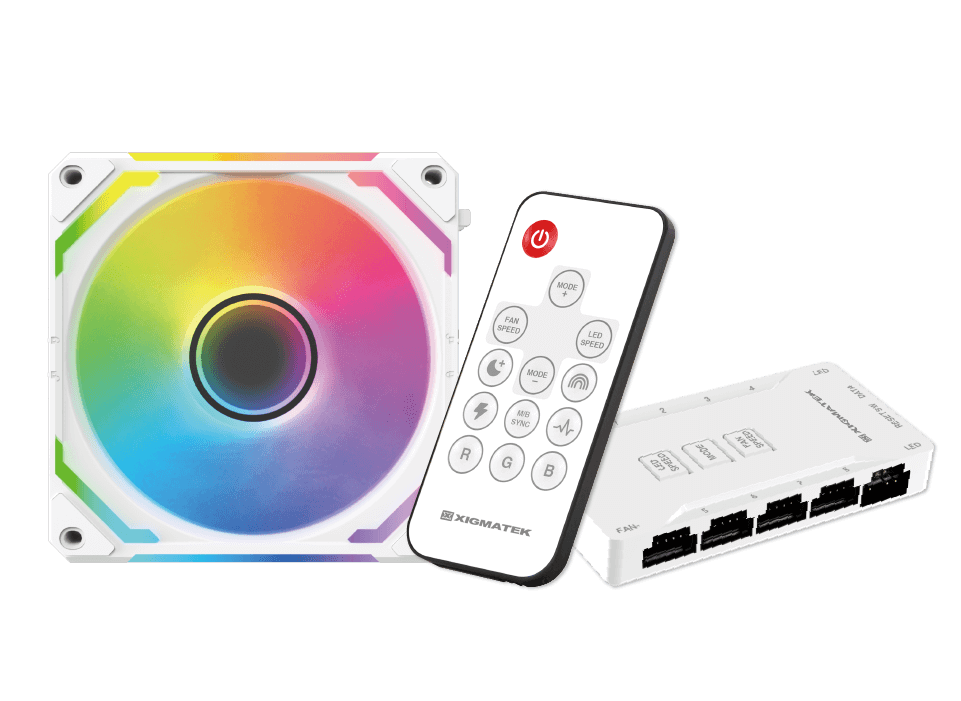

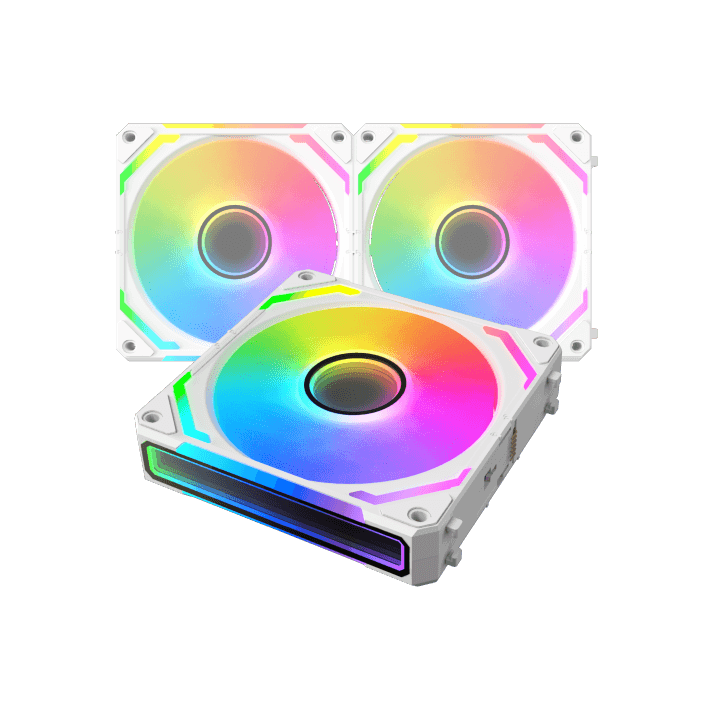

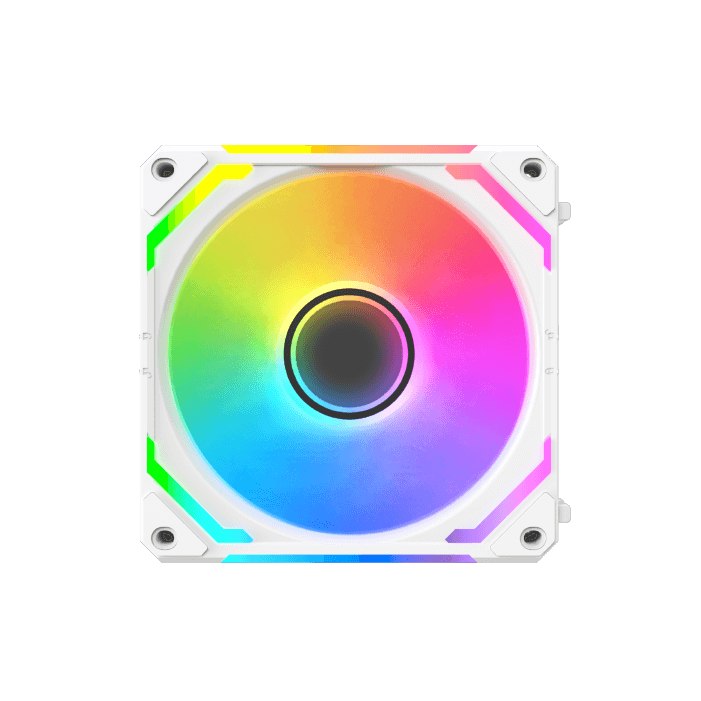

STARLINK ULTRA ARCTIC
120(L) x 120(W) x 25(H) mm
Hydraulic Bearing
Addressable RGB
Support M/B SYNC Hub
800-2000±10% R.P.M
DC 8.0V~13.8V
5V 0.864A 4.32W
12V 0.16A 1.92W
<29.2 dBA
68.5 CFM
2.05 mmH2O
30,000 Hours
3 Fan Pack
Smart Fan Control Box,
Remote Controller,
Fan Screws
