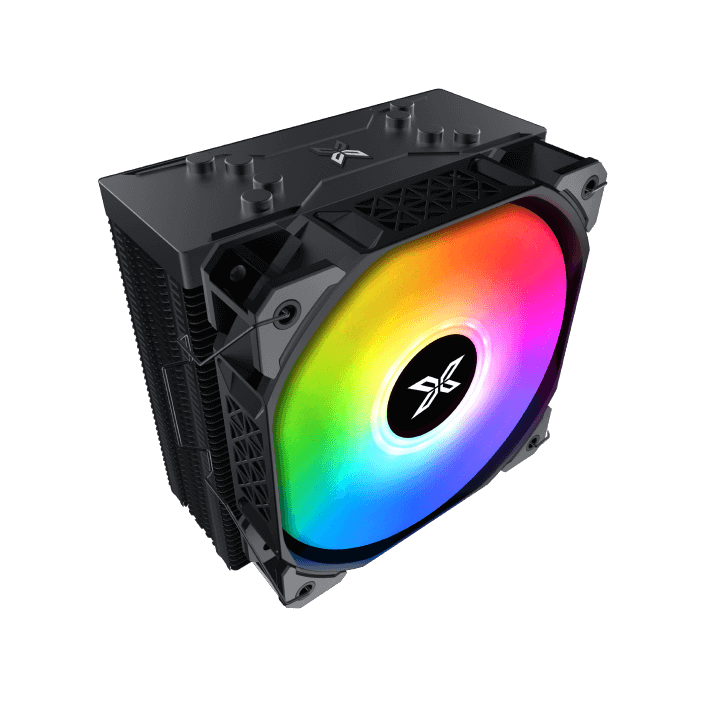

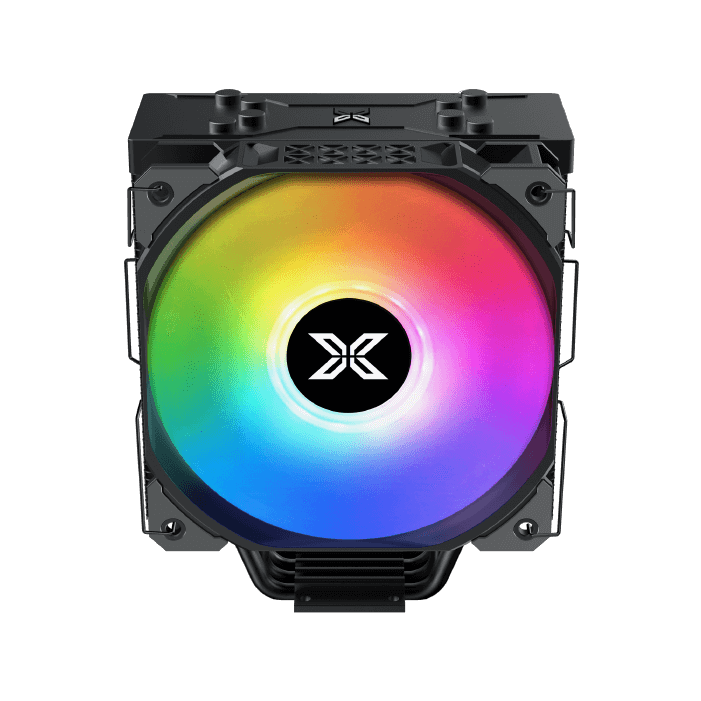

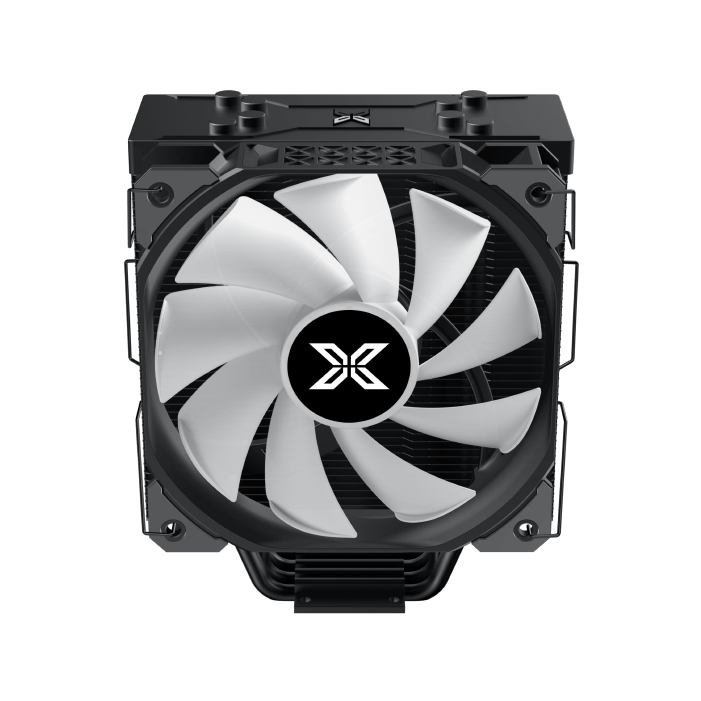

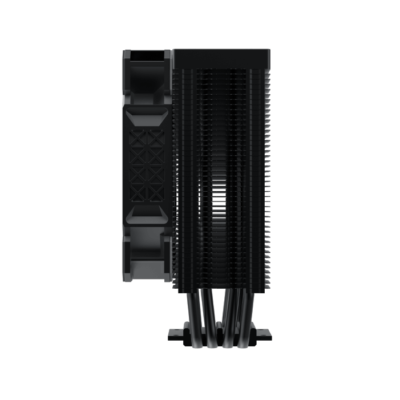

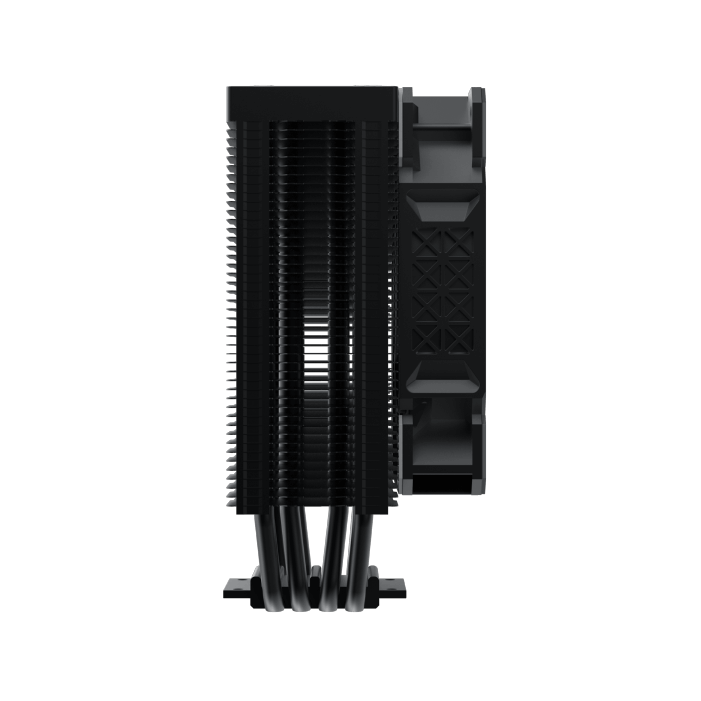

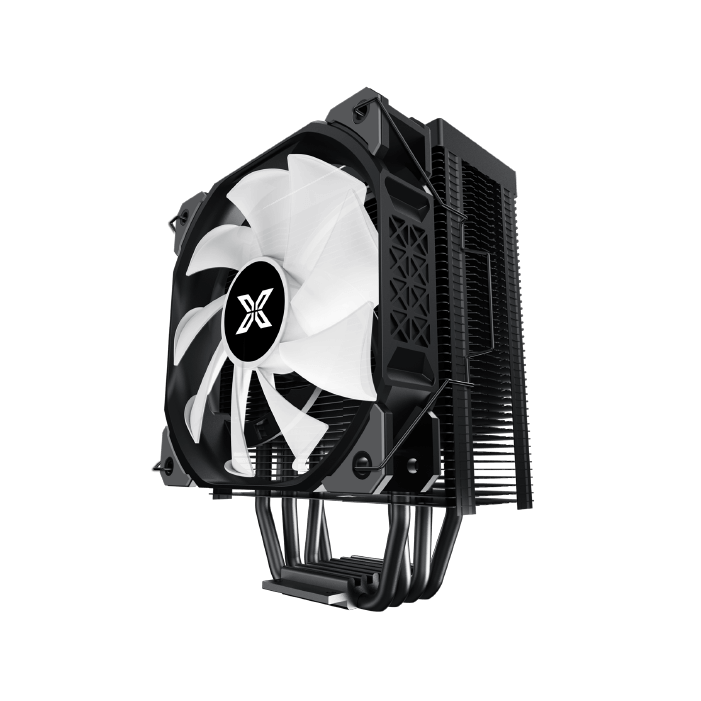

Air-Killer S

Air-Killer S

Intel/AMD Support

High Performance Air Flow

Silent Operation at ≤25.3 dBA

CPU COOLER
AIR-KILLER S

Features

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel®Core™Desktop Processor Family
• Luxurious Top Cover Aluminum X Logo Badgeand
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours
• Silent Operation at ≤25.3 dBA
• Support of Additional 120mm Fan (Support Up to TDP 190W)

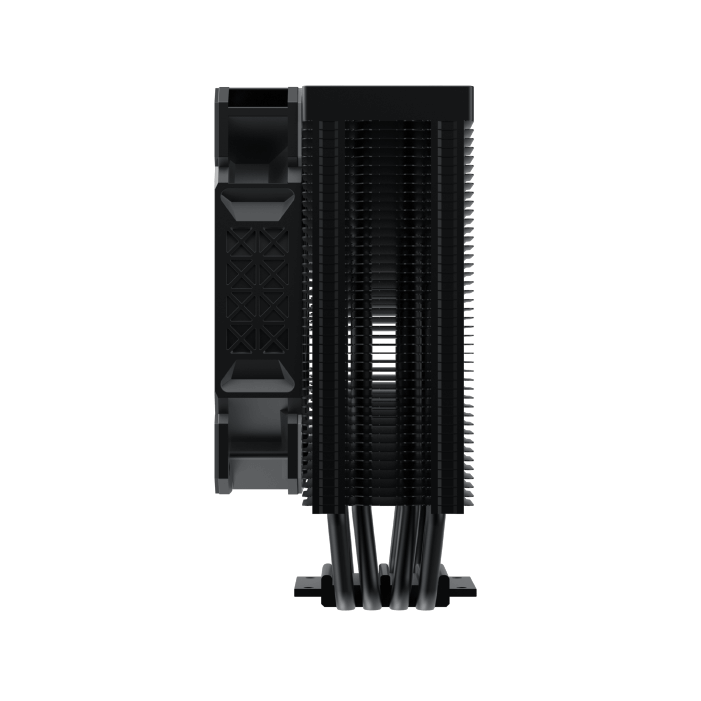

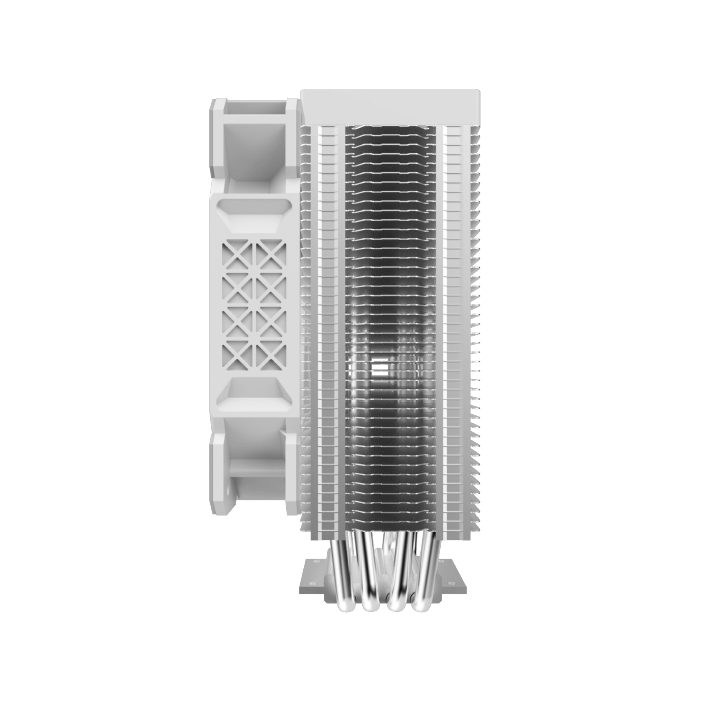

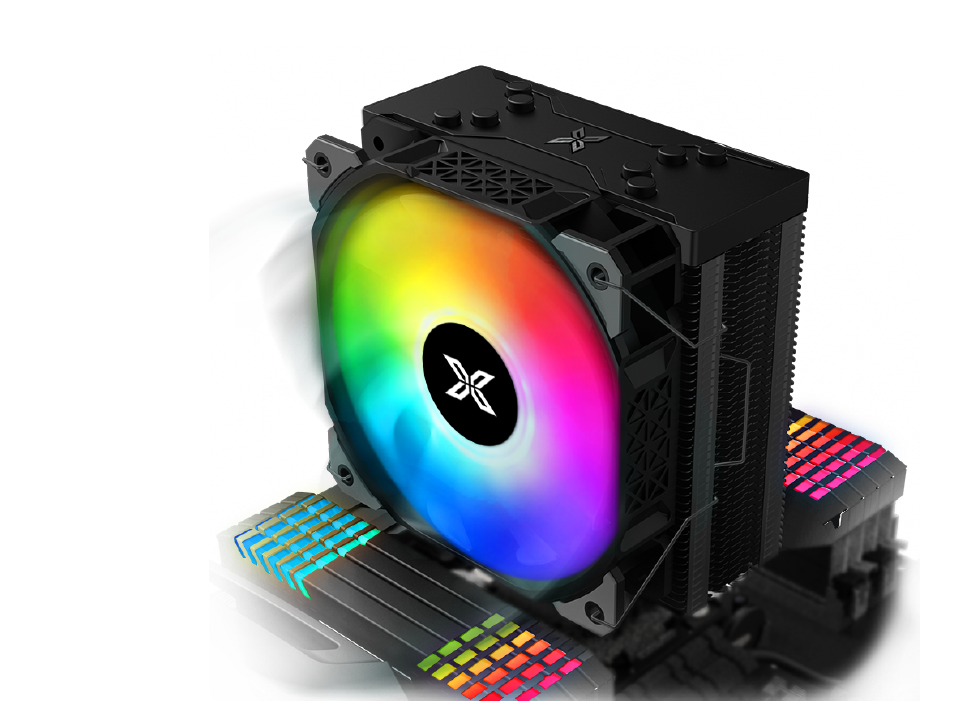

• Non-Interference Between Memory Modules and CPU Cooler

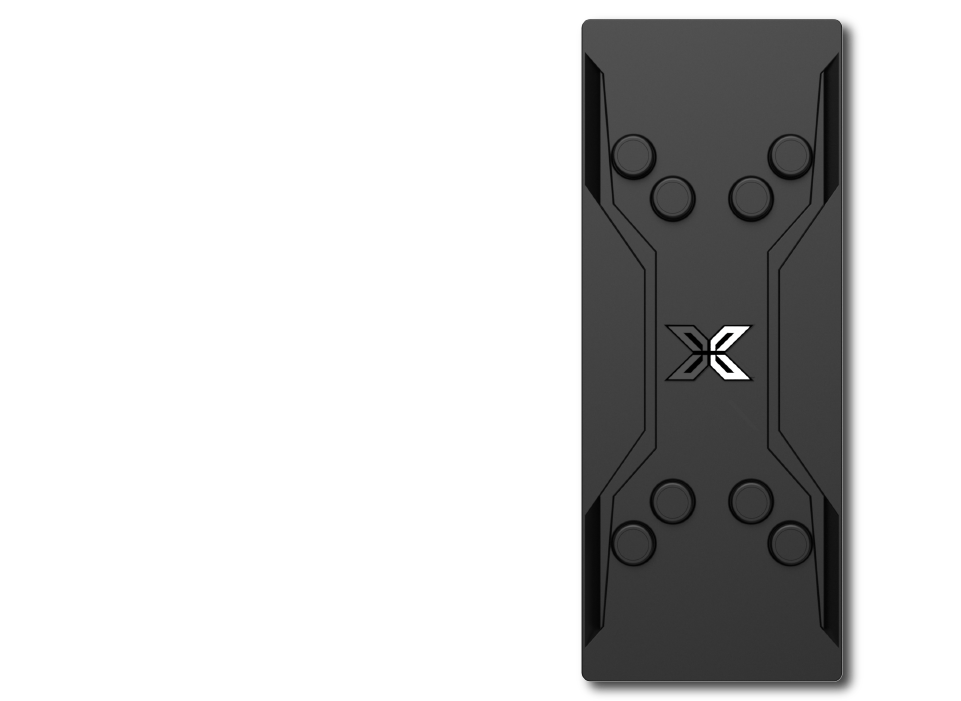

Luxurious Top Cover AluminumX Logo Badge

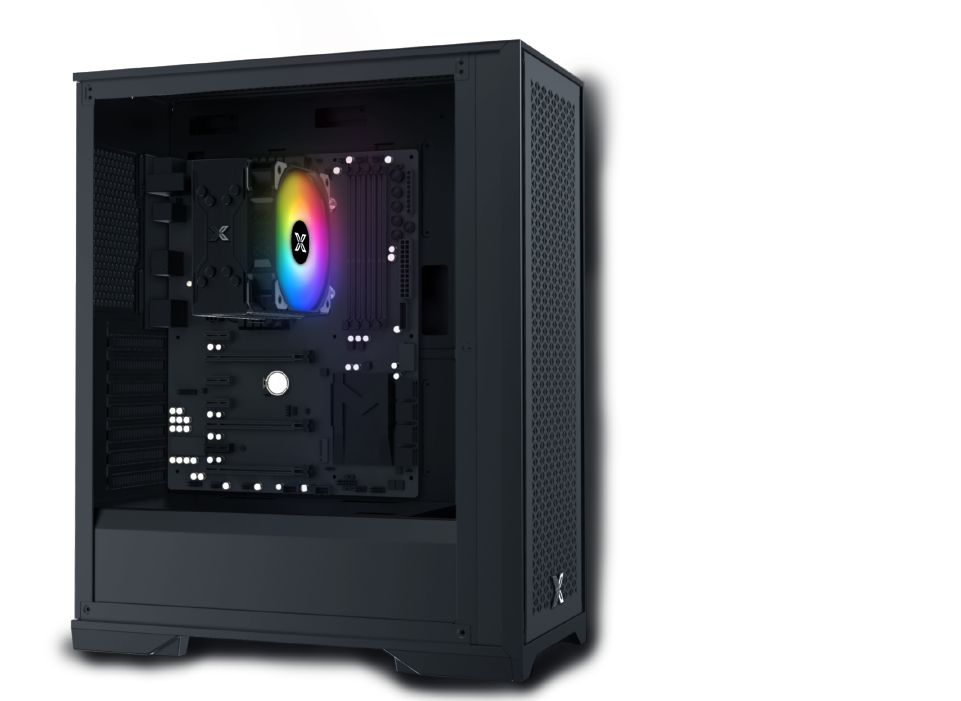

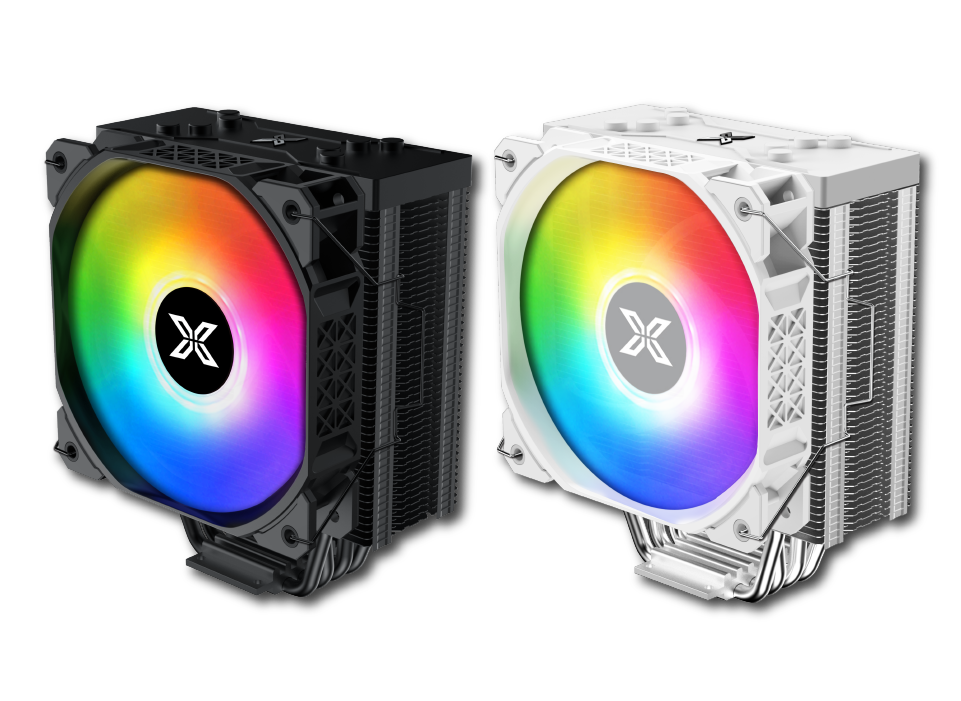

Compatibility & Aesthetics

Excellent Compatibility & User Friendly Installation

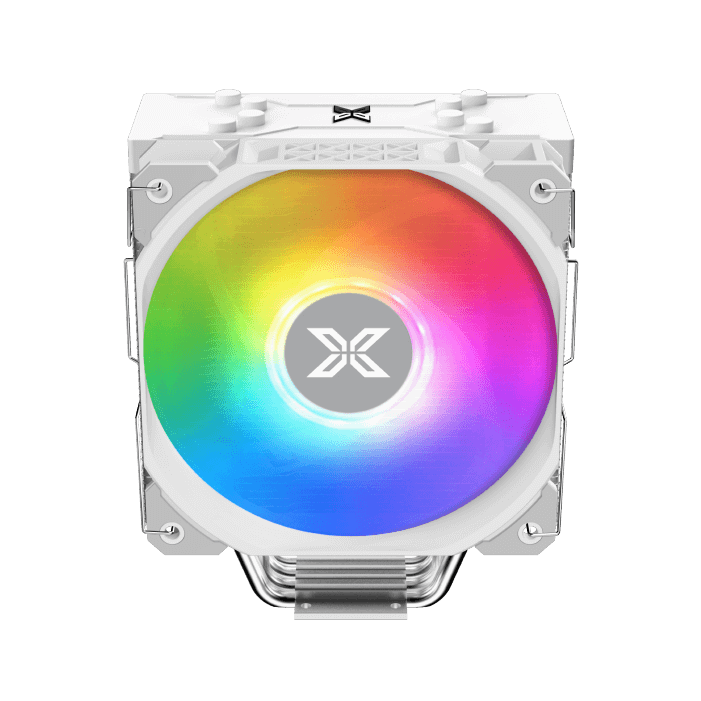

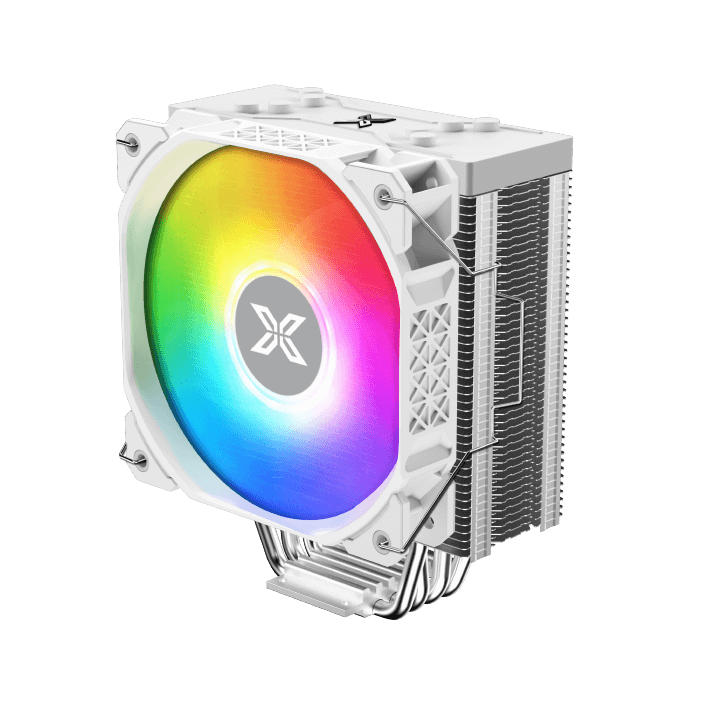

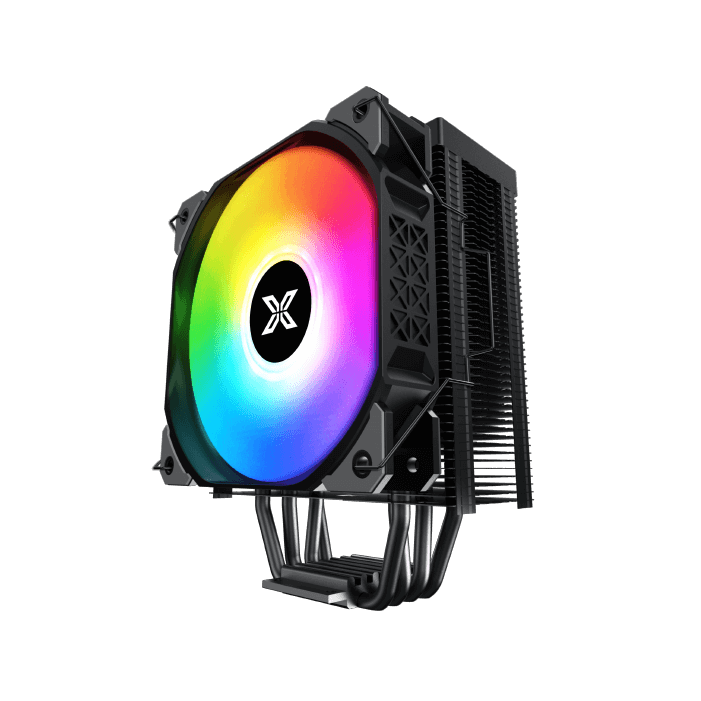

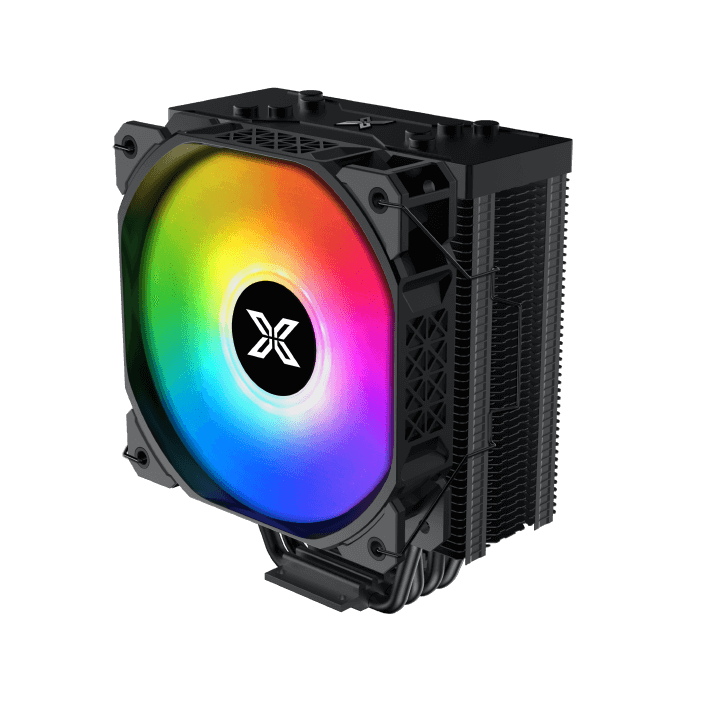

Multicolored Vivid Dynamic RGB LED Display

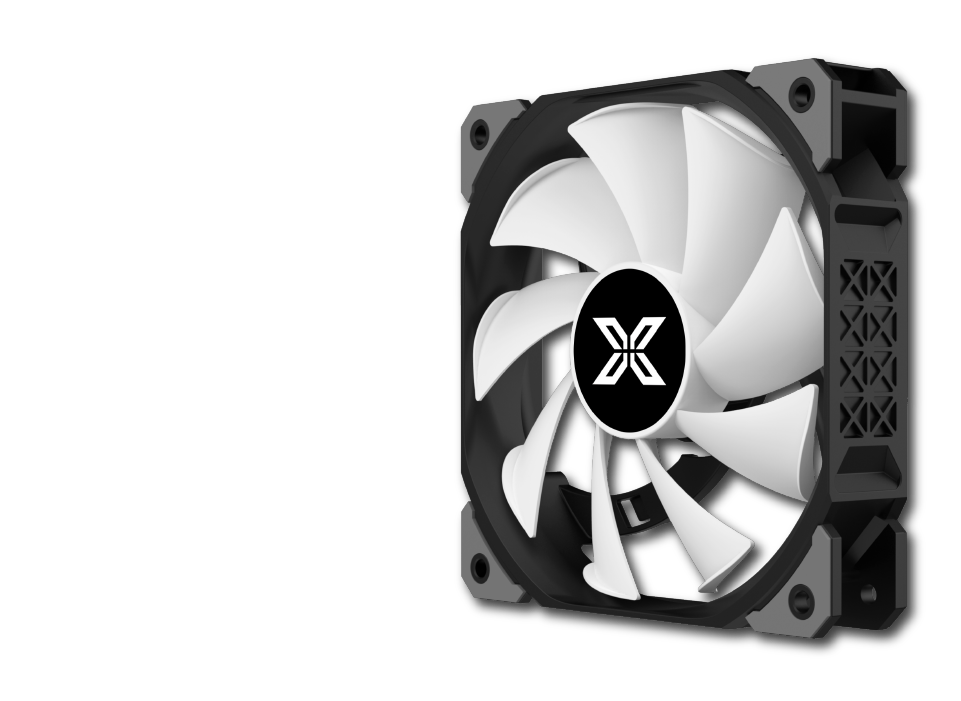

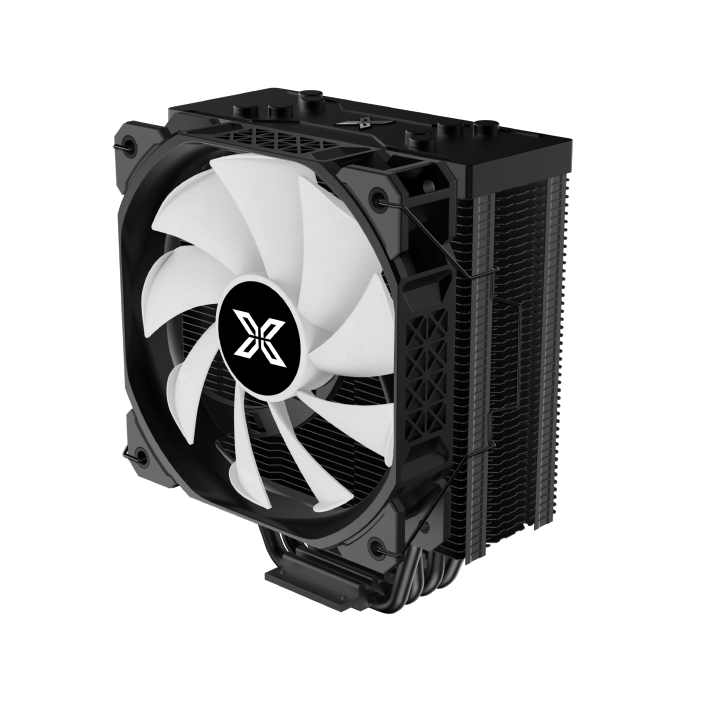

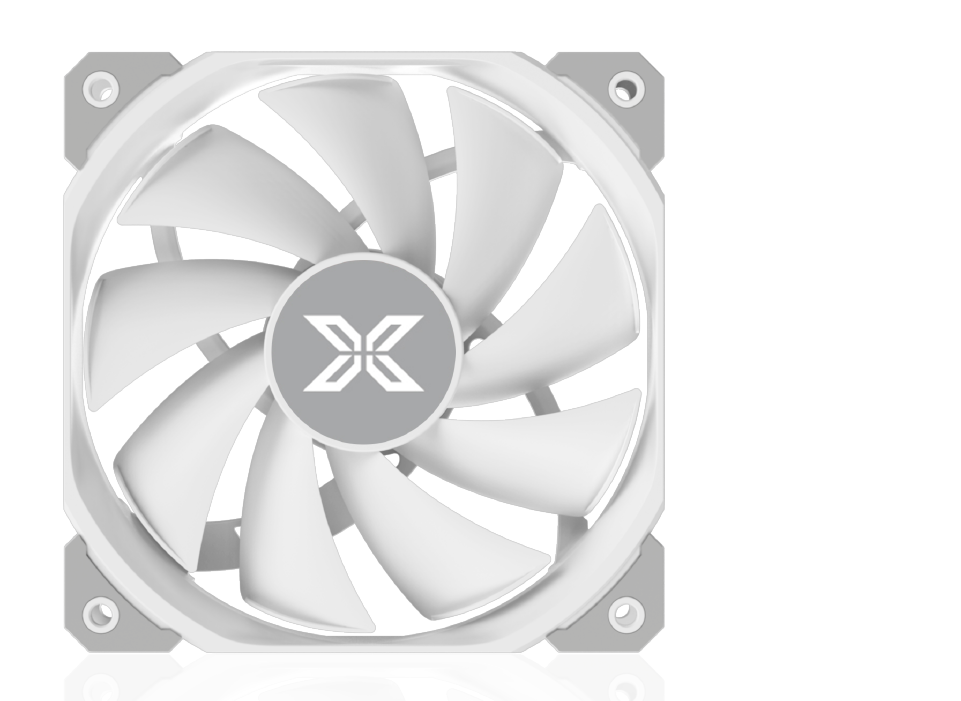

The New Silent Fan

The Fan Blade Design Reduces Fan Noise.
Anti-Vibration Motor Minimizes Vibration and Noise. High Static Pressure and High Air Flow for a Superior
Fan Experience.

Silent Operation at ≤25.3 dBA
Smart PWM 800~1800 RPM for
High Performance Air Flow

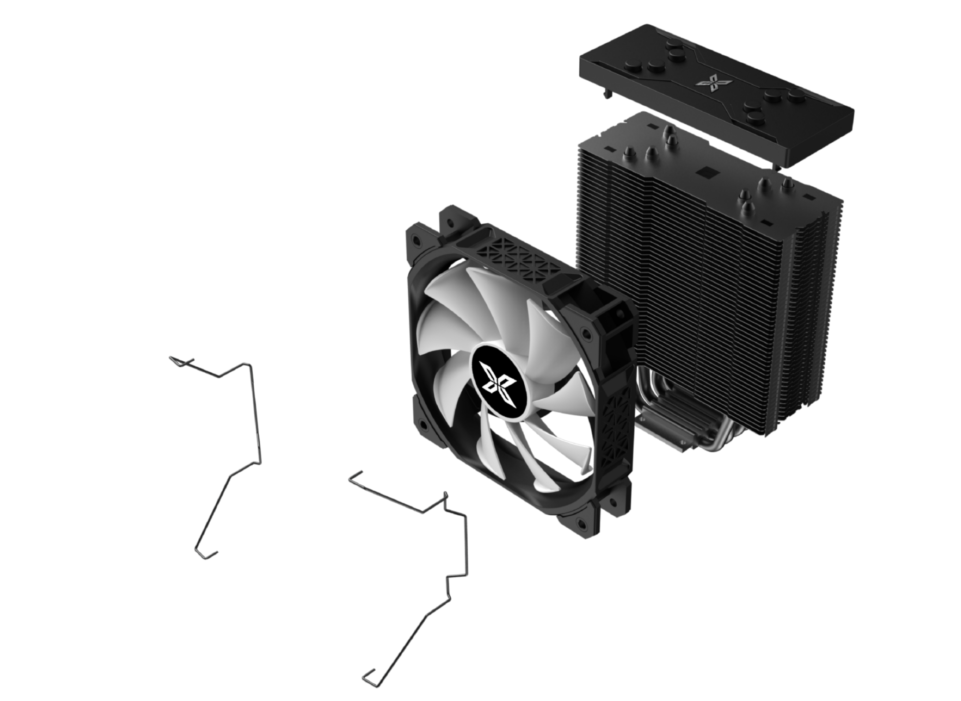

Exploded View

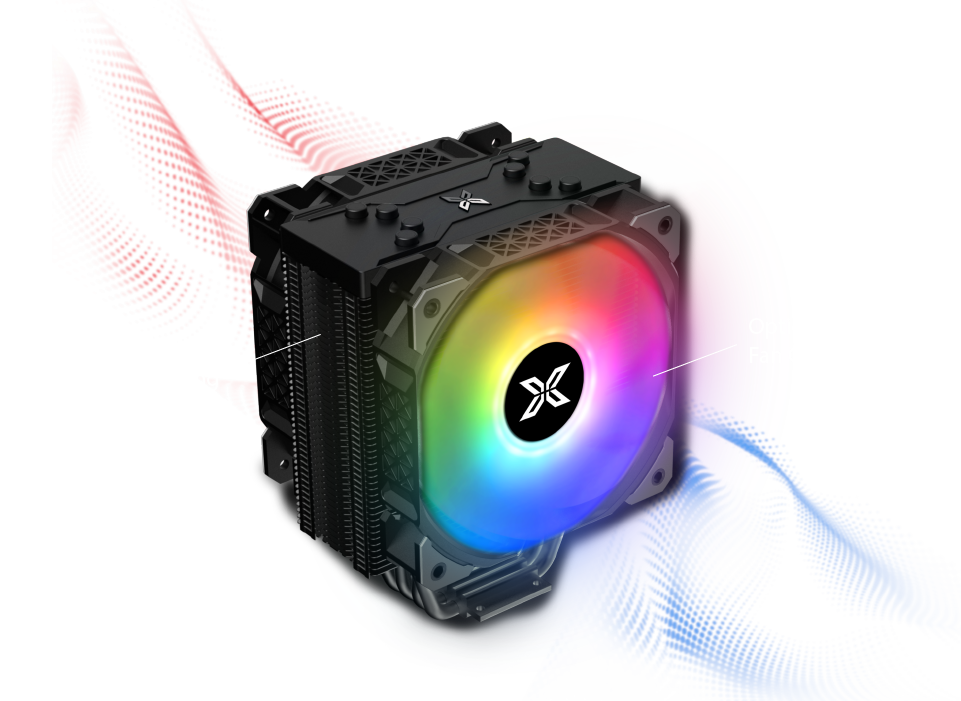

Optional Push-pull Fan
Configuration

To avoid dynamic losses and help accelerate heat exhaust,
an additional fan helps pulling heat away faster from heatsink.

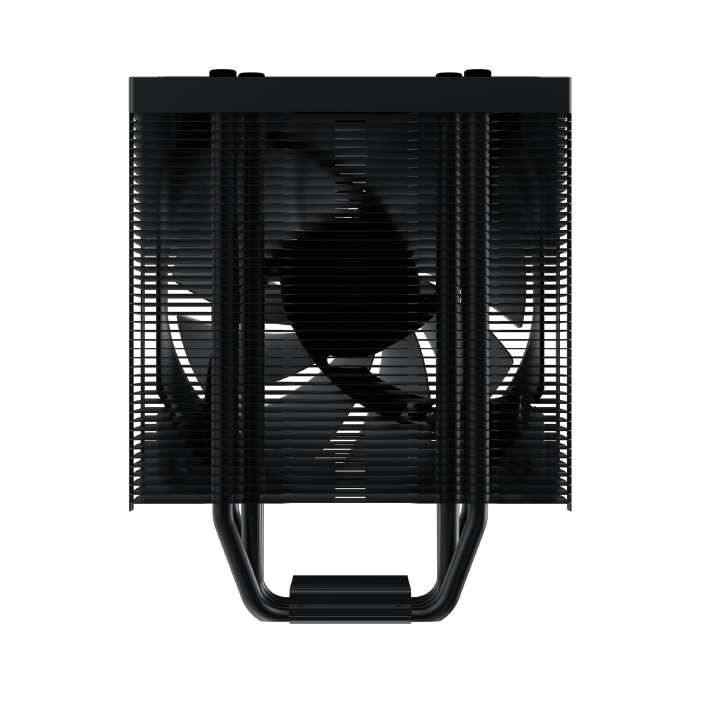

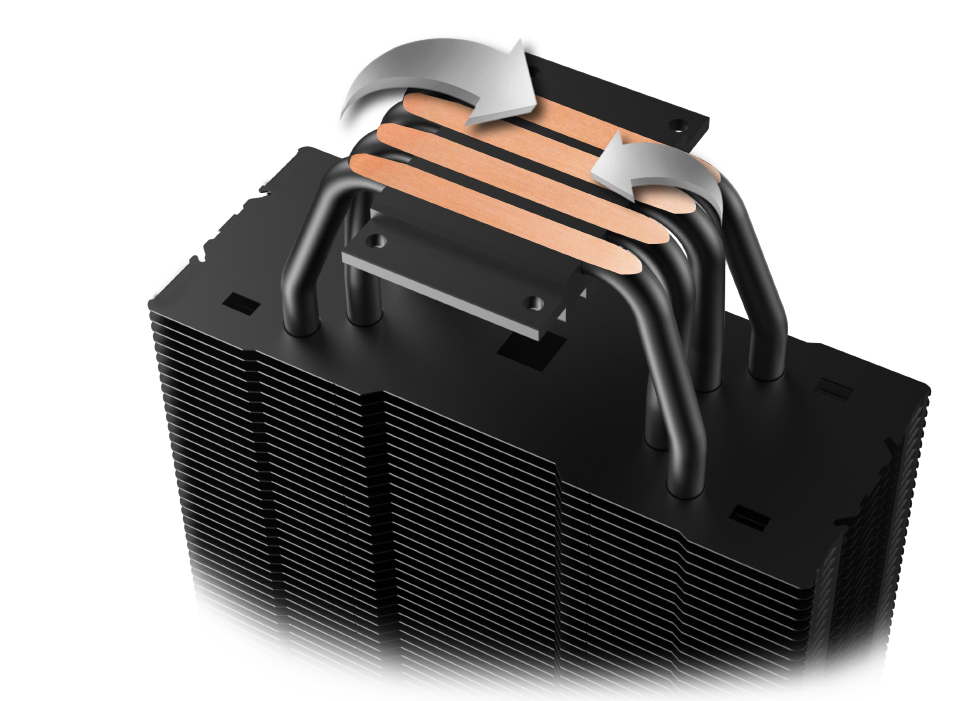

H.D.T.(Heat Pipe Direct Touch)
Technology

High Performance Heat Dissipation & Air Flow
Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T.

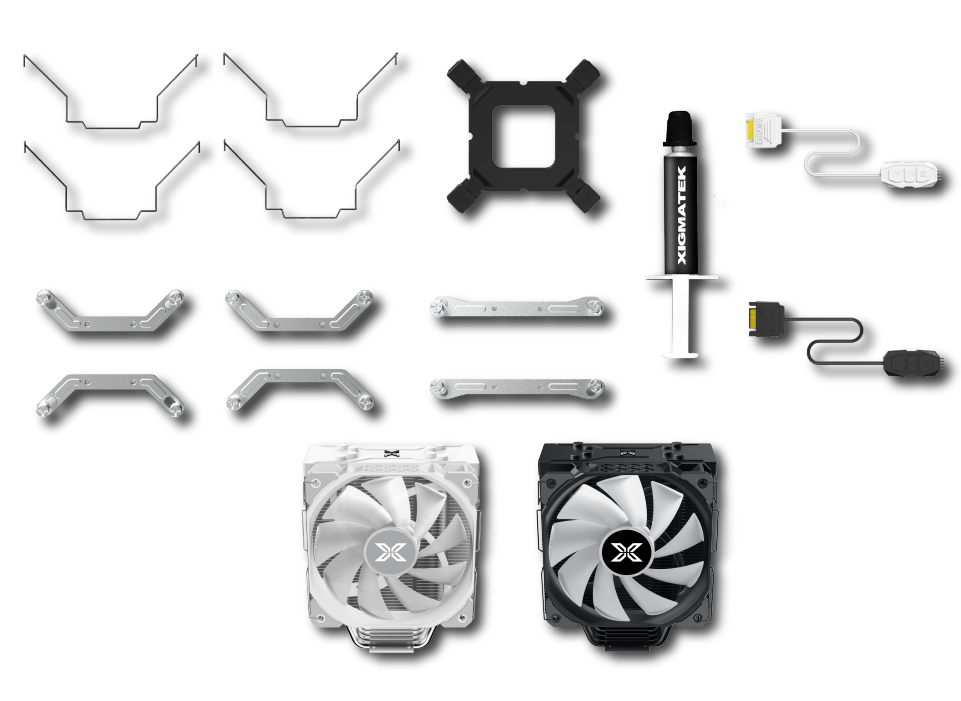

Accessory List

Support Latest 12th Gen Intel®Core™
Desktop Processor Family

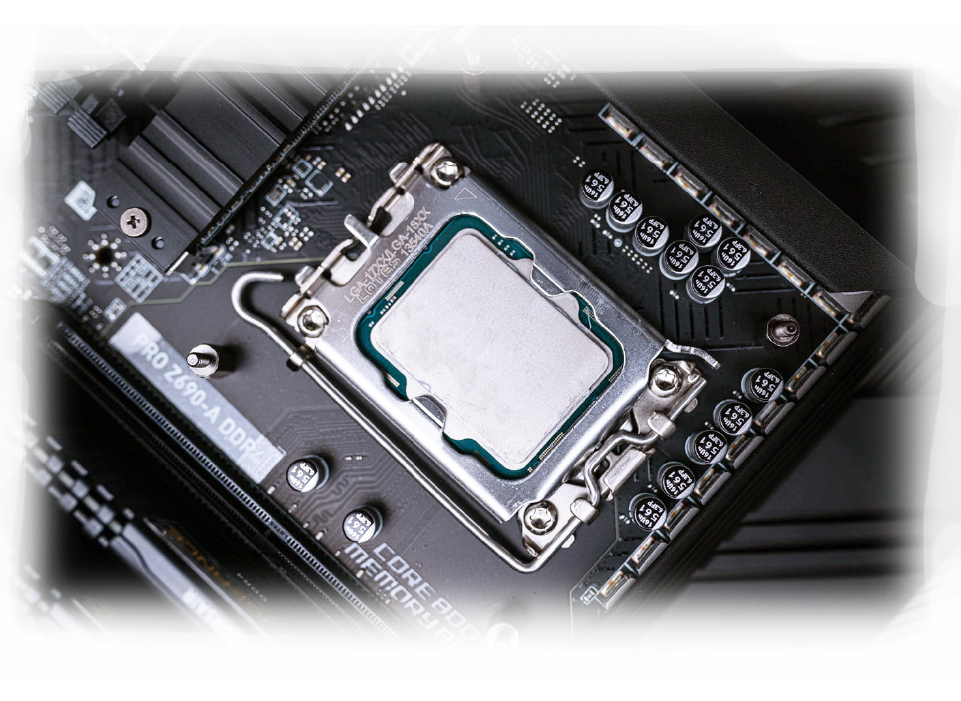

Support 12th Gen Intel LGA1700 Socket

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

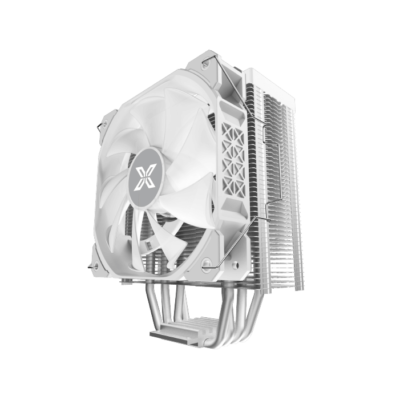

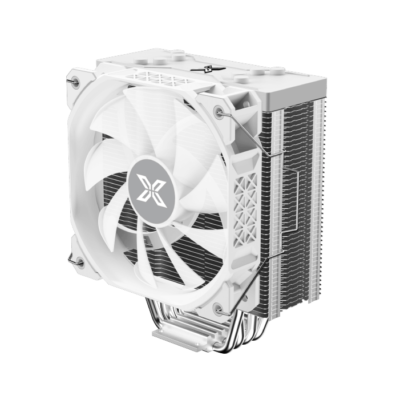

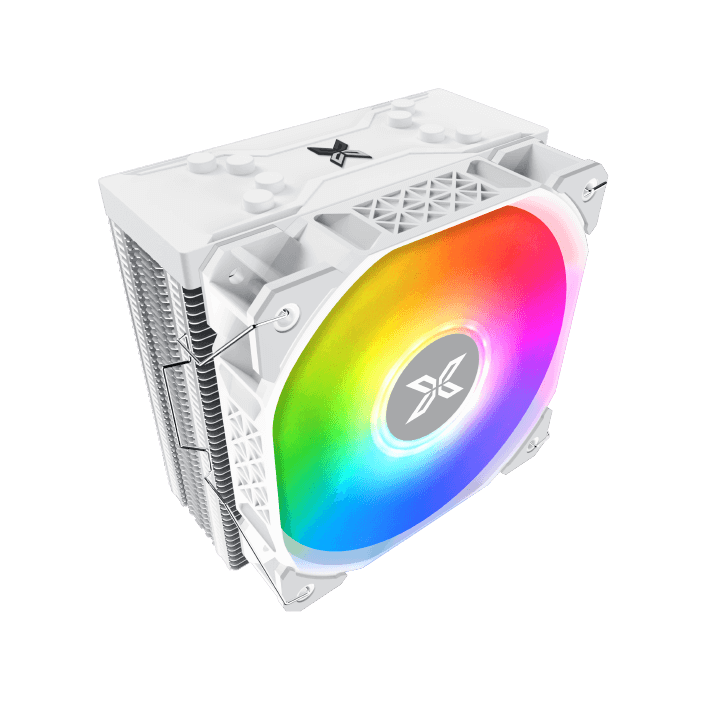

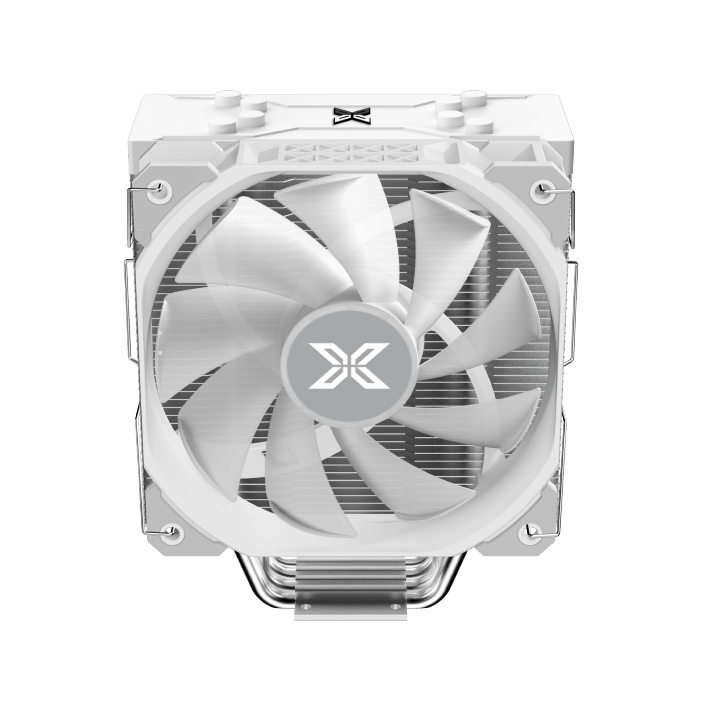

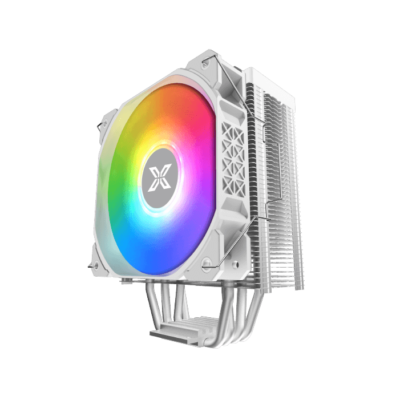

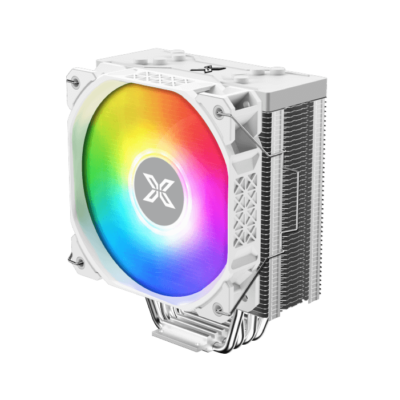

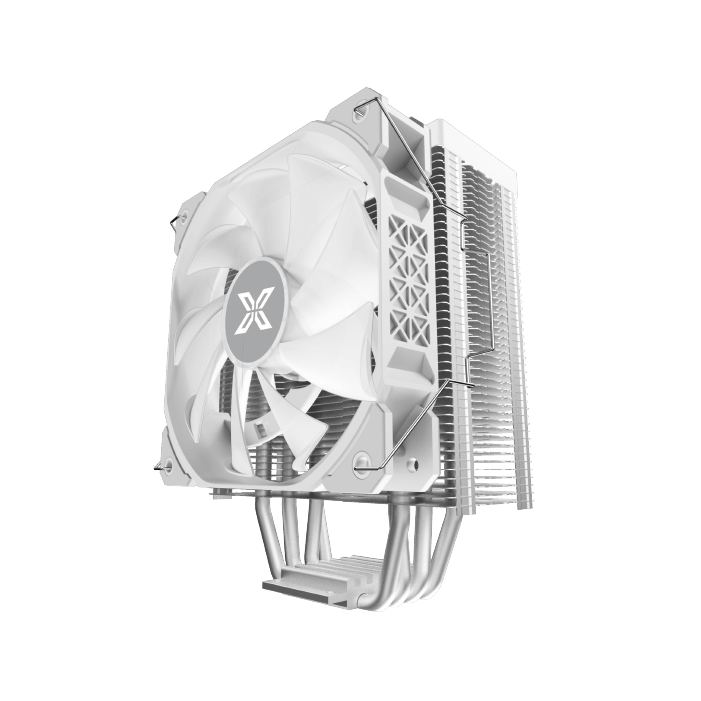

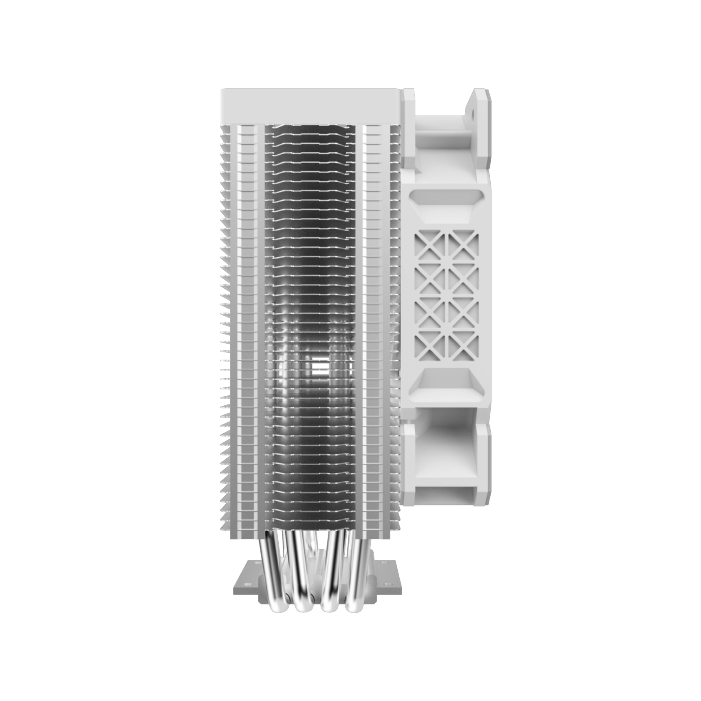

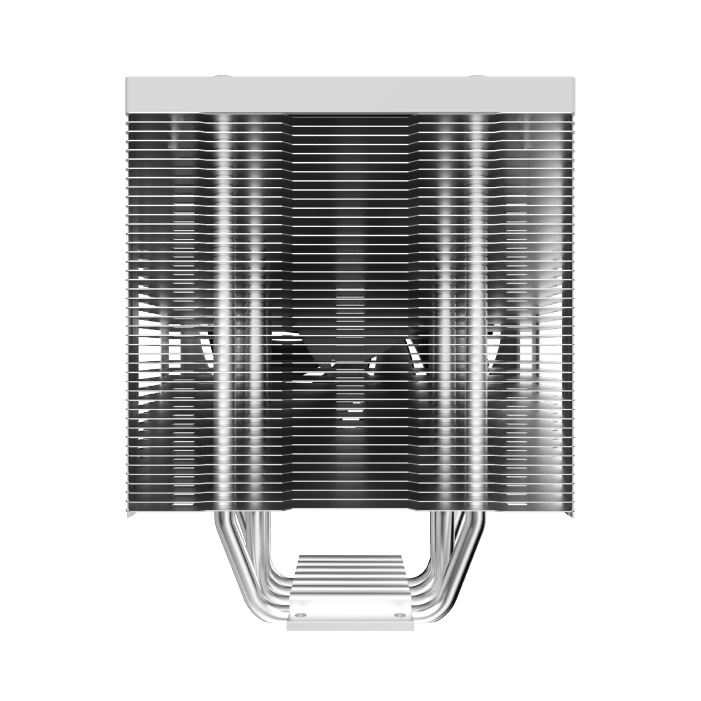

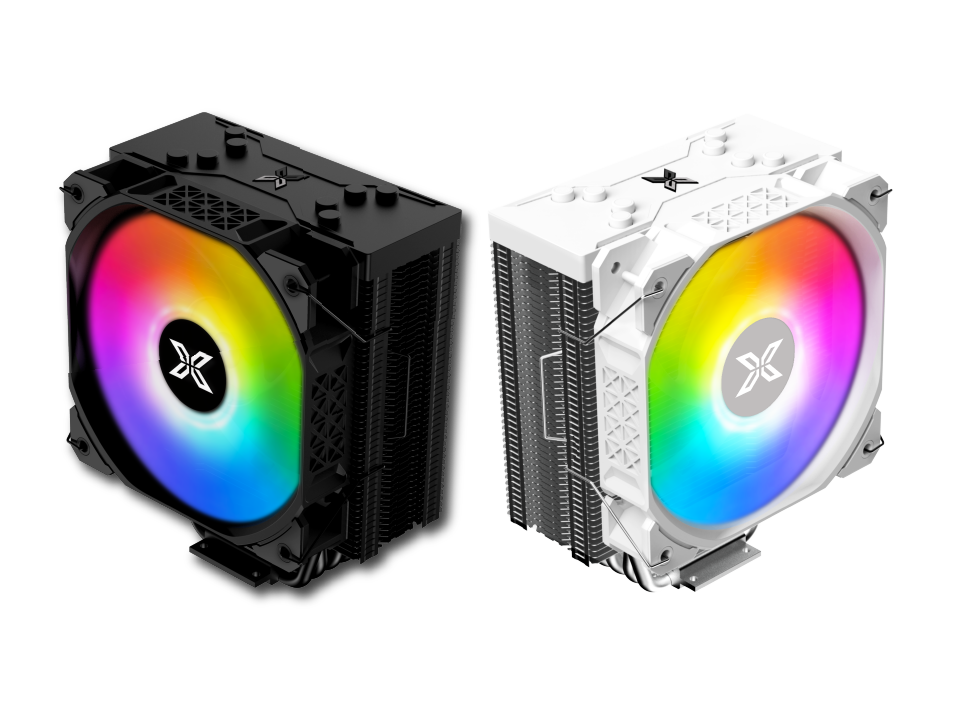

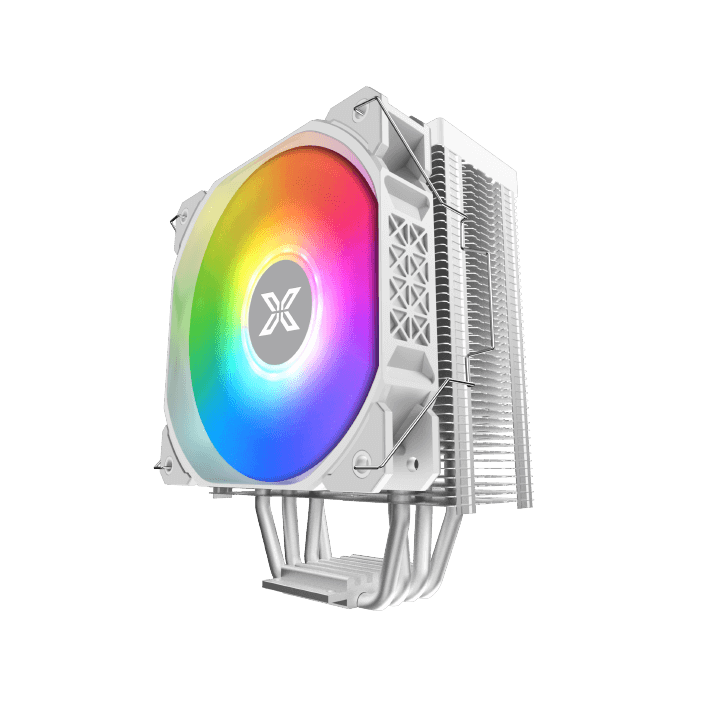

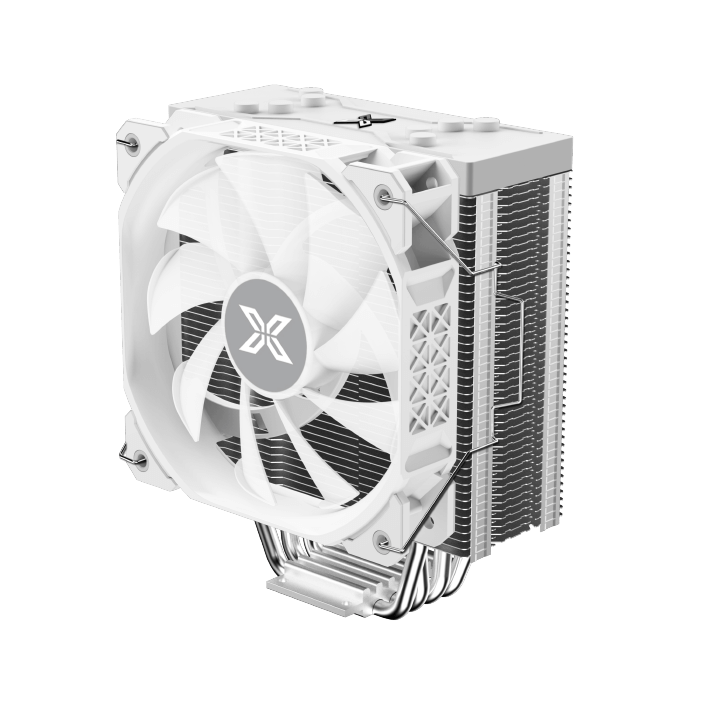

AIR-KILLER S / AIR-KILLER S ARCTIC

CPU Support

Intel®: LGA 20xx/1700/1200/115x
AMD®: AM5/AM4/AM3

Product Dimensions

128x76x160mm (LxWxH)

Heat Sink Dimensions

128x50x155mm (LxWxH)

Heat Sink Material

4pcs Heat Pipes / Aluminum Fins

Heat Pipe Dimensions

Ø6 mm

TDP

160W

Fan Dimensions

120 x 120 x 25 mm

Fan Speed

800~1,800 RPM (PWM) ± 10%

Fan Bearing

Long Life Hydraulic Bearing

Fan LED Color

X22C Rainbow LED Fan

Fan Air Flow

82.2 CFM(Max)

Fan Air Pressure

2.55 mm-H2O(Max)

Fan MTTF

50,000 hours

Fan Noise Level

≤25.3 dBA

Fan Connector

4-Pin (PWM)

Fan Rated Voltage

12 VDC

Fan Rated Current

0.24A

Fan Power Consumption

≤2.8W
