Endorphin M II 3F

Endorphin M II 3F

Motherboard M-ATX

CPU Cooler 165mm

Fan Support 5 max.

Power Supply 180mm

Graphics Card 320mm

Radiator 240 max.

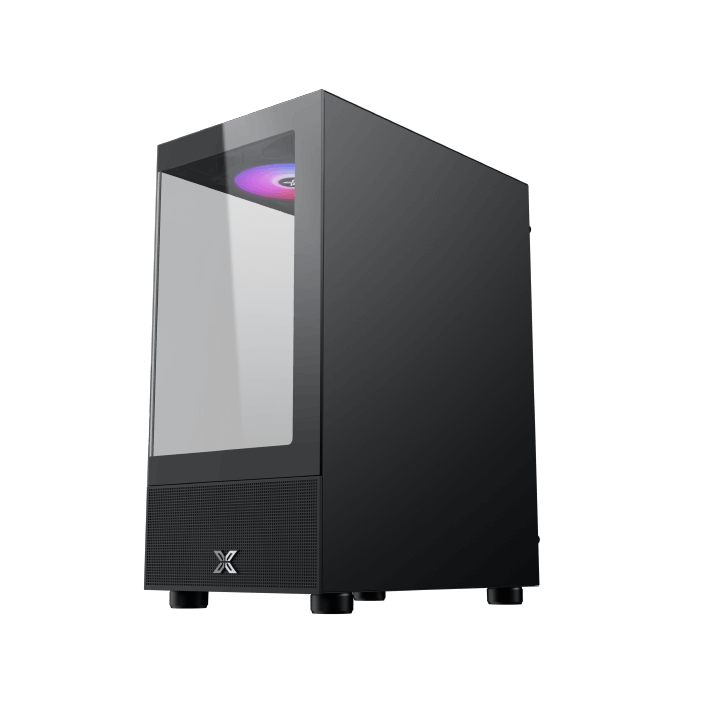

2 Tempered Glass Panel Design

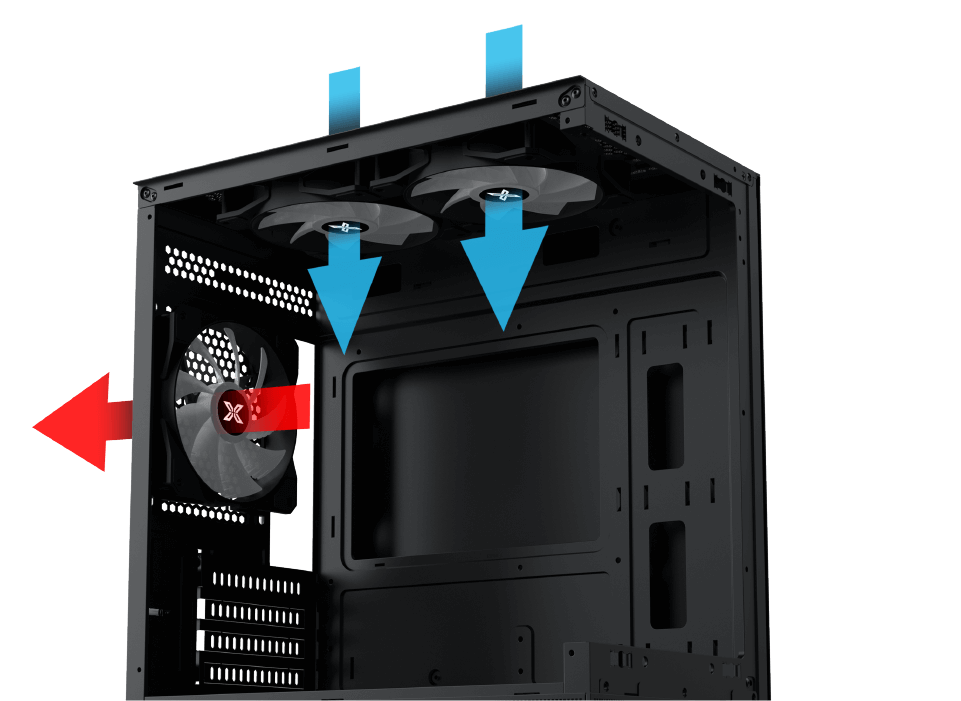

Superior Airflow and
Ventilation Design

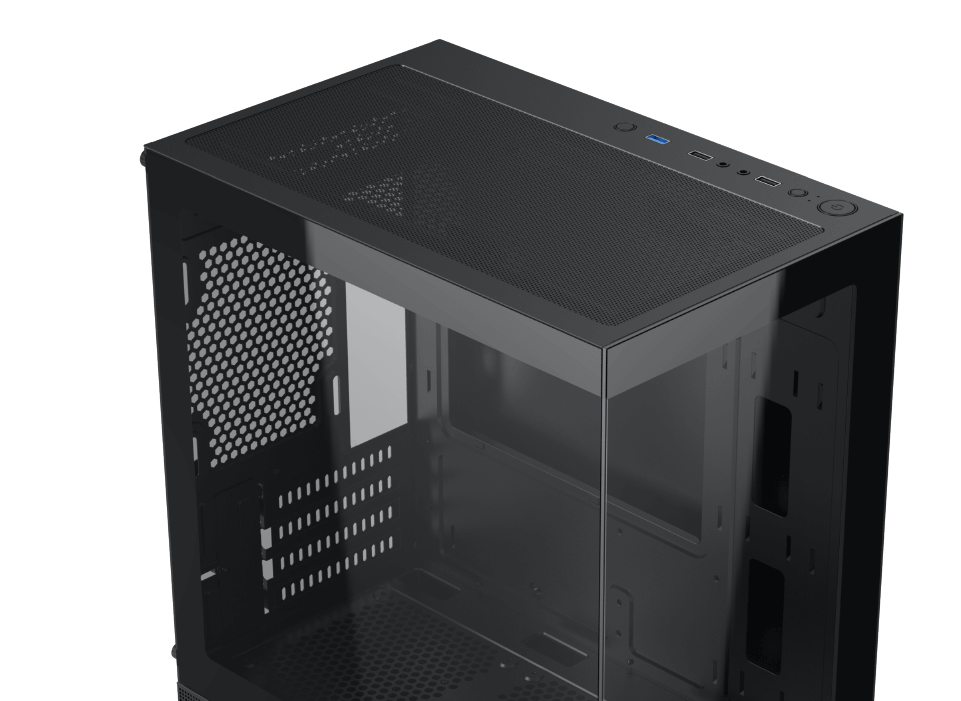

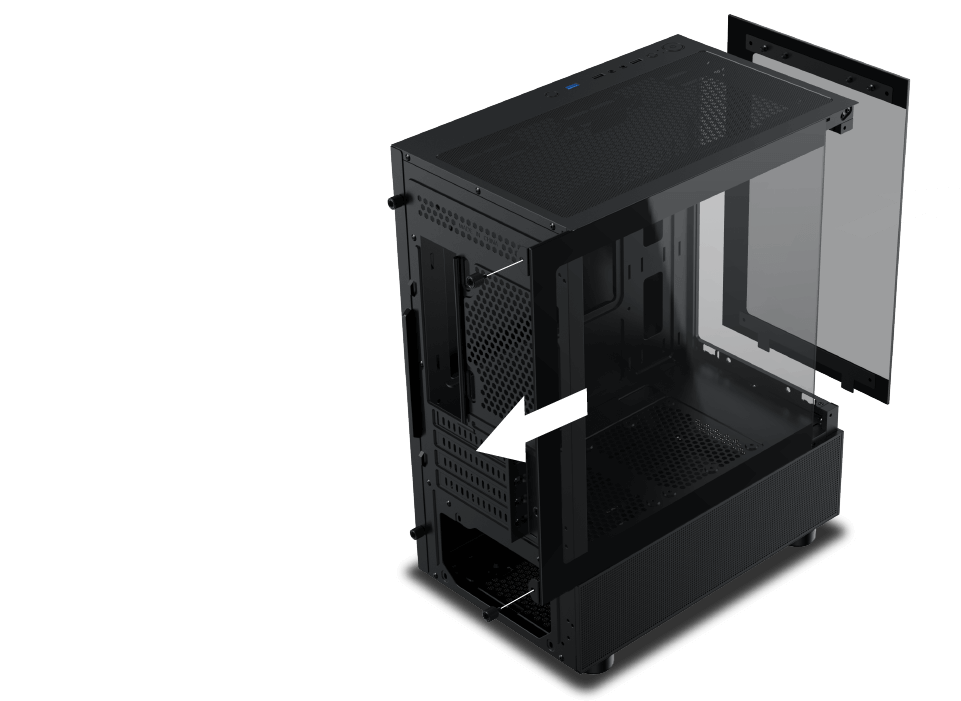

Easily Mounted Tempered
Glass Panel

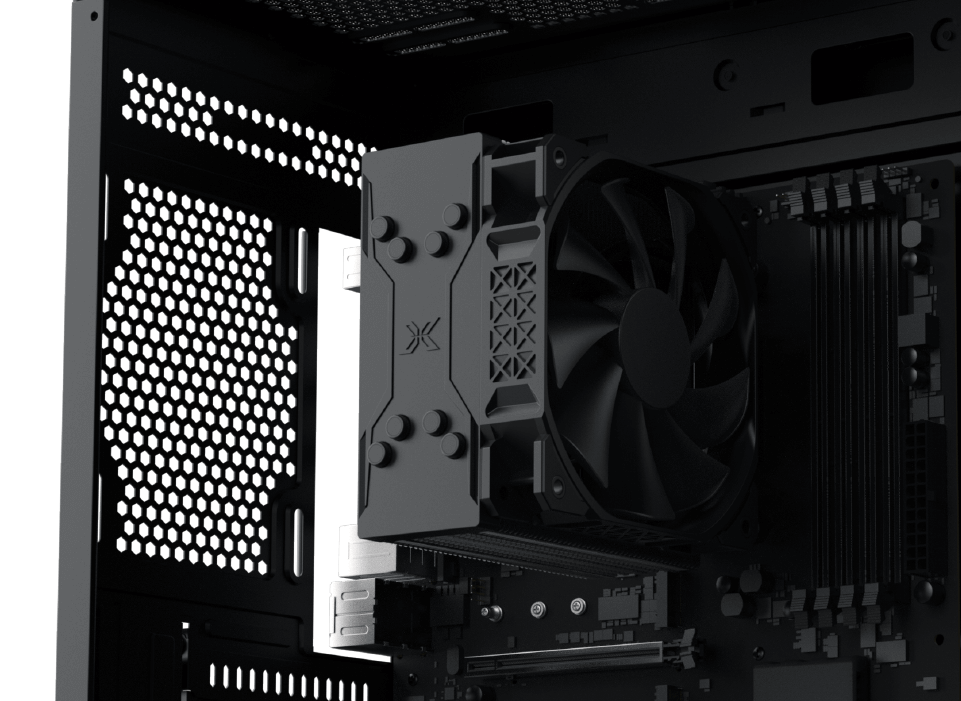

CPU Cooler up to 165 mm

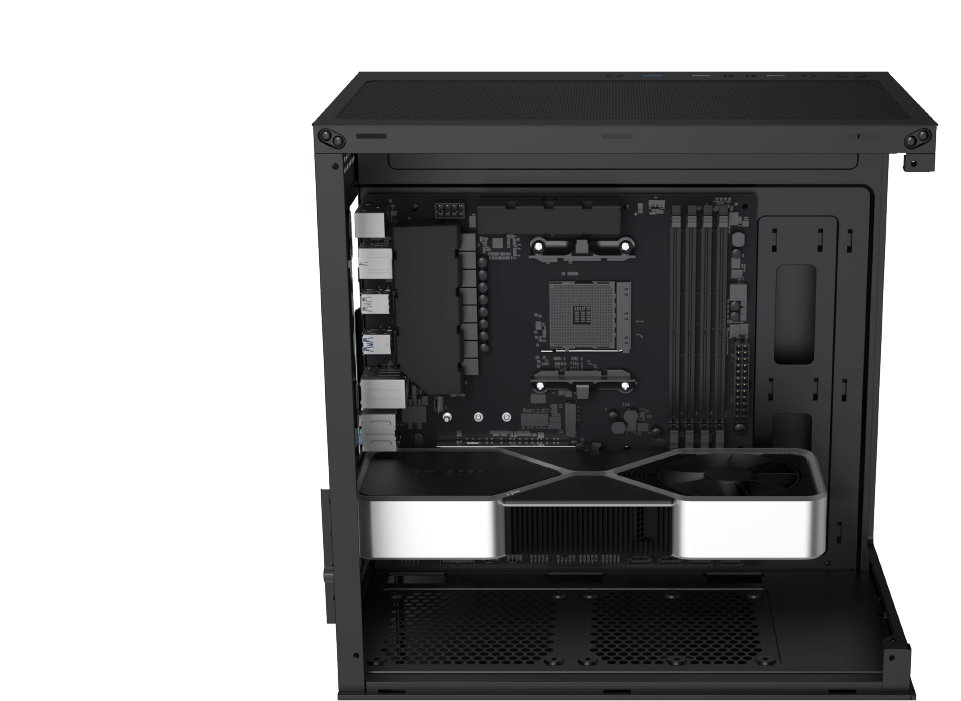

VGA Length Limitation:
320 mm

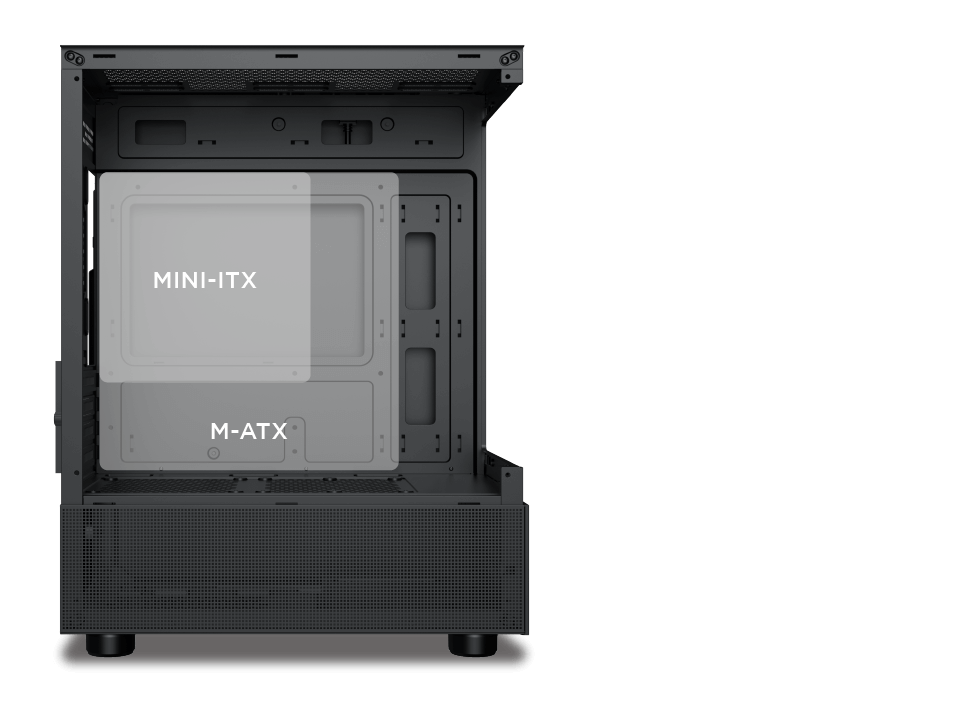

Support Motherboard
up to M-ATX

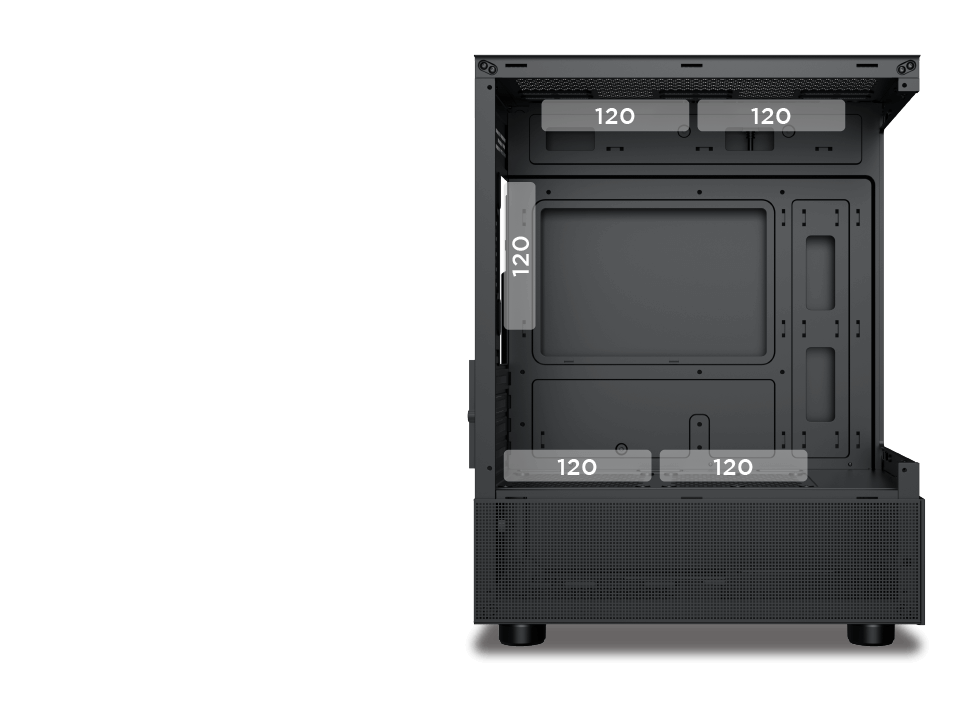

Top: 120mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1

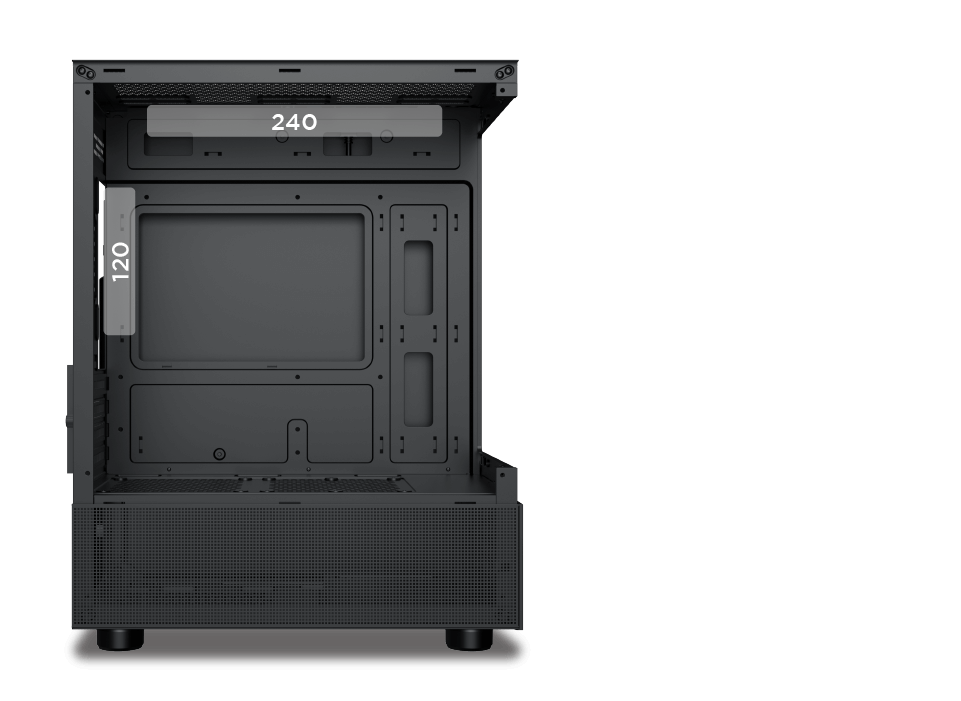

Top: 240
Rear: 120

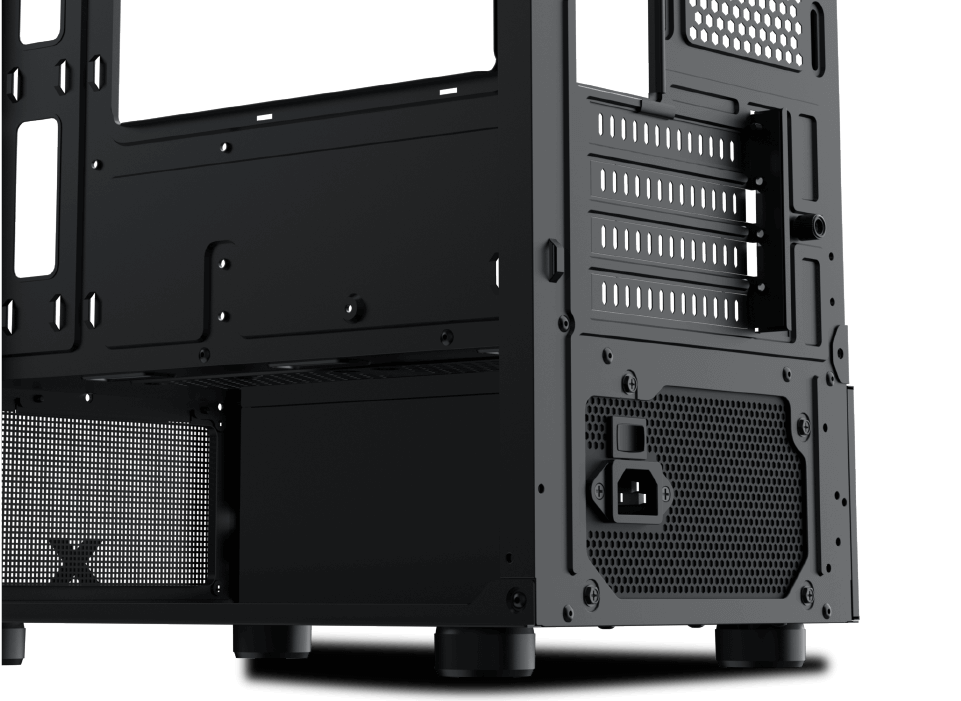

PSU Limitation up to 180 mm

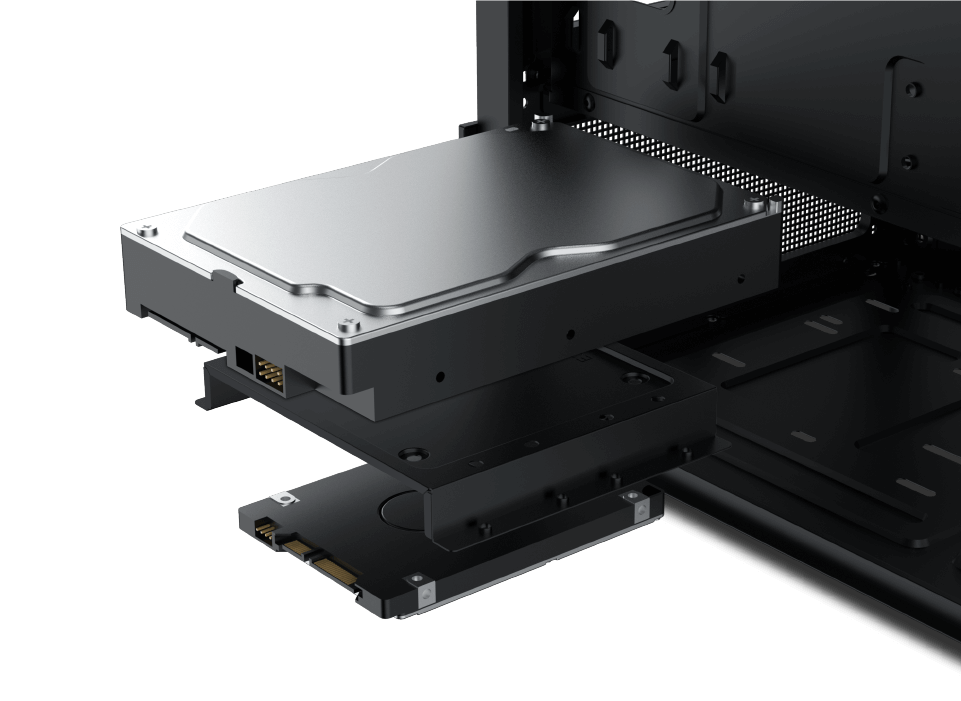

HDD Cage :
3.5″ x1 & 2.5″ x1

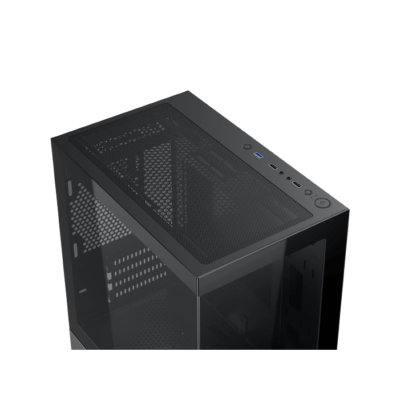

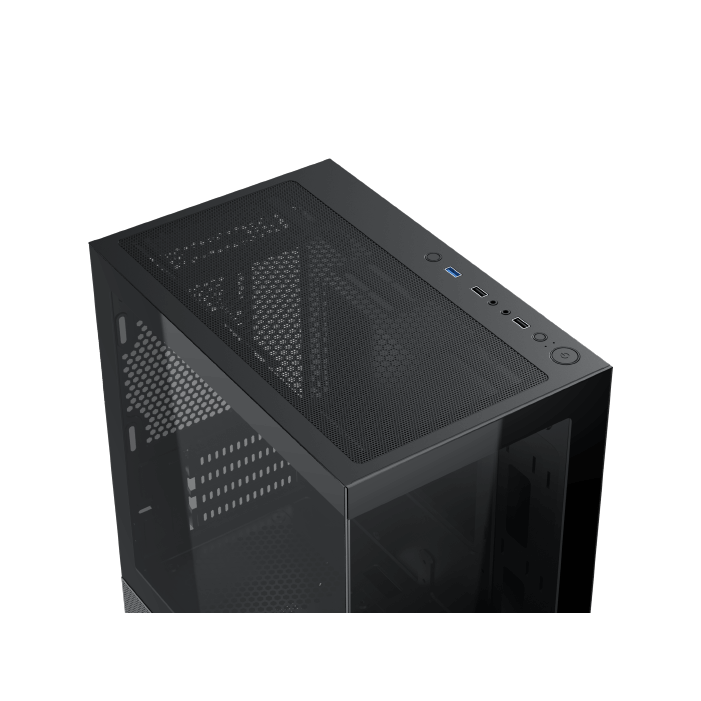

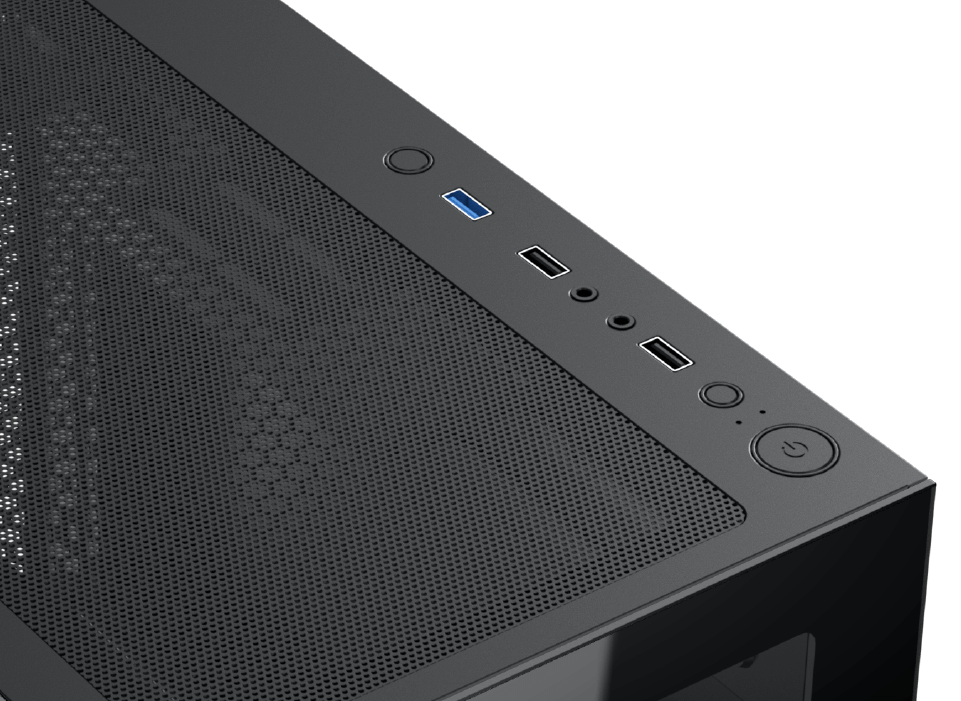

Top Mount I/O Ports

• Power Button
• Reset Button
• USB 2.0
• USB 3.0
• HD Audio Jack
• LED Switch

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Endorphin M II

Material

Steel

Dimensions

333x212x437mm (LxWxH)

Drive Bays

HDD Cage (Top): 3.5″ x1
HDD Cage (Bottom): 2.5″ x1

Expansion Slots

4 Standard Slots

Motherboard Support

M-ATX, Mini-ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1

Radiator Support

Top: 240
Rear: 120

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio
LED Button

CPU Cooler Clearance

165mm

VGA Length Limitation

320mm

PSU Length Limitation

180mm
