2 Tempered Glass Panel Design

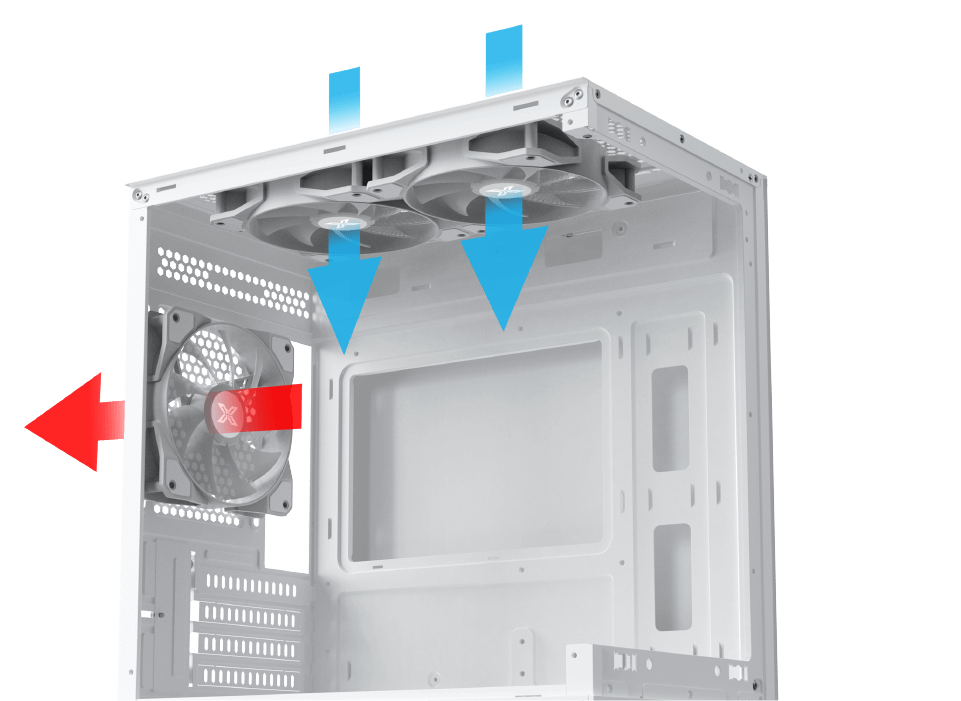

Superior Airflow and
Ventilation Design

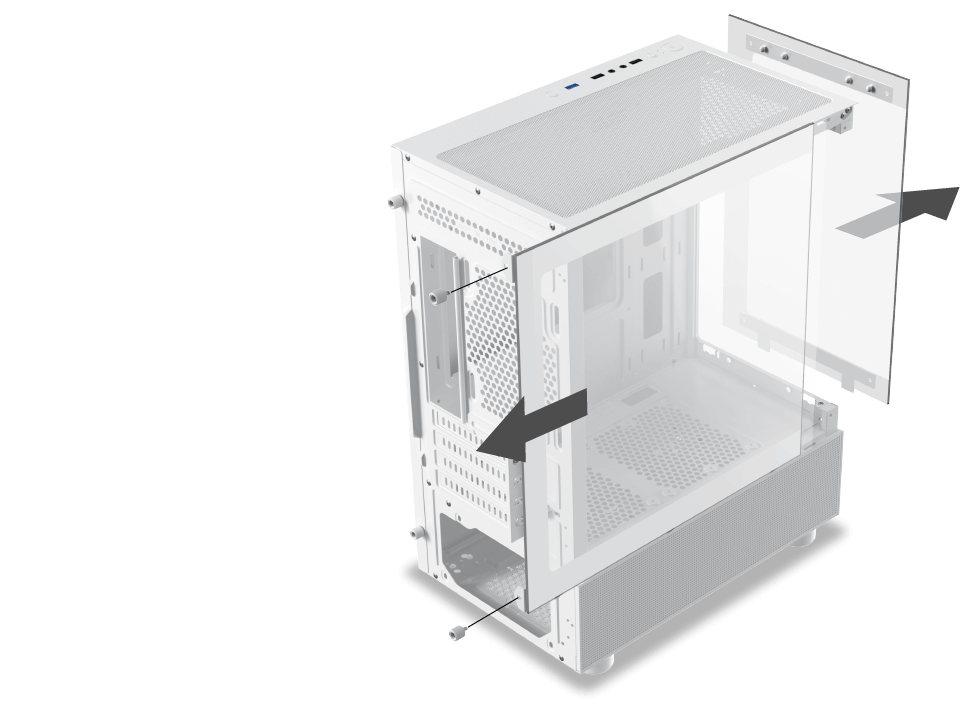

Easily Mounted Tempered
Glass Panel

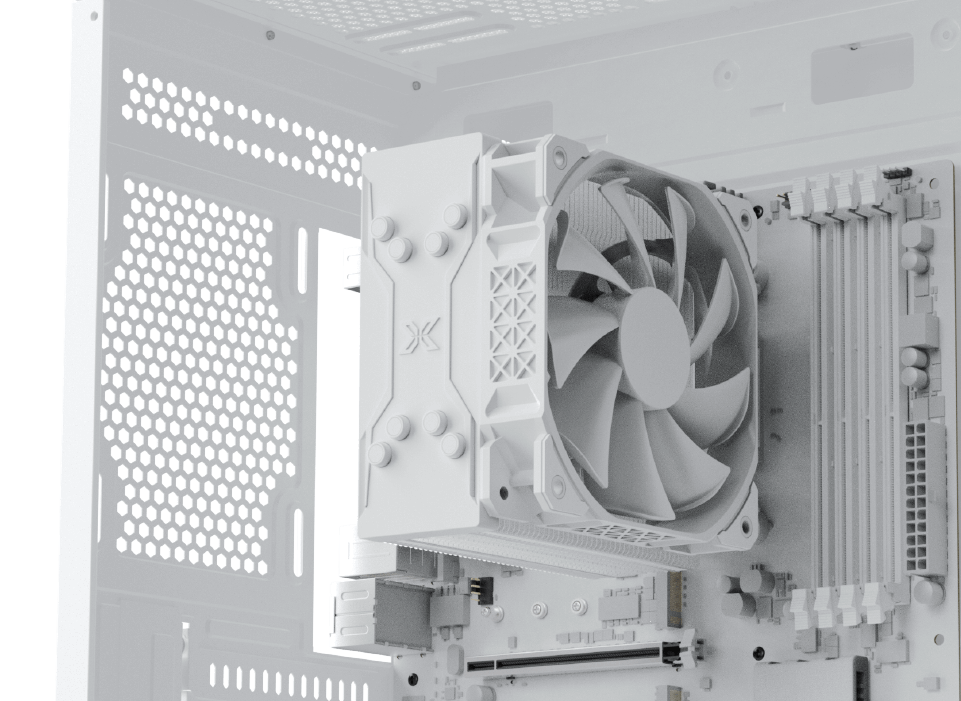

CPU Cooler up to 165 mm

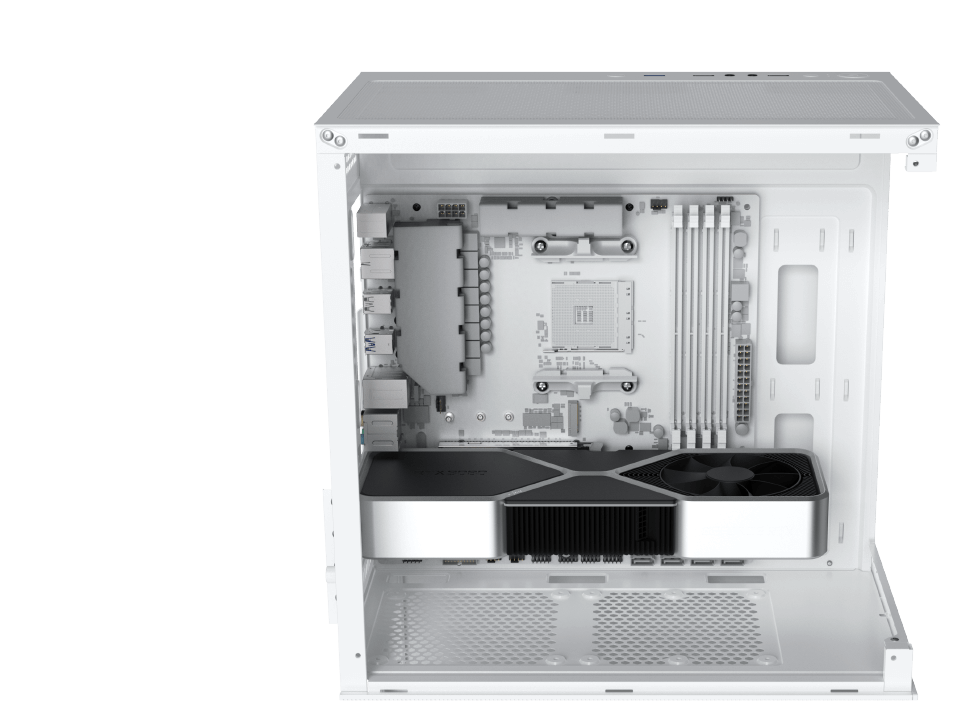

VGA Length Limitation:
320 mm

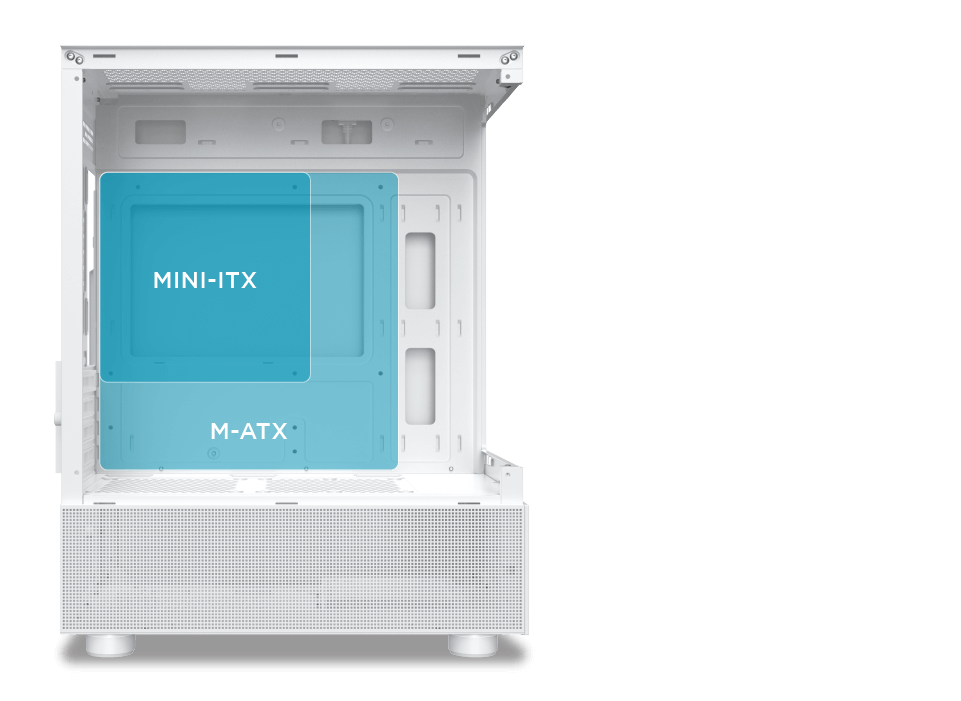

Support Motherboard
up to M-ATX

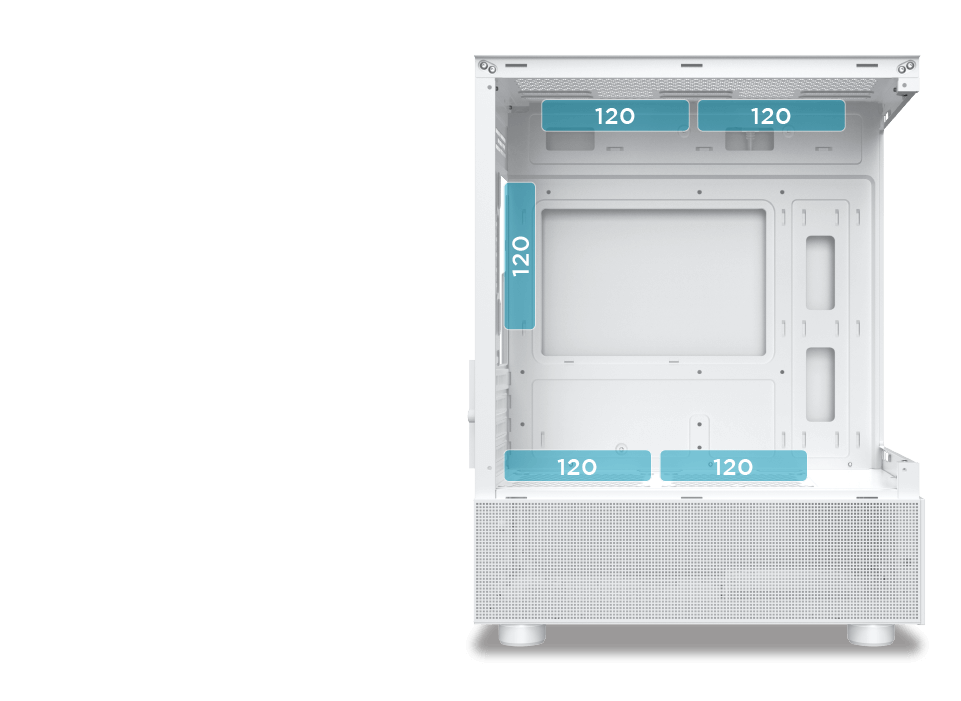

Top: 120mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1

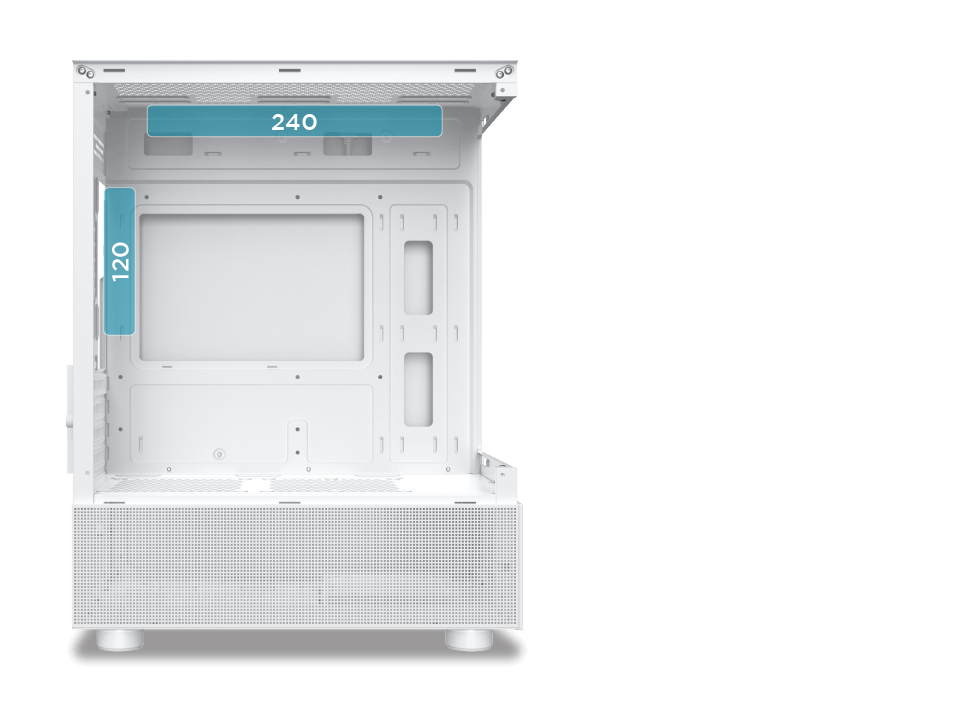

Top: 240
Rear: 120

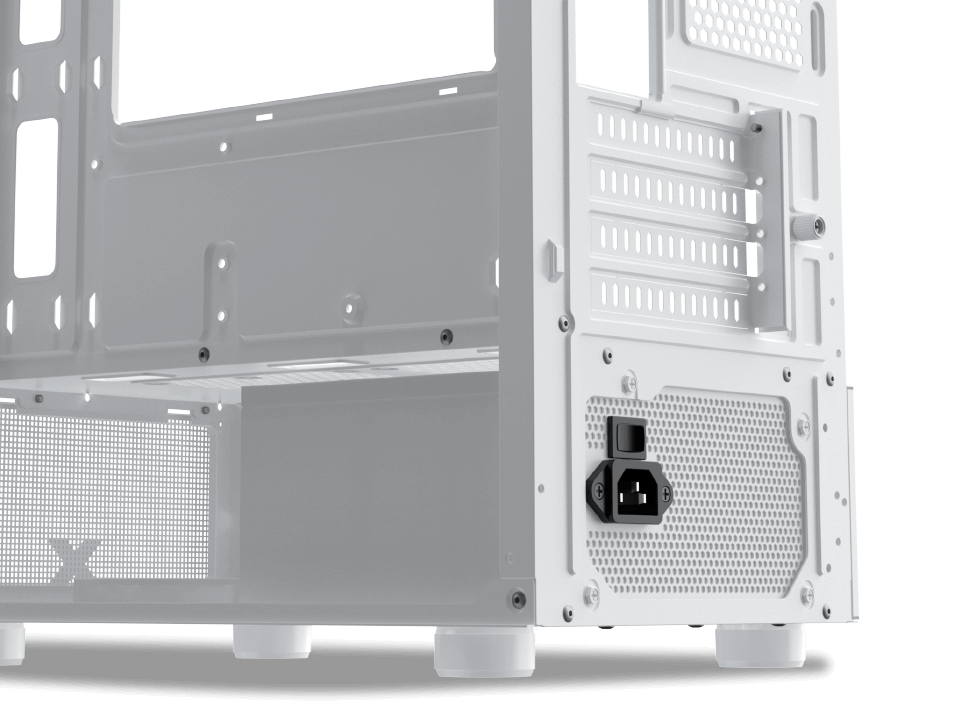

PSU Limitation up to 180 mm

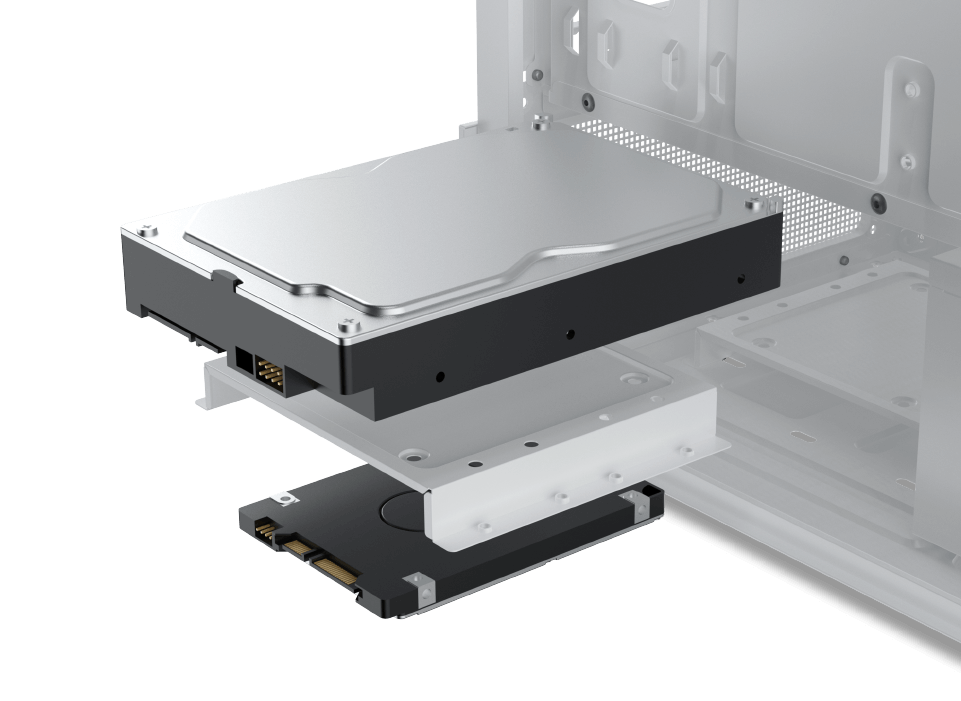

HDD Cage :
3.5″ x1 & 2.5″ x1

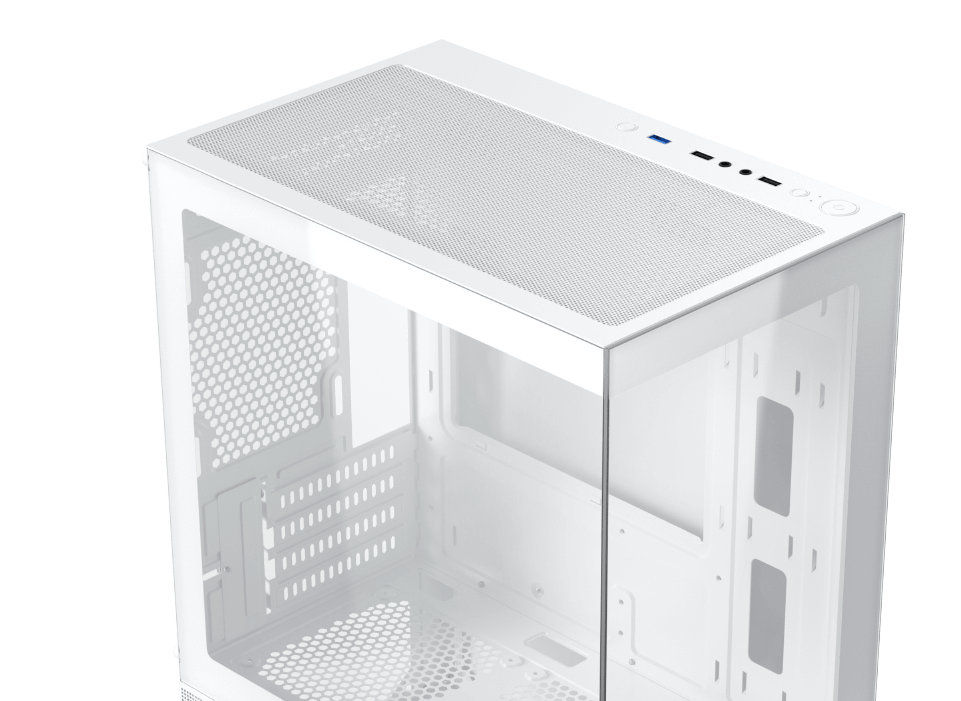

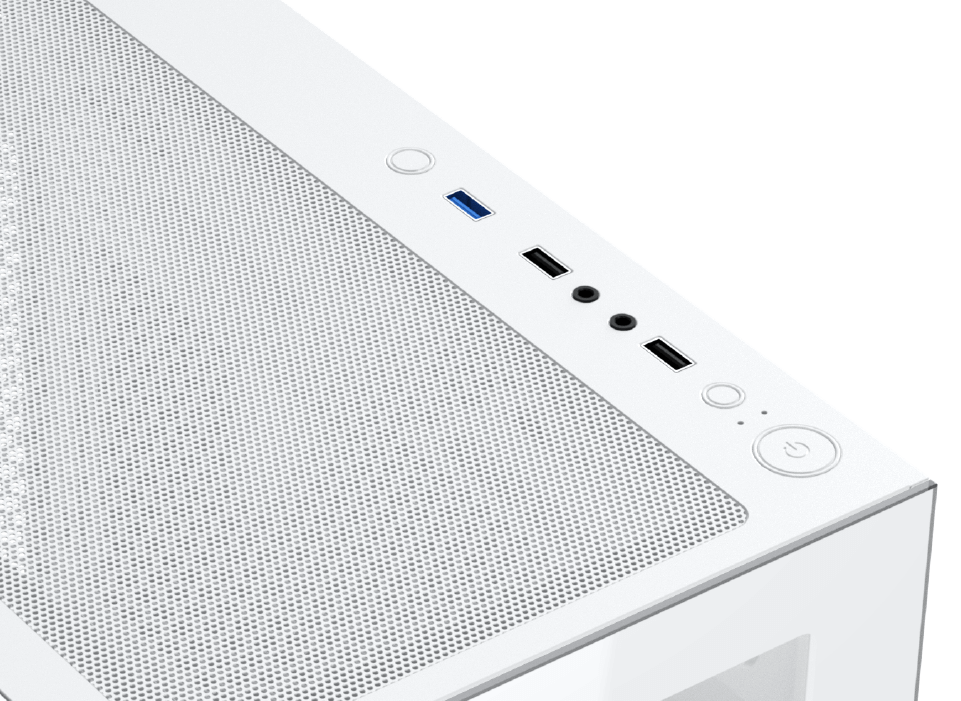

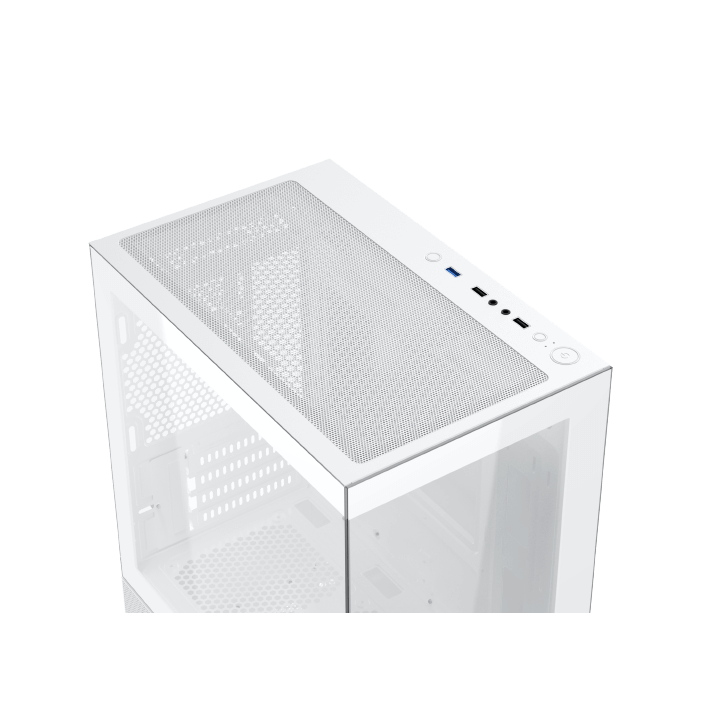

Top Mount I/O Ports
• Power Button
• Reset Button
• USB 2.0
• USB 3.0
• HD Audio Jack
• LED Switch
*All Product Images Shown Are For Illustration Purpose Only.

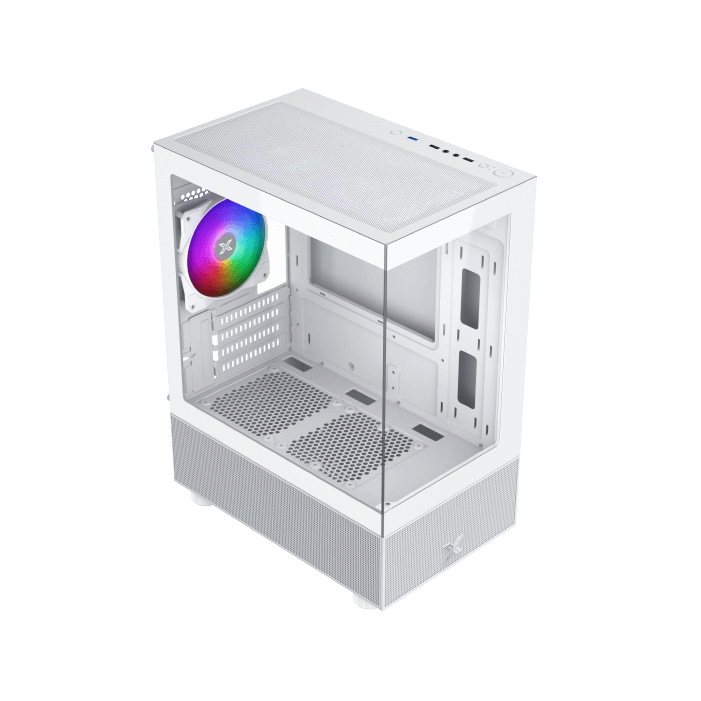

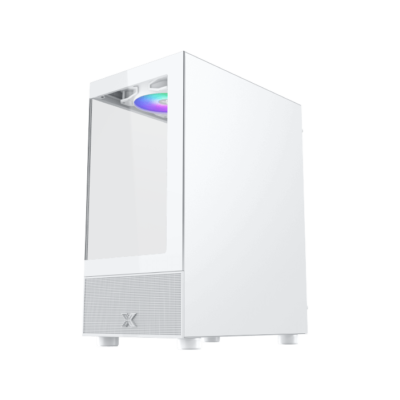

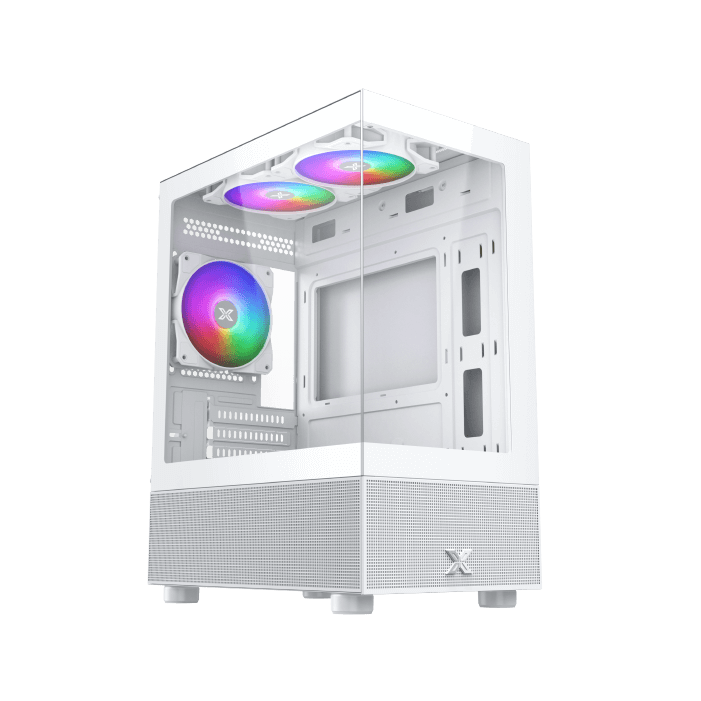

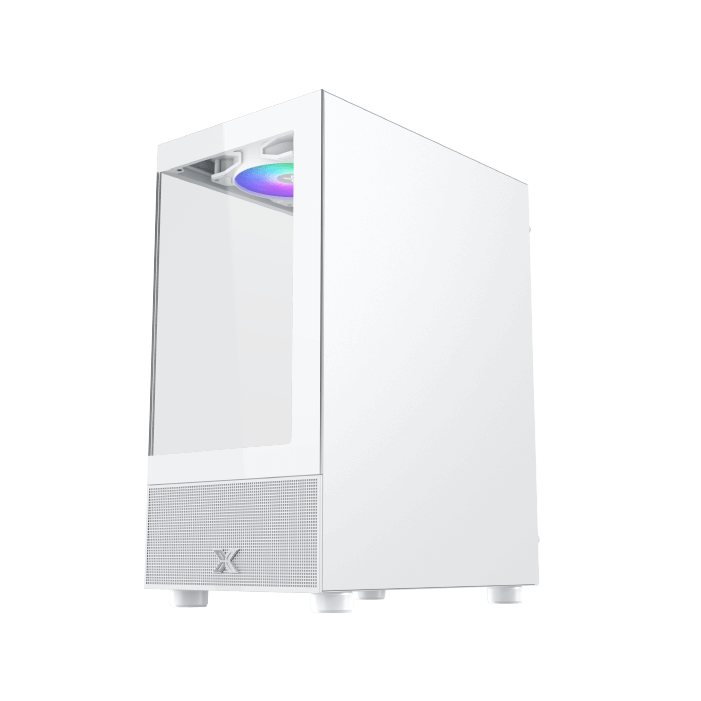

Endorphin M II Arctic 3F
Steel
333x212x437mm (LxWxH)
HDD Cage (Top): 3.5″ x1
HDD Cage (Bottom): 2.5″ x1
4 Standard Slots
M-ATX, Mini-ITX
Standard PS2 ATX PSU
Top: 120mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1
Top: 240
Rear: 120
USB 3.0 x 1
USB 2.0 x 2
HD Audio
LED Button
165mm
320mm
180mm
