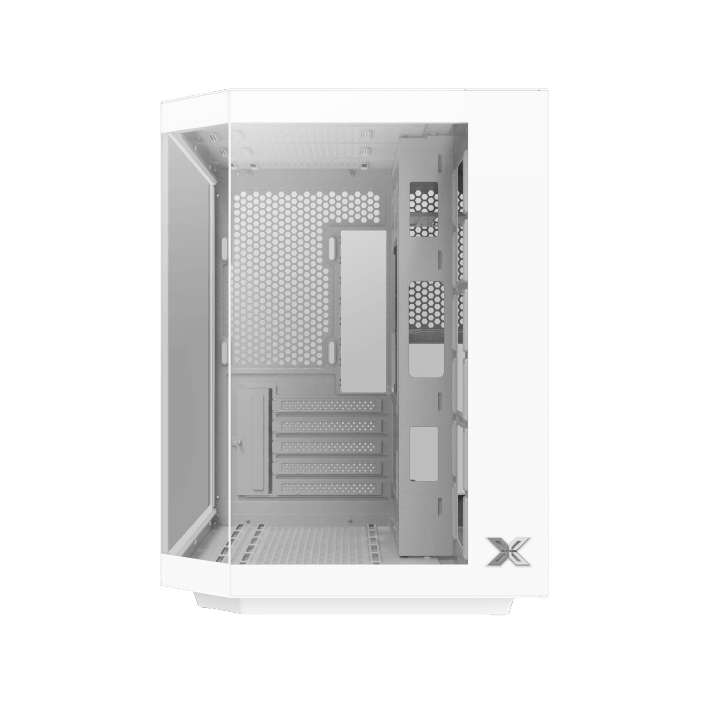

Cubi M Arctic

Cubi M Arctic

Motherboard M-ATX

CPU Cooler 165mm

Fan Support 9 max.

Power Supply 200mm

Graphics Card 358mm

Radiator 360mm max.

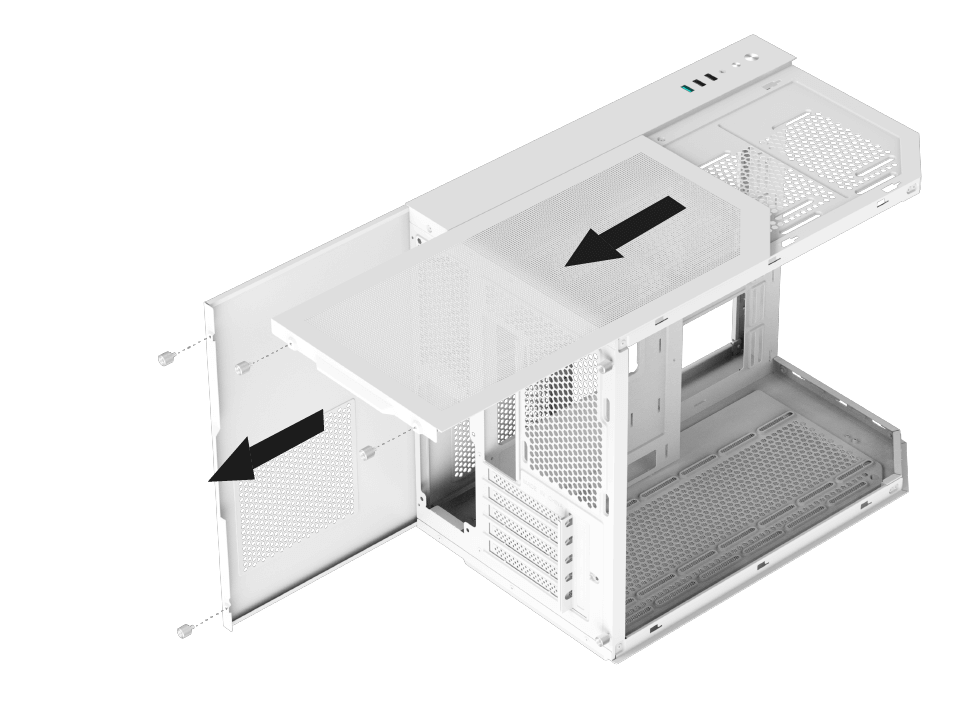

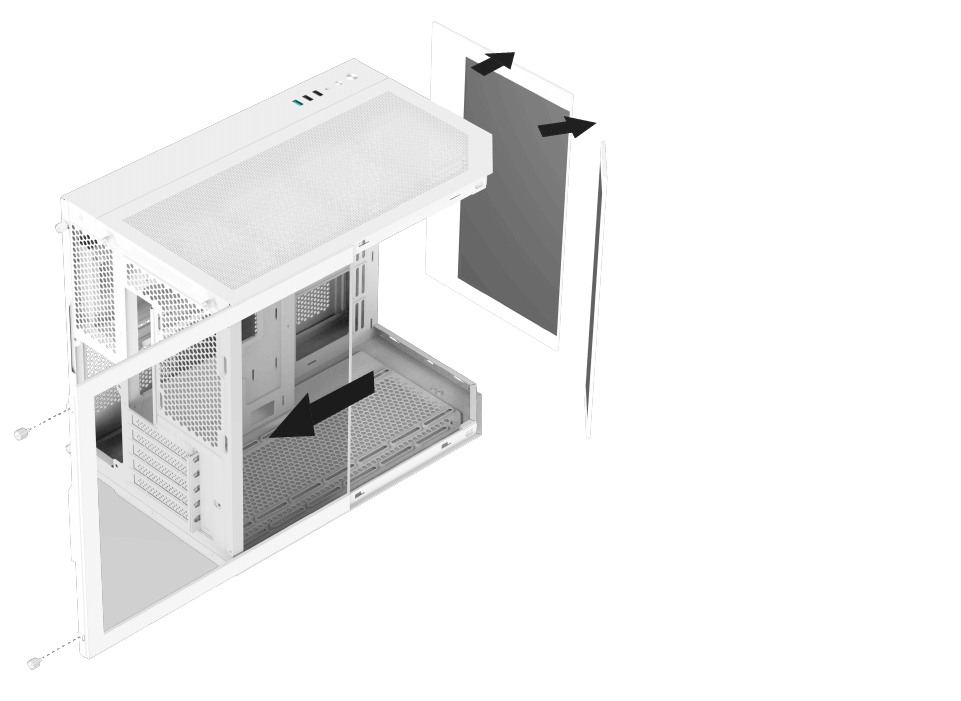

Easily Mounted Panels

Easily Mounted Tempered Glass Panel

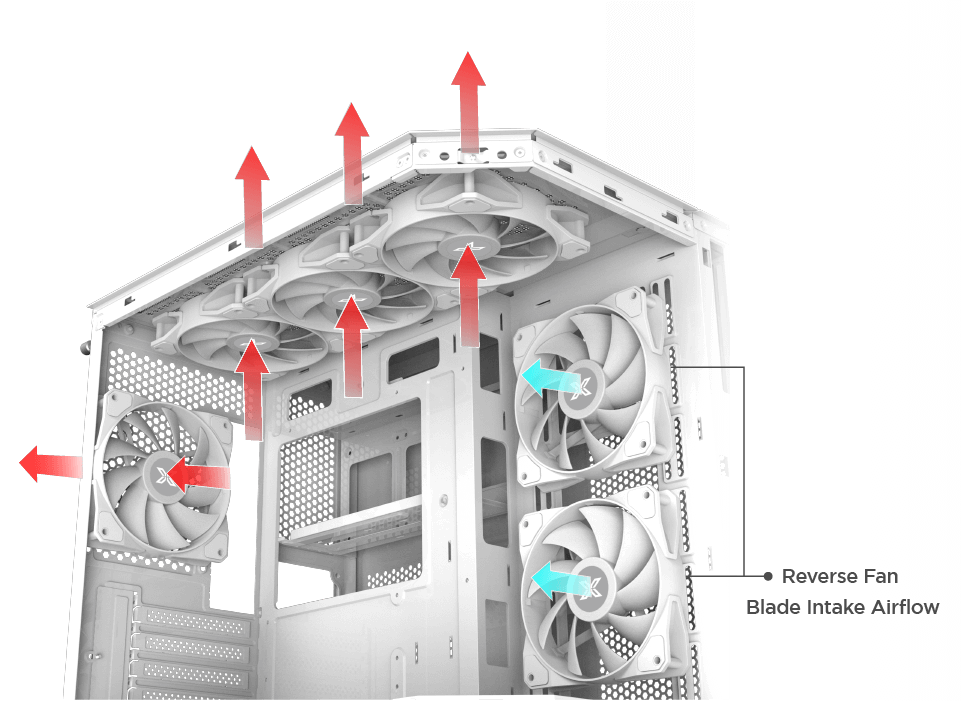

Superior Airflow and Ventilation Design

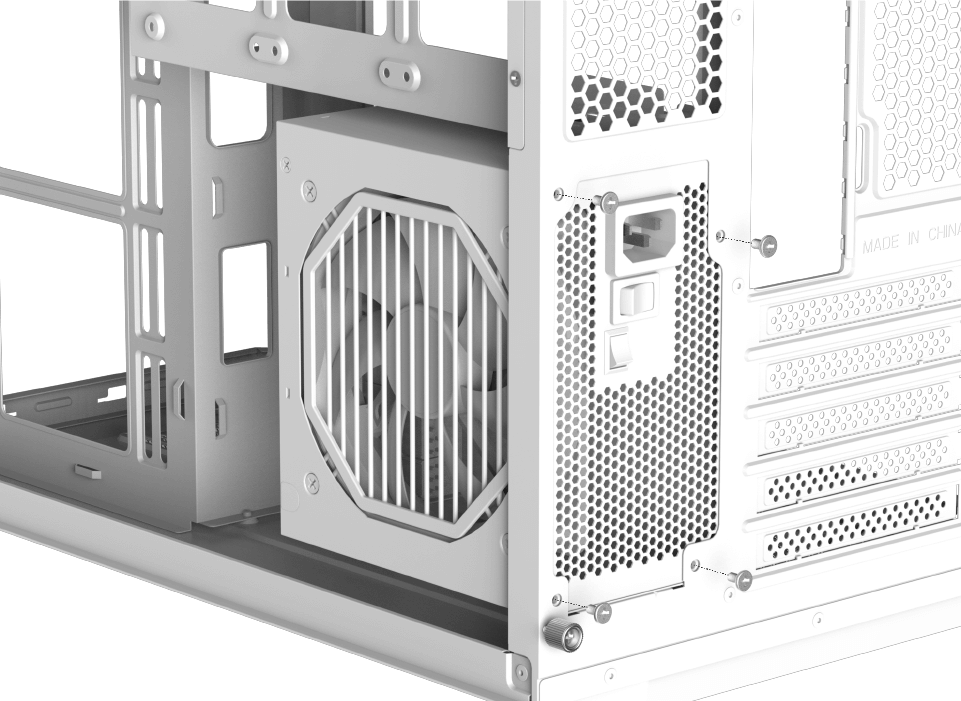

PSU Limitation up to 200mm

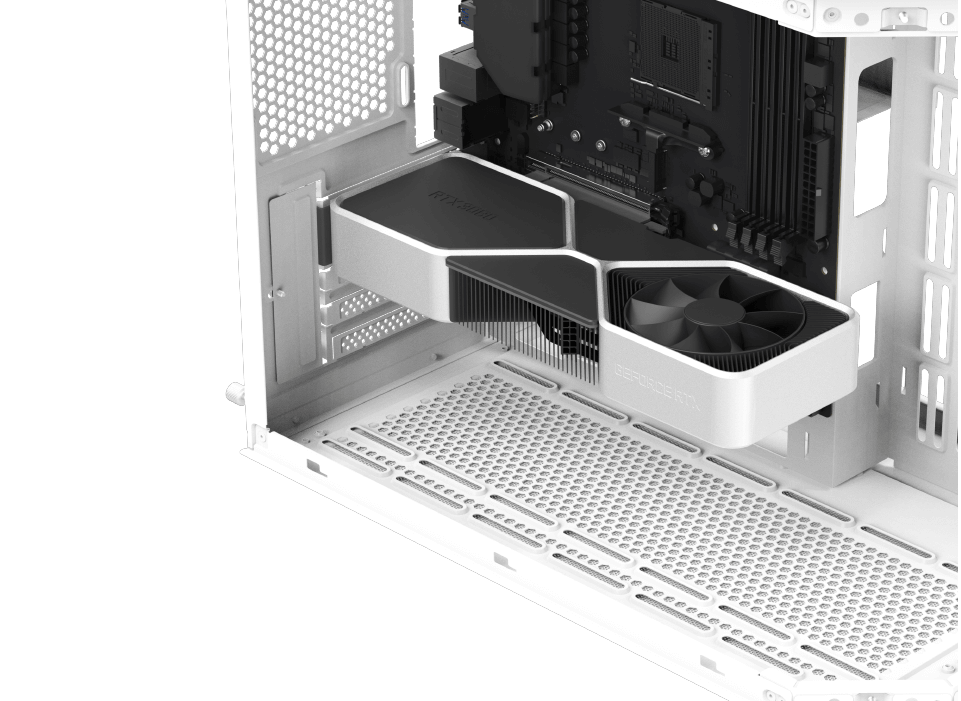

VGA Length Limitation:358mm

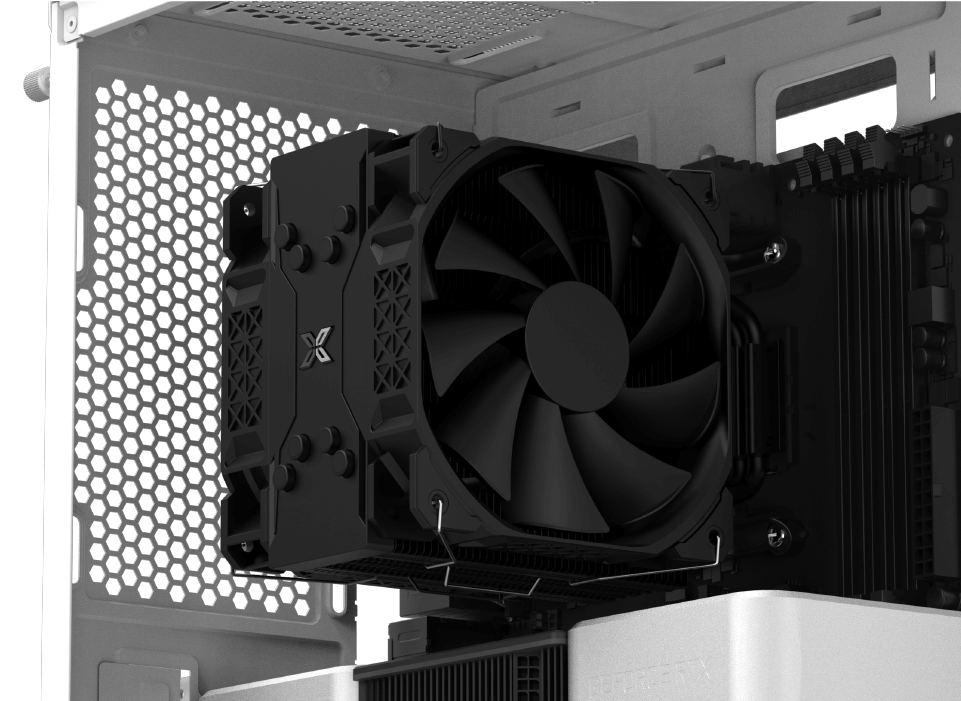

CPU Cooler up to 165 mm

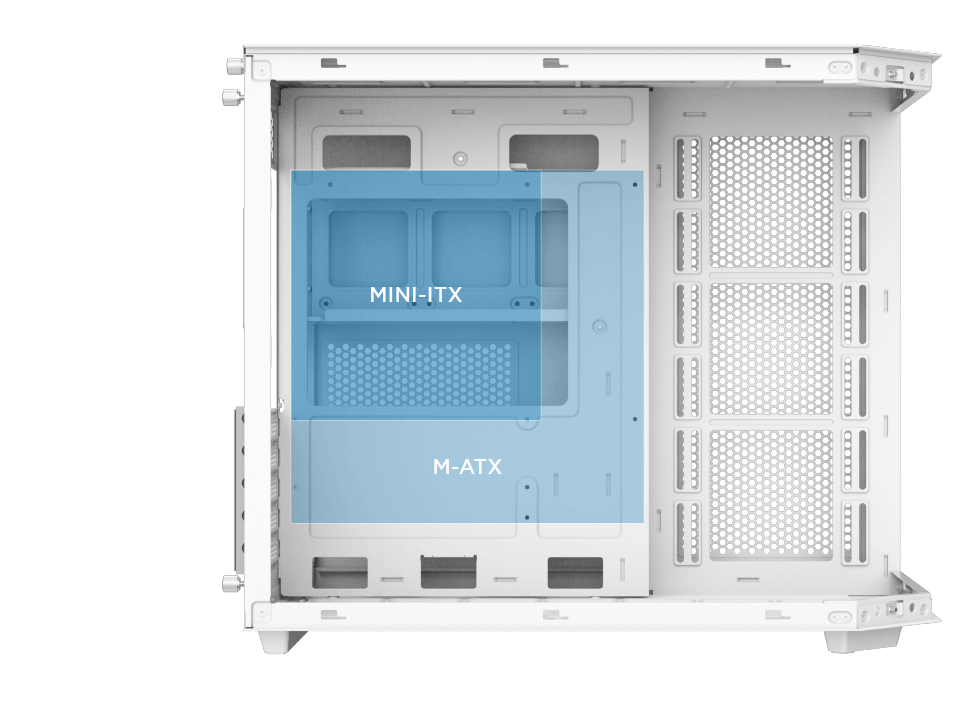

Support Motherboard up to M-ATX

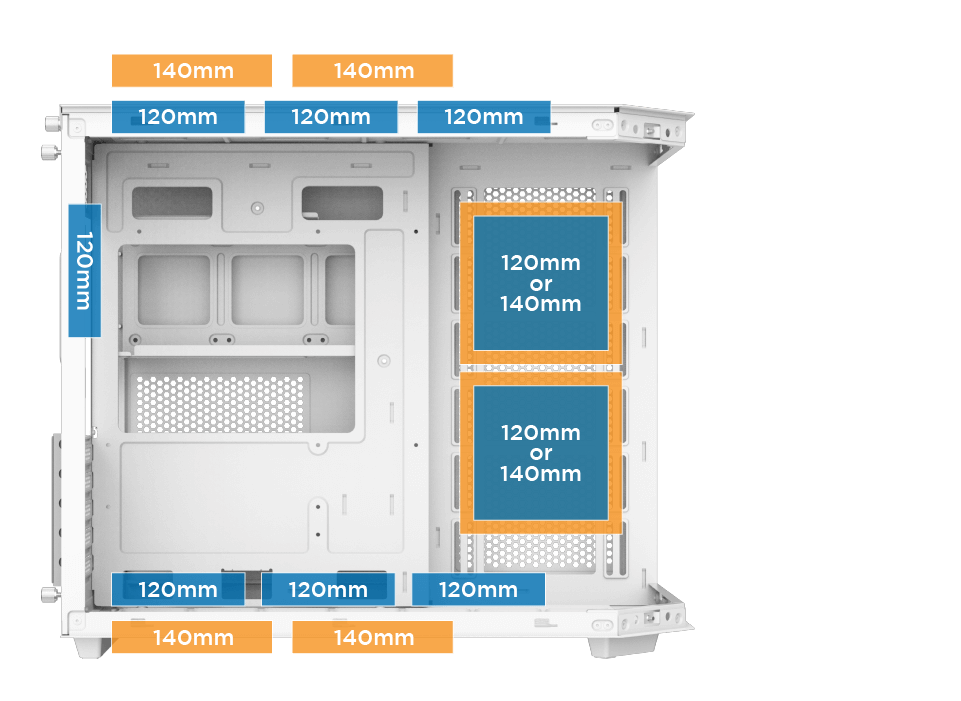

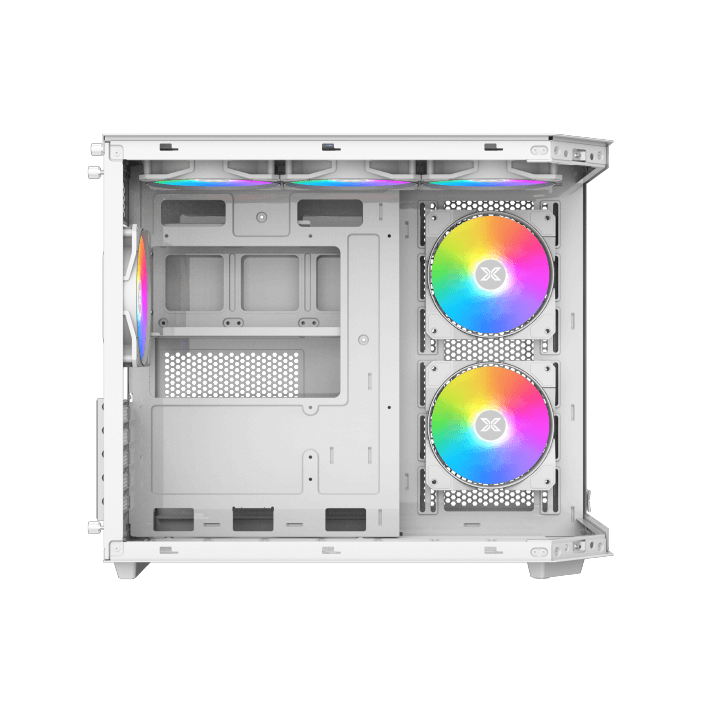

Fan Cooling System:

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x2 or 140mm x2
Bottom: 120mm x3 or 140mm x2

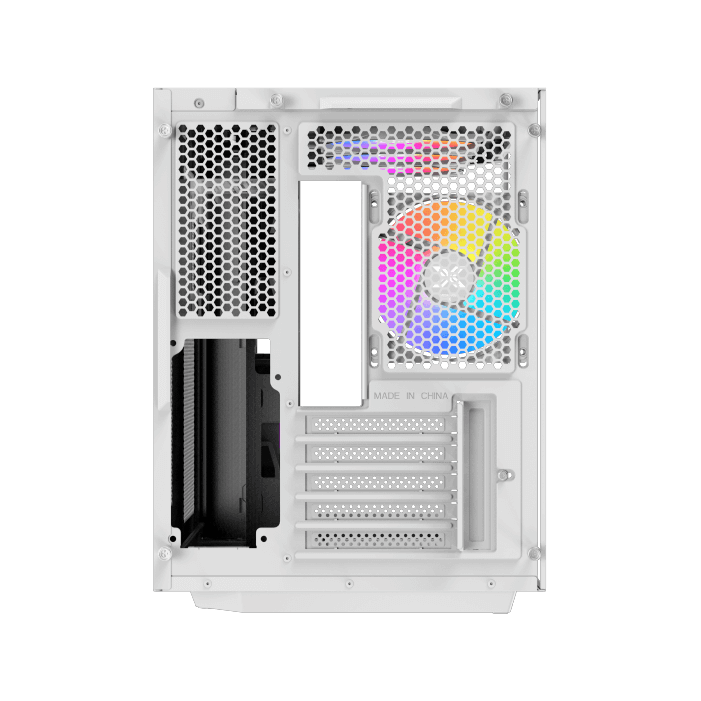

Rear: 120mm x1

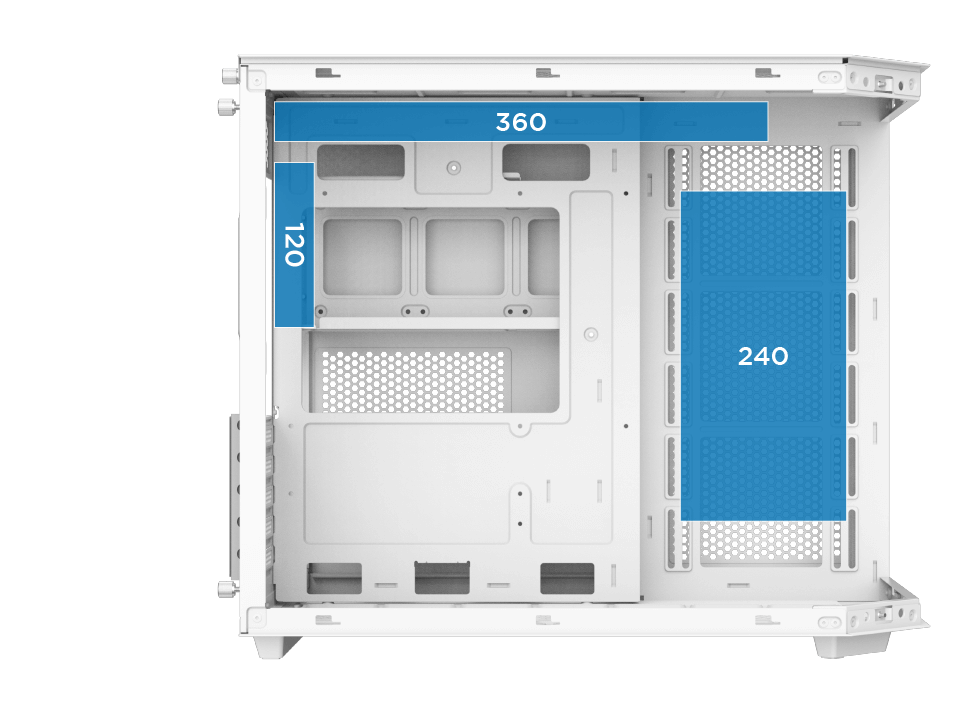

Liquid Cooling System:

Top: 360
MB Panel: 240
Rear: 120

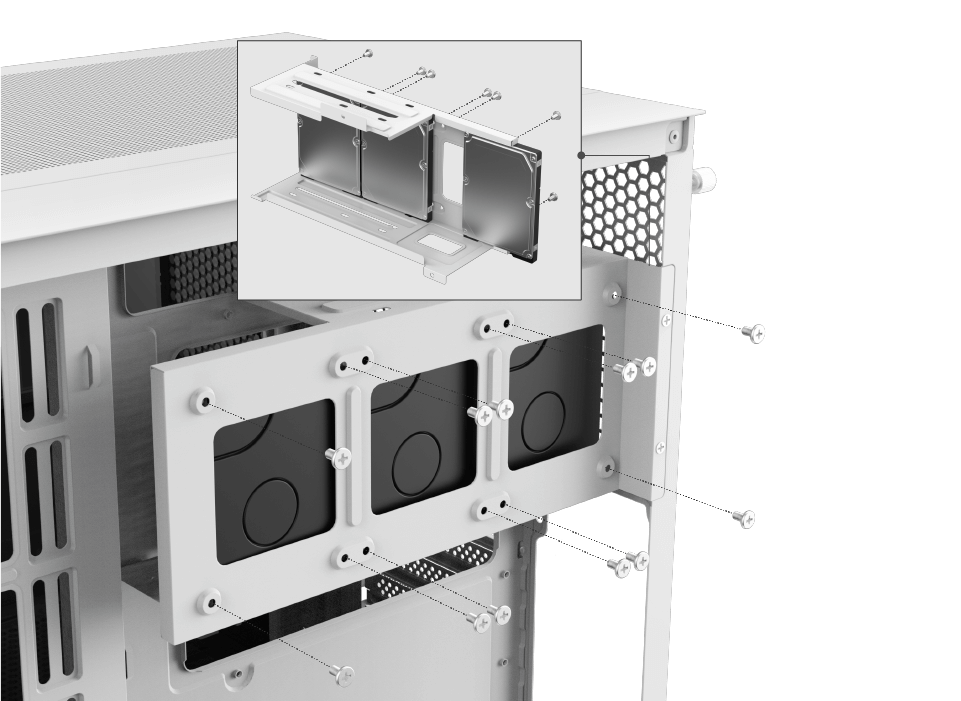

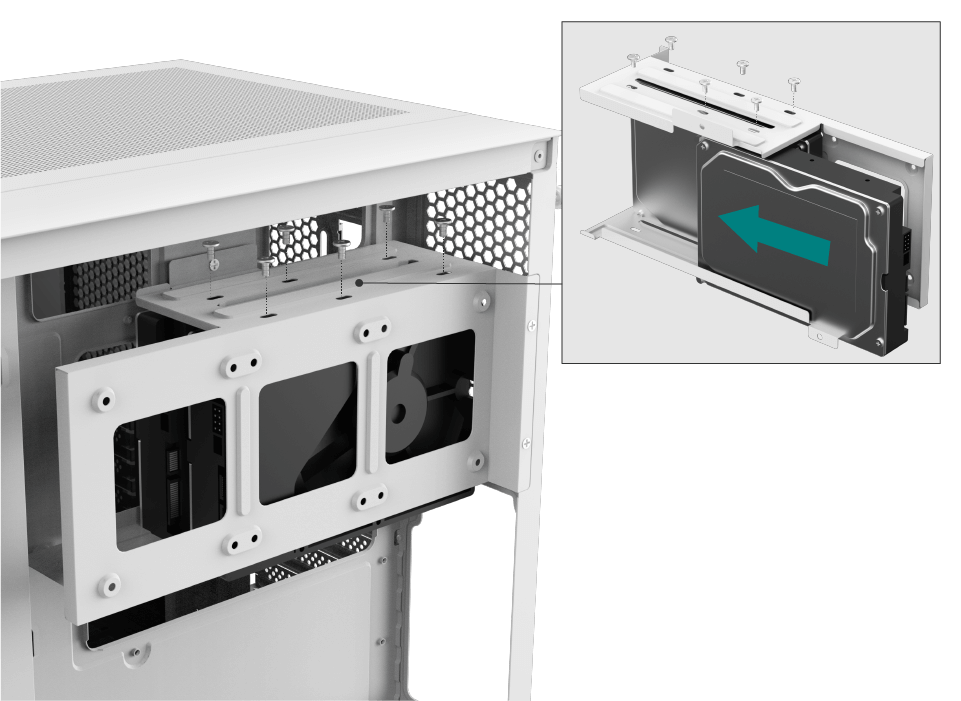

3.5 HDD x2

2.5 SSD x3

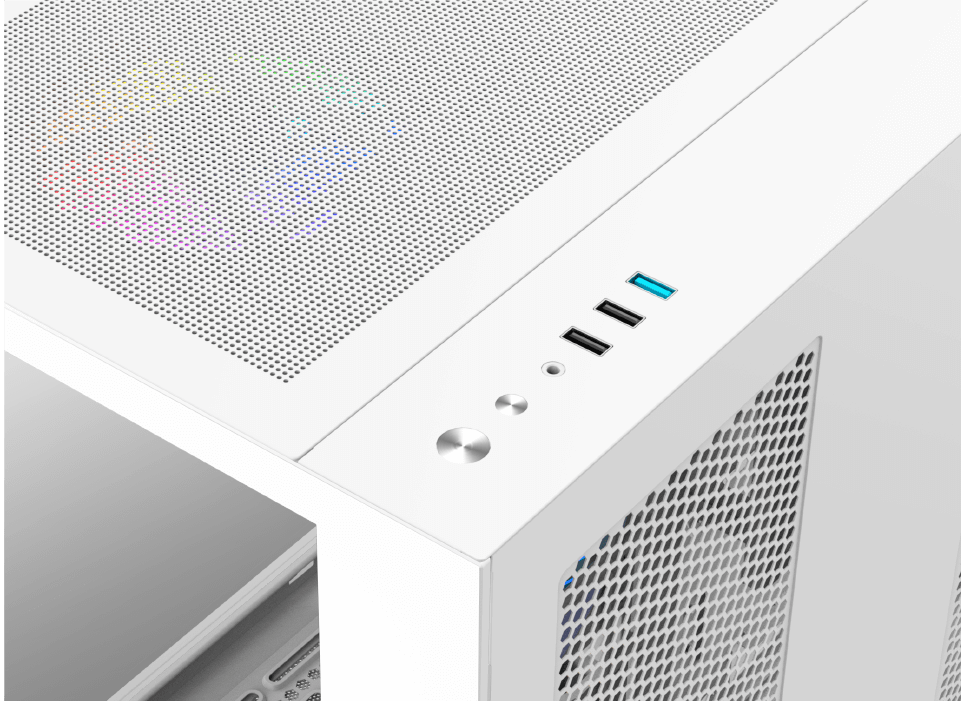

Top Mount I/O Ports

• Power Button
• Reset Button
• HD Audio Jack
• USB2.0 x 2
• USB3.0 x 1

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Cubi M Arctic

Material

Steel

Dimensions

430x277x372mm (LxWxH)

Drive Bays

3.5 HDD x2 & 2.5 SSD x3

Expansion Slots

5 Standard Slots

Motherboard Support

M-ATX, Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x3 or 140mm x2
Bottom: 120mm x3 or 140mm x2
MB Panel: 120mm x2 or 140mm x2
Rear: 120mm x1

Radiator Support

Top: 360
MB Panel: 240
Rear: 120

I/O Panel

USB3.0 x1
USB2.0 x2
HD Audio (2 in 1)
Power Button
Reset Button

CPU Cooler Clearance

165mm

VGA Length Limitation

358mm

PSU Length Limitation

200mm
