Blast M

Blast M
Overview

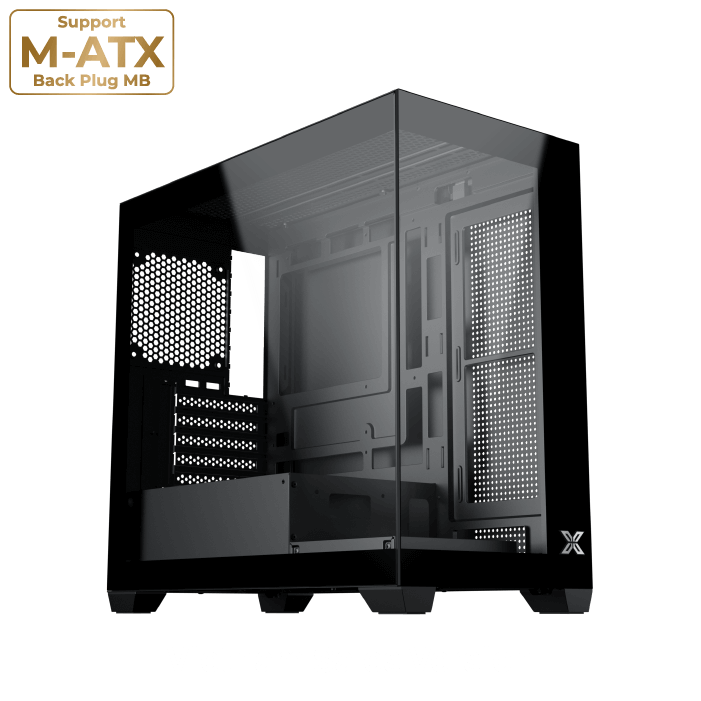

Blast M

Motherboard M-ATX max.

CPU Cooler 170mm

Fan Support 9 max.

Power Supply 220mm

Graphics Card 425mm

Radiator 360mm max.

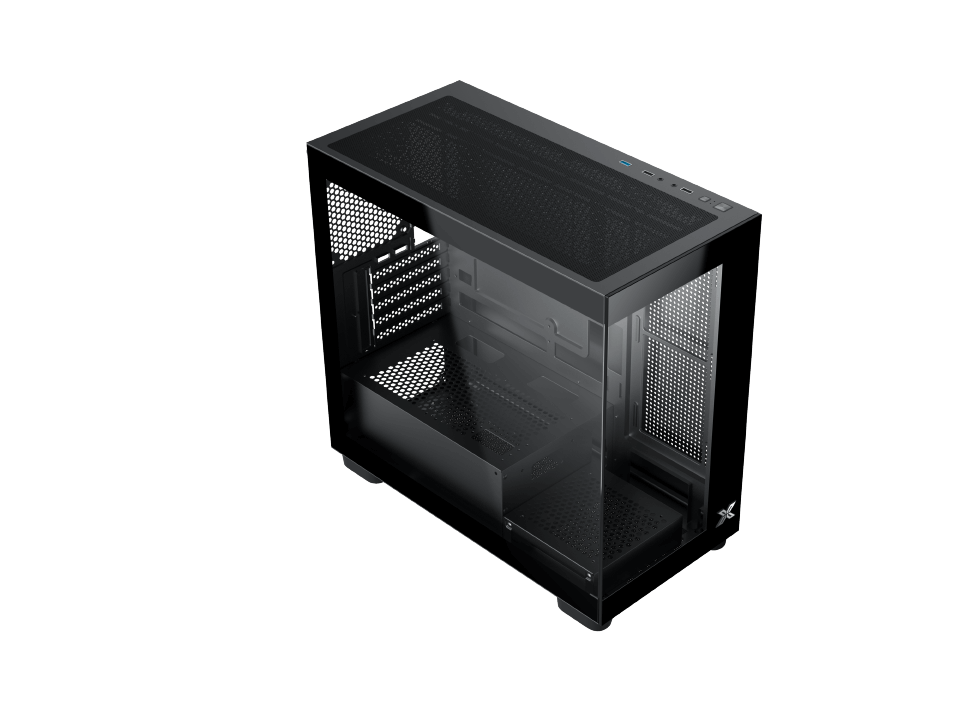

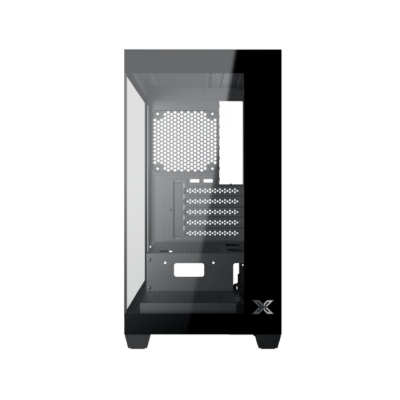

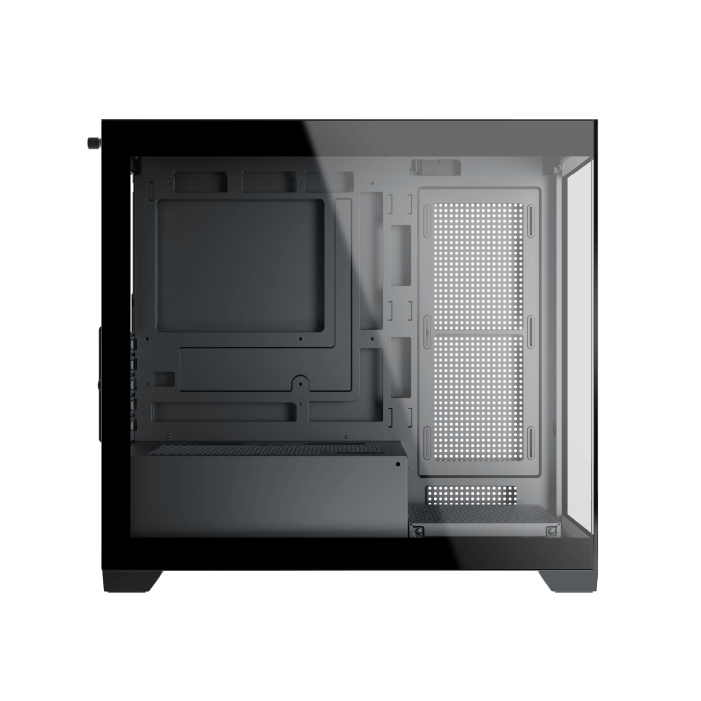

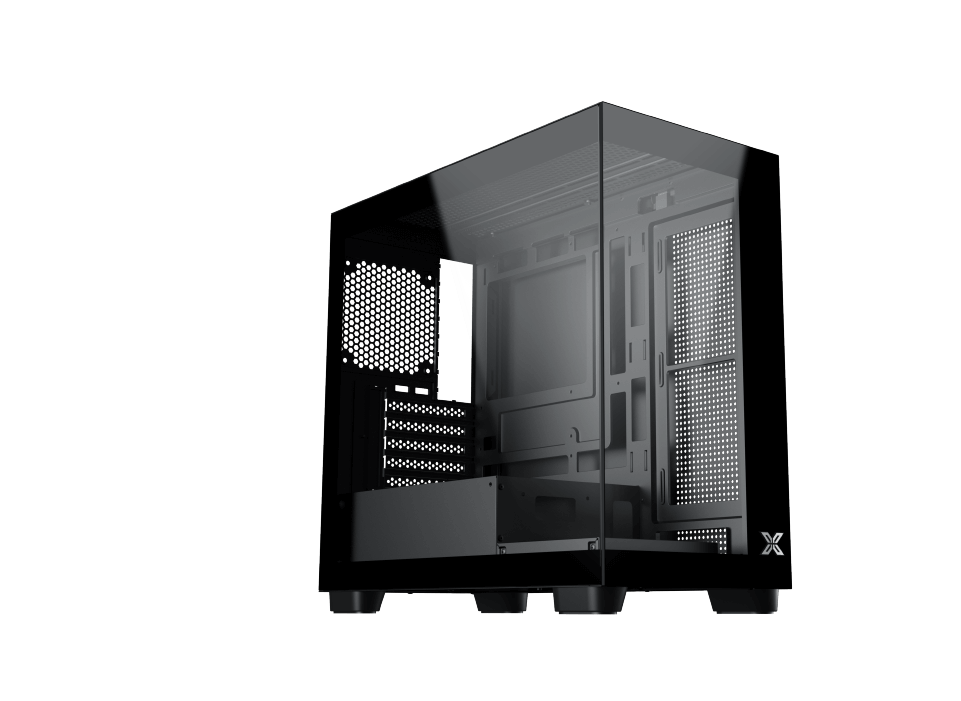

2 Tempered
Glass Panel Design

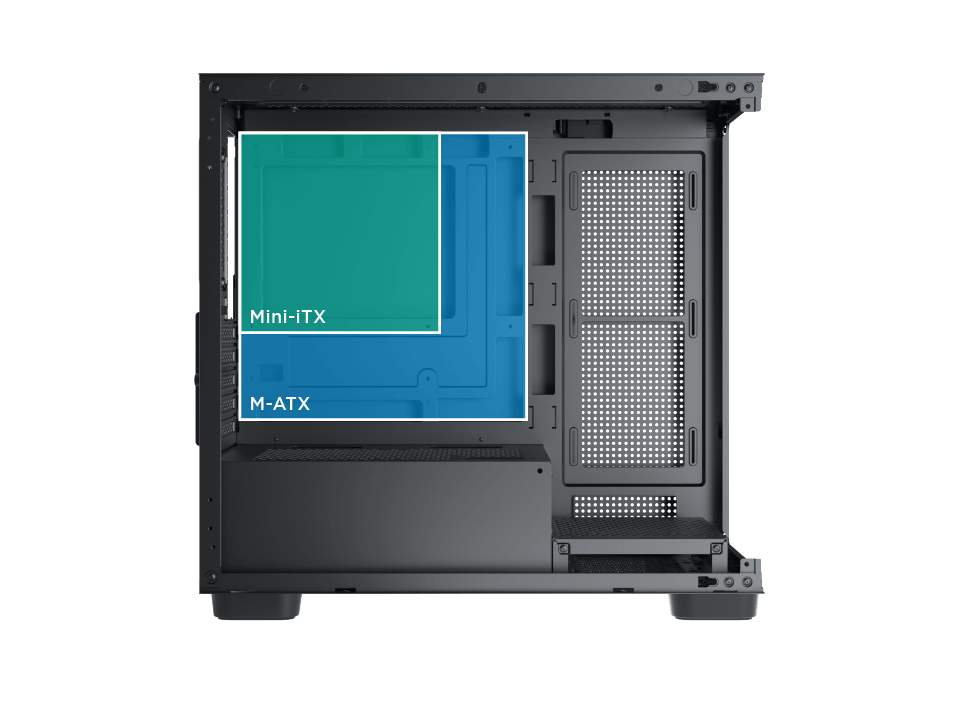

Support Motherboard
up to M-ATX

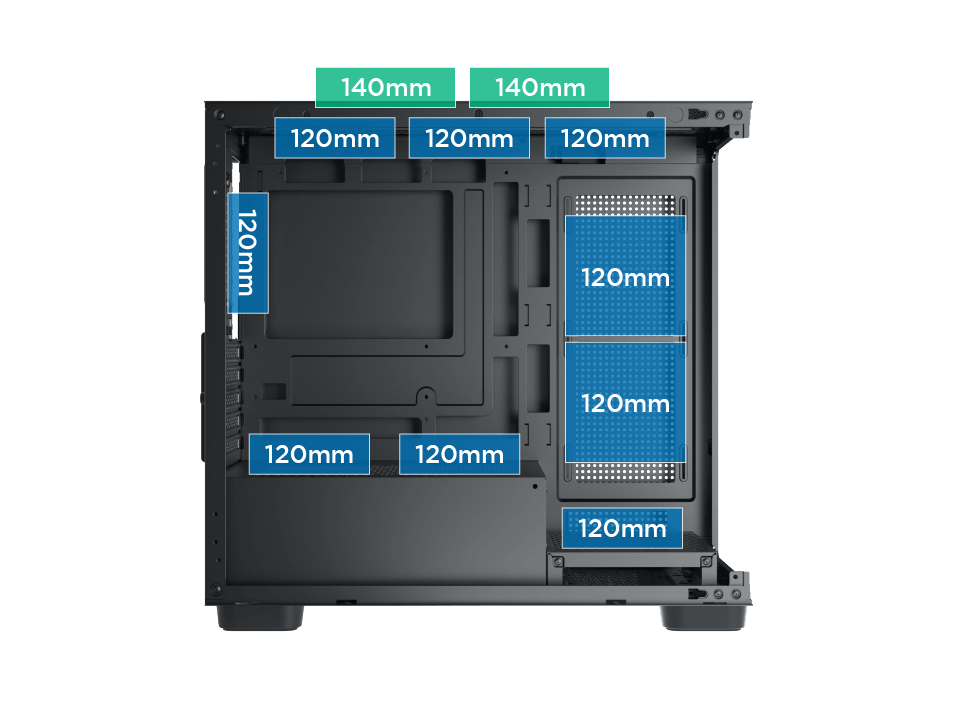

Fan Support

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x2
PSU Shroud: 120mm x2
Bottom: 120mm x1 (No SSD or HDD)
Rear: 120mm x1

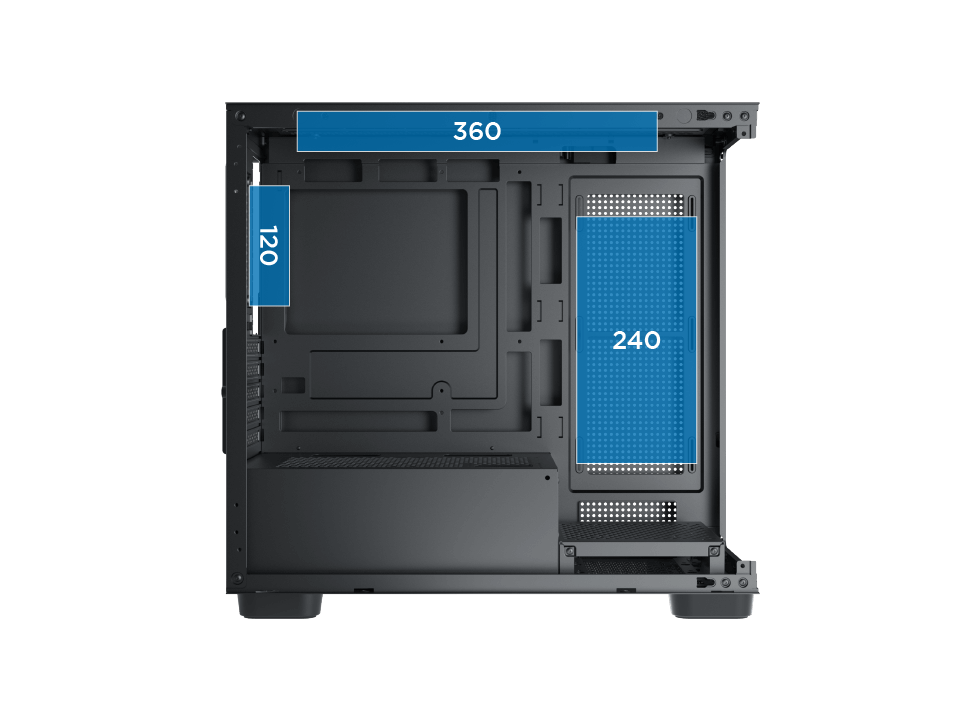

Radiator Support

Top: 360
(Memory Height ≤ 45mm)
MB: 240
Rear:120

PSU Limitation
up to 220mm

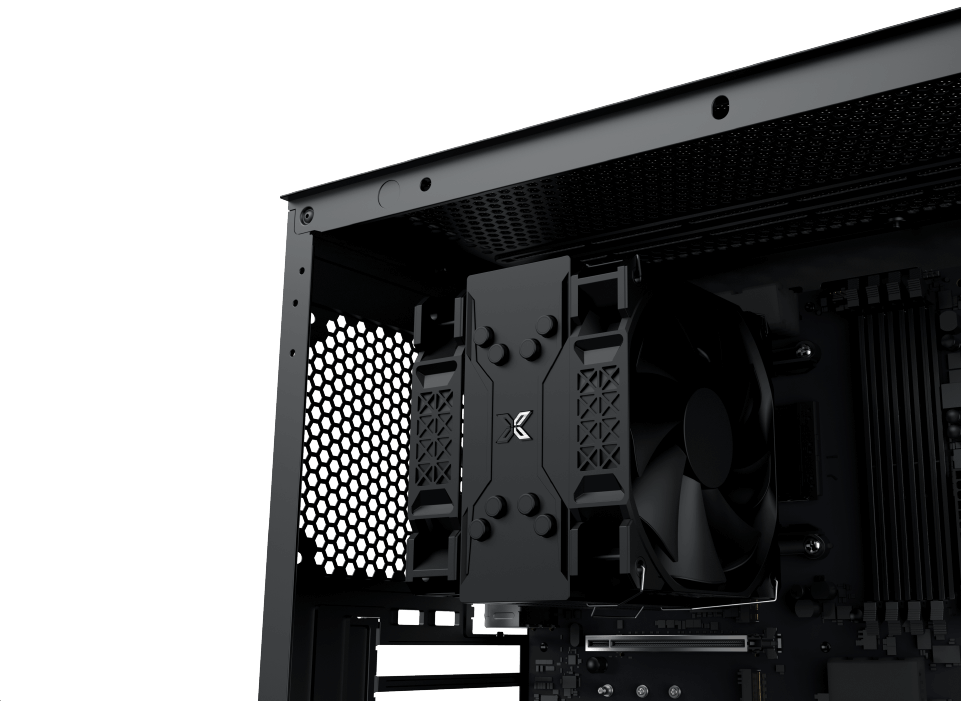

CPU Cooler Clearance
up to 170 mm

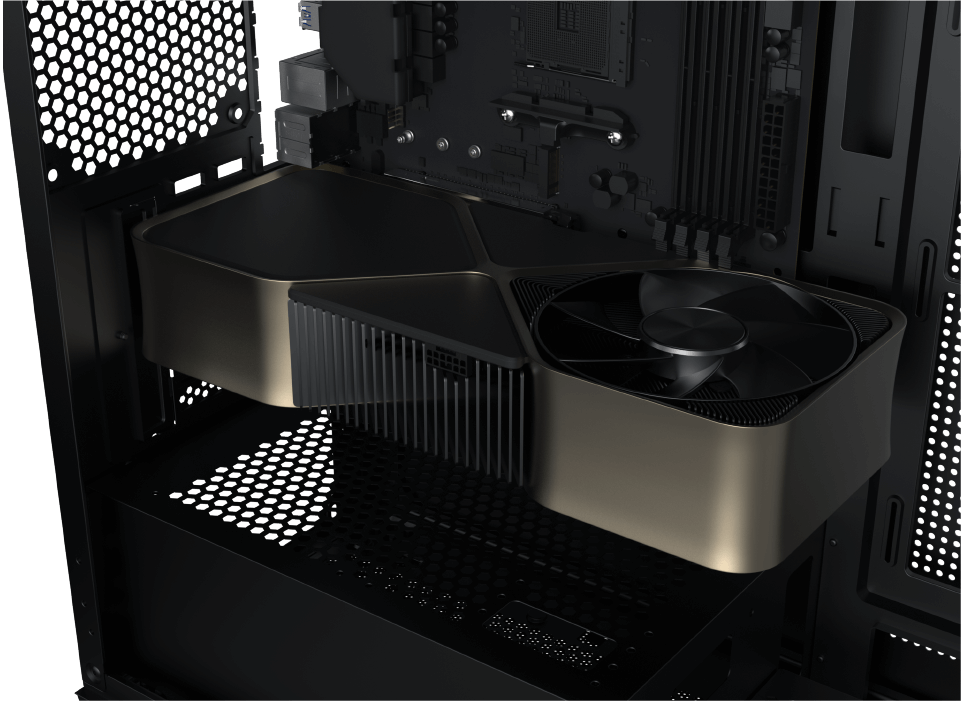

GPU Length Limitation
285mm (Fan on MB Panel)
425mm (No Fan on MB Panel)

PSU Limitation
up to 165mm

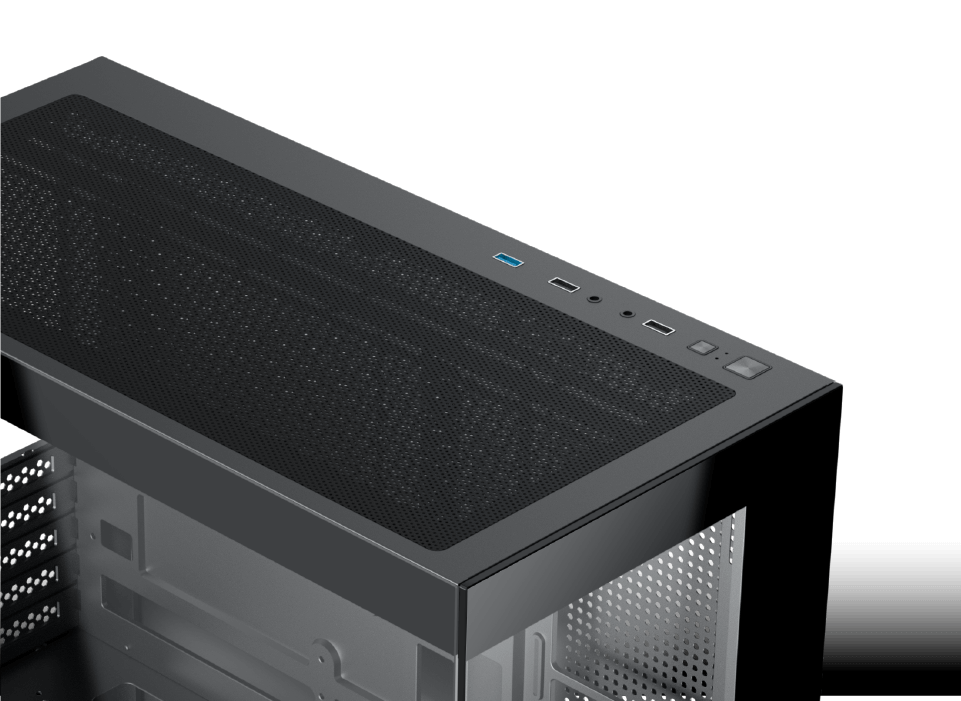

Top I/O Ports

• Power Button
• Reset Button
• HD Audio Jack
• USB 2.0 x2
• USB 3.0 x1

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Blast M

Dimensions

435x218x415mm (LxWxH)

Motherboard Support

Micro ATX (Support Back Plug)
Mini ITX

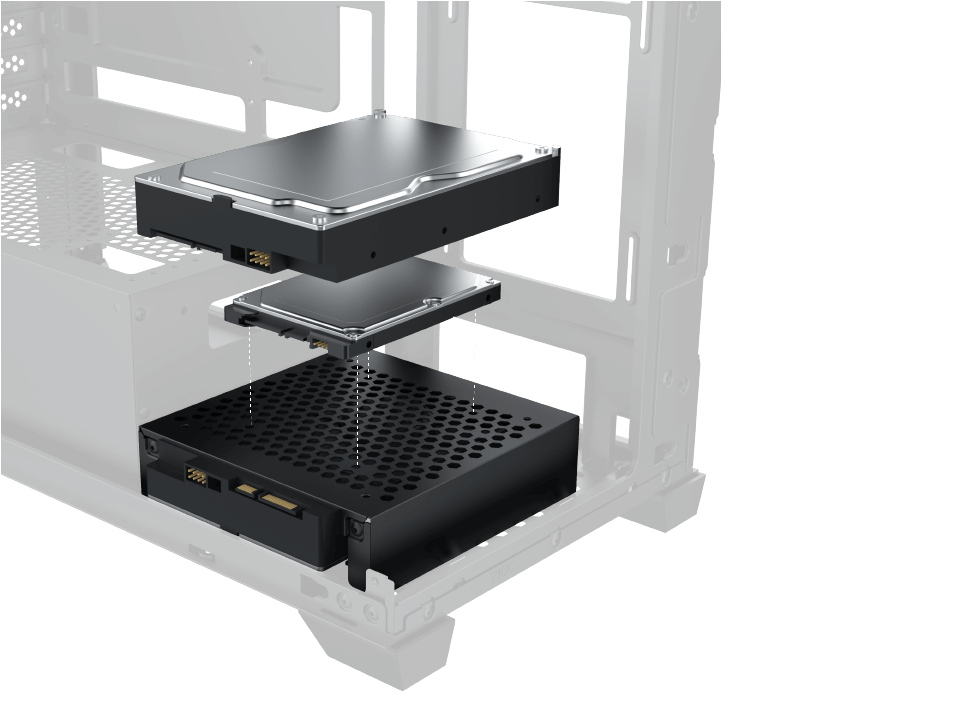

Drive Bays

HDD Cage (Top): 2.5″ or 3.5″ x1
HDD Cage (Bottom): 3.5″ x1

Fan Support

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x2
PSU Shroud: 120mm x2
Bottom: 120mm x1(No SSD or HDD)
Rear: 120mm x1

PSU Length Limitation

220mm

CPU Cooler Clearance

170mm

Material

Steel

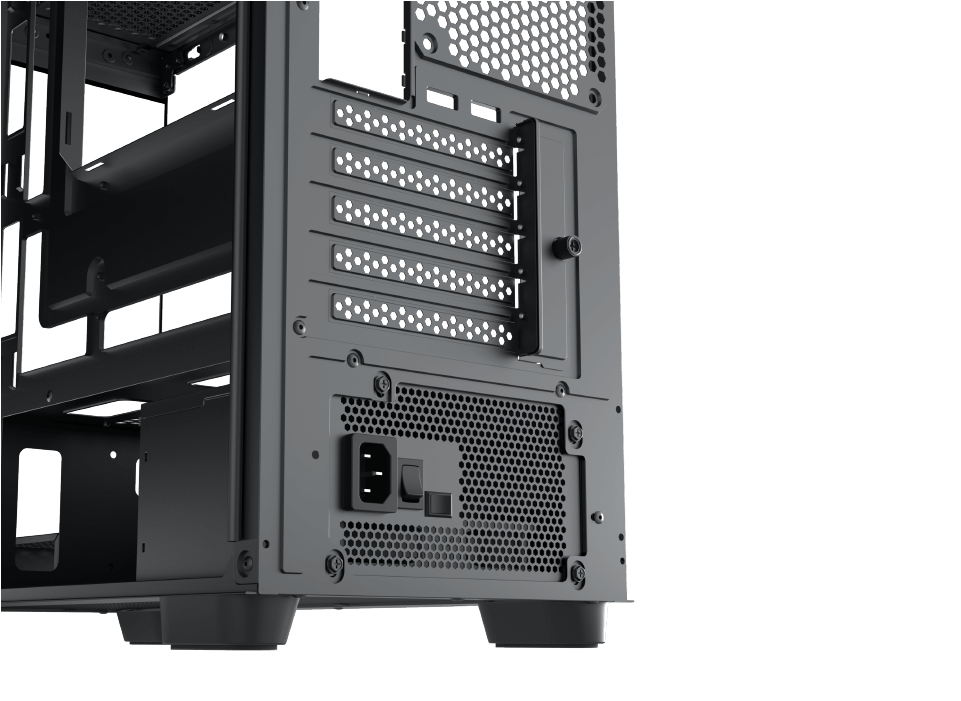

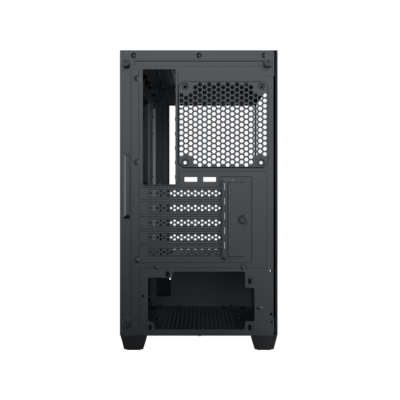

Expansion Slots

5 Standard Slots

Power Supply

Standard PS2
ATX PSU

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

Radiator Support

Top: 360
(Memory Height ≤ 45mm)
MB: 240
Rear: 120

GPU Length Limitation

285mm (Fan on MB Panel)
425mm (No Fan on MB Panel)
