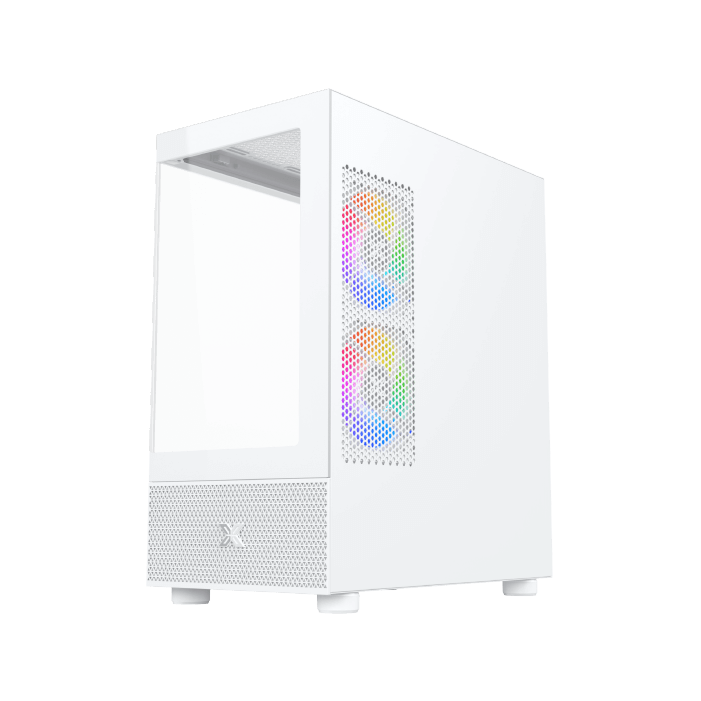

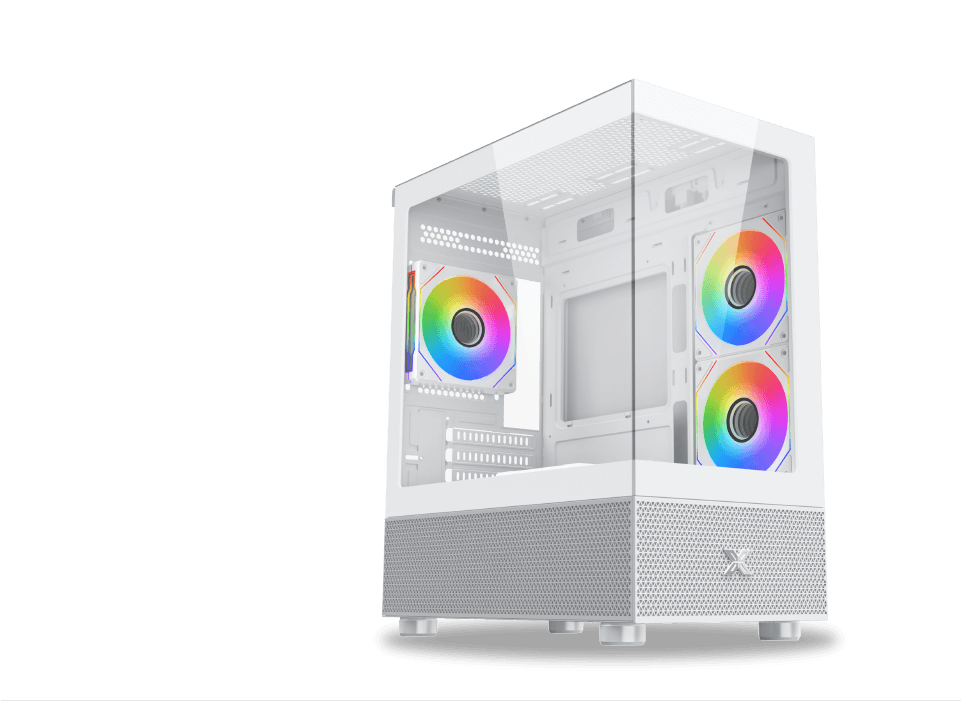

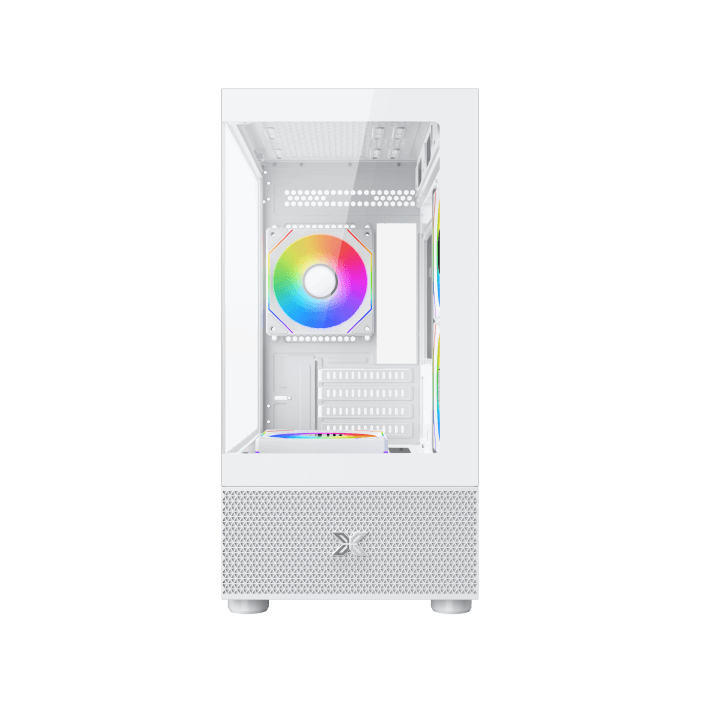

ALPHARD M Arctic

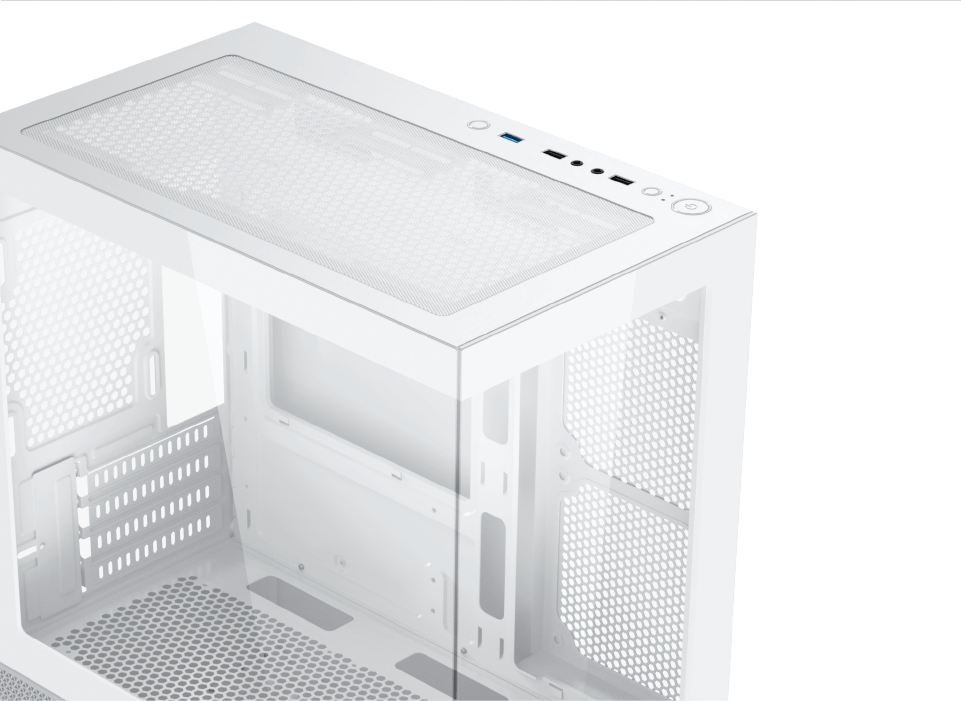

2 Tempered Glass
Panel Design

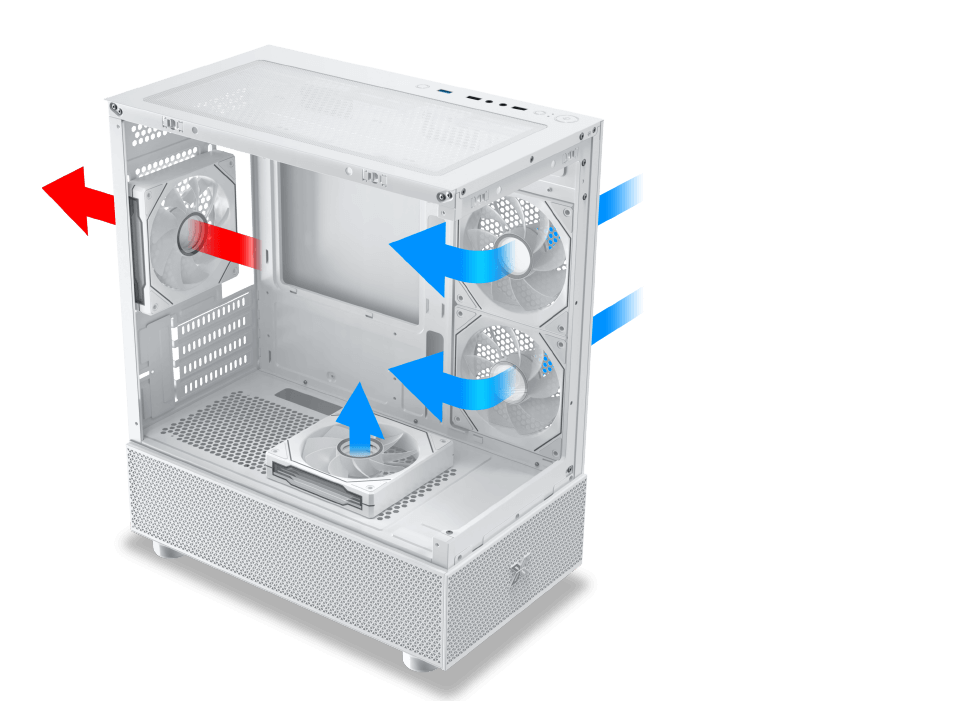

Superior Airflow and
Ventilation Design
Traditional Fan Blade
Pre-installed on Rear Side

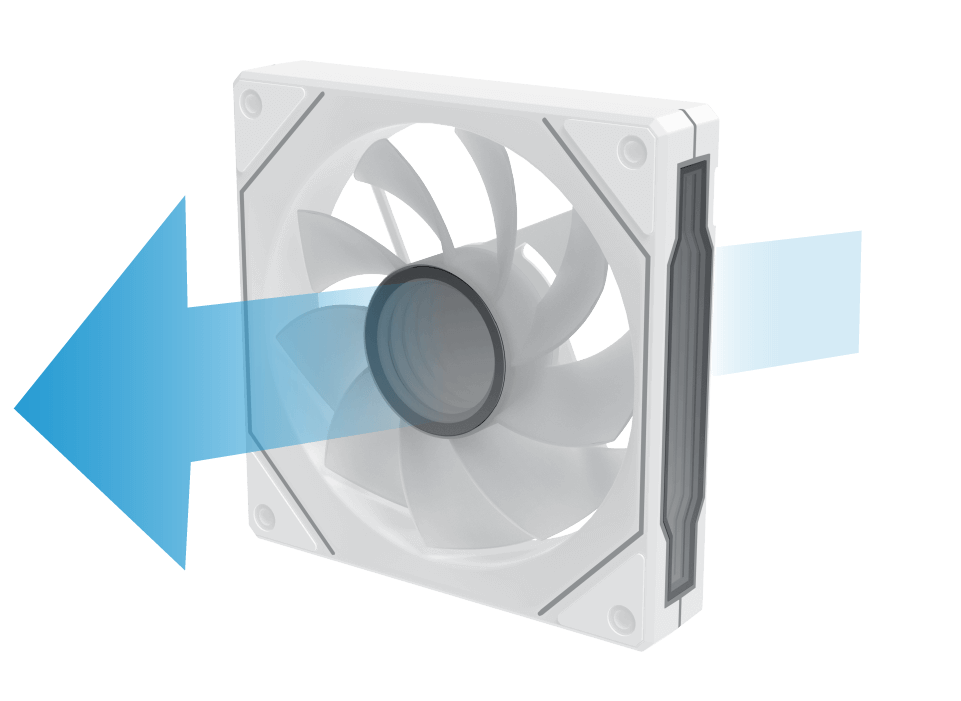

Reverse Fan Blade
Pre-installed on MB Panel Side

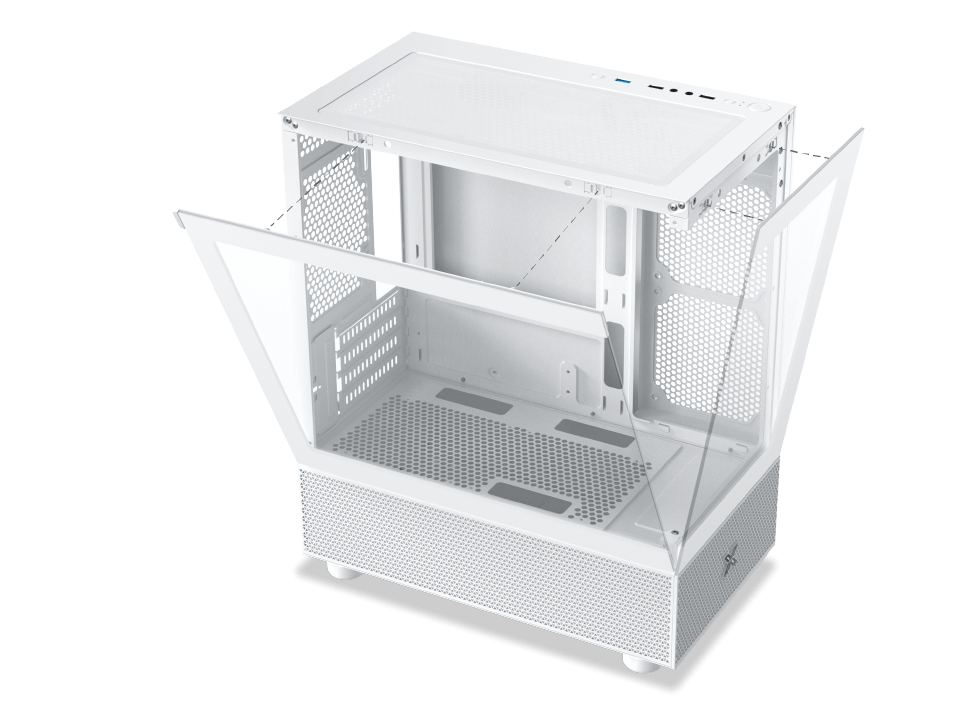

Easily Mounted Tempered
Glass Panel

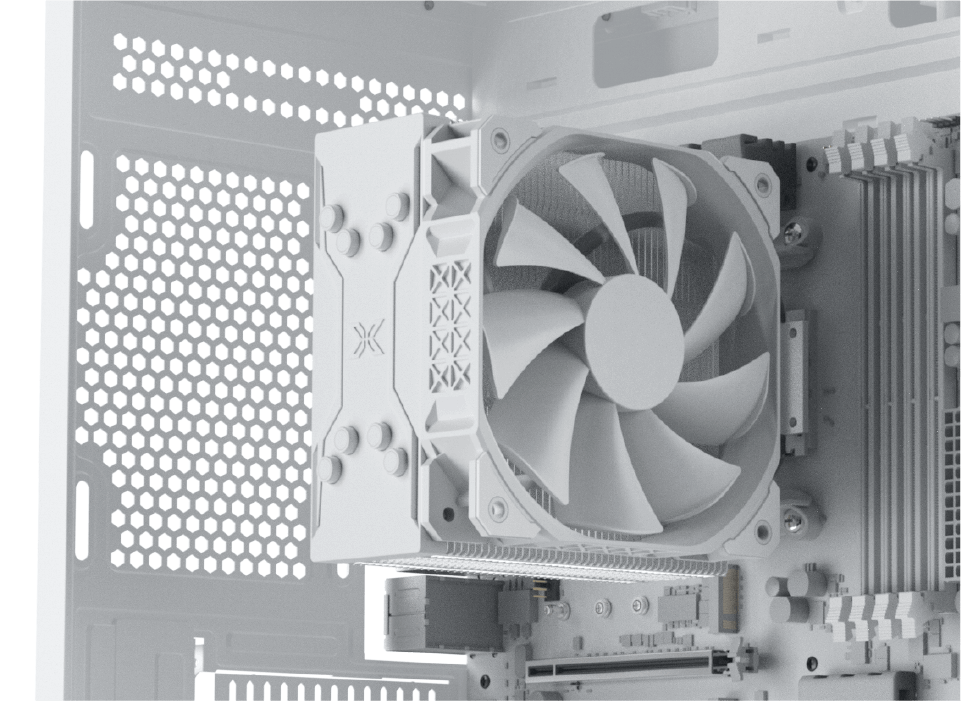

CPU Cooler Clearance
up to 165mm

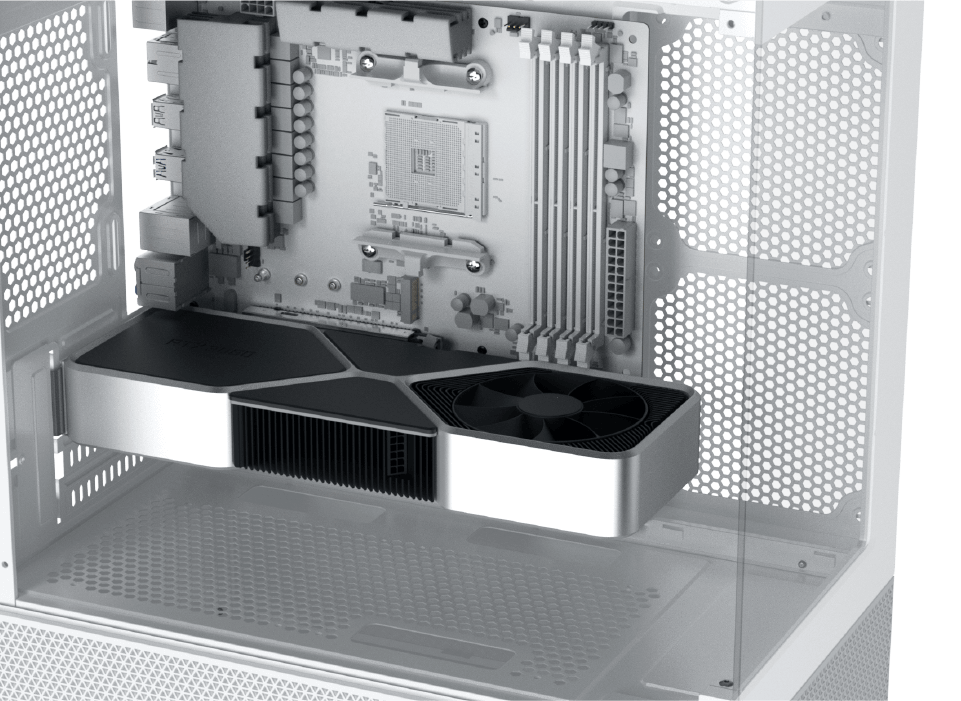

GPU Length Limitation
up to 350mm

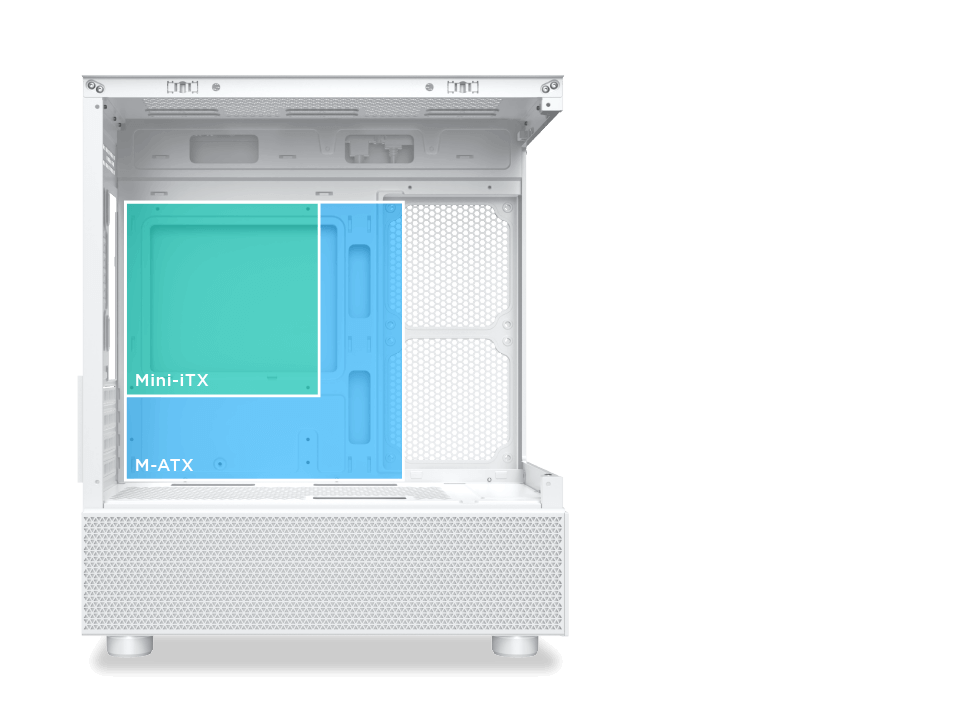

Motherboard Support
up to M-ATX

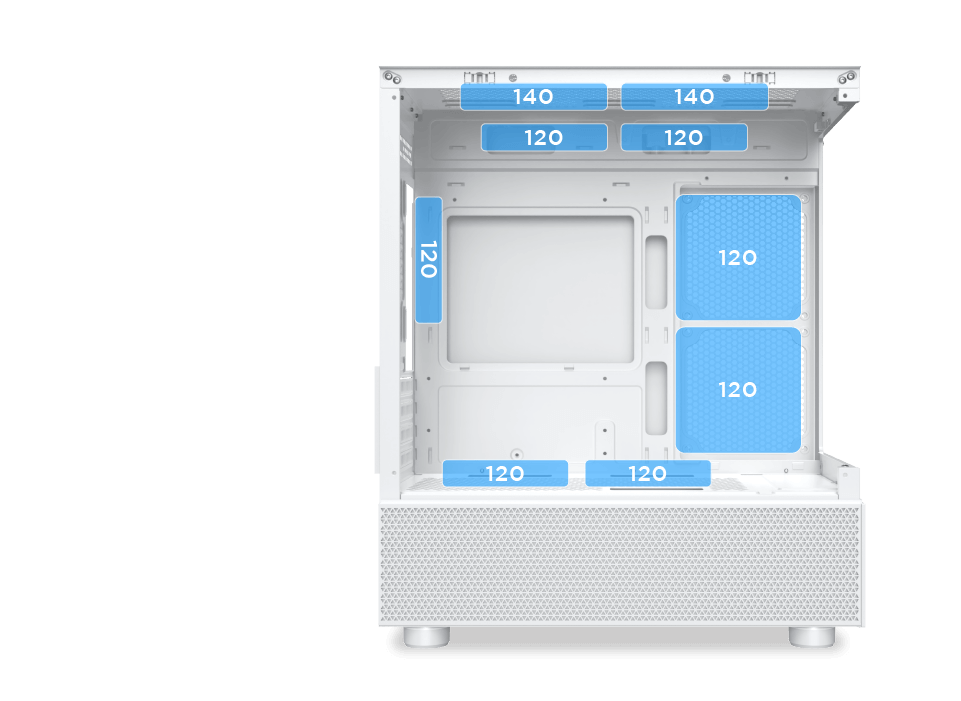

Fan Support
Top: 120mm x2 or 140mm x2
MB: 120mm x2
PSU Shroud: 120mm x2

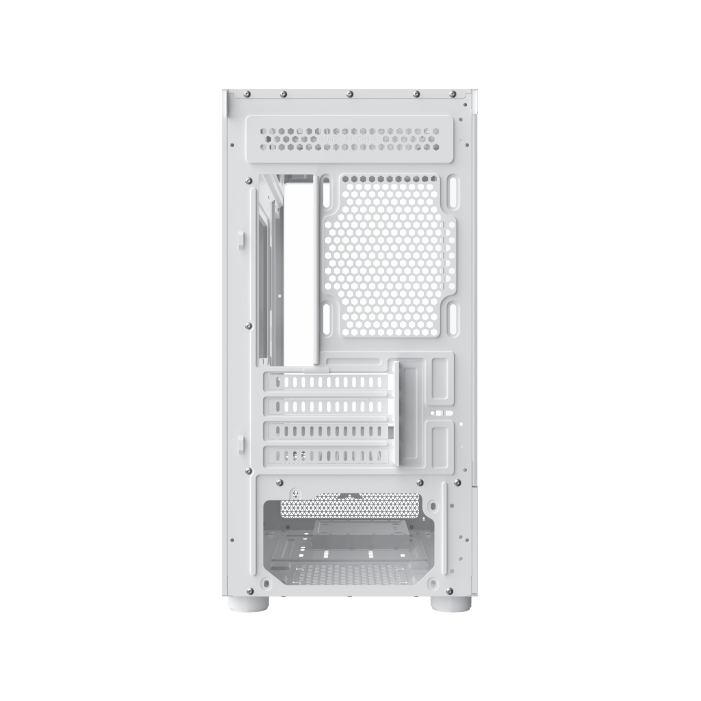

Rear: 120mm x1

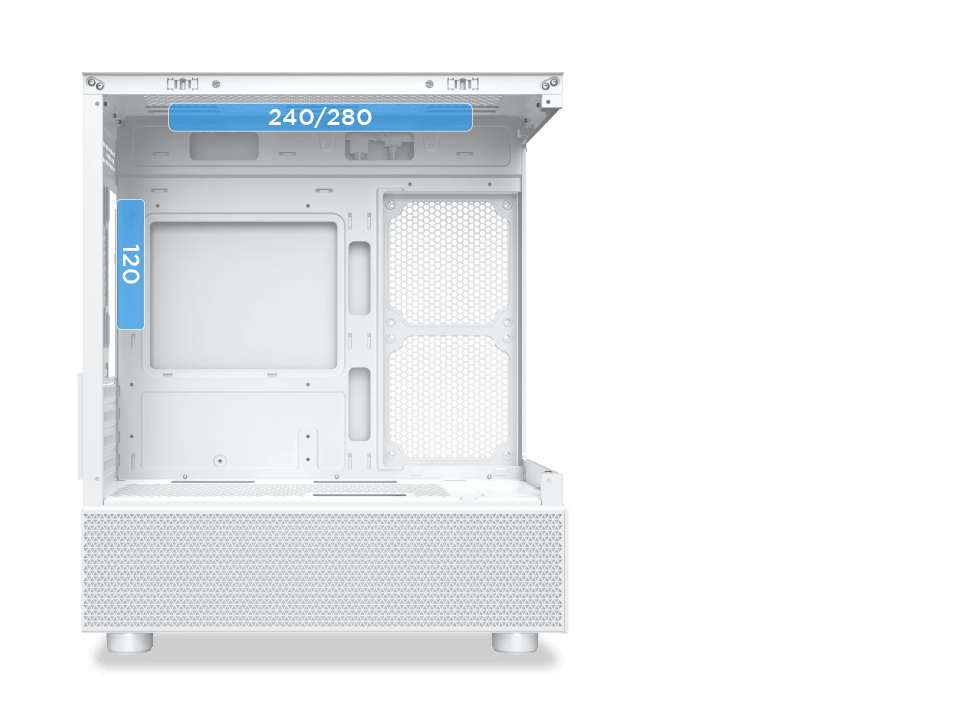

Radiator Support
Top: 240/280
Rear: 120

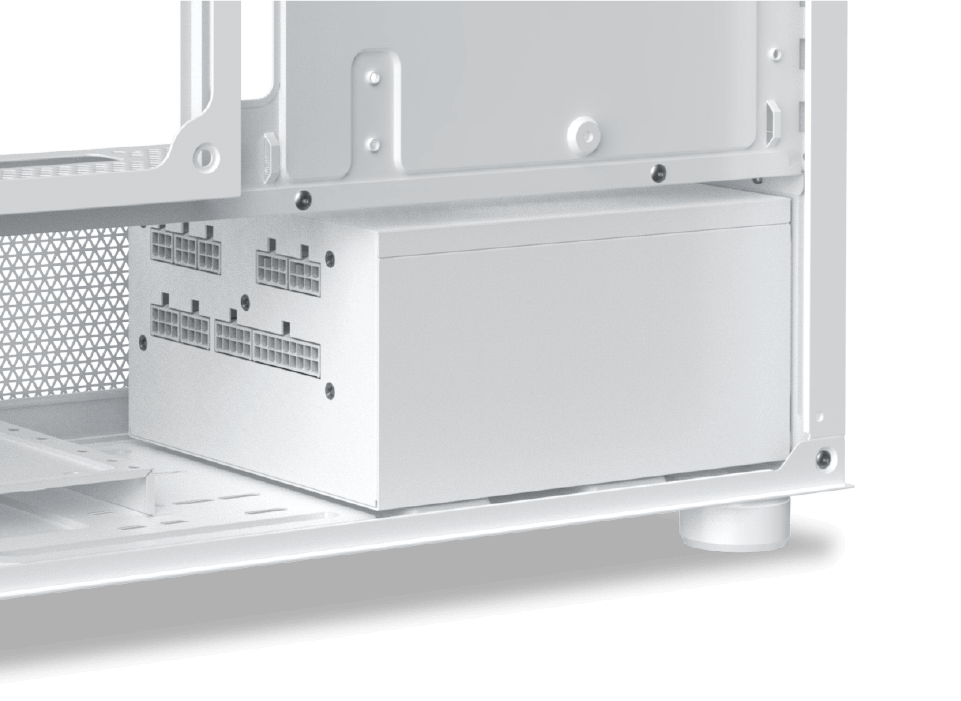

PSU Length Limitation
up to 180 mm

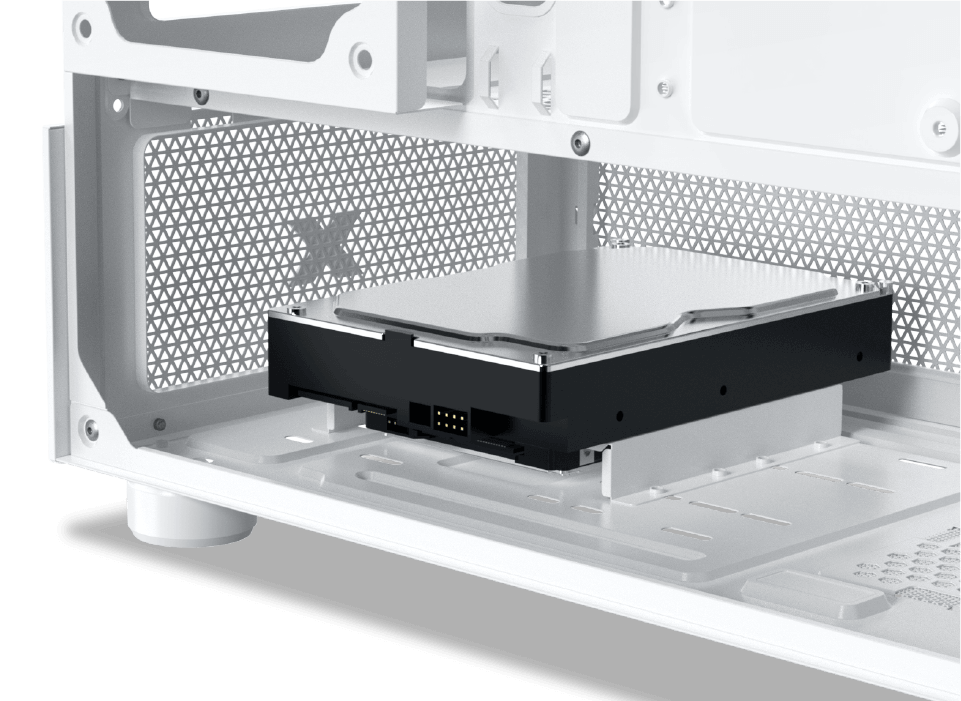

HDD Cage(Top)
3.5″ x1
HDD Cage(Bottom)
2.5″ x1

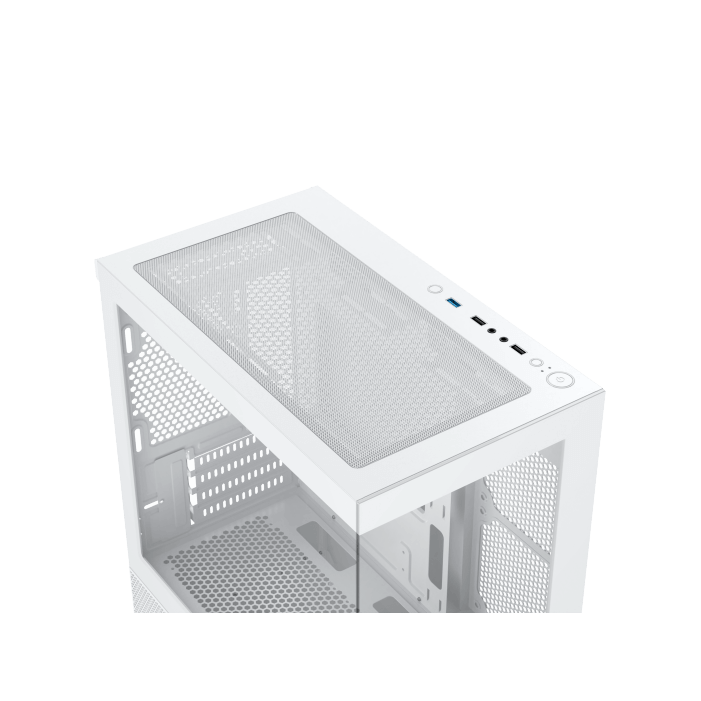

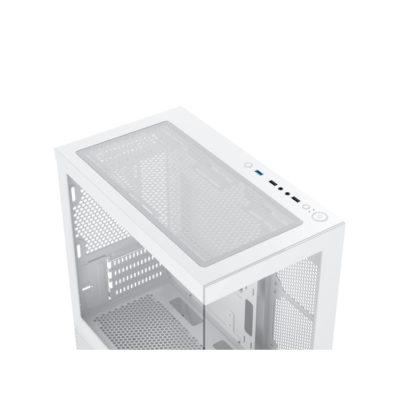

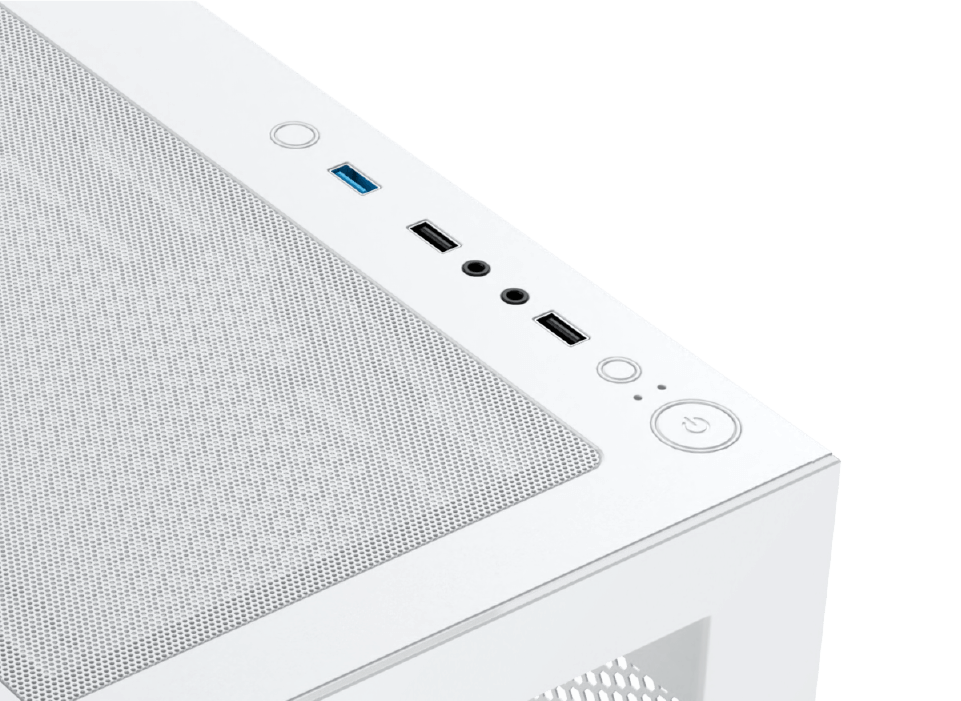

TOP MOUNT I/O PORTS
• Power Button x1
• Reset Button x1
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack x1
• LED Switch x1
*All Product Images Shown Are For Illustration Purpose Only.

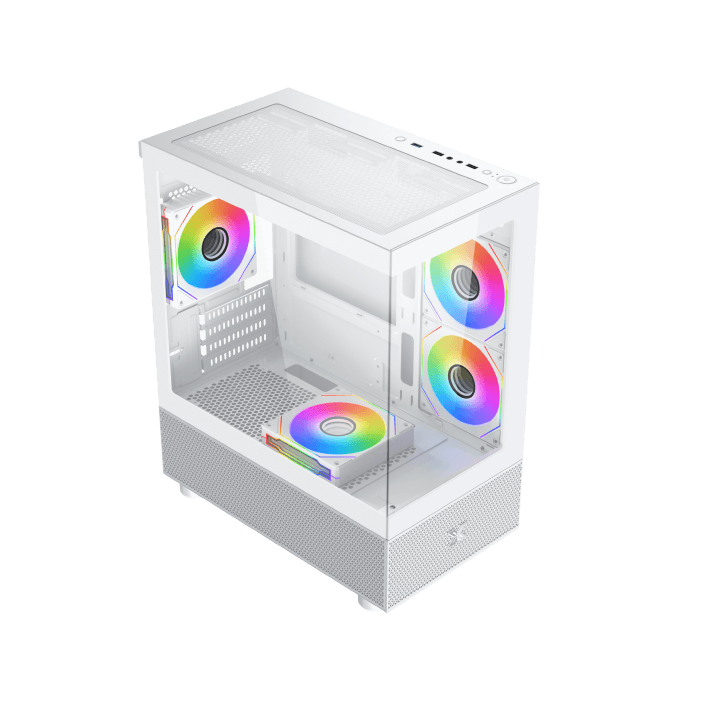

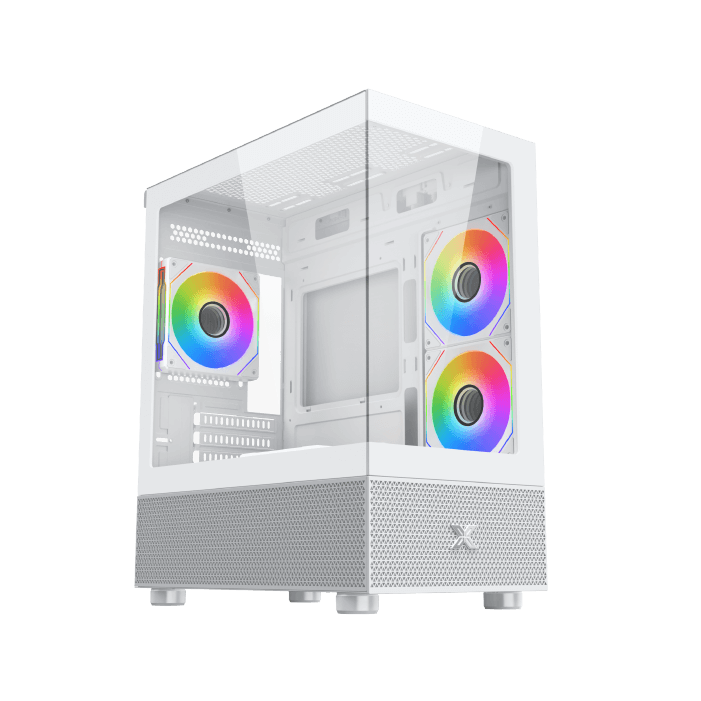

Alphard M Arctic
Steel
364x212x438mm(LxWxH)
HDD Cage(Top): 3.5″ x1
HDD Cage(Bottom): 2.5″ x1
4 Standard Slots
M-ATX, Mini-ITX
Standard PS2 ATX PSU
Top: 120mm x2 or 140mm x2
MB: 120mm x2
PSU Shroud: 120mm x2
Rear: 120mm x1
Top: 280/240
Rear: 120
USB 3.0 x 1
USB 2.0 x 2
HD Audio
165mm
350mm
180mm
