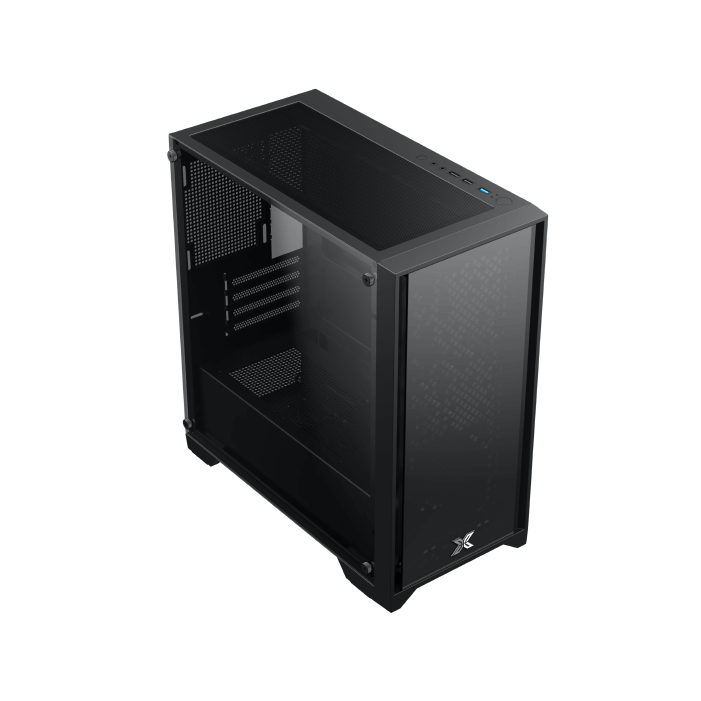

NYX II

NYX II

Motherboard M-ATX

CPU Cooler 160mm

Fan Support 8 max.

Power Supply 165mm

Graphics Card 350mm

Radiator 240 max.

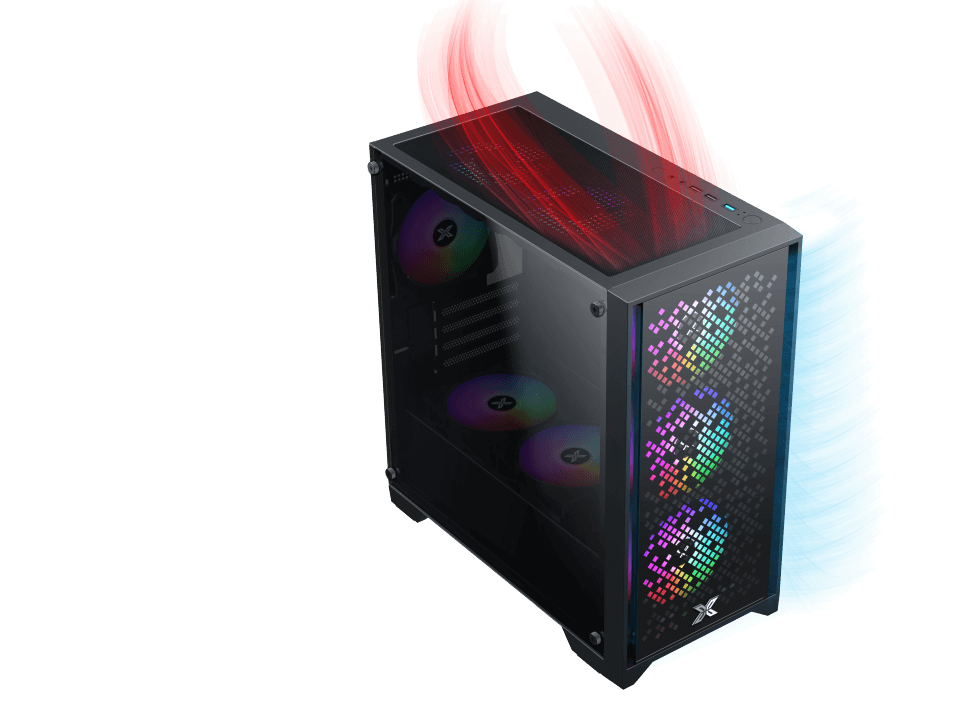

Superior Airflow and
Ventilation Design

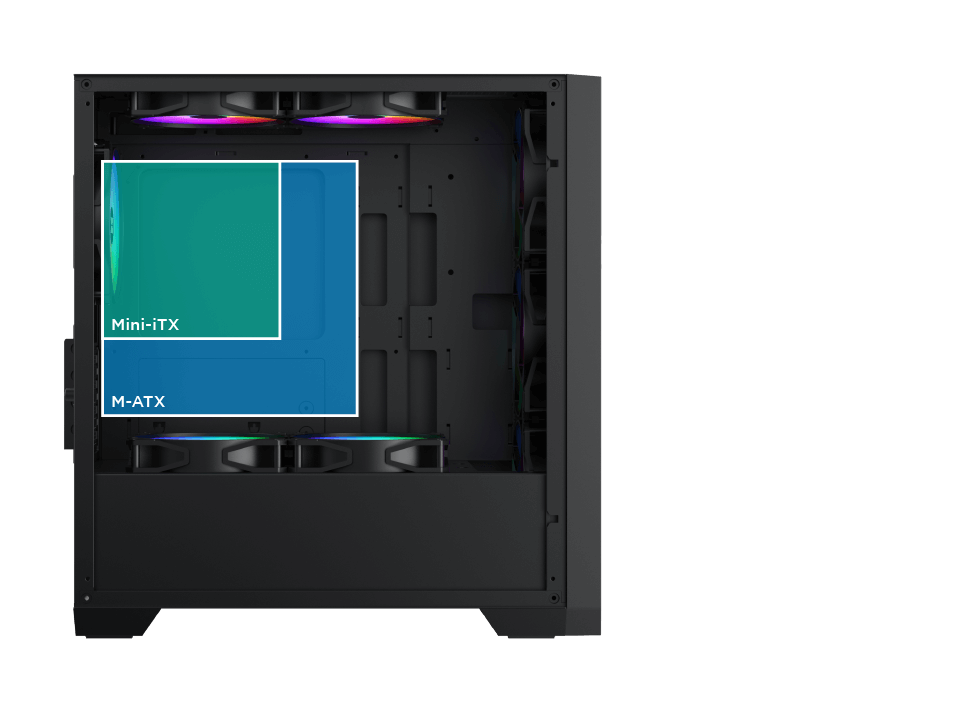

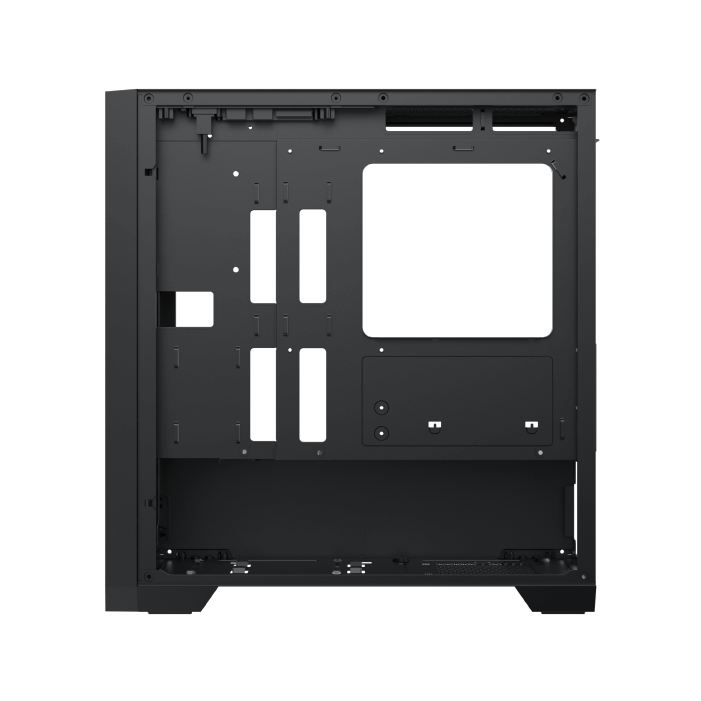

Support Motherboard
up to M-ATX

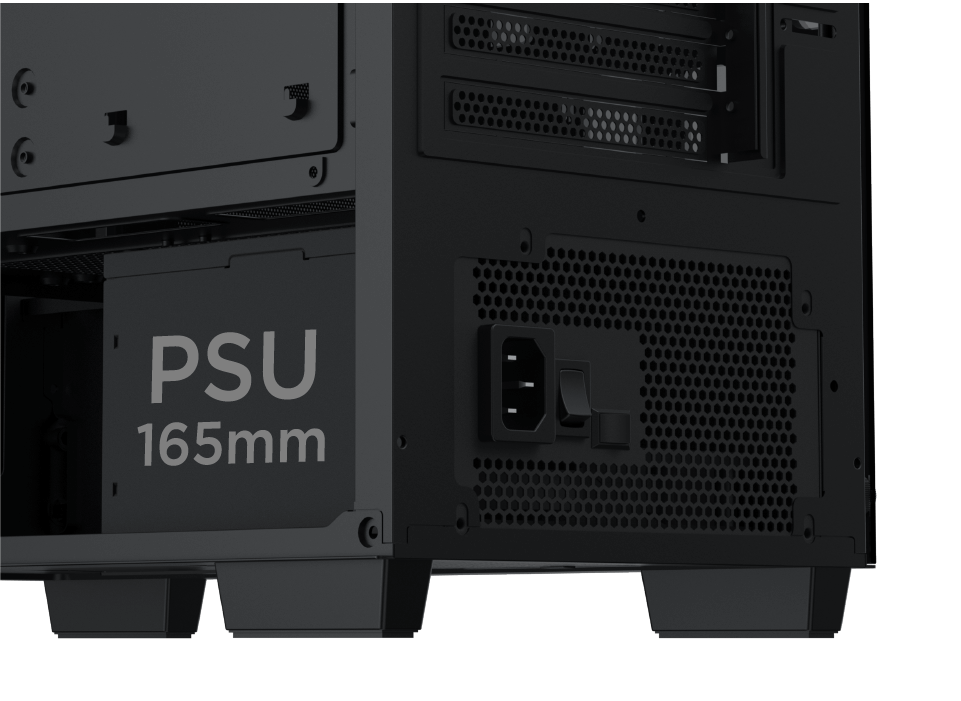

PSU Limitation
up to 165mm

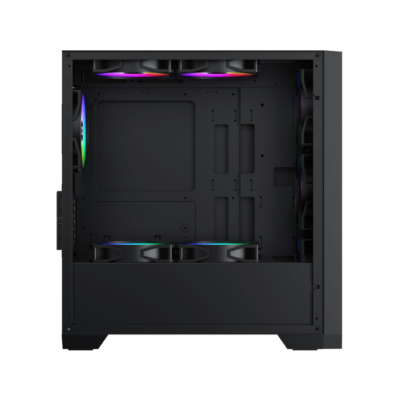

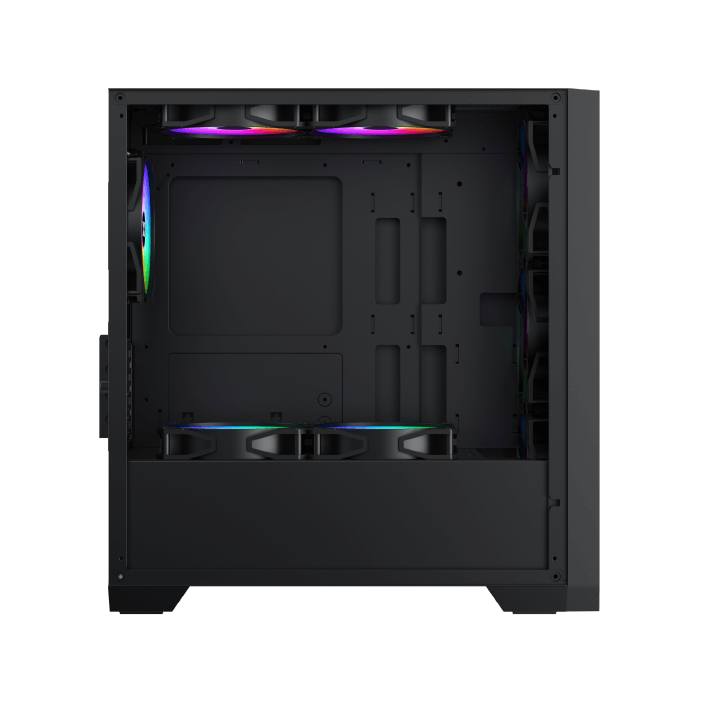

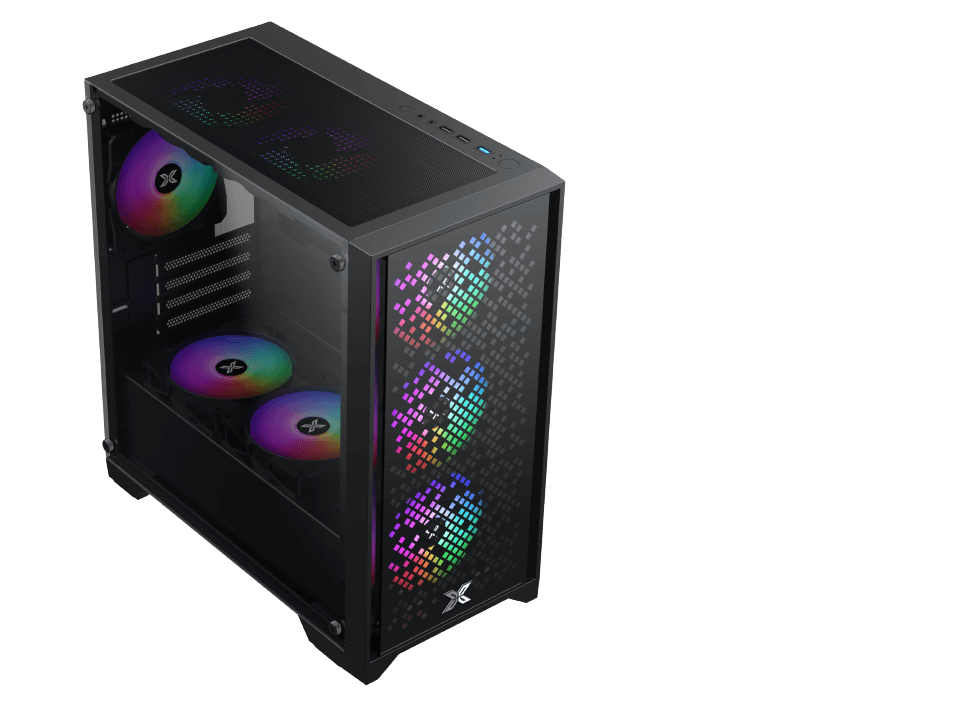

Fan Support

Top: 120mm x2
Front: 120mm x3 (Internal)
PSU Shroud: 120mm x2

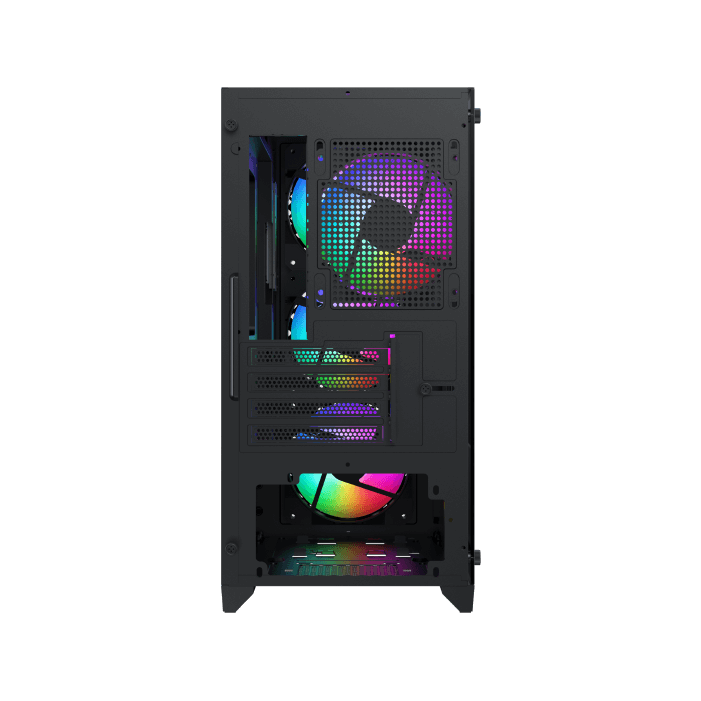

Rear: 120mm x1

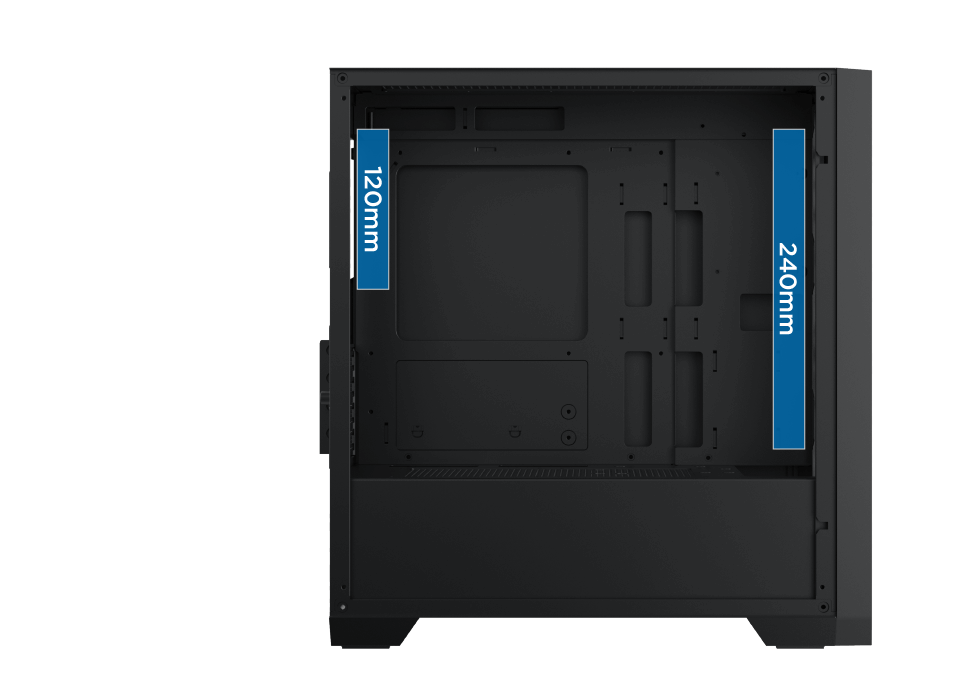

Radiator Support

Front: 240
Rear: 120

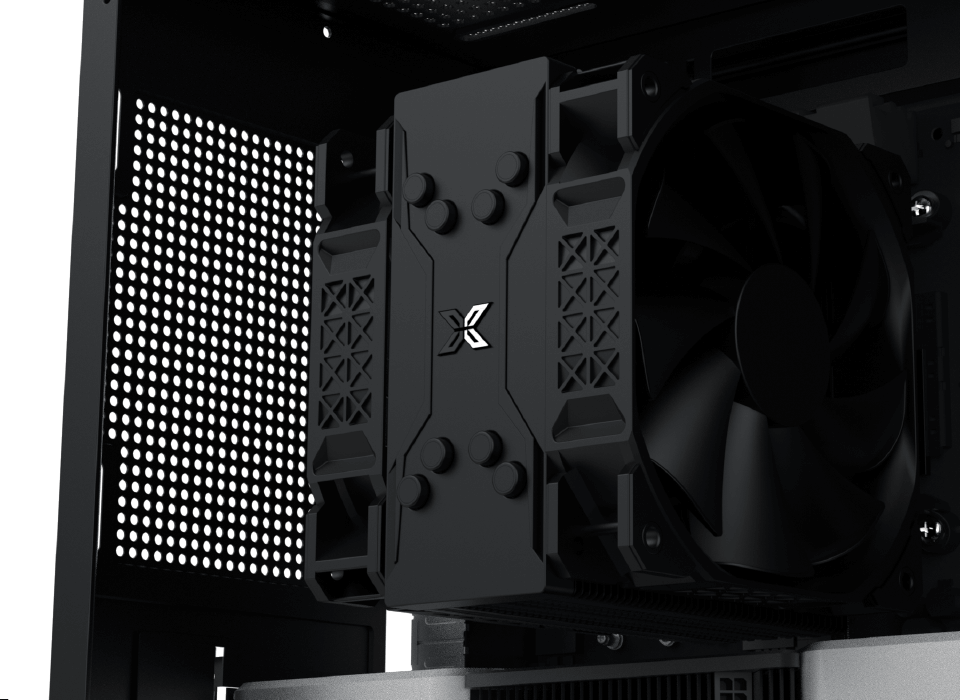

CPU Cooler Clearance
up to 160mm

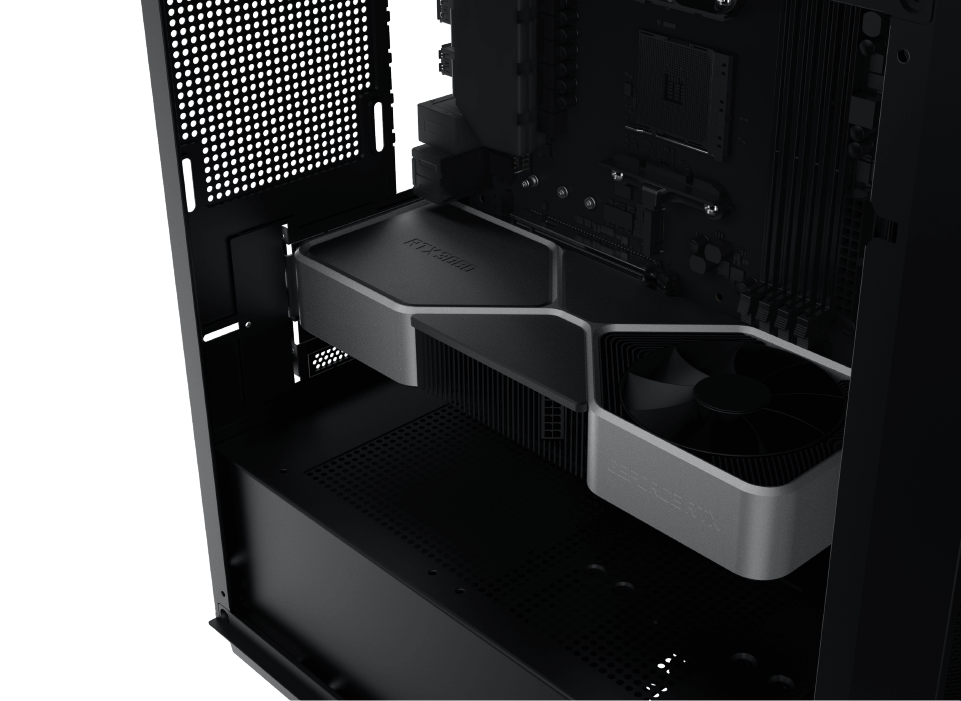

GPU Length Limitation up to
325 mm (with Front Fans)
350 mm (without Front Fans)

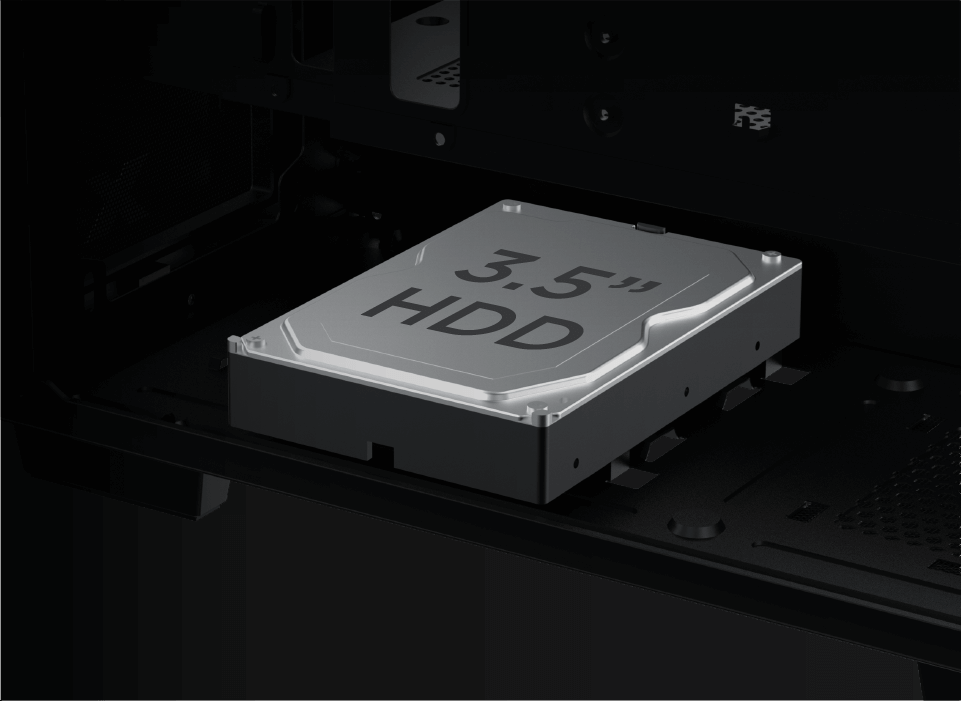

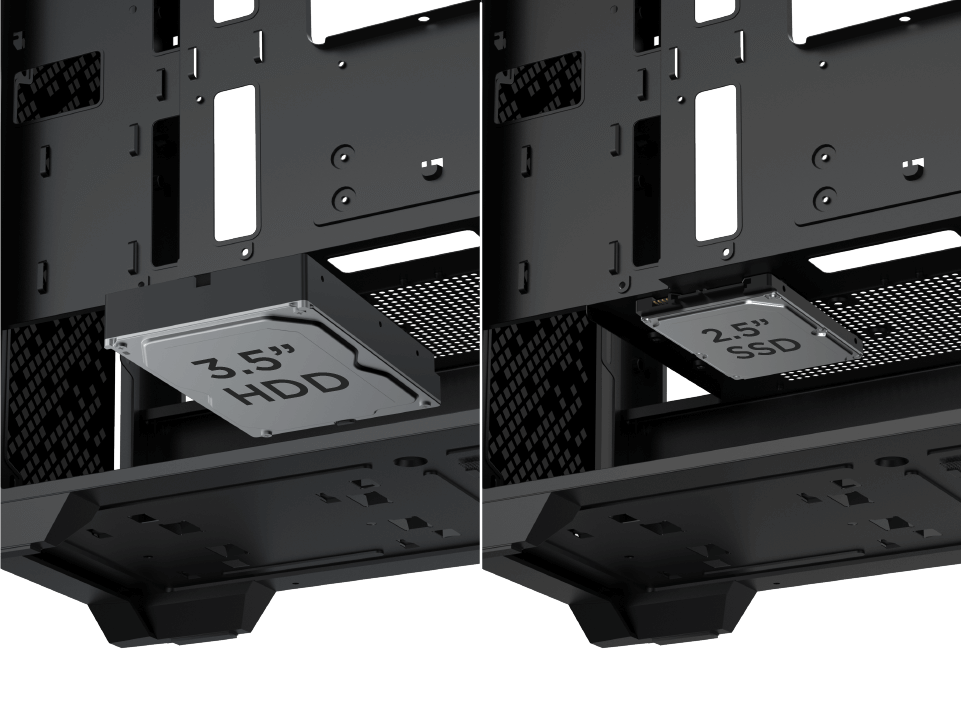

Bottom Panel: 3.5″ x1

PSU Shroud: 3.5″ or 2.5″ x1

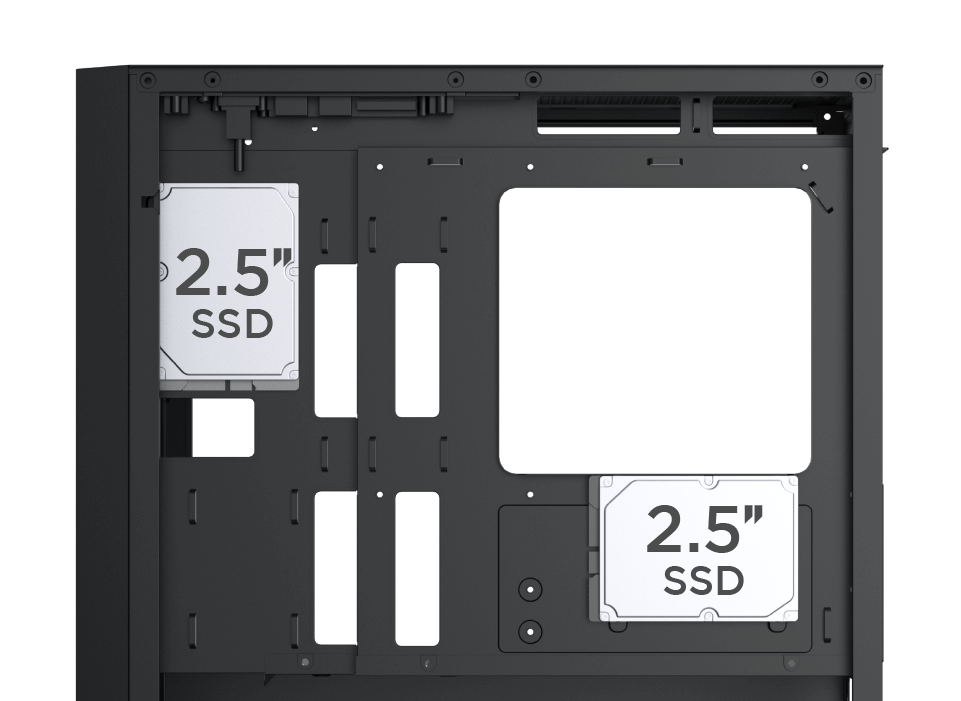

MB SSD Bay: 2.5″ x2

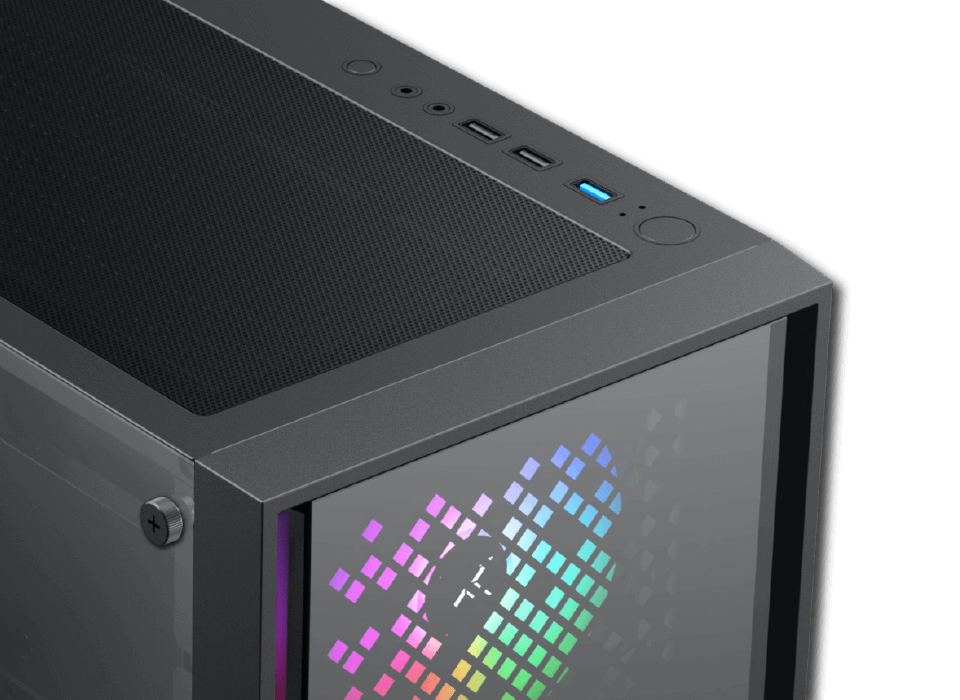

Top I/O Ports

• Power Button
• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

NYX II

Material

Steel

Dimensions

386x200x413mm (LxWxH)

Drive Bays

Bottom Panel: 3.5″ x1
PSU Shroud: 3.5″ or 2.5″ x1
MB SSD Bay: 2.5″ x2

Expansion Slots

4 Standard Slots

Motherboard Support

Micro ATX & Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x2
Front: 120mm x3 (Internal)
PSU Shroud: 120mm x2
Rear: 120mm x1

Radiator Support

Front: 240mm
Rear: 120mm

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

CPU Cooler Clearance

160mm

VGA Length Limitation

325mm (with Front Fans)
350mm (without Front Fans)

PSU Length Limitation

165mm
