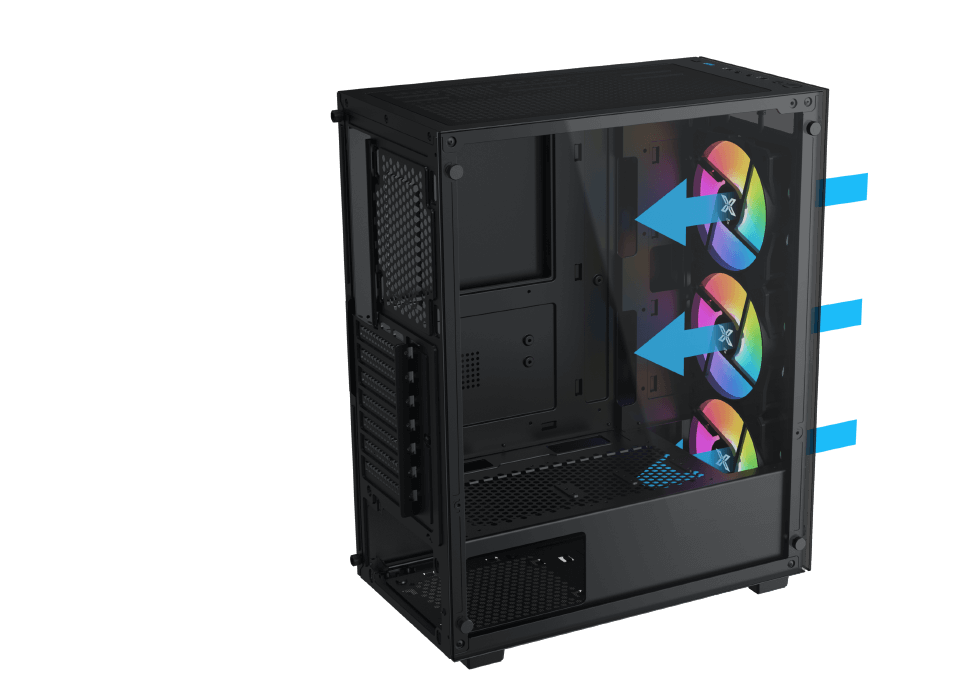

Superior Airflow and
Ventilation Design

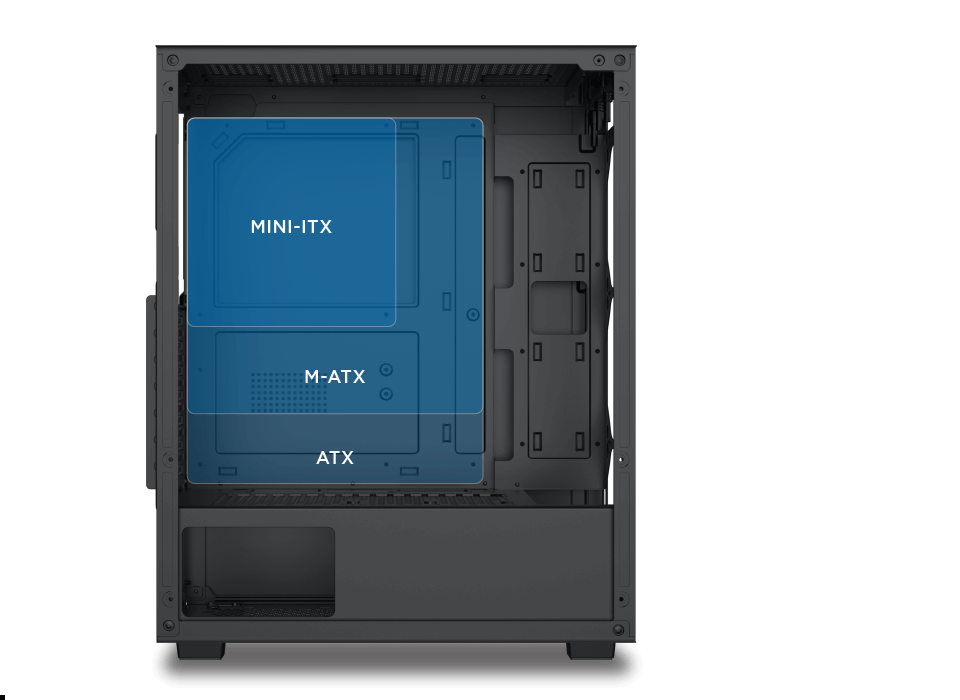

Support Motherboard
up to ATX

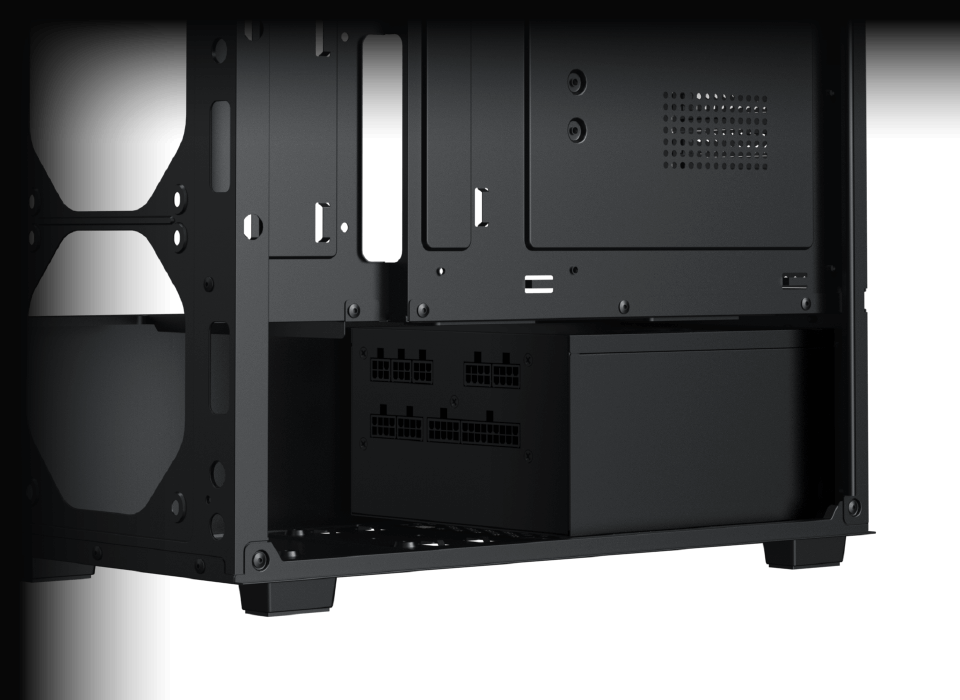

PSU Limitation
up to 165mm

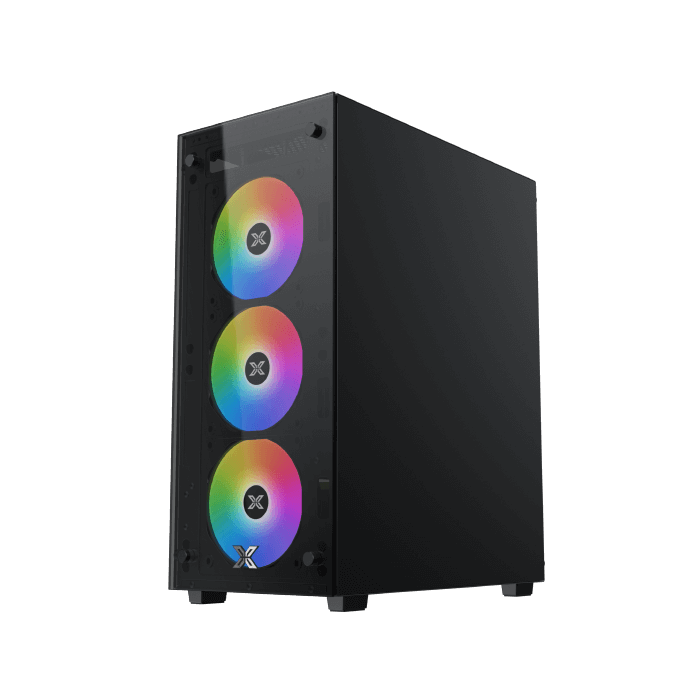

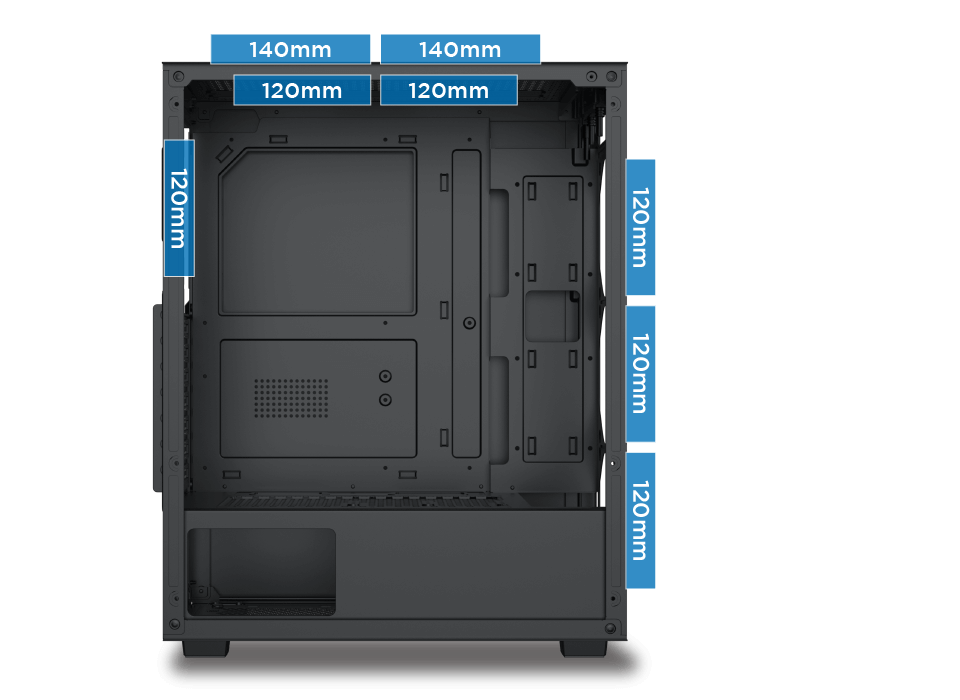

Fan Support
Top: 120mm x2 or 140mm x2
Front: 120mm x3
Rear: 120mm x1

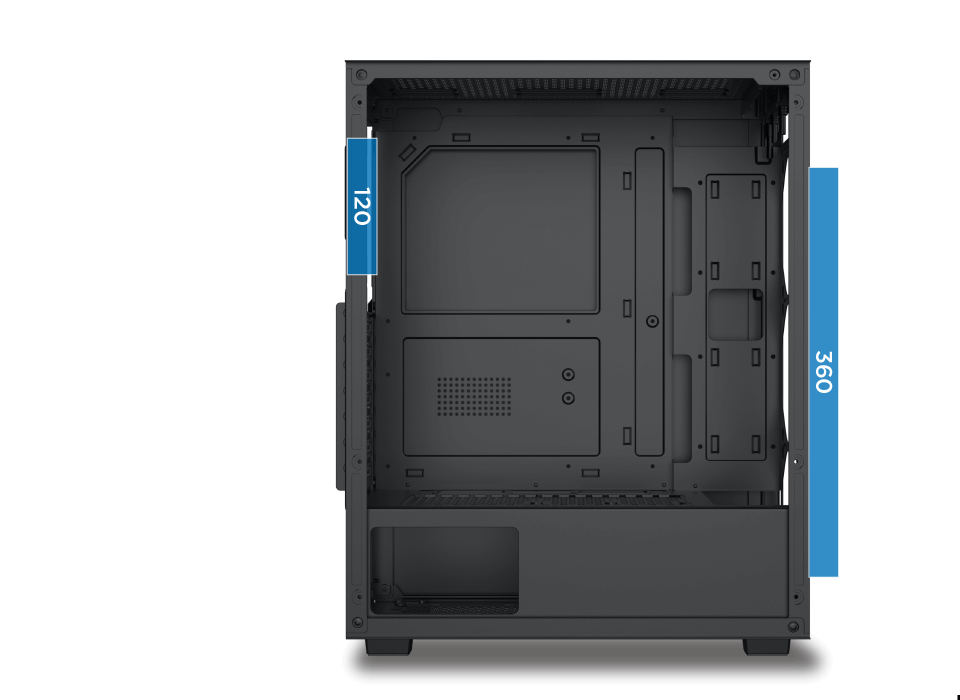

Radiator Support
Front: 360
(Radiator Length Less than 400mm)
Rear: 120

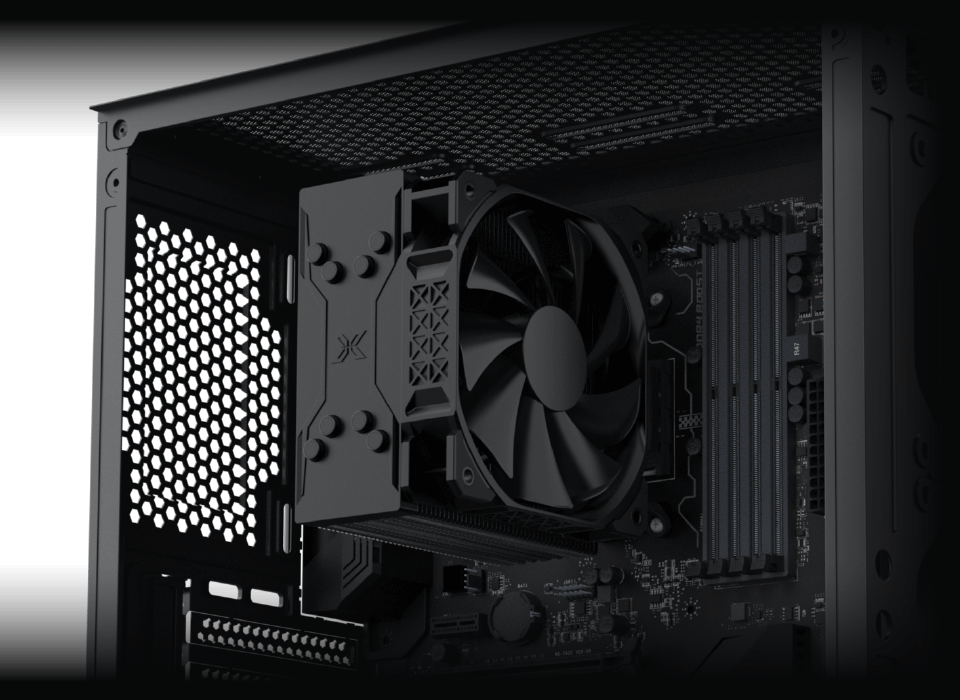

CPU Cooler Clearance
up to 165mm

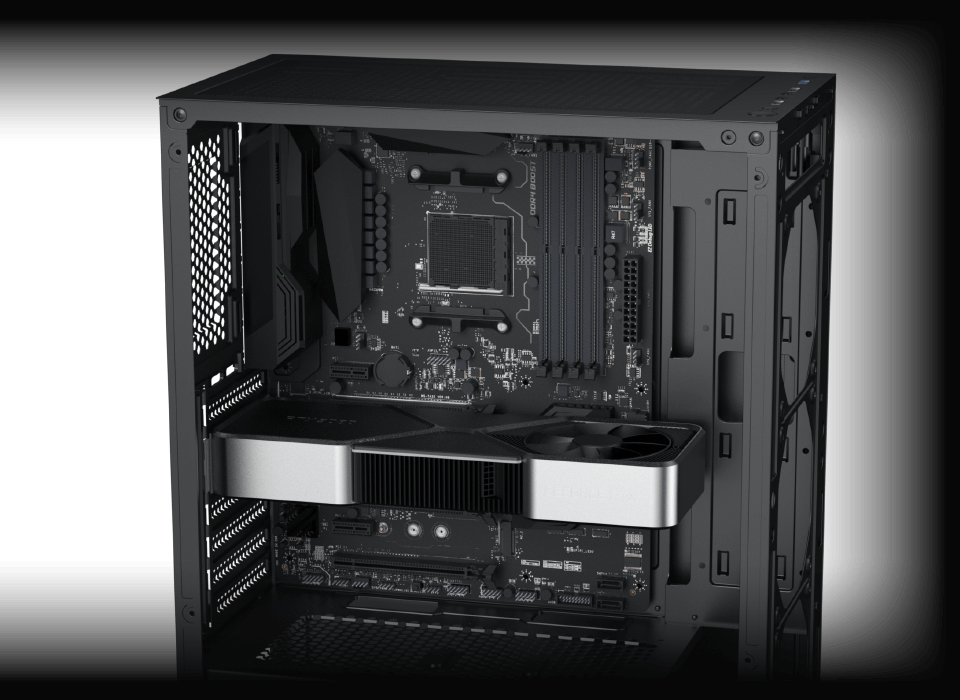

GPU Length Limitation
340mm

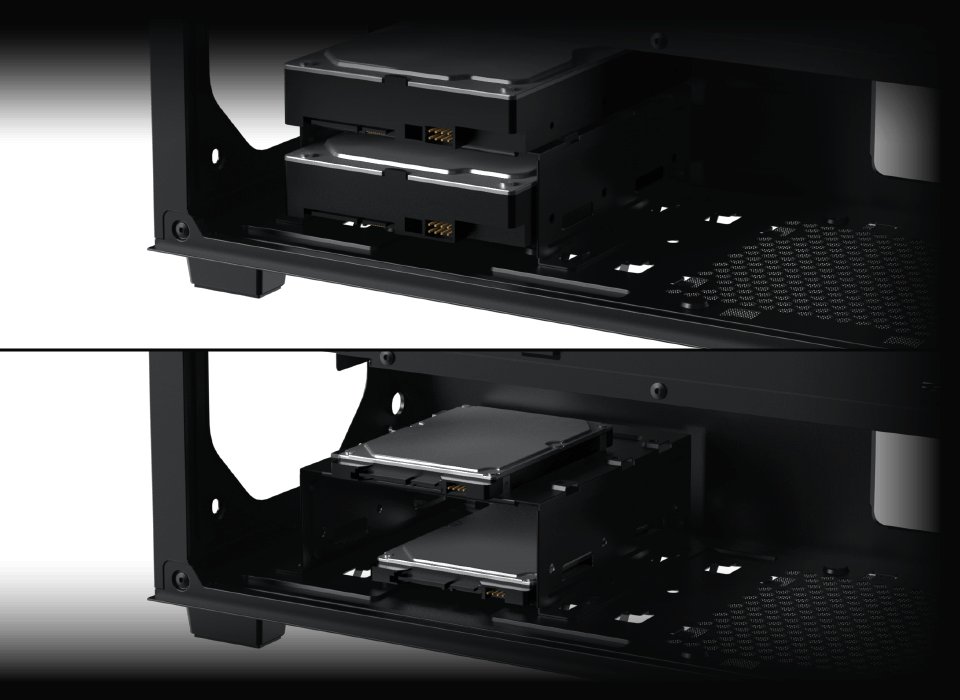

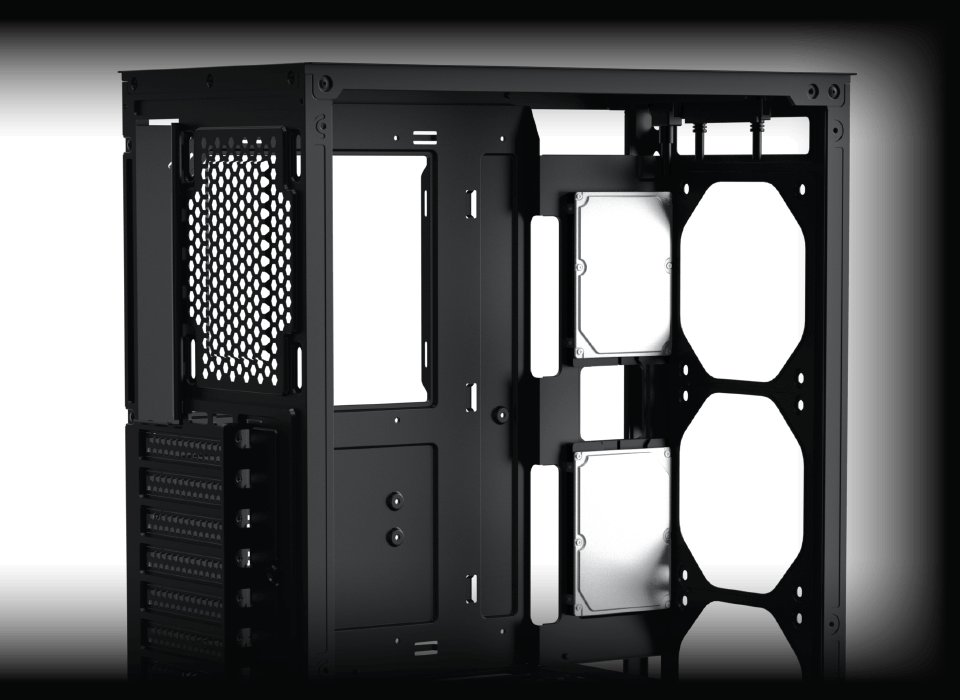

Drive Support
Drive Cage :
3.5″ & 2.5″ Combo x2
Drive Support
MB Panel :
2.5″ x2

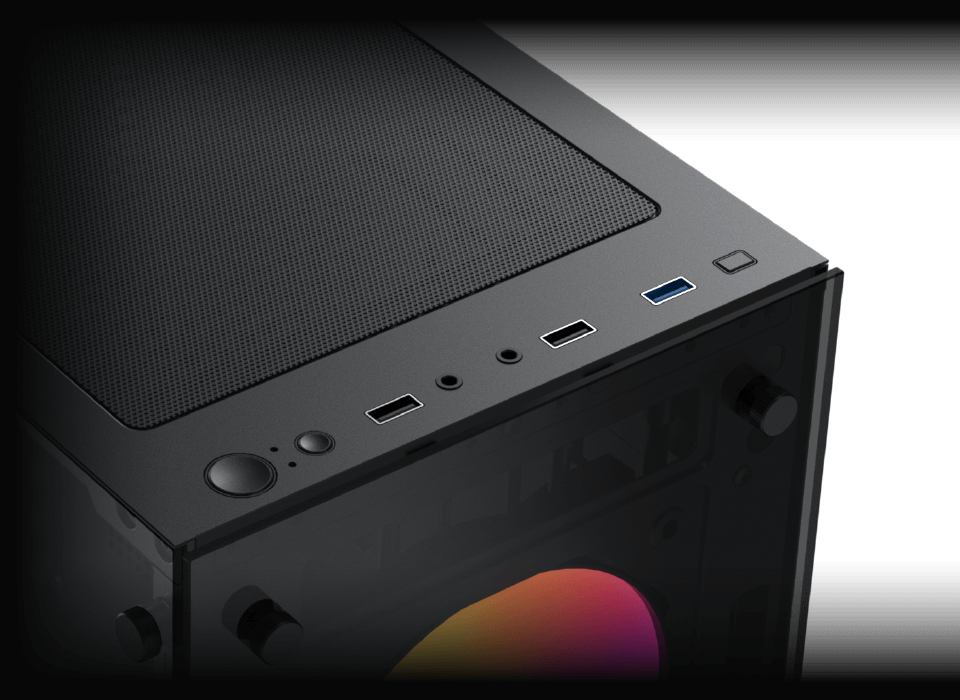

Top Mount I/O Ports
• Power Button
• Reset Button
• USB 2.0 x2
• USB 3.0 x1
• HD Audio Jack
• LED Switch
*All Product Images Shown Are For Illustration Purpose Only.

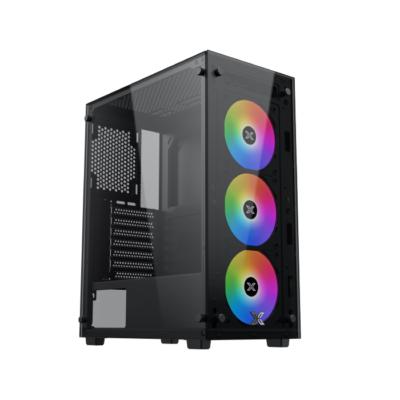

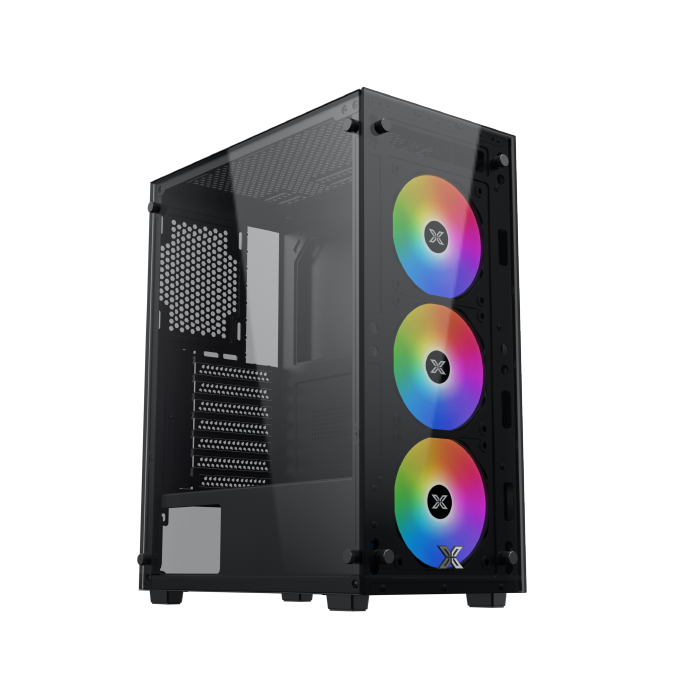

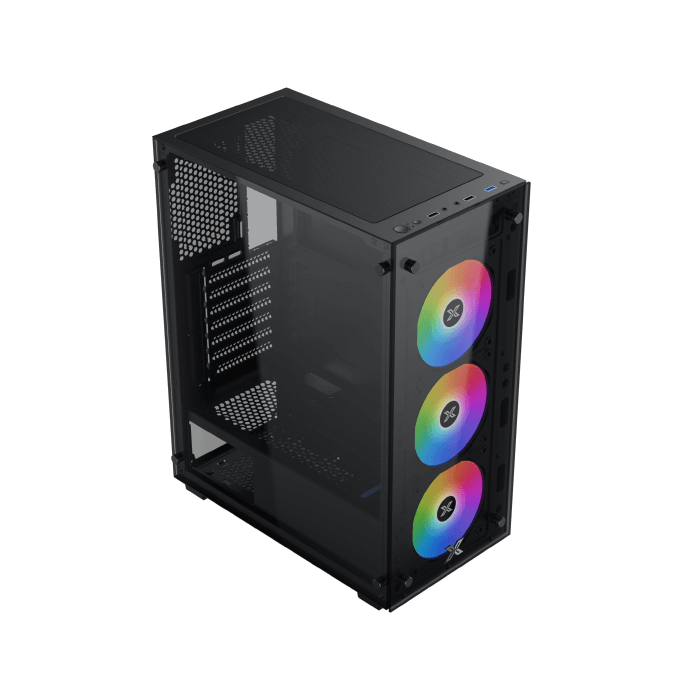

Hero II (EN43987)
358x195x448mm (LxWxH)
ATX, Micro ATX, Mini ITX
HDD Cage: 3.5″ & 2.5″ Combo x2
MB Panel: 2.5″ x2
Top: 120mm x2 or 140mm x2
Front: 120mm x3
Rear: 120mm x1
165mm
165mm
Steel
7 Standard Slots
Standard PS2 ATX PSU
USB 3.0 x1
USB 2.0 x2
HD Audio
Front: 360
(Radiator Length Less than 400mm)
Rear: 120
340mm
(No Front Fans)
310mm
(With Front Fans)
