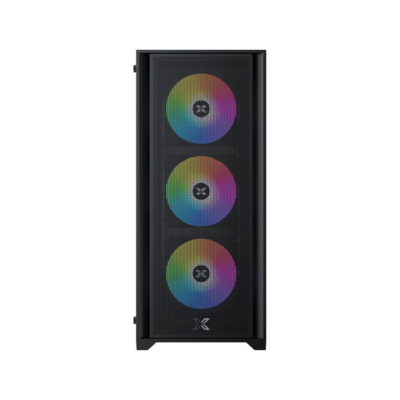

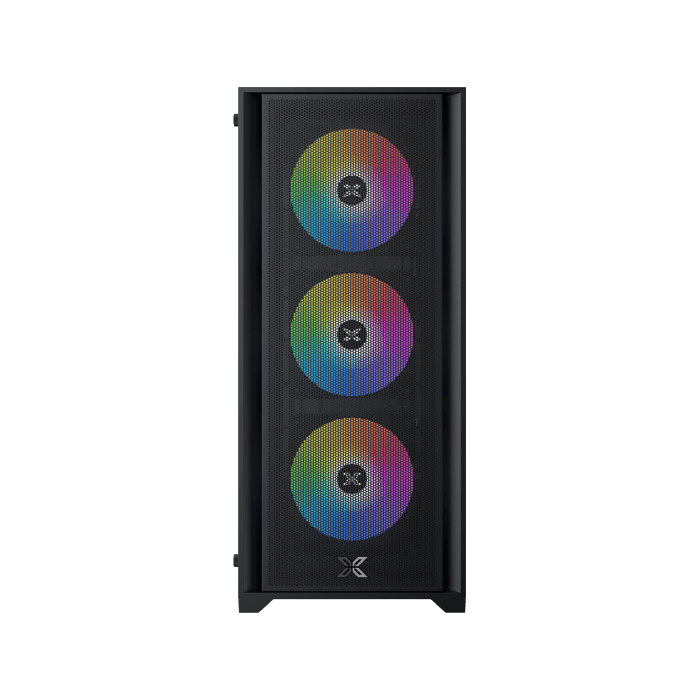

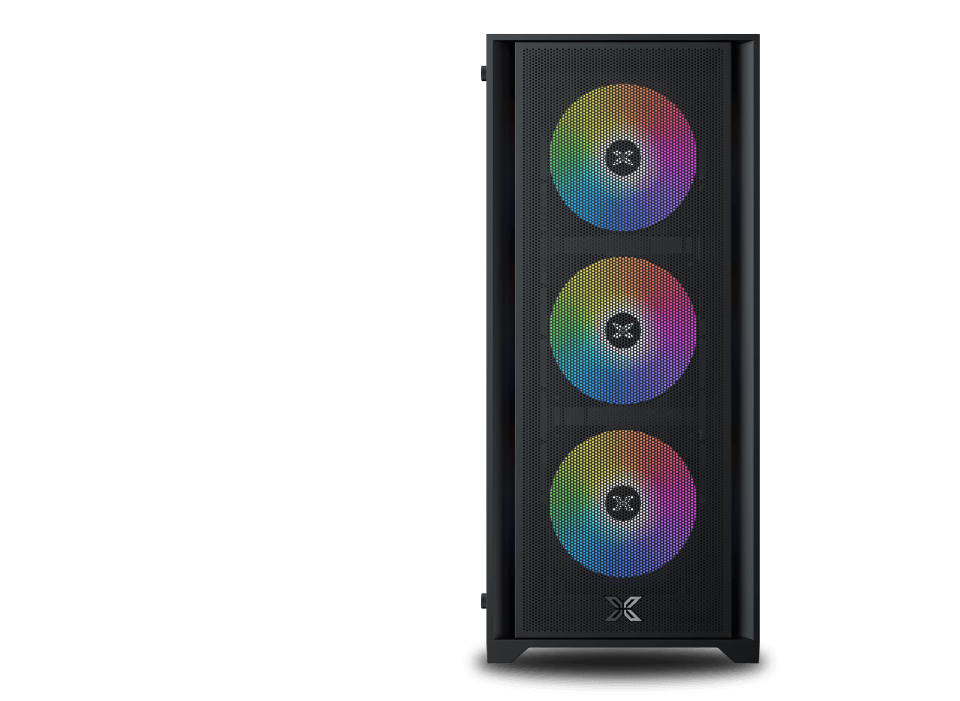

Elegant Mesh
Front panel

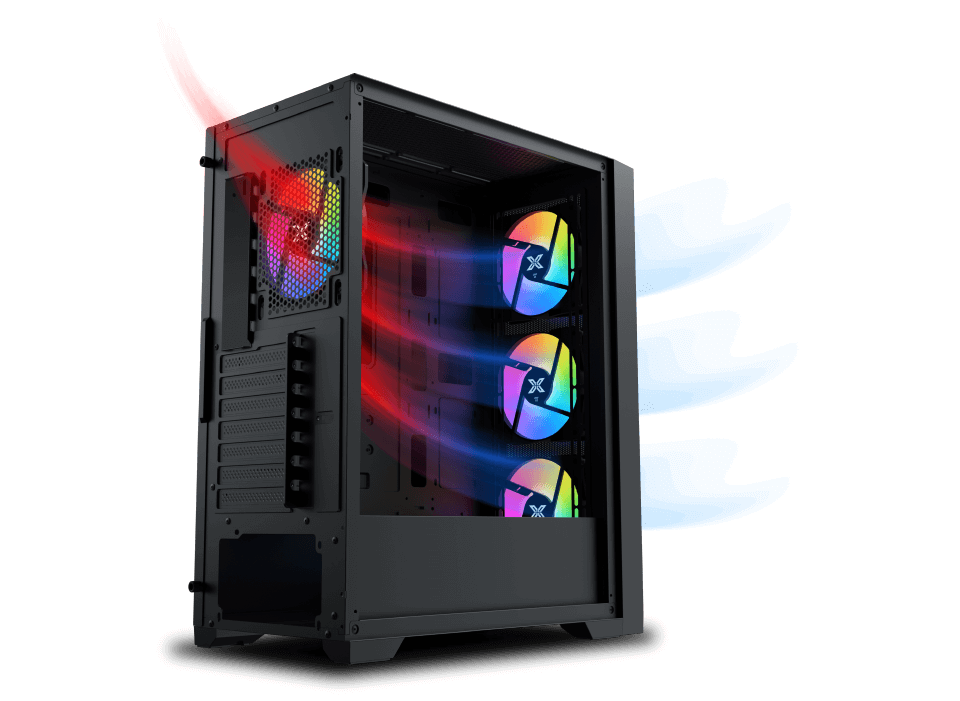

Superior Airflow and
Ventilation Design

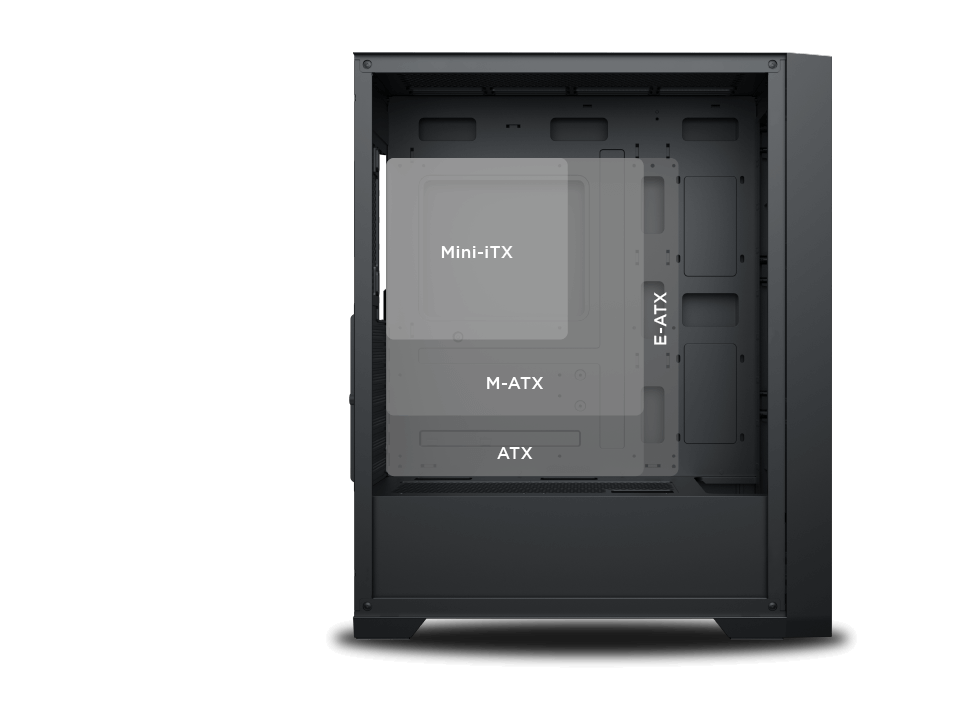

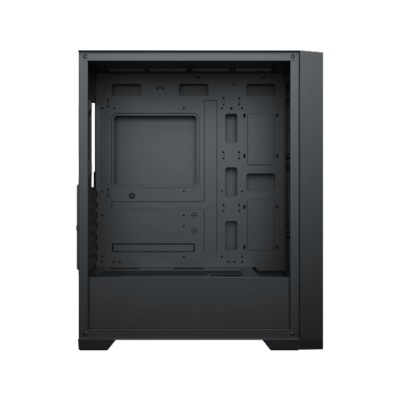

Support Motherboard
up to E-ATX

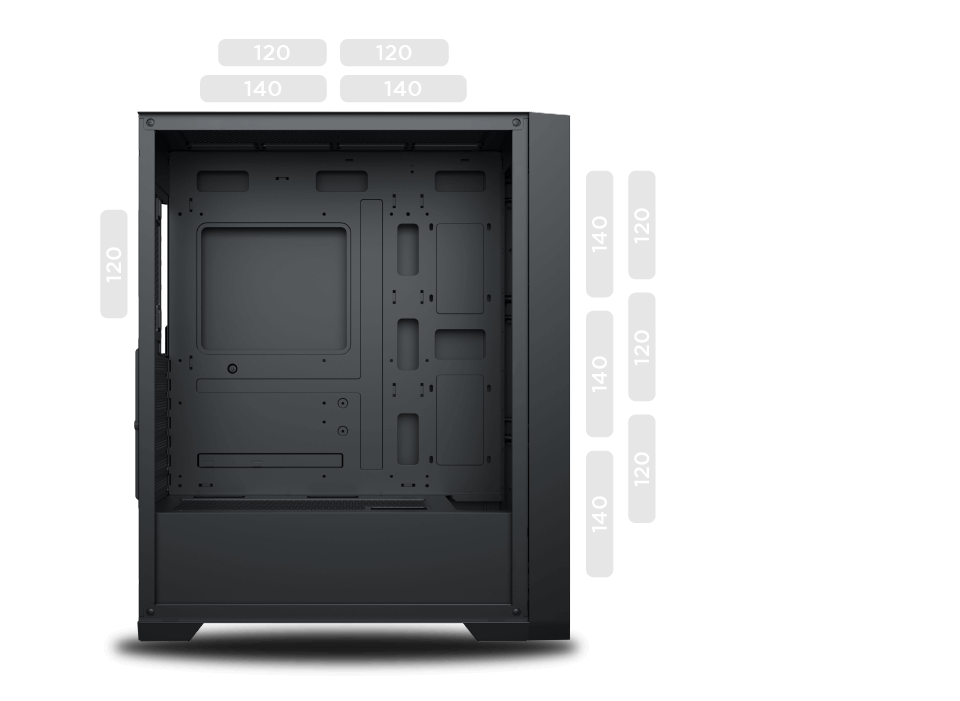

Fan Support
Top: 120mm x2 or 140mmx2
MB Panel: 120mm x3 or 140mmx3
Rear: 120mm x1

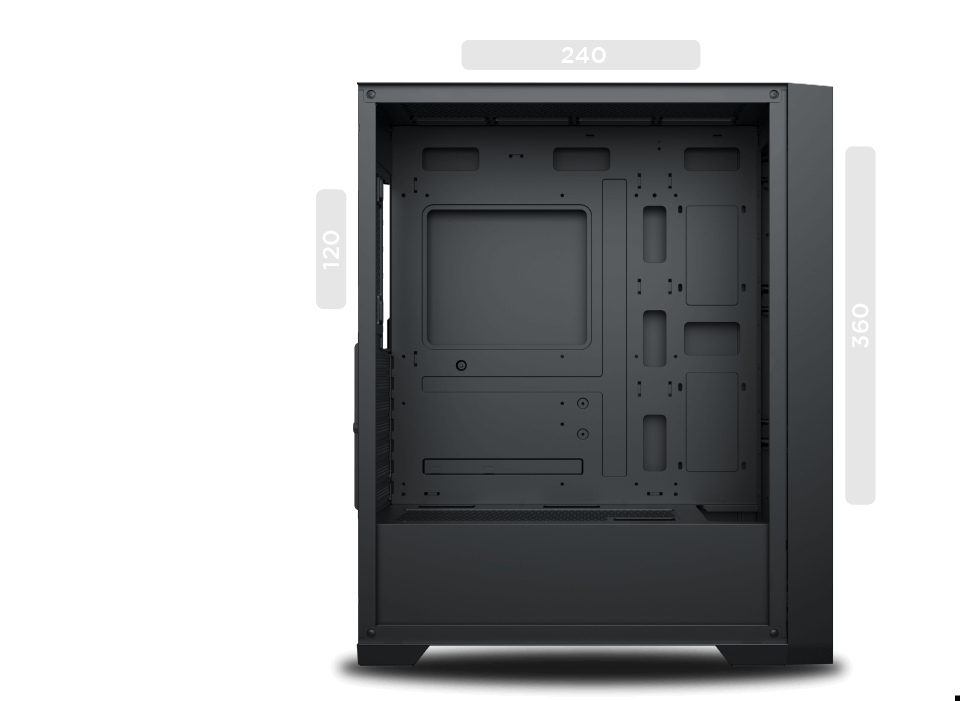

Radiator Support
Frnot: 360
Top: 240
Rear: 12

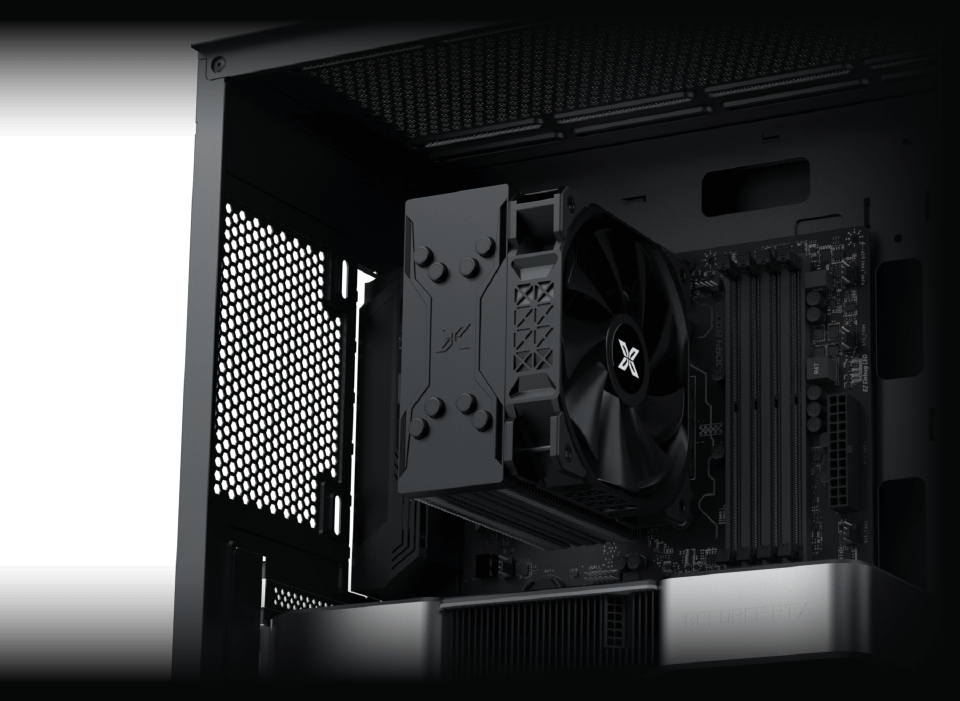

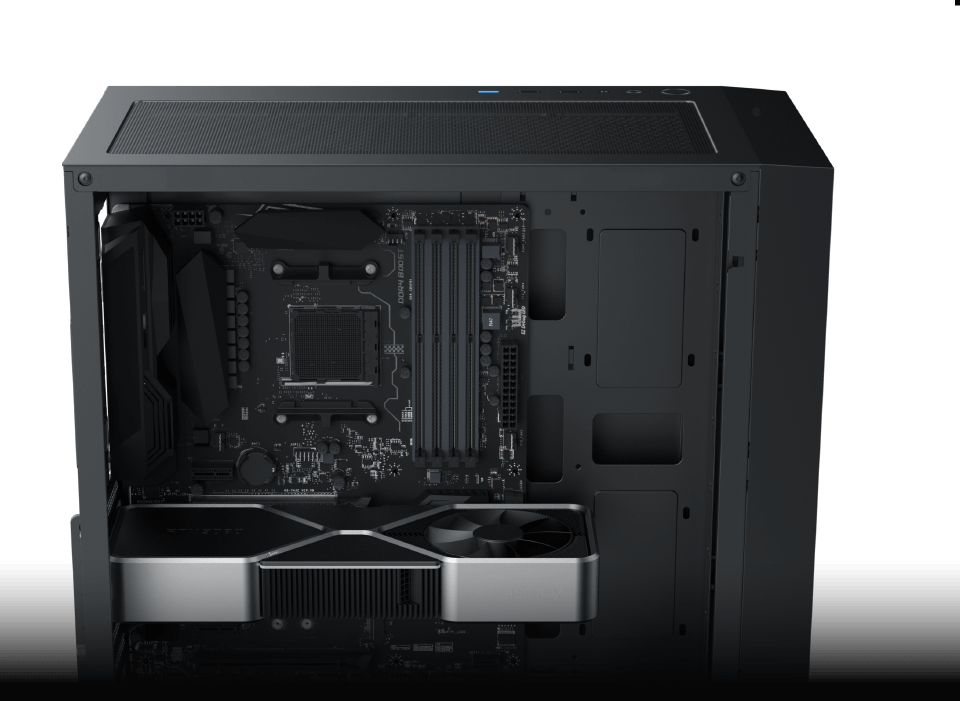

CPU Cooler Clearance
up to 165mm
GPU Length Limitation
350mm

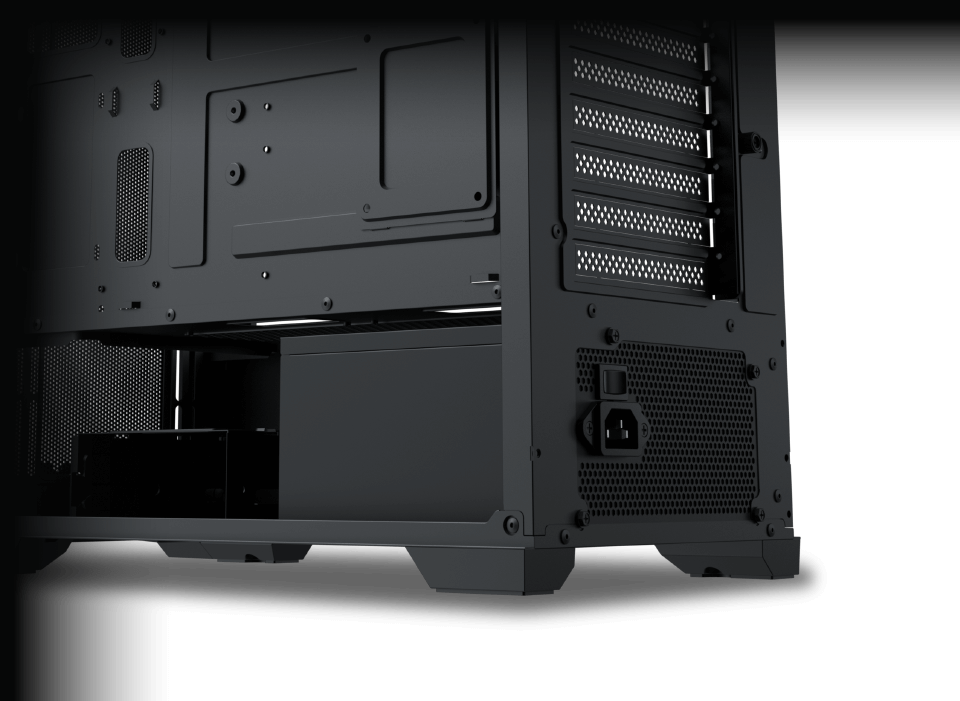

PSU Limitation
up to 180mm
Drive Support

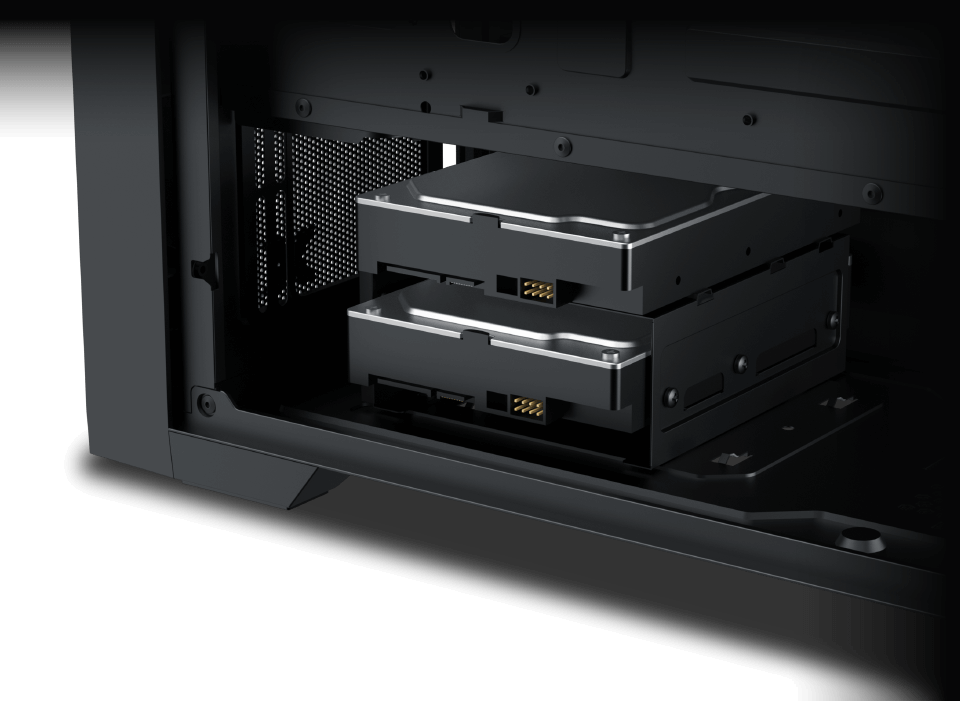

HDD Cage (Bottom): 3.5″ x1
HDD Cage (Top): 3.5″ & 2.5″ Combo x1
Drive Support

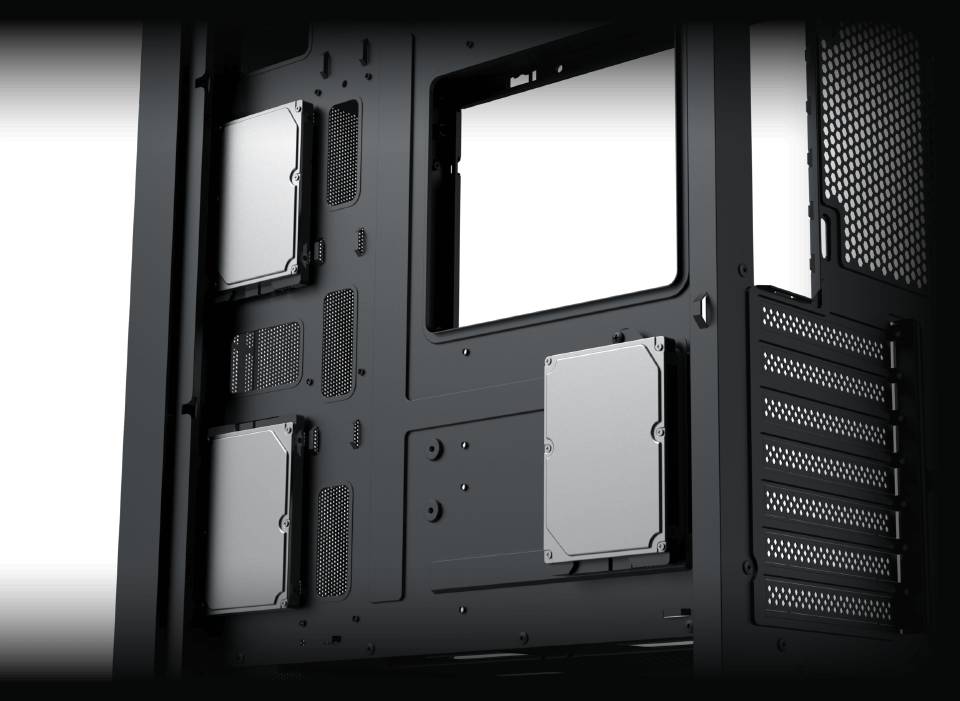

SSD Bay: 2.5″ x2
SSD Bracket: 2.5″ x1

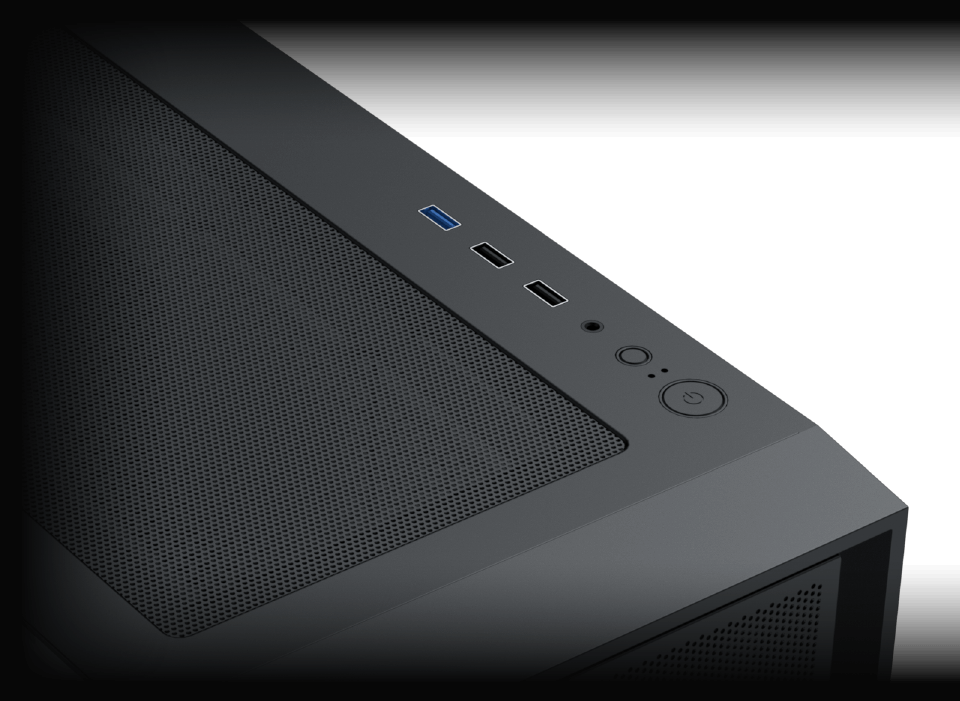

Top Mount I/O Ports
• Power Button
• Reset Button
• HD Audio Jack
• USB 2.0 x2
• USB 3.0 x1
*All Product Images Shown Are For Illustration Purpose Only.
Gaming X II
400x215x488mm (LxWxH)
E-ATX, ATX, M-ATX, Mini-ITX
HDD Cage (Bottom): 3.5″ x1
HDD Cage (Top): 3.5″ & 2.5″ Combo x1
SSD Bay: 2.5″ x2
SSD Bracket: 2.5″ x1
Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x3
Rear: 120mm x1
180mm
165mm
Steel
7 Standard Slots
Standard PS2 ATX PSU
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Front: 360
Top: 240
Rear: 120
350mm
