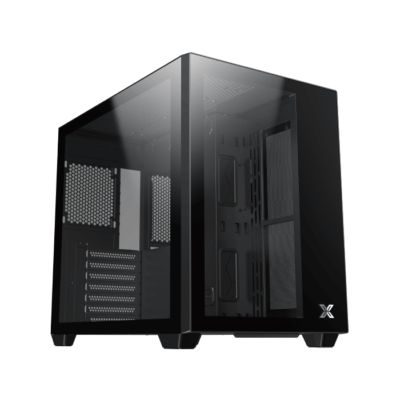

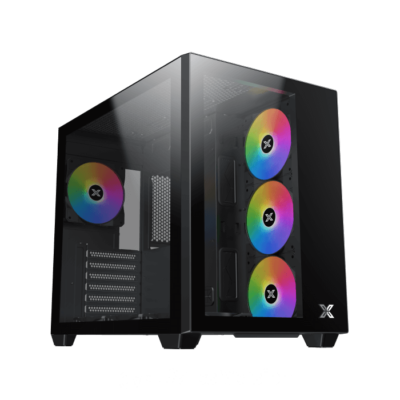

Aqua III (EN44878)

Aqua III (EN44878)

Motherboard ATX

CPU Cooler 160mm

Fan Support 10 max.

Power Supply 220mm

Graphics Card 410mm

Radiator 360 max.

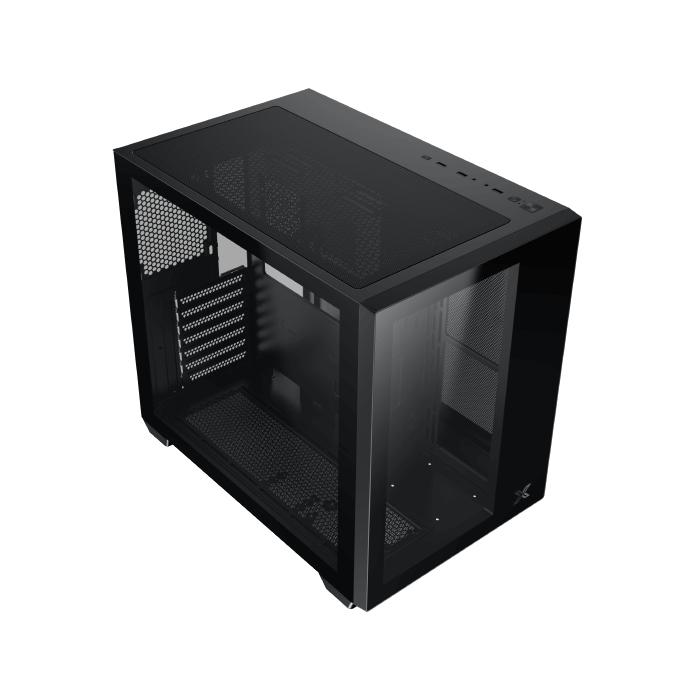

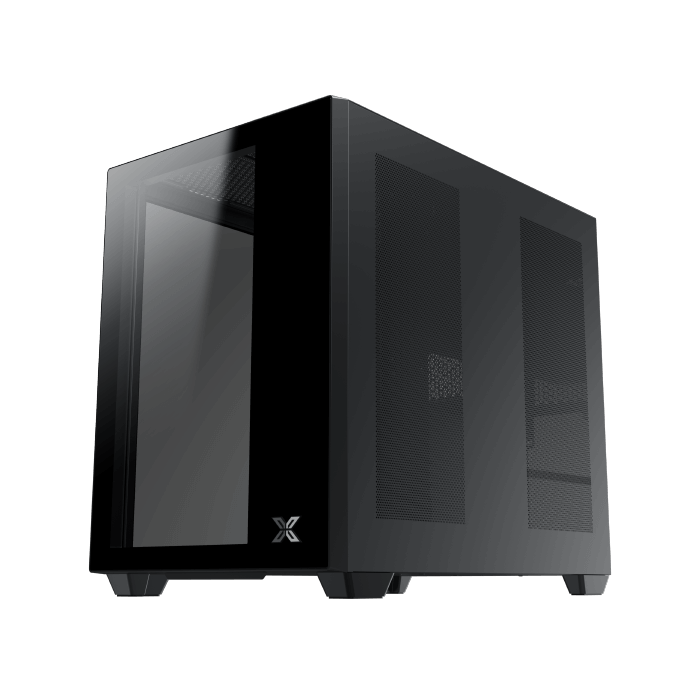

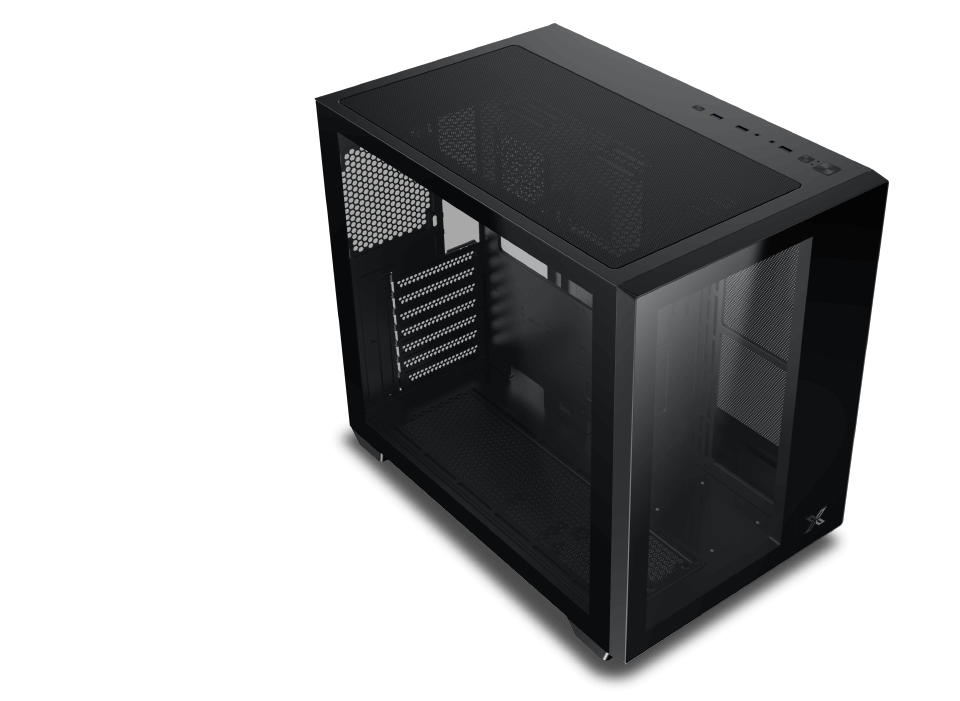

2 Tempered Glass Panel
Design

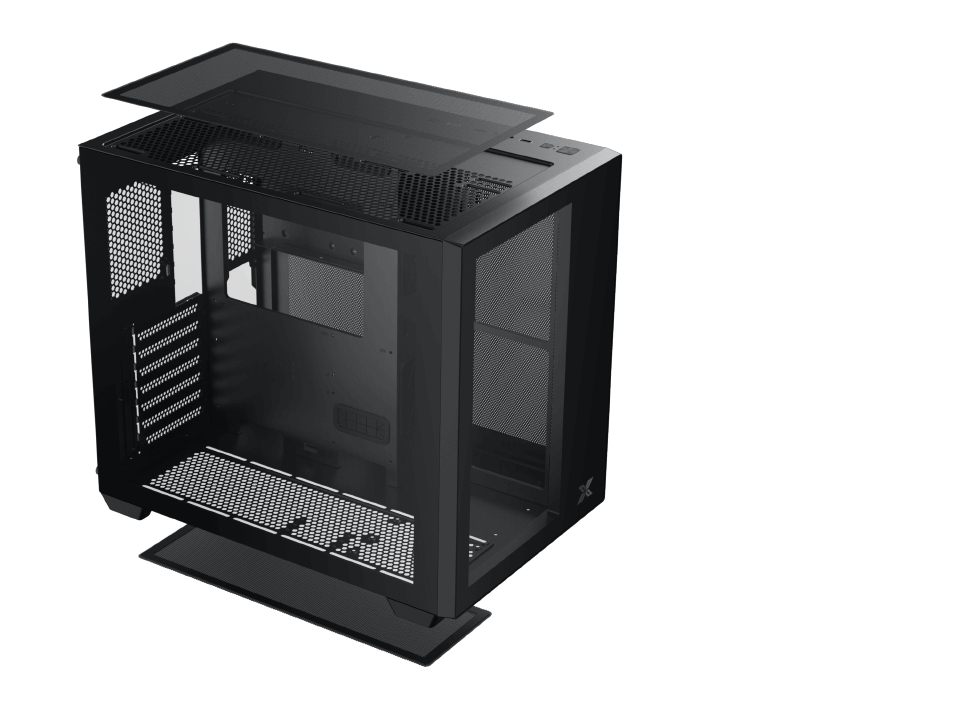

Top & Bottom
Dust Filter

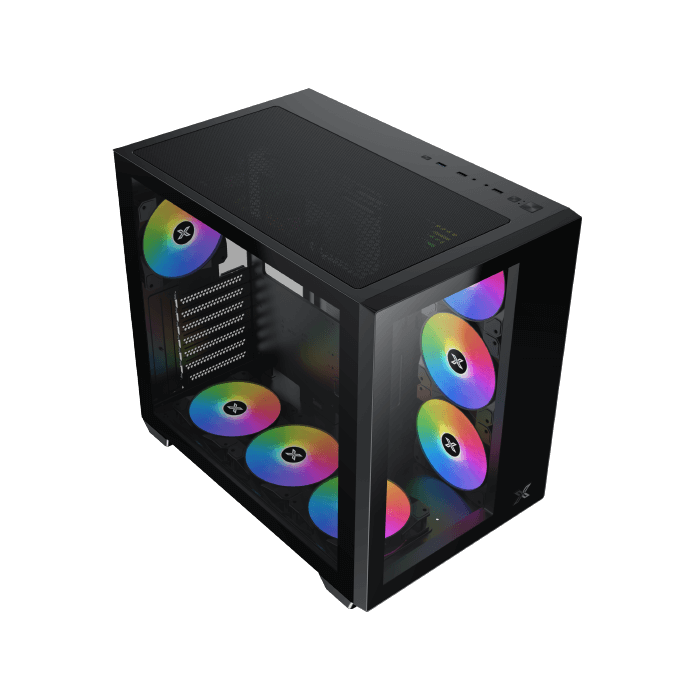

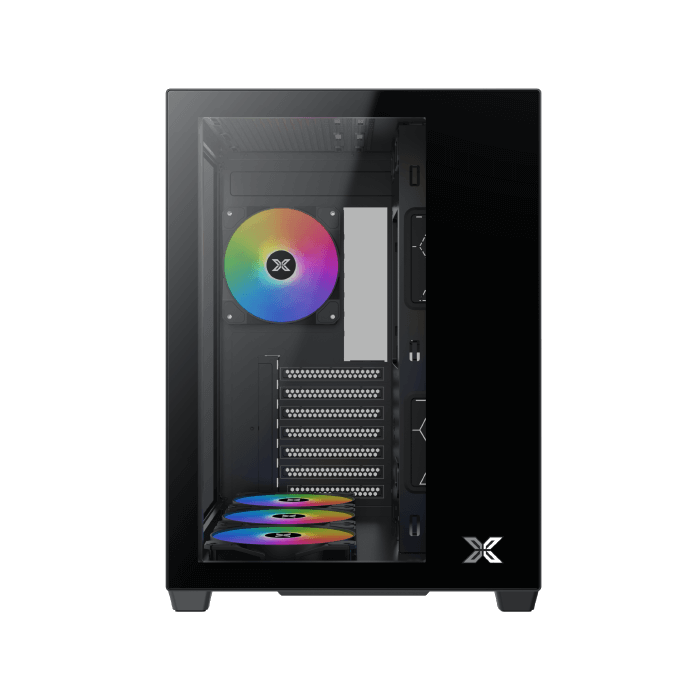

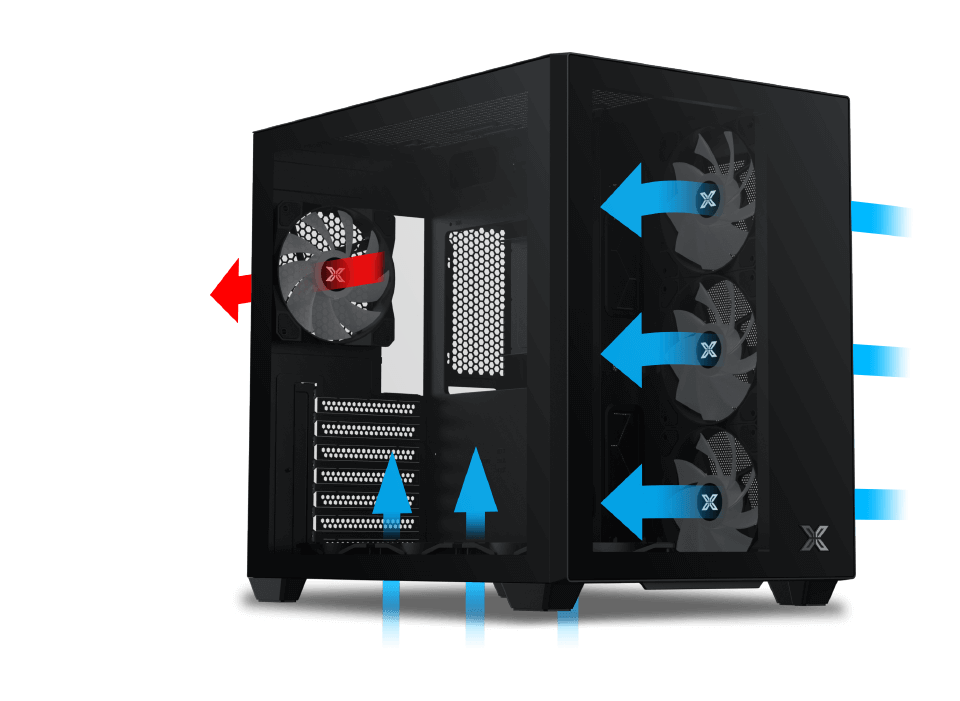

Superior Airflow and
Ventilation Design

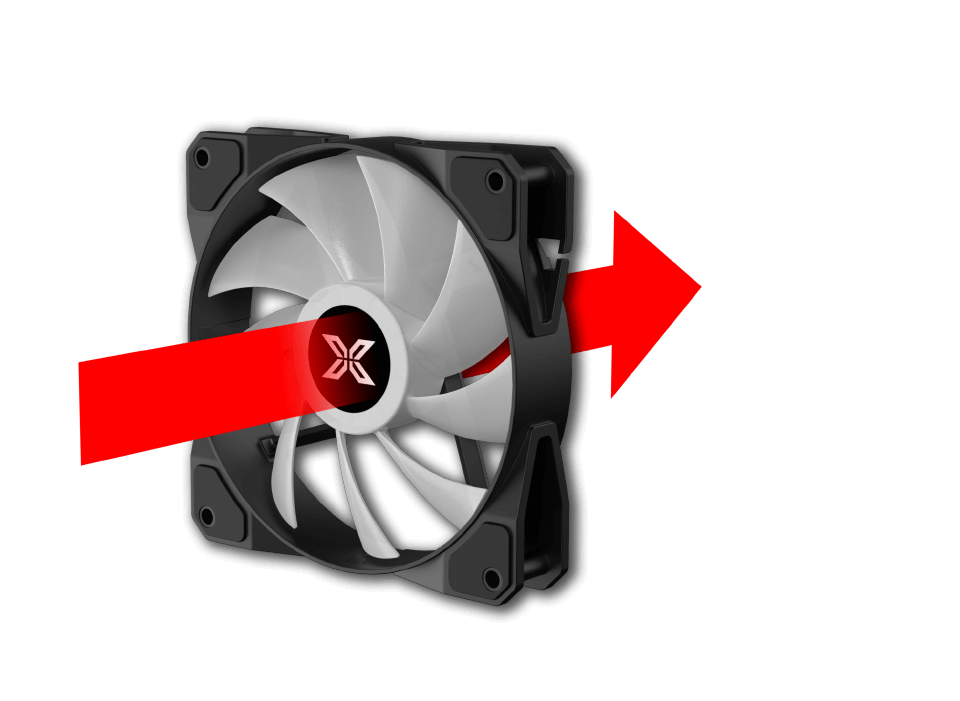

Traditional Fan Blade

Pre-installed on Rear Side

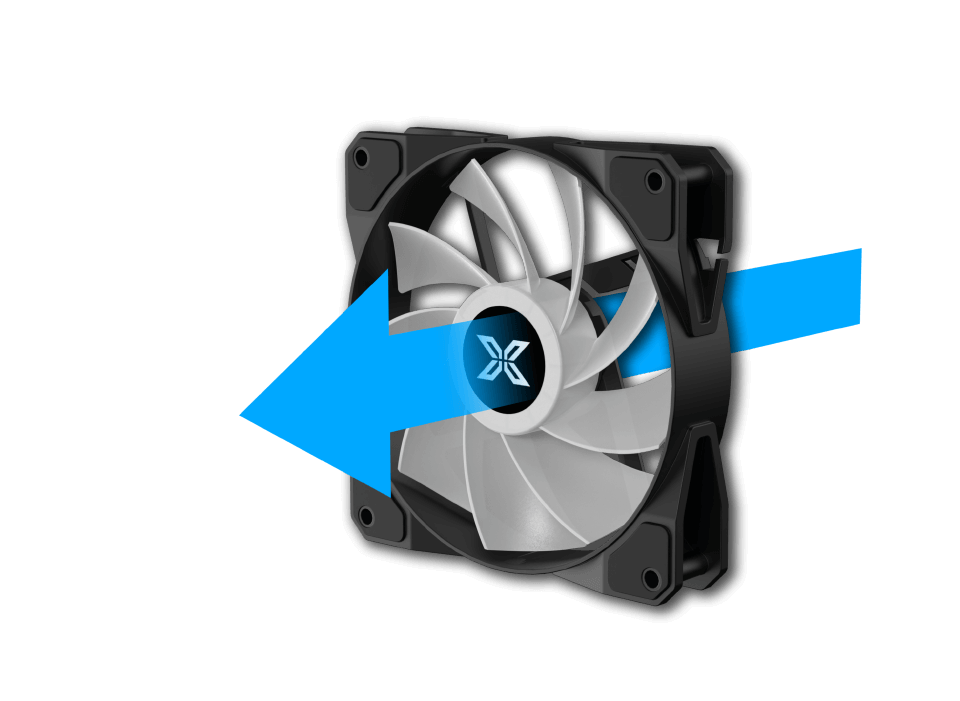

Reverse Fan Blade

Pre-installed on MB Panel & Bottom Side

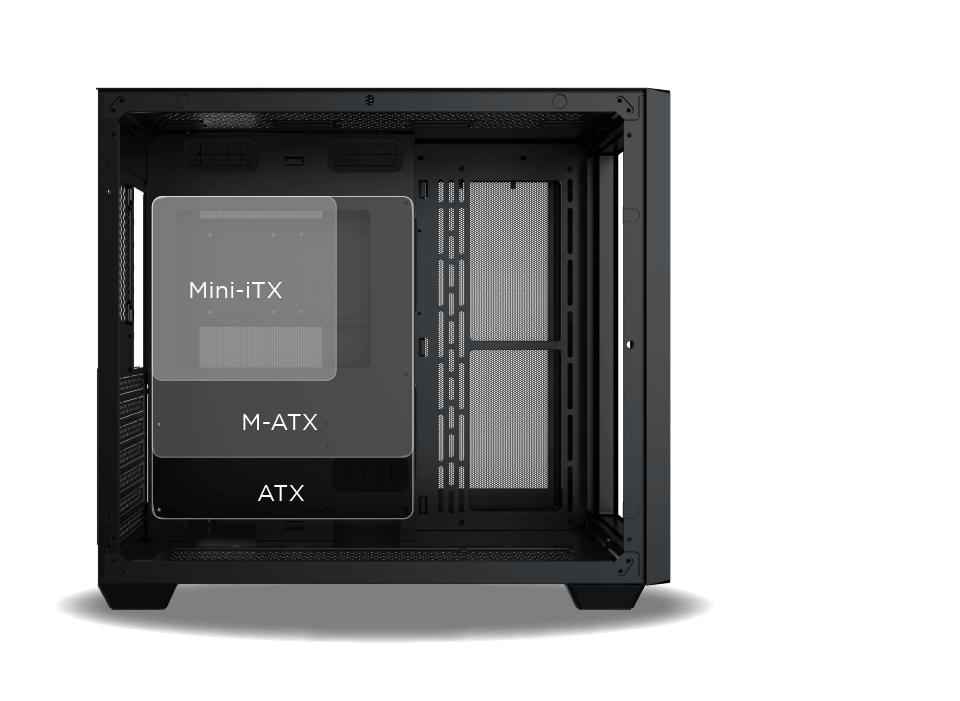

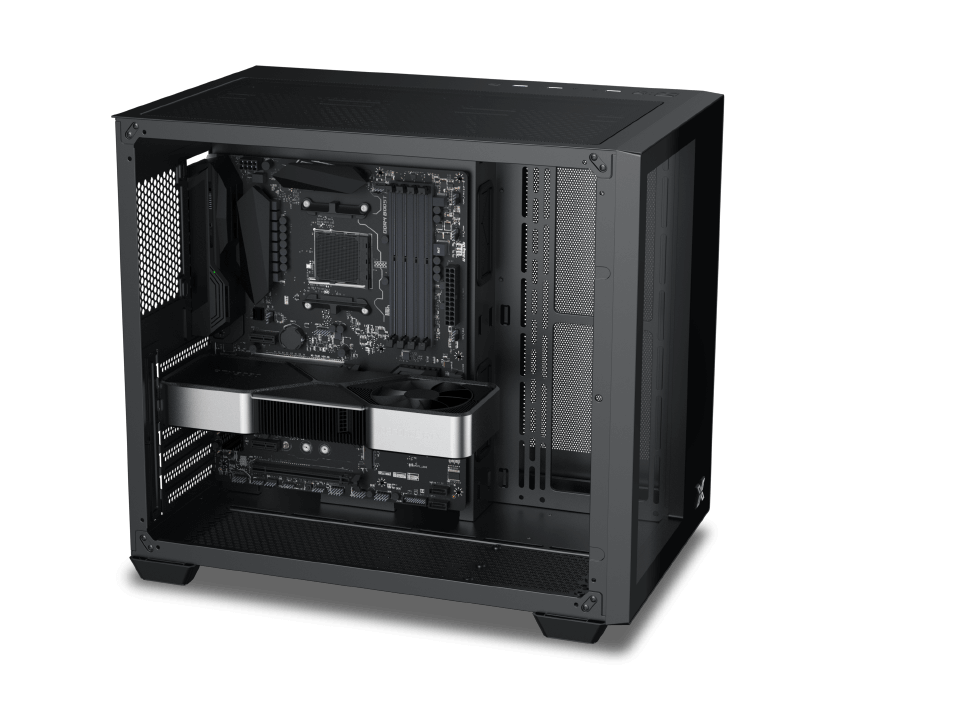

Support Motherboard
up to ATX

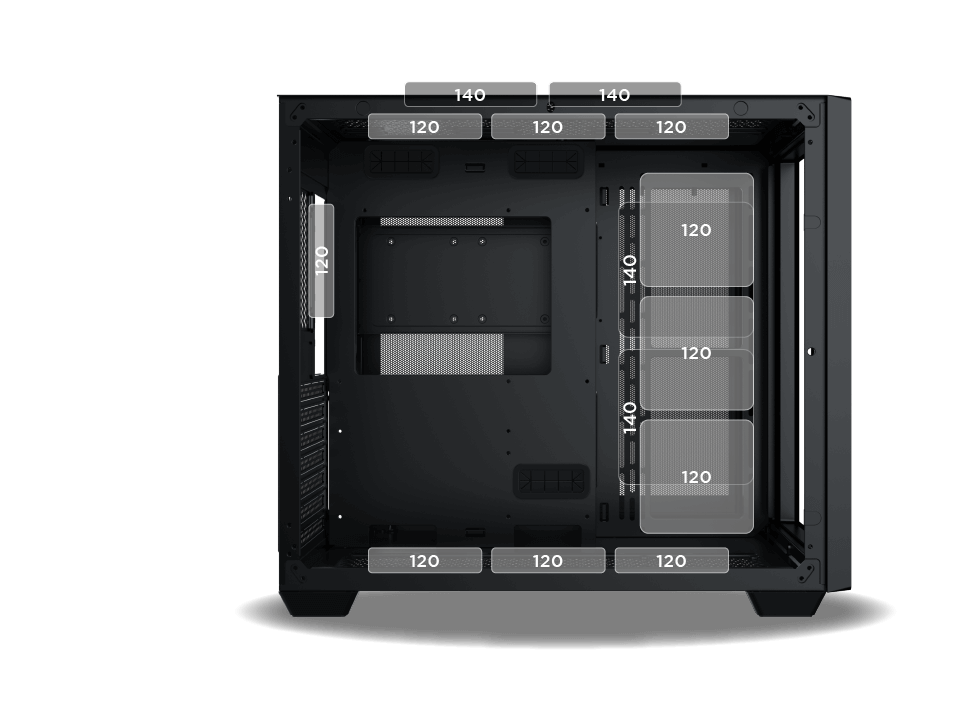

Fan Support

Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3 or 140mm x2
Rear: 120mm x1
Bottom: 120mm x3

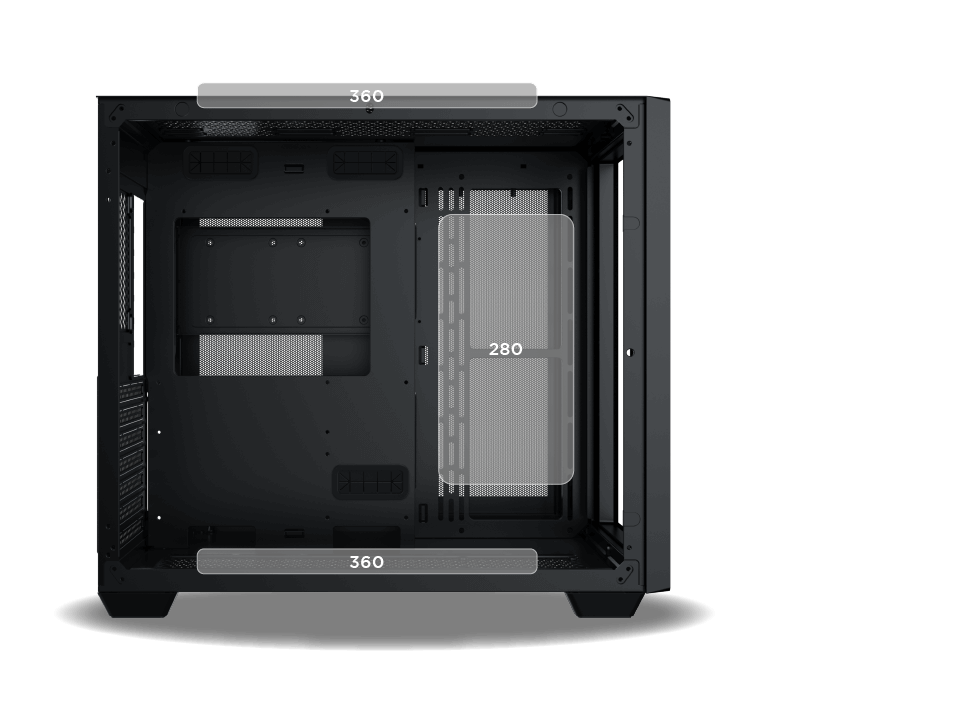

Radiator Support

Top: 360
MB Panel: 280
Bottom: 360

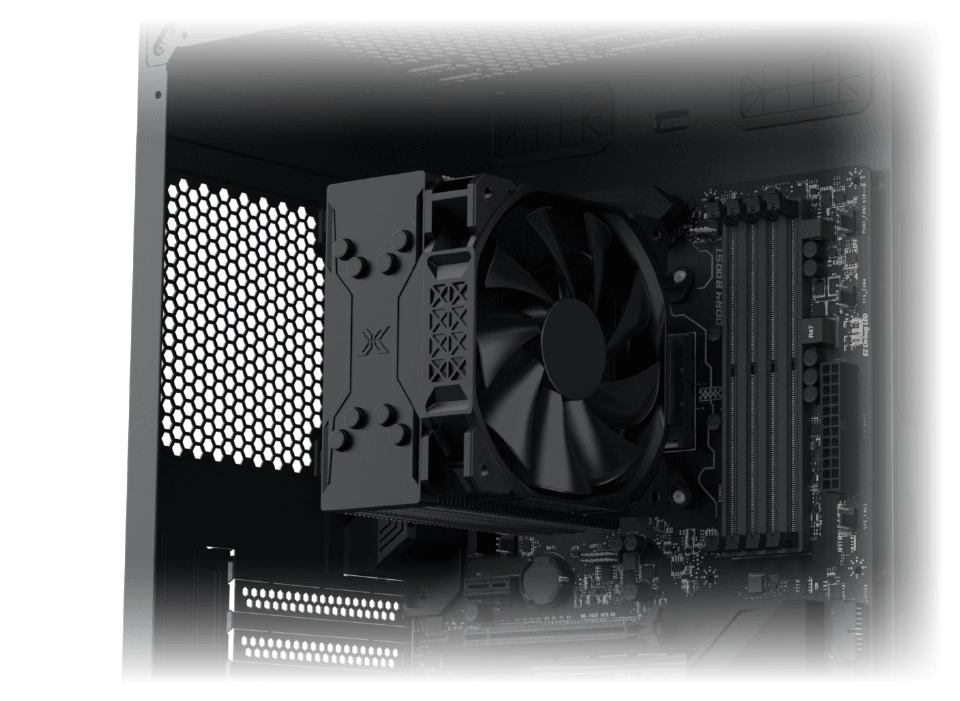

CPU Cooler Clearance
up to 160mm

GPU Length Limitation
410mm

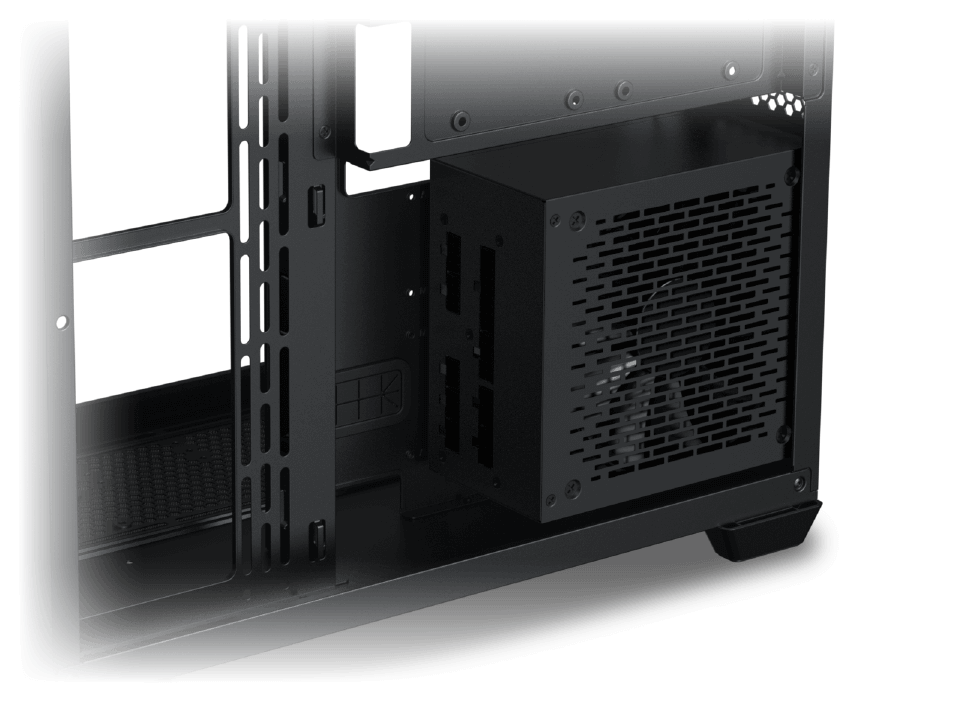

PSU Limitation
up to 220mm

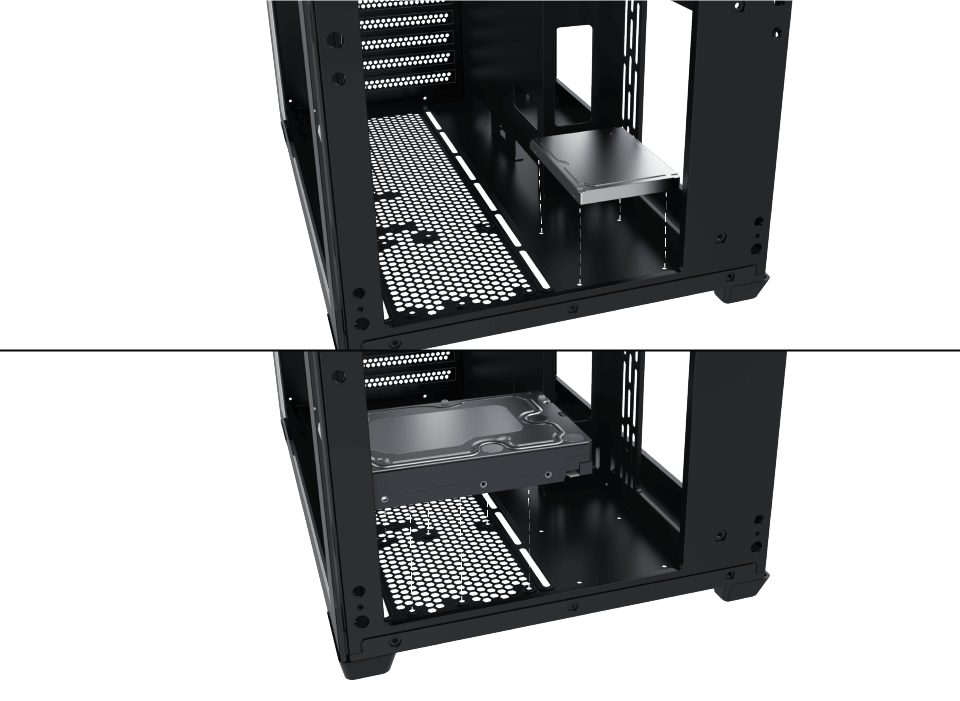

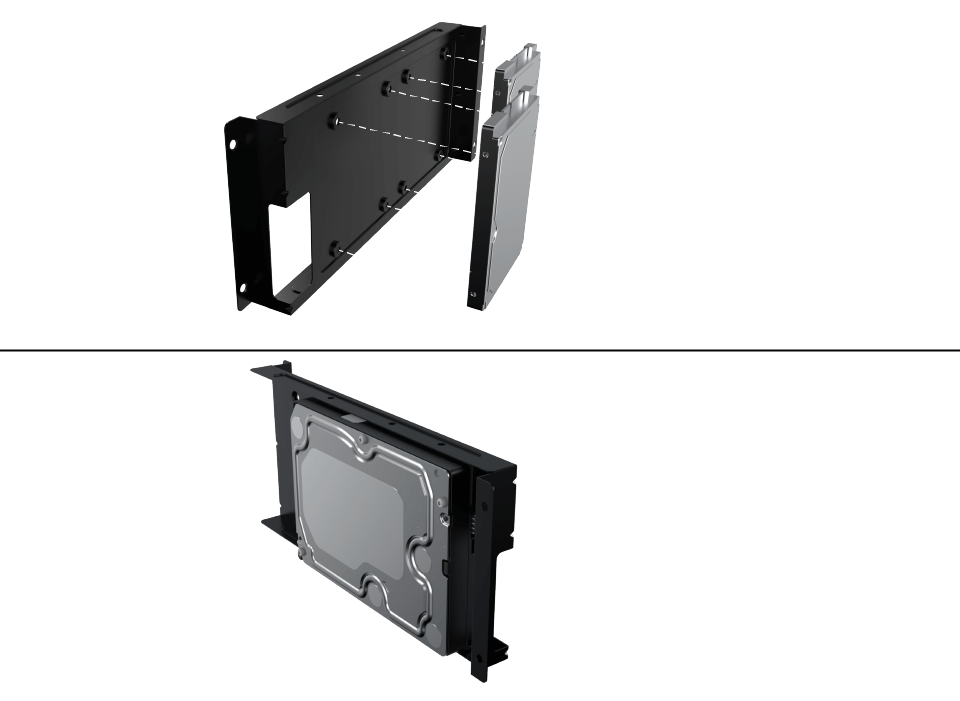

Drive Support

HDD Bracket:
3.5″ x1 & 2.5″ x2

Drive Support

Bottom Panel:
2.5″ x1 or 3.5″ x1

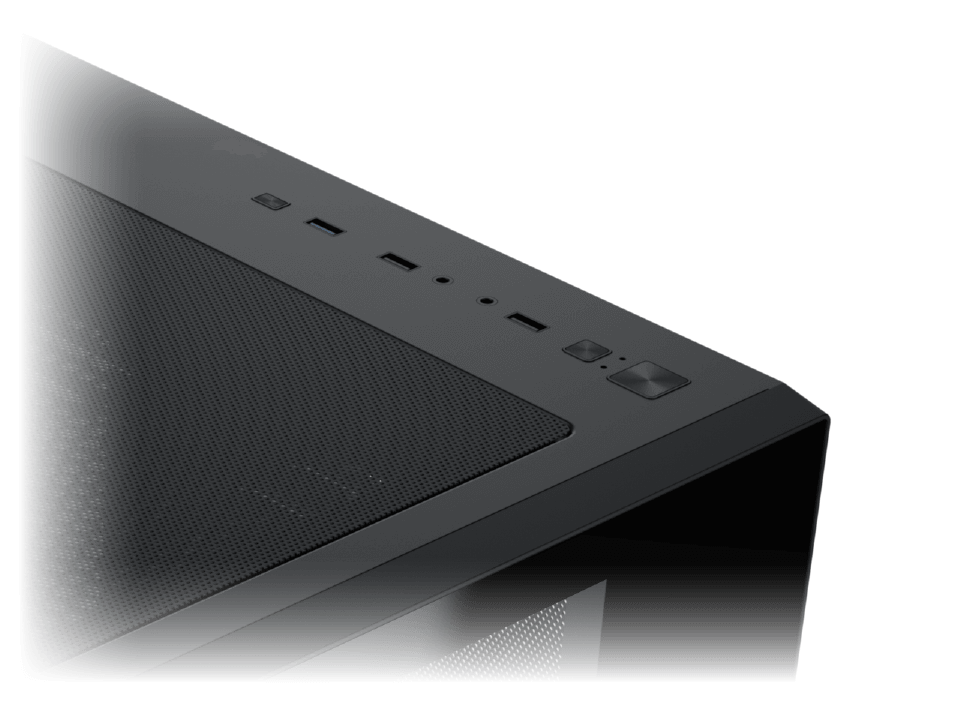

Top Mount I/O Ports

• Power Button
• Reset Button
• HD Audio Jack
• USB 2.0 x2
• USB 3.0 x1
• Switch x1

*All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

Aqua III (EN44878)

Material

Steel

Dimensions

440x286x400mm (LxWxH)

Drive Bays

Bottom Panel:
3.5″ x1 or 2.5″ x1
Removeable HDD Cage:
3.5″ x1 & 2.5″ x2

Expansion Slots

7 Standard Slots

Motherboard Support

ATX, M-ATX, Mini ITX

Power Supply

Standard PS2 ATX PSU

Fan Support

Top: 120mm x3 & 140mm x2
Bottom: 120mm x3
MB Panel: 120mm x3 & 140mm x2
Rear: 120mm x1

Radiator Support

Top: 360
Bottom: 360
MB: 280

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

CPU Cooler Clearance

160mm

GPU Length Limitation

410mm

PSU Length Limitation

220mm
