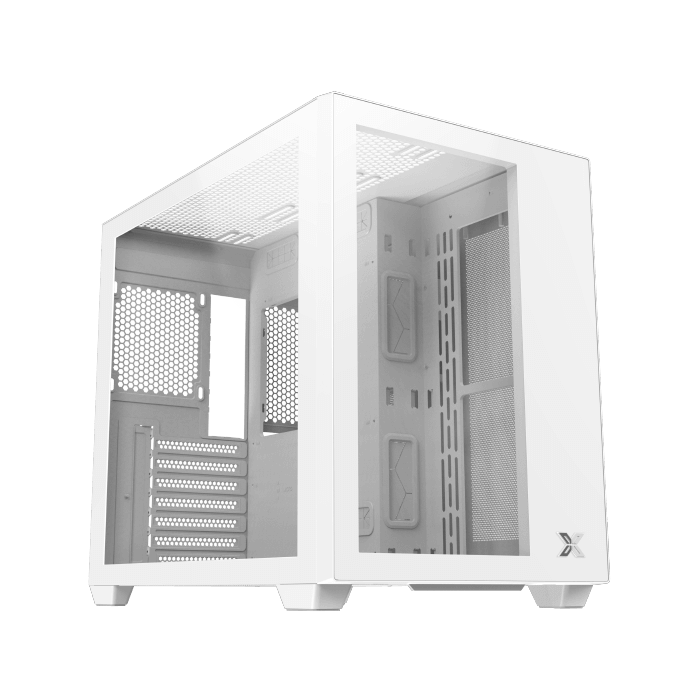

2 Tempered Glass Panel
Design

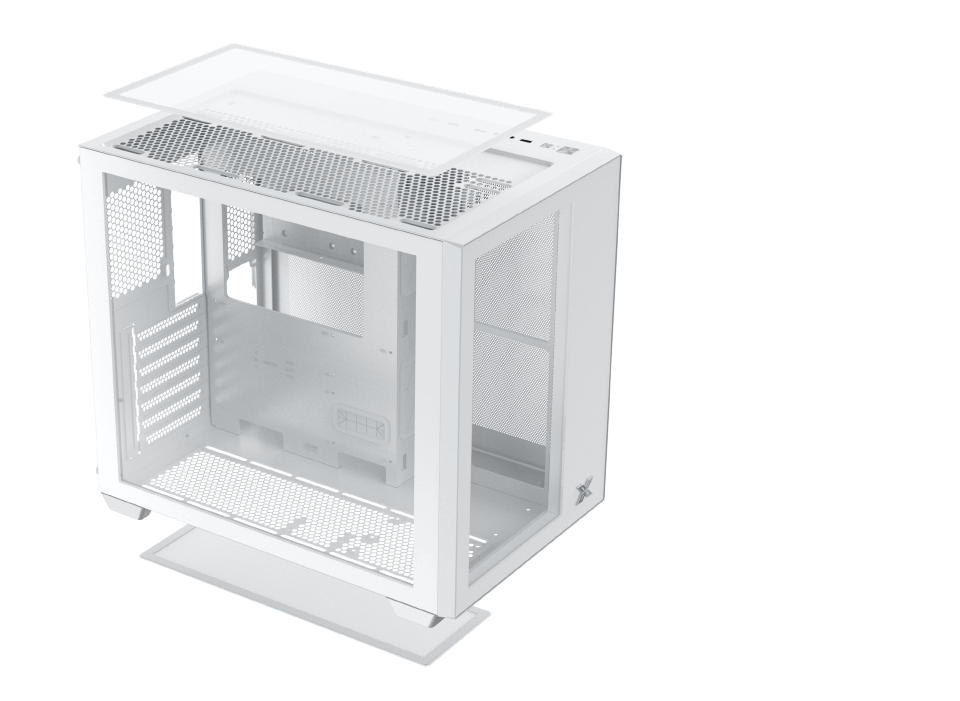

Top & Bottom
Dust Filter

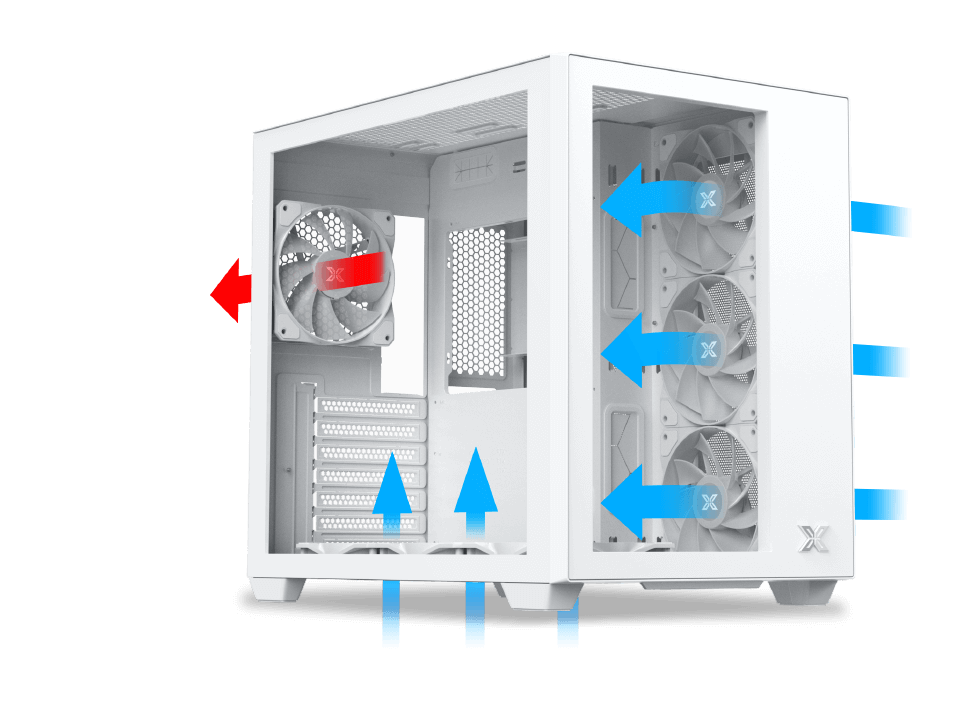

Superior Airflow and
Ventilation Design

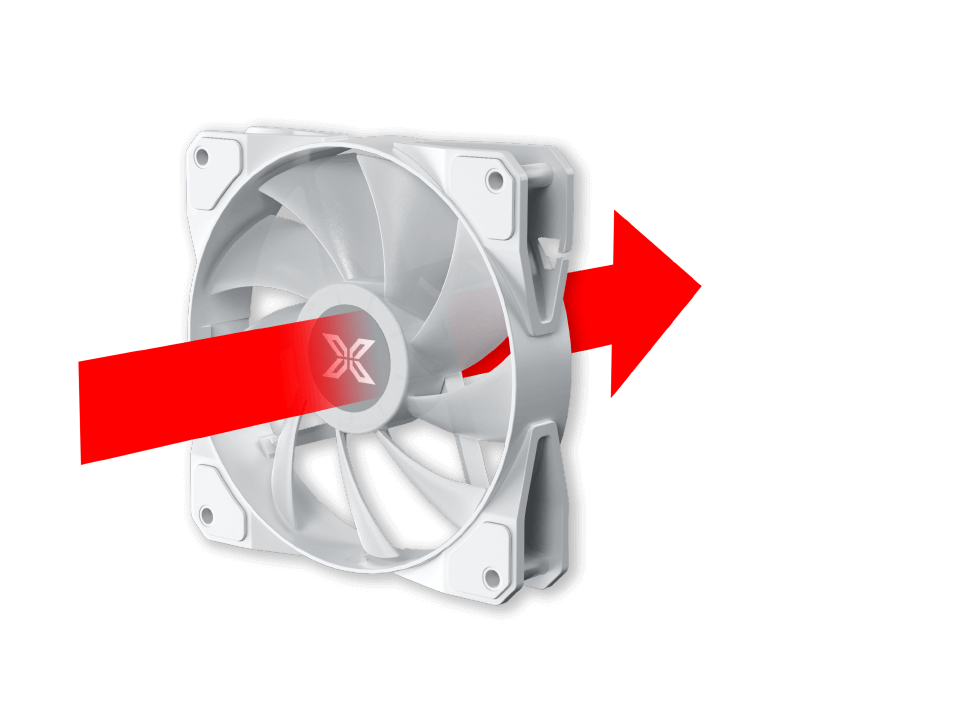

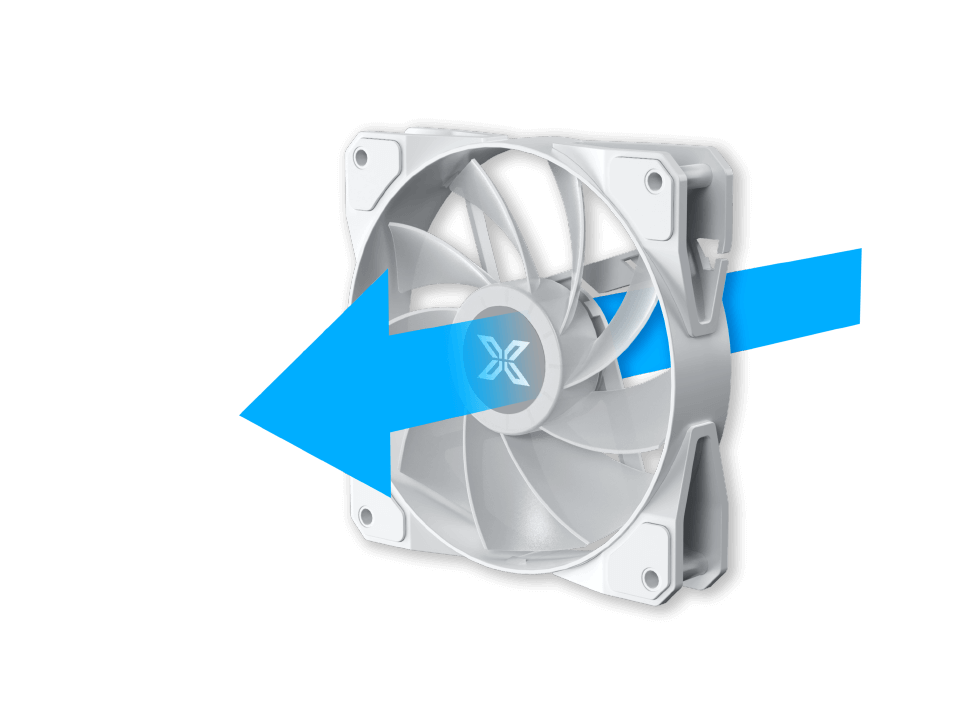

Traditional Fan Blade
Pre-installed on Rear Side
Reverse Fan Blade
Pre-installed on MB Panel & Bottom Side

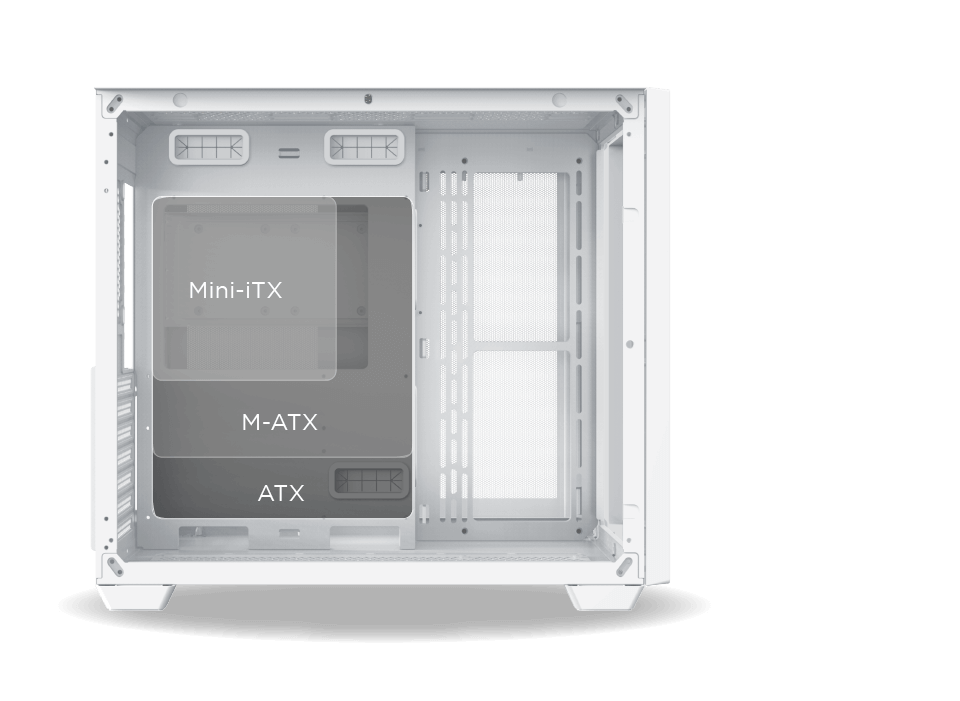

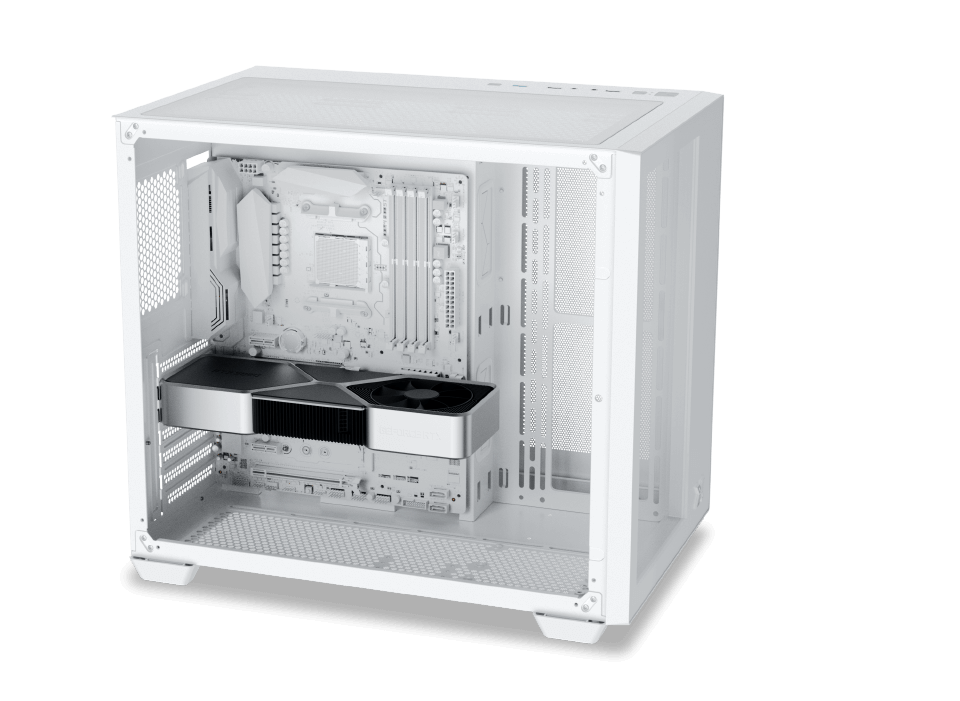

Support Motherboard
up to ATX

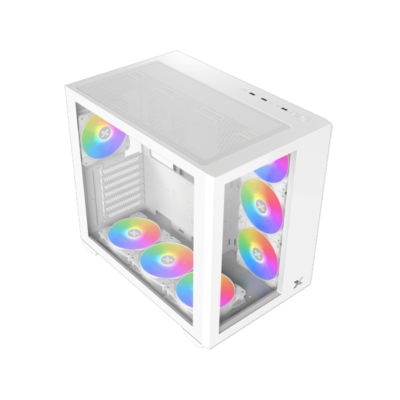

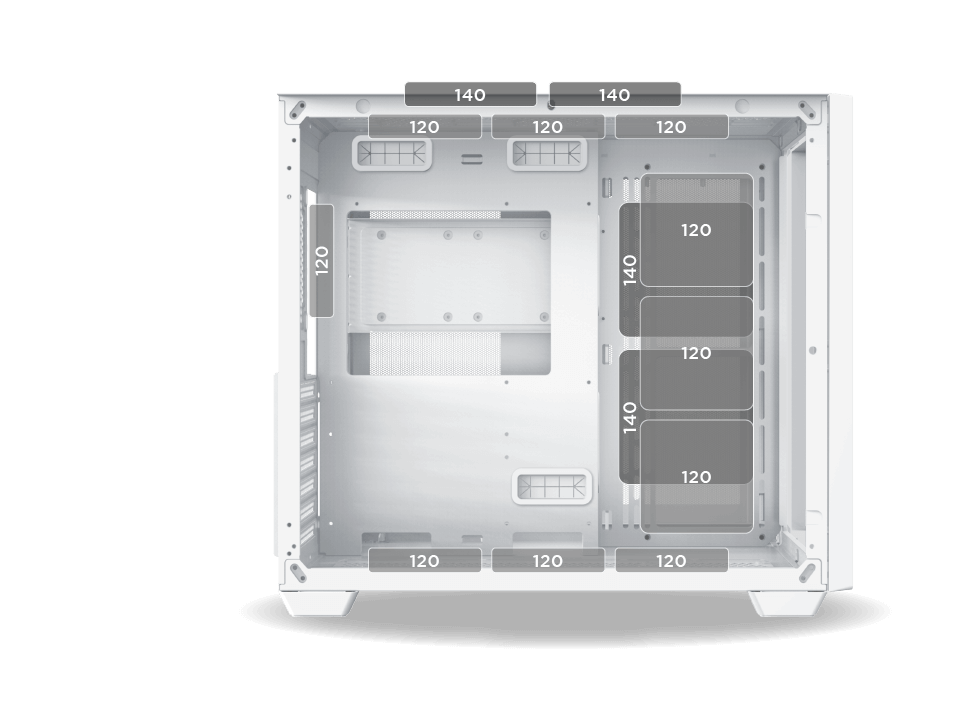

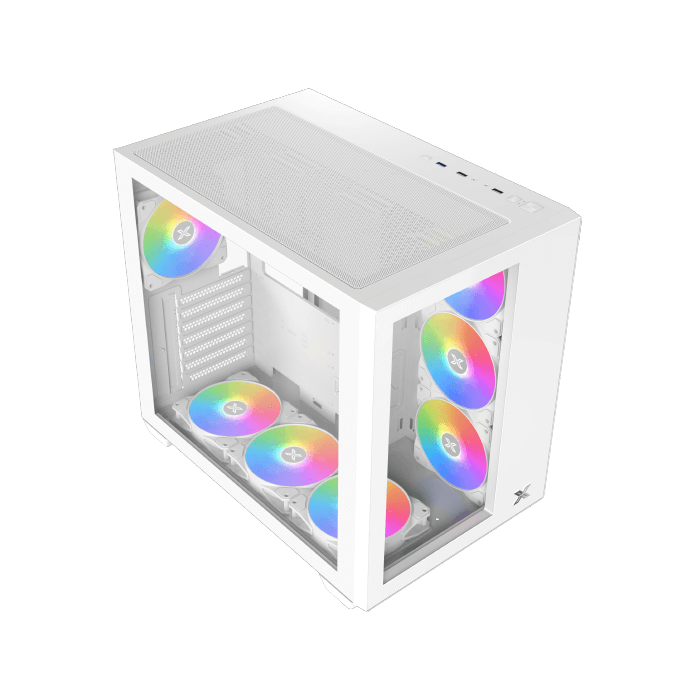

Fan Support
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3 or 140mm x2
Rear: 120mm x1
Bottom: 120mm x3

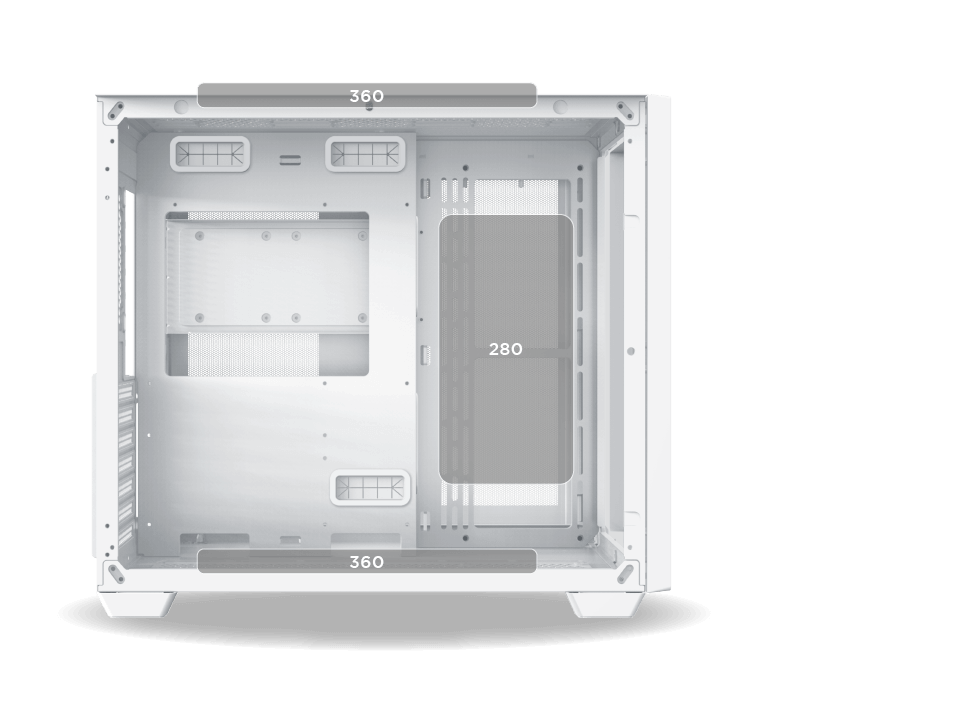

Radiator Support
Top: 360
MB Panel: 280
Bottom: 360

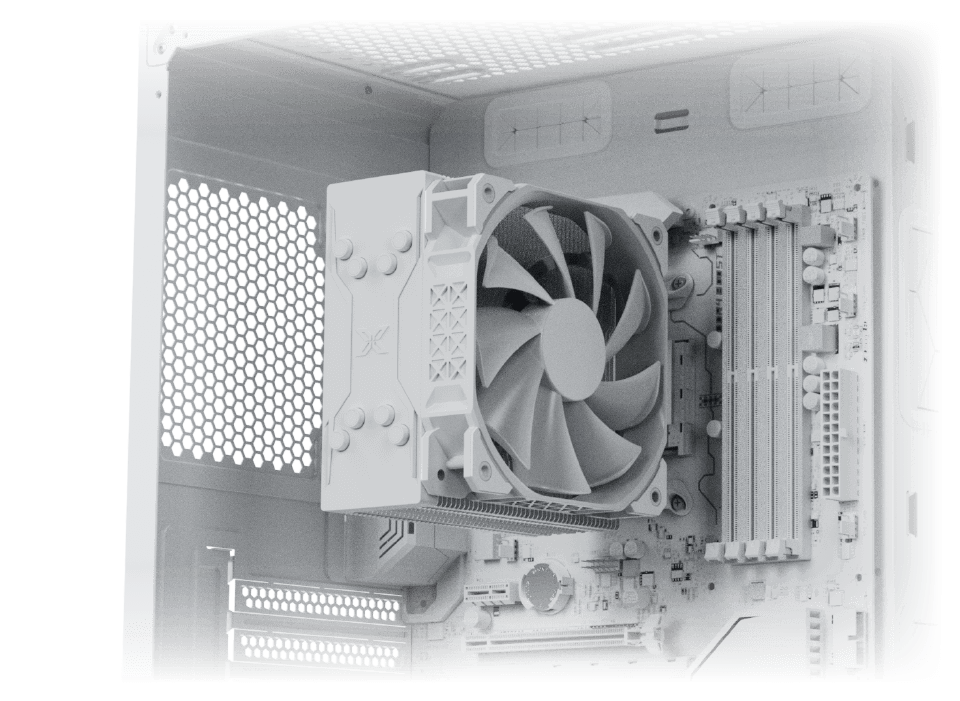

CPU Cooler Clearance
up to 160mm
GPU Length Limitation
410mm

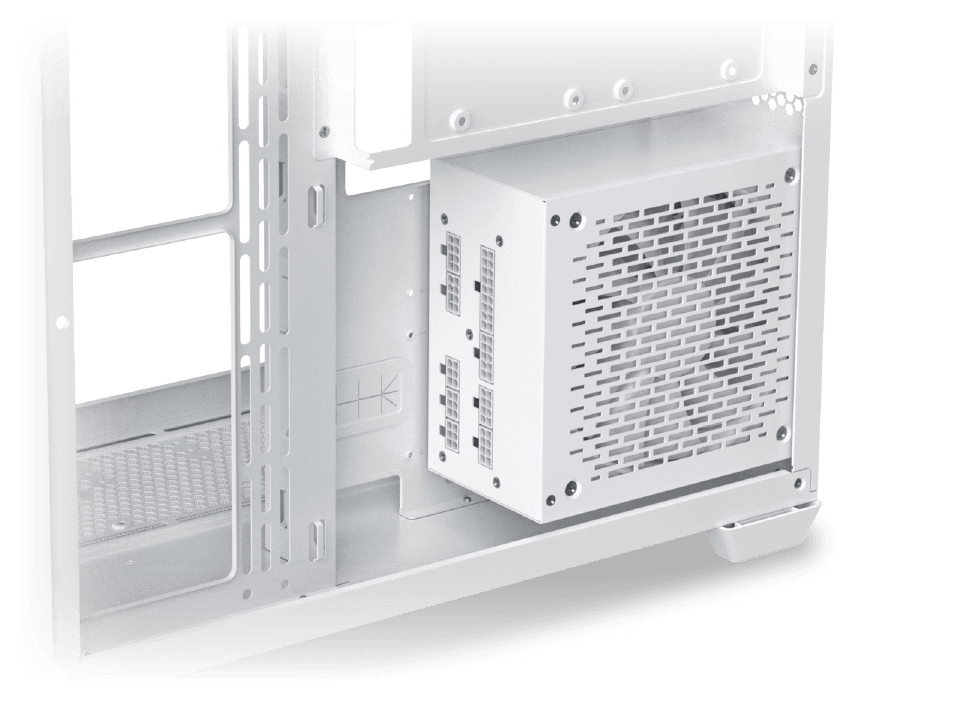

PSU Limitation
up to 220mm
Drive Support

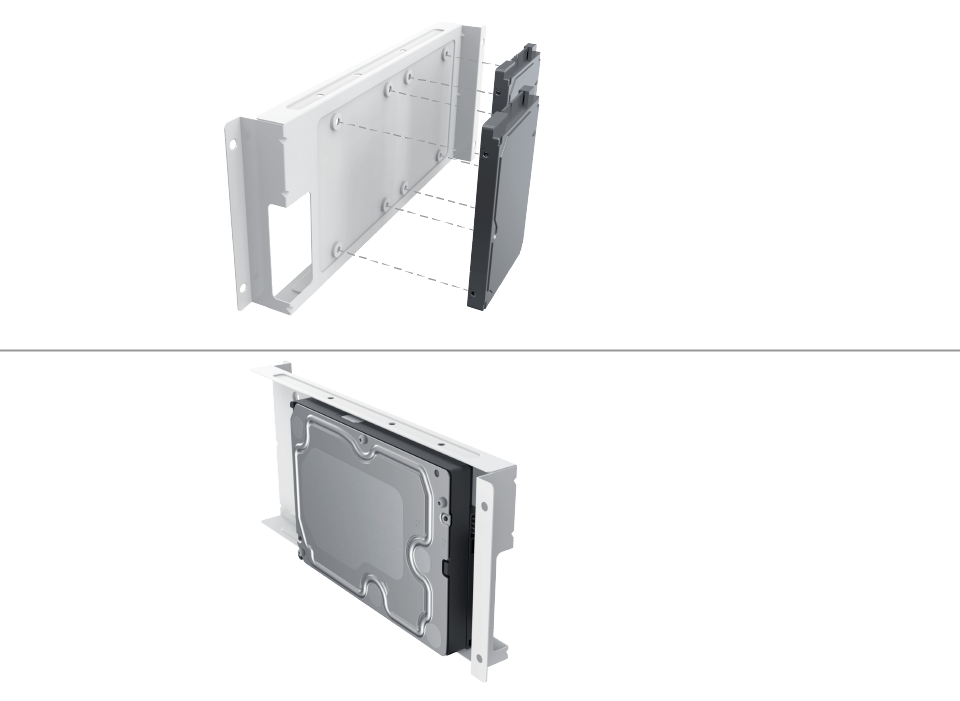

HDD Bracket:
3.5″ x1 & 2.5″ x2

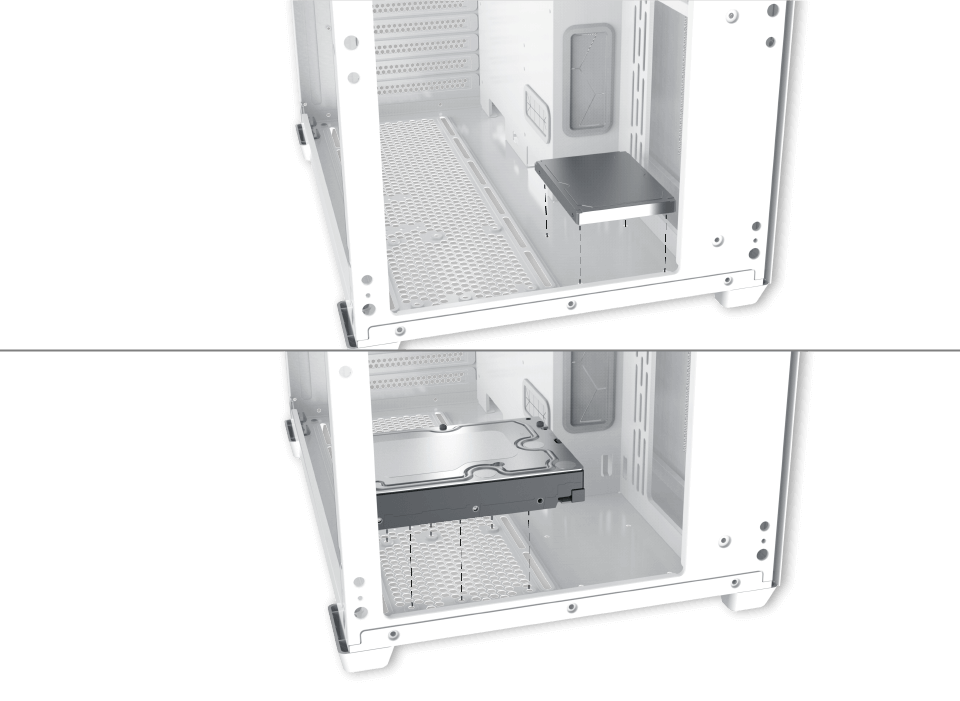

Drive Support
Bottom Panel:
2.5″ x1 or 3.5″ x1

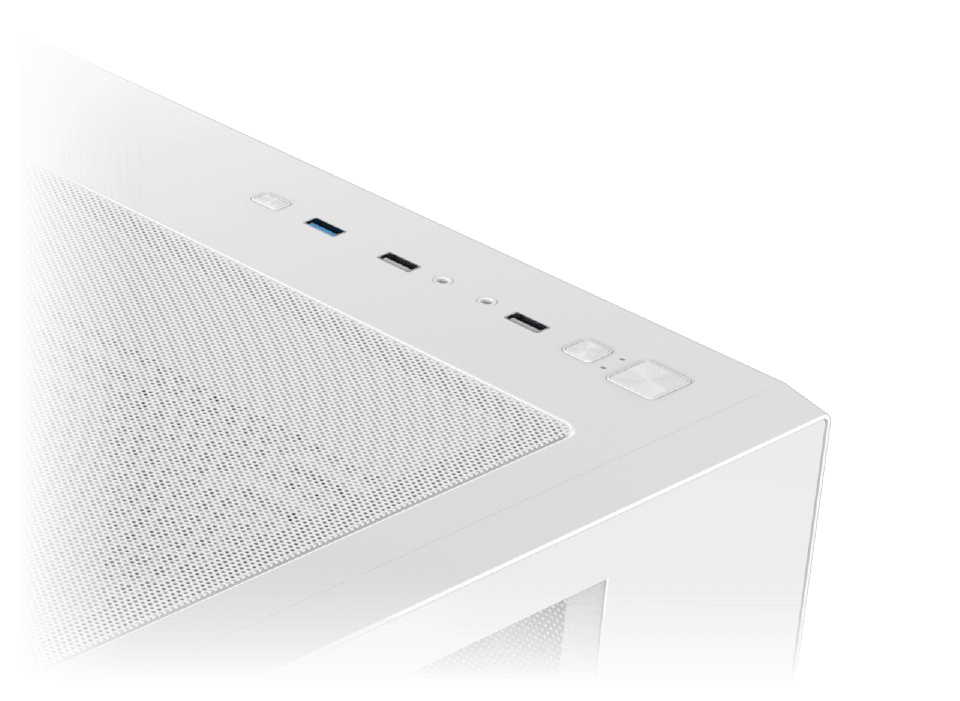

Top Mount I/O Ports
• Power Button
• Reset Button
• HD Audio Jack
• USB 2.0 x2
• USB 3.0 x1
• Switch x1
*All Product Images Shown Are For Illustration Purpose Only.

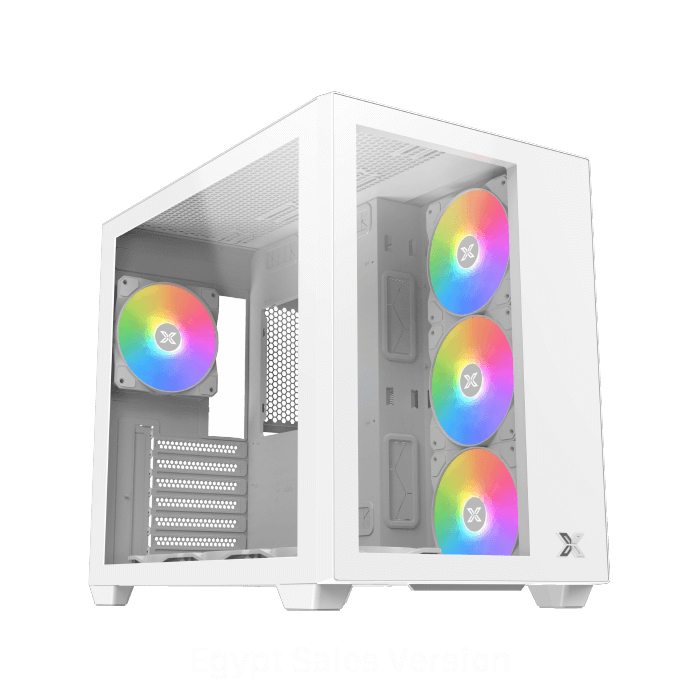

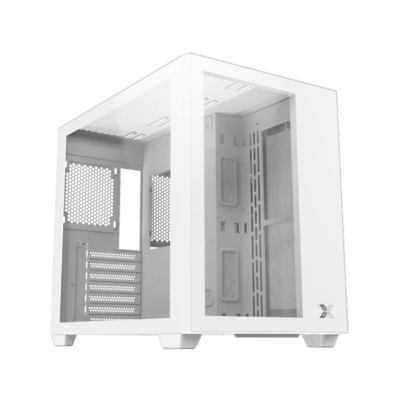

Aqua III Arctic (EN44885)
Steel
440x286x400mm (LxWxH)
Bottom Panel:
3.5″ x1 or 2.5″ x1
Removeable HDD Cage:
3.5″ x1 & 2.5″ x2
7 Standard Slots
ATX, M-ATX, Mini ITX
Standard PS2 ATX PSU
Top: 120mm x3 & 140mm x2
Bottom: 120mm x3
MB Panel: 120mm x3 & 140mm x2
Rear: 120mm x1
Top: 360
Bottom: 360
MB: 280
USB 3.0 x 1
USB 2.0 x 2
HD Audio
160mm
410mm
220mm
