Sky II 3F (EN44182)

Sky II 3F (EN44182)

Motherboard ATX

CPU Cooler 160mm

Fan Support 6 max.

Power Supply 165mm

Graphics Card 325mm

Radiator 360 max.

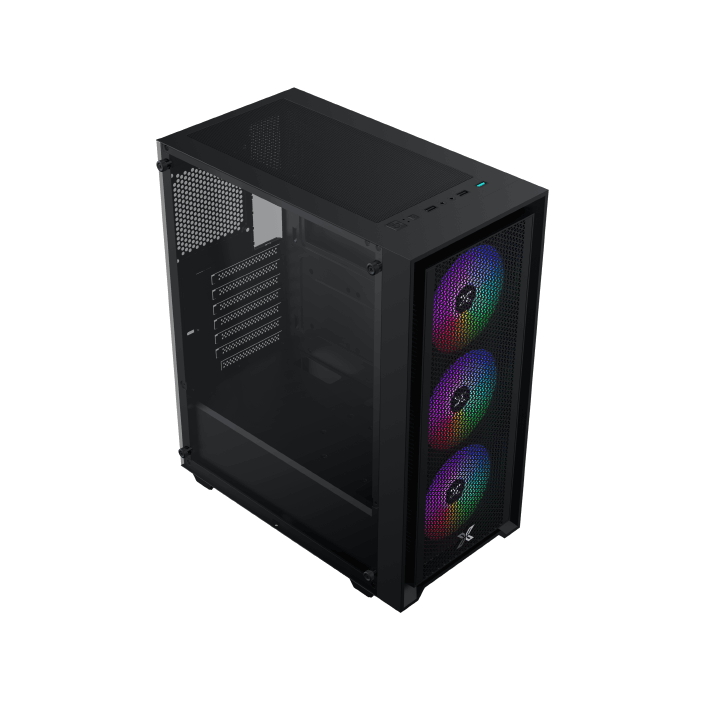

3 Tempered Glass Panel
Design

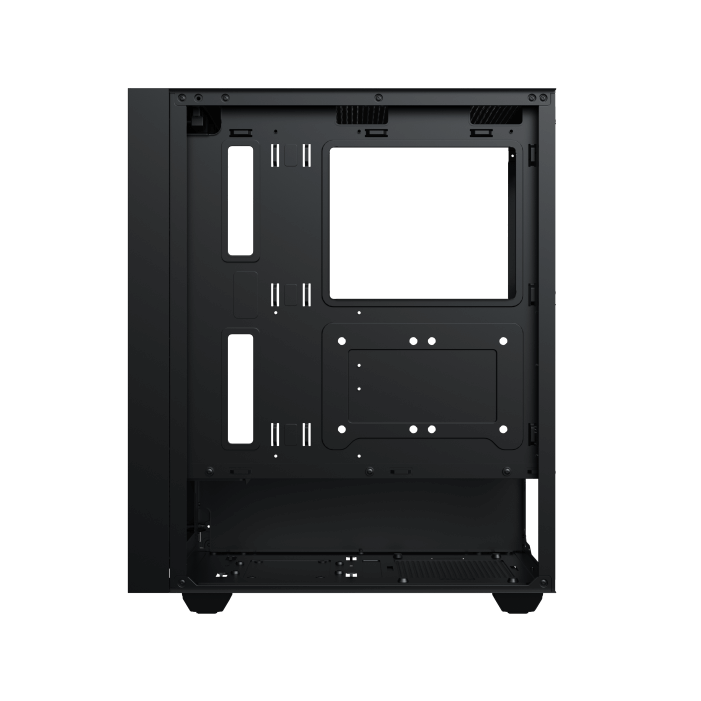

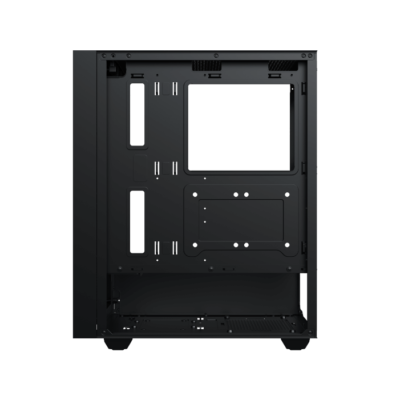

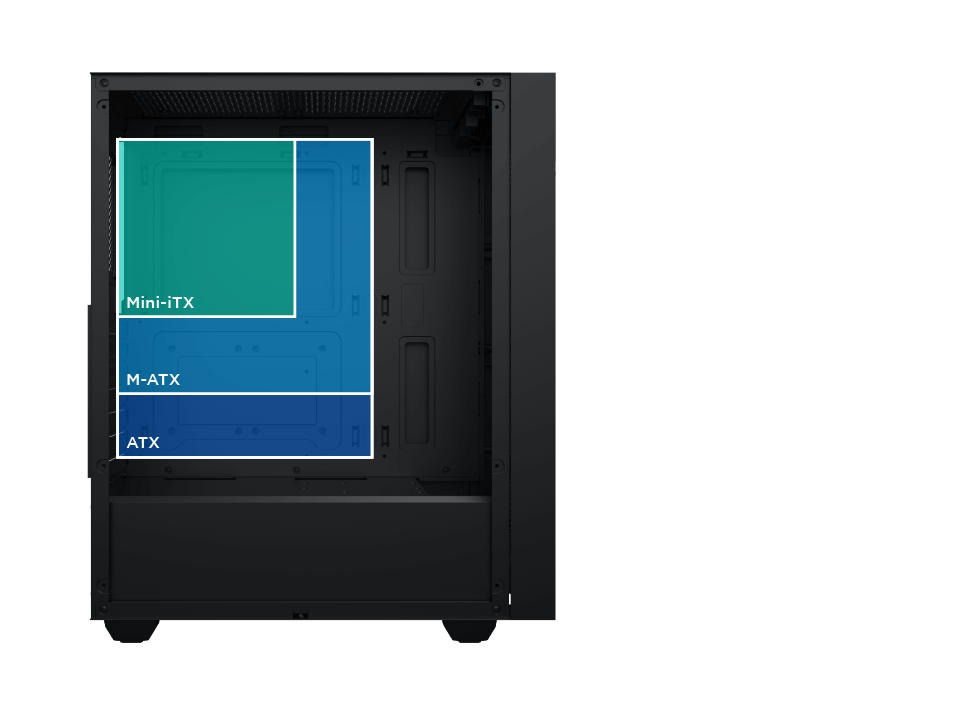

Support Motherboard
up to ATX

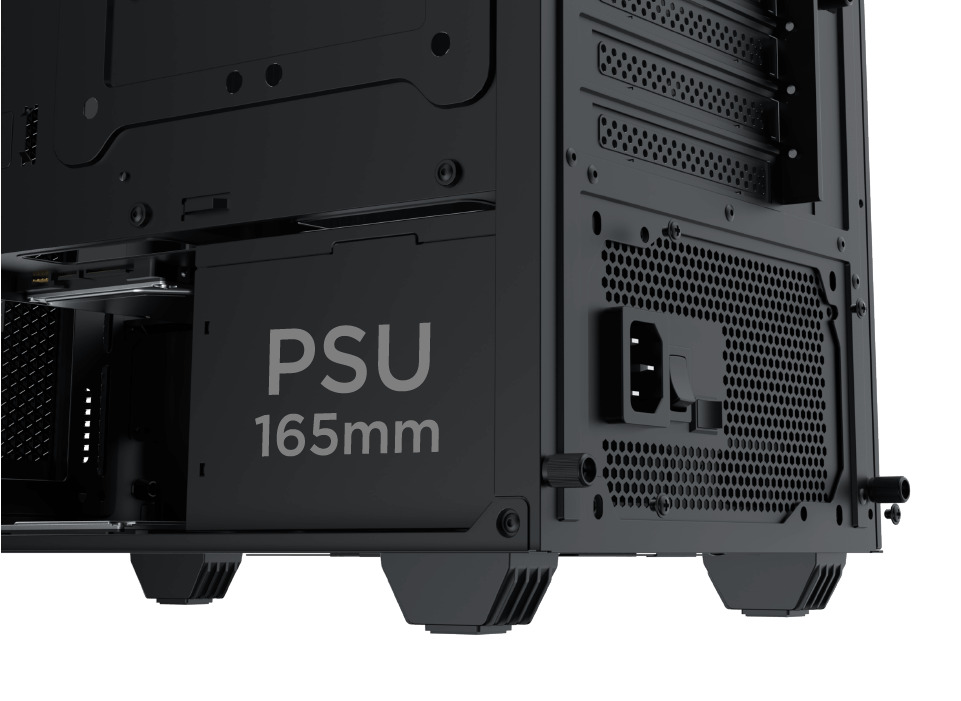

PSU Limitation
up to 165mm

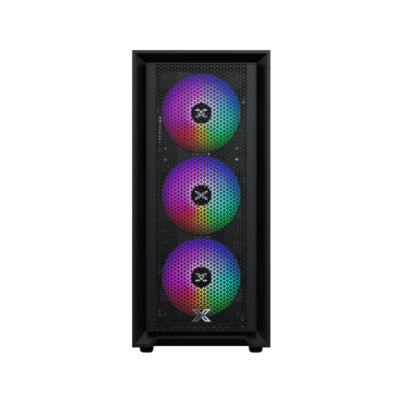

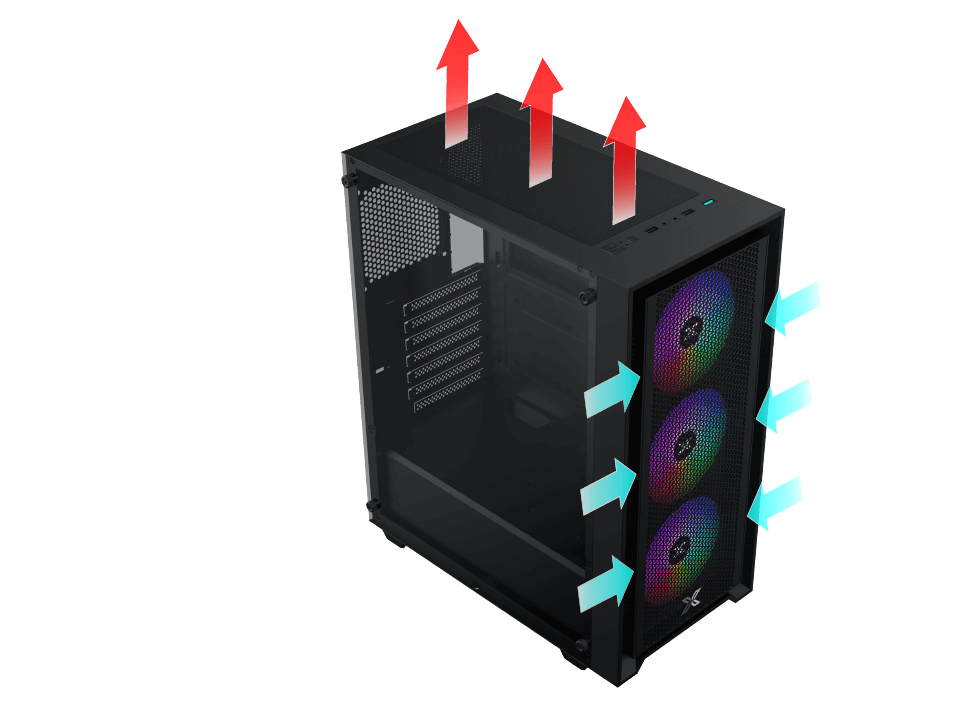

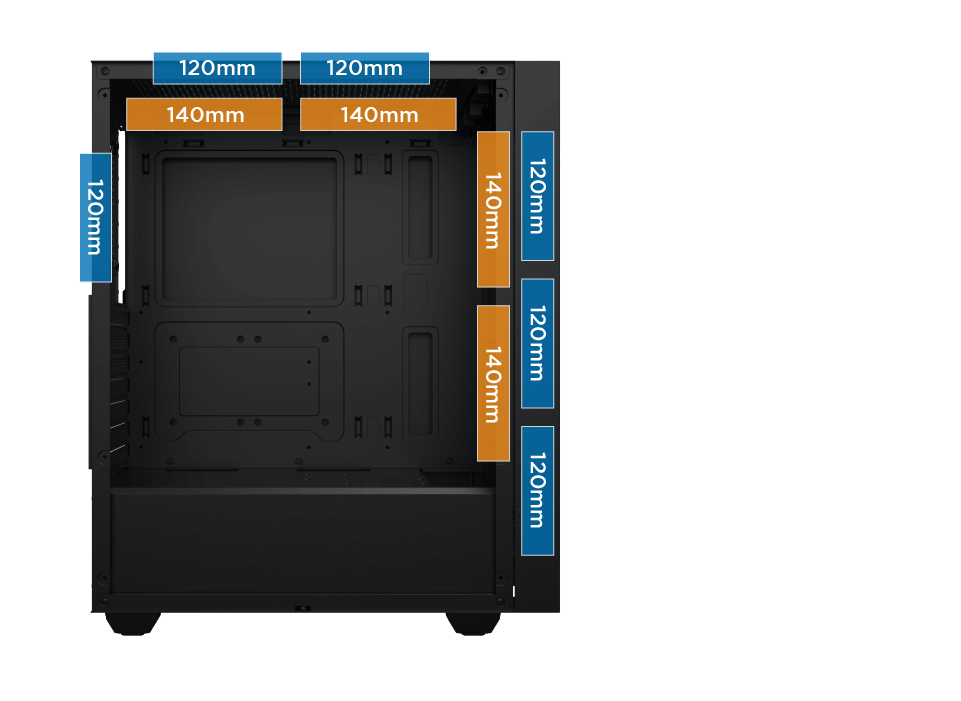

Fan Support

Top: 120mm x2 or 140mm x2

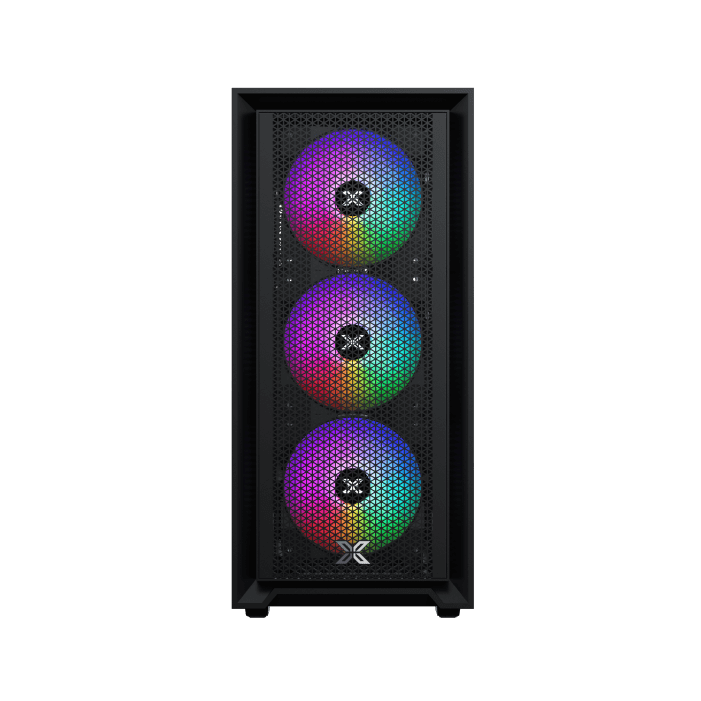

Front: 120mm x3 or 140mm x2
Rear: 120mm x1

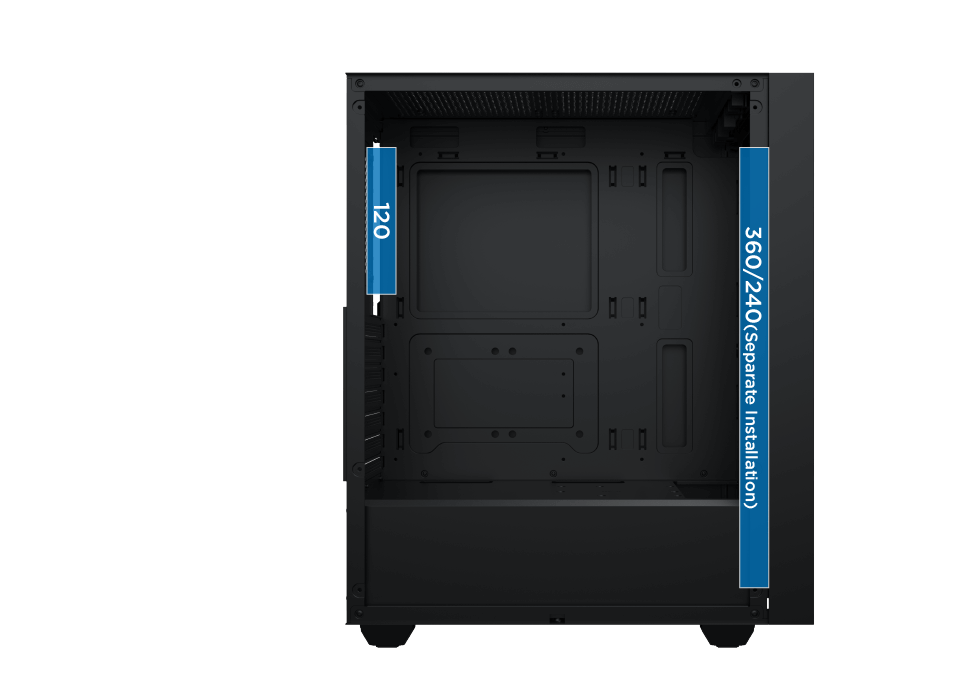

Radiator Support

Front: 360/240
Rear: 120

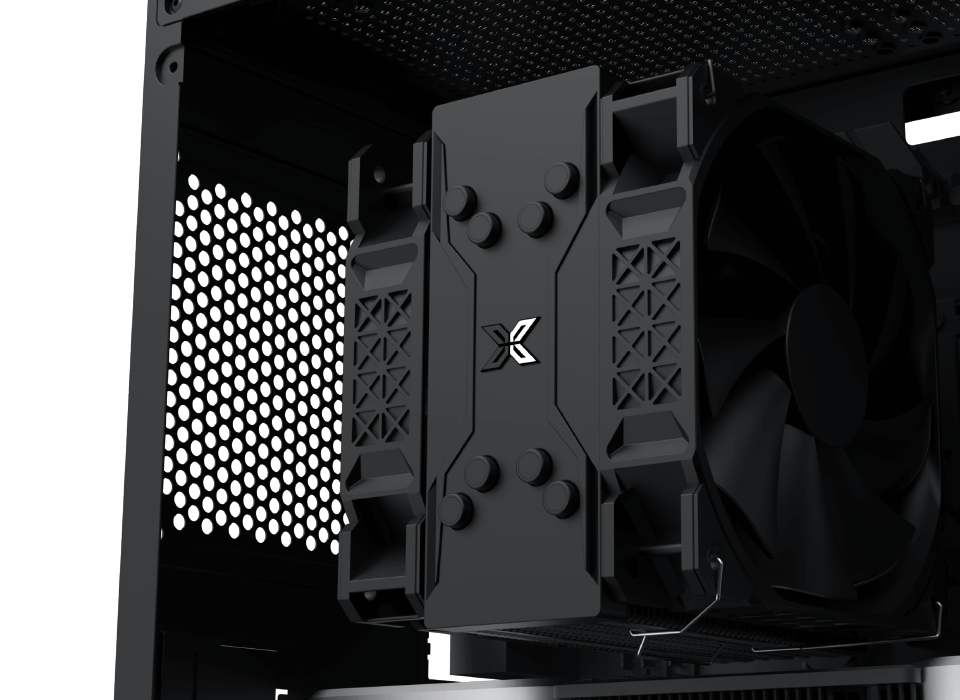

CPU Cooler Clearance
up to 160 mm

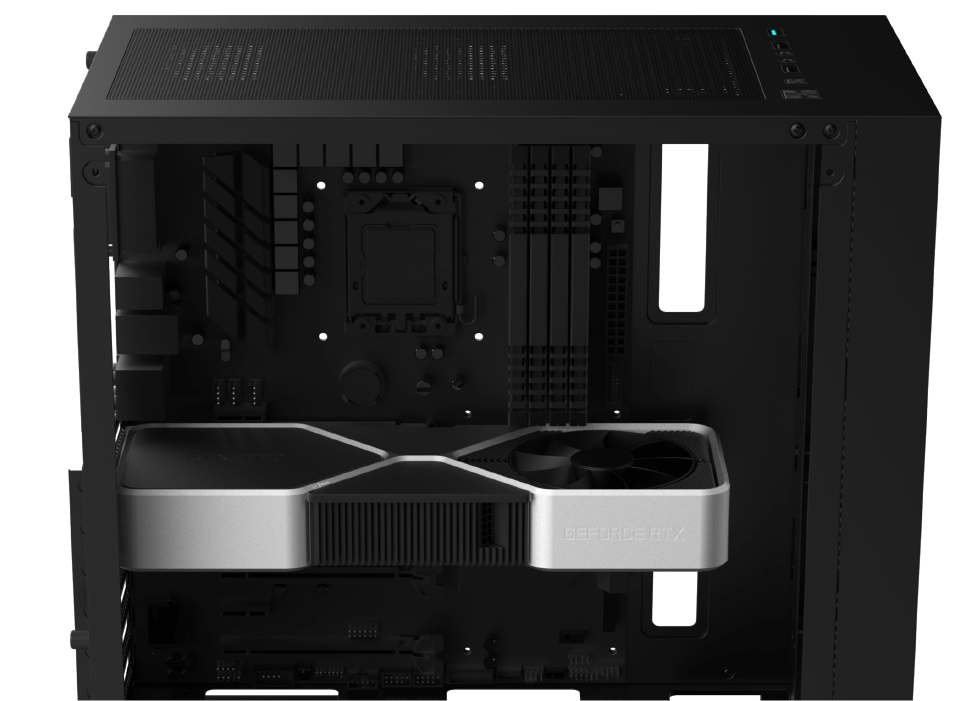

GPU Length Limitation
up to 325mm

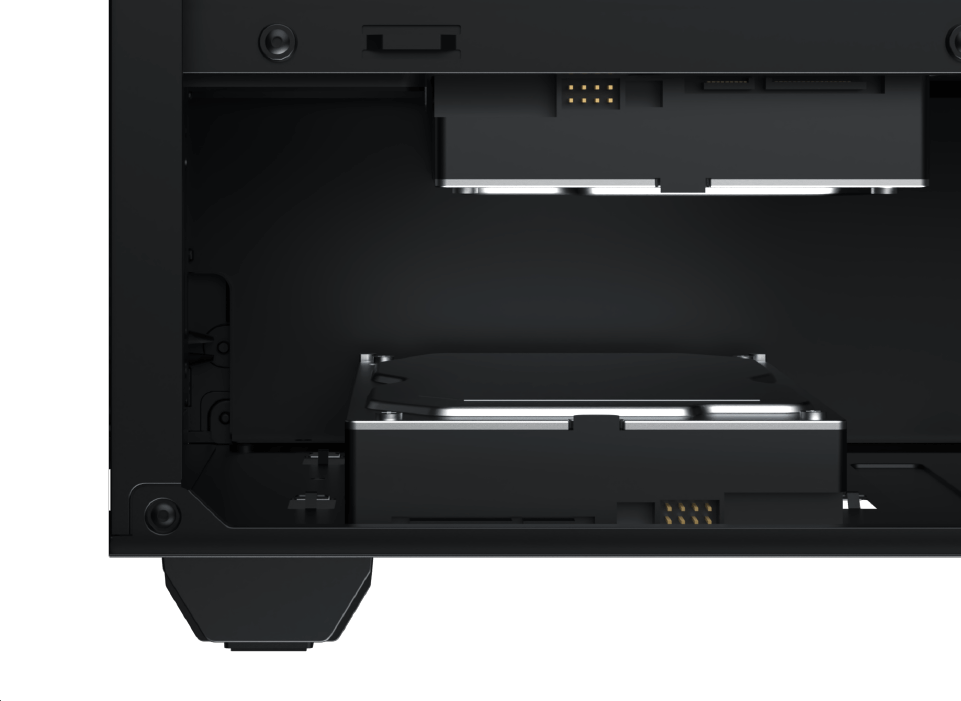

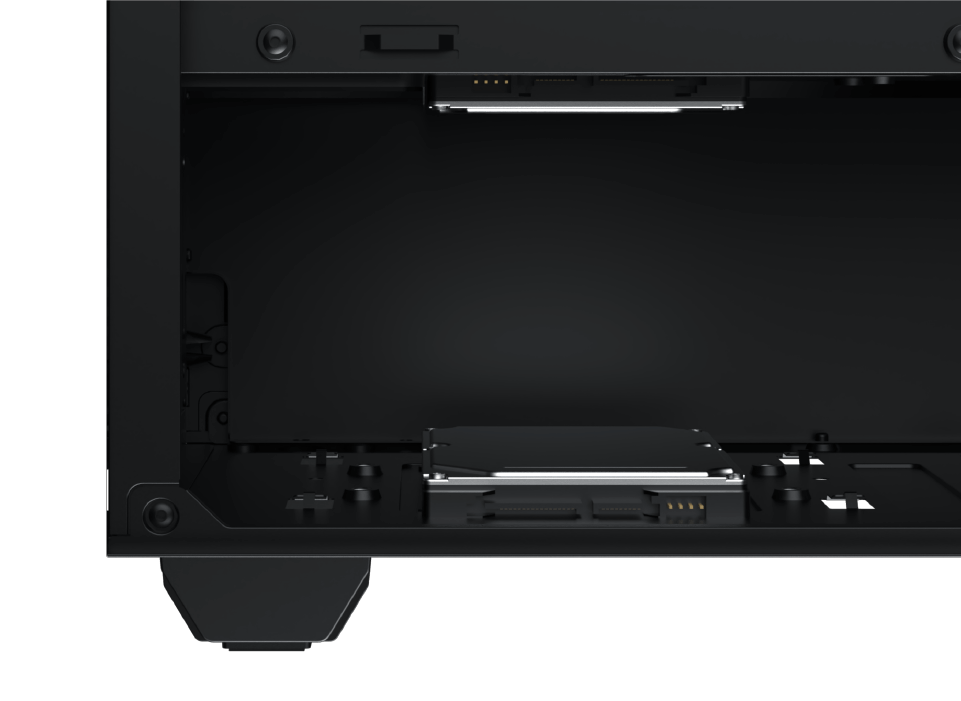

2.5 SSD & 3.5 HDD Combo x2

2.5 SSD & 3.5 HDD Combo x2

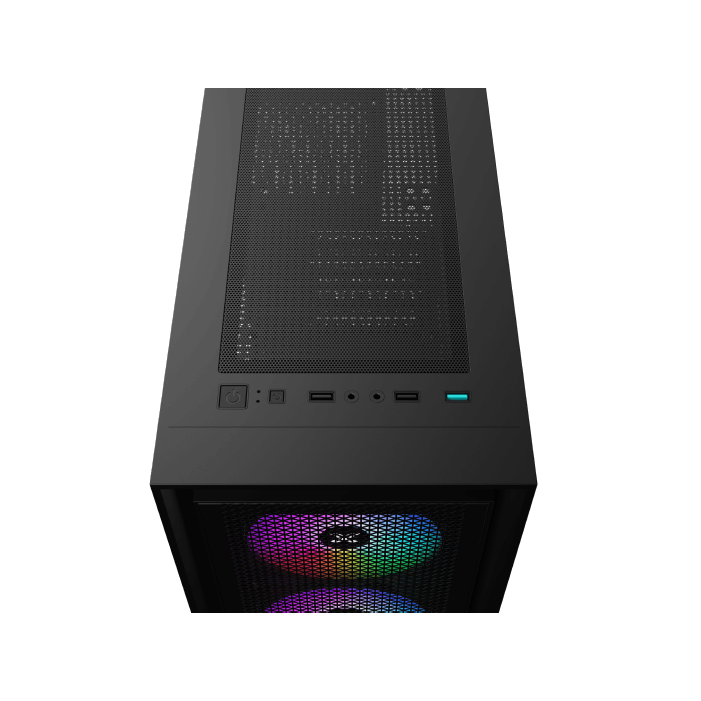

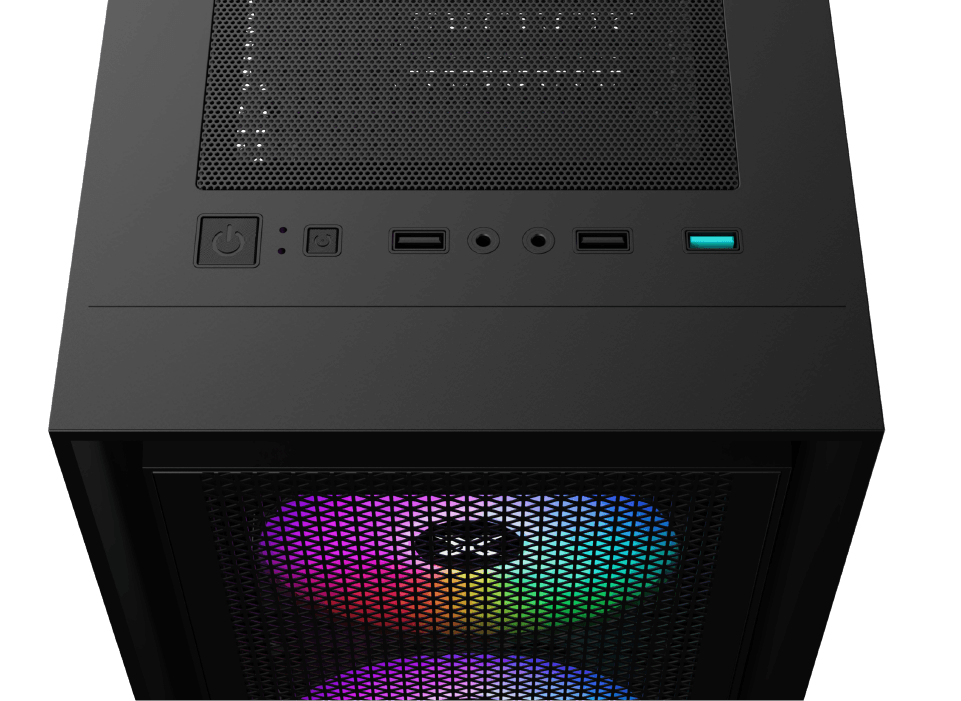

Top I/O Ports

• Power Button
• Reset Button
• USB 2.0 x2
• HD Audio Jack
• USB 3.0 x2

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

SKY II 3F

Dimensions

365x200x450mm (LxWxH)

Motherboard Support

ATX, Micro ATX, Mini ITX

Drive Bays

2.5 SSD & 3.5 HDD Combo x2

Fan Support

Top: 120mm x2 or 140mm x2
Front: 120mm x3 or 140mm x2
Rear: 120mm x1

PSU Length Limitation

165mm

CPU Cooler Clearance

160mm

Material

Steel

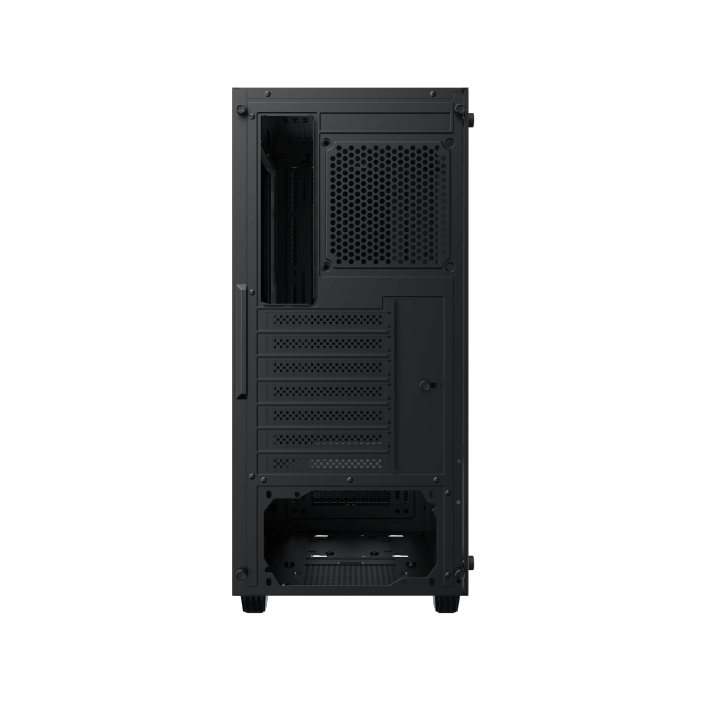

Expansion Slots

7 Standard Slots

Power Supply

Standard PS2
ATX PSU

I/O Panel

USB 3.0 x 1
USB 2.0 x 2
HD Audio

Radiator Support

Front: 240/360
(Separate Installation)
Rear: 120

GPU Length Limitation

325mm
