XA-22 (EN47567)

XA-22 (EN47567)

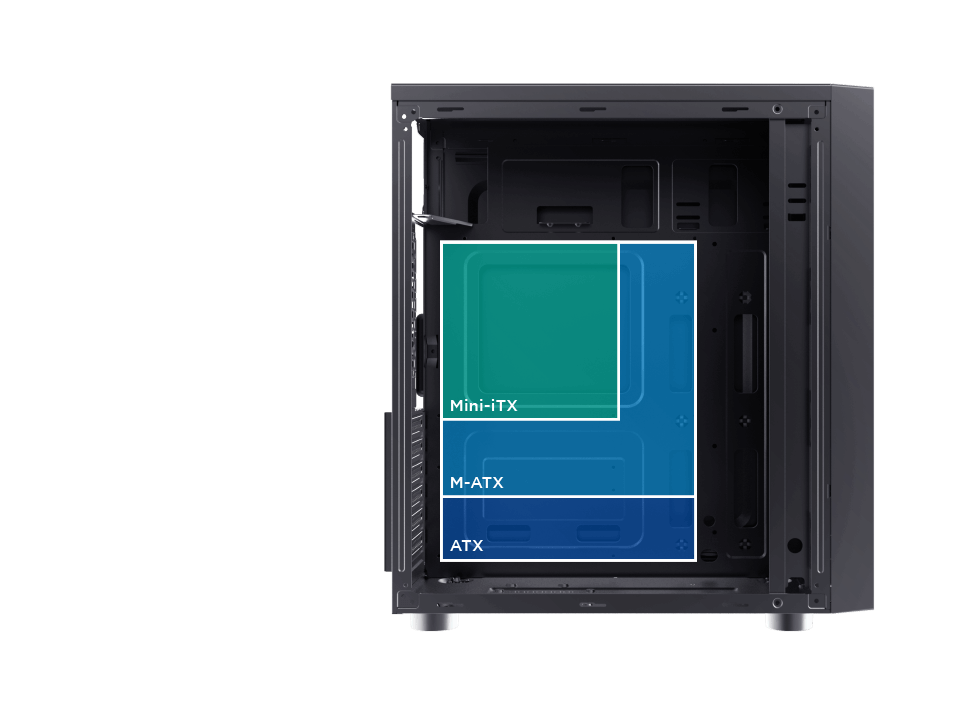

Support Motherboard
up to ATX

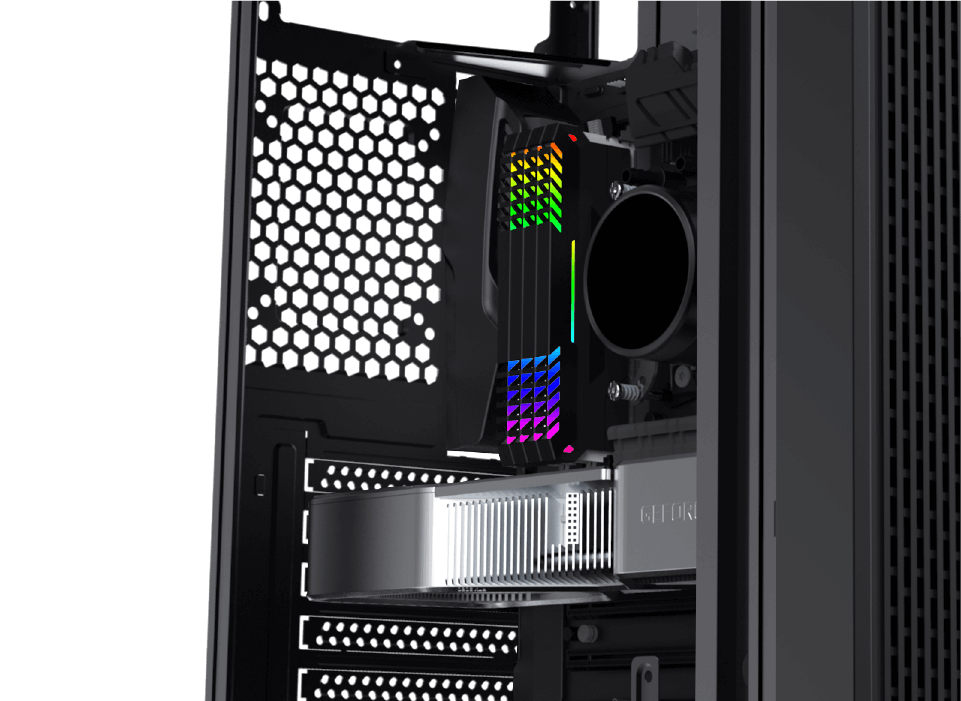

CPU Cooler Clearance
up to 155 mm

GPU Length Limitation
up to 330mm

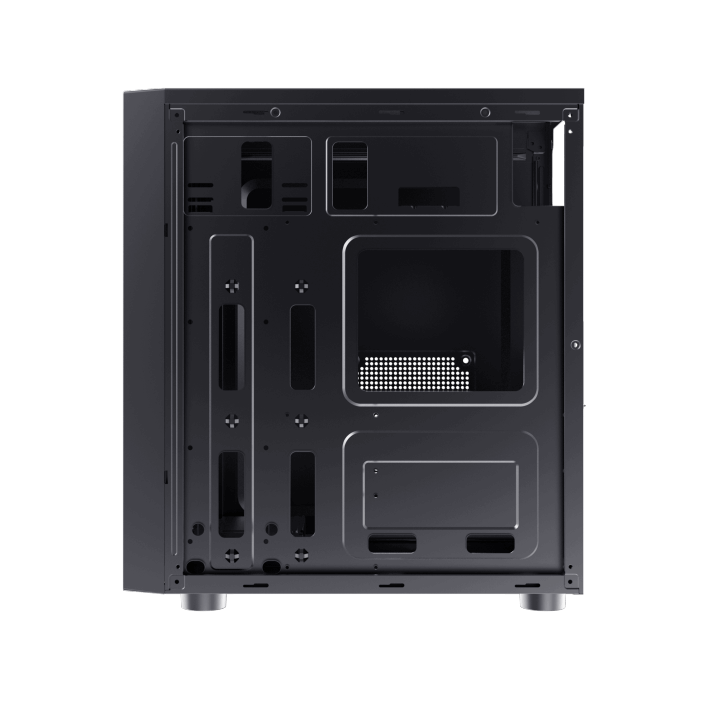

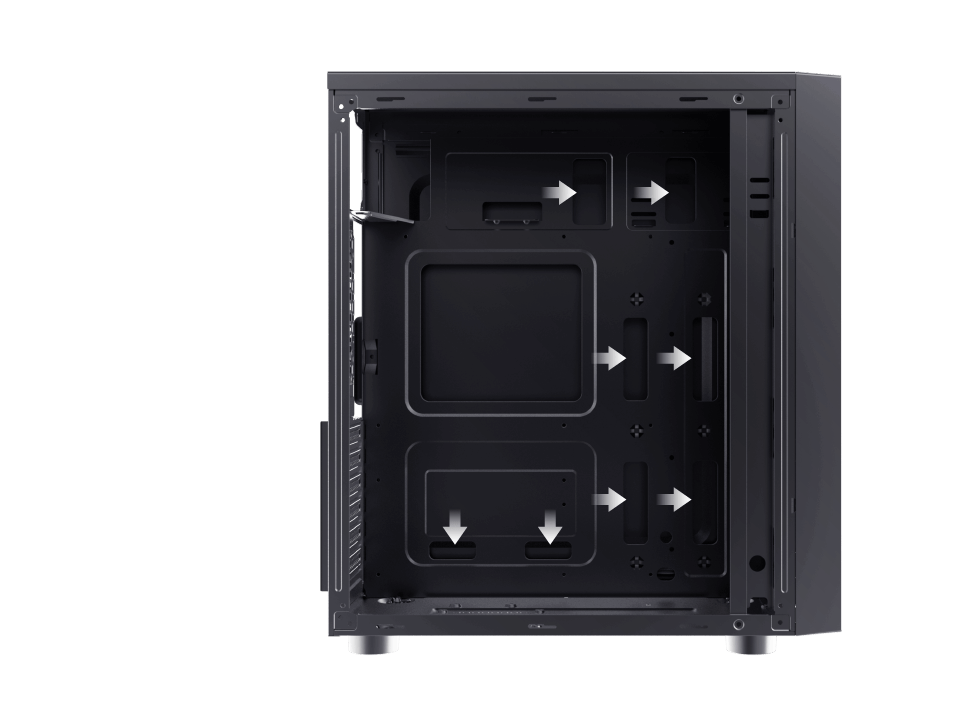

Easy Cable Management

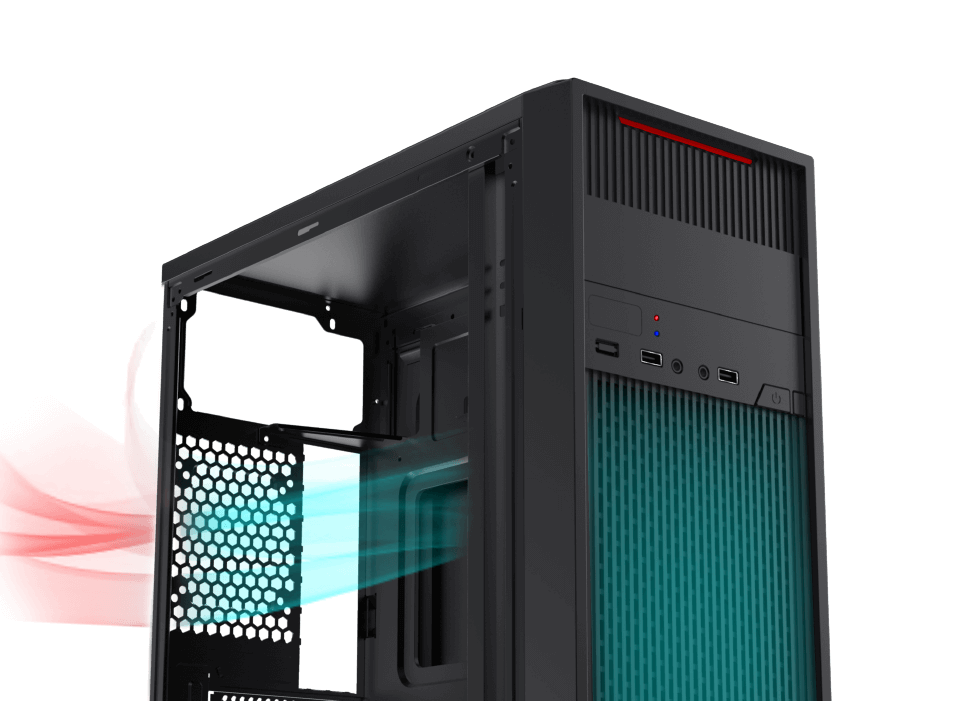

Superior Airflow And
ventilation Chassis Design

Build With Your
driver Prefernce

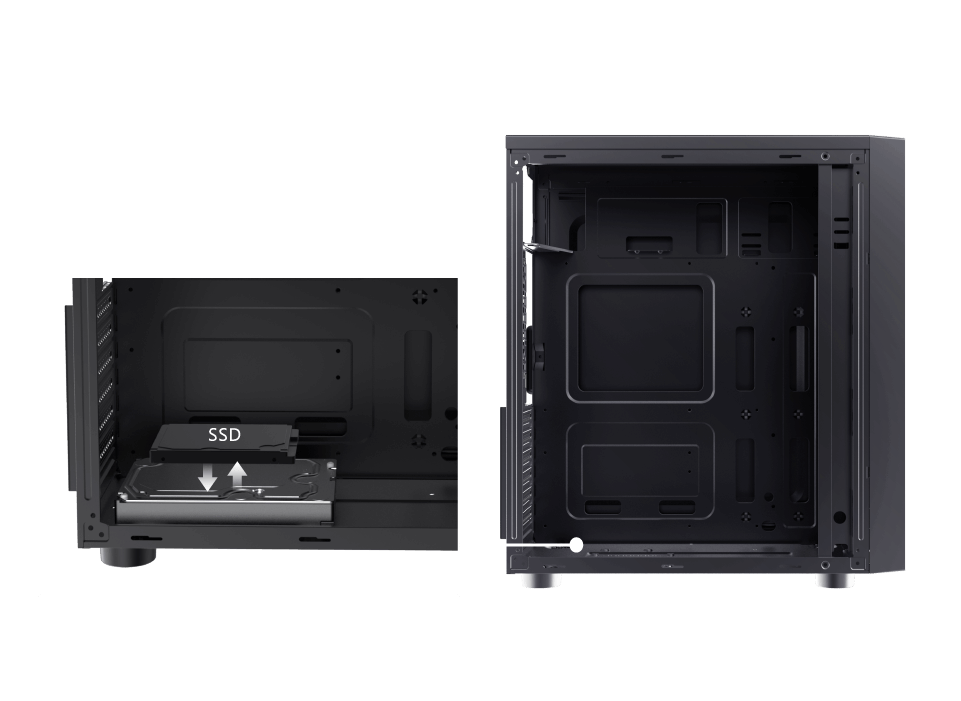

• Bottom Panel: 2.5″ or 3.5″ SSD/HDD

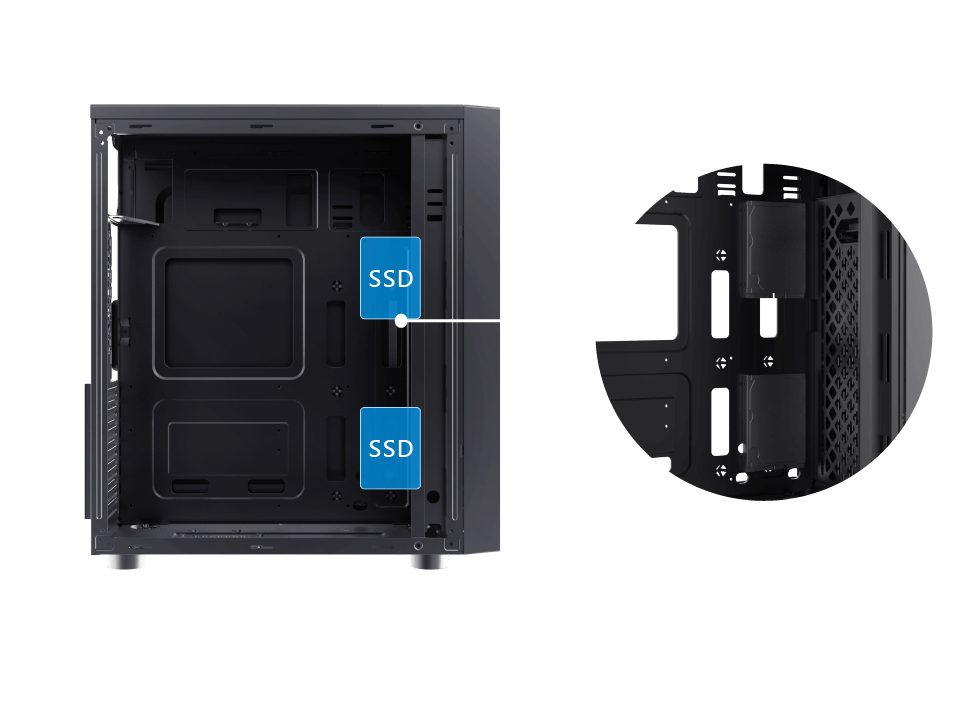

• MB Panel: 2.5″ SSD x 2

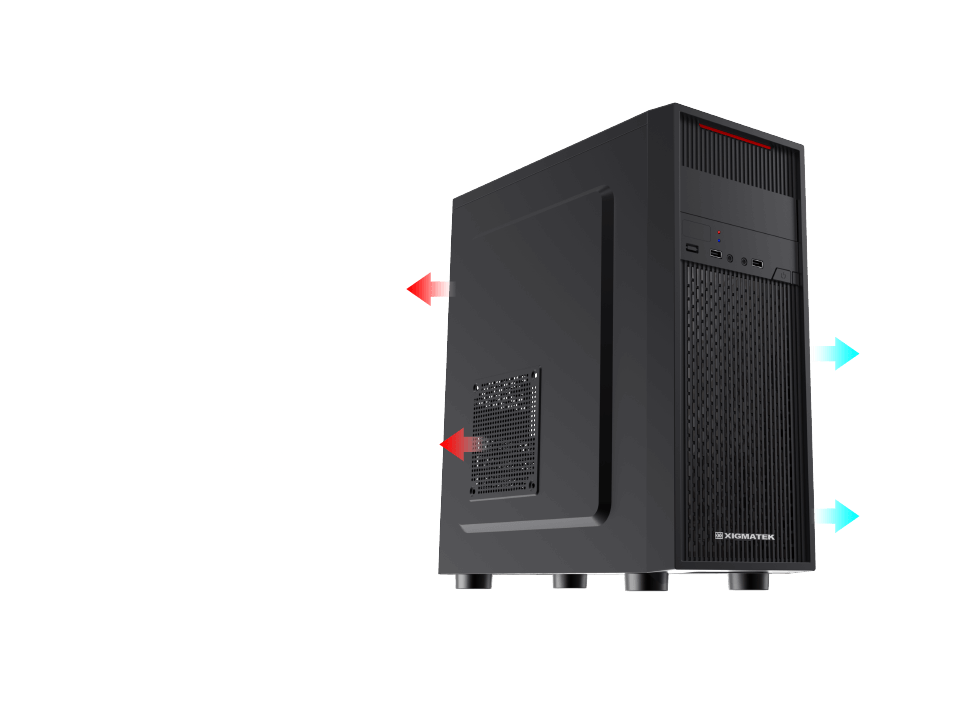

Fan Support

Front:2x120mm

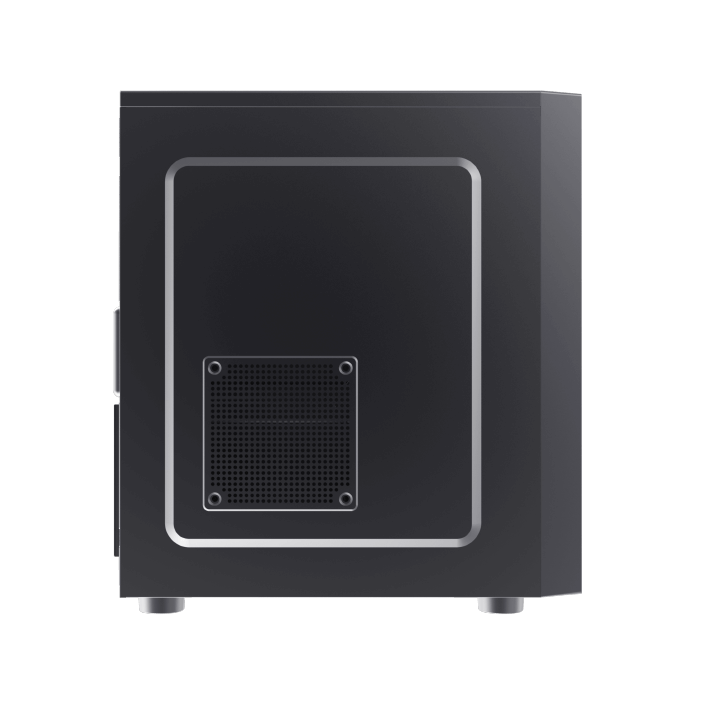

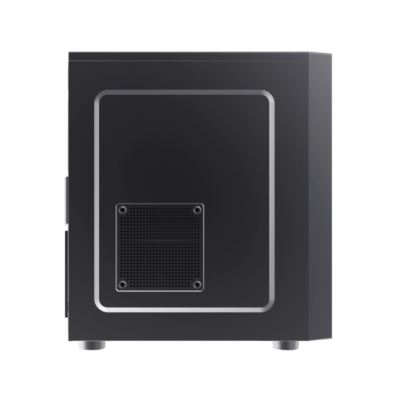

Left Panel:1x120mm
Rear: 1x80mm

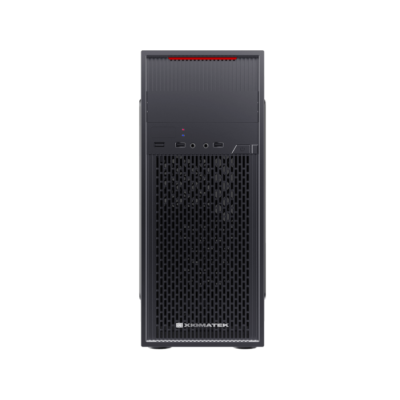

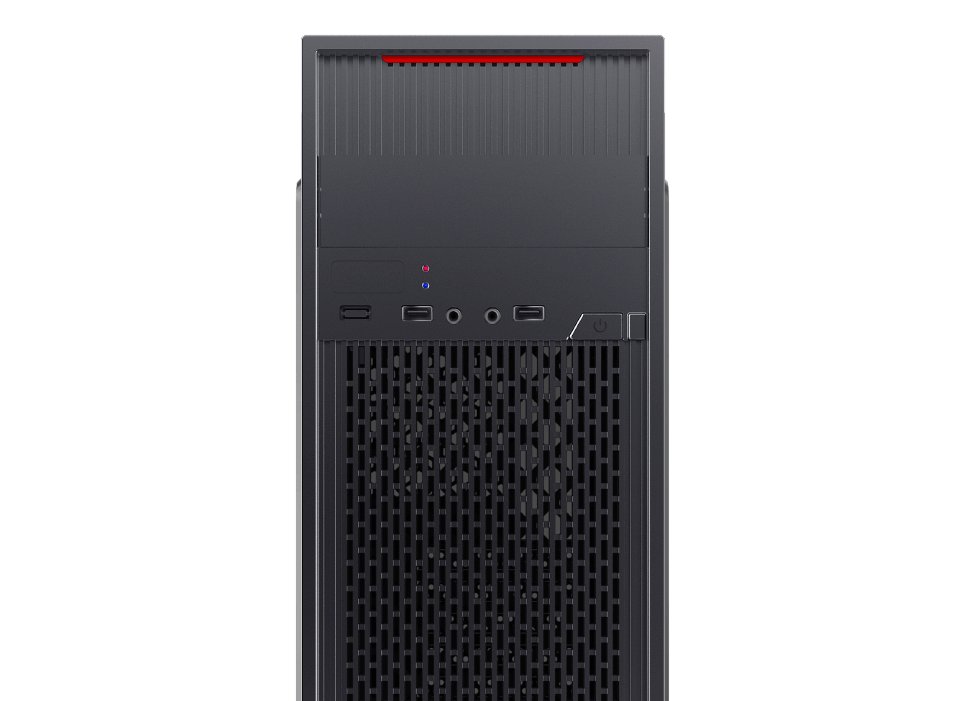

I/O PORT

• Power Button
• USB1.1×2
• AC97

All Product Images Shown Are For Illustration Purpose Only.

SPECIFICATIONS
Product Name

XA-22

Material

Steel

Dimensions

373mm (L) x 188mm (W) x 413mm (H)

Drive Bays

2.5inch SSD/HDD x 2
3.5inch HDD x 1

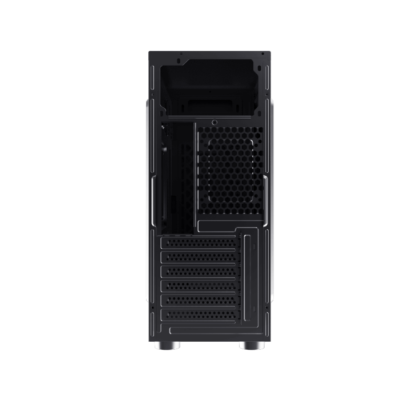

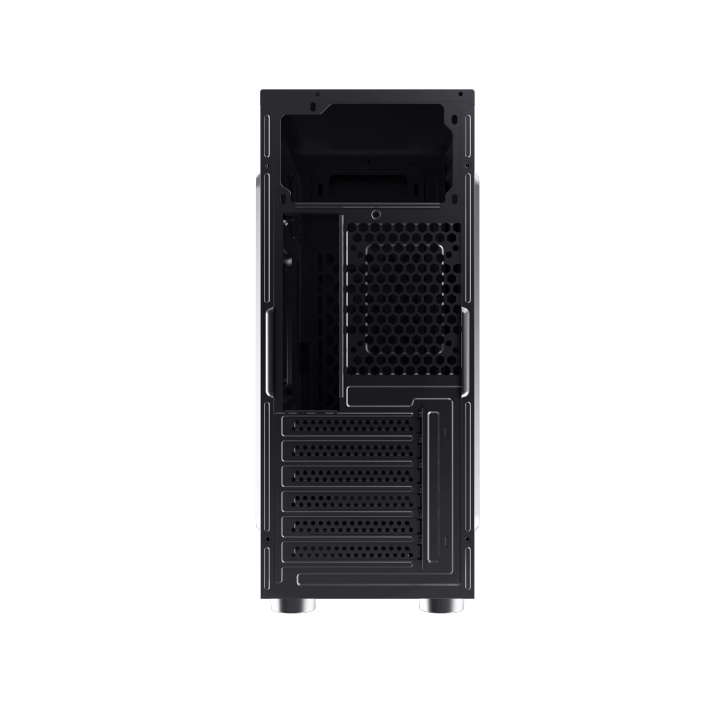

Expansion Slots

7 Standard Slots

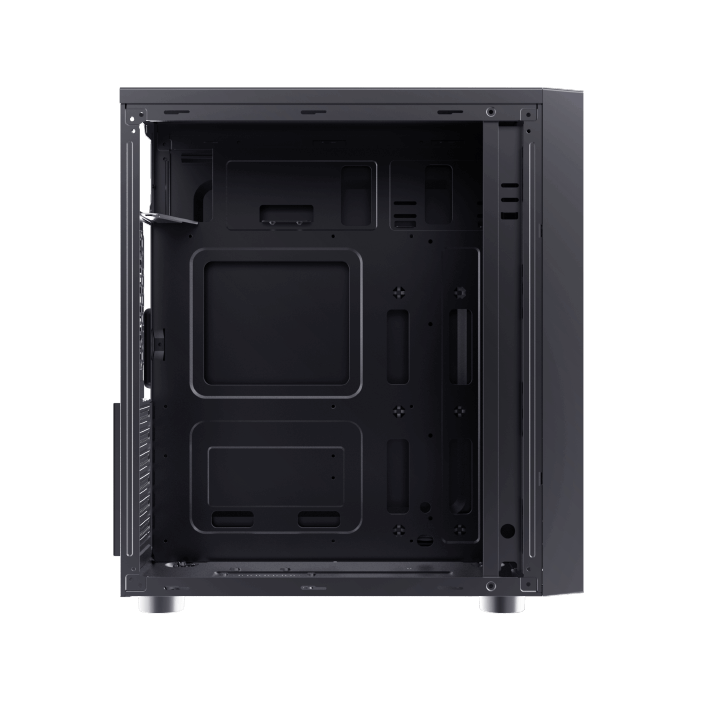

Motherboard Support

ATX, M-ATX, Mini-ITX

Power Supply

Standard PS2 ATX PSU

Fan

Front: 2x120mm
Rear: 1x 80mm
Left: 1x120mm

I/O Panel

USB1.1×2 & AC97

CPU Cooler

155mm

VGA

330mm
