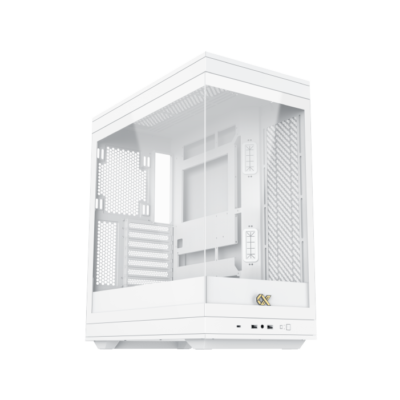

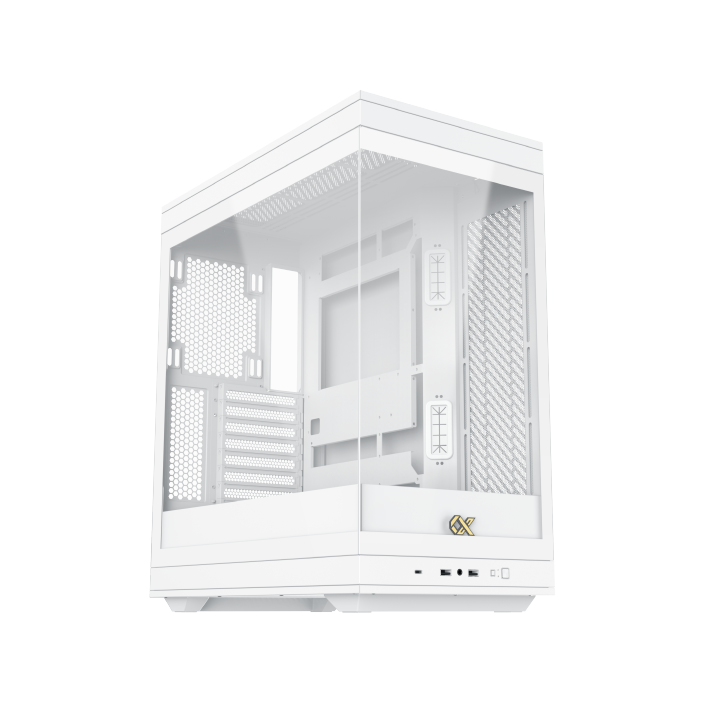

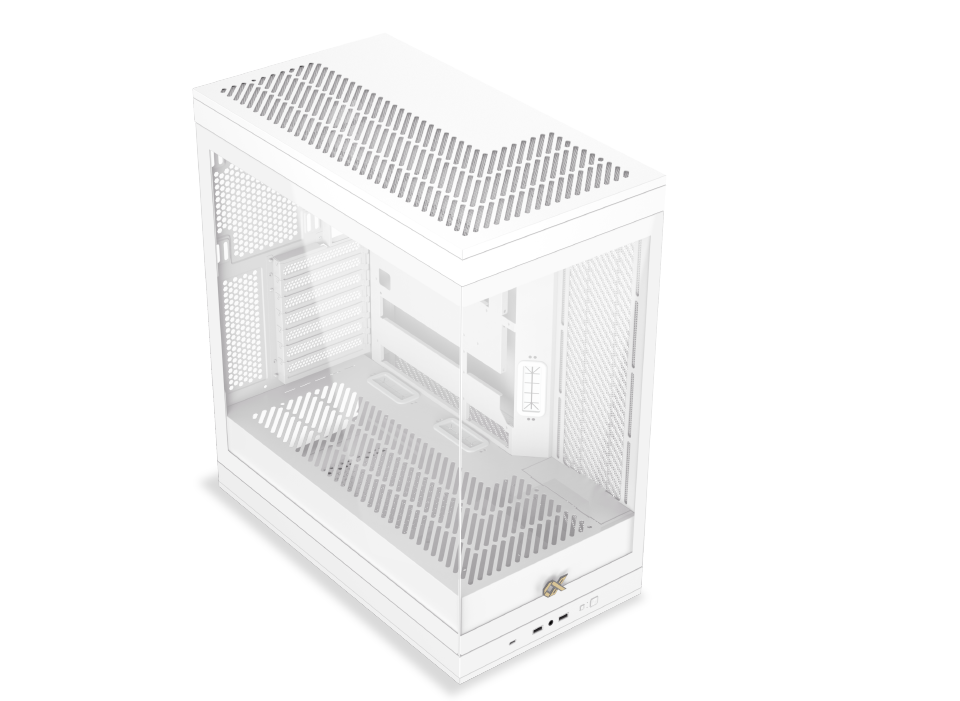

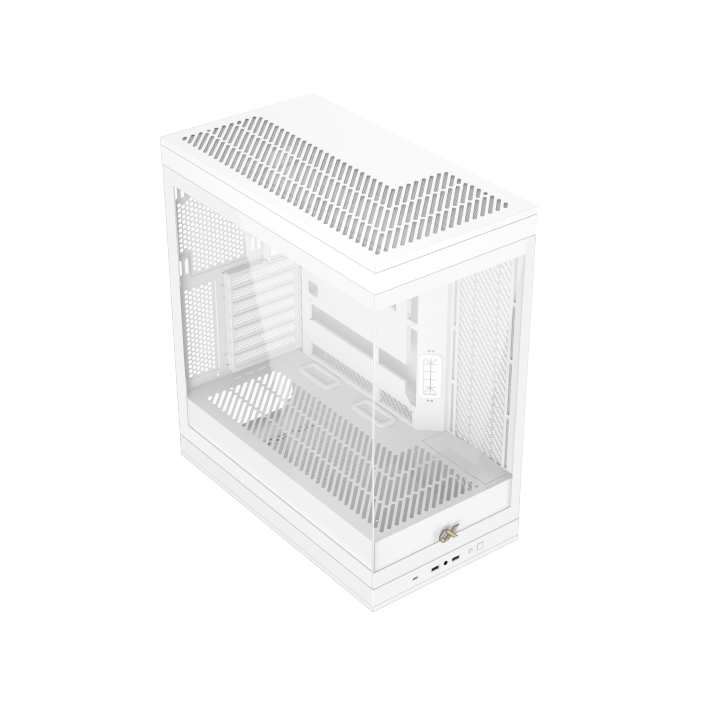

Chassis With 2 Tempered
Glass Panel

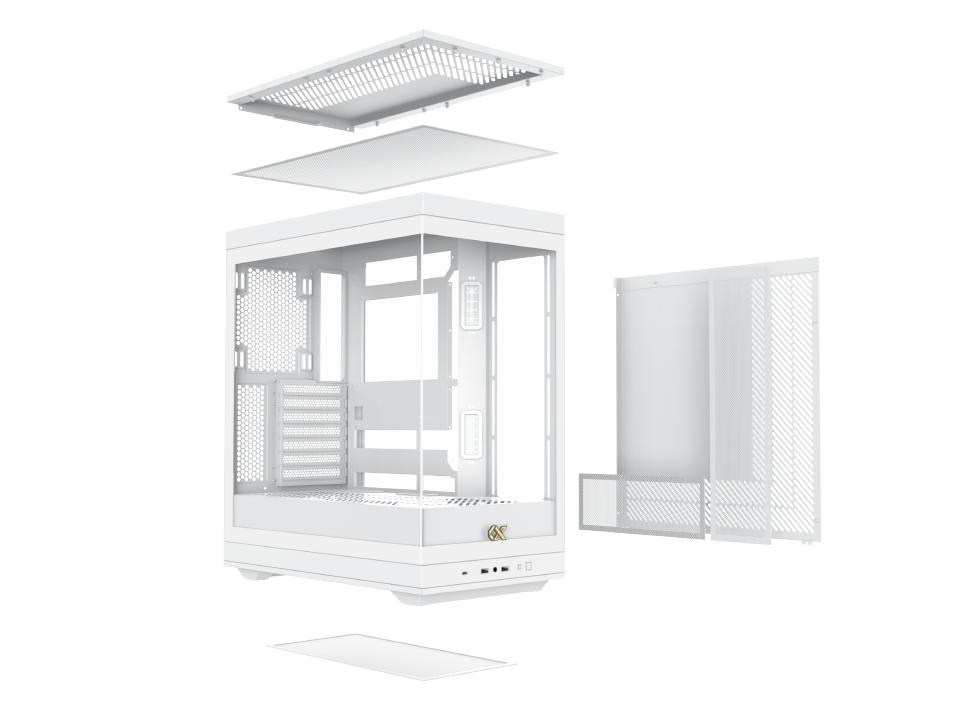

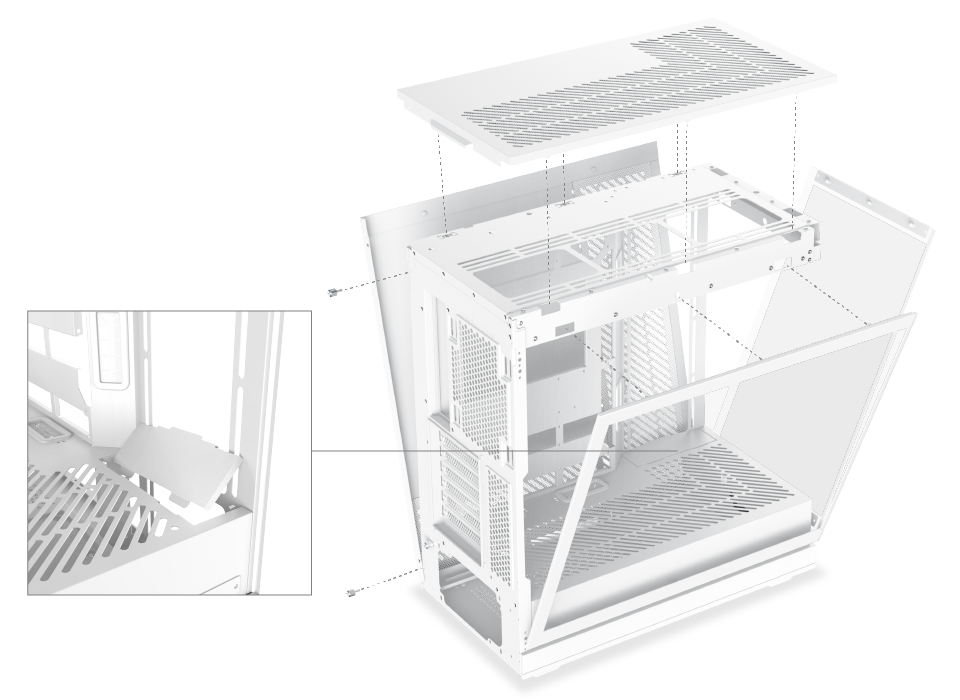

Easy Mounting Panels

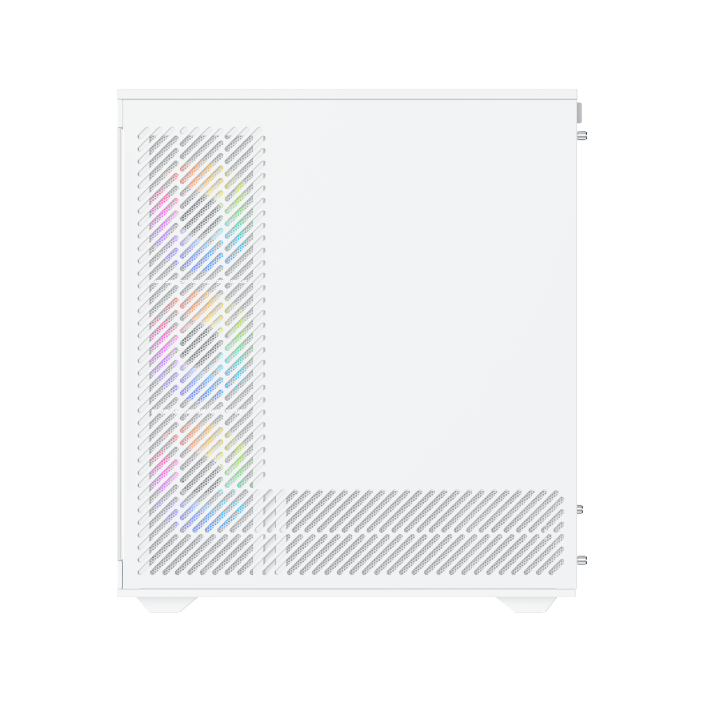

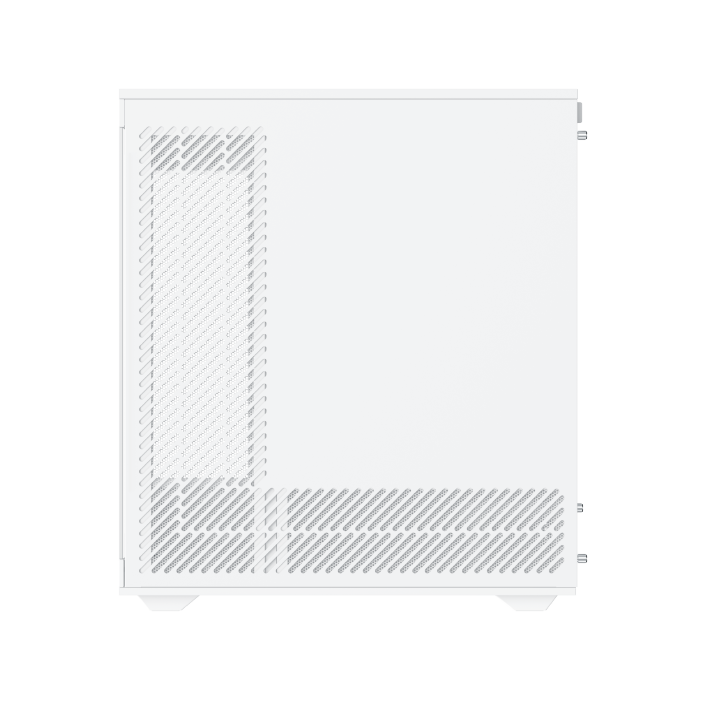

Removable MB Panel Fan Cover
With Cover: Support 2PCS 120mm Fan
Without: Support 3PCS 120mm Fan
Dust Filter
Pre-installed on Top & Bottom & Right Side

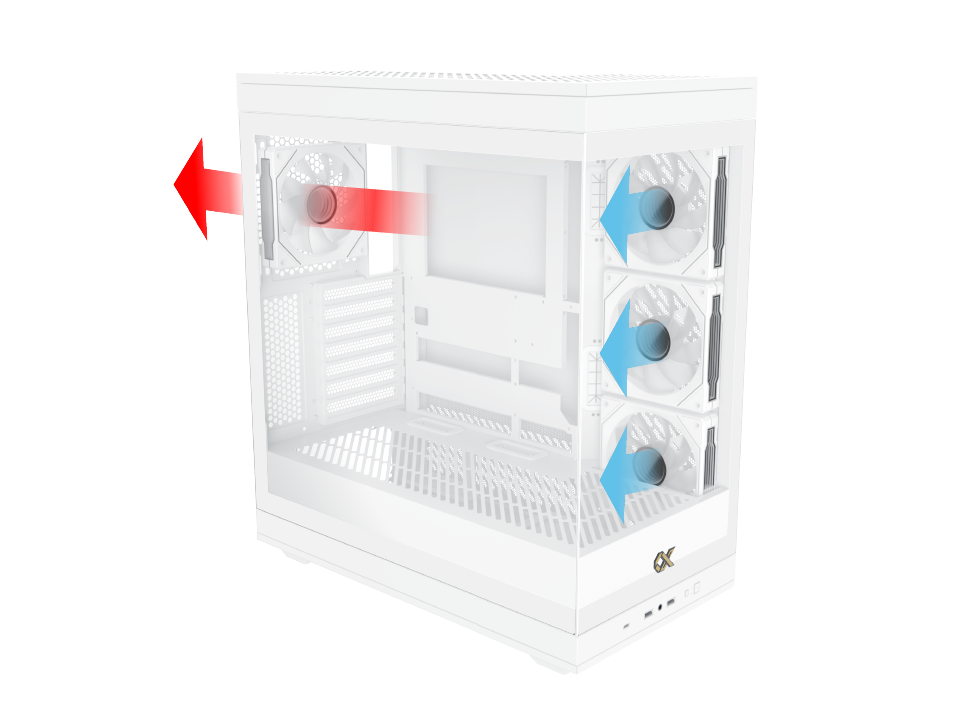

Superior Airflow and
Ventilation Design

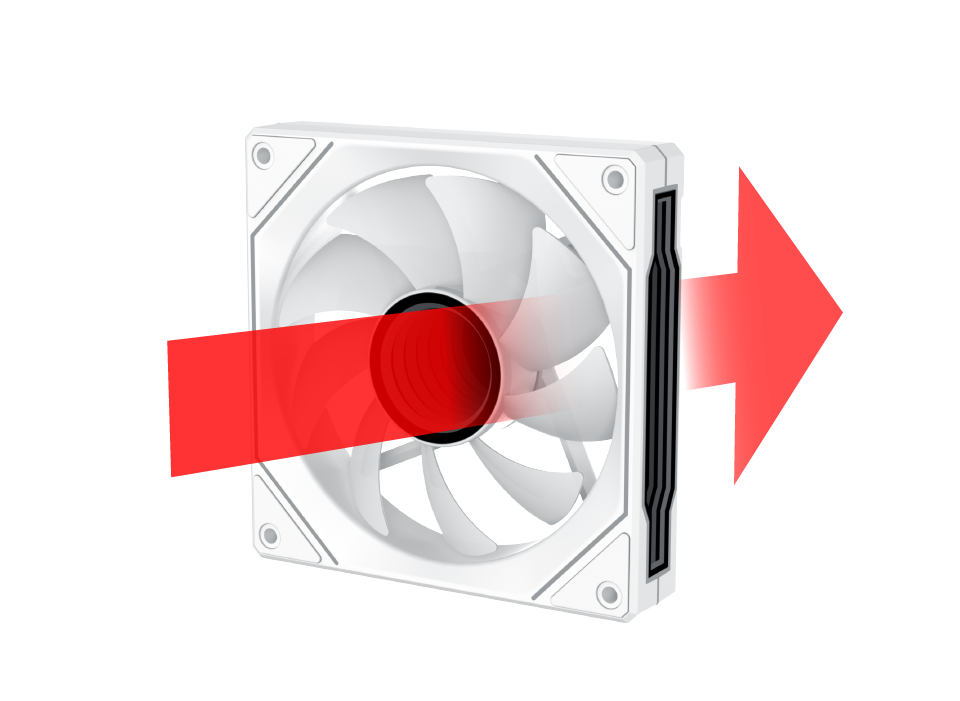

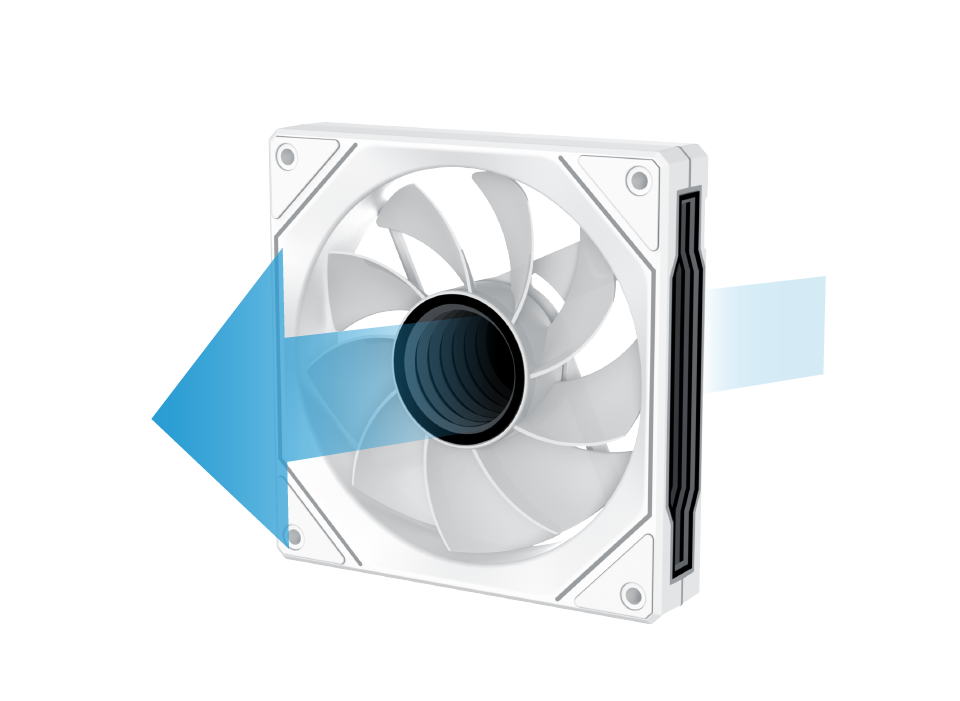

Traditional Fan Blade

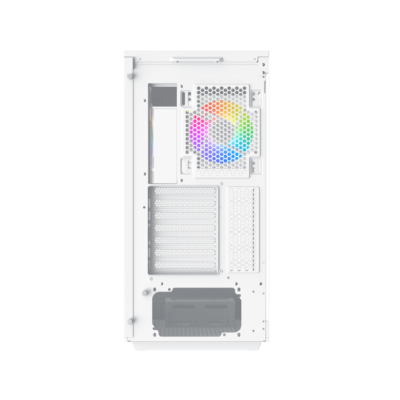

Pre-installed on Rear Side
Reverse Fan Blade
Pre-installed on MB Panel Side

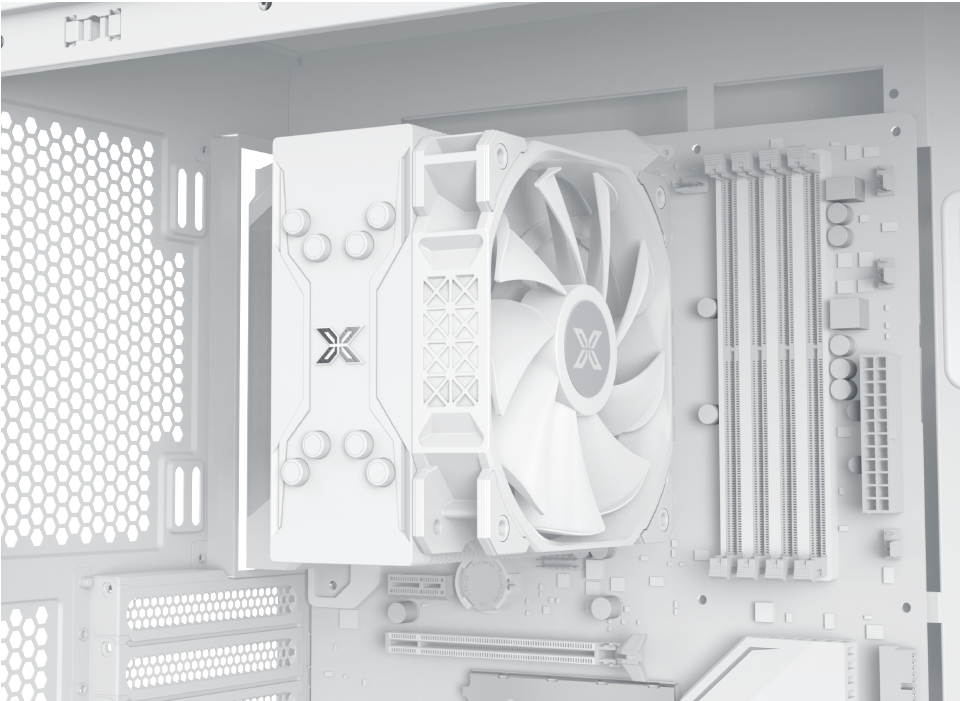

CPU Cooler Clearance
up to 175
GPU Length Limitation
400mm

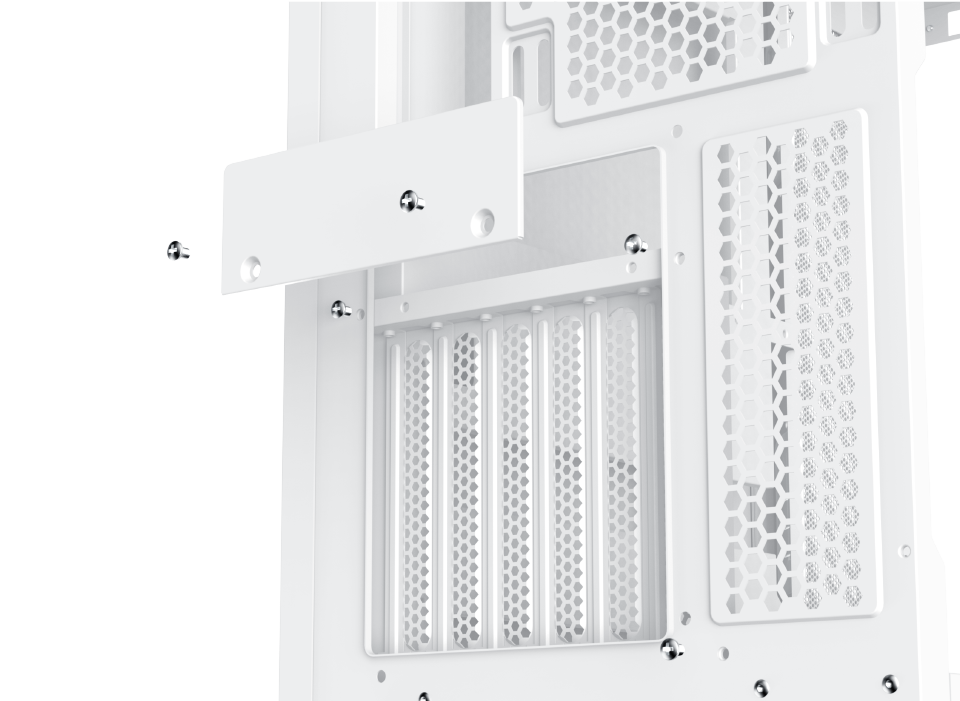

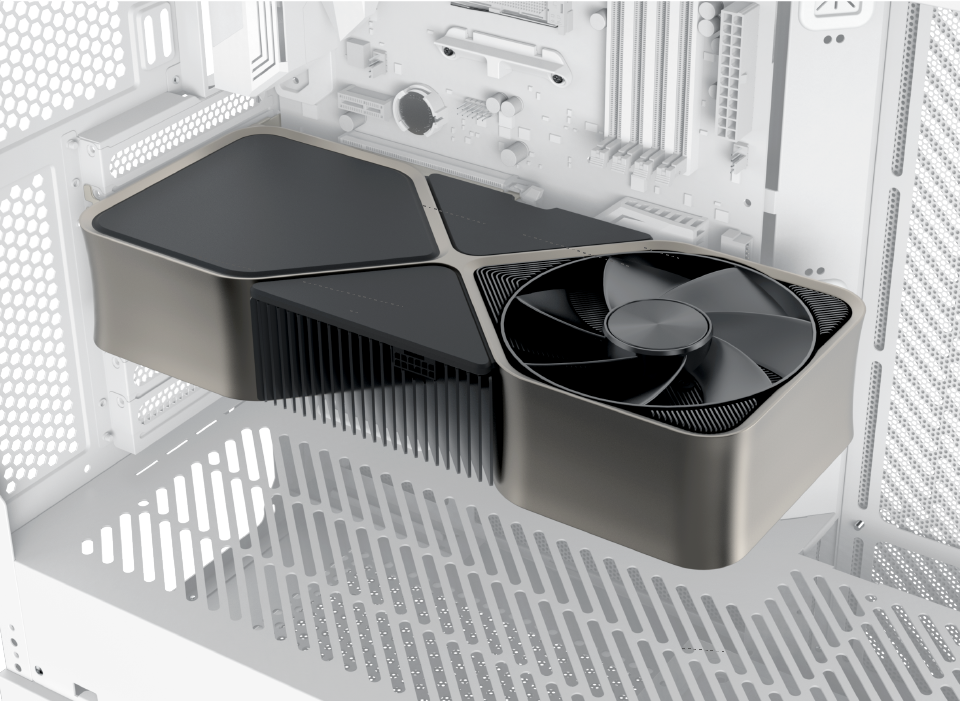

Support GPU Vertical
Installation

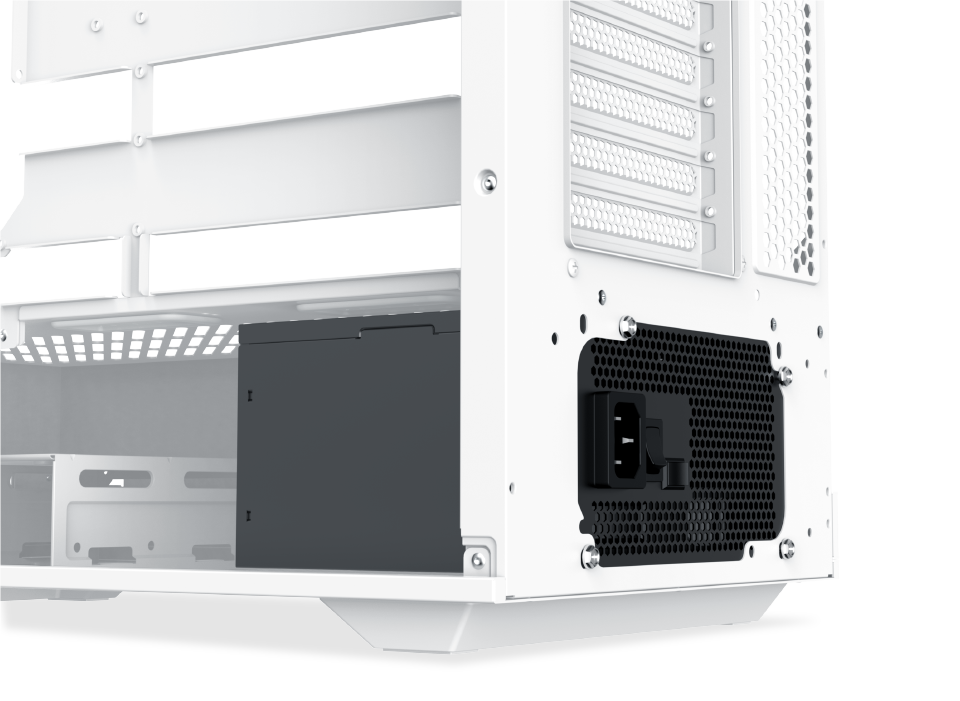

PSU Limitation
up to 220mm

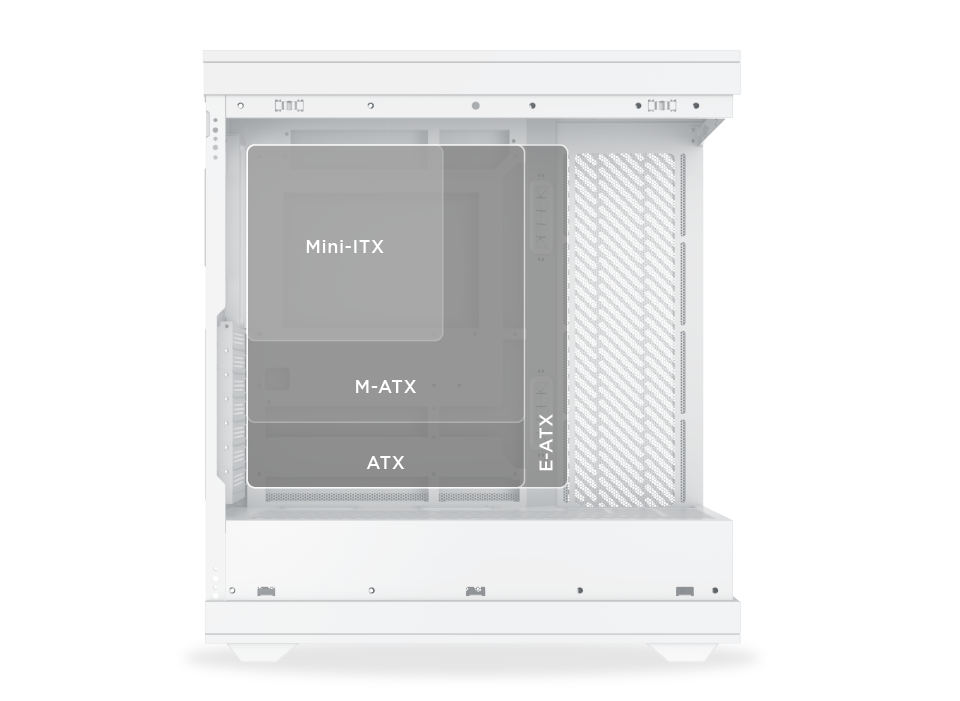

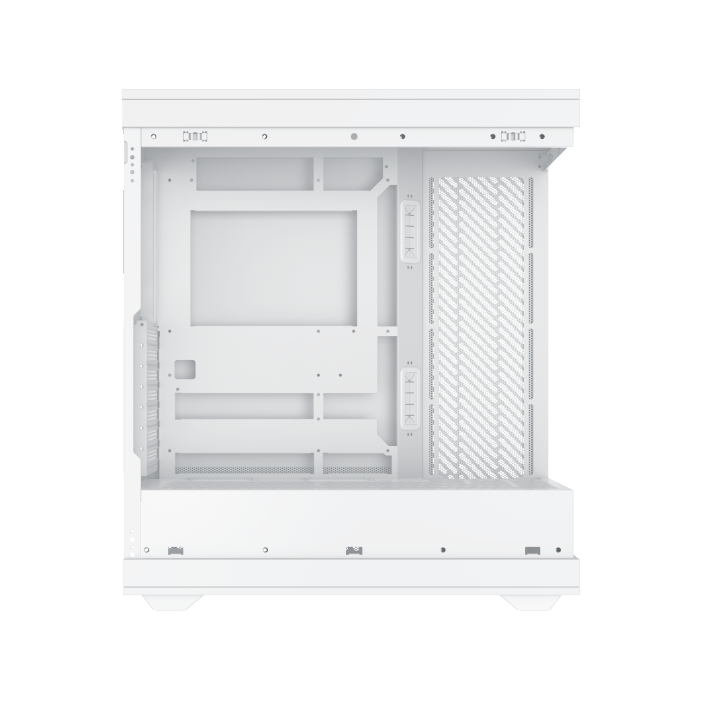

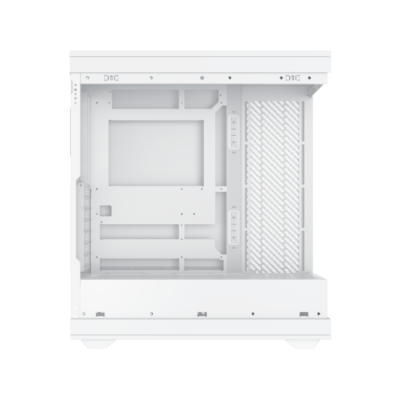

Motherboard Support
up to E-ATX

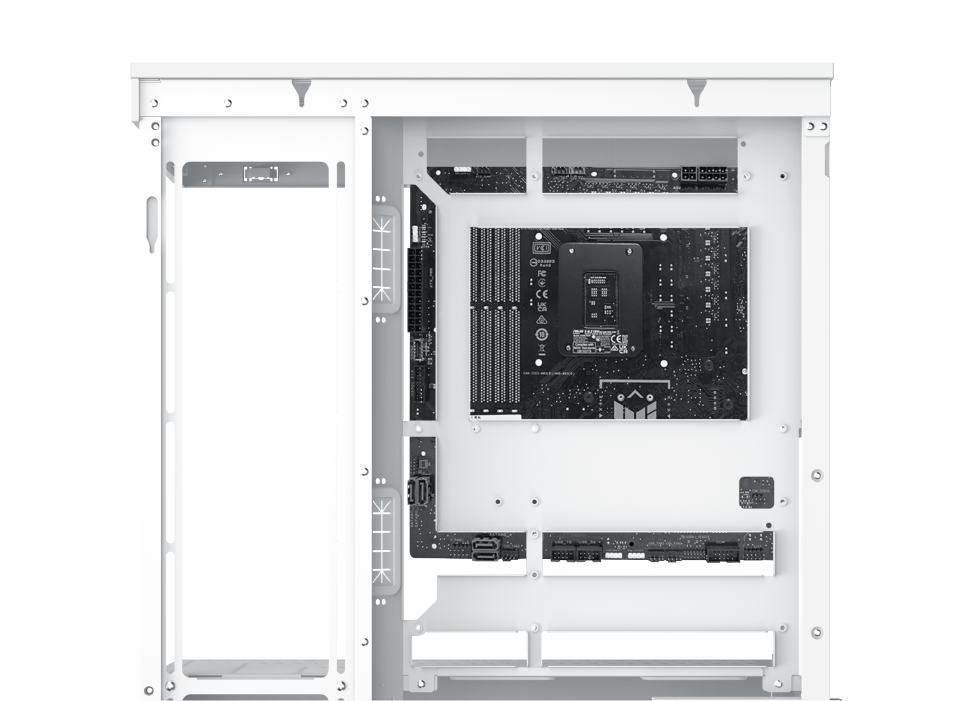

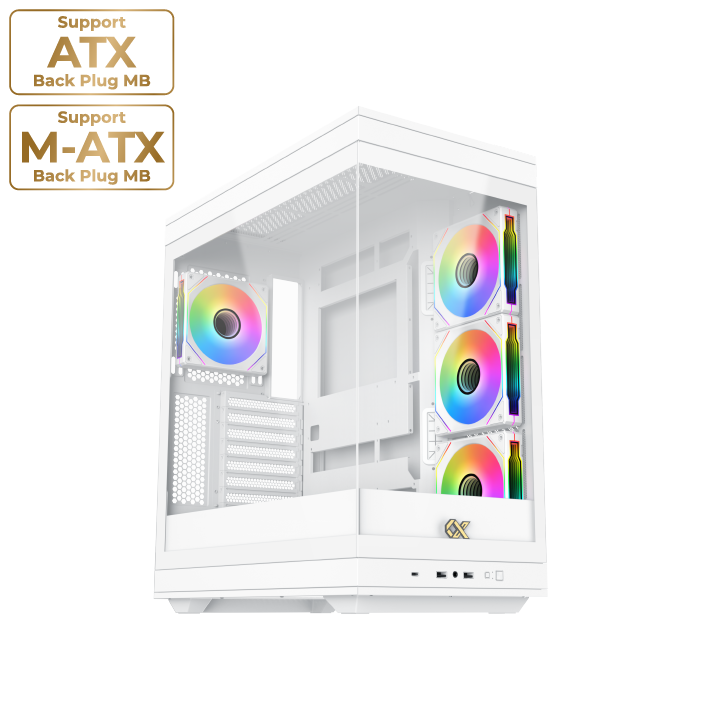

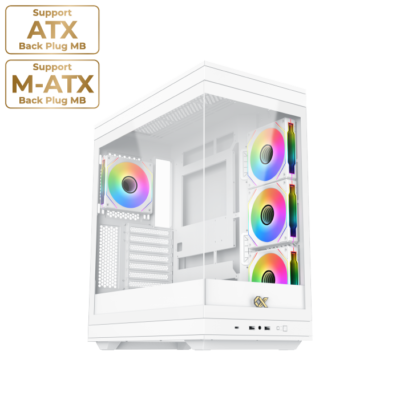

Support ATX Back Plug
Motherboard
Support Model:
ASUS TUF B760M-BTF WIFI-D4
ASUS TUF-Gaming-B760M-BTF-WIFI-D4
MSI Z790 PROJECT ZERO
COLORFUL CVN B760M-BACK FROZEN-WIFI V20
and More to Come

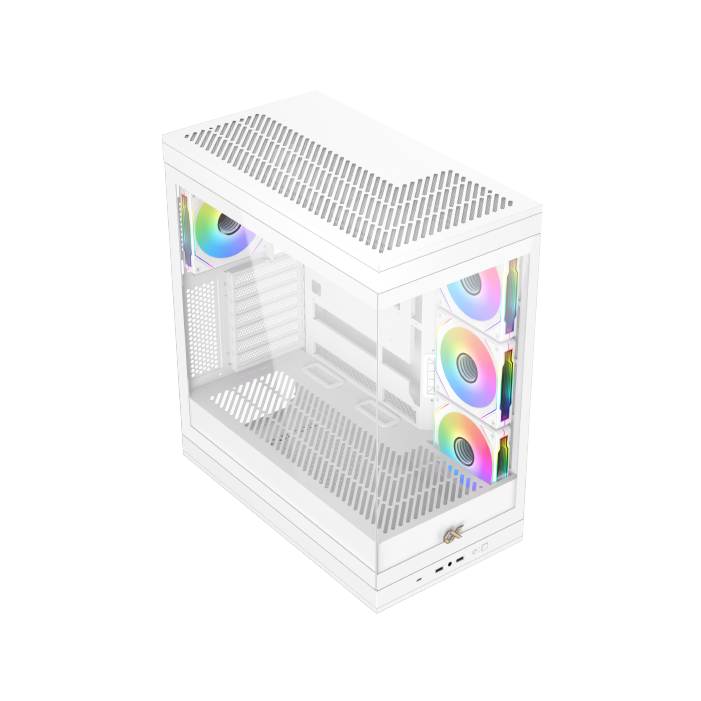

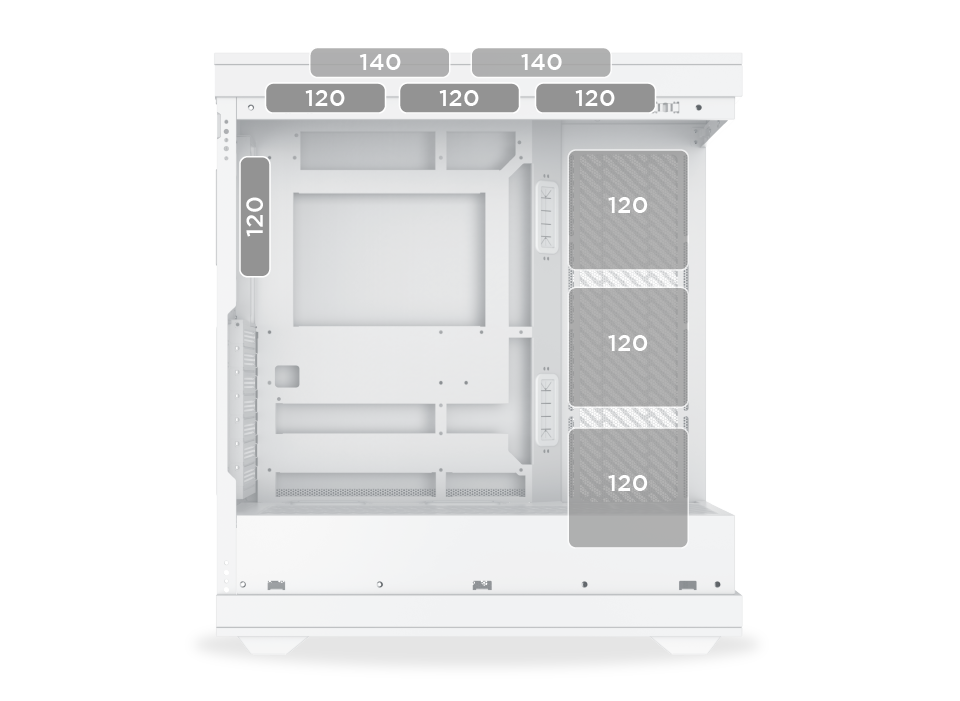

Fan Support
Top: 120mm x3 or 140mmx2
MB Panel: 120mm x3
Rear: 120mm x1

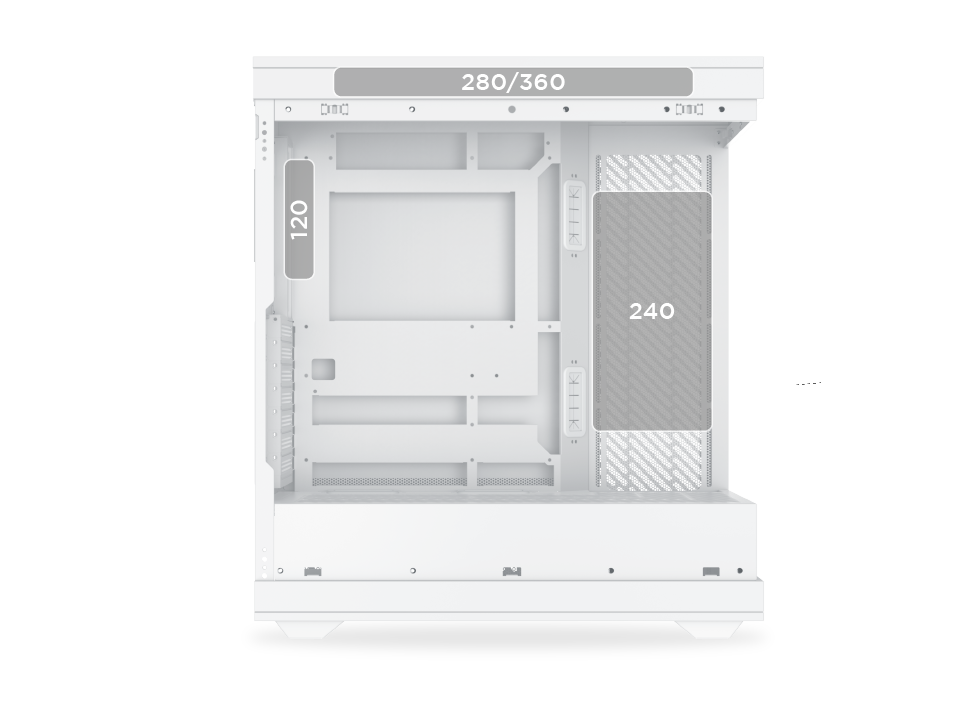

Radiator Support
Top: 280/360
MB Panel:240
(EATX MB Width ≦28.5cm)
Rear:120
Rear: 12

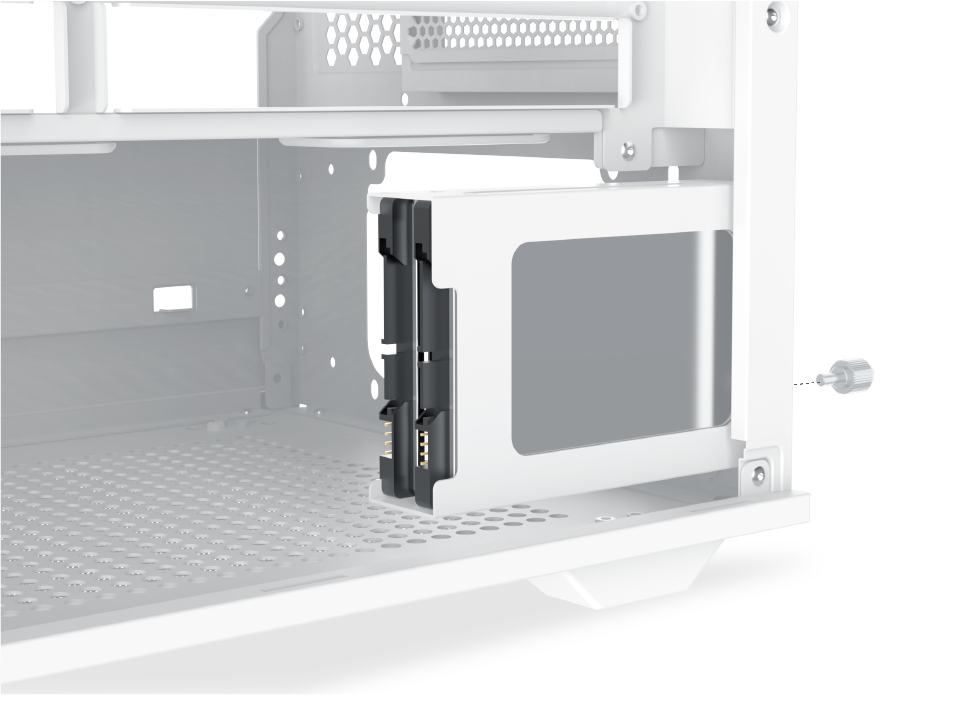

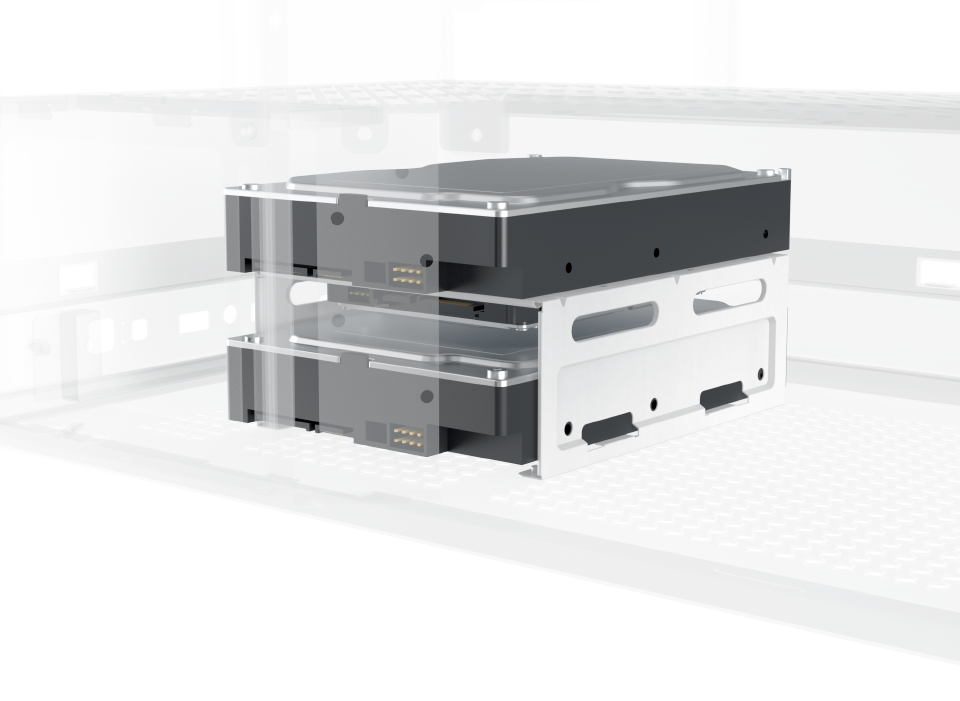

HDD Cage
3.5″ x2
SSD Cage
2.5″ x2

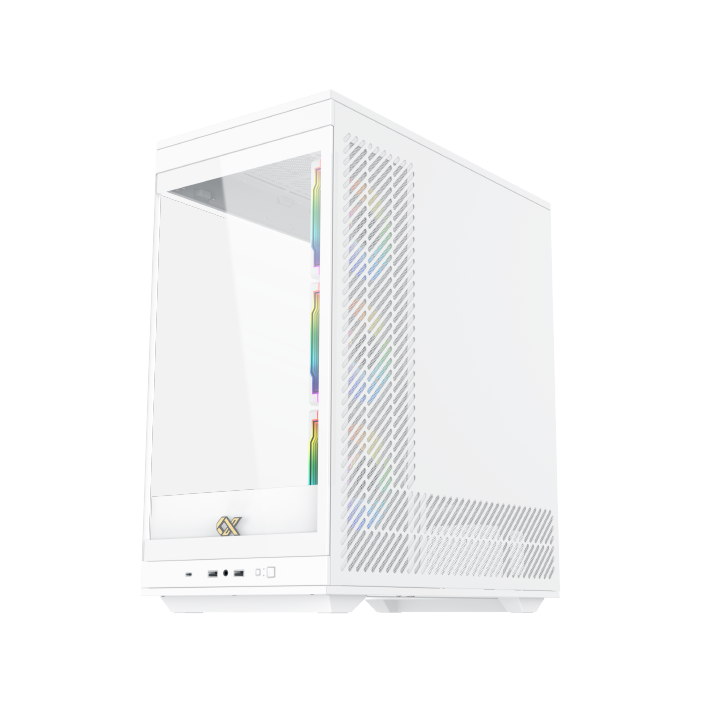

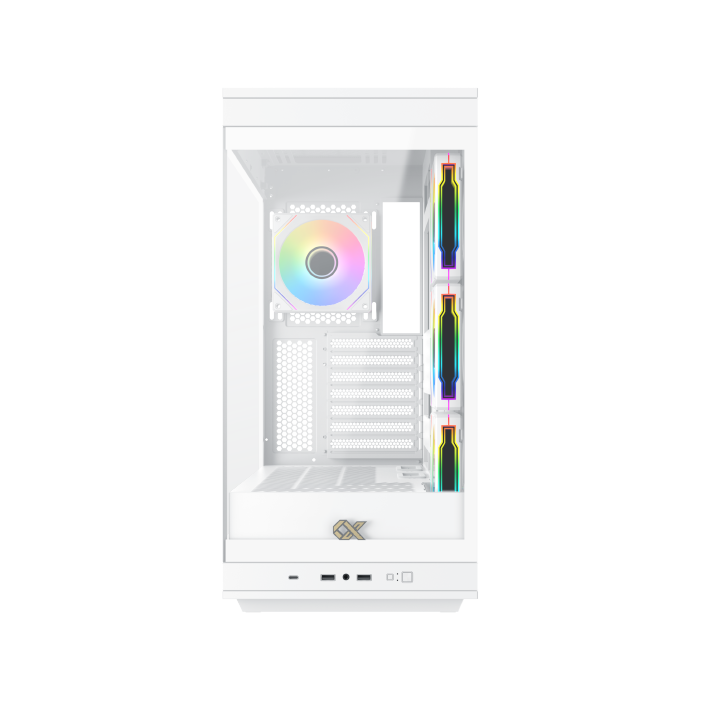

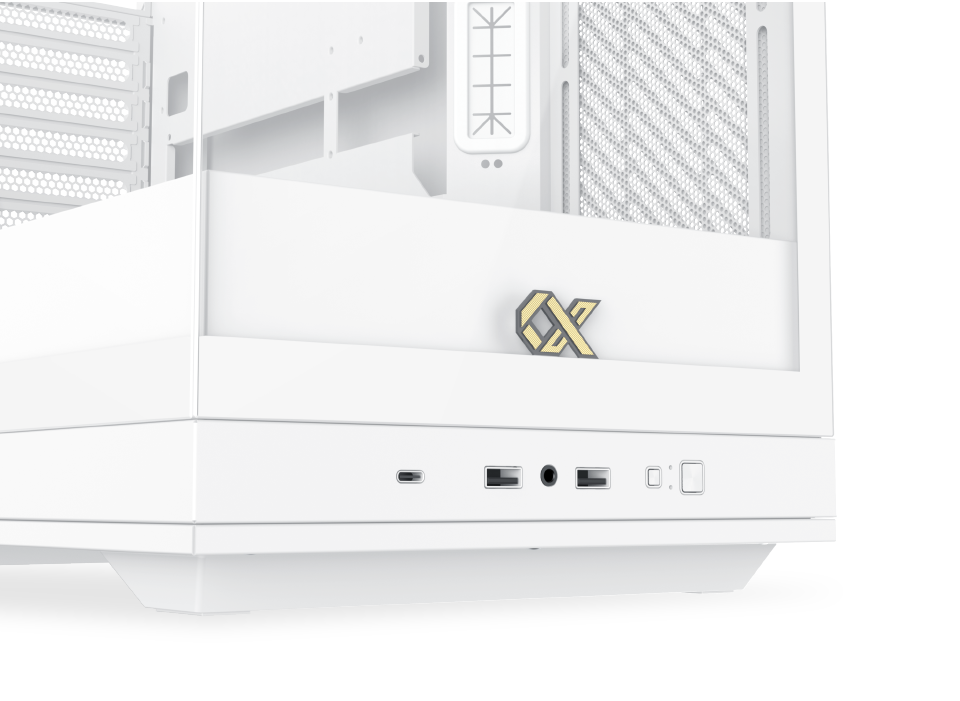

Front Mount I/O Ports
• Power Button
• Reset Button
• USB-C x1
• USB 3.0 x2
• HD Audio Jack
*All Product Images Shown Are For Illustration Purpose Only.

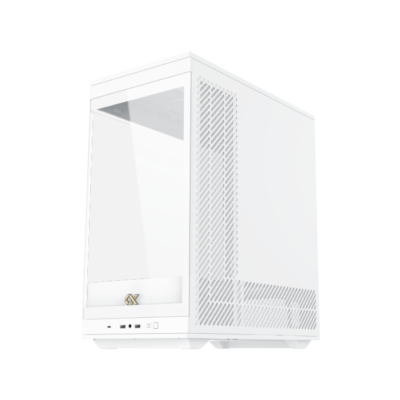

Meta Arctic
430x238x495mm (LxWxH)
E-ATX
ATX (Support Back Plug)
Micro ATX
Mini ITX
HDD Cage: 3.5” x2
SSD Cage: 2.5” x2
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
Rear: 120mm x1
220mm
175mm
Steel
7 Standard Slots
Support VGA Card Vertical
Installation
Standard PS2
ATX PSU
USB 3.0 x 2
USB-C x 1
HD Audio
Top: 280/360
MB Panel: 240
(E-ATX MB Width ≤28.5cm)
Rear: 120
400mm
